Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

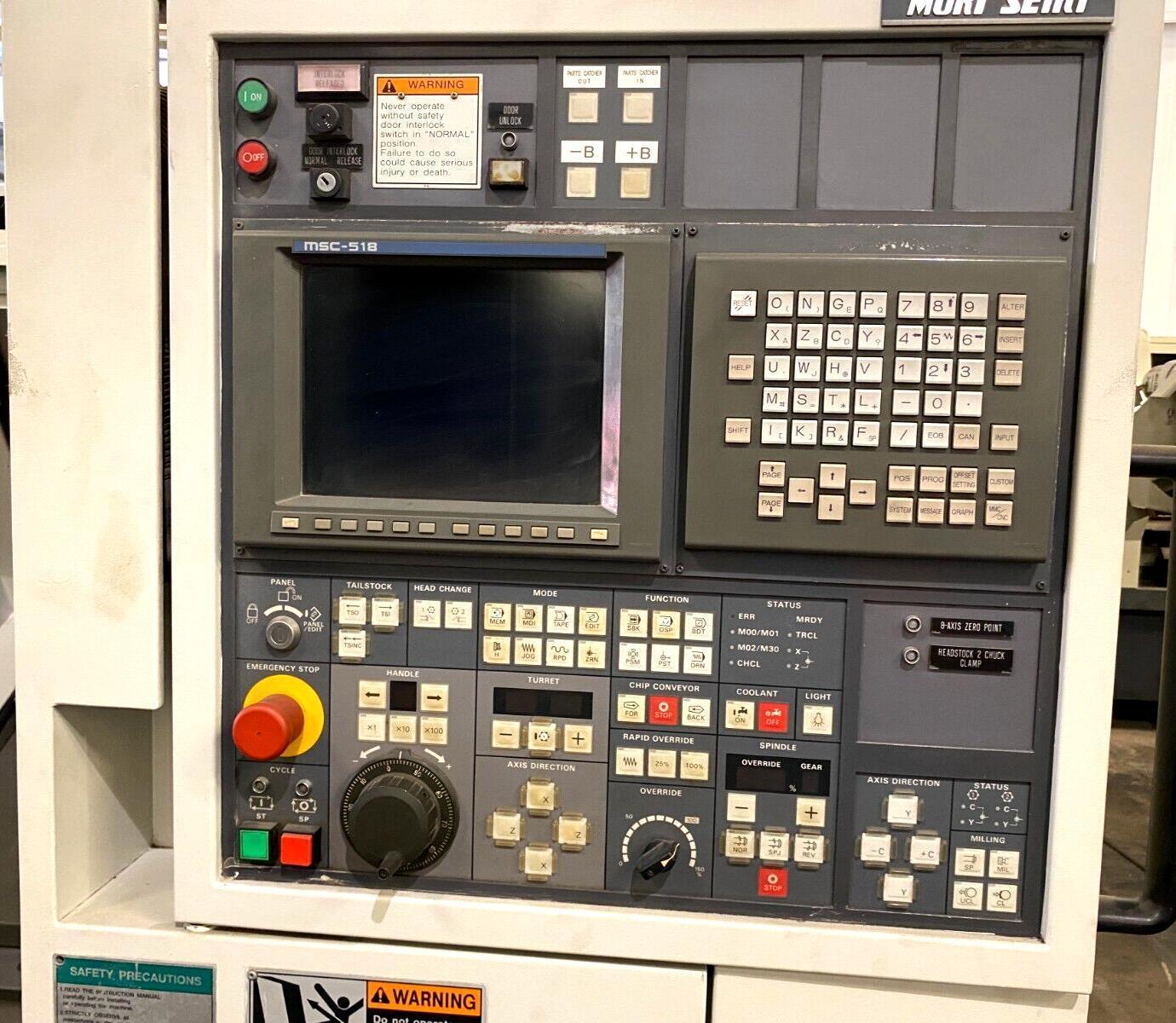

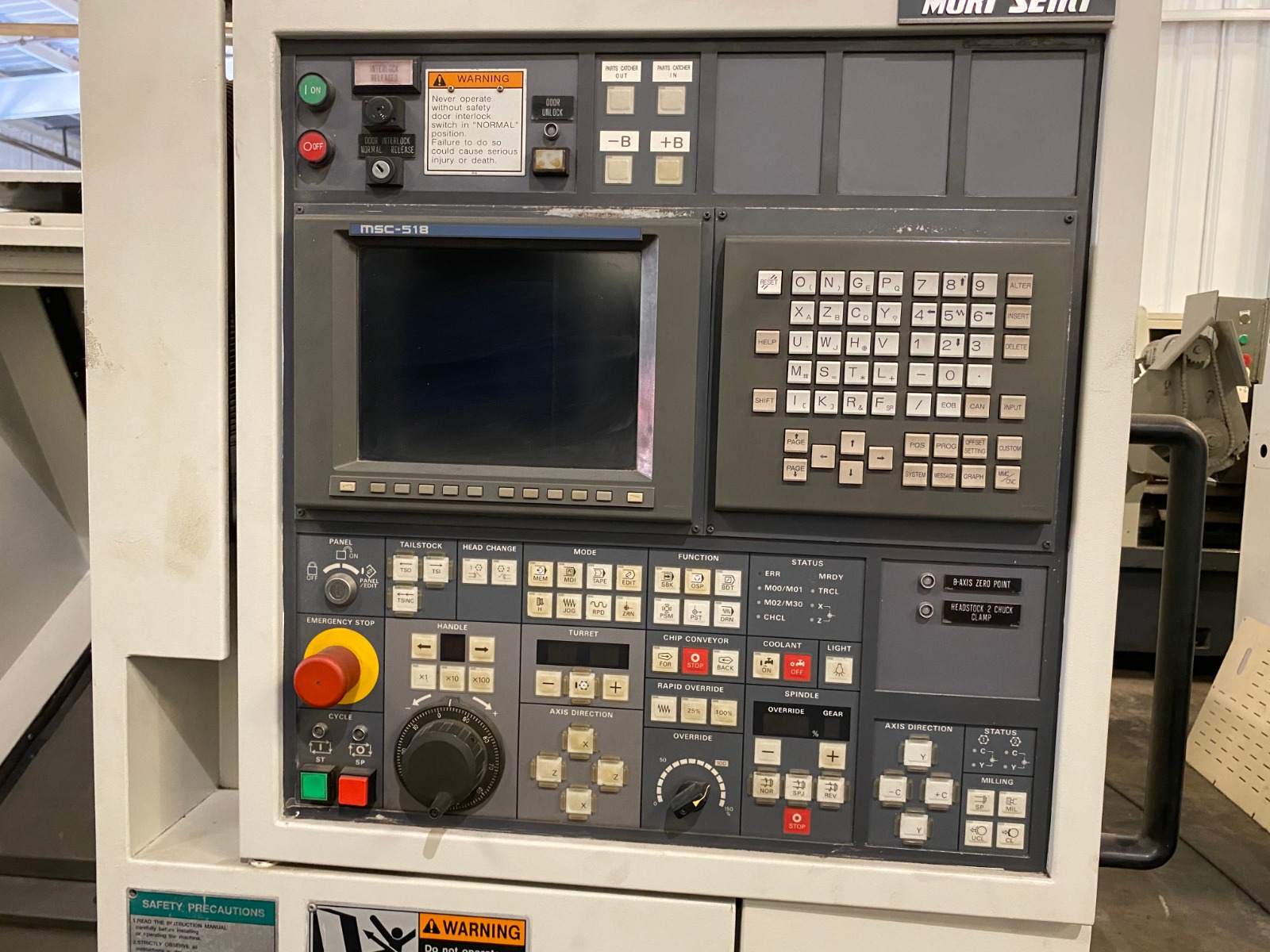

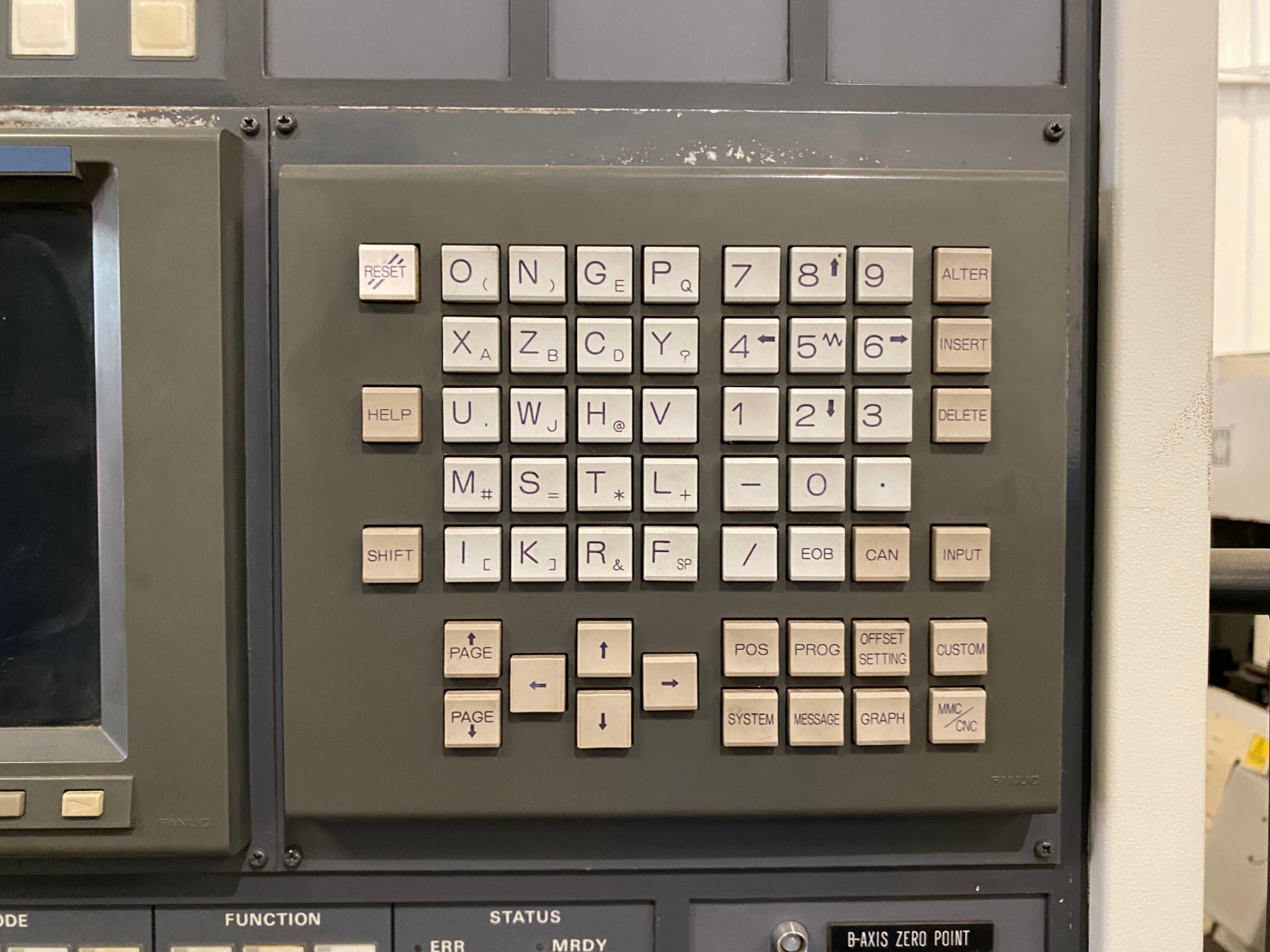

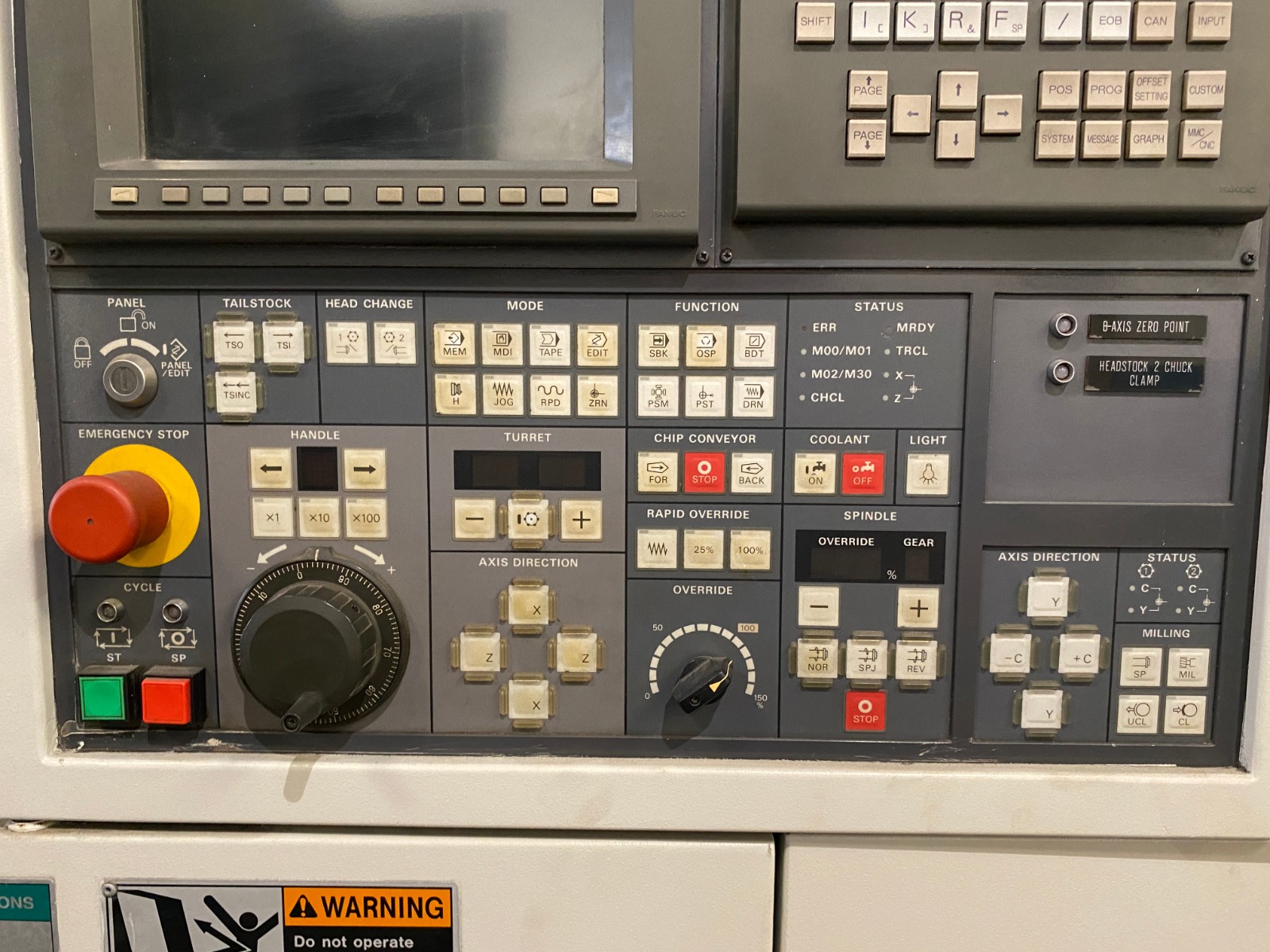

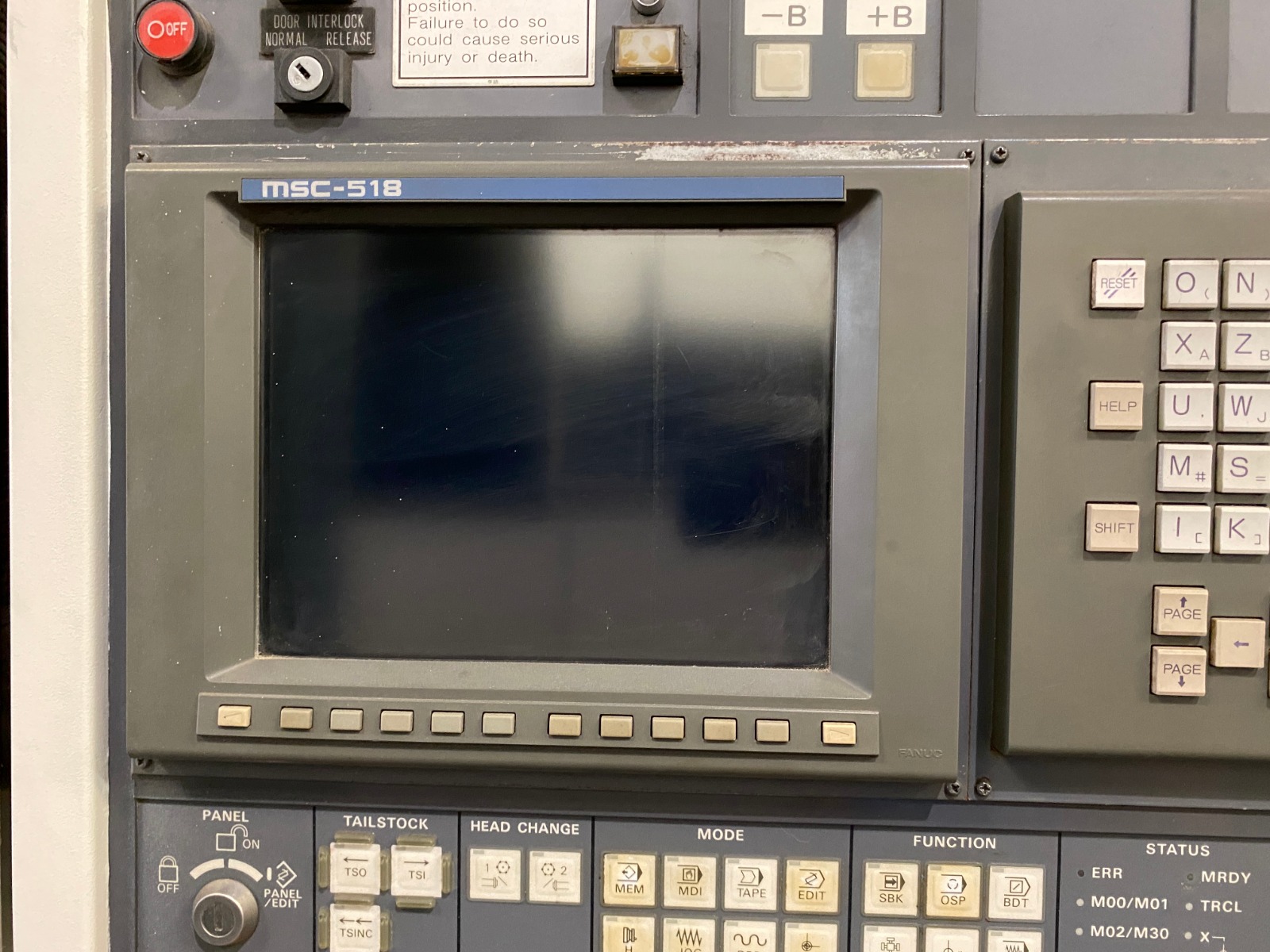

| Fanuc MSC-518 CNC Control |

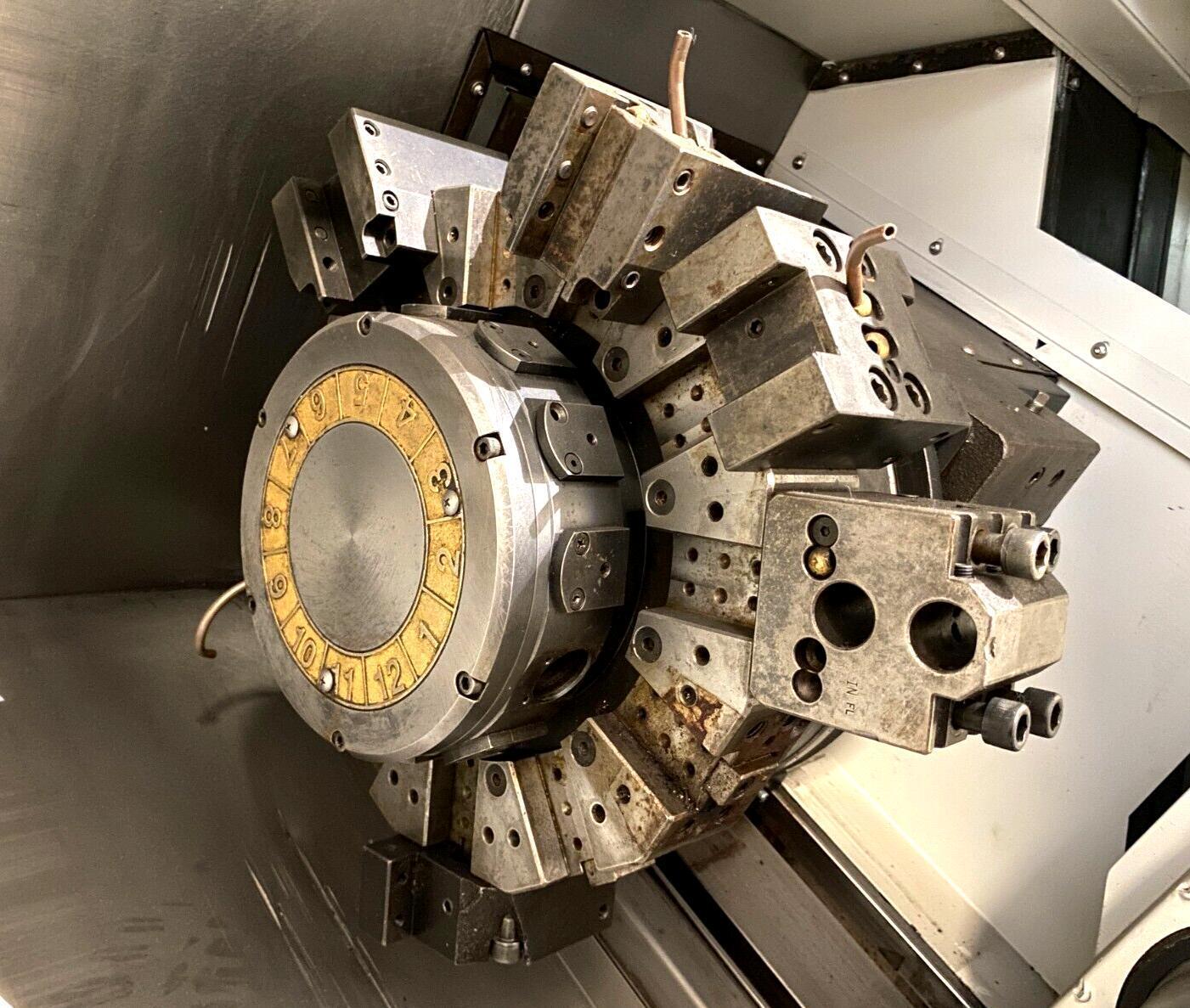

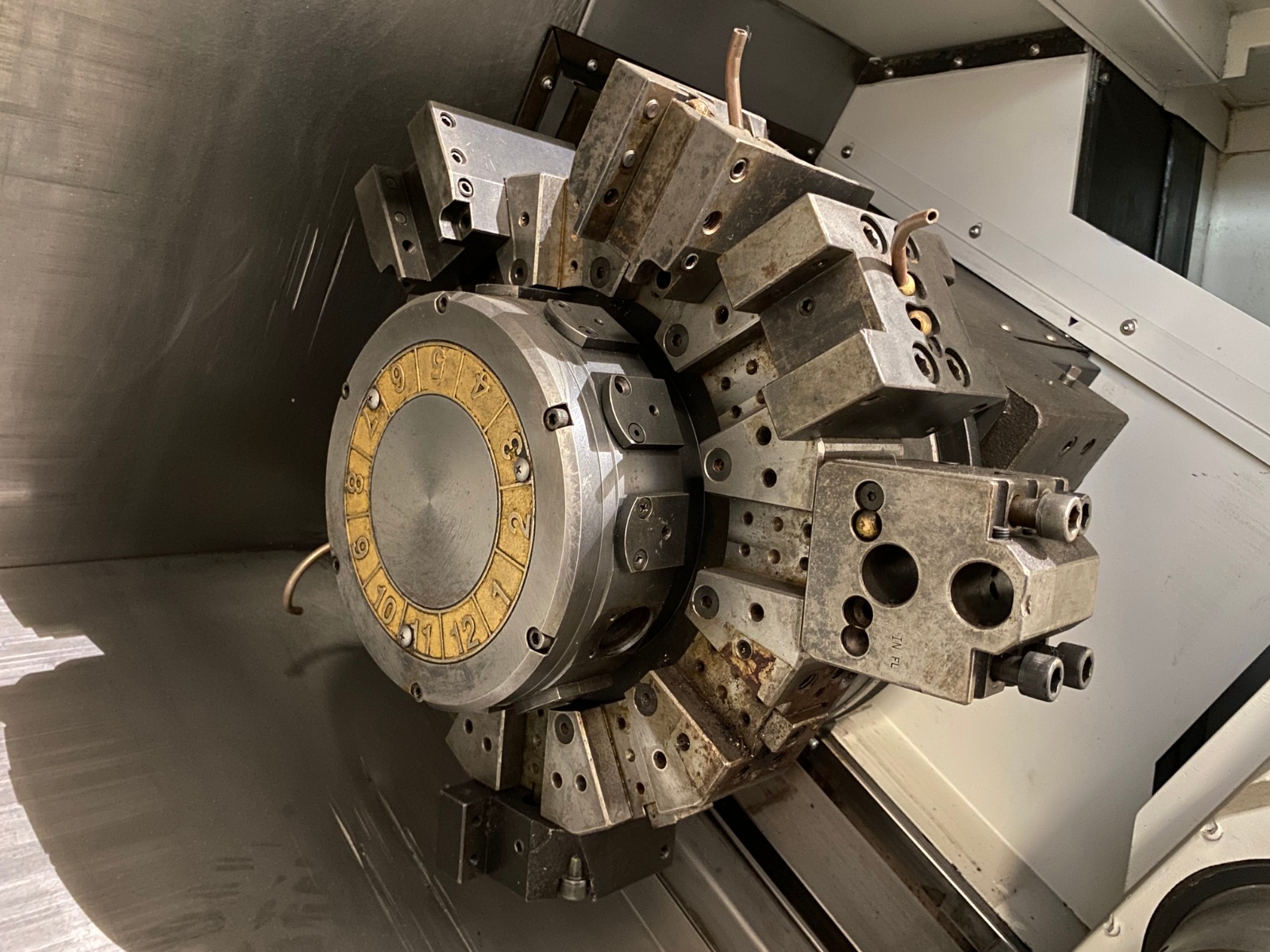

| 12 Station Live Tool Turret with Tool Holders |

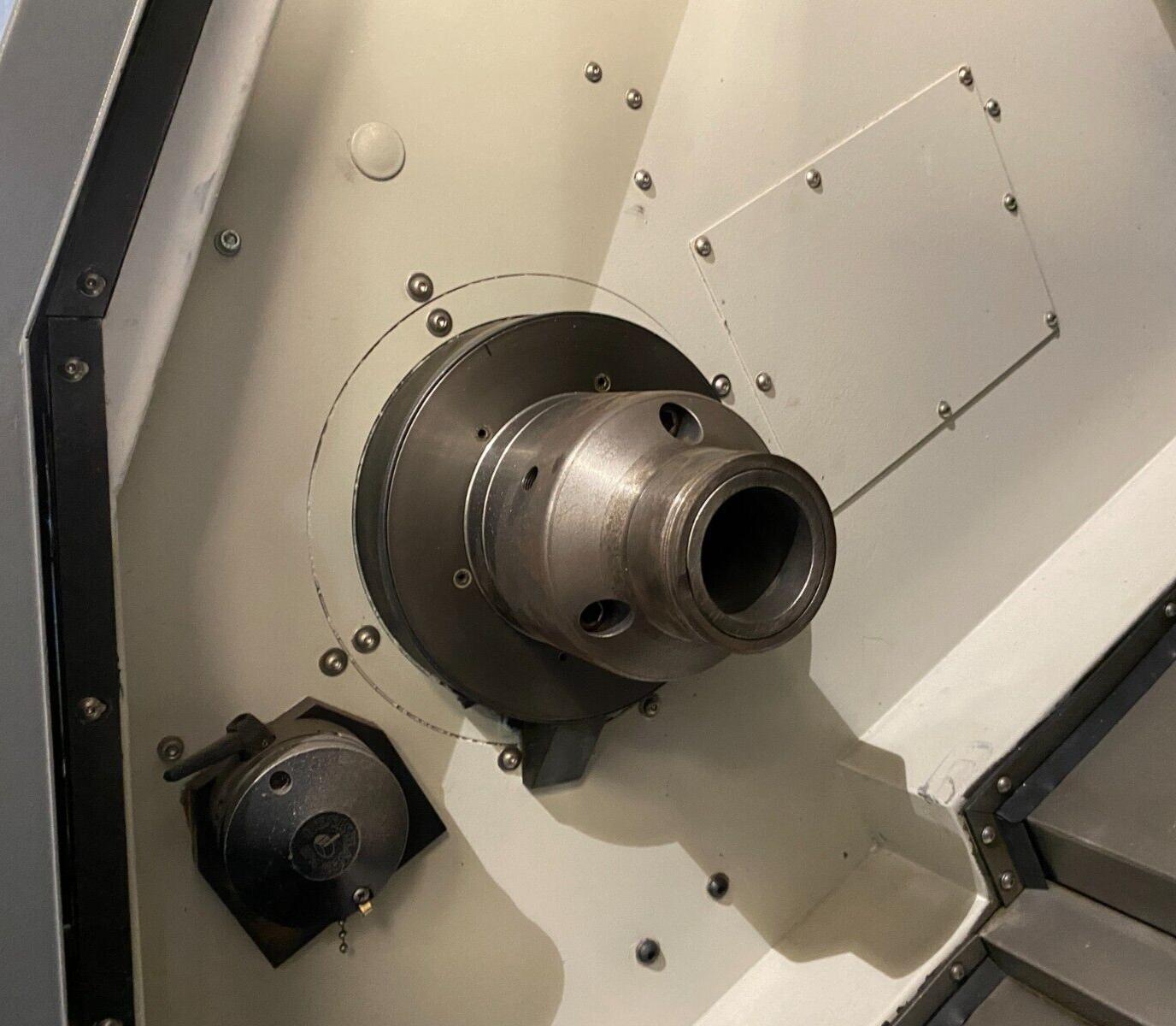

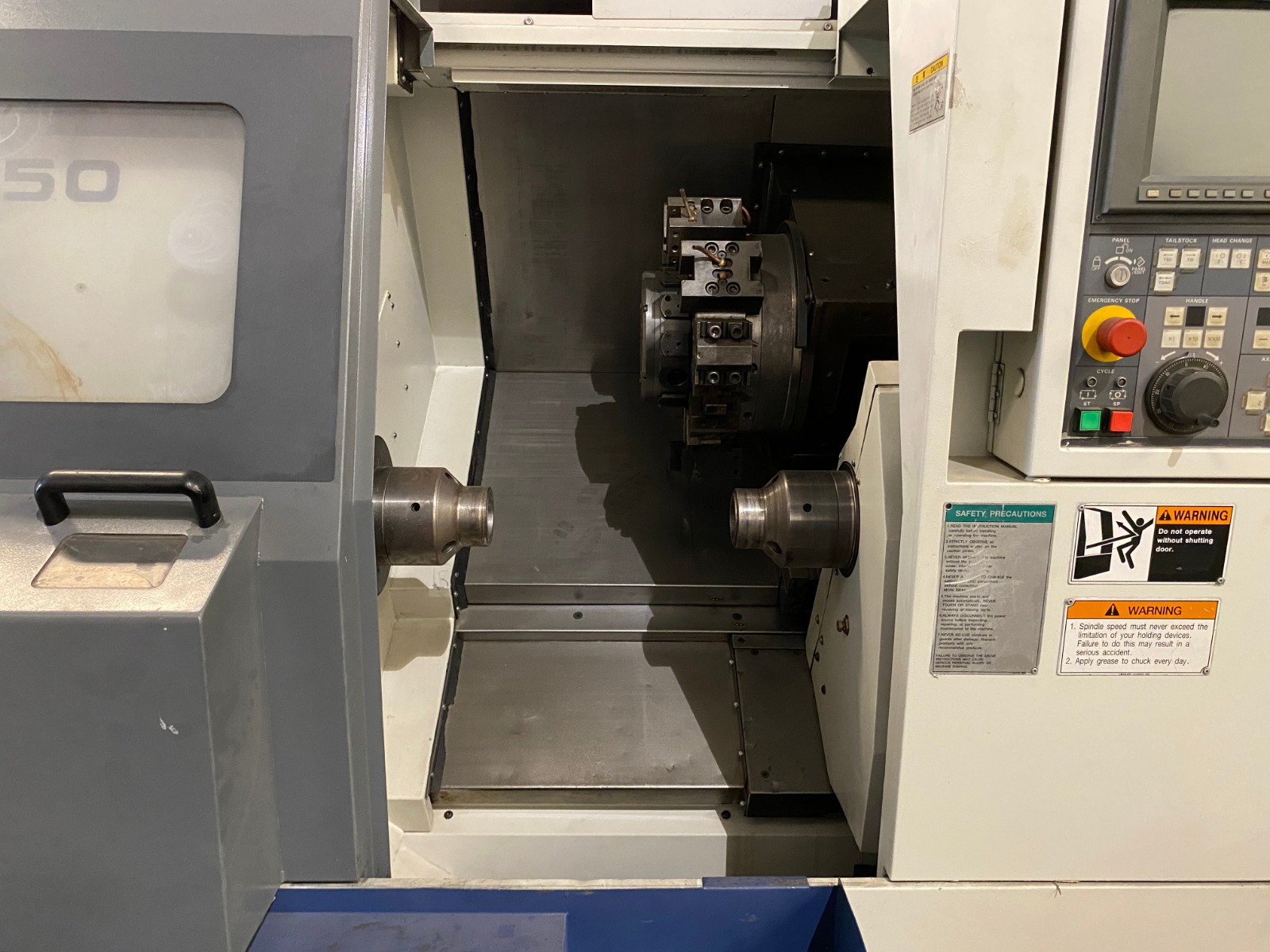

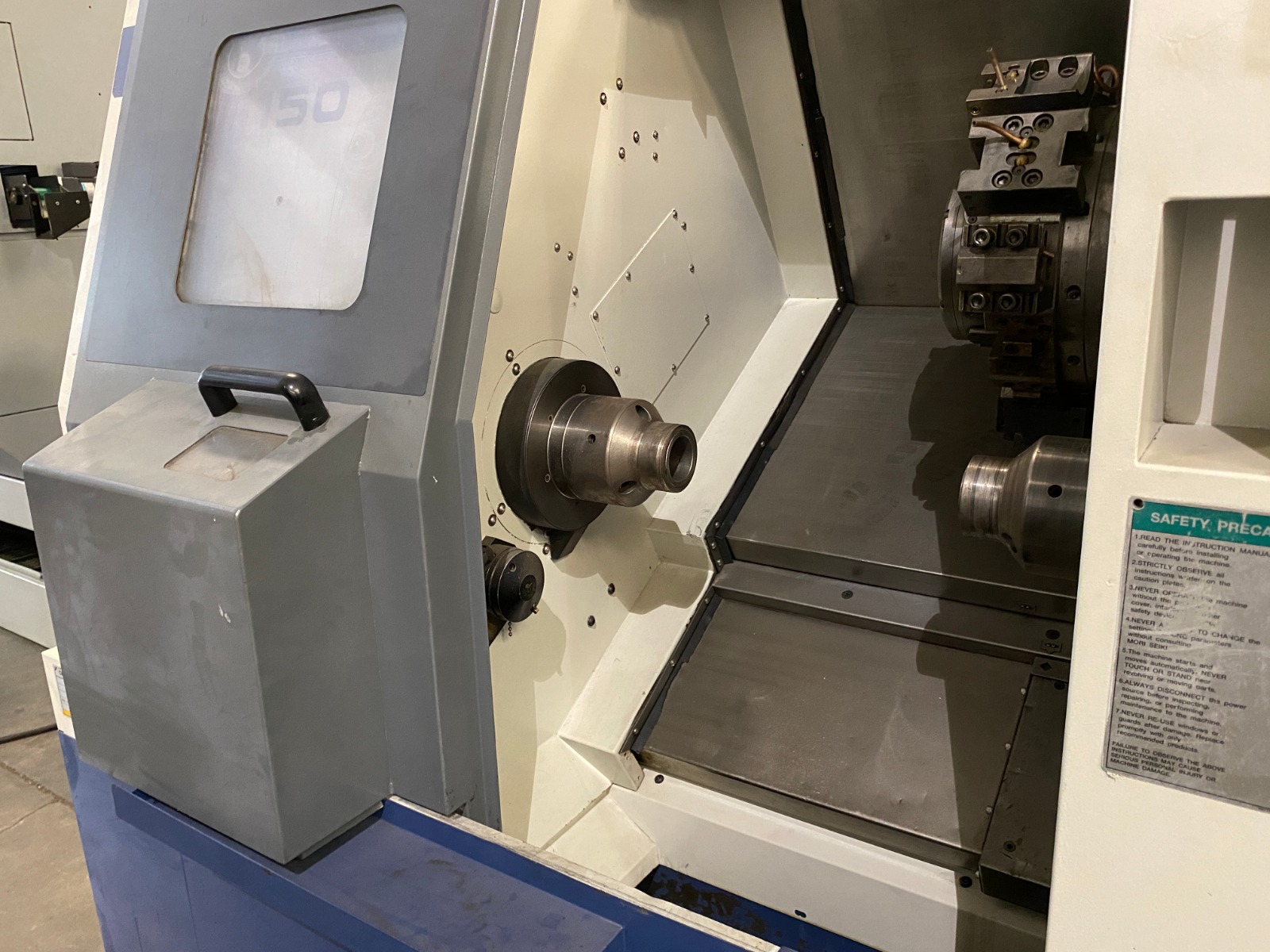

| Collet Chuck Main & Sub Spindle |
| 2 Step Gear Spindle for Powerful Torque |

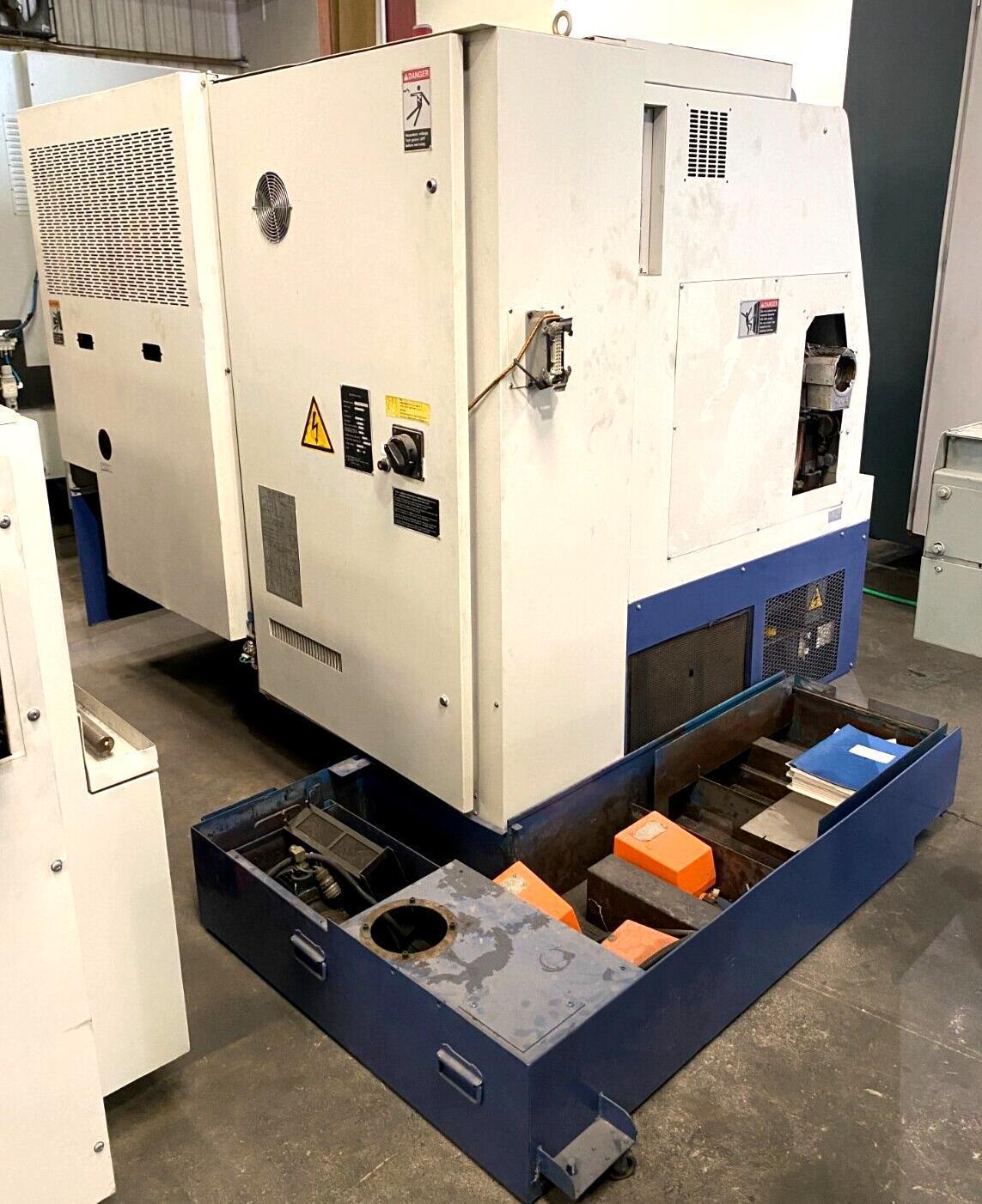

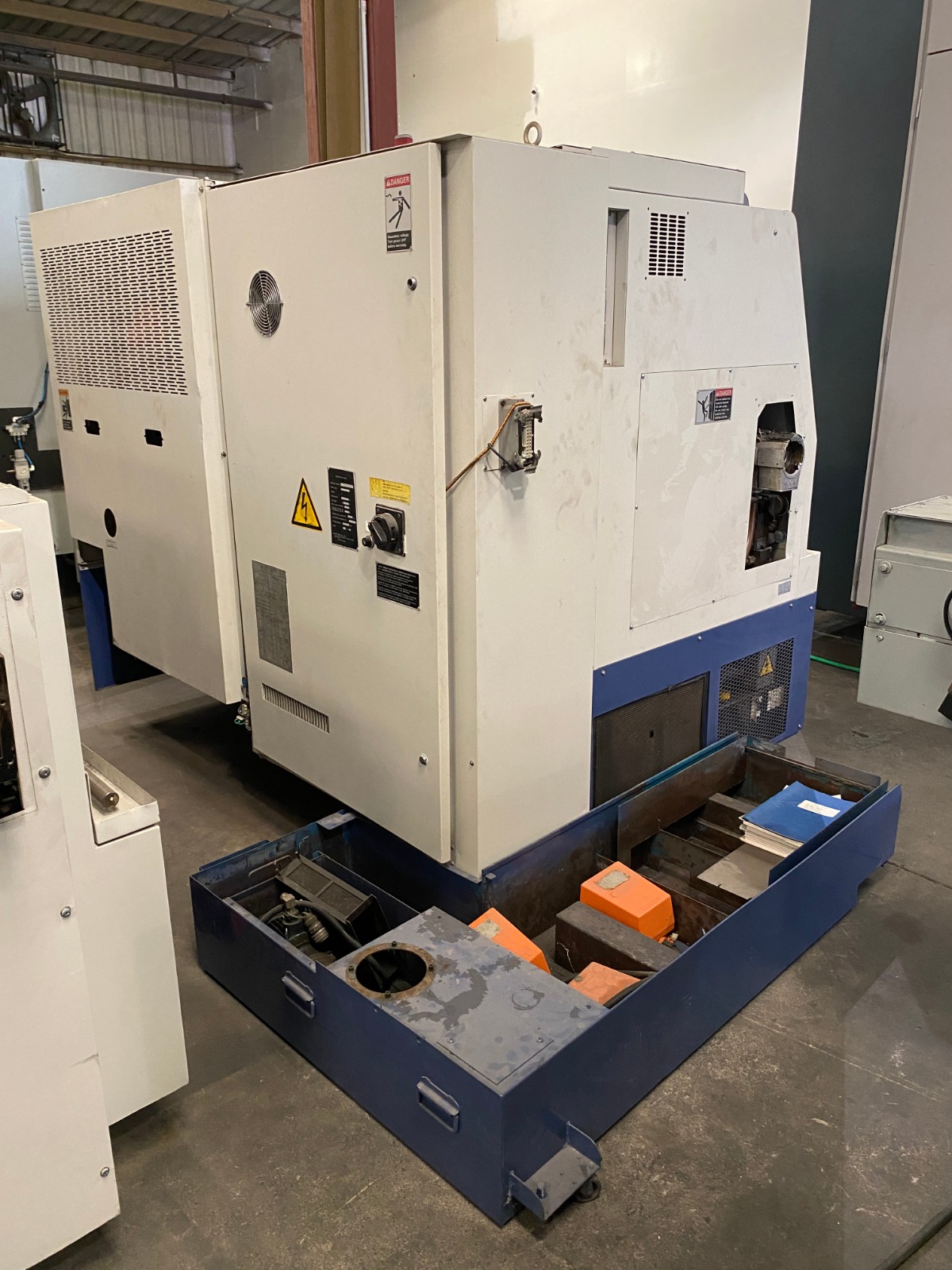

| Chip Pan |
| Coolant System |
| Automatic Lubrication System |
| Work Light |
| Capacity: |
| Max Turning Diameter: 16.9″ |
| Max Turning Length: 20.9″ |
| Max Bar Capacity Main Spindle: 2.2″ |
| Max Bar Capacity Sub Spindle: 1.86″ |
| Swing Over Cross Slide: 17.9″ |
| Swing Over Bed: 24.4″ |
| Distance Between Spindles: 24.6″ |
| Travels: |
| X Axis Travel: 9.1″ |
| Z Axis Travel: 20.4″ |
| B Axis Travel (Sub Spindle): 16.9″ |
| C Axis: 0.001° (Non Functional) |
| Rapid Traverse X Axis: 2007 cm/min |
| Rapid Traverse Z Axis: 2400 cm/min |

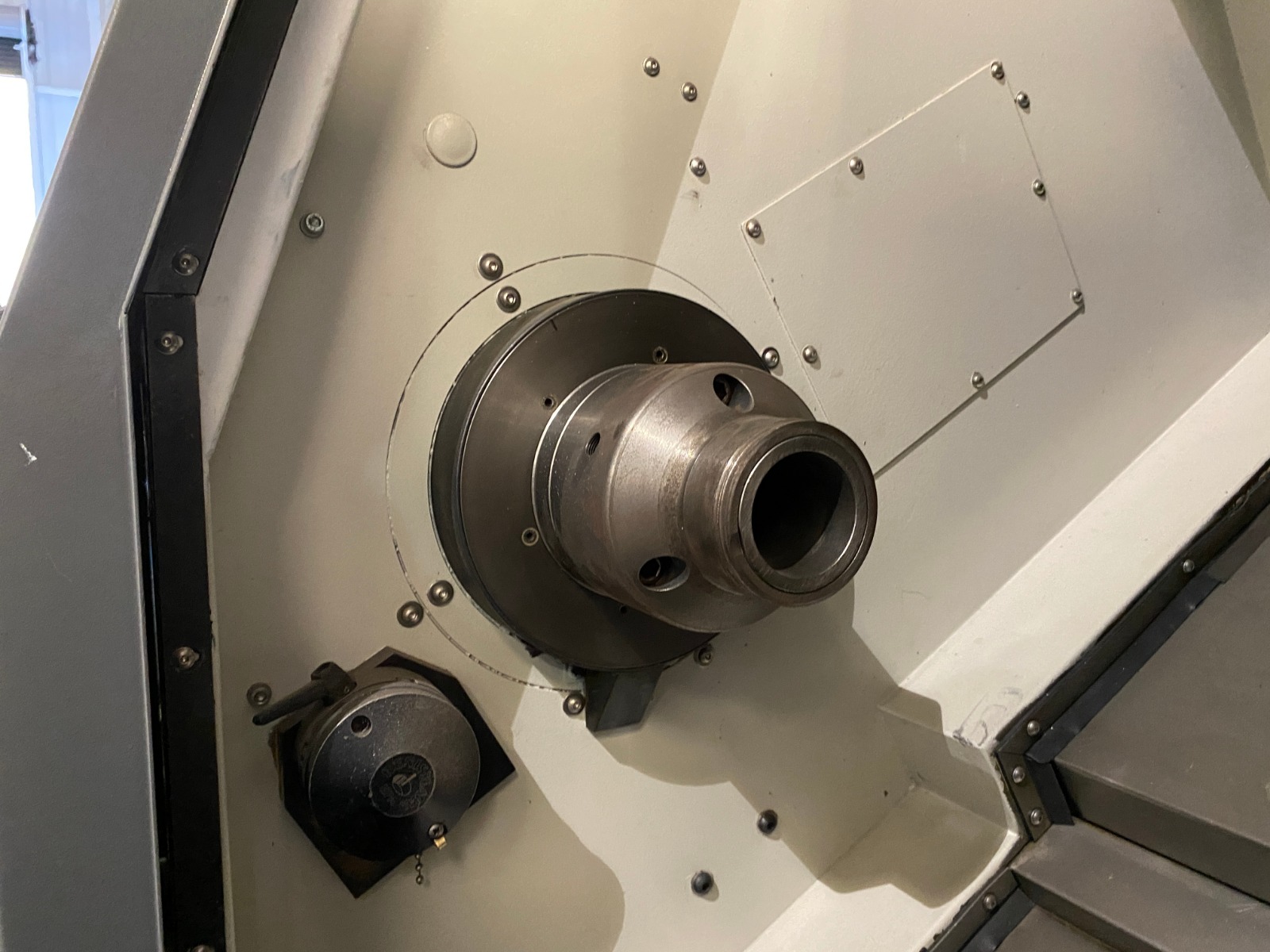

| Spindle: |
| Spindle Nose: A2-6 |
| Spindle Bore: 2.65″ |
| Spindle Speed: 60-5000 RPM |
| Spindle Motor: 14.9 kW |

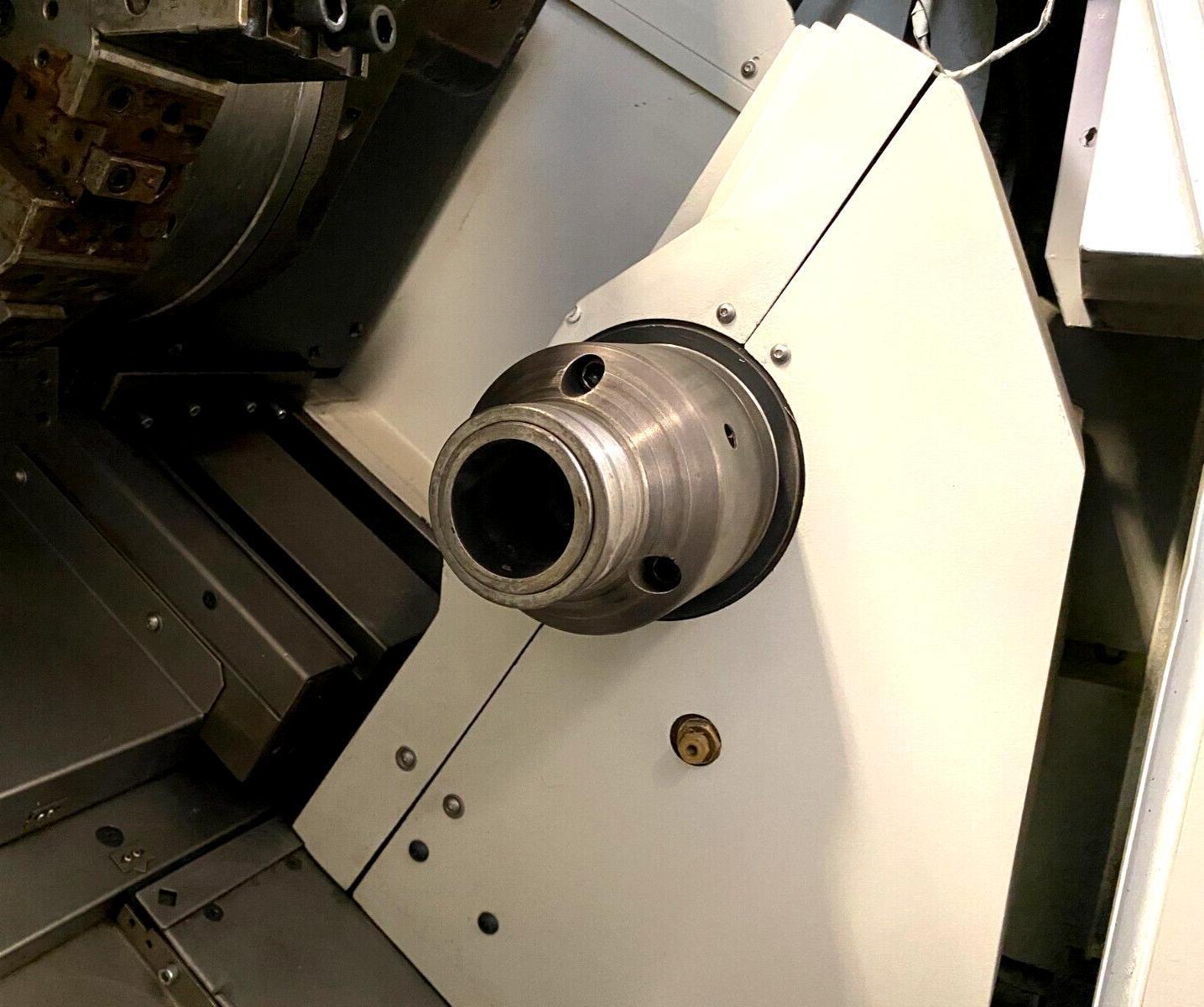

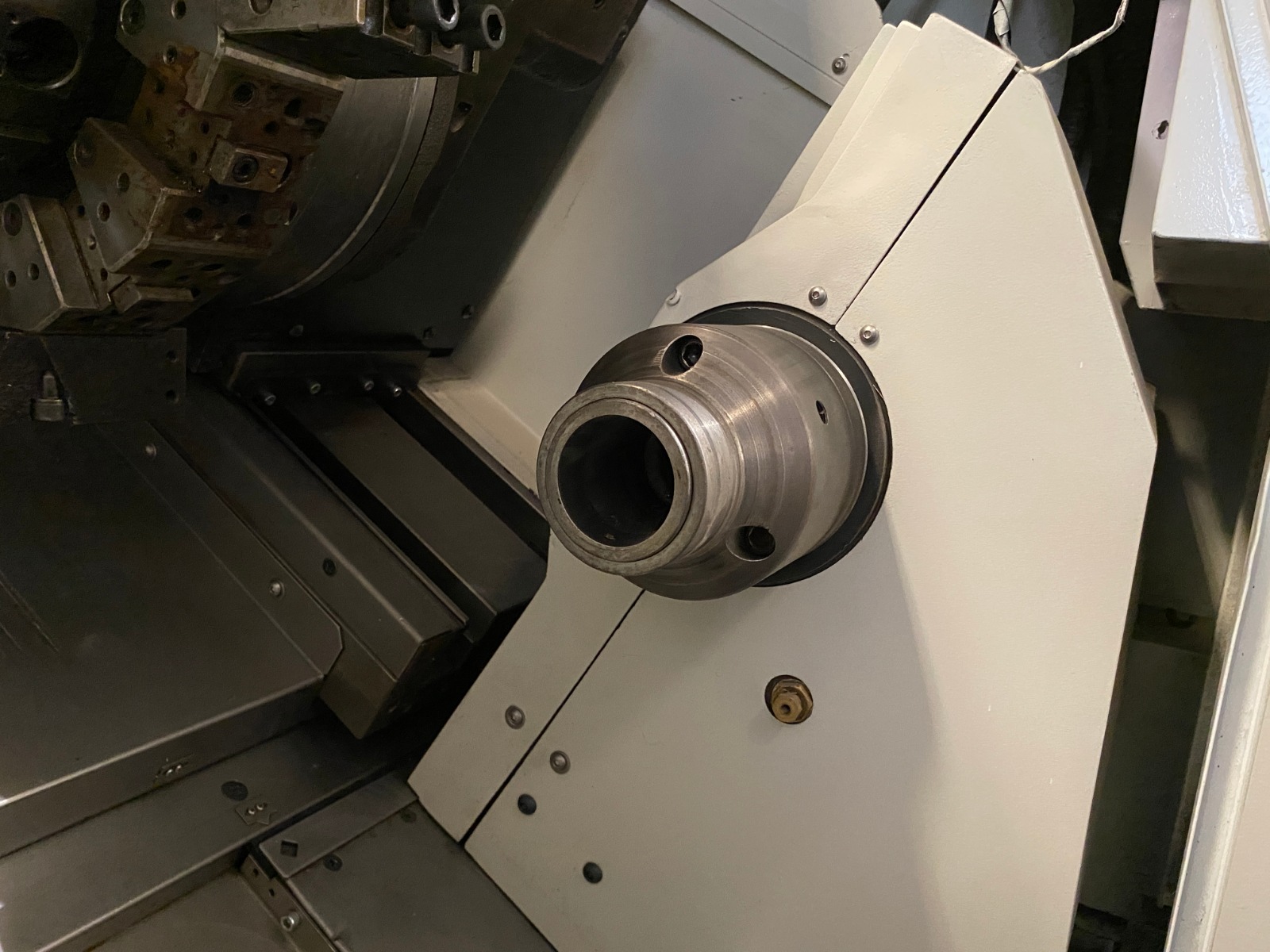

| Sub Spindle: |
| Spindle Nose: A2-5 |
| Spindle Bore: 2.2″ |
| Spindle Speed: 60-5000 RPM |
| Spindle Motor: 8.2 kW |

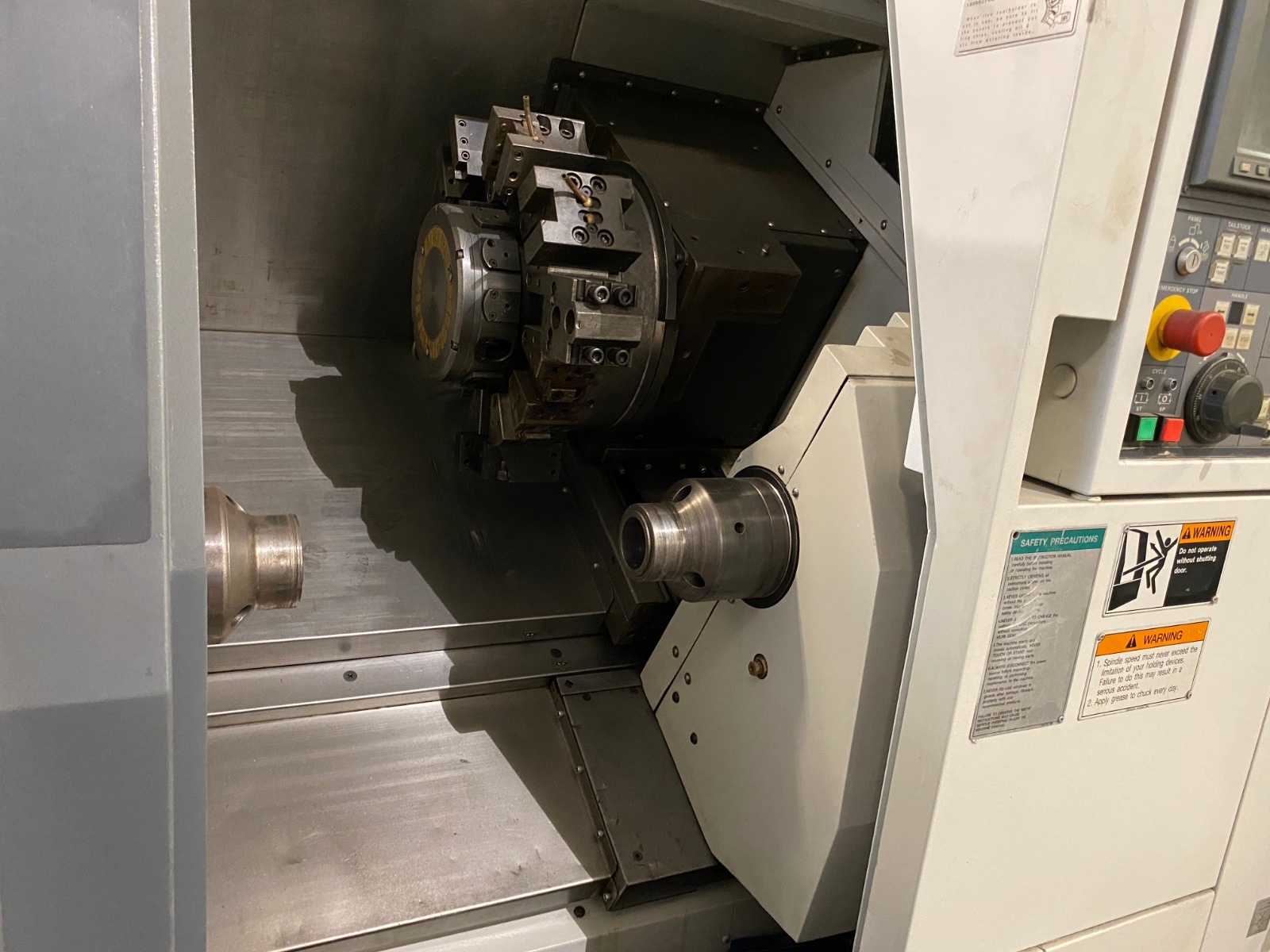

| Turret: |
| Turret Capacity: 12 Stations |
| Live Tool Spindle Speed: 3000 RPM |
| Live Tool Spindle Motor: 2.6 kW |
| Turret Index Time: 0.5 Second |
| General: |
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 32 kva |
| Overall Dimensions: 88″ x 70″ x 80″ High |
