*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

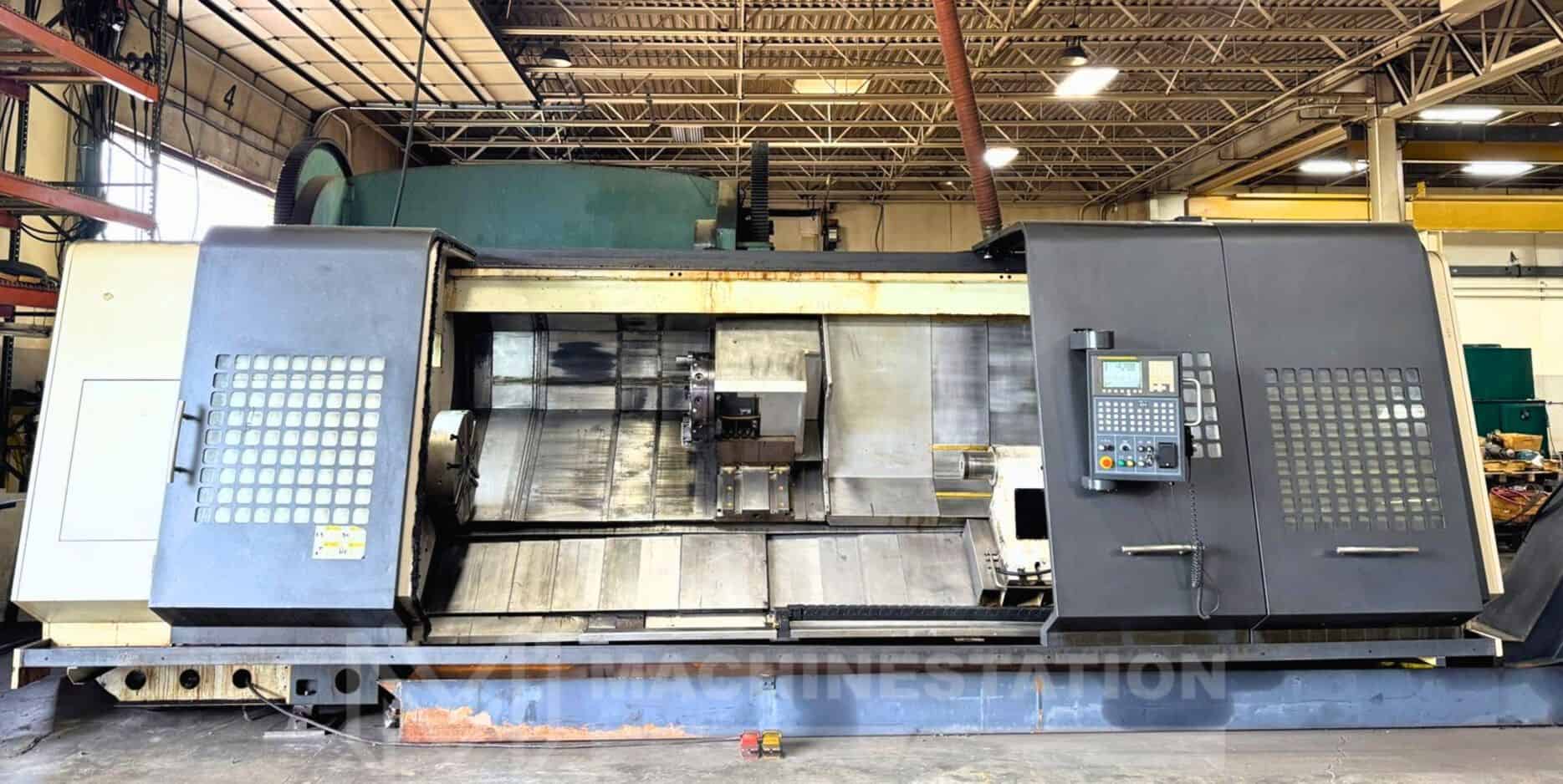

| Make: | Shenyang SMTCL |
| Model: | HTC80400Z |
| Year: | 2008 |
| Equipped With: |
|---|

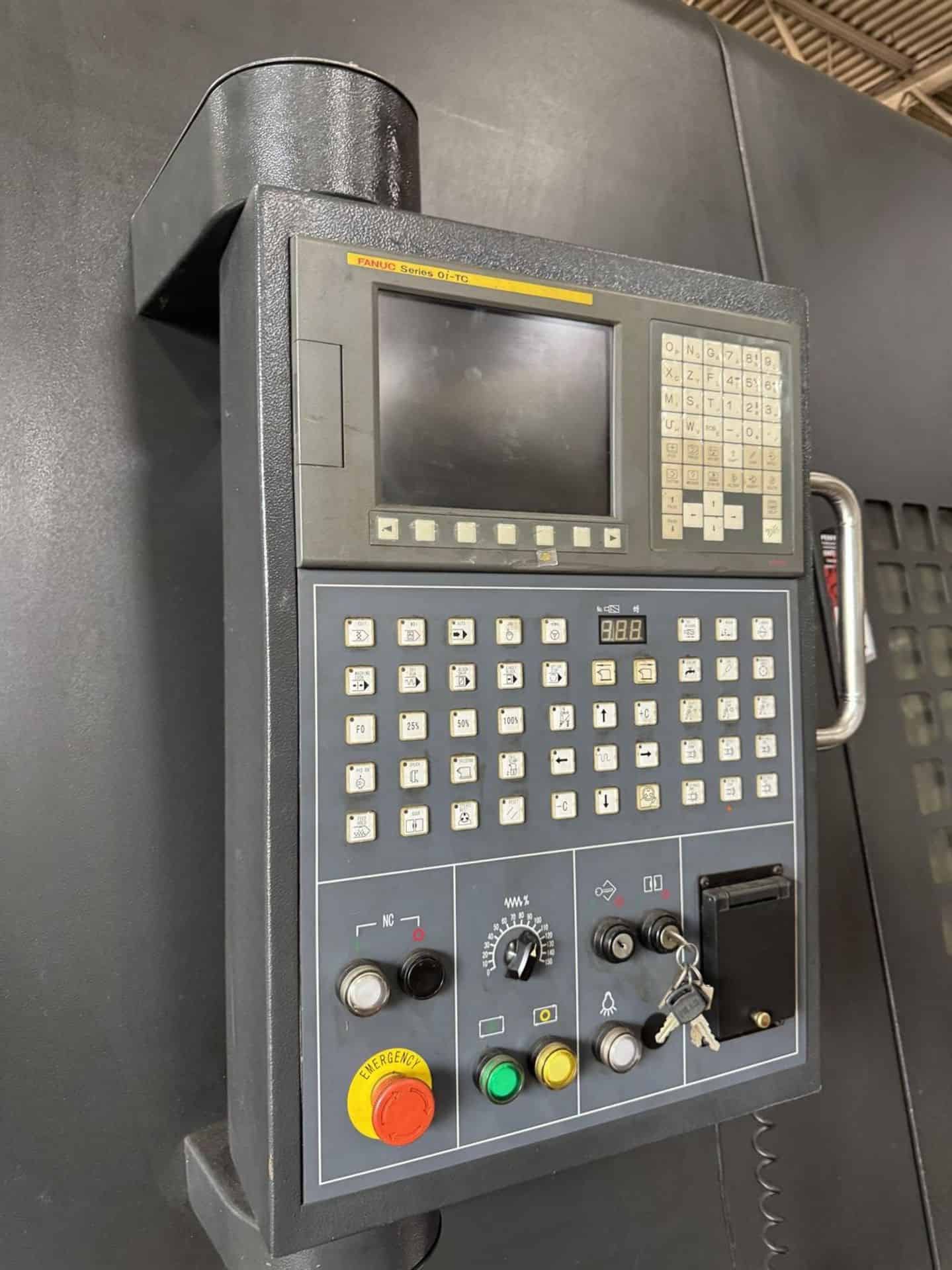

| Fanuc Oi-TC CNC Control |

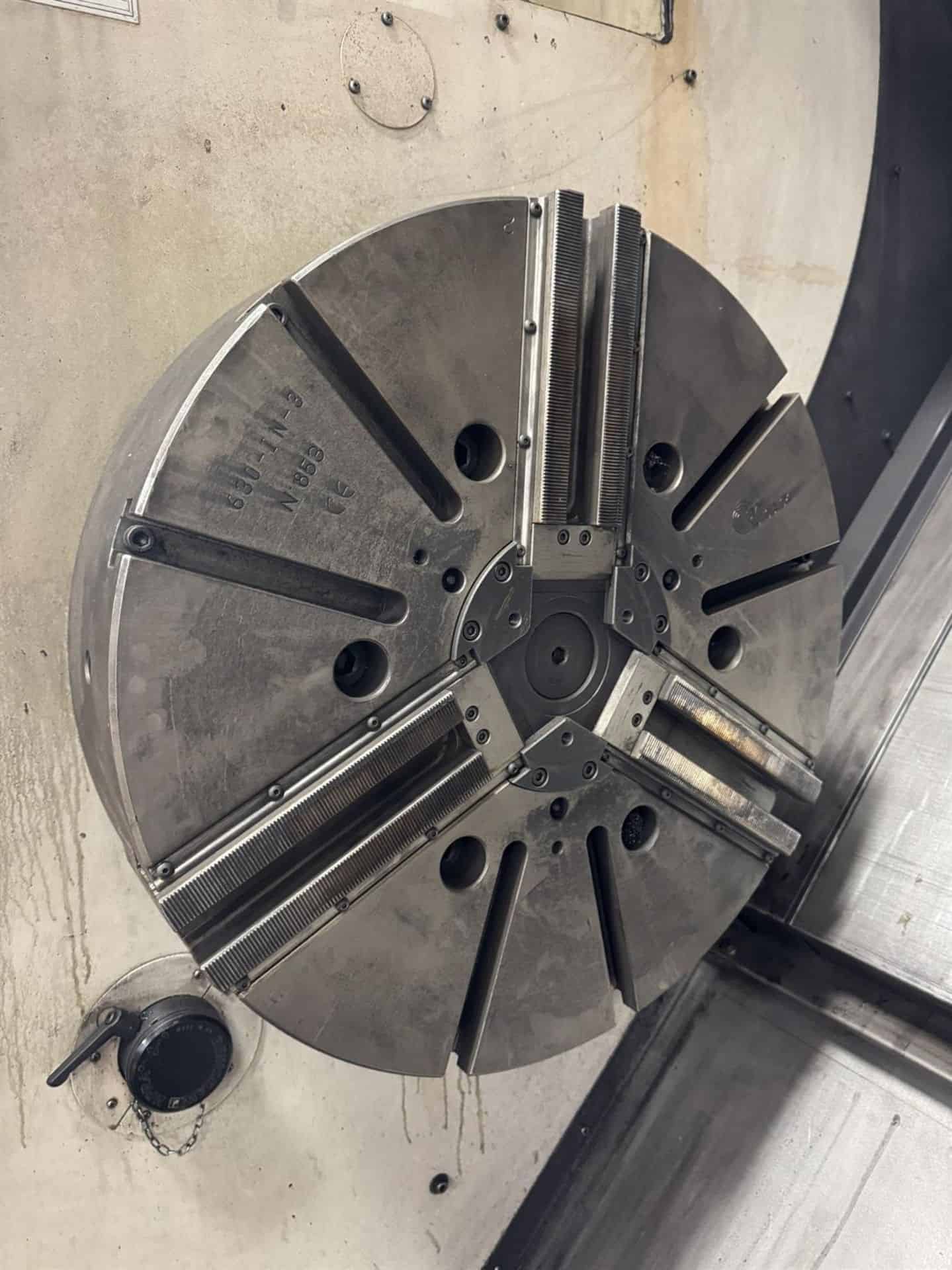

| 24″ 3-Jaw SMW Autoblock Chuck |

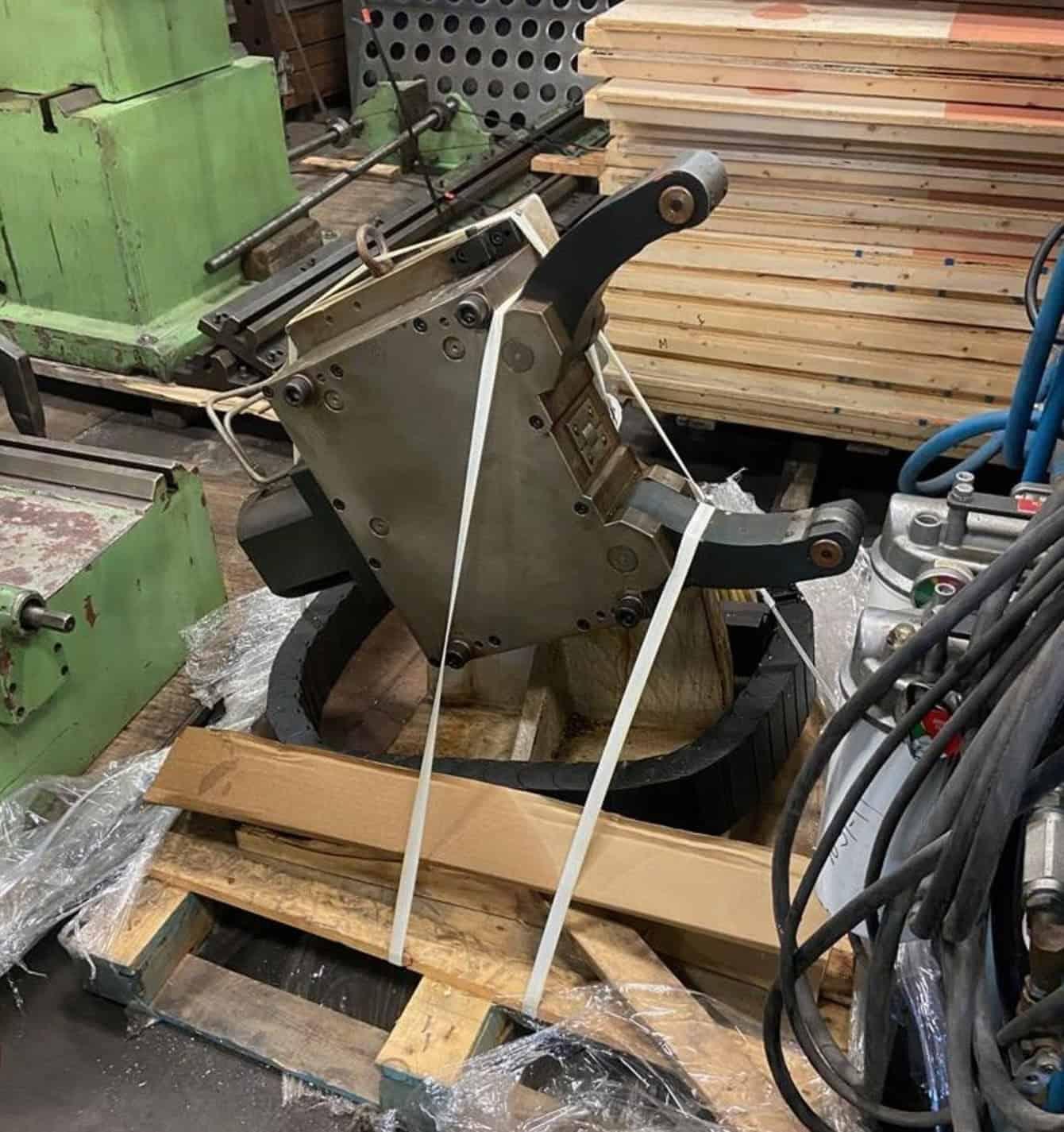

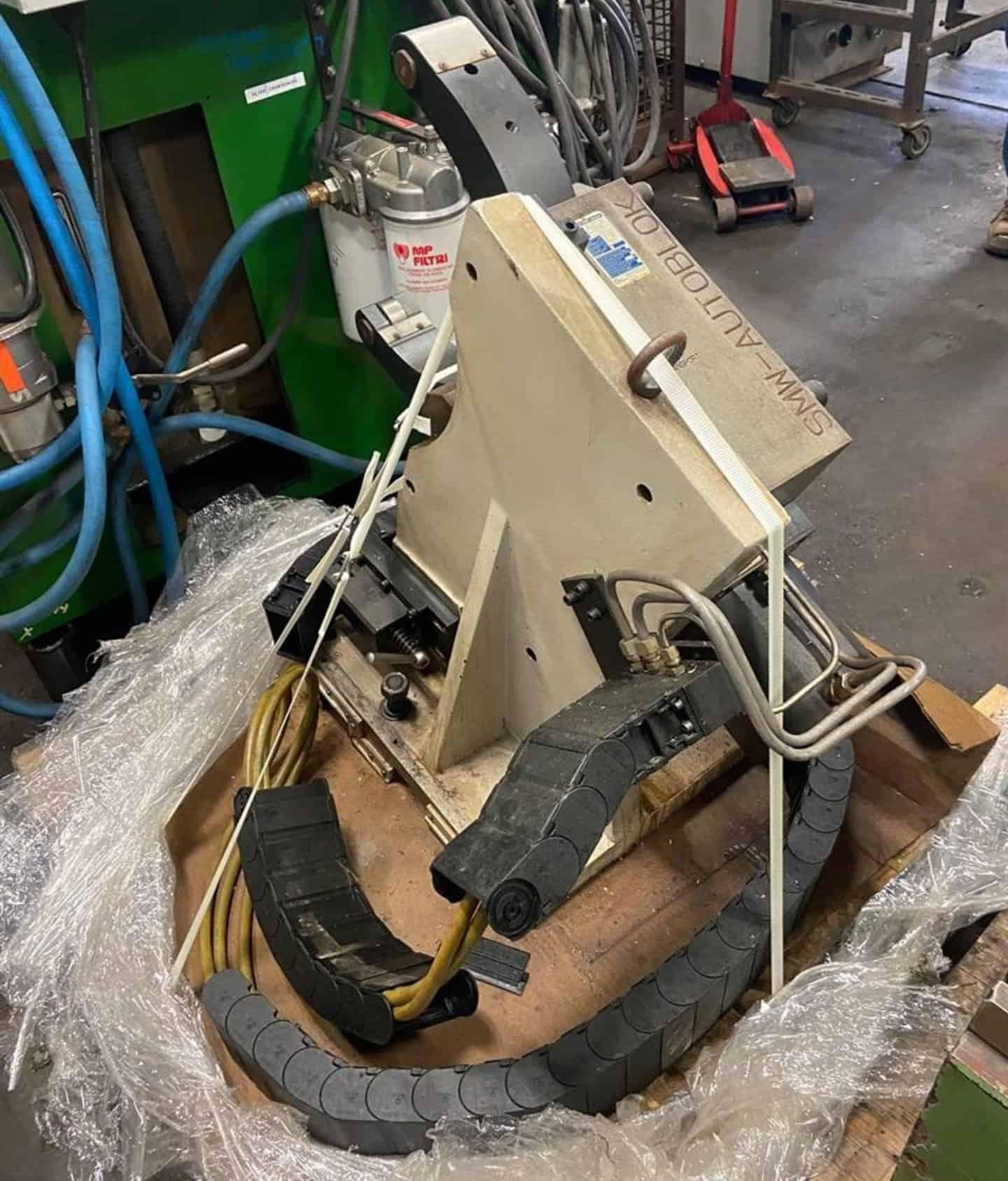

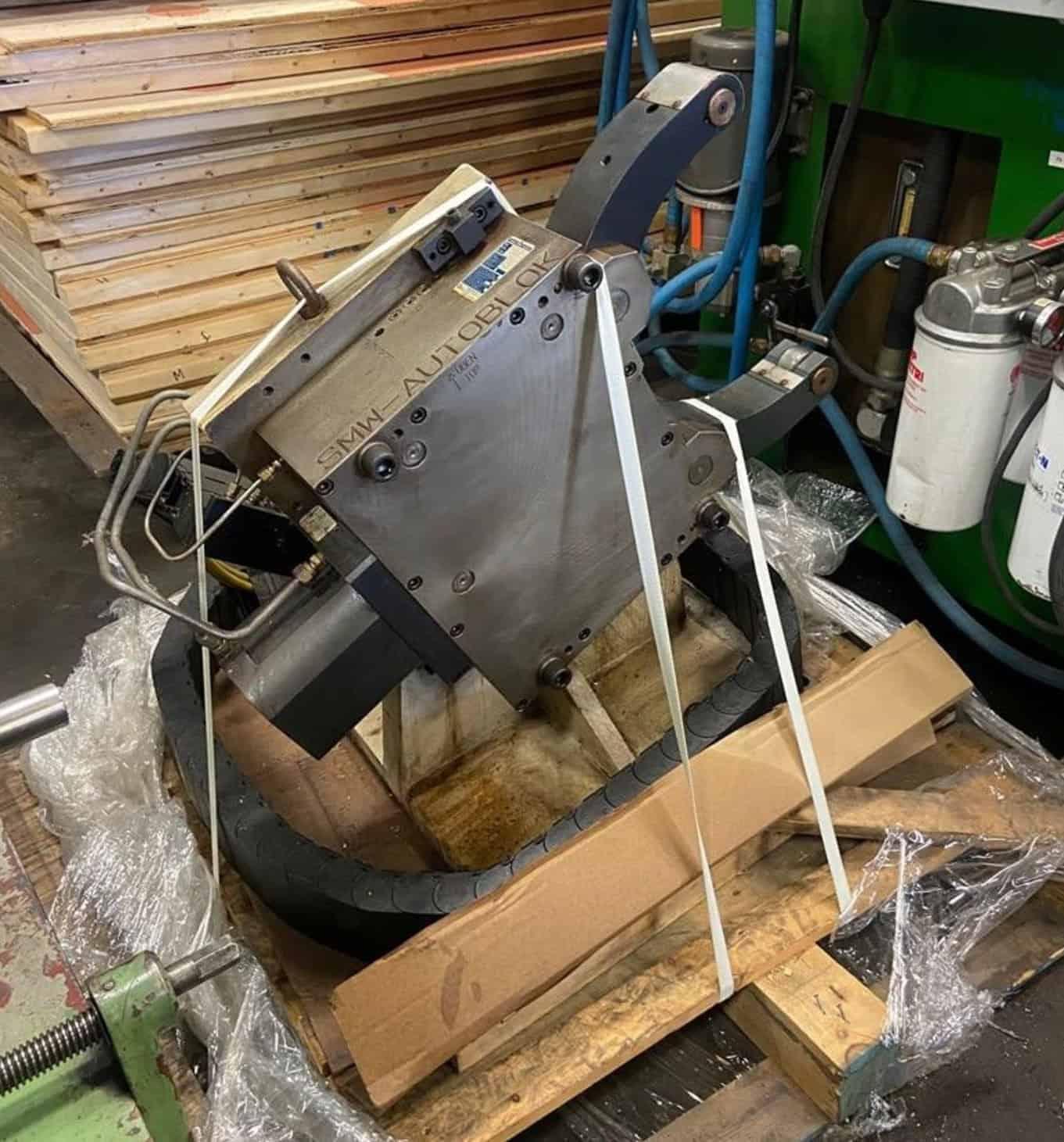

| SMW Autoblock Steady Rest |
| A2-15 Spindle |

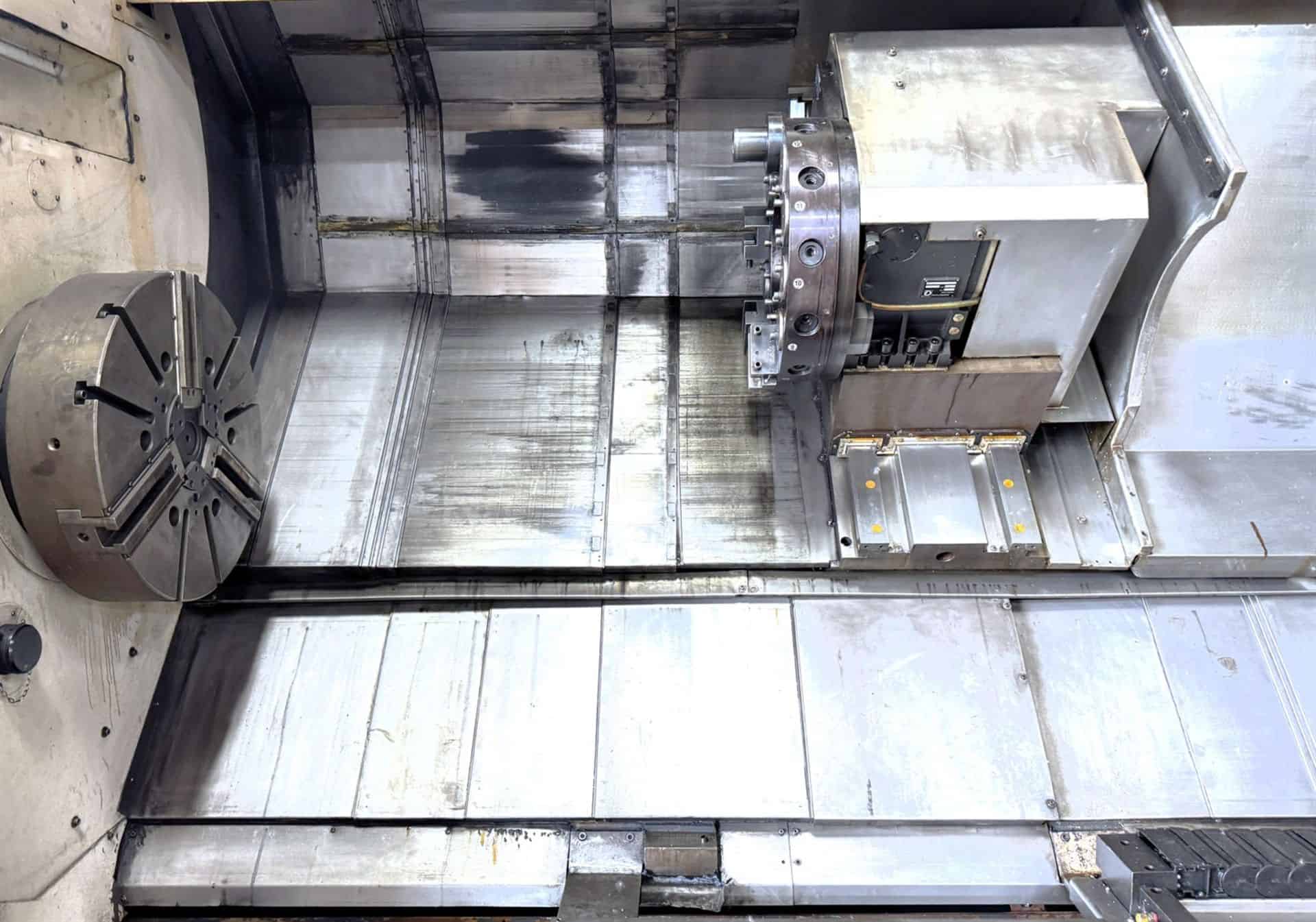

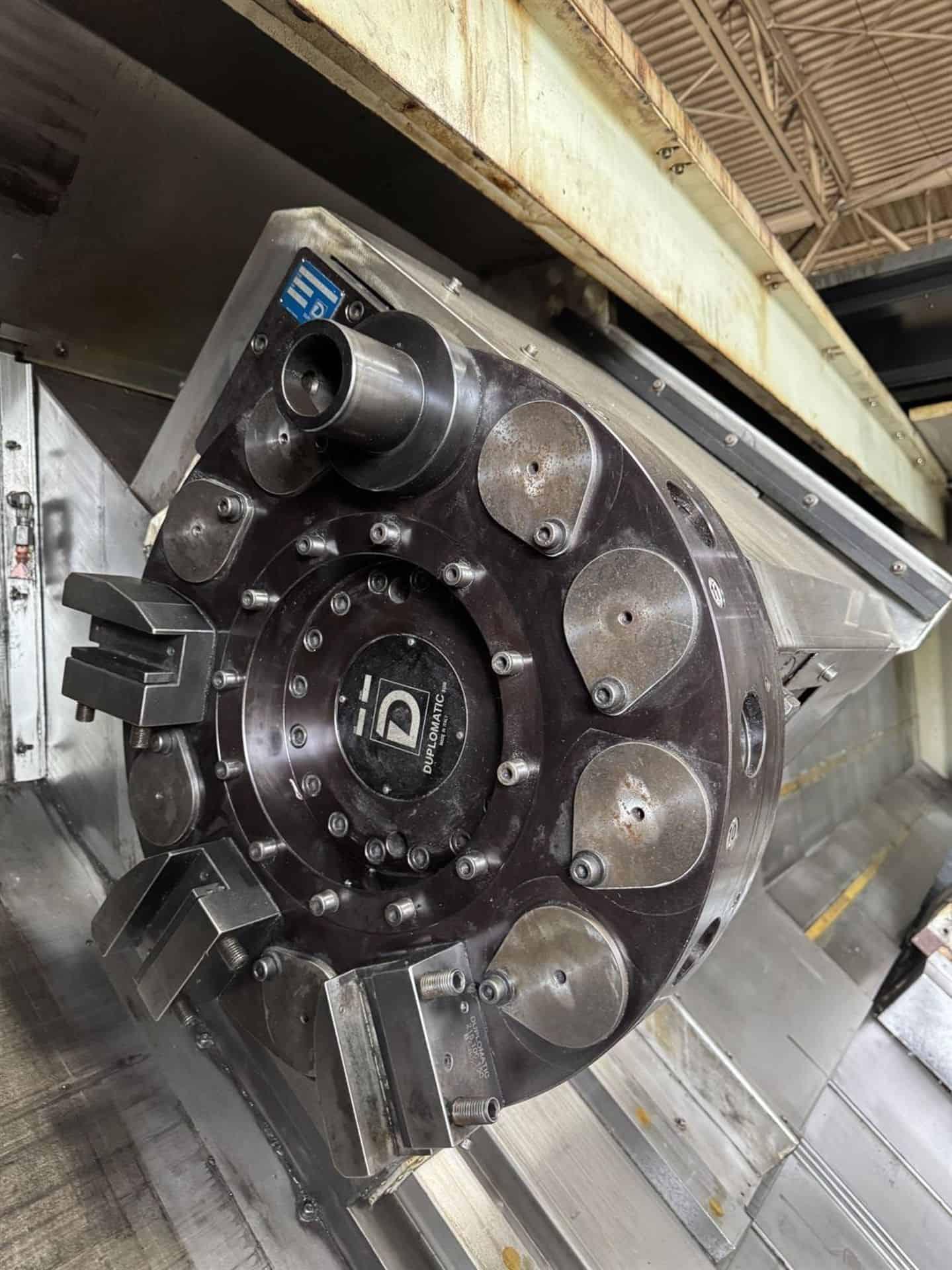

| 12-Station Duplomate Live Tool Turret |

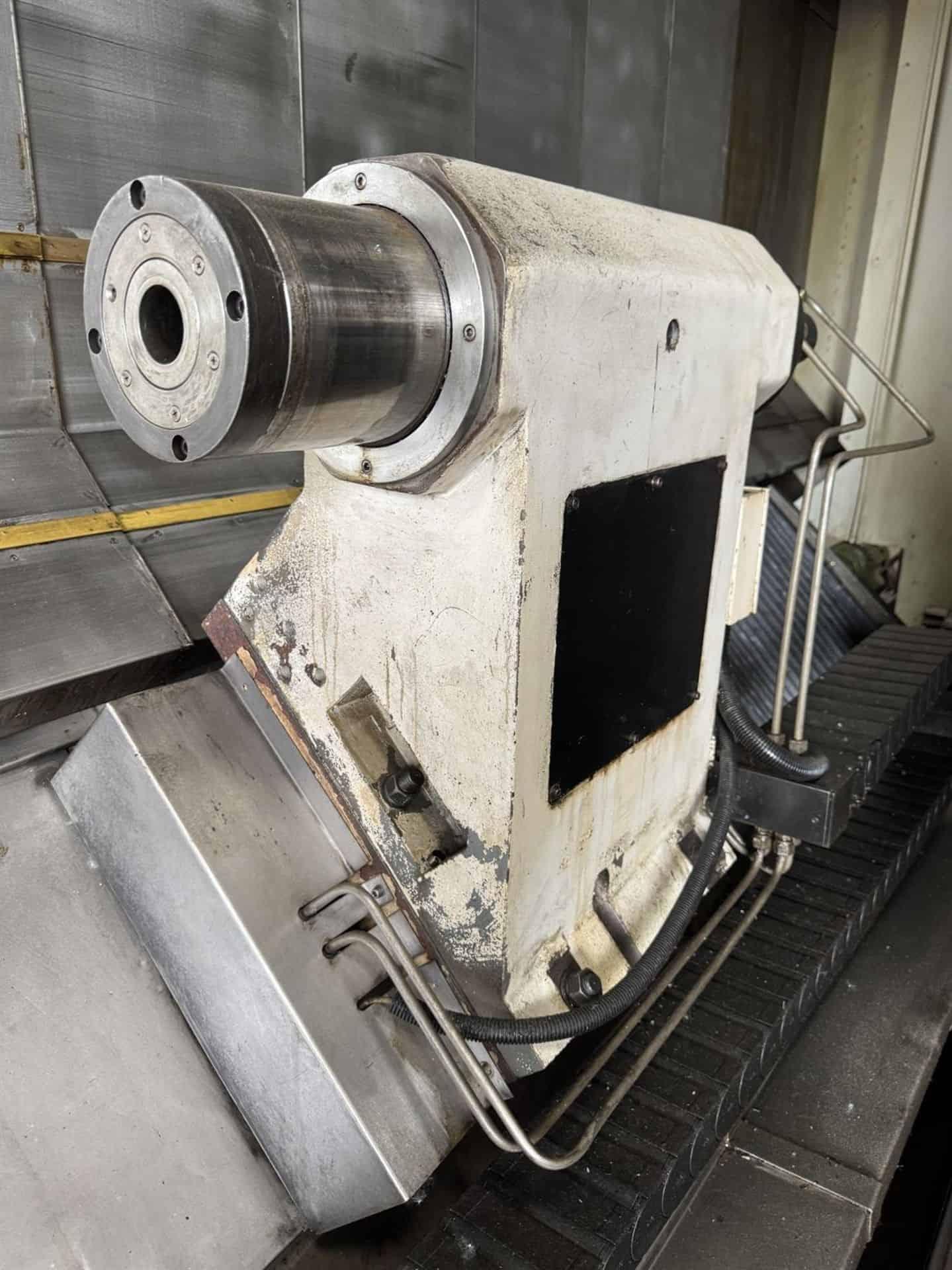

| Motorized-Position Hydraulic Tailstock |

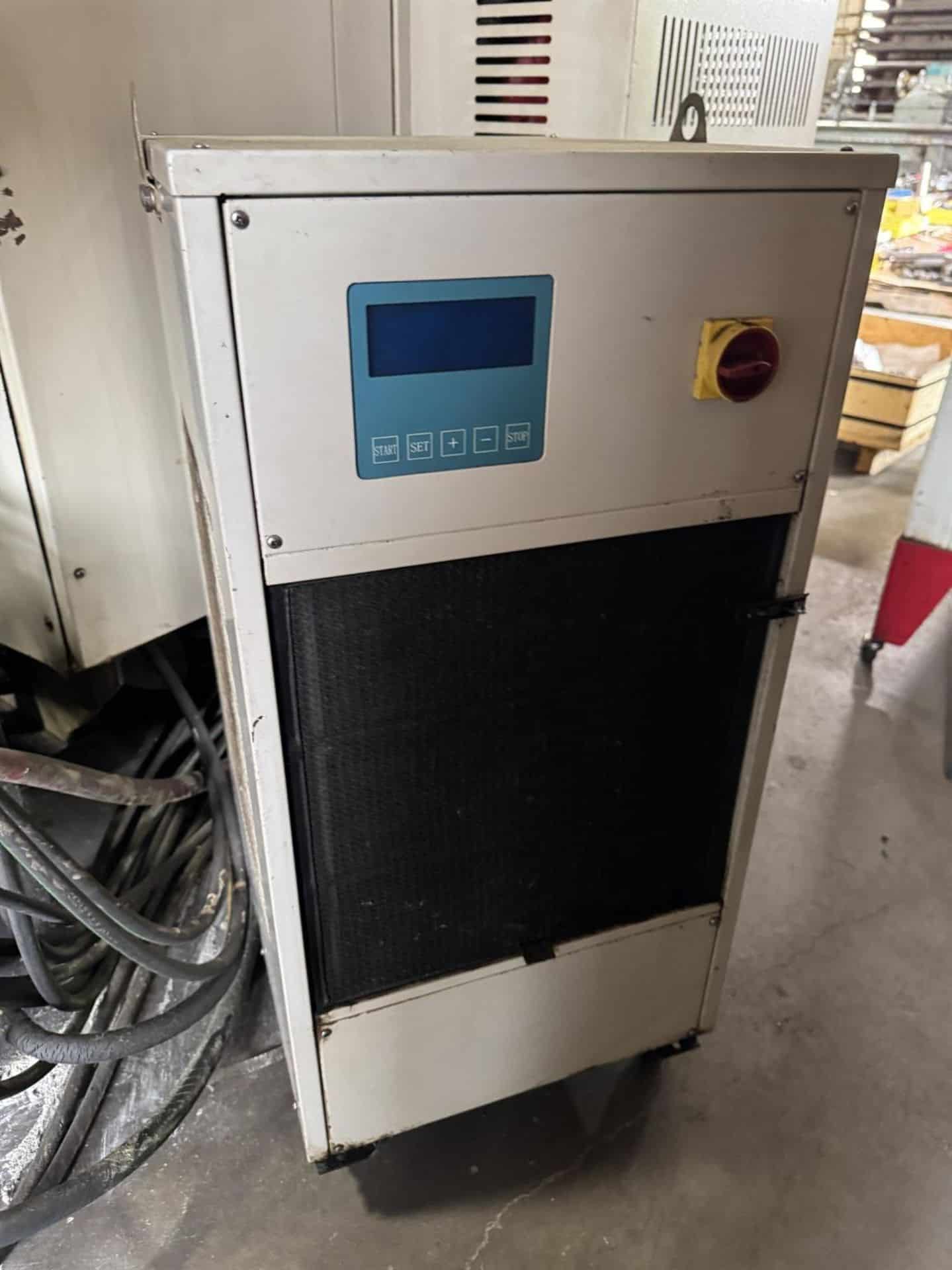

| Spindle Chiller Unit |
| Rigid Tapping |
| Coolant System |
| Chip Conveyor |
| Automatic Lubrication System |
| Foot Switches |

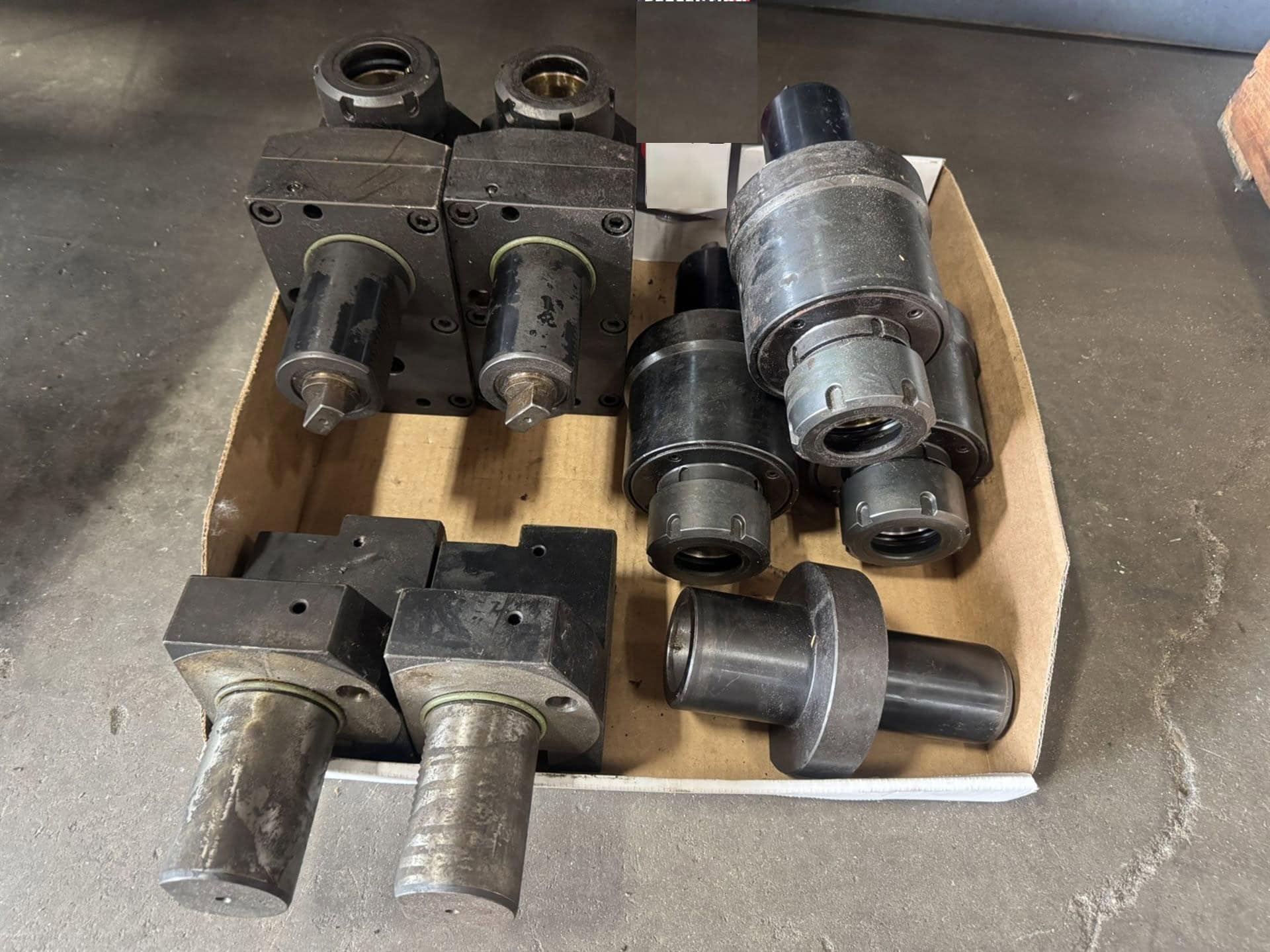

| Misc. Live & Statics Tool Holders (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 31.5″ |
| Max Turning Length: 157.5″ |
| Swing Over Bed: 39.4″ |
| Swing Over Saddle: 30.7″ |
| Travels: |
|---|
| X Axis Travel: 25.6″ |
| X Axis Travel: 25.6″ |
| C Axis: 0.001° |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 315 IPM |
| Rapid Traverse Z Axis: 394 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-15 |
| Spindle Speed: 50-1800 RPM |
| Spindle Motor: 40 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Square Shank Height of Tool: 1.25″ |
| Shank Diameter of Boring Bar: 2.36″ |
| Tool Holders Type: VDI |
| Tailstock: |
|---|
| Tailstock Quill Diameter: 5.90″ |
| Tailstock Quill Travel: 4.72″ |
| Tailstock Taper: MT-5 |
| General: |
|---|
| Power: 220v / 3-Phase / 60 Hz / 52 kva |
| Overall Dimensions: 320″ x 100″ x 100″ High Approx. |
| Weight: 40,000 lbs Approx. |
