Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

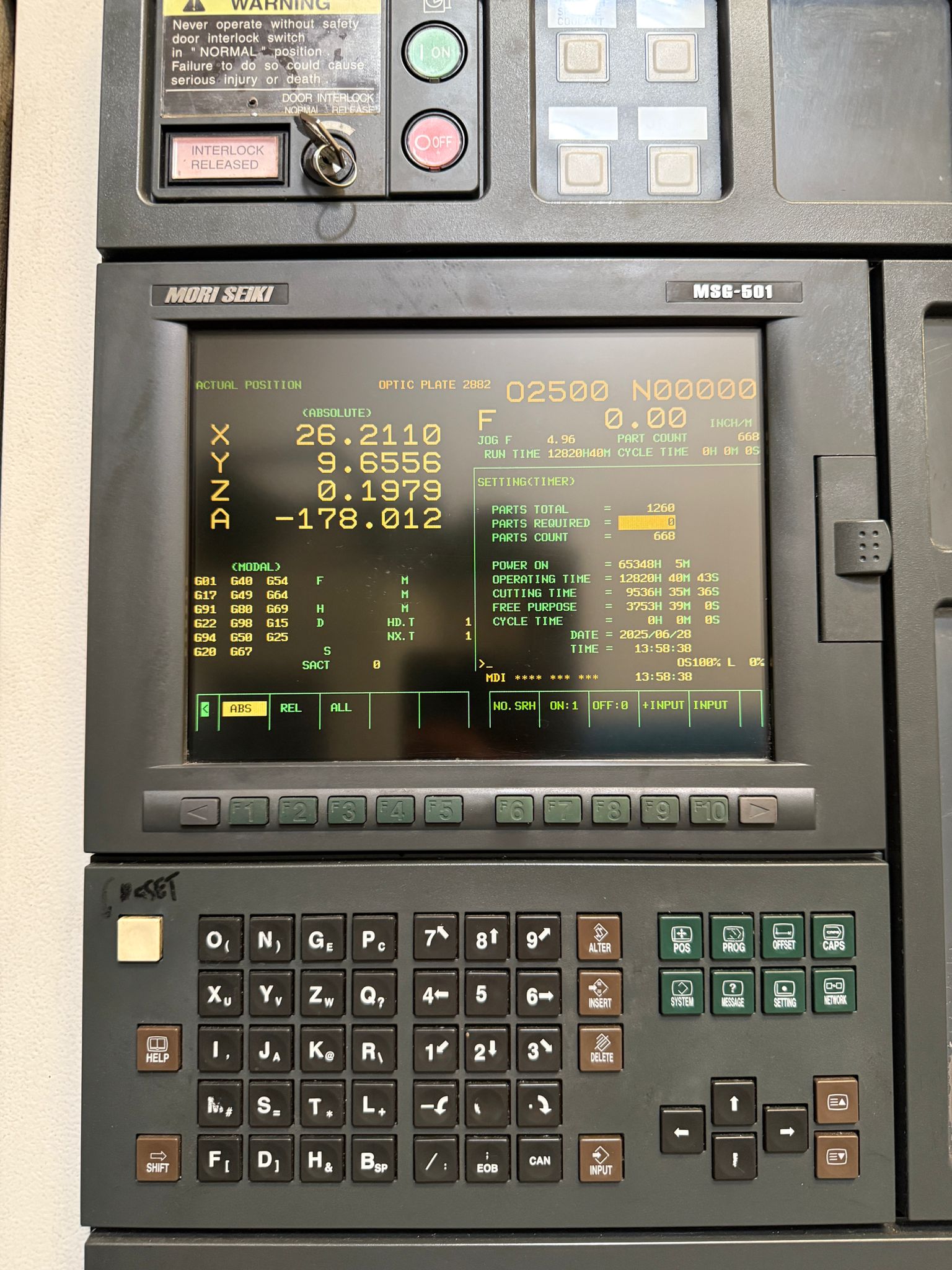

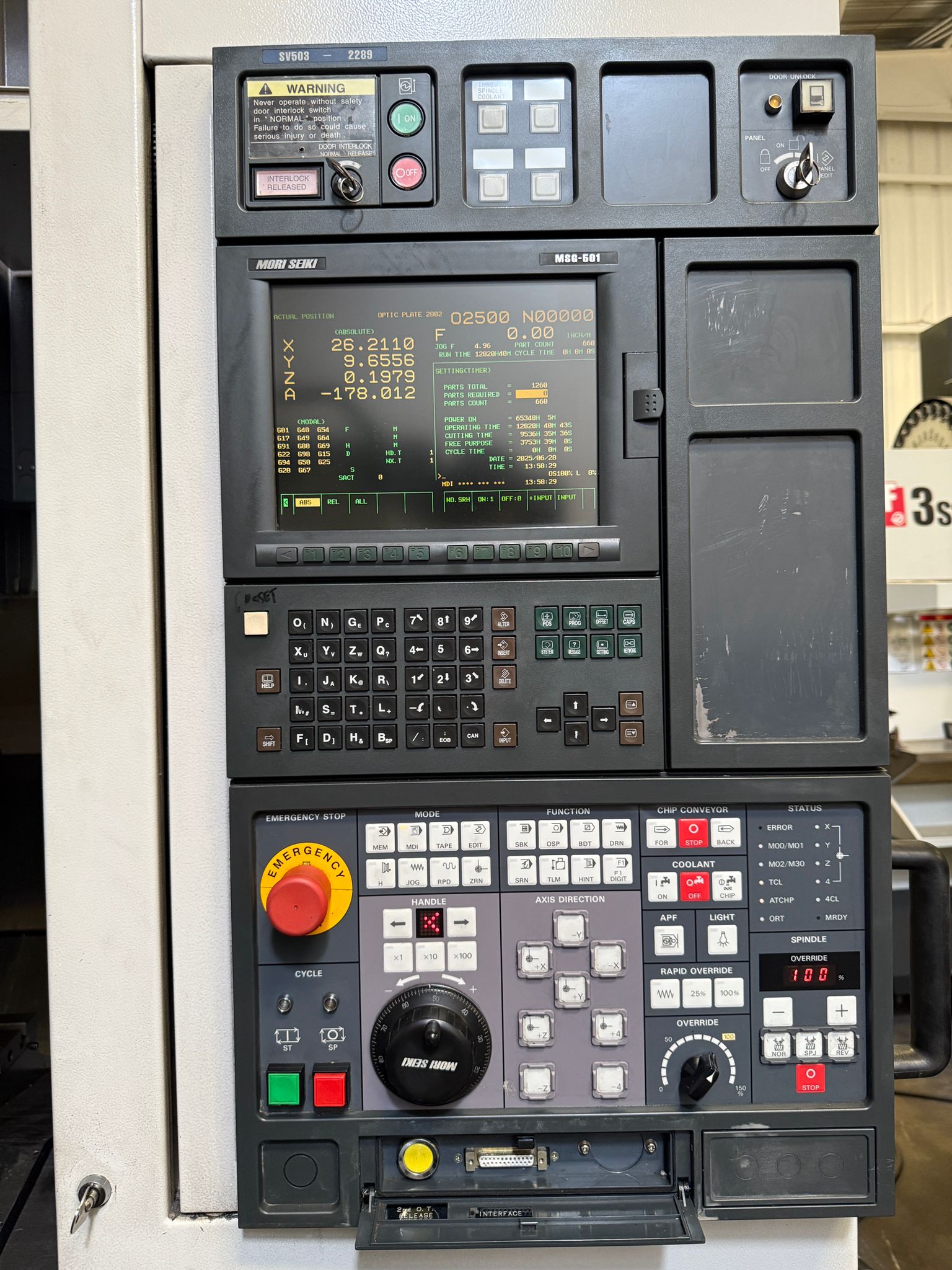

| MSG 501 ( Fanuc ) CNC Control |
| 4th Axis Ready |
| Box Way Construction |
| CAT-40 Taper 12,000 RPM Spindle |
| Through Spindle Coolant |
| 40 Station Automatic Tool Changer |
| Powerful 30 HP high torque Spindle Motor |
| Spindle Orientation |
| Rigid Tapping |

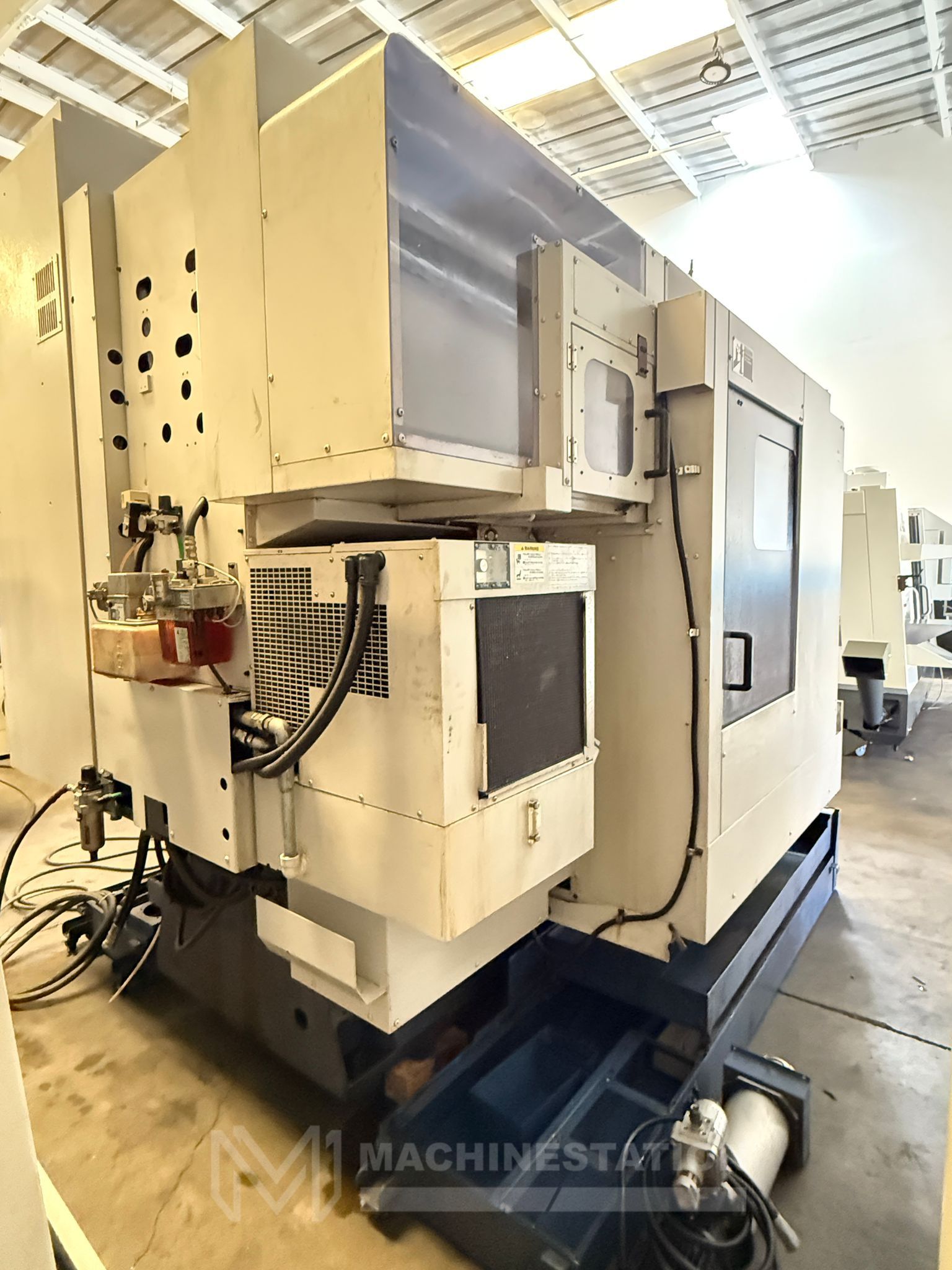

| Spindle Chiller Unit |

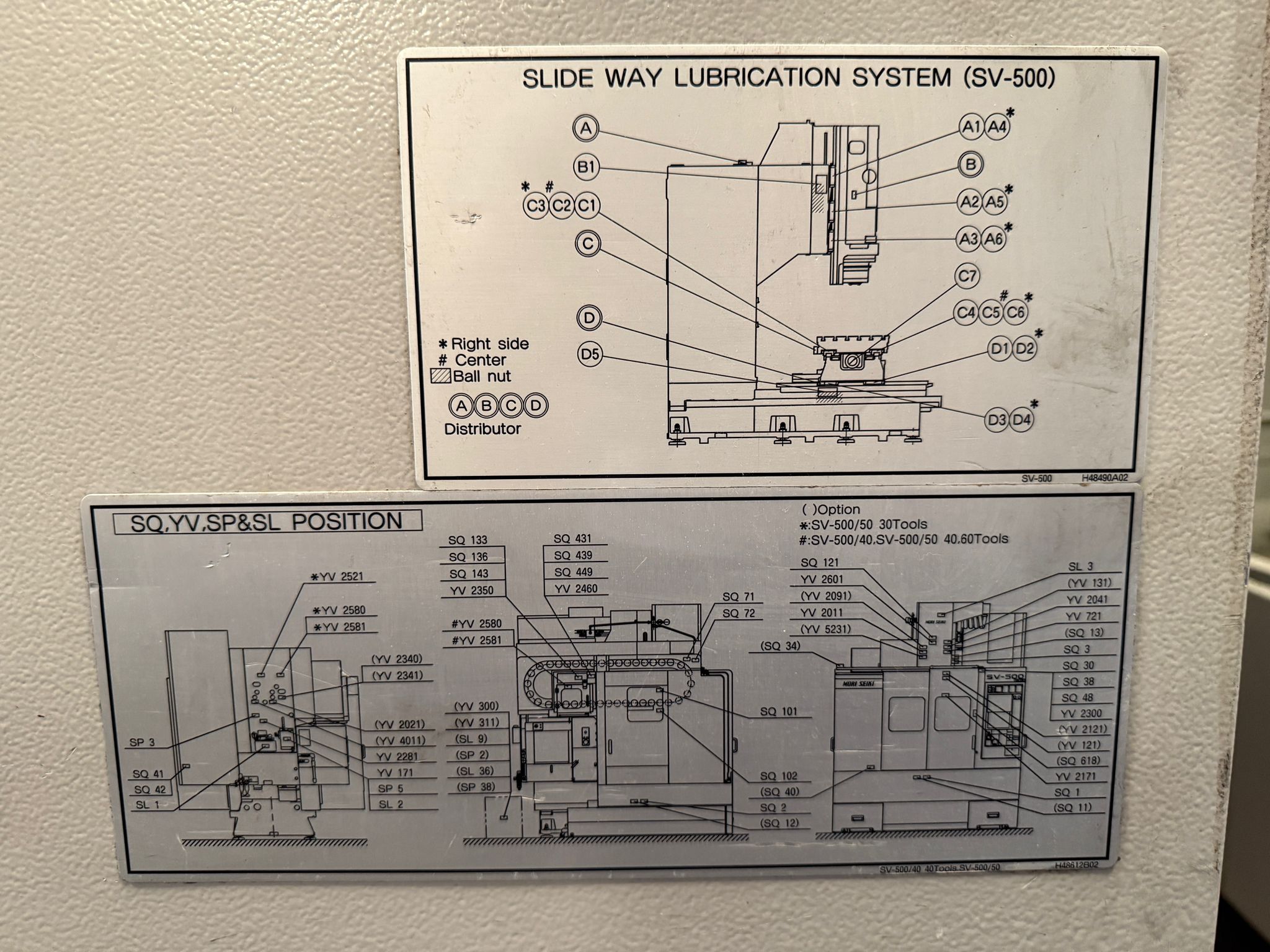

| Automatic Lubrication System |

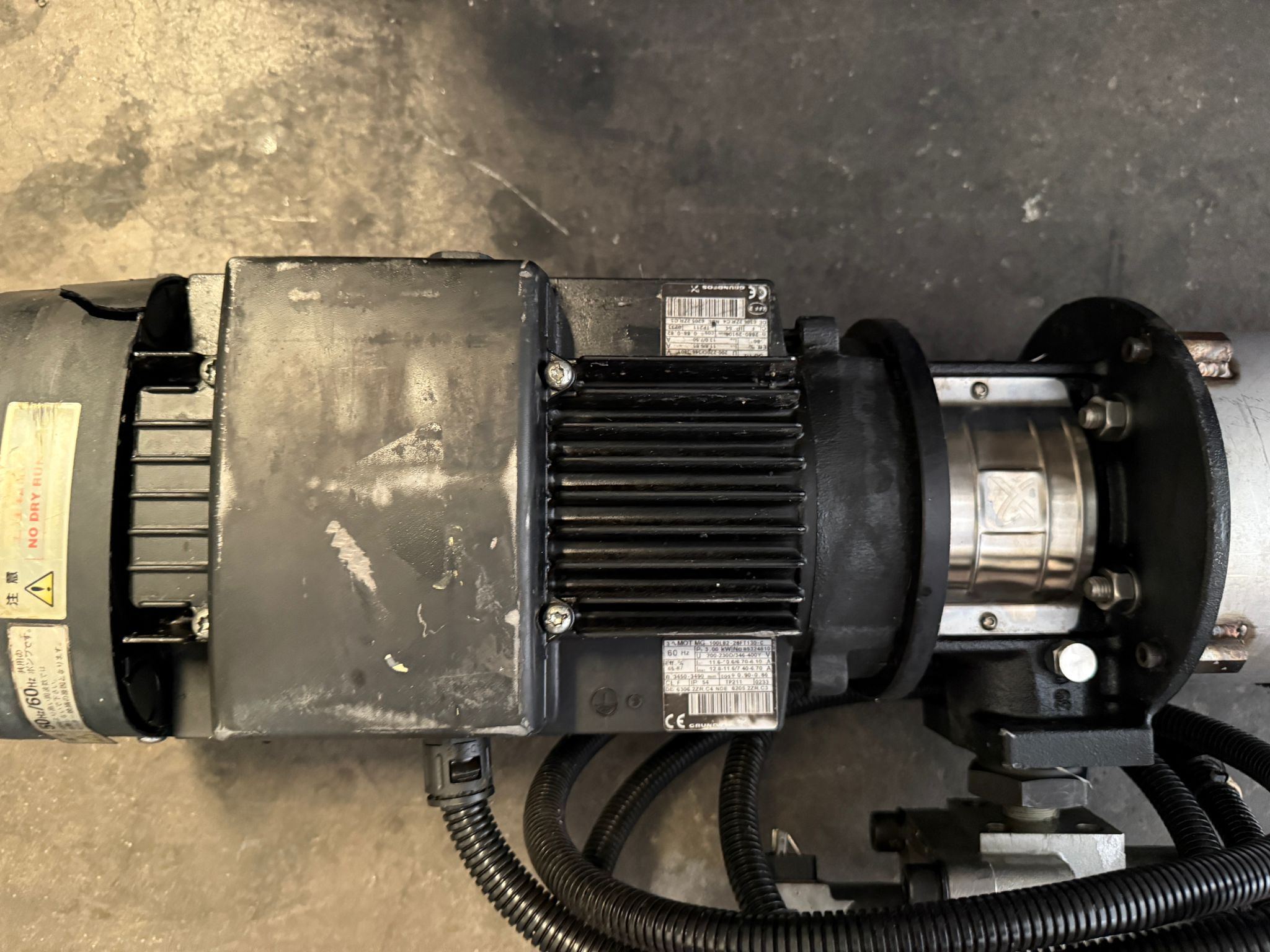

| Coolant System |
| Travels: |
| X-Axis: 31.5″ |
| Y-Axis: 20.1″ |
| Z-Axis: 20.1″ |
| Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″ |

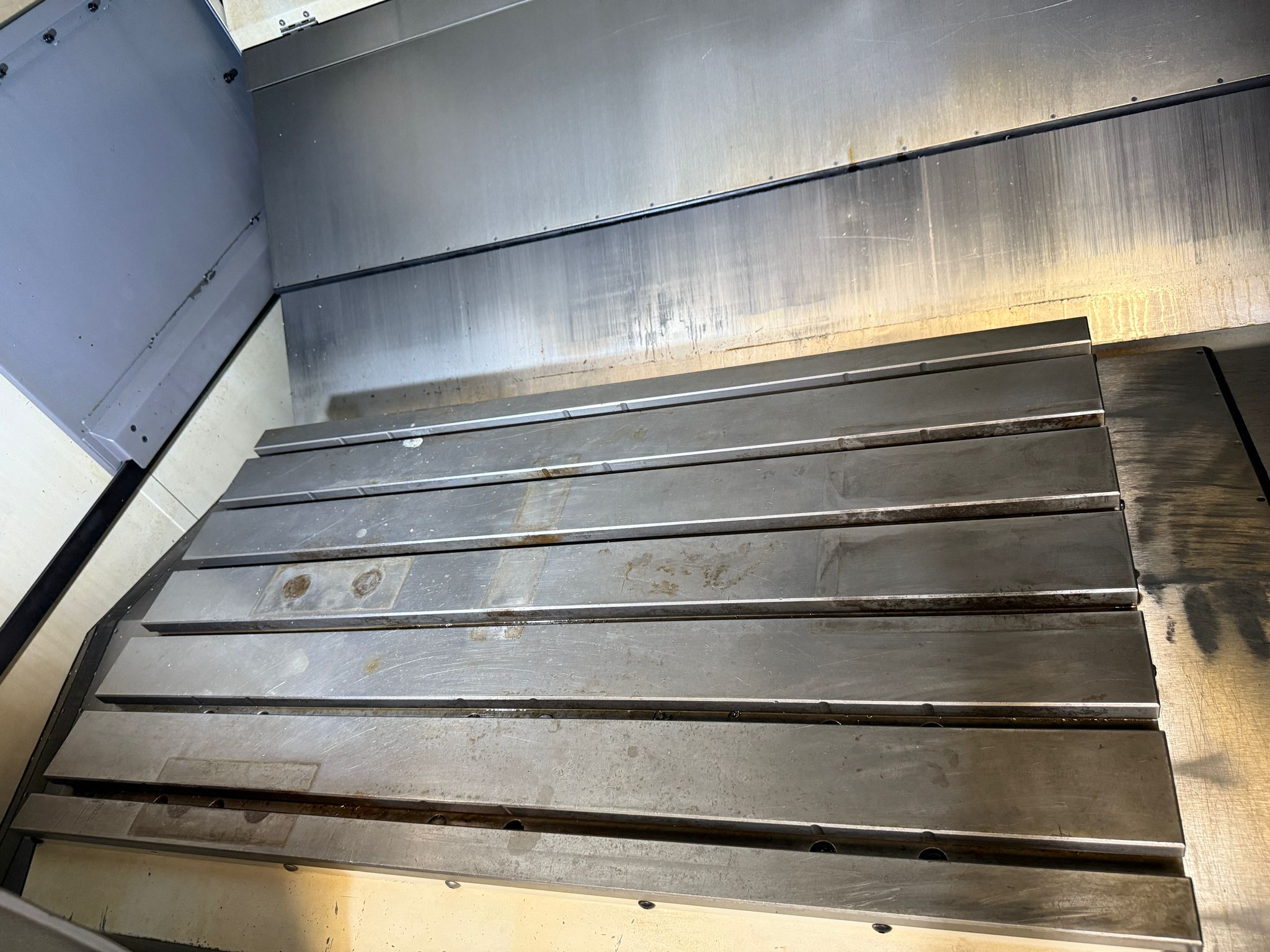

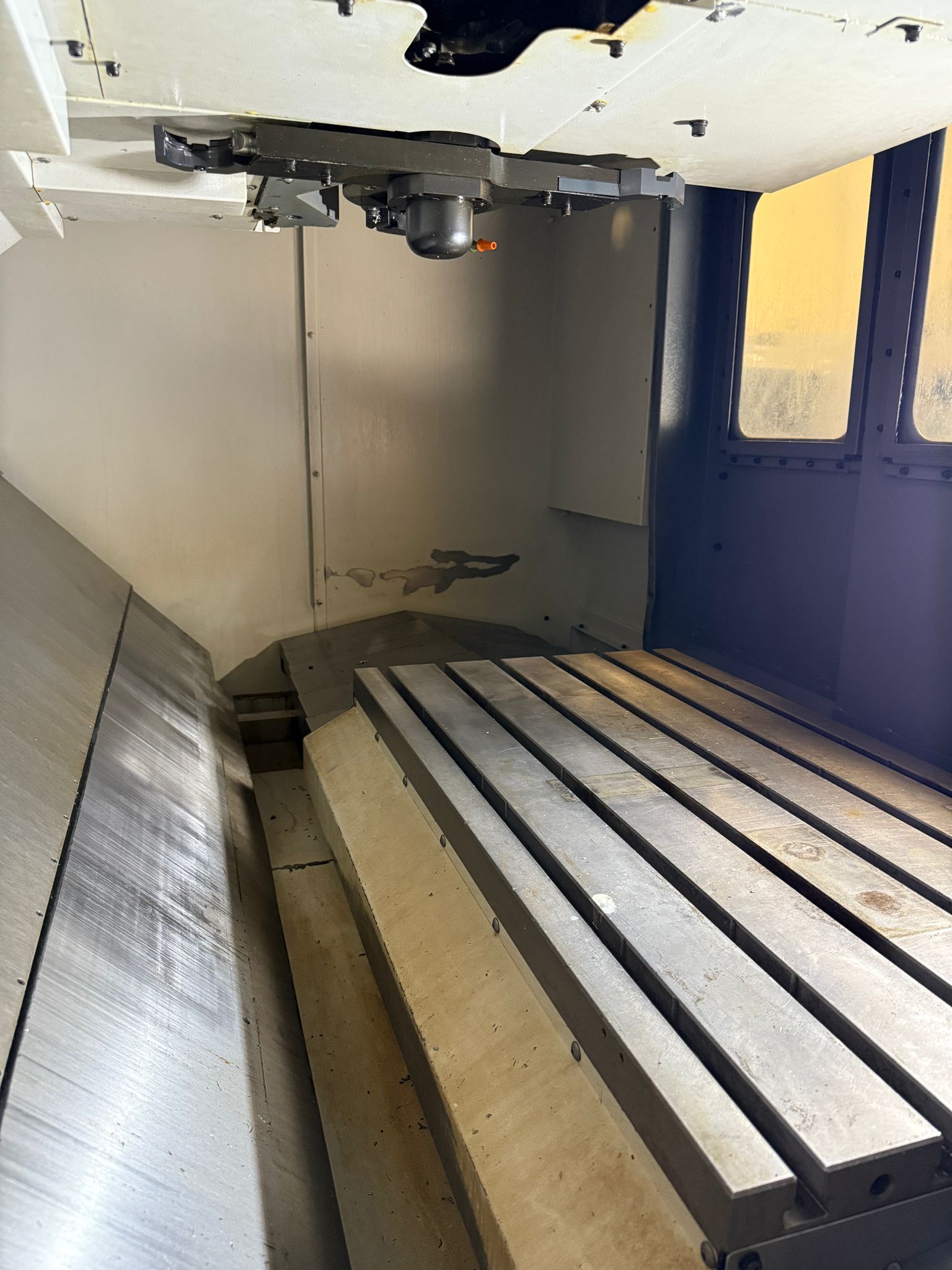

| Table: |
| Length: 43.31″ |
| Width: 23.62″ |
| Max Weight on Table: 2200 lbs |

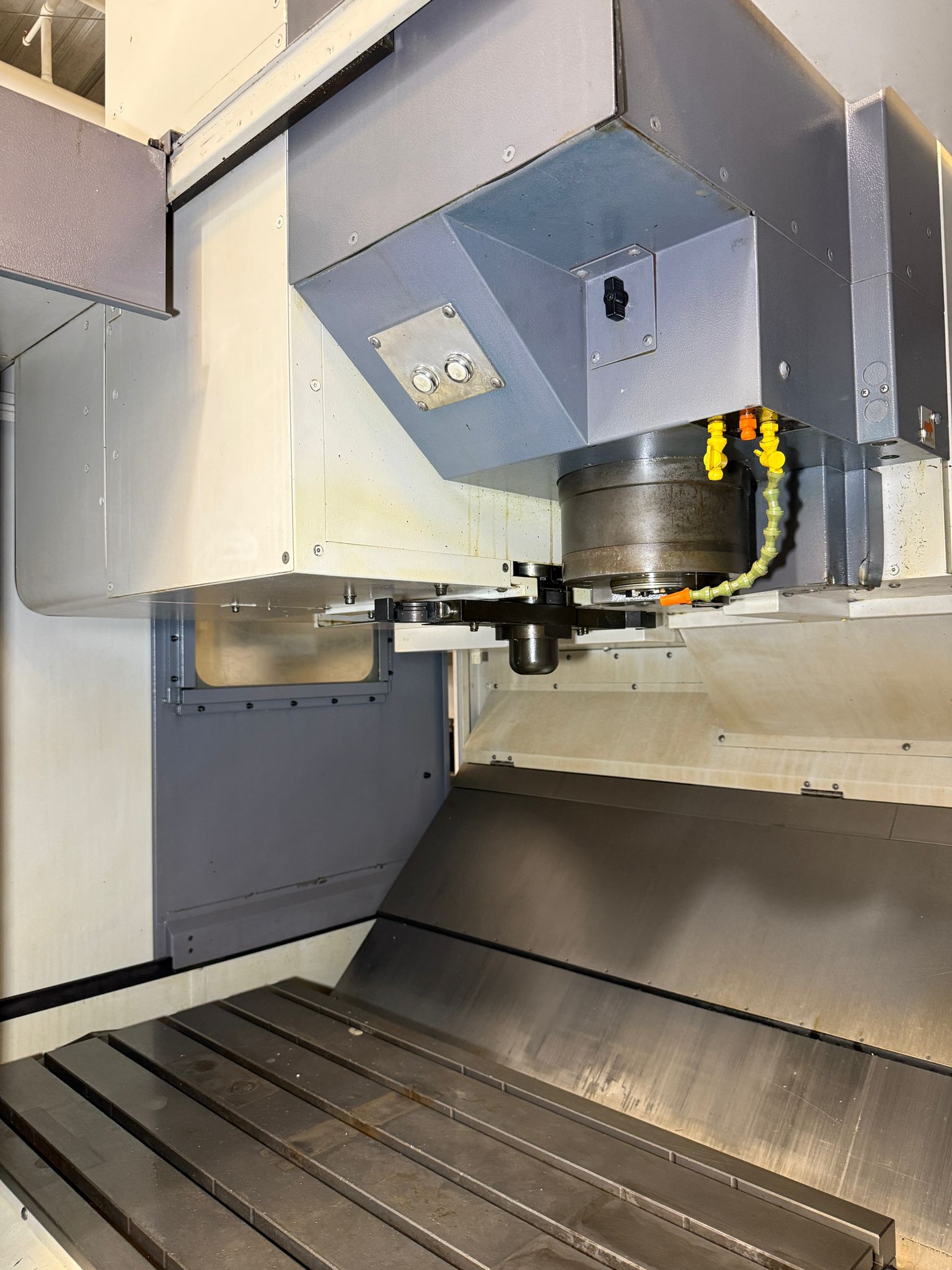

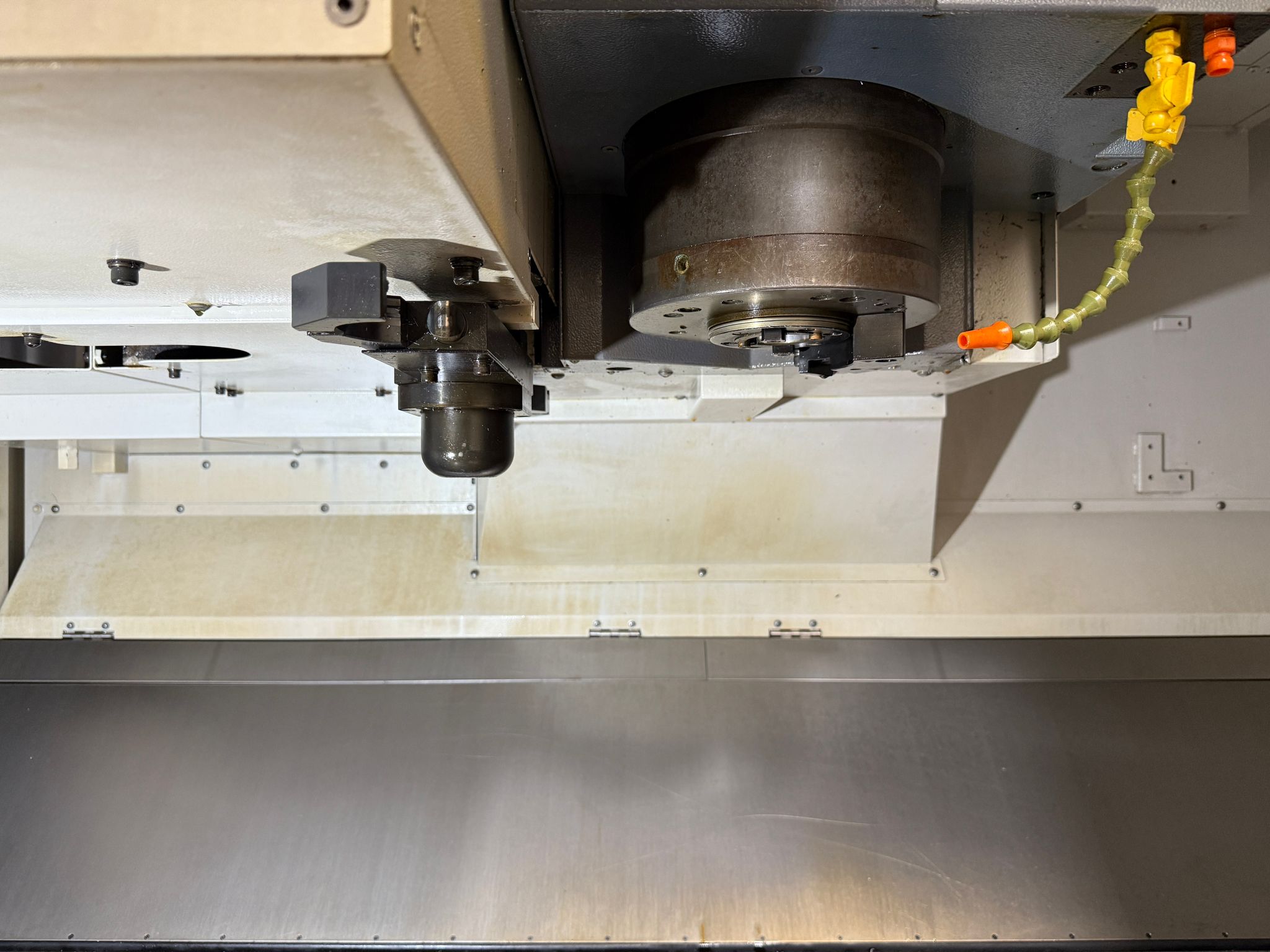

| Spindle: |
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |
| Feed Rate: |
| Rapid X Y & Z: 1260 inch/PM |
| Cutting Feed rate: 630 inch/PM |

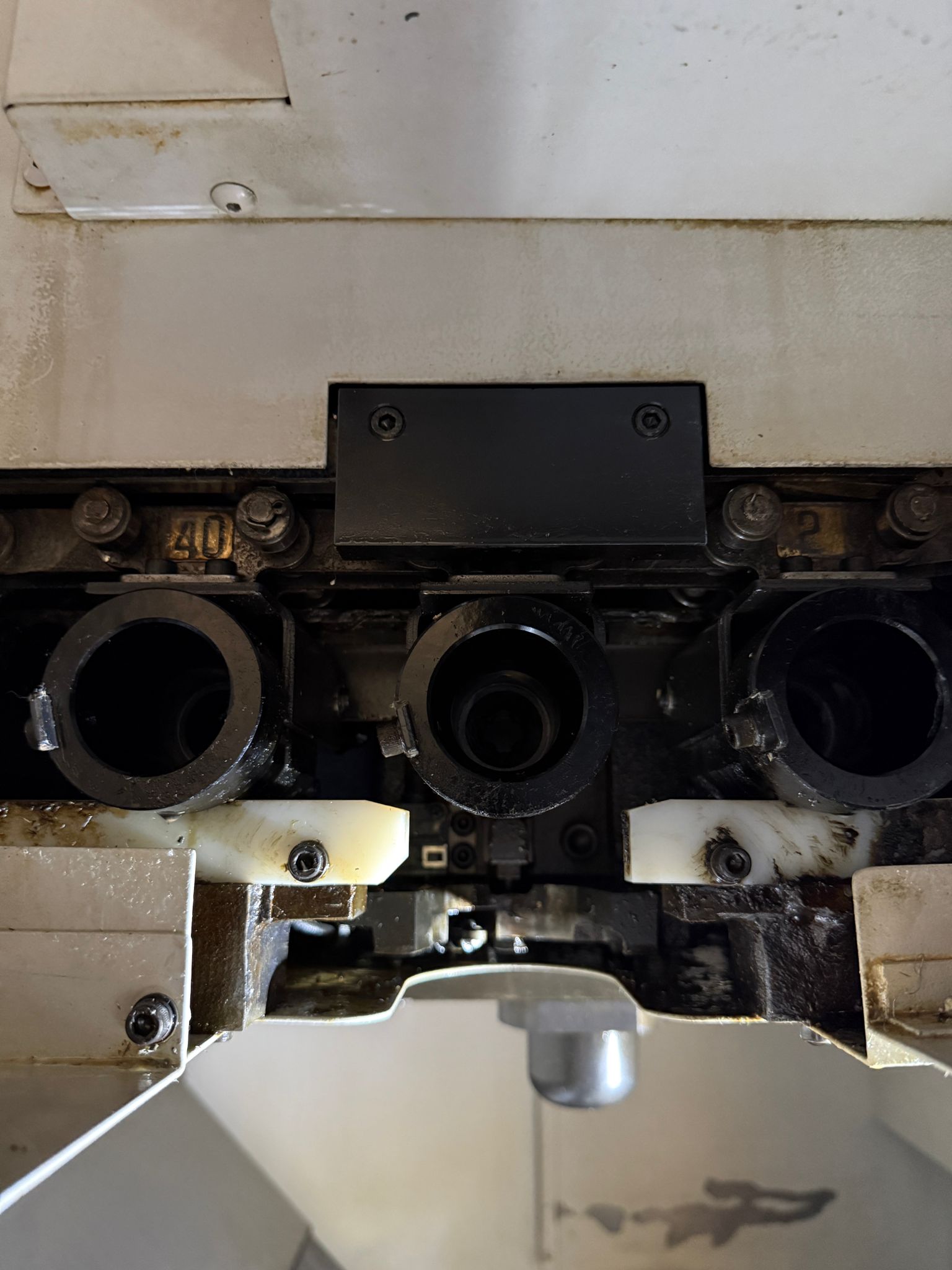

| Automatic Tool Changer: |
| Capacity: 40 Tools |
| Max Tool Weight: 33 lbs |
| Max Tool Length: 11.8″ |
| Max Tool Dia: 4.9″ |
| General: |
| Air Required: 80 psi 4 scfm |

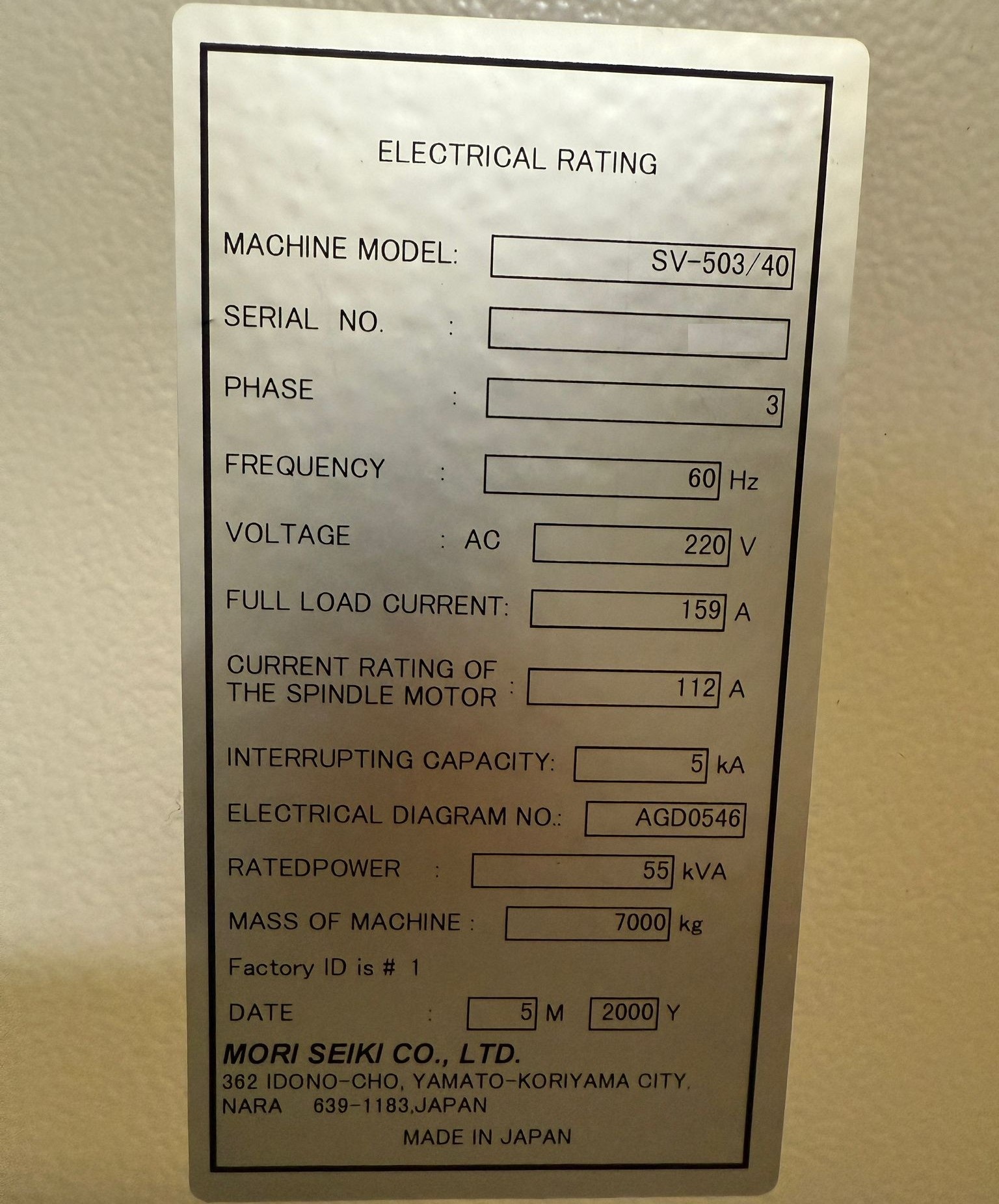

| Power: 205-220v / 66FLA / 3-Phase / 55 kva |
| Overall Dimensions: 180″ L X 102″ W X 120″ High |
| Weight: 15,430 lbs |
| Categories | CNC Vertical Machining Centers - VMC |
|---|
| Series | DMG Mori Seiki SV Series |
|---|
| Categories | CNC Vertical Machining Centers - VMC |
|---|
