Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

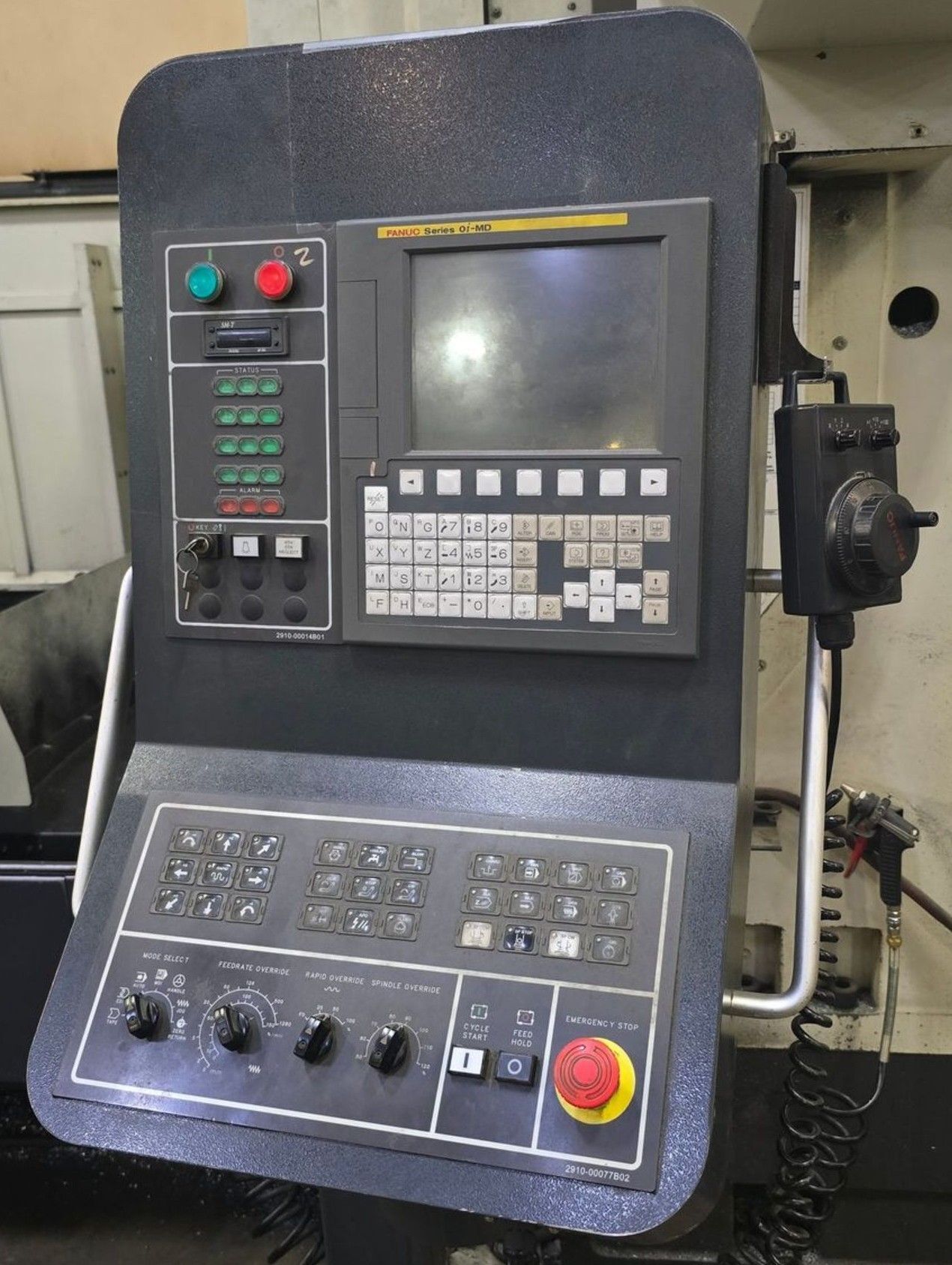

| Fanuc Oi-MD CNC Control |
| 122″ X 57″ Table |

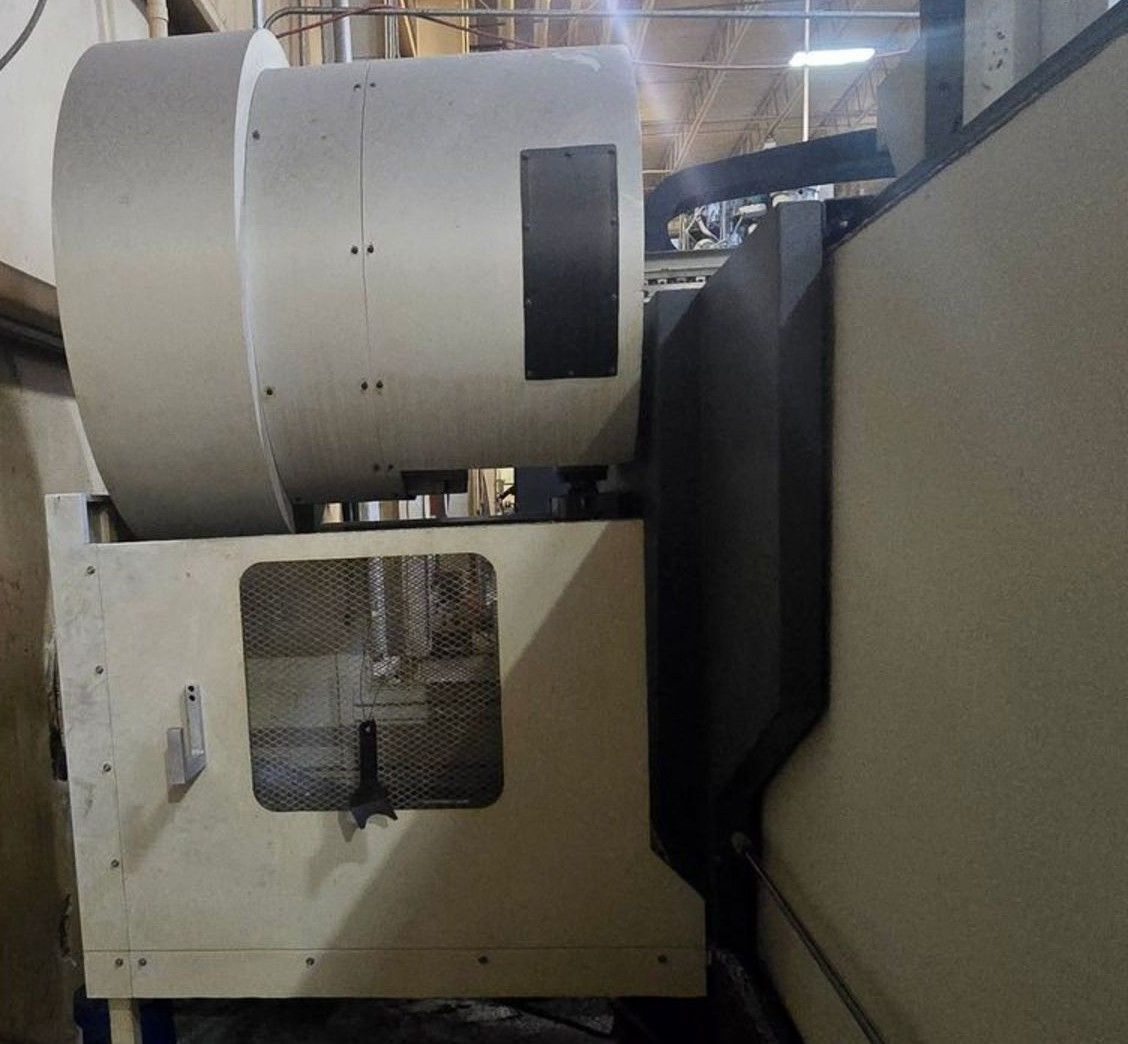

| 20 Station Side Mount Tool Changer |
| 50 Taper Gear Head 6000 RPM Spindle |
| Powerful 30 HP high torque spindle motor |
| Through Spindle Coolant – Ready (Pump Needed) |
| PCMCIA Card Slot |
| Rigid Tapping |
| Remote Jog Control |
| Coolant System |
| Base Flush Chip Disposal with Dual Auger |
| Chip Conveyor |

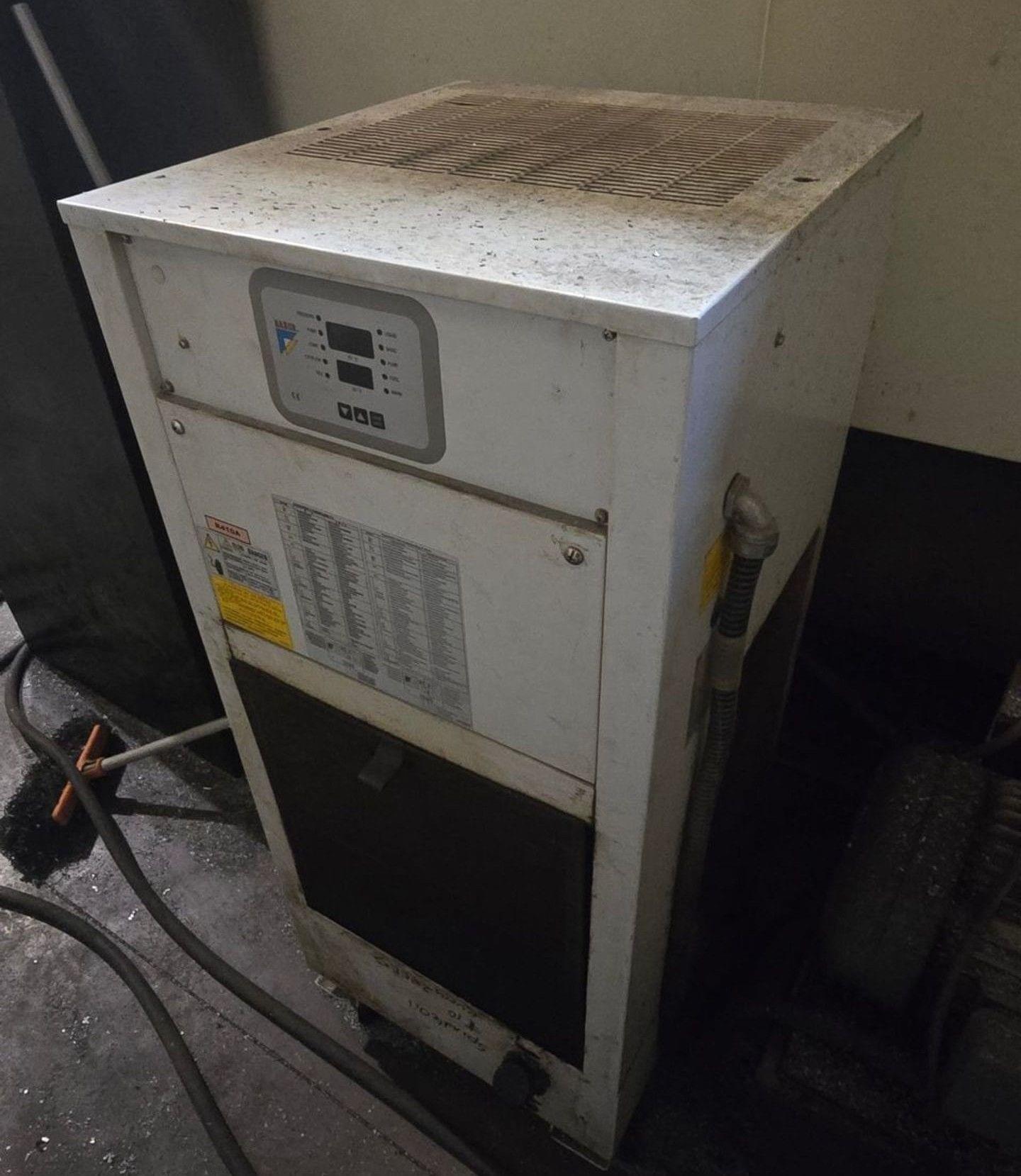

| Chiller Unit |
| Travels: |
| X-Axis: 122″ |
| Y-Axis: 59″ |
| Z-Axis: 30.7″ |
| Distance Between Columns: 67″ |
| Spindle Nose to Table (Min.- Max.): 7.87″- 34.64″ |
| Rapid Feedrate X, Y & Z Axis: 591 IPM |
| Cutting Feedrate: 276 IPM |
| Table: |
| Length: 122″ |
| Width: 57″ |
| T-Slot(Size X Number X Pitch): 0.86″ X 7 X 7.08″ |
| Max Weight on Table: 14,330 lbs |

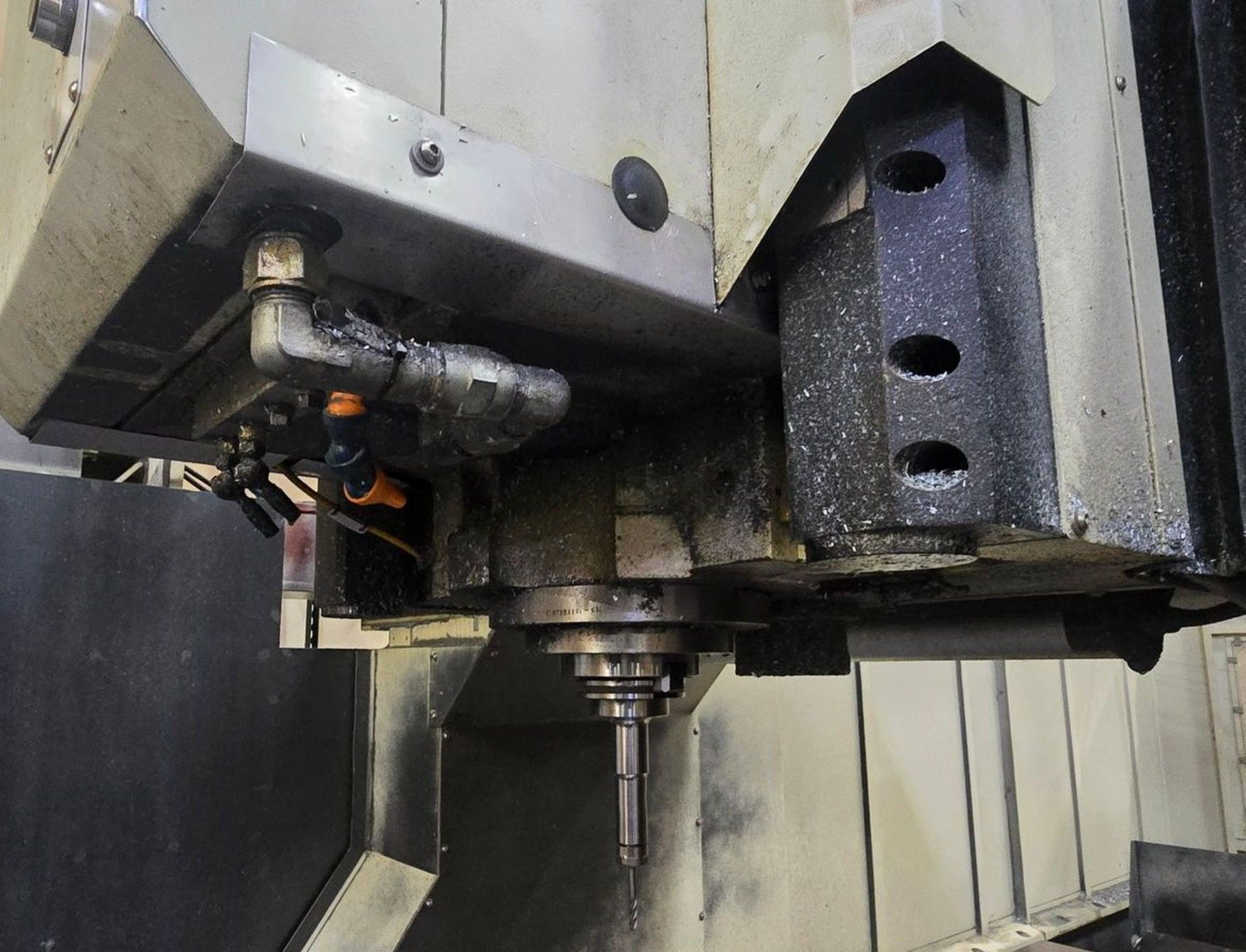

| Spindle: |
| Taper Size: CAT-50 |
| Speed Range: 6000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
| CAT-50 Taper |
| Capacity: 20 Tools |
| Max Tool Weight: 33 lbs |
| Max Tool Length: 11.81″ |
| Max Tool Dia.: 4.9 – 9.05″ |

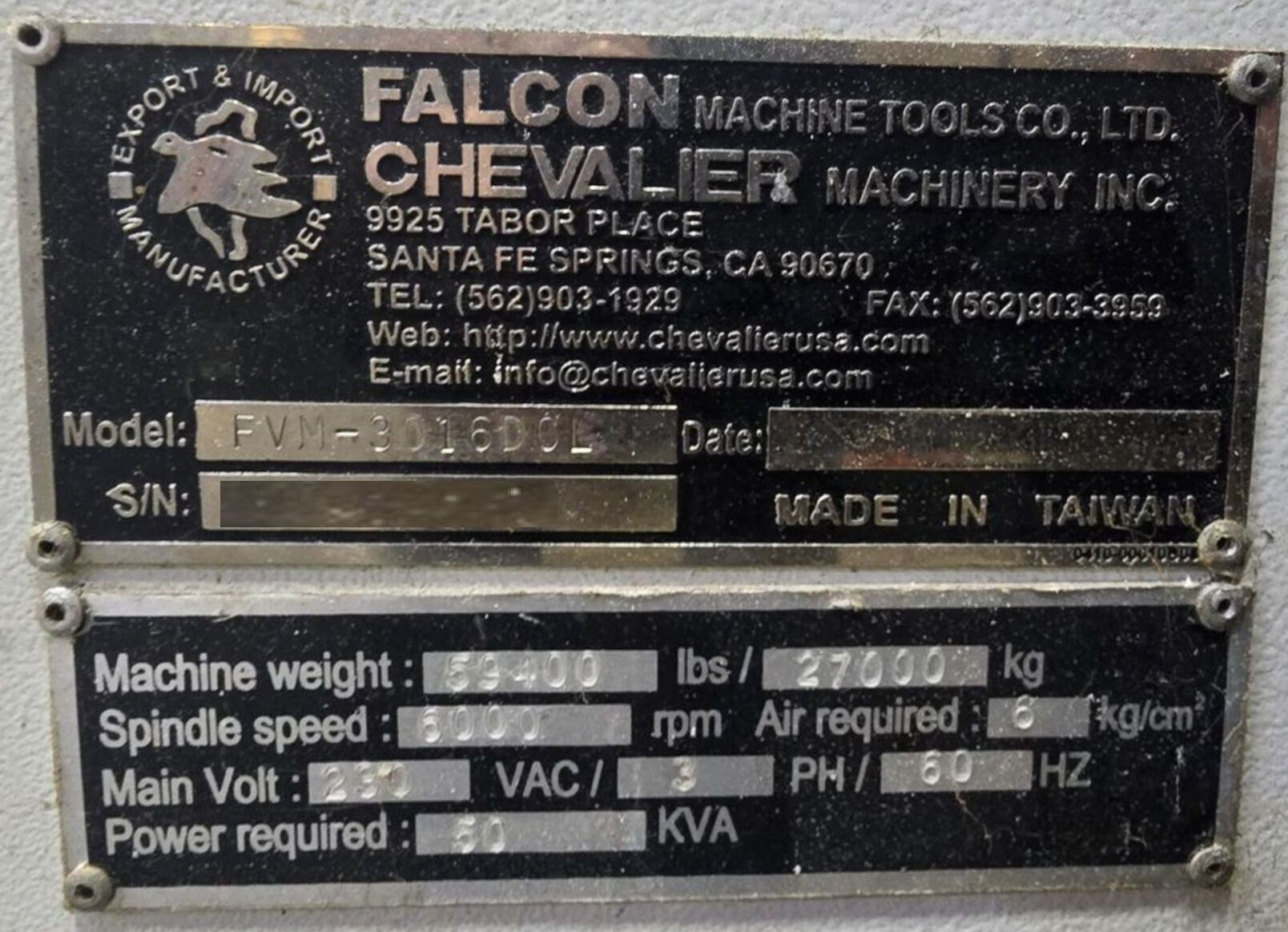

| General: |
| Air Required: 100 psi 4 scfm |
| Power: 230v / 60 Hz / 3-Phase / 50 Kva |
| Overall Machine Dimensions: 391″ x 178″ x 160″ High |
| Weight: 59,400 lbs. |
| Categories | CNC Bridge / Gantry Mill |
|---|
| Categories | Used Manual Machines, Millings |
|---|
