Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

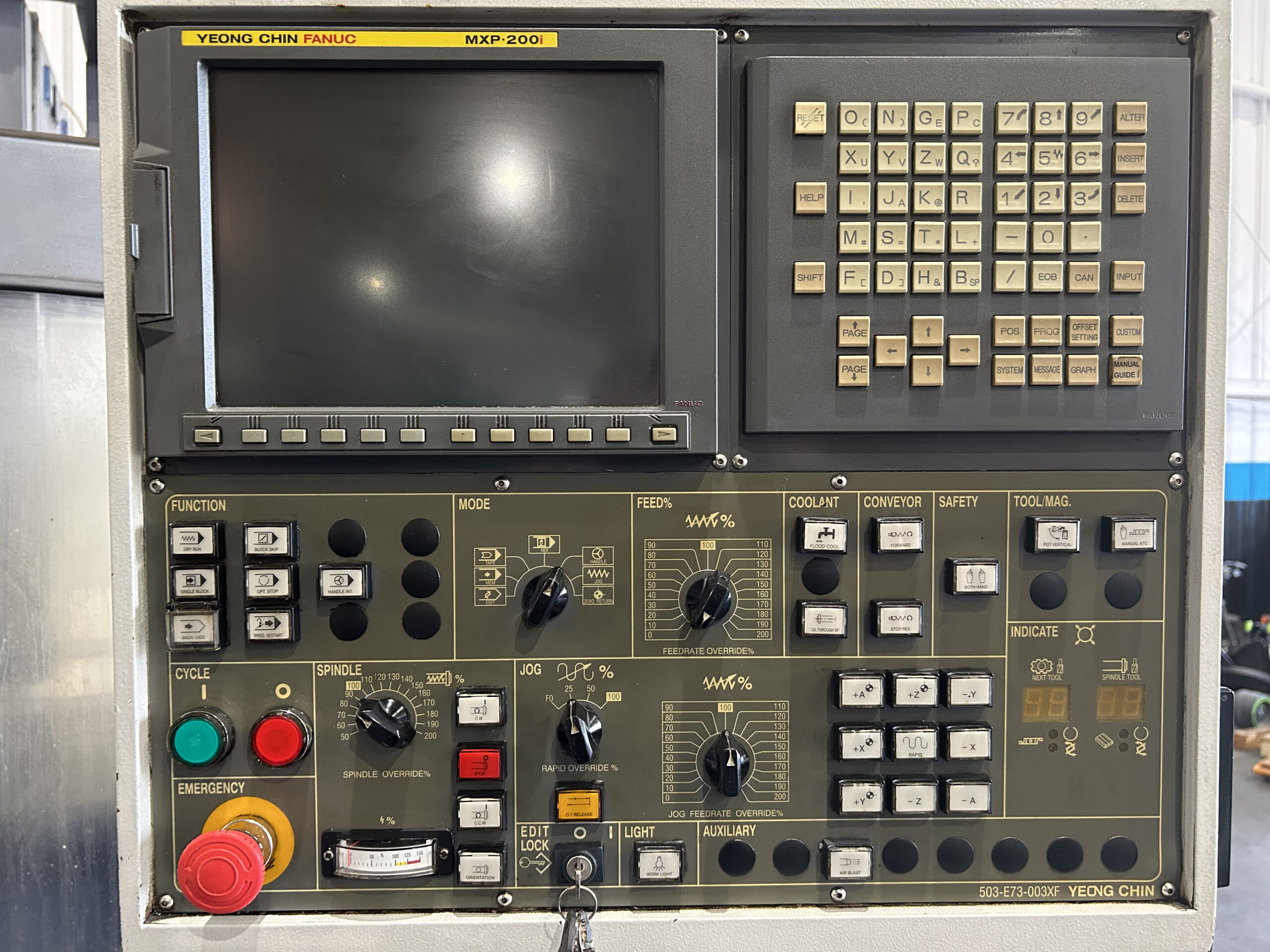

| Fanuc MXP-200i series CNC Control |
| Box Way construction |
| 32 Station Automatic Tool Changer |

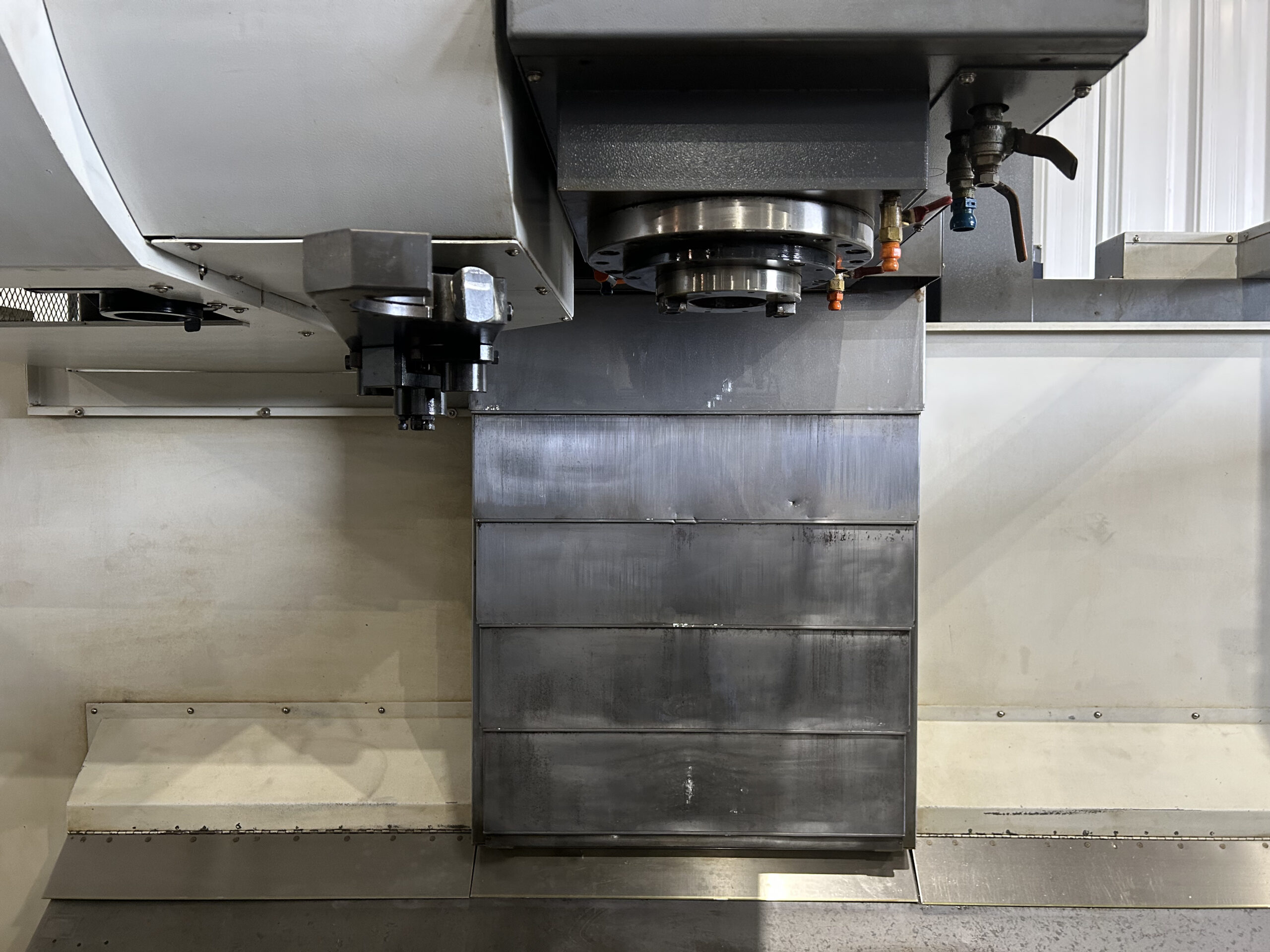

| 50 Taper Spindle |
| 6,000 RPM Gear Head Spindle |
| Spindle Chiller Unit |
| PCMCIA Card Slot |
| MPG Handwheel Control |
| Rigid Tapping |
| Telescopic Way Covers |
| Coolant System |

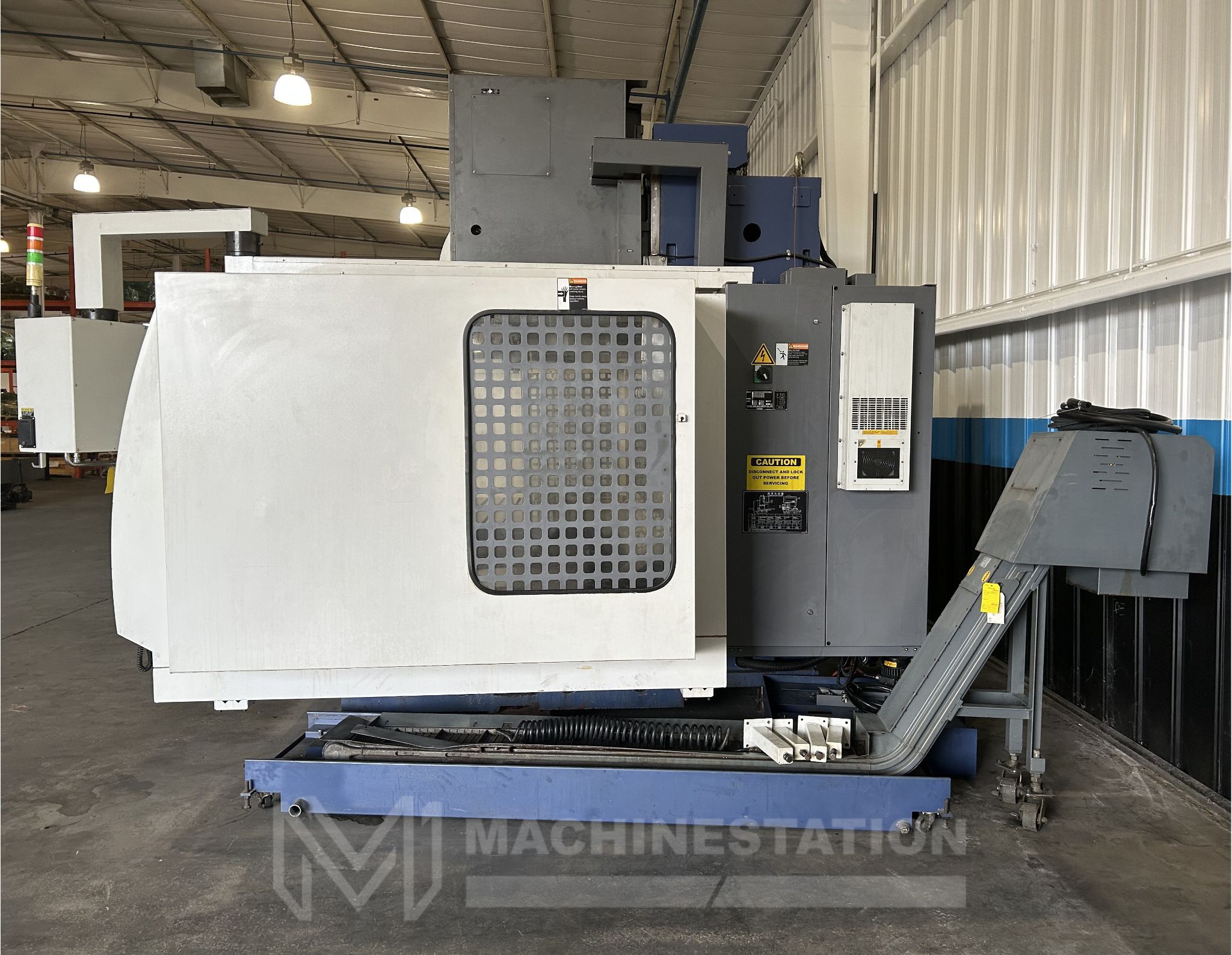

| Chip Conveyor |
| Travels: |
| X-Axis: 64.96″ |
| Y-Axis: 759.97 mm |
| Z-Axis: 700.02 mm |
| X, Y Axis Rapid Traverse rates: 1501 cm/min |
| Z Axis Rapid Traverse rates: 1199 cm/min |
| Cutting Feedrate: 500 cm/min |
| Spindle Nose to Table (Min.- Max.): 7.87″ – 35.43″ |

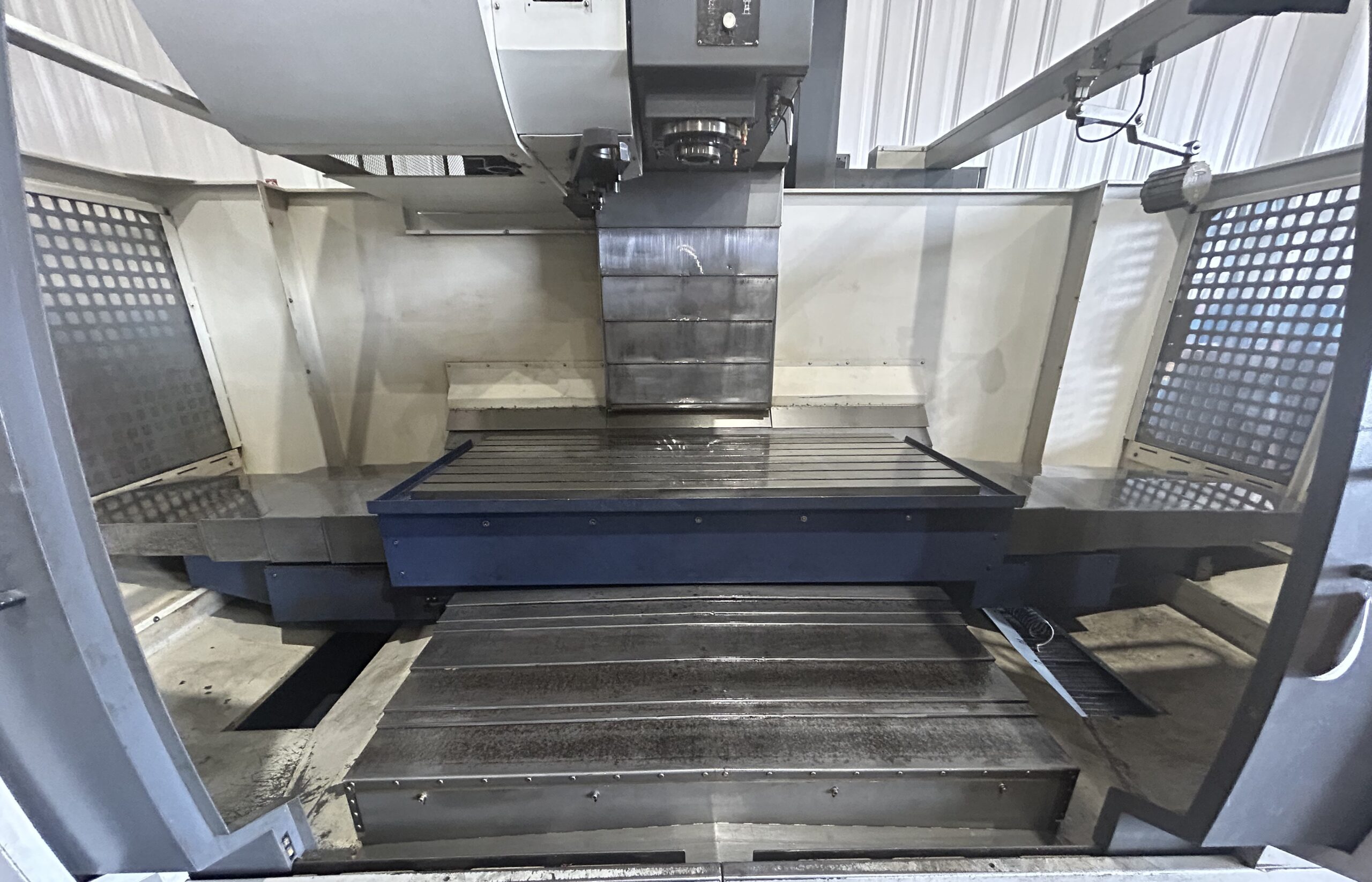

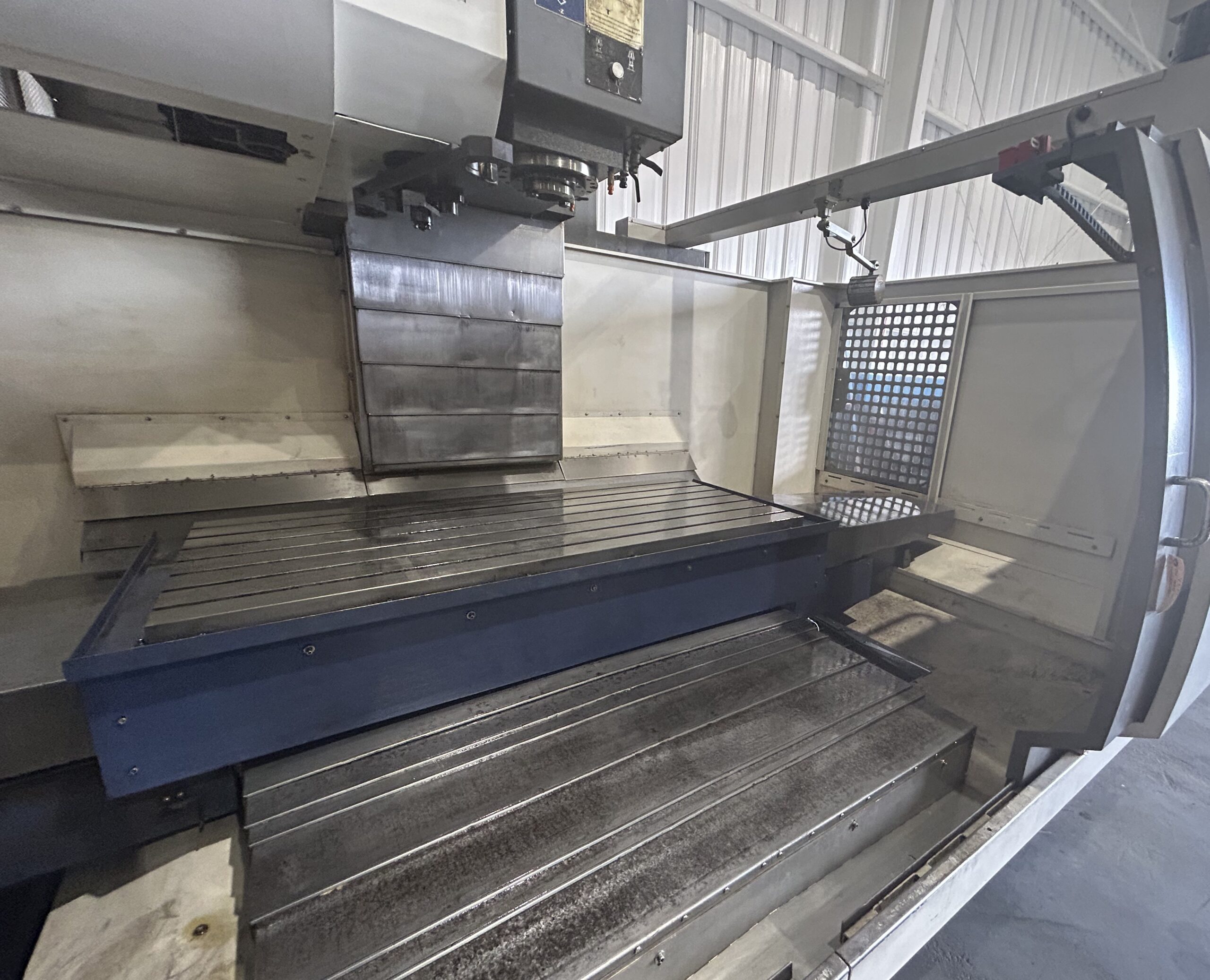

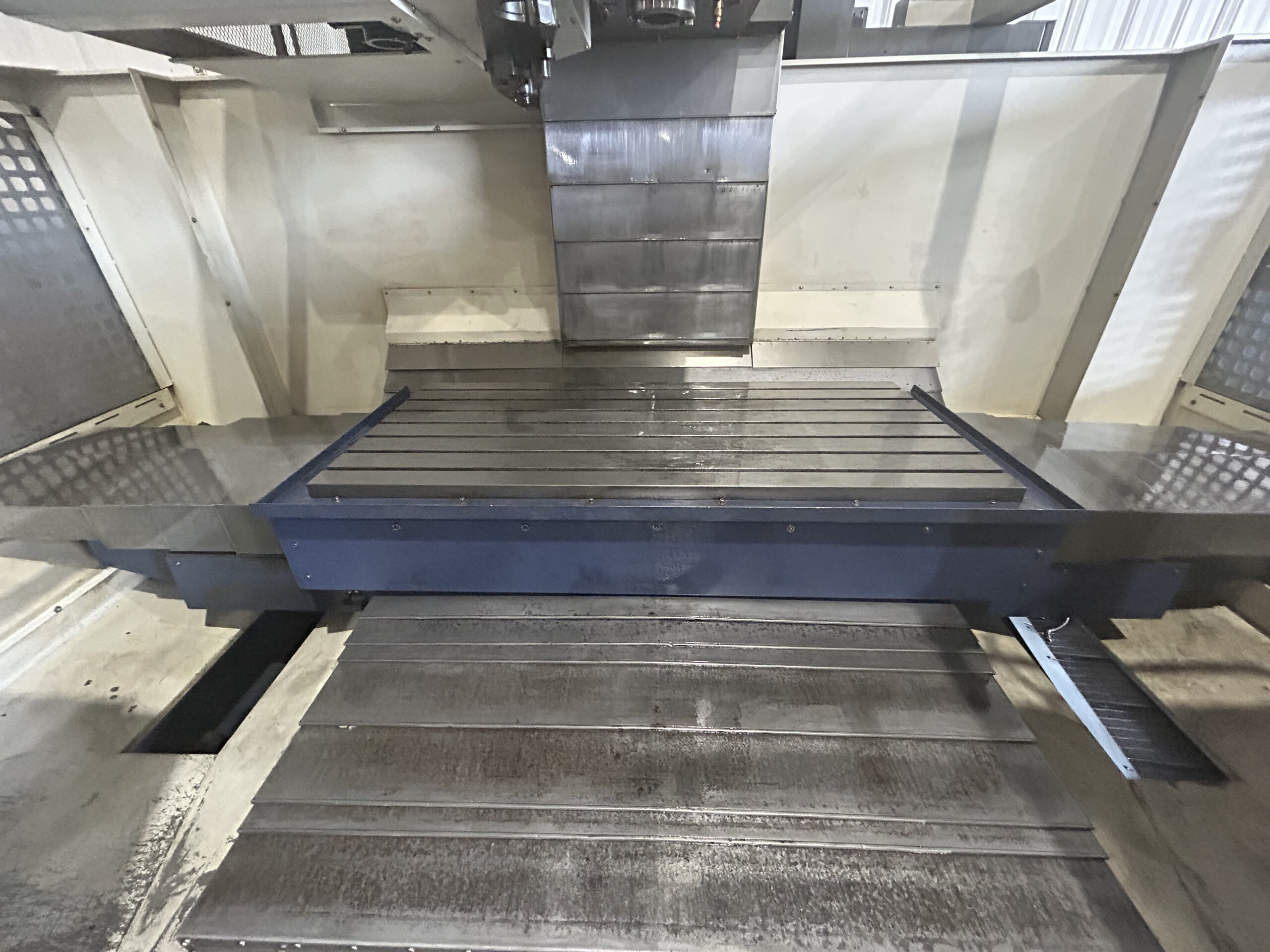

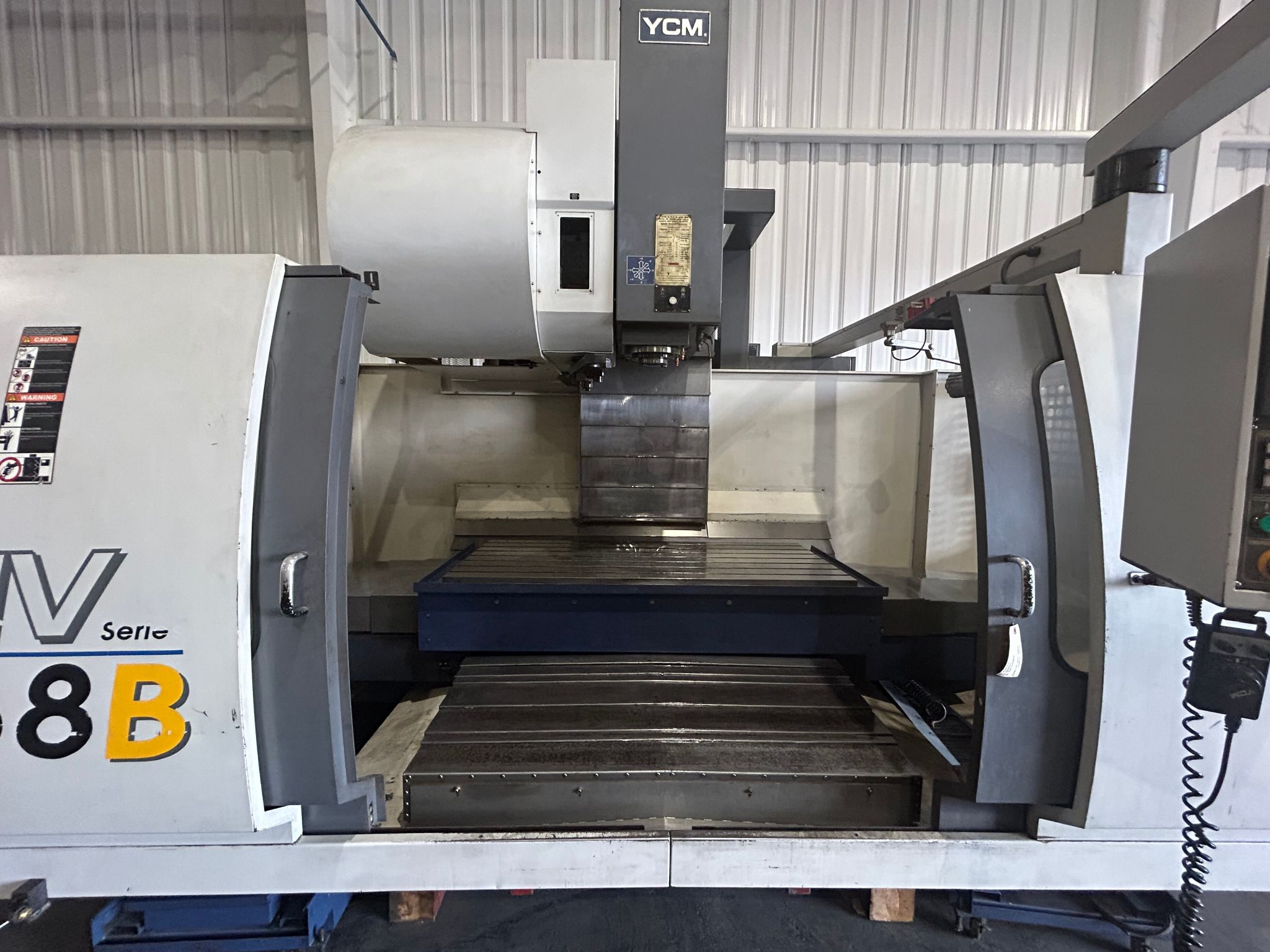

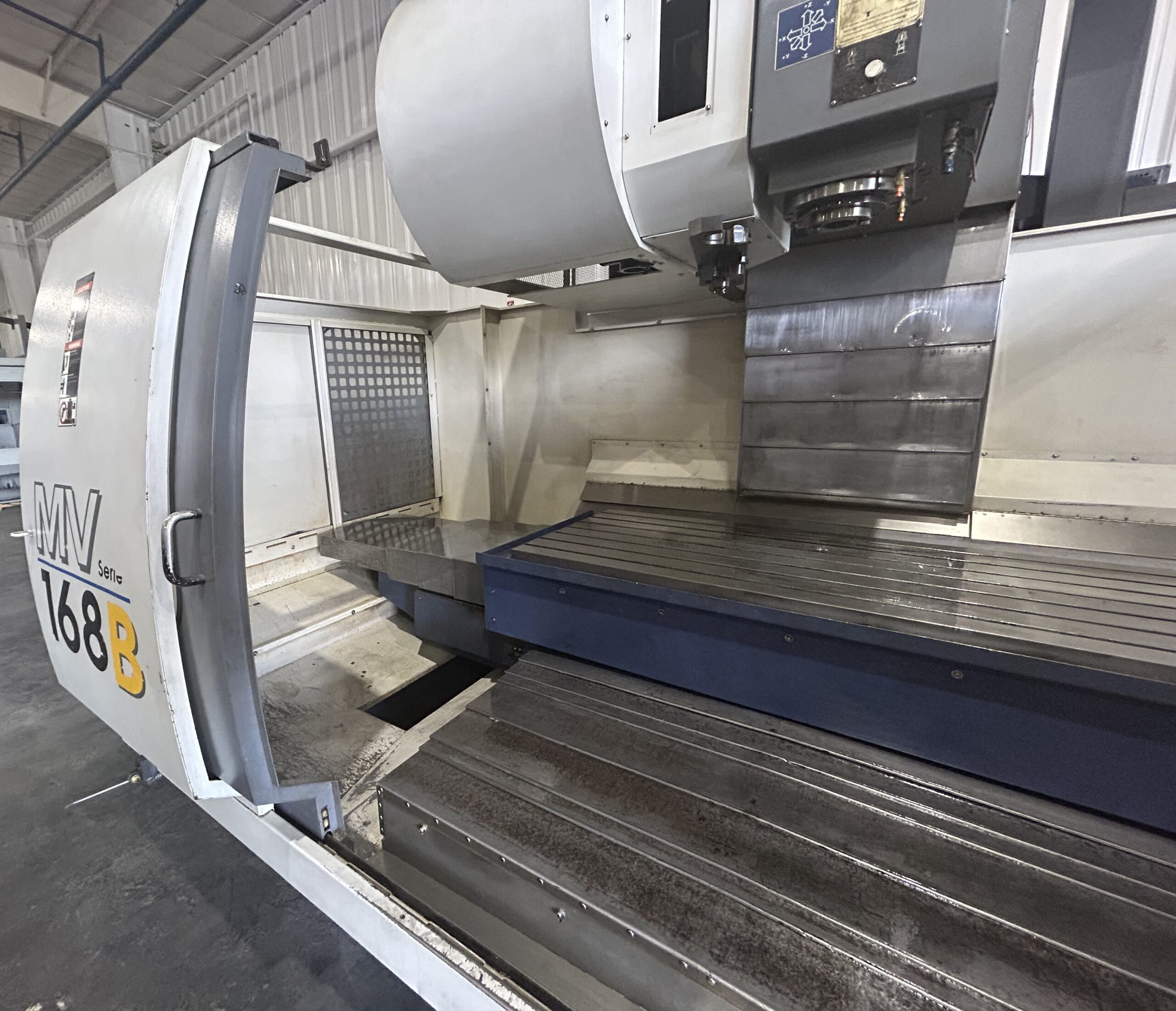

| Table: |
| Length: 66.93″ |
| Width: 29.92″ |
| T-Slot no. & Width: 7 X 0.71″ |
| Max Weight on Table: 1999.9 kg |
| Spindle: |
| Taper Size: 50 |
| Speed Range: 45 – 6,000 RPM |
| Spindle Power: 18.6 kW |
| Automatic Tool Changer: |
| Capacity: 32 Station Side Mounted |
| Max Tool Weight: 20 kg |
| Max Tool Length: 13.78″ |
| Max Tool Diameter : 4.72″ |
| General: |
| Air Required: 80 psi, 4 scfm |
| Power: 205-220v / 40kva / 3-Phase |
| Overall Dimensions: 185″ x 128″ x 122″ High Approx. |
| Weight: 15499.7 kg. Approx. |
