Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |
| Haas CNC Control |

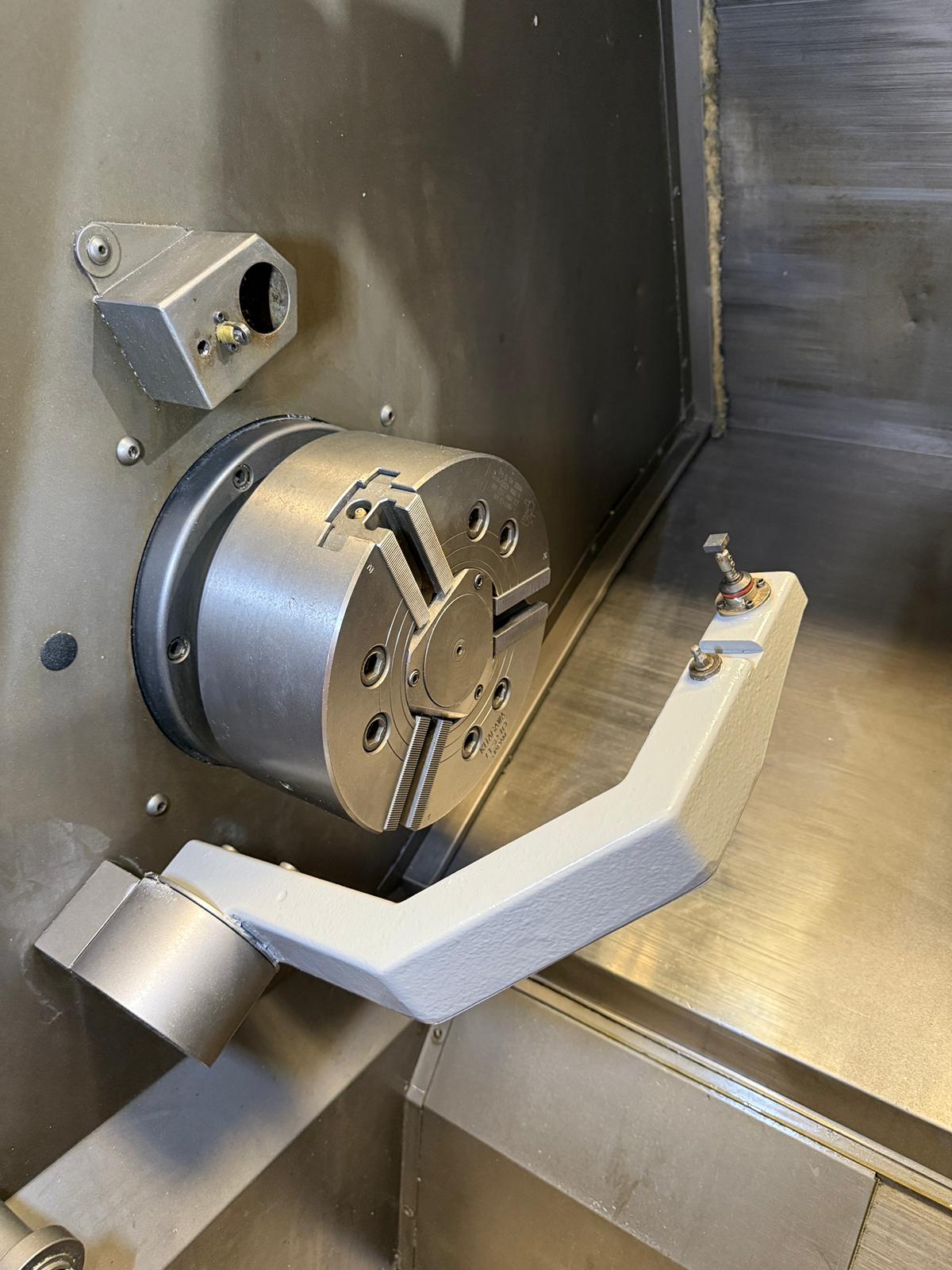

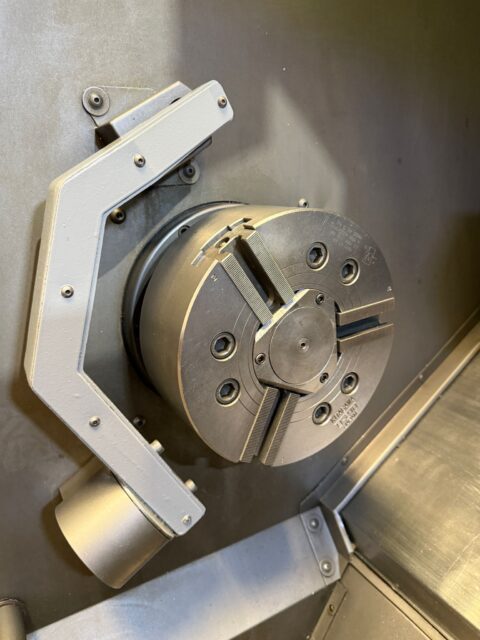

| 254 mm 3-Jaw Kitagawa B-210 Chuck |
| 22.4 kW Vector Dual Drive |
| 12 Station Bolt-on-Turret |
| Tool Presetter |
| Auto Door |
| A2-6 Spindle |
| 88.9 mm Big Bore Spindle |
| USB Port |

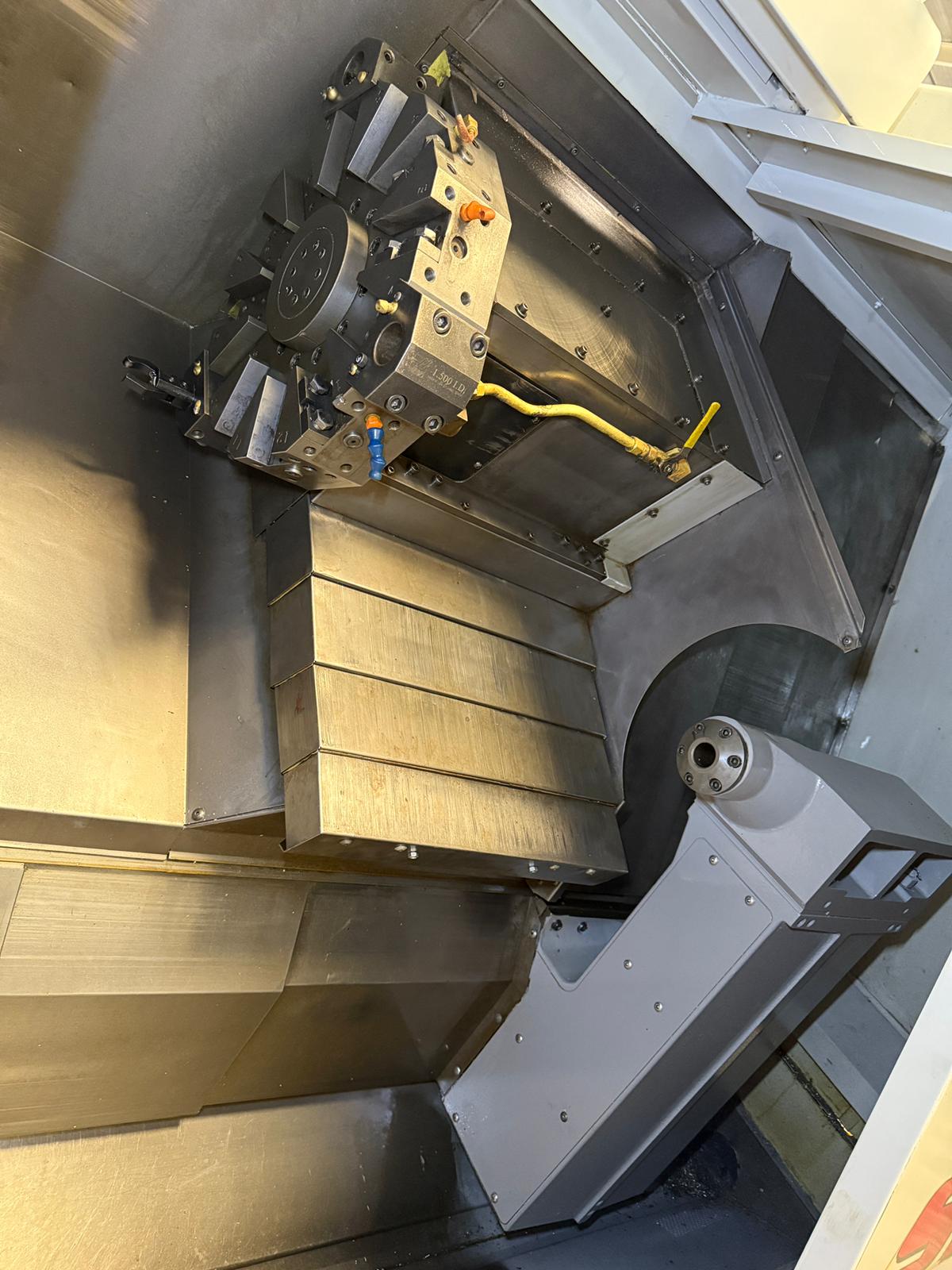

| Tailstock |
| Coolant System |
| Automatic Lubrication system |
| Foot Switch |

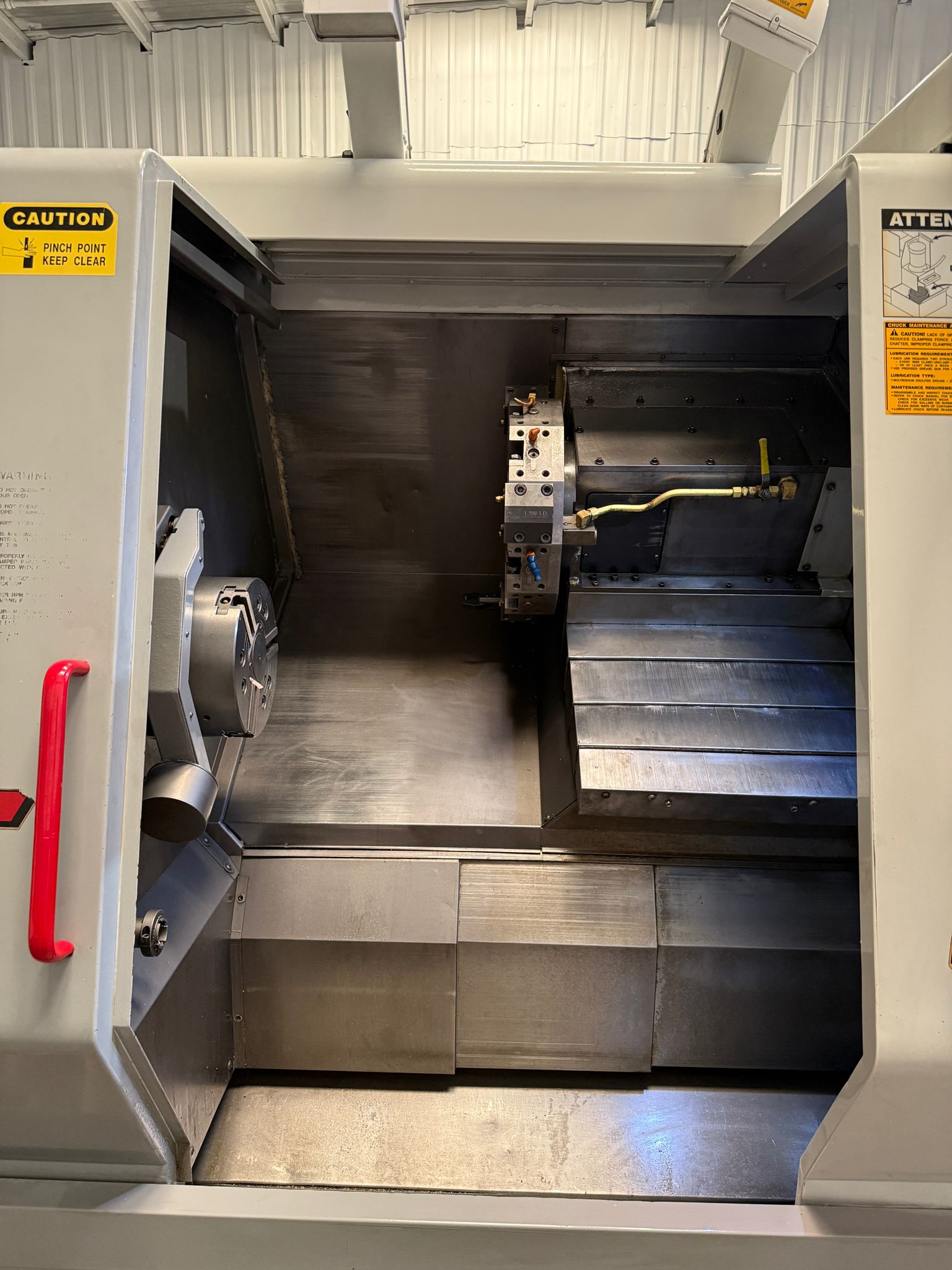

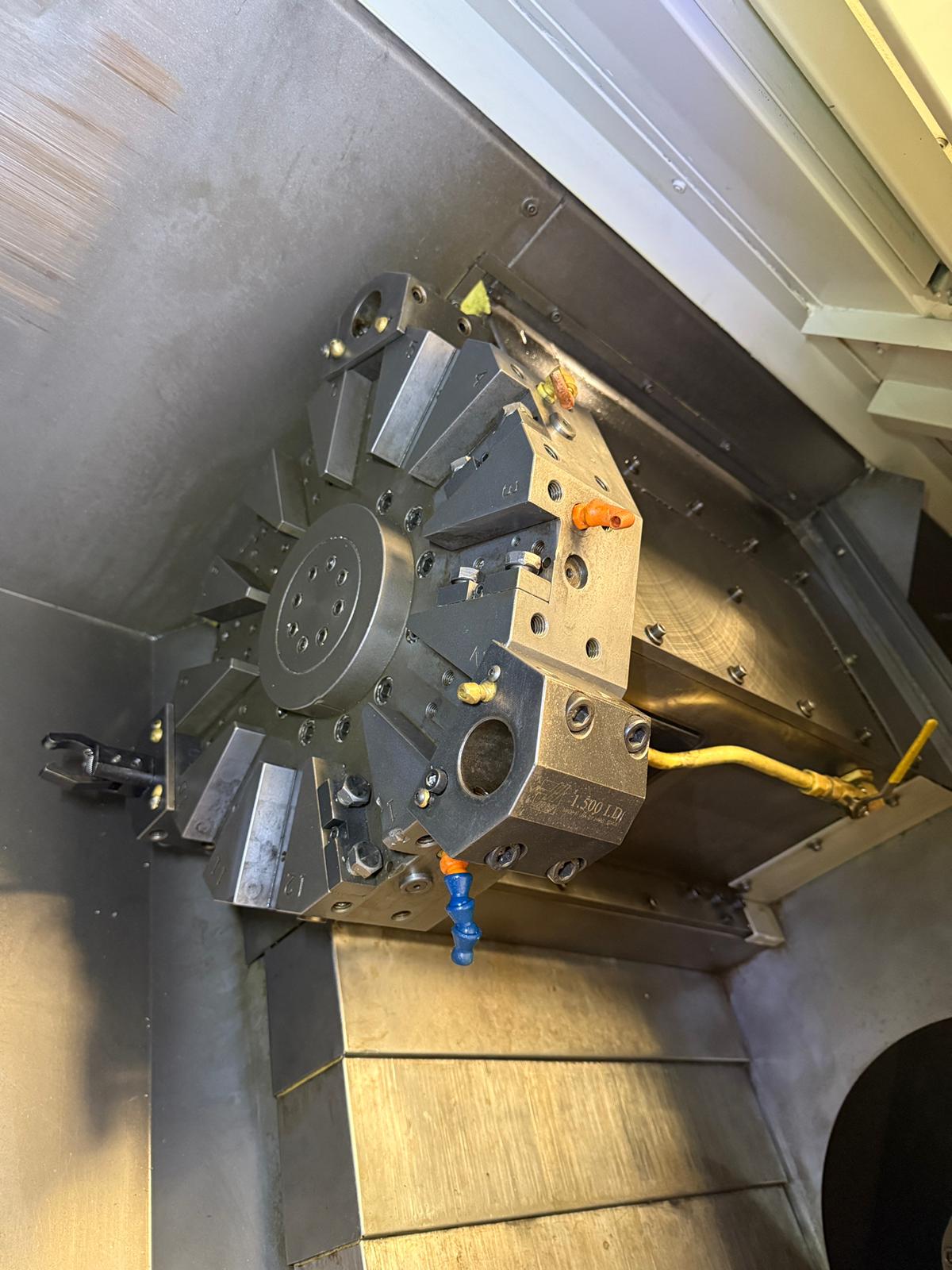

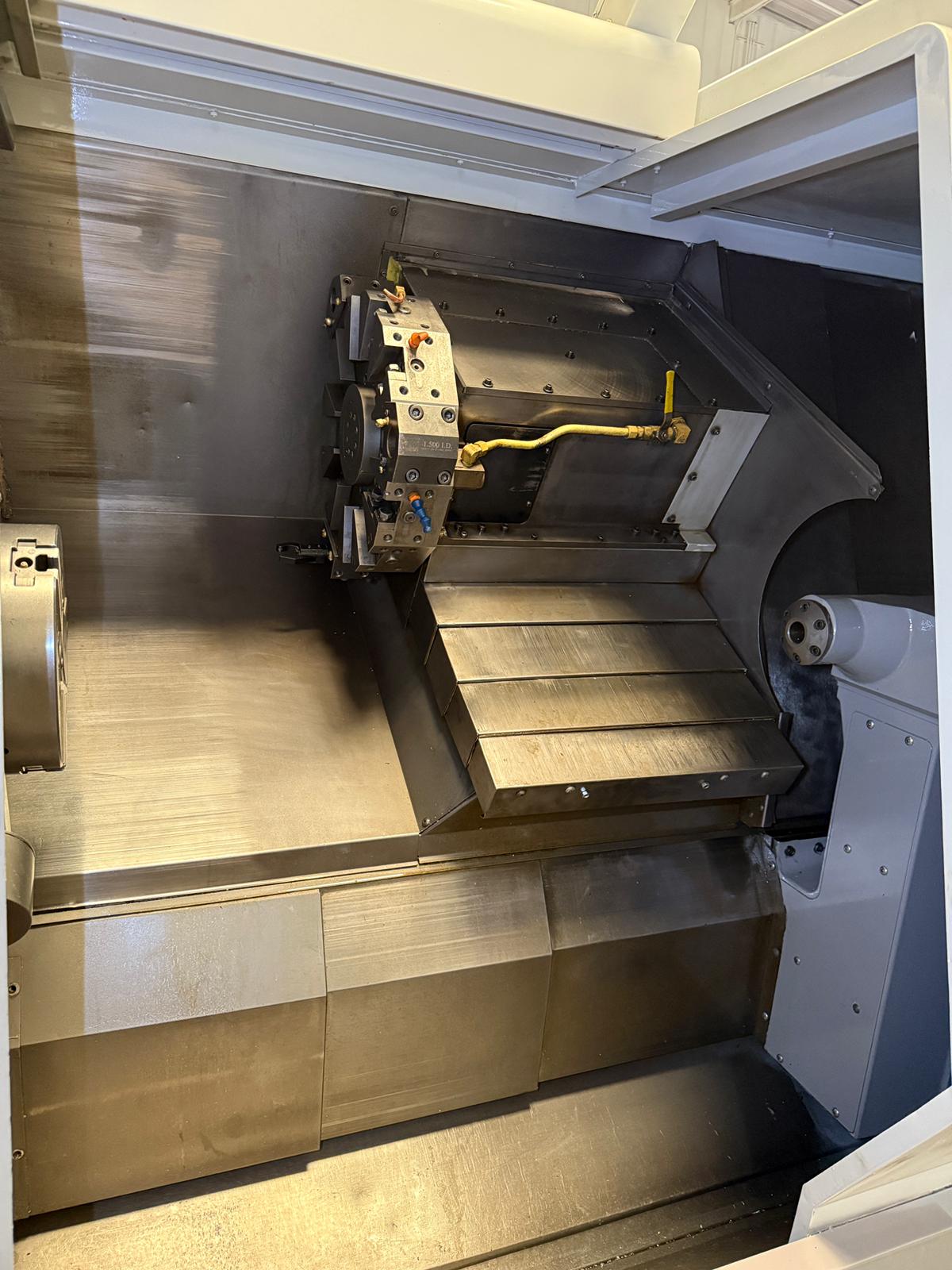

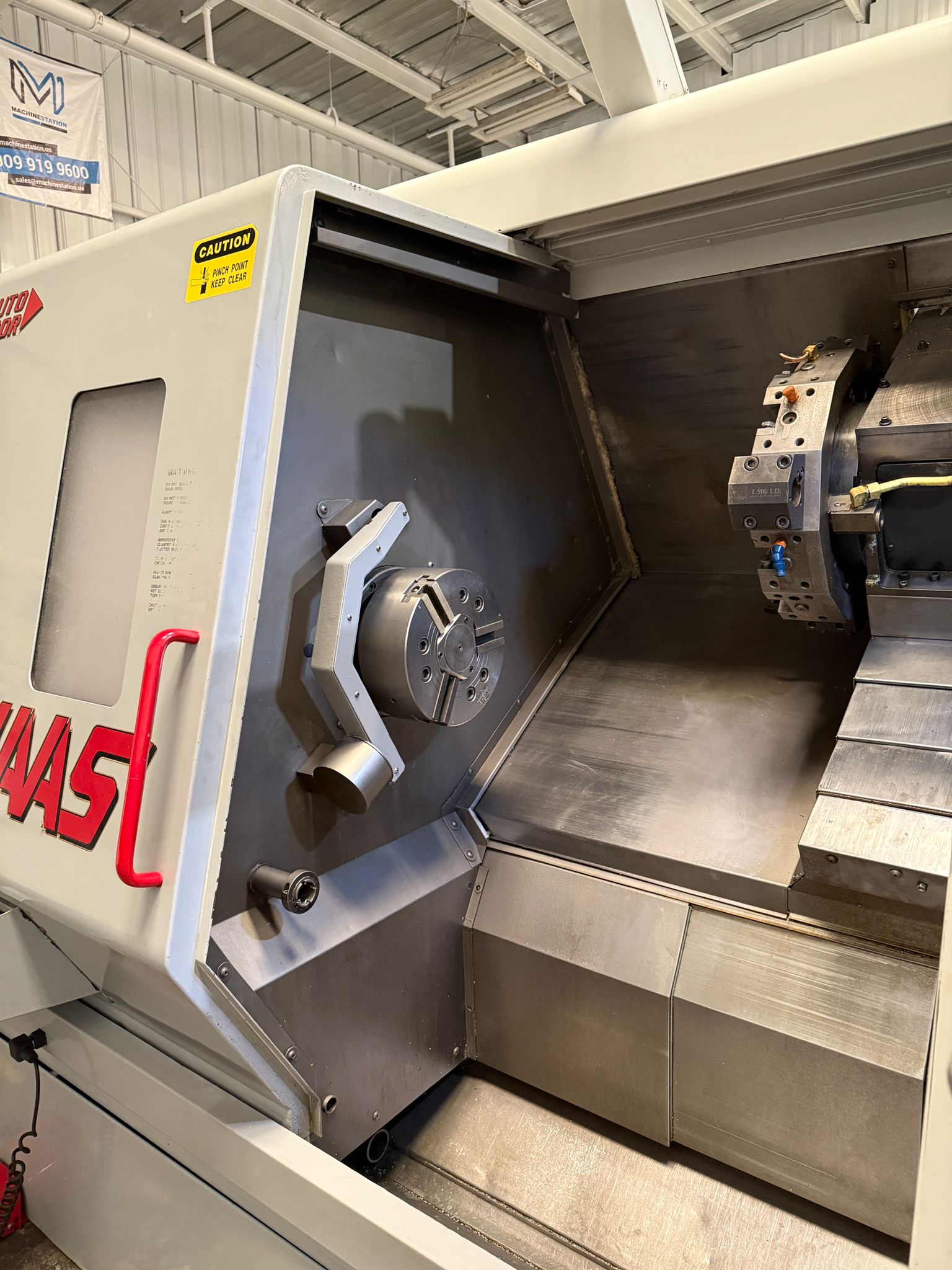

| (2) Boring Tool Holders & (1) Part Catcher Tool Holder are Mounted on Turret (As shown in the Images) |
| Capacity: |
| Max Turning Diameter : 381 mm |
| Max Swing Over Bed : 533.4 mm |
| Max Turning Length: 863.6 mm |
| Max Bar Capacity : 76.2 mm |
| Travels: |
| X Axis Travel : 238.76 mm |
| Z Axis Travel : 825.5 mm |
| Feedrate: |
| Rapid Traverse X Axis: 1803 cm/min |
| Rapid Traverse Z Axis: 1803 cm/min |
| Spindle: |
| Spindle Nose: A2-6 |
| Spindle Bore: 3.5″ |
| Spindle Speed: 3400 RPM |
| Spindle Motor: 22.4 kW |
| Turret: |
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Turret Type: Bolt-on-Turret |
| Tailstock: |
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 2.6″ |
| Tailstock Quill Travel: 3.1″ |
| General: |
| Air Required: 100 psi 4 scfm |

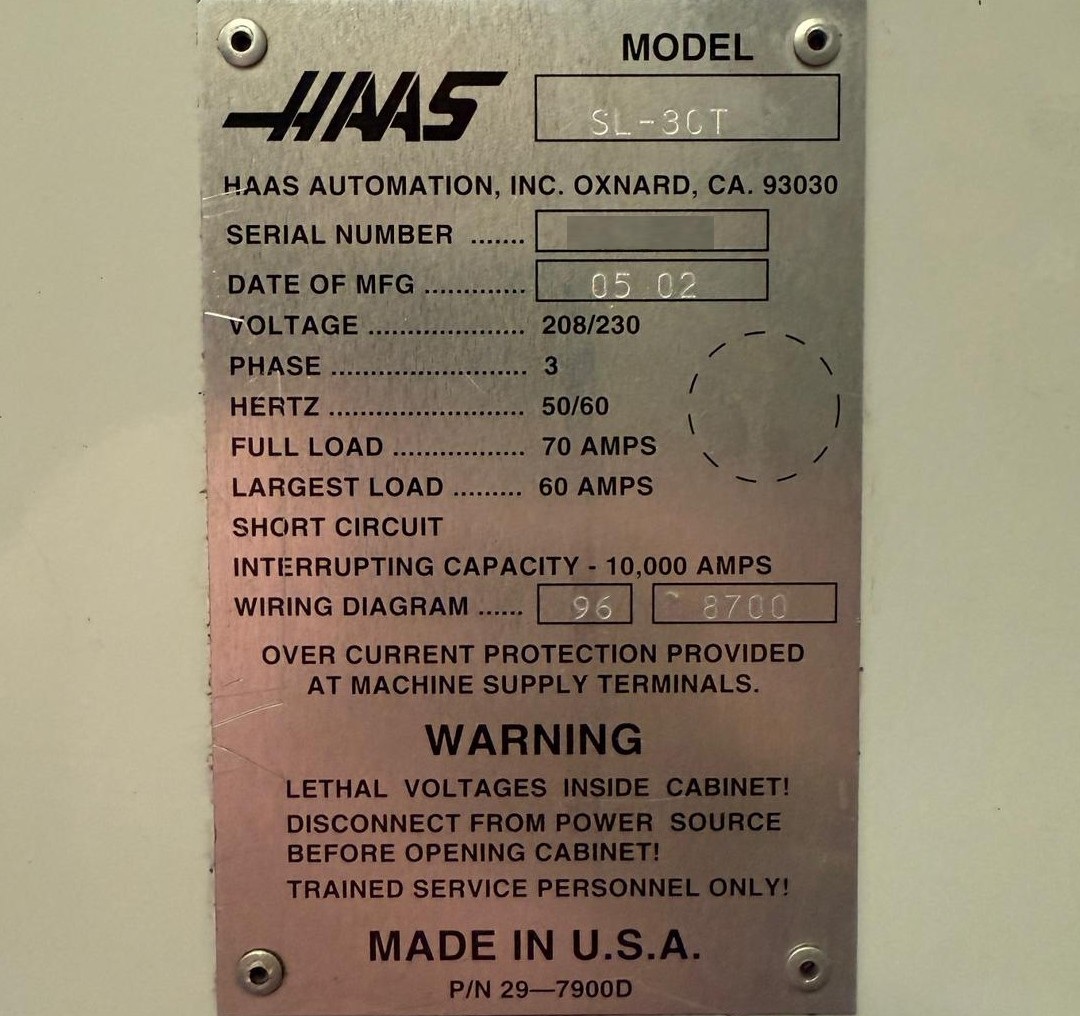

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 4318 mm x 2286 mm x 2489.2 mm High Approx. |
| Machine Weight: 4989.5 kg Approx. |
