Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

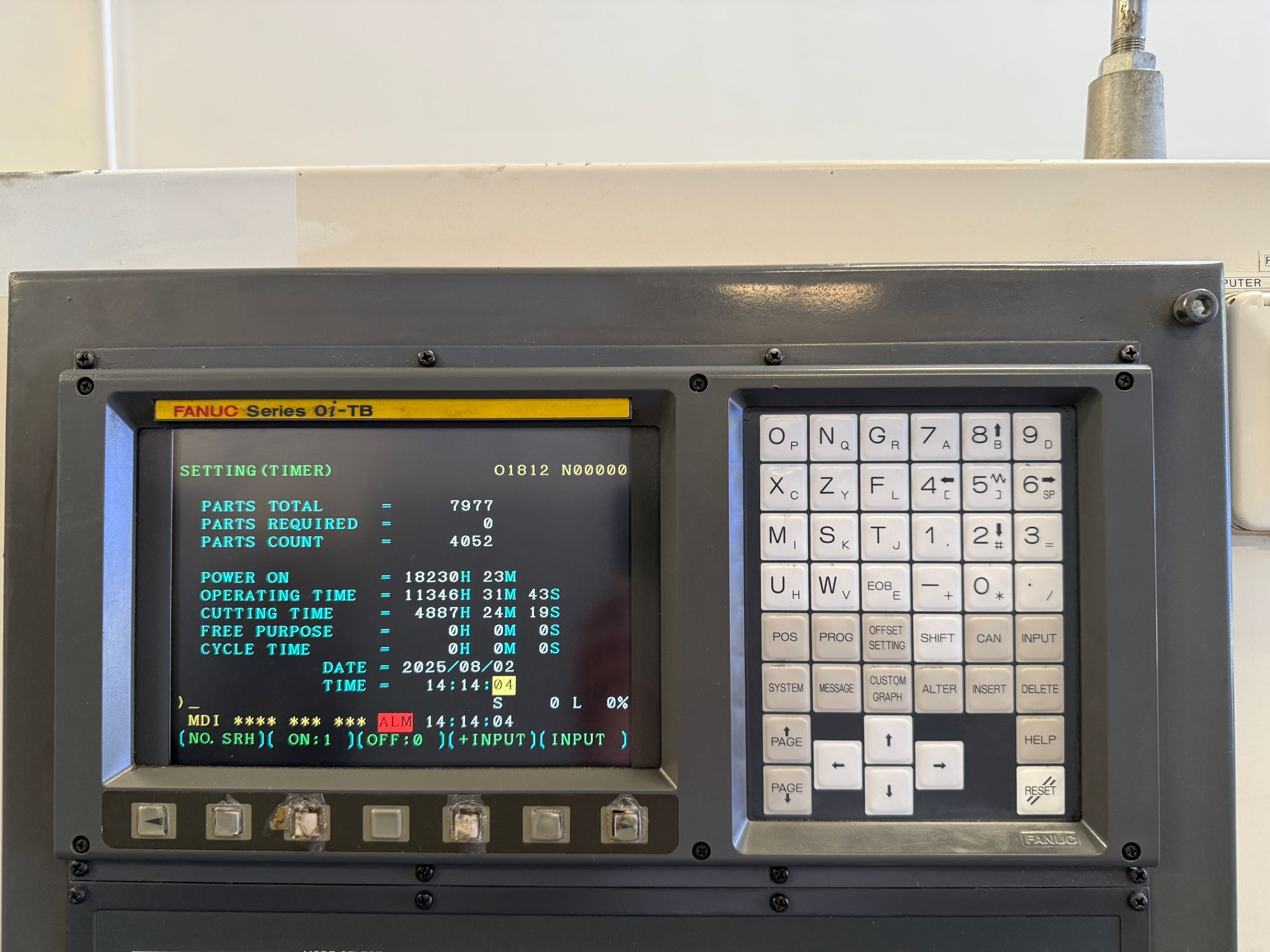

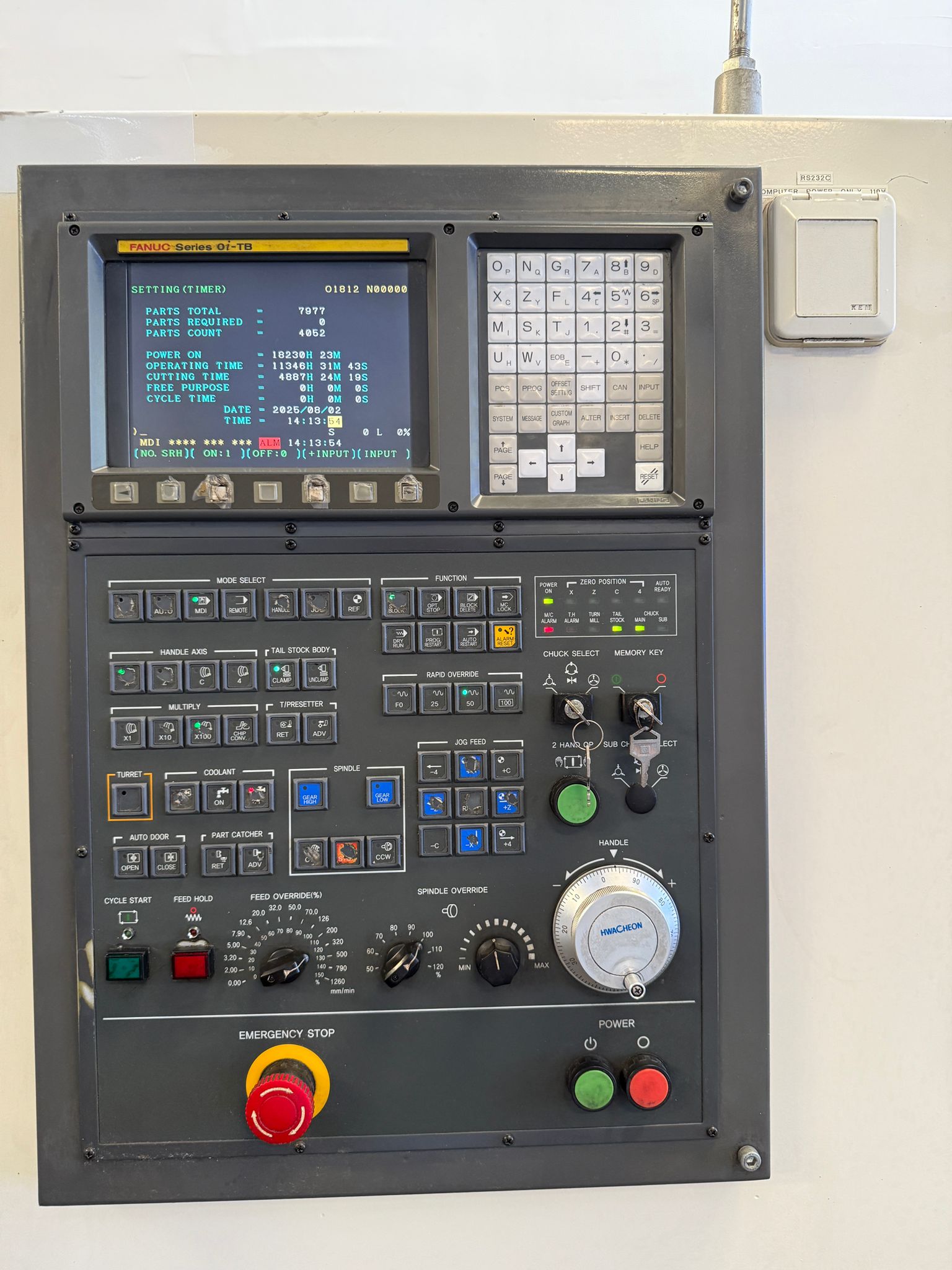

| Fanuc Oi-TB CNC Control |

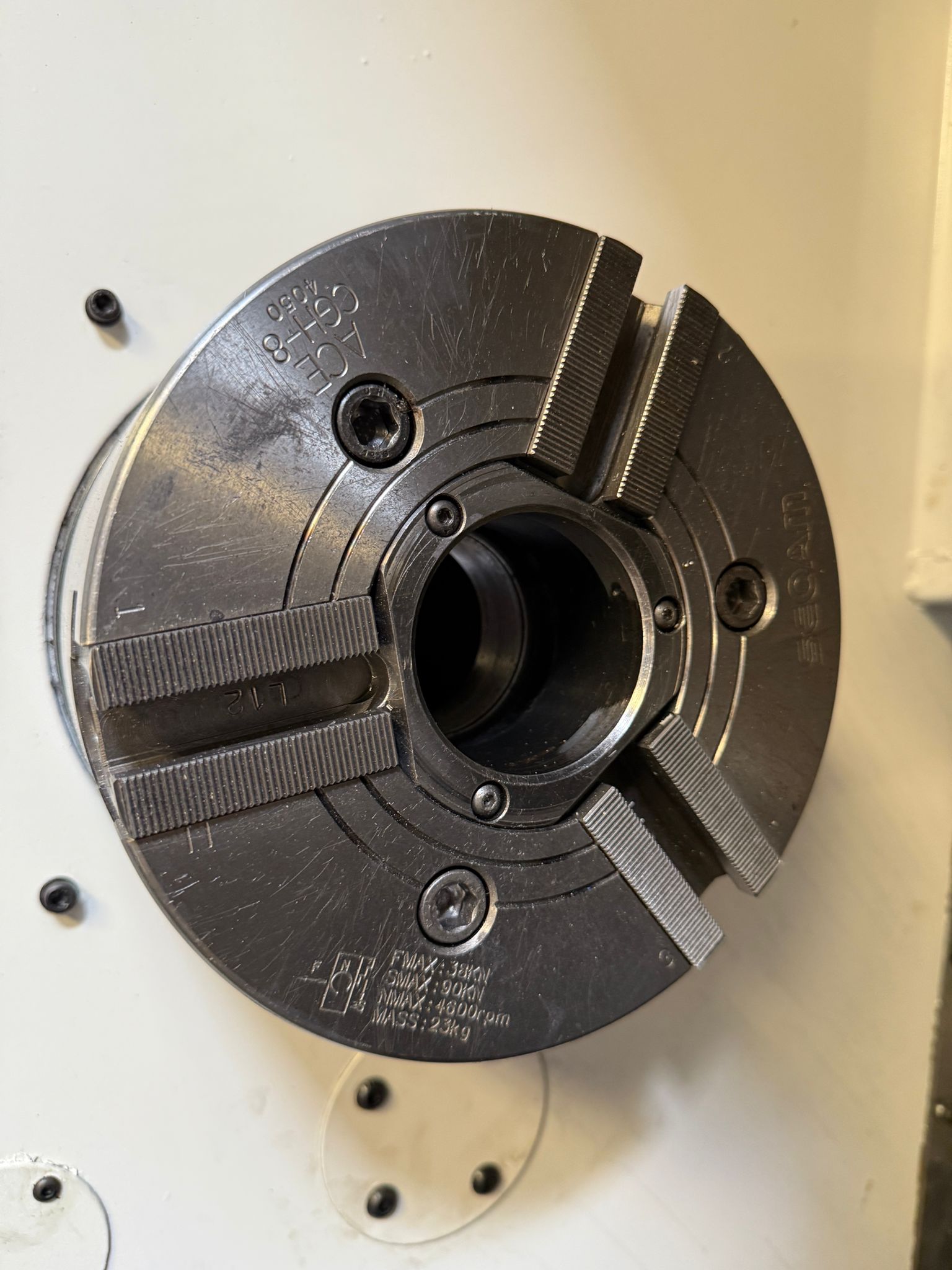

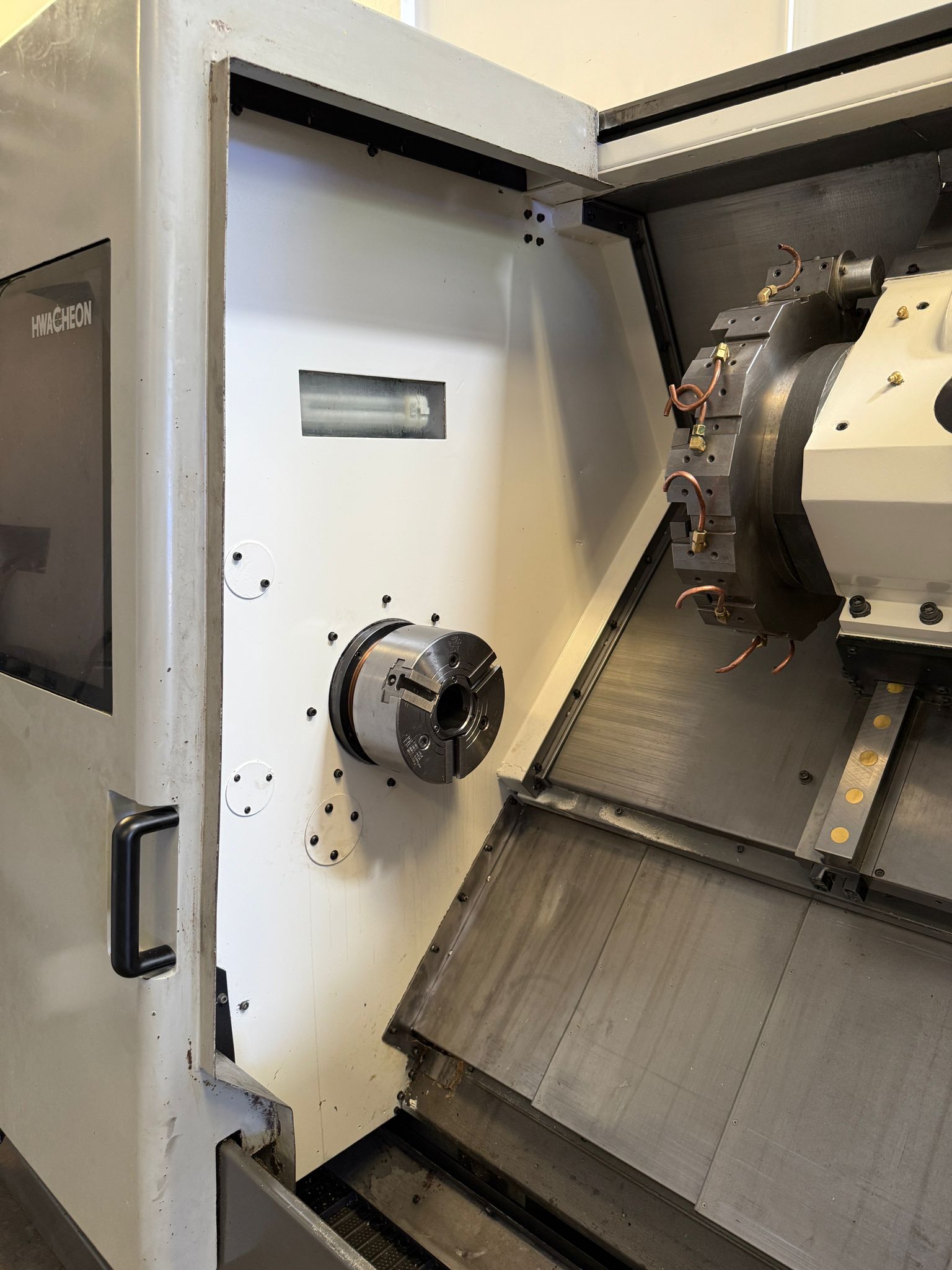

| 8″ 3-Jaw Hydraulic Chuck (Capable 10″ Chuck ) |

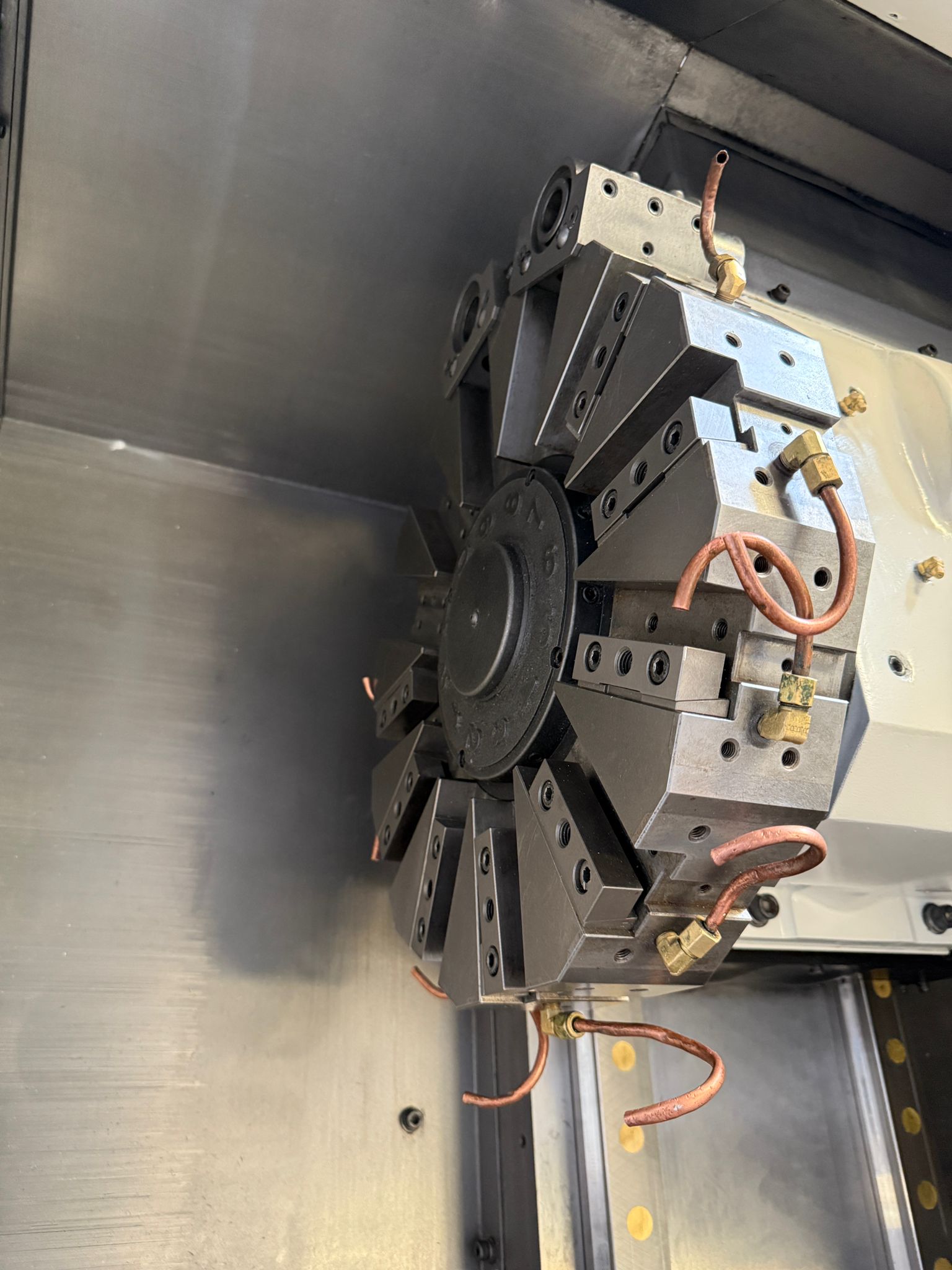

| 12 Station High Speed Turret |
| Tailstock and Power Quill |
| PCMCIA Port |
| Coolant System |
| Chip Conveyor |
| Automatic Lubrication System |
| Foot Switches |

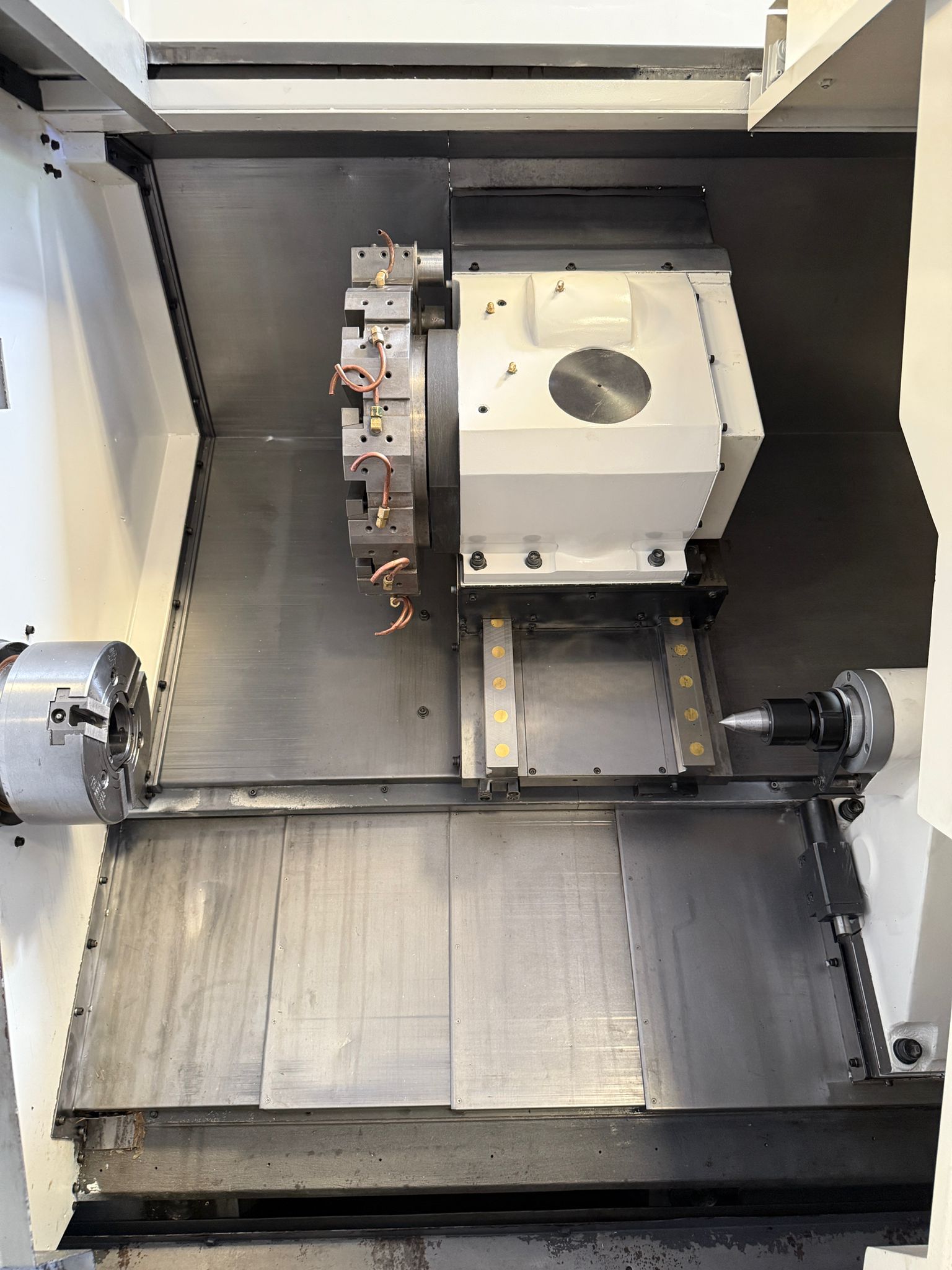

| (2) Boring Tool Holders are Mounted on Turret (As shown in the images) |
| Capacity: |
| Max Turning Diameter: 14.96″ |
| Max Turning Length: 26.44″ |
| Max Bar Capacity: 2.56″ |
| Swing Over Bed: 22.84″ |
| Travel: |
| X Axis Travel: 8.47″ |
| Z Axis Travel: 27.56″ |
| Rapid Traverse X Axis: 1417 IPM |
| Rapid Traverse Z Axis: 1417 IPM |
| Spindle: |
| Spindle Nose: A2-6 |
| Spindle Bore: 2.95″ |
| Spindle Speed: 5000 RPM |
| Spindle Motor: 25 HP |
| Turret: |
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |

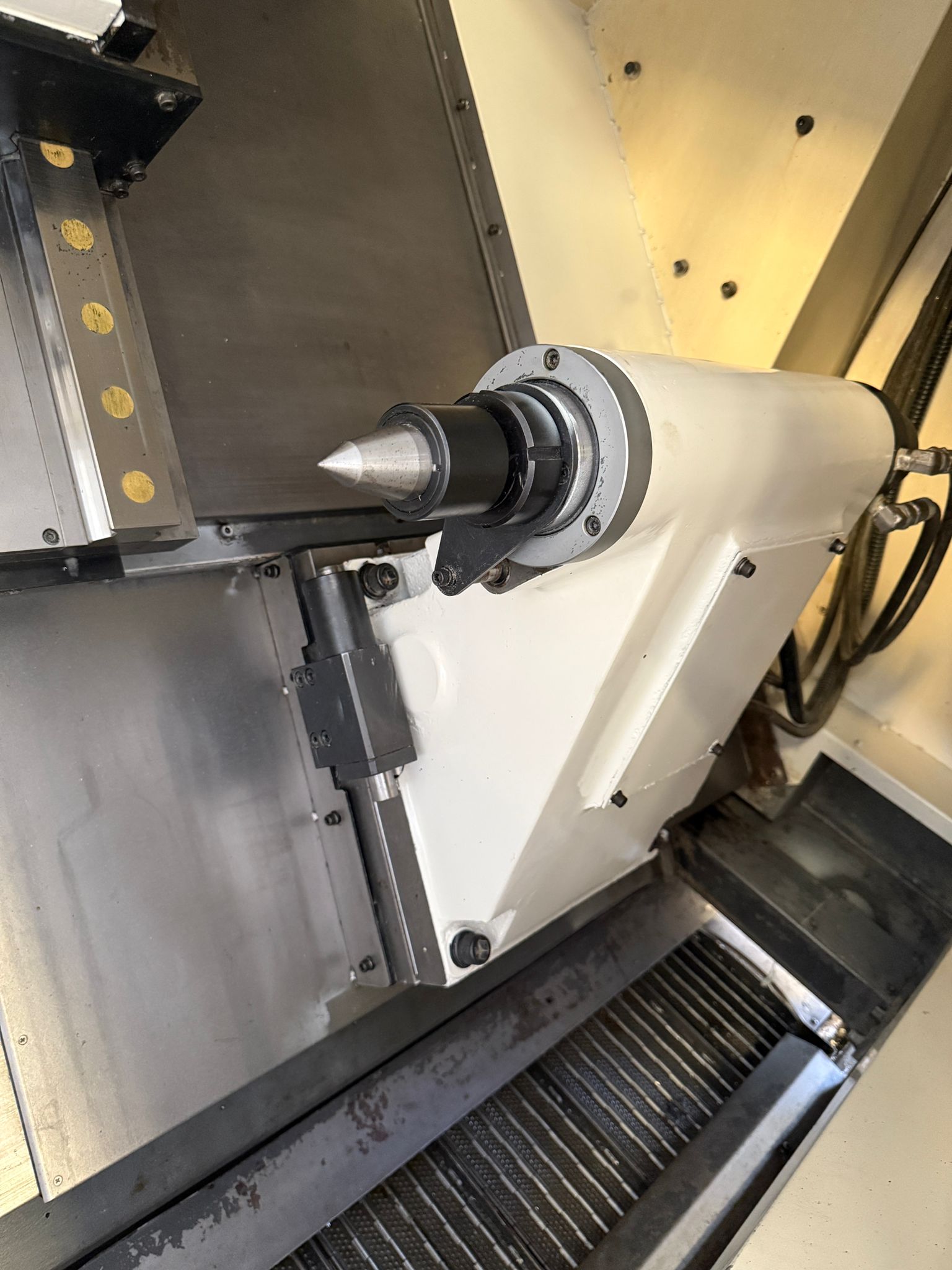

| Tailstock: |
| Tailstock Taper: MT- 4 |
| Tailstock Quill Dia.: 3.15″ |
| Tailstock Quill Stroke: 4.12″ |
| General: |
| Power: 35 kva, 220v / 3-Phase /60Hz |
| Overall Dimensions: 127.2″ X 71.5″ X 75.39″ High |
| Weight: 9,260 lbs Approx. |
