Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

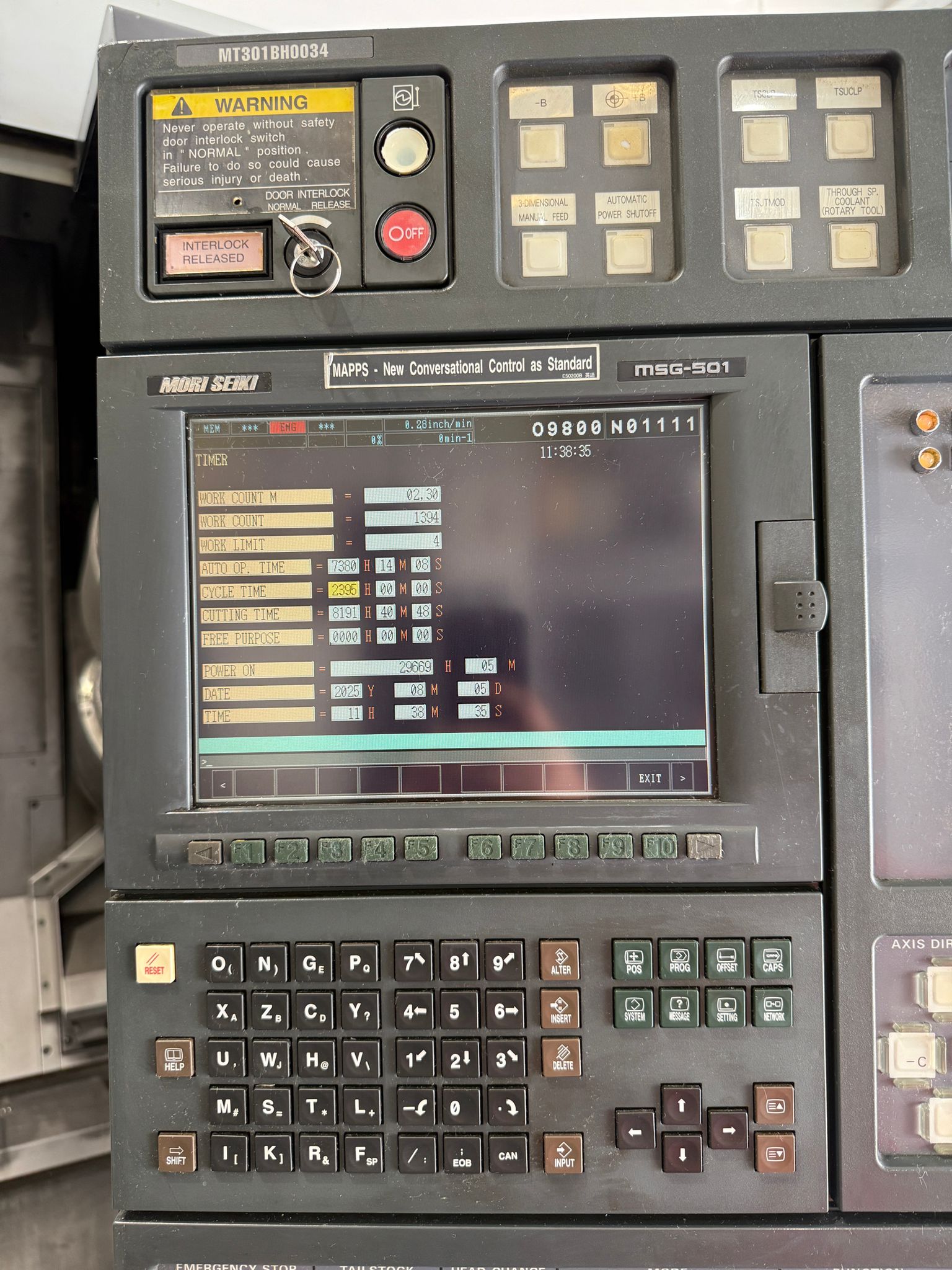

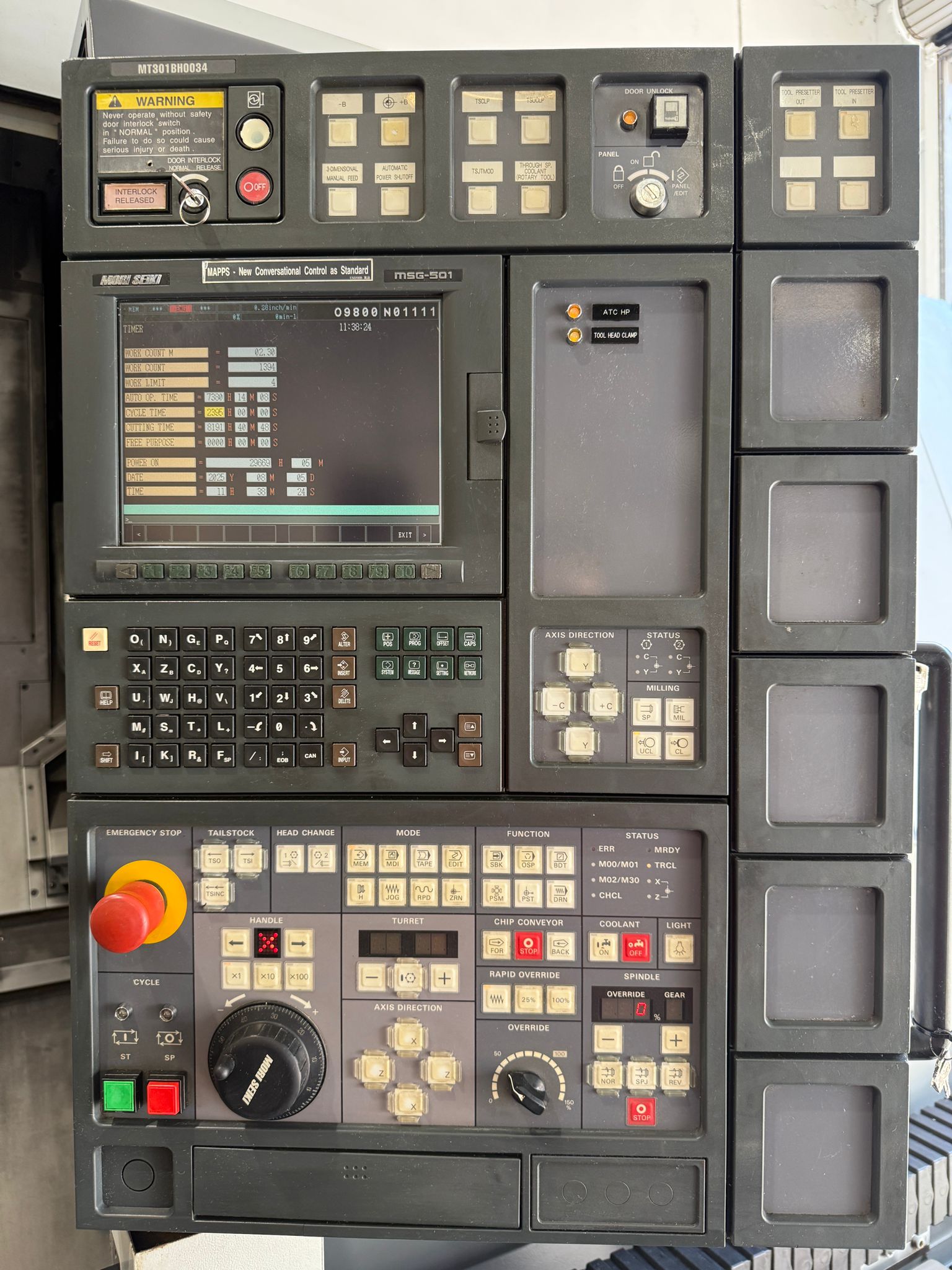

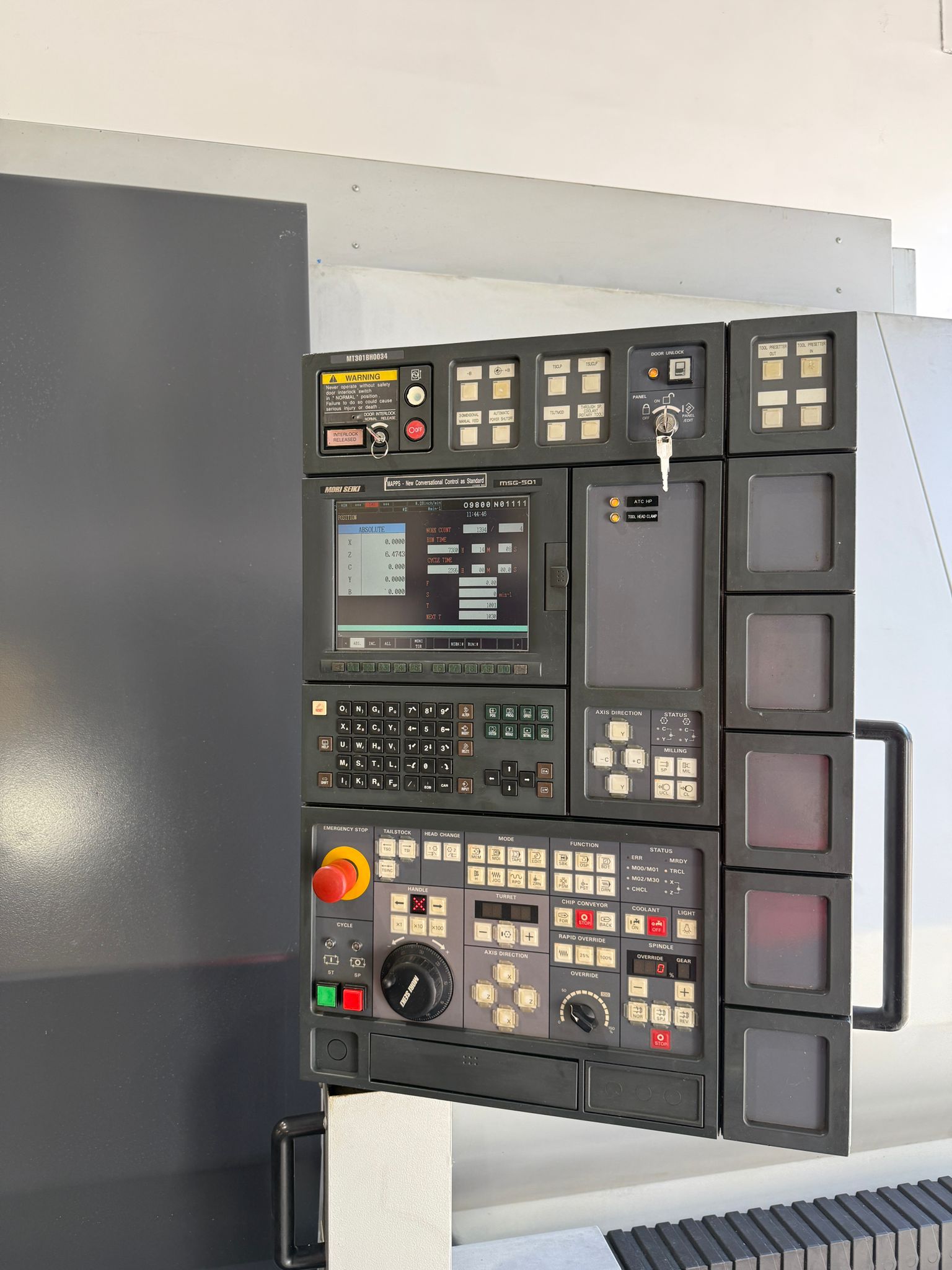

| Mori Seiki MSG-501 (Fanuc) CNC Control |
| Linear Ways Construction |

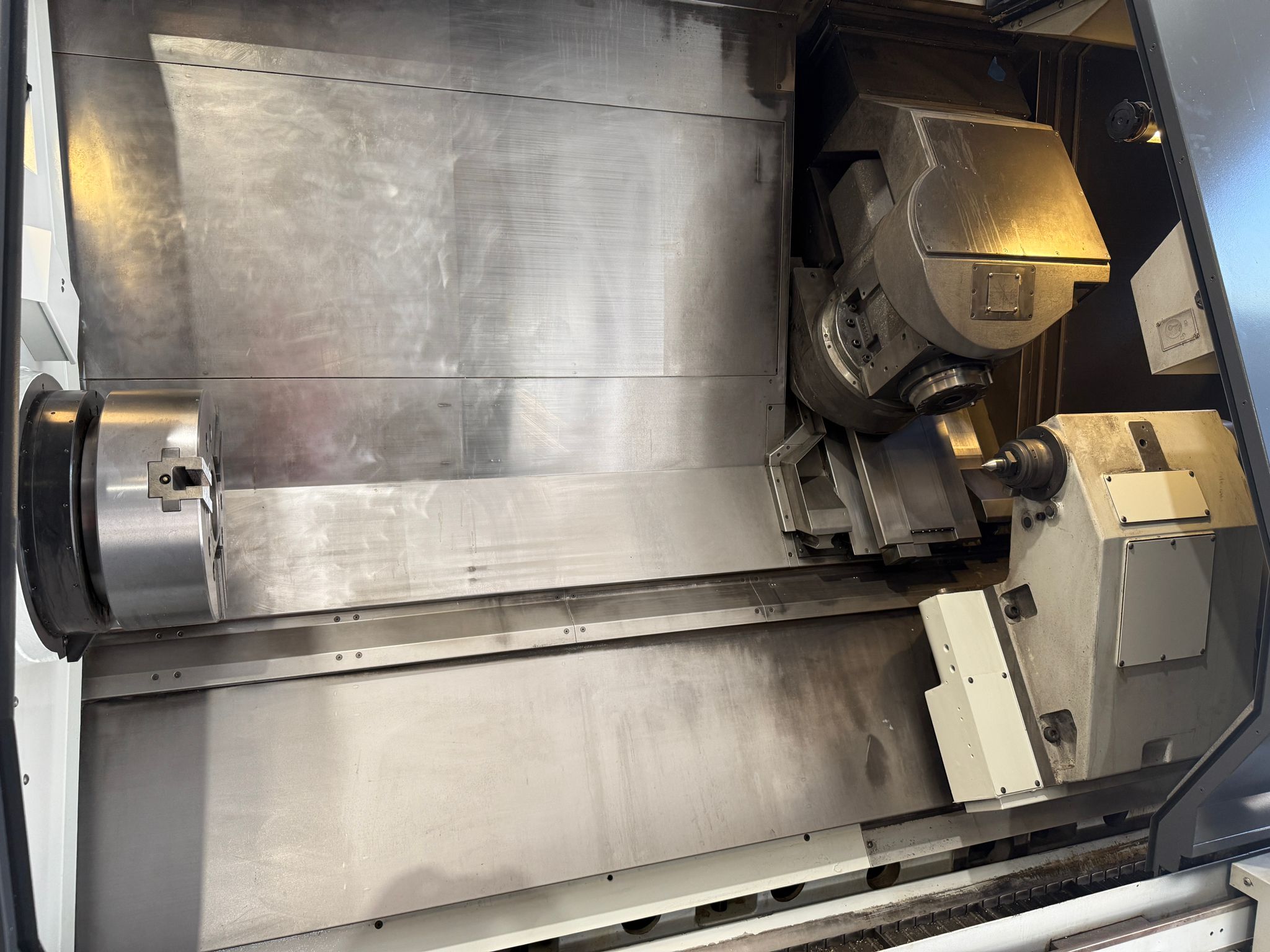

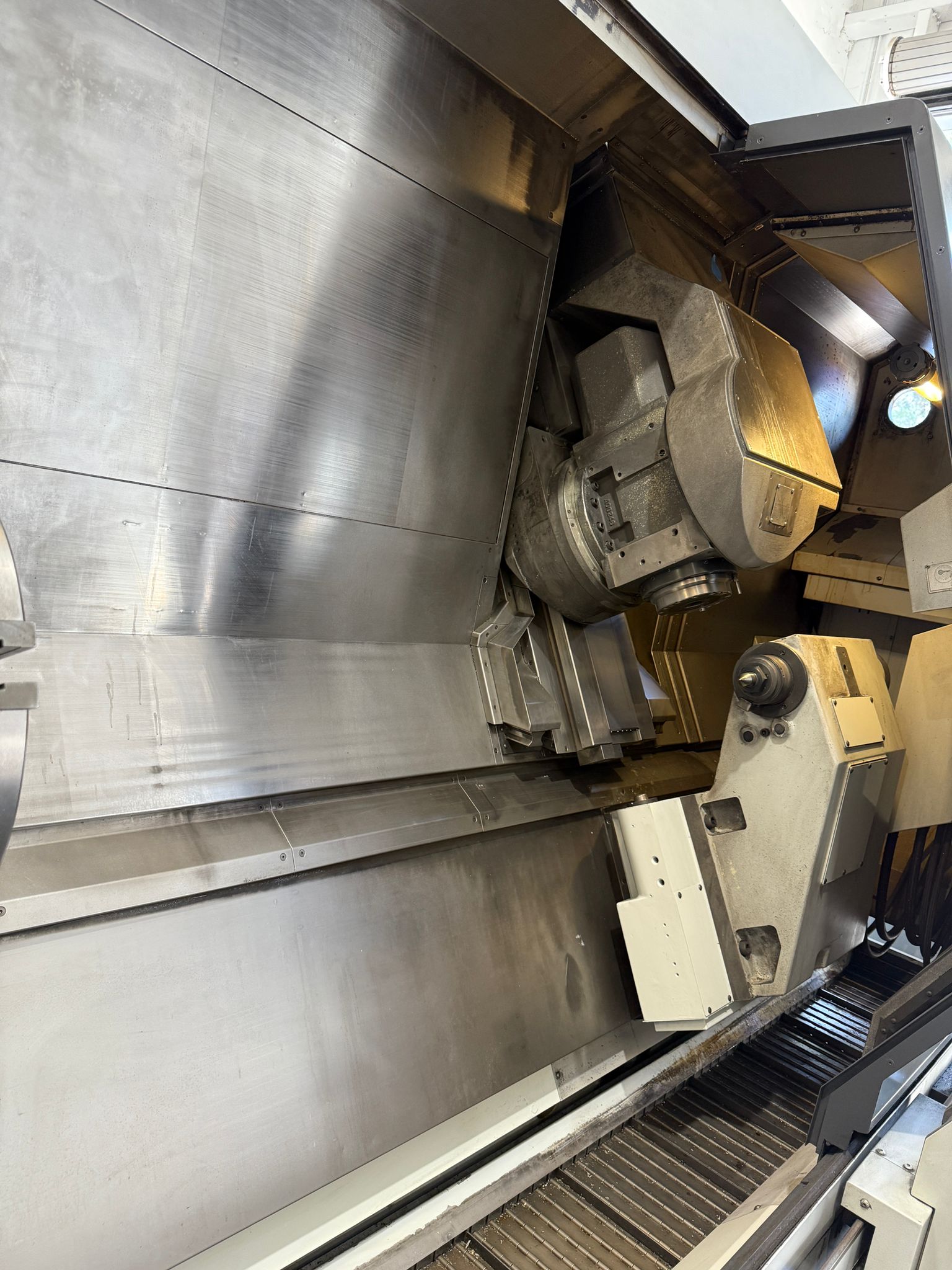

| 8,000 RPM Pendulum Milling Head |

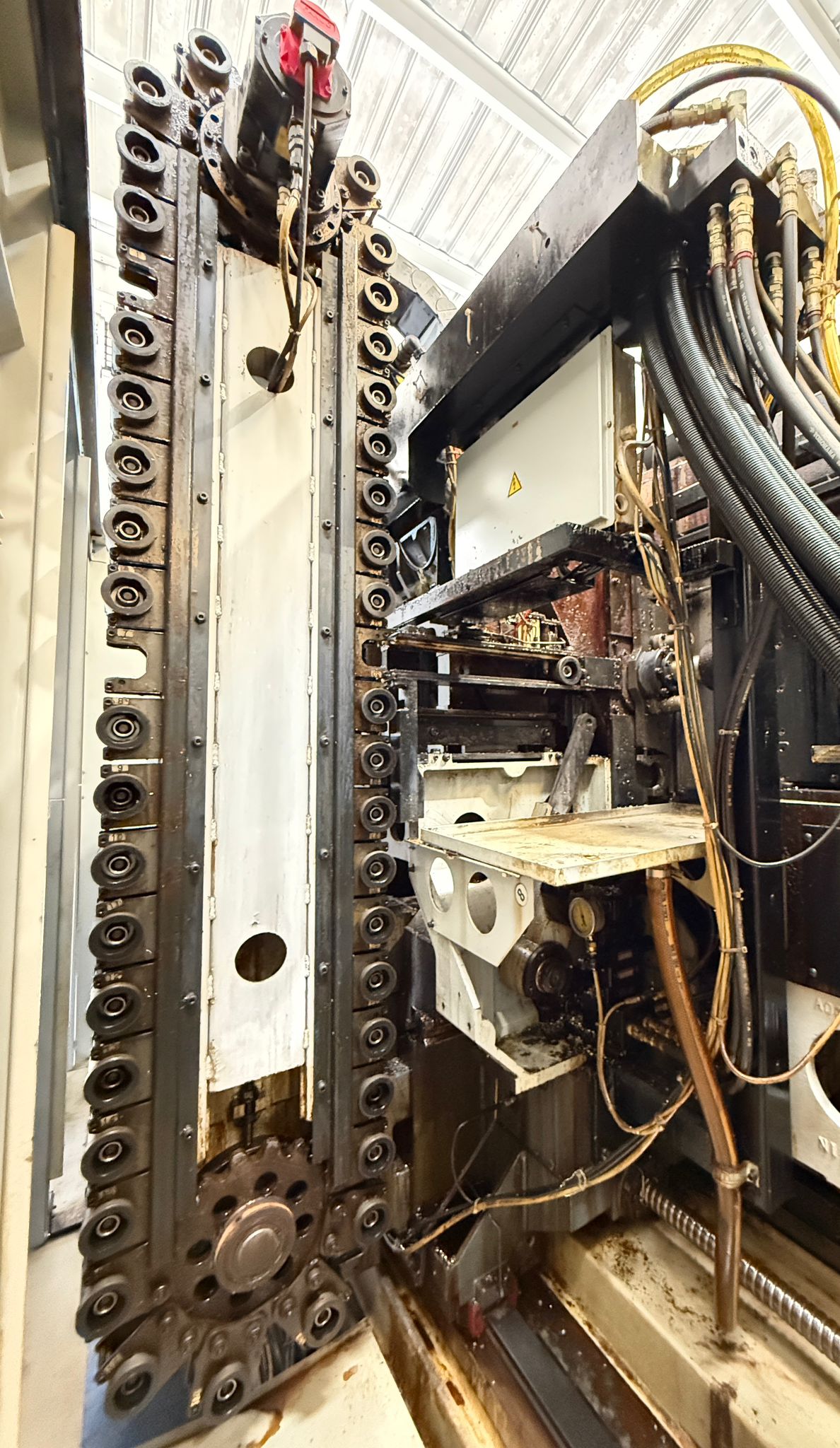

| 44 Station Tool Magazine |

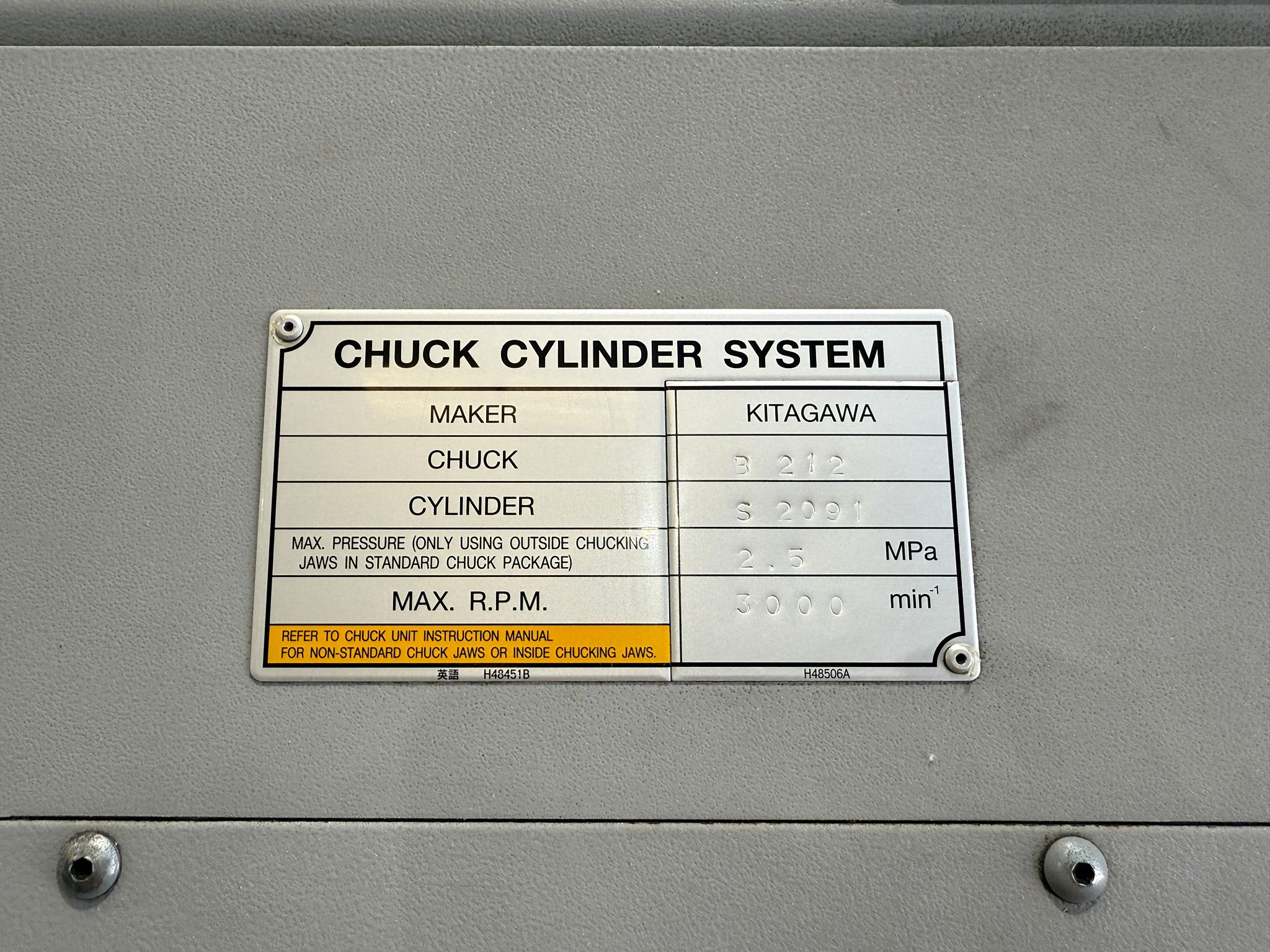

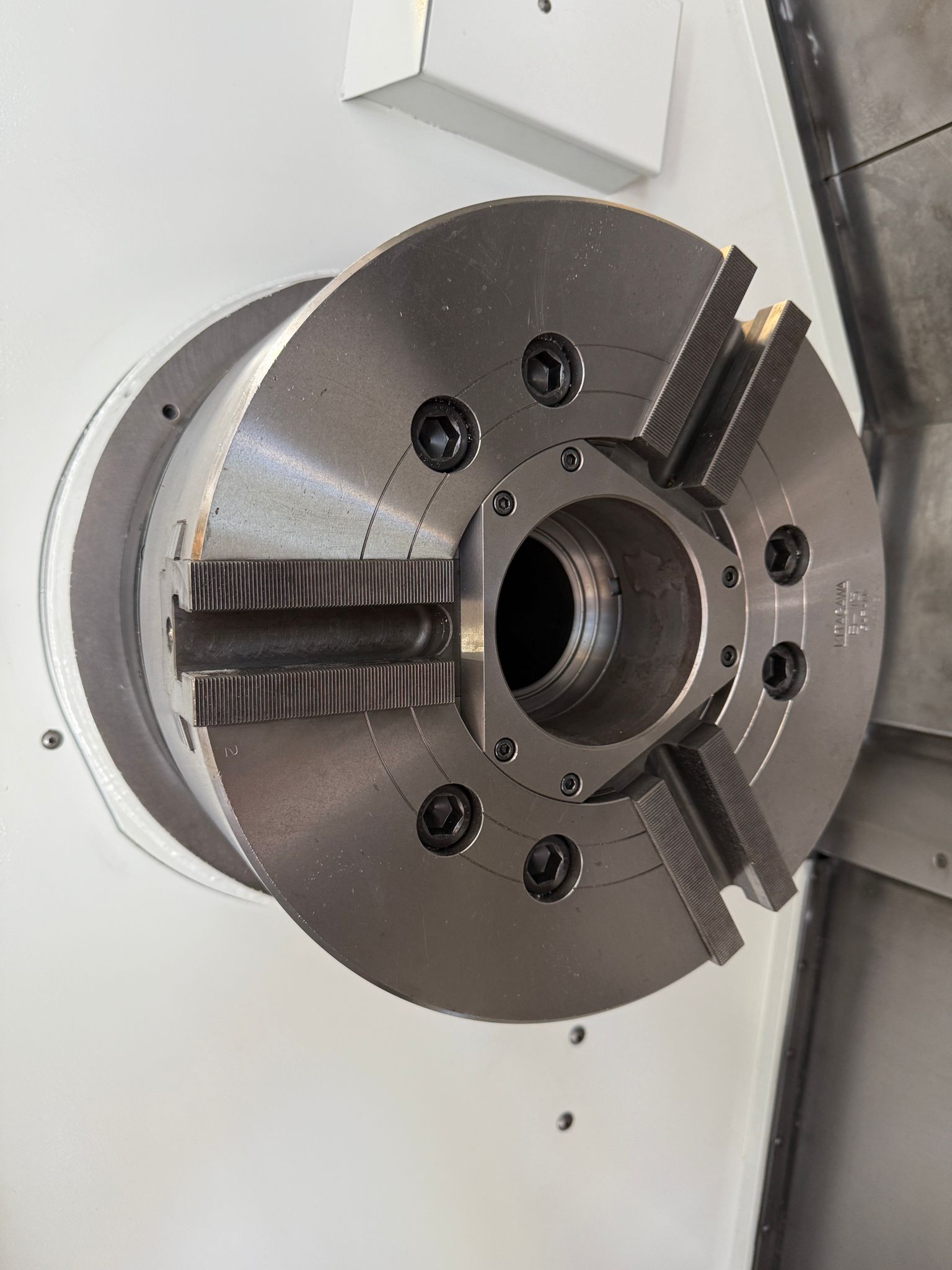

| 15″ 3-Jaw B-15 Kitagawa Chuck |
| Servo Controlled Full C-Axis on Spindles |
| Y-Axis on Upper Turret (Milling Head) |
| Tool Presetter |

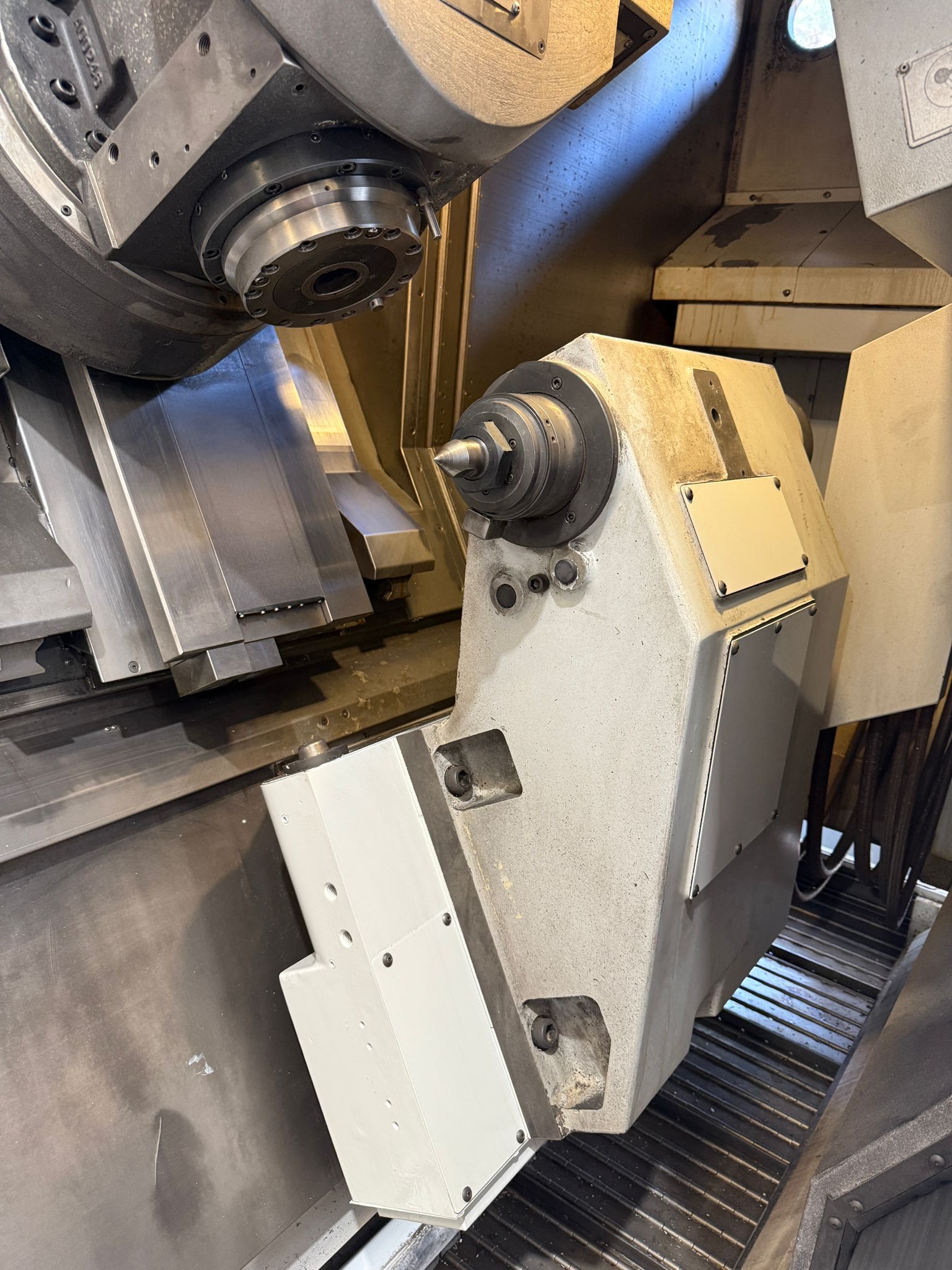

| Tailstock |
| Rigid Tapping |
| Coolant System |
| Chip Conveyor |
| Foot Switches |
| Capacity: |
| Max Turning Diameter: 22.44″ |
| Max Turning Length: 60.00″ |
| Max Swing Over Bed: 31.50″ |
| Max Bar Capacity: 3.50″ |
| Travel: |
| X Axis Travel: 25.0″ |
| Z Axis Travel: 62.7″ |
| Y Axis Travel: 8.6″ (+/- 4.3″) |
| B Axis Travel: -120° / +105° |
| C Axis: 360° (0.001°) |
| Rapid Traverse X Axis: 945 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Rapid Traverse Y Axis: 945 IPM |
| Spindle: |
| Spindle Nose: A2-8 |
| Spindle Bore: 4.1″ |
| Bar Capacity: 3.5″ |
| Spindle Speed: 30 – 3,000 RPM |
| Spindle Power: 40 HP |
| Milling Head: |
| Single Station Pendulum Head with 44 ATC |
| B Axis Indexing: -120° / +105°, 0.001 Degree |
| Tool Type: CAPTO C6 |
| Tool Spindle Speed: 8,000 RPM |
| Tool Spindle Motor: 15 HP |
| Automatic Tool Changer: |
| Capacity: 44 Tools |
| Tool Type: CAPTO C6 |
| Max Tool Diameter: 3.54″ – 4.72″ |
| Max Tool Length: 11.81″ |
| Max Tool Weight: 17.63 lbs |
| Tool Change Time: 4.2 Seconds |
| Tailstock: |
| Tailstock Taper: MT-5 |
| Tailstock Quill Diameter: 4.33″ |
| Tailstock Quill Travel: 5.90″ |

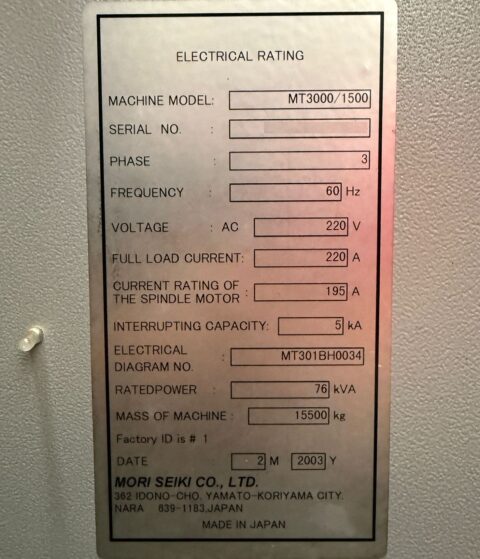

| General: |
| Power Source: 220v / 3-Phase / 60 Hz |
| Power Requirement: 76 kva |
| Overall Dimensions: 227″ x 120″ x 130″ High Approx. |
| Weight: 34,170 lbs Approx. |
