*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

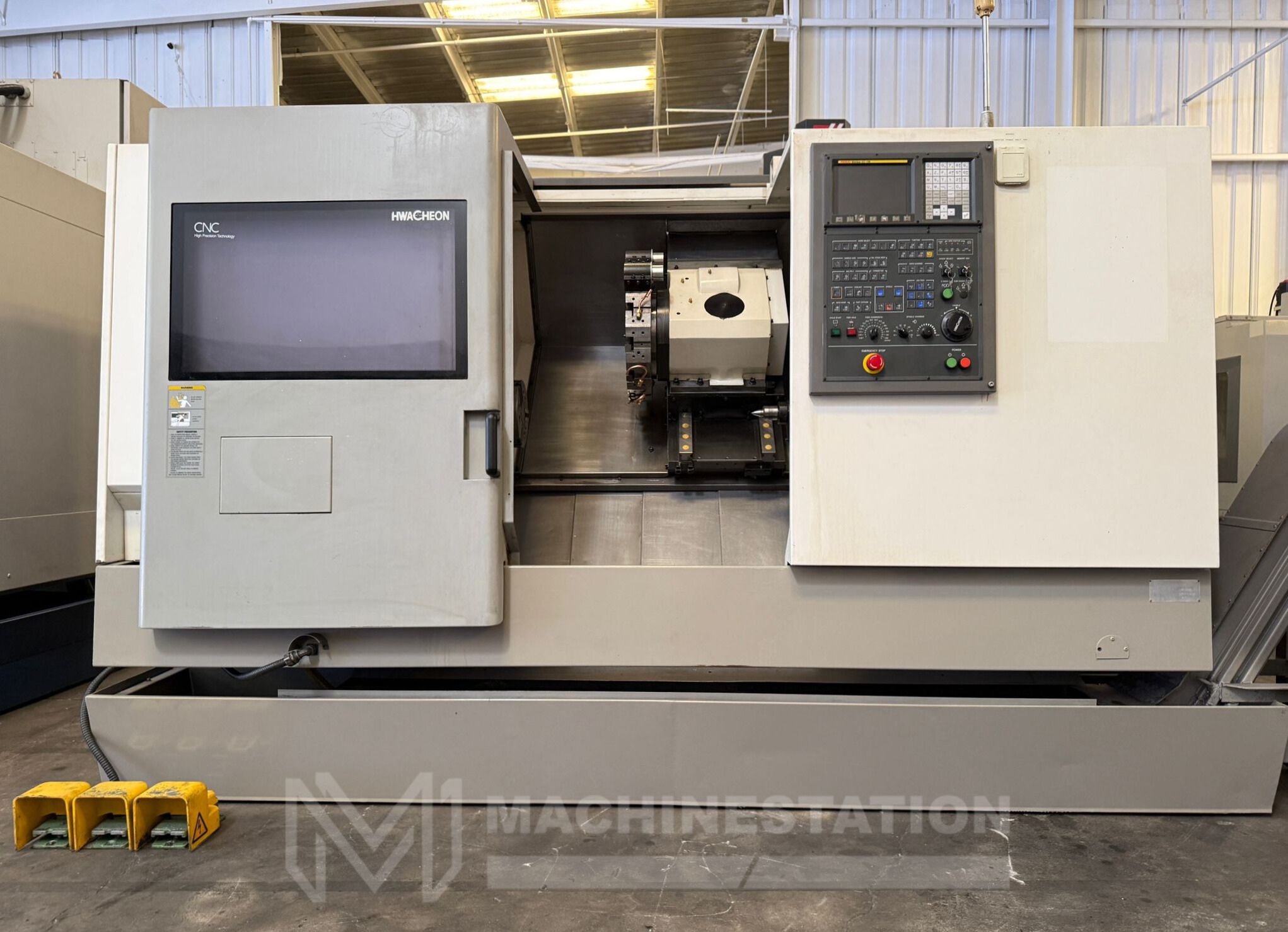

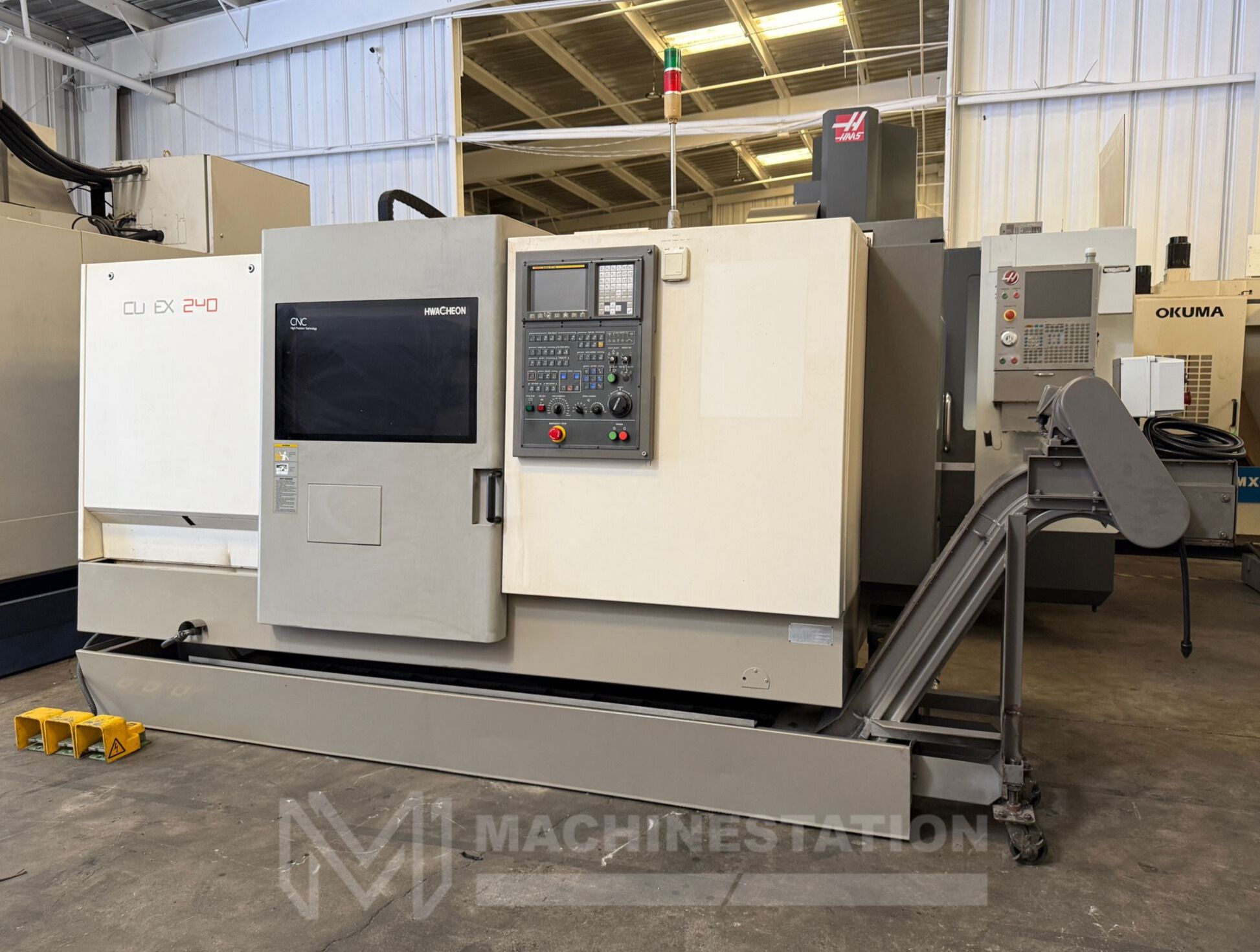

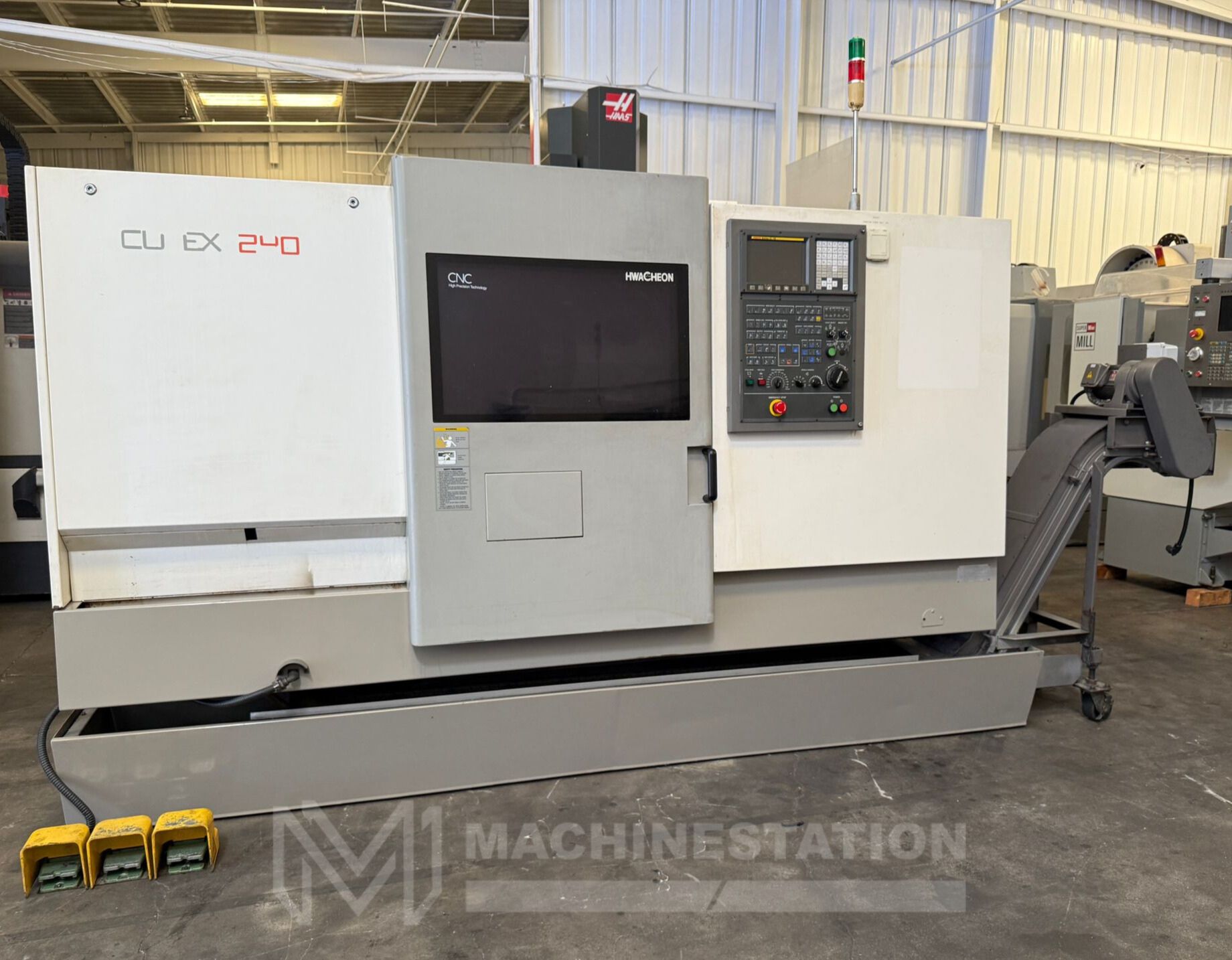

| Make: | Hwacheon |

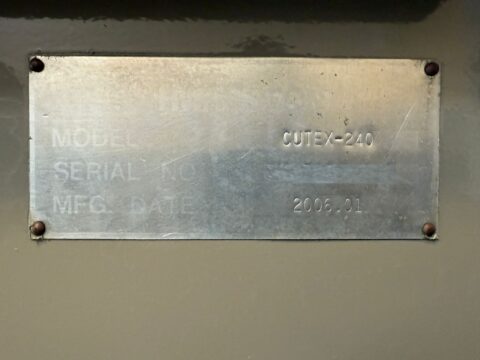

| Model: | Cutex 240 |
| Year: | 2006 |
| Condition: | Used-Good |
| Equipped With: |
|---|

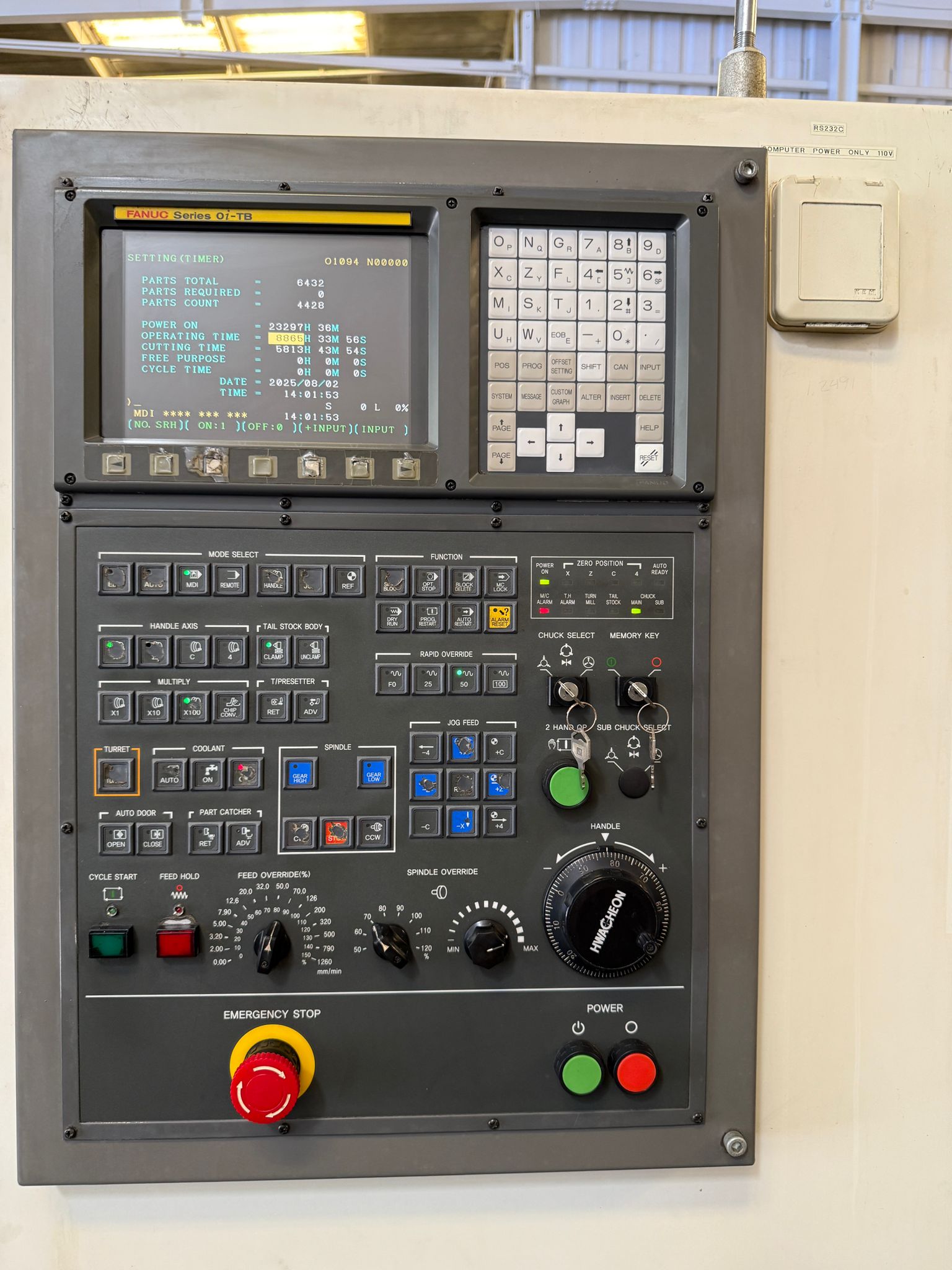

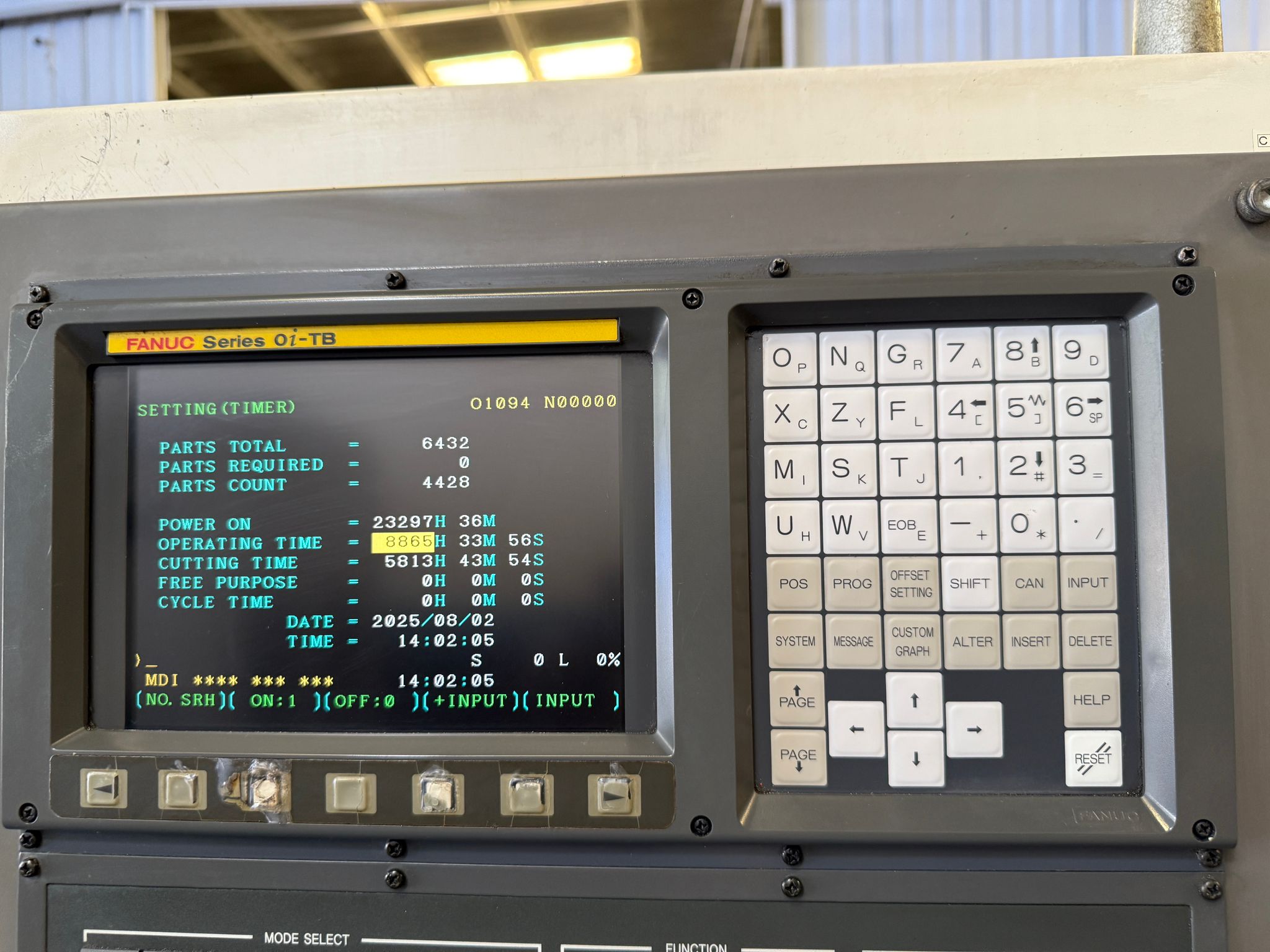

| Fanuc Oi-TB CNC Control |
| Linear Ways Construction |

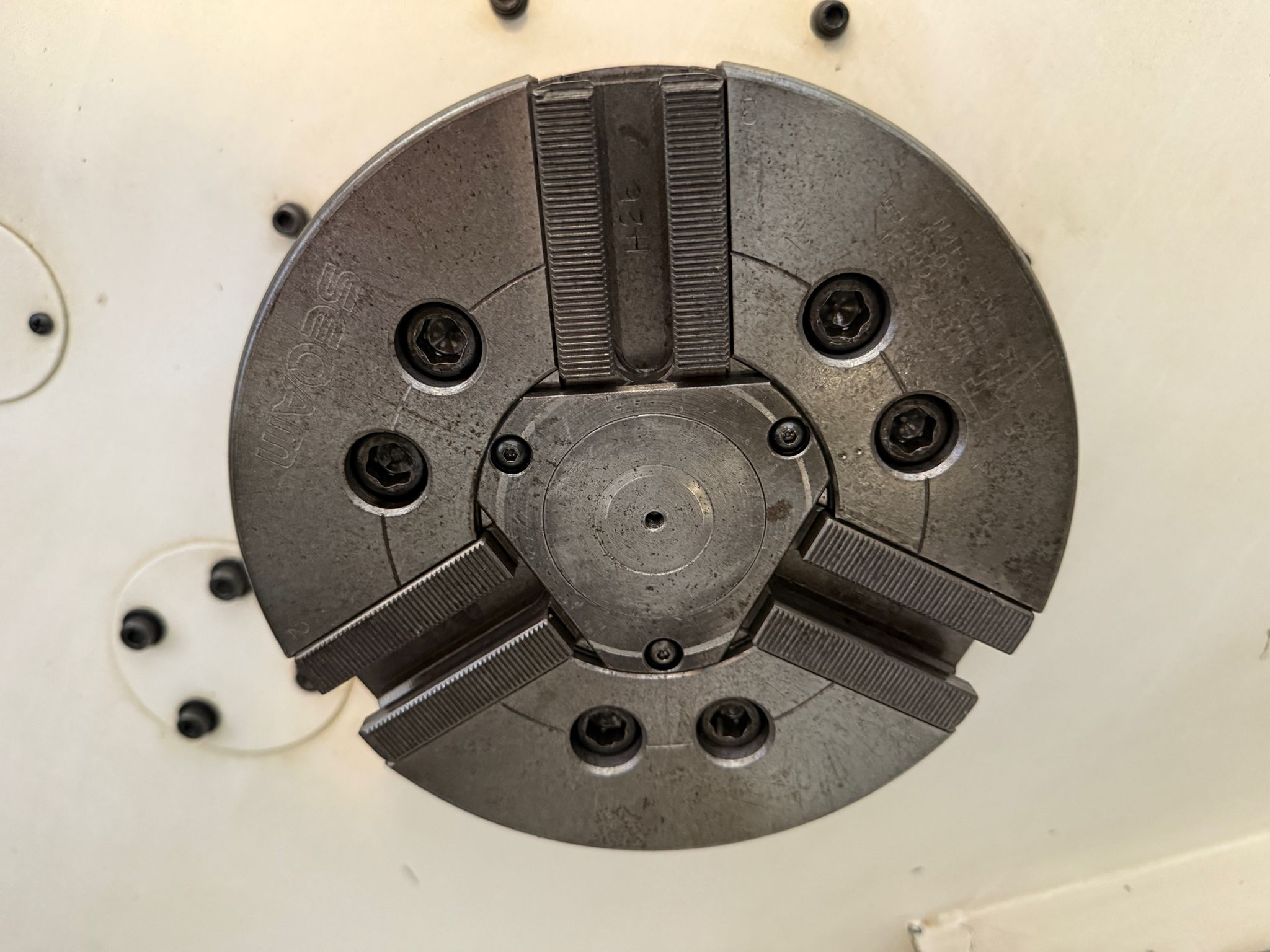

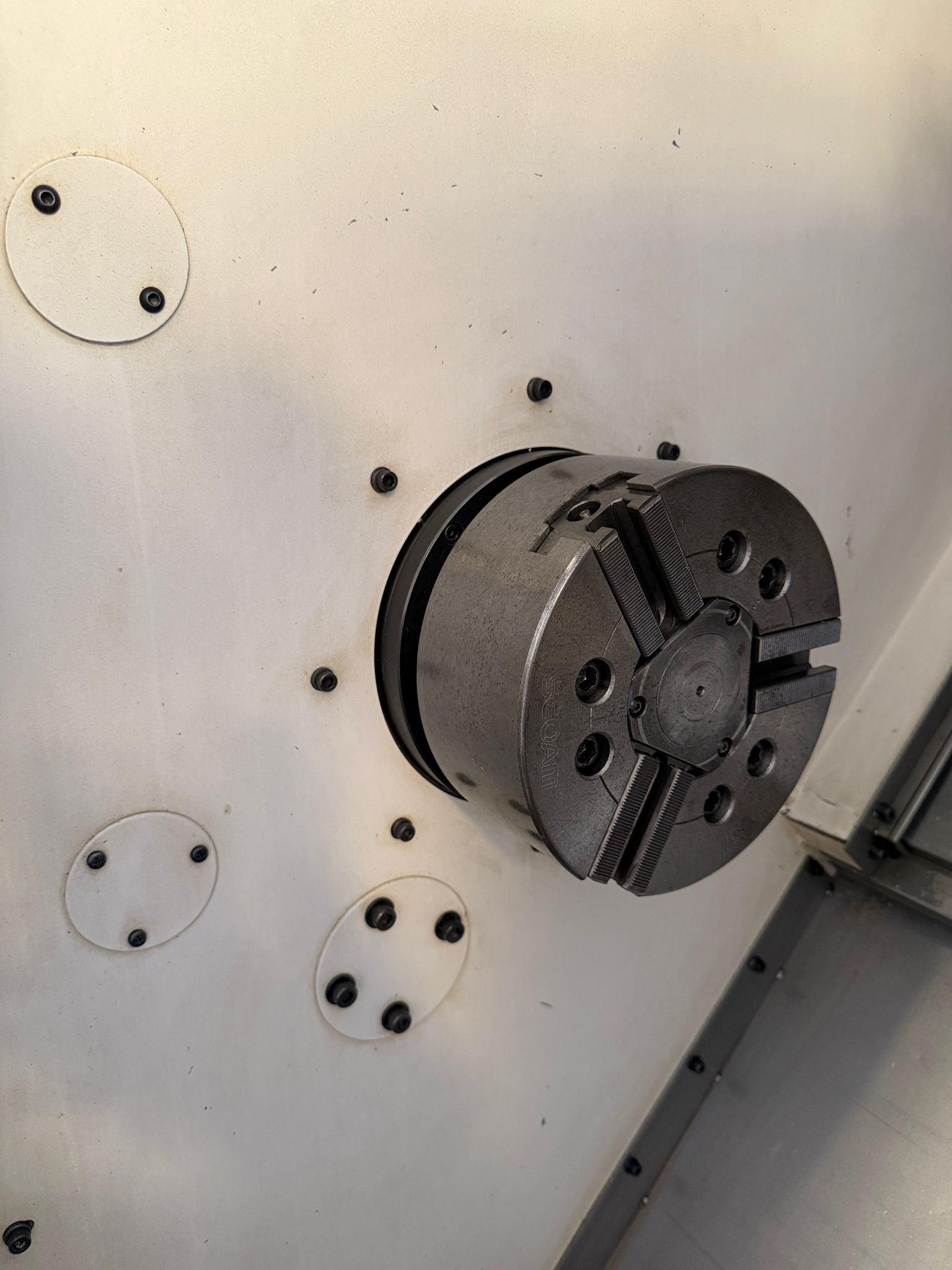

| 203.2 mm 3-Jaw Hydraulic Chuck (Capable 254 mm Chuck ) |

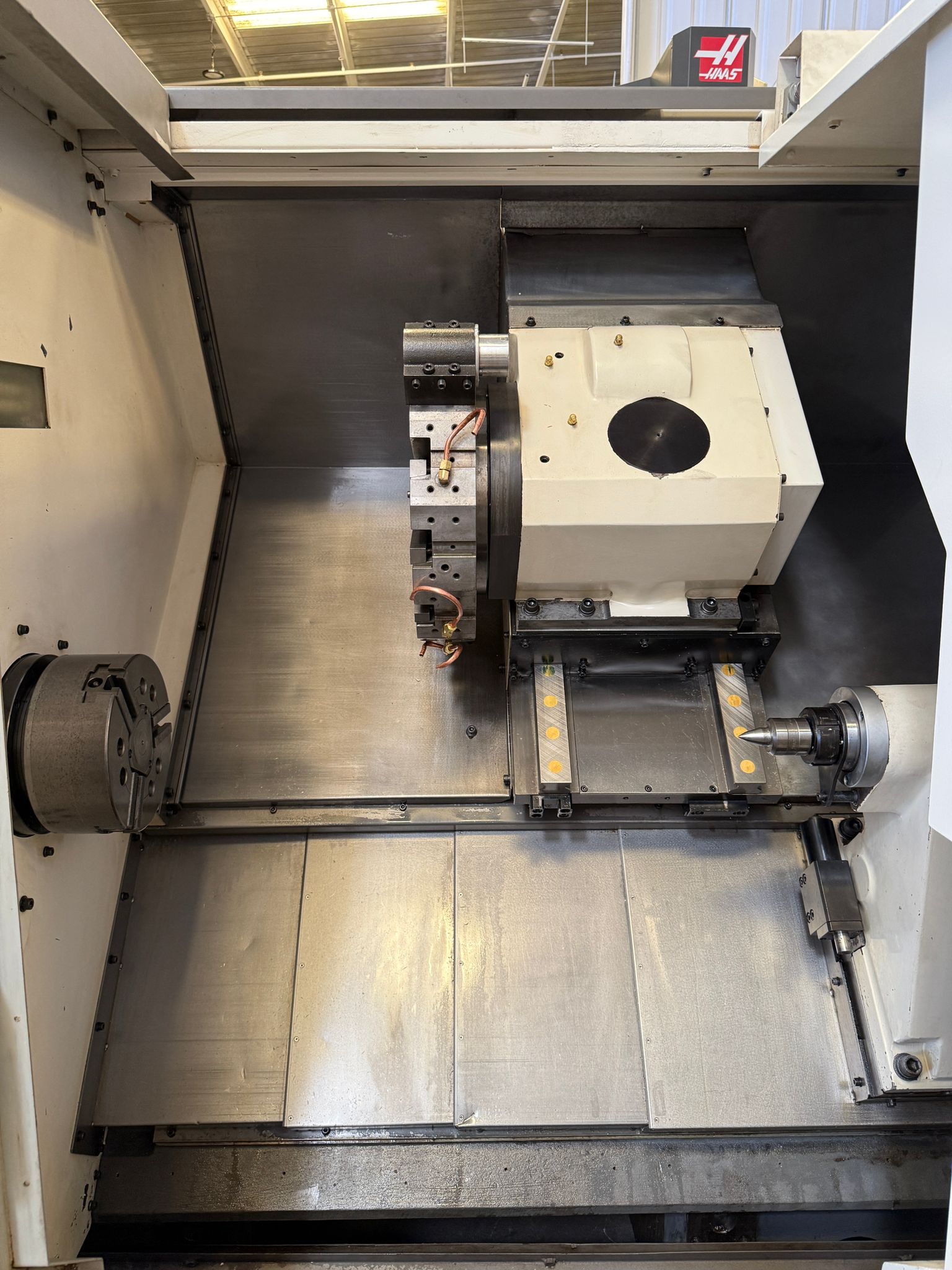

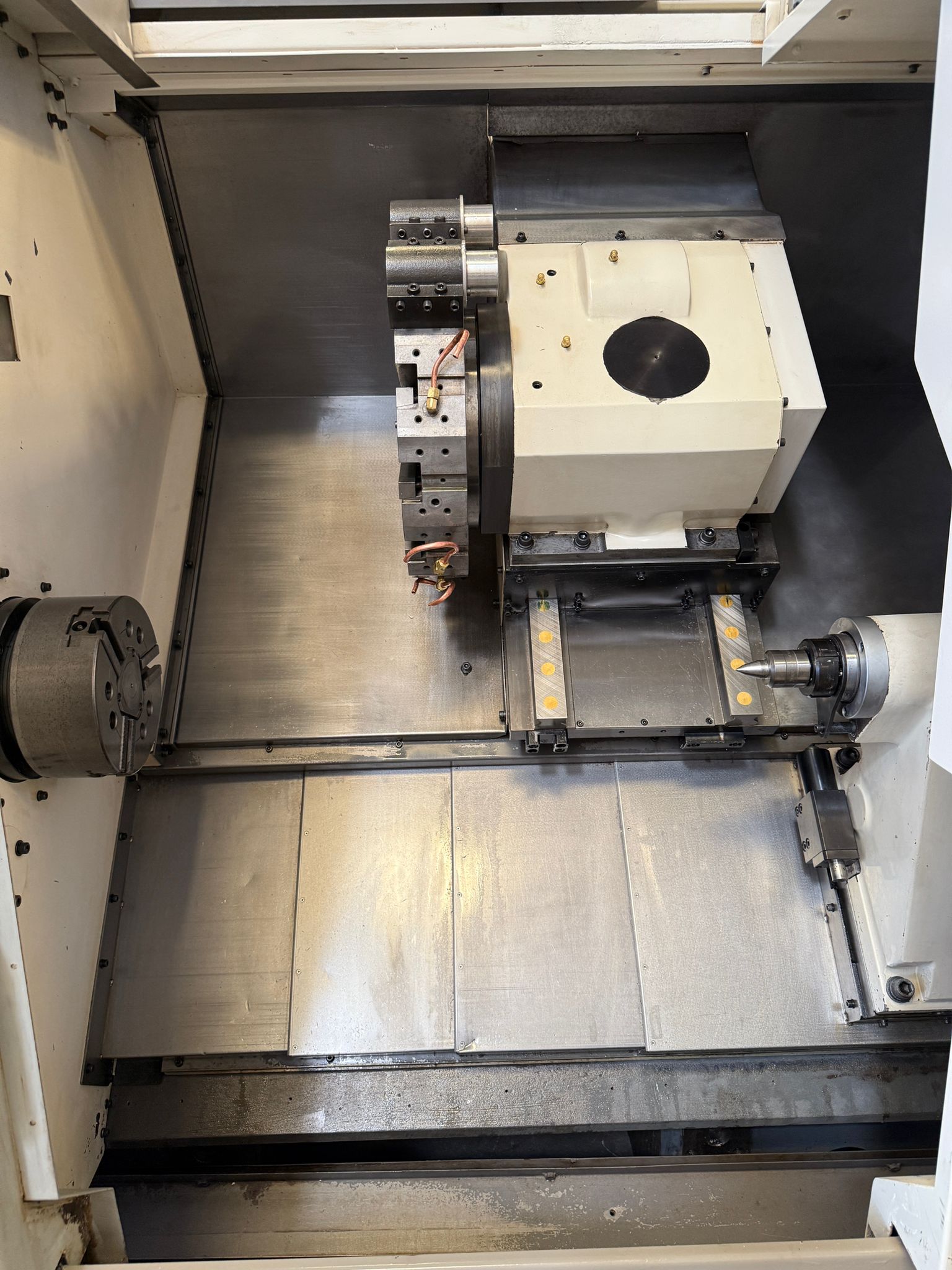

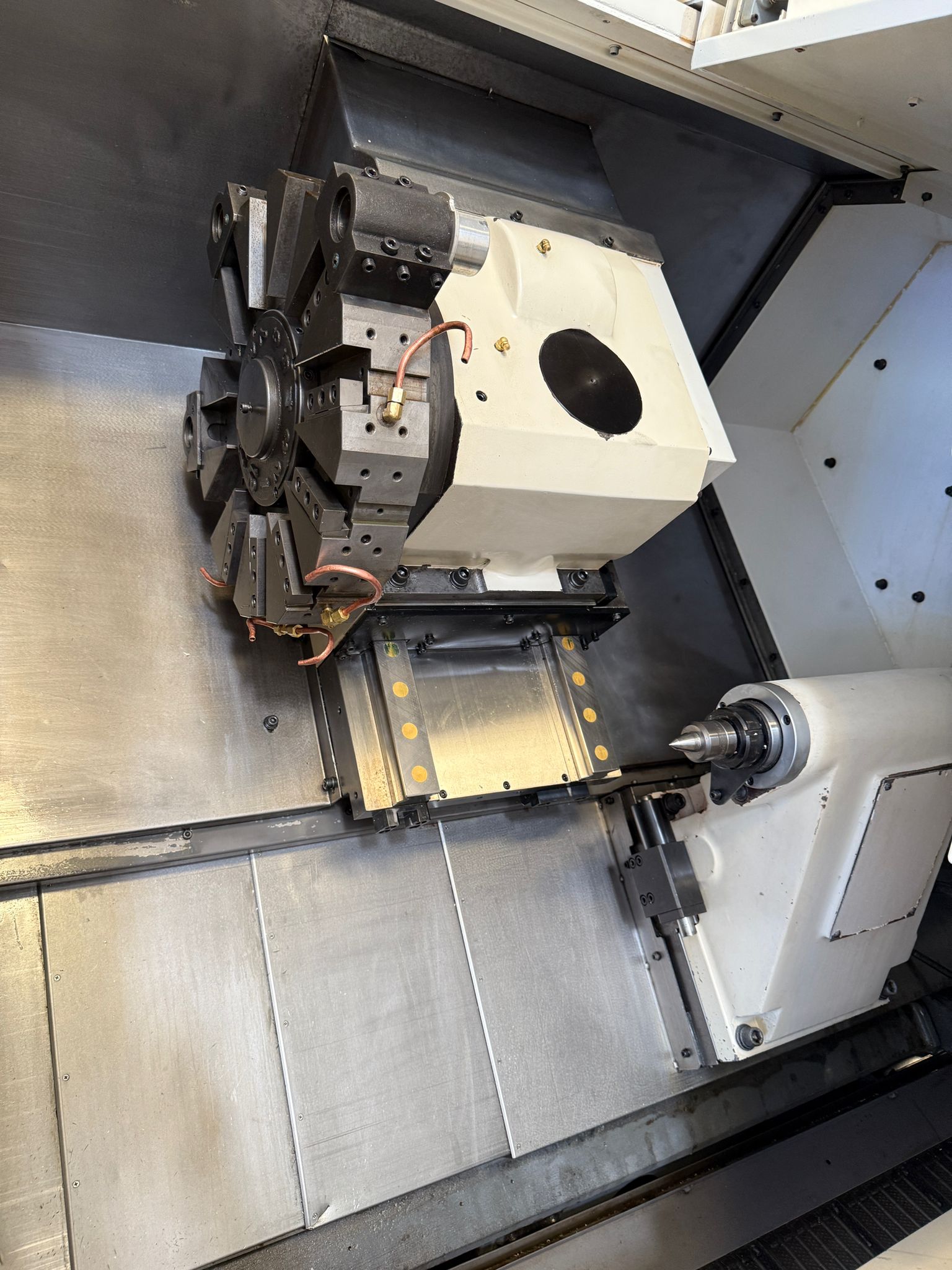

| 12 Station High Speed Turret |

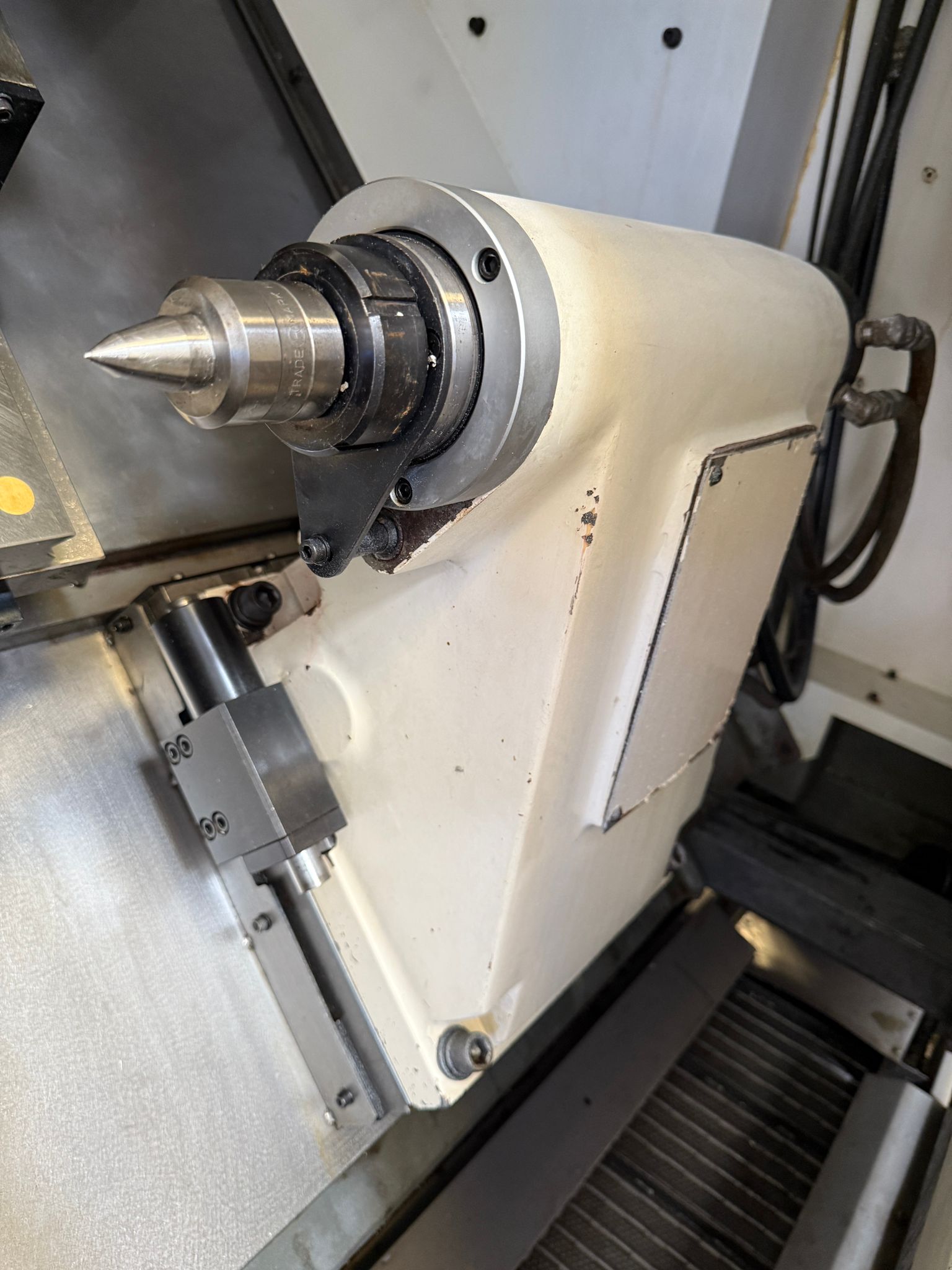

| Tailstock and Power Quill |
| PCMCIA Port |

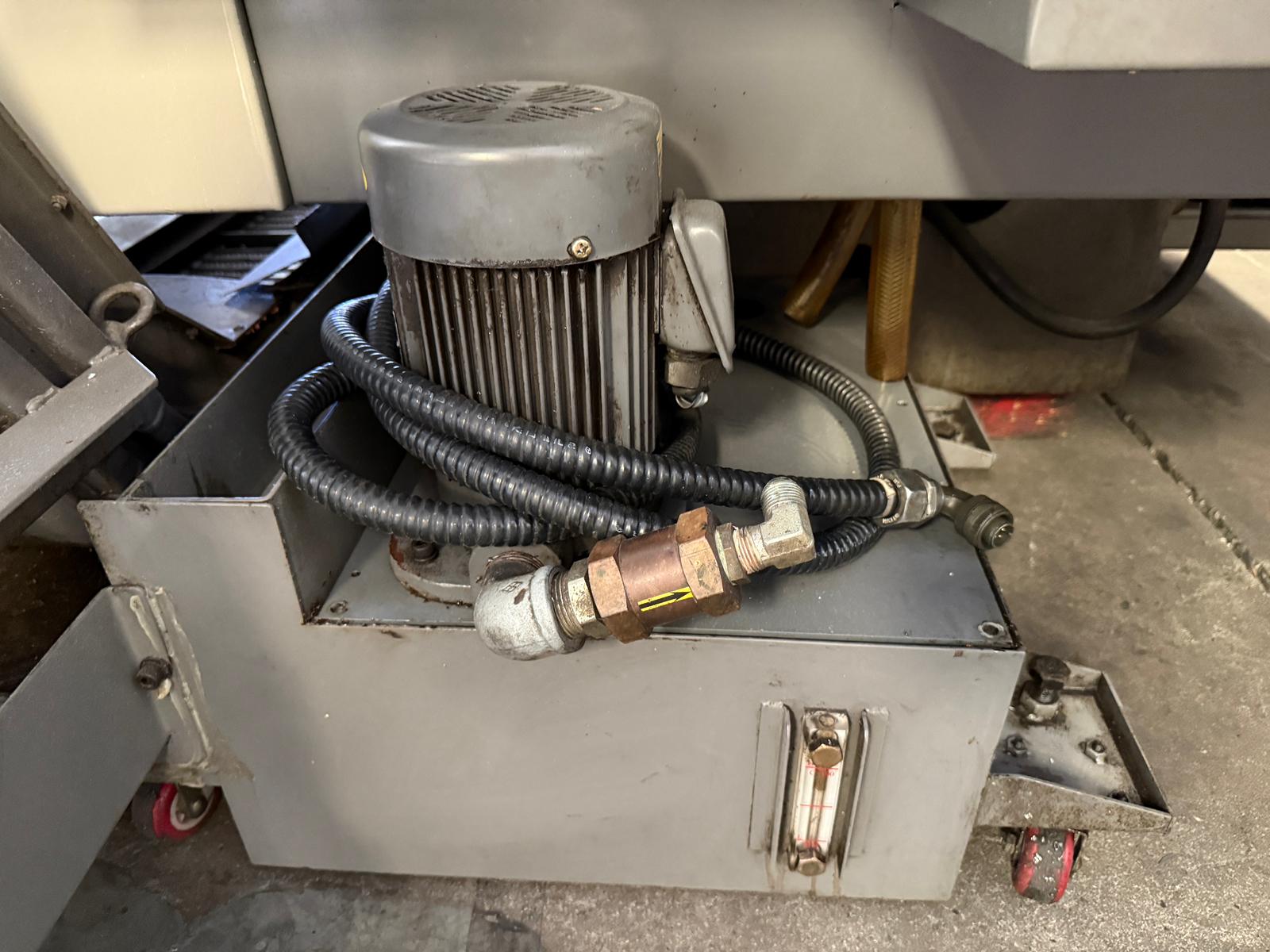

| Coolant System |

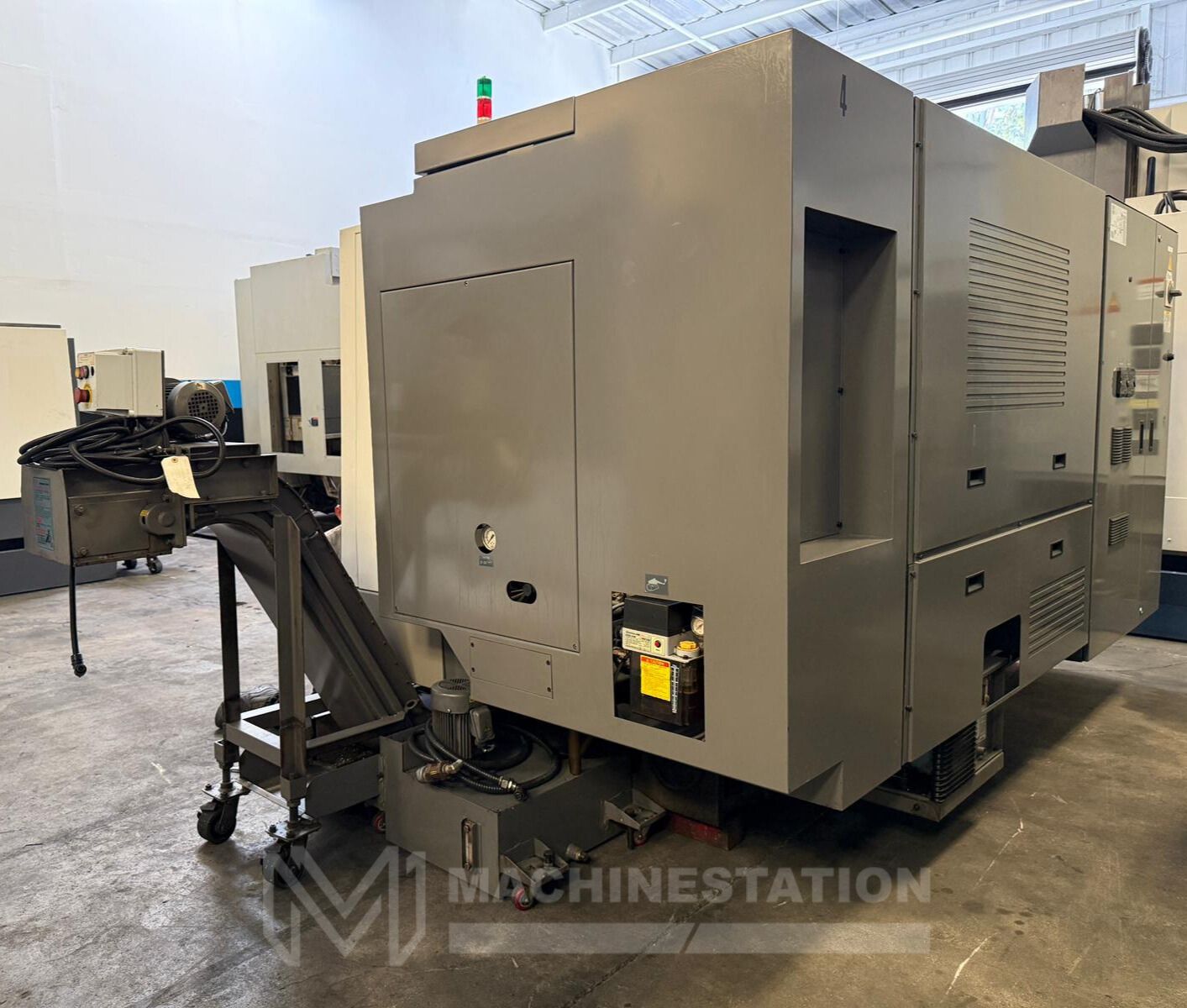

| Chip Conveyor |
| Automatic Lubrication System |

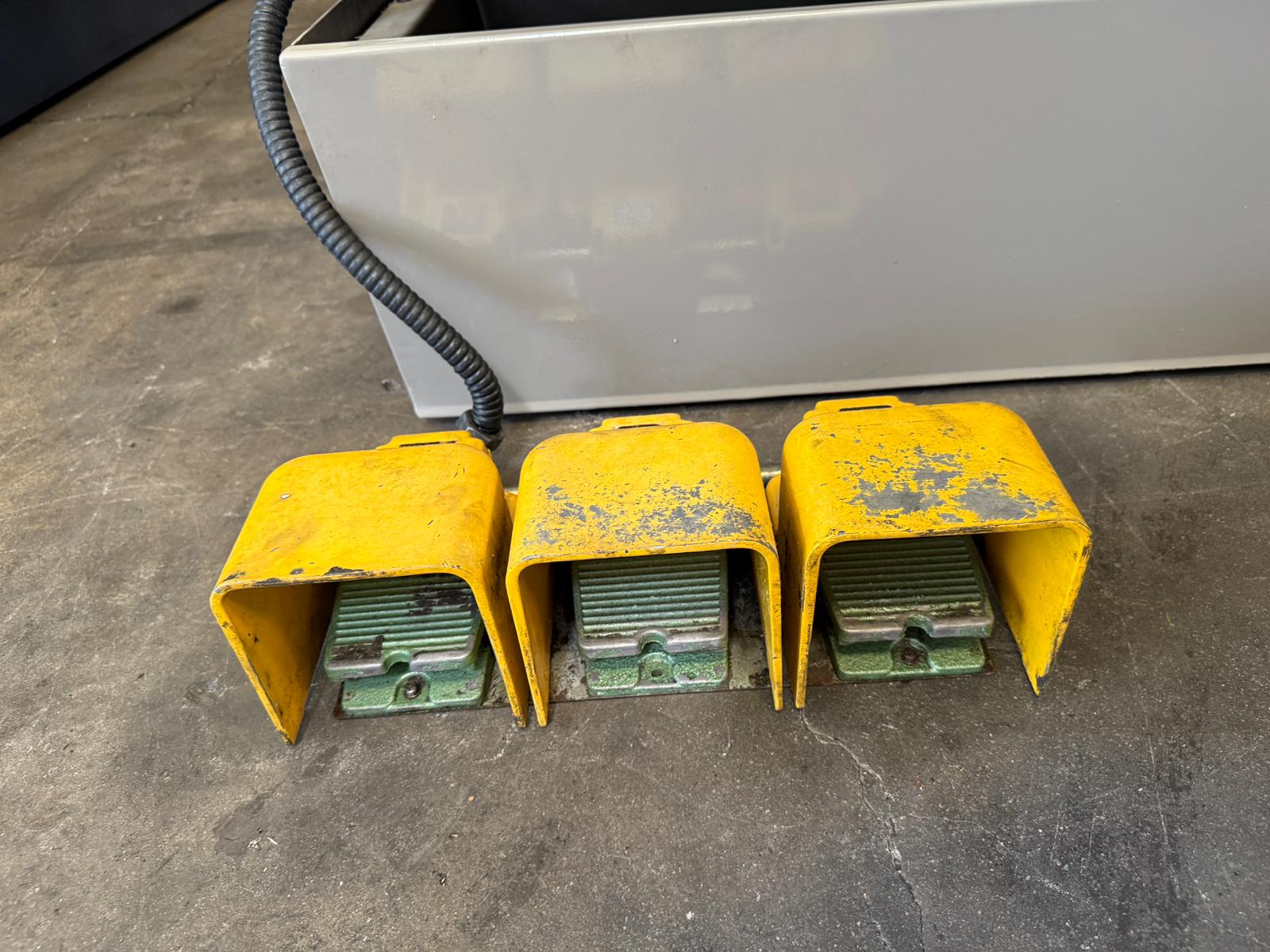

| Foot Switches |
| Levelling Pads |

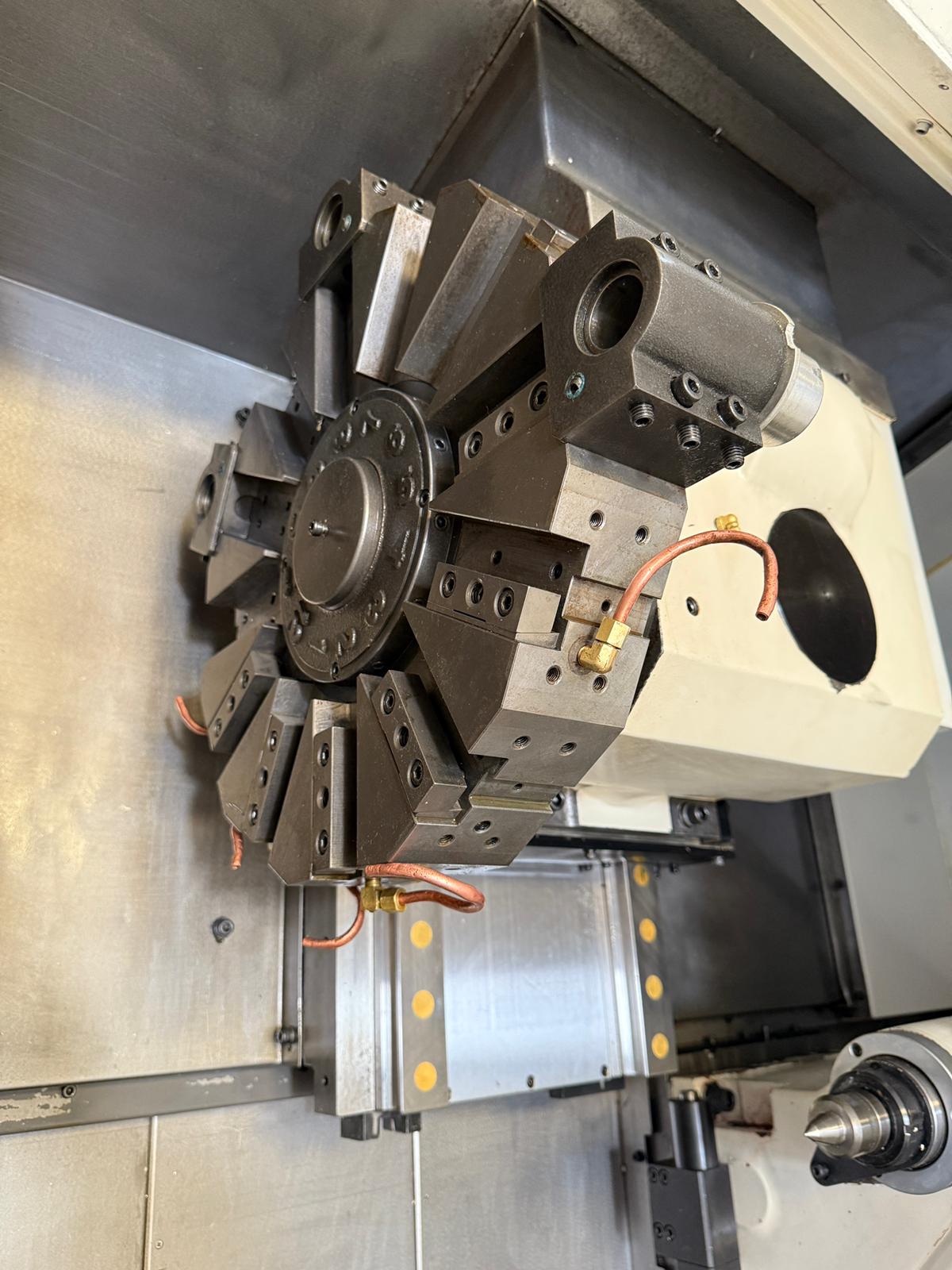

| (3) Boring Tool Holders are Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 379.98 mm |
| Max Turning Length: 671.58 mm |
| Max Bar Capacity: 65.02 mm |
| Swing Over Bed: 580.14 mm |
| Travel: |
|---|
| X Axis Travel: 215.14 mm |
| Z Axis Travel: 700.02 mm |
| Rapid Traverse X Axis: 3599 cm/min |
| Rapid Traverse Z Axis: 3599 cm/min |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 74.93 mm |
| Spindle Speed: 5000 RPM |
| Spindle Motor: 18.6 kW |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| Tailstock: |
|---|
| Tailstock Taper: MT- 4 |
| Tailstock Quill Dia.: 80.01 mm |
| Tailstock Quill Stroke: 104.65 mm |
| General: |
|---|
| Power: 35 kva, 220v / 3-Phase /60Hz |
| Overall Dimensions: 3230.88 mm X 1816.1 mm X 1914.91 mm High |
| Weight: 4200.3 kg Approx. |
