Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |
| Fanuc 21i-TB CNC Control |
| Absolute/Incremental Combined Programming |
| 4 x Subprograms |
| Swivelable Table & Wheel-Head Fixed |
| MPG Control |
| Inch / Metric Conversion |
| Stored Stroke Check |
| Auto Reference Point Return |
| Automatic Acceleration & Deceleration |
| Coolant System |
| Automatic Lubrication system |
| Capacity: |
| Max Grinding Diameter: 11.81″ |
| Max Grinding Length: 35.43″ |
| Max load Capacity: 39.9 kg |

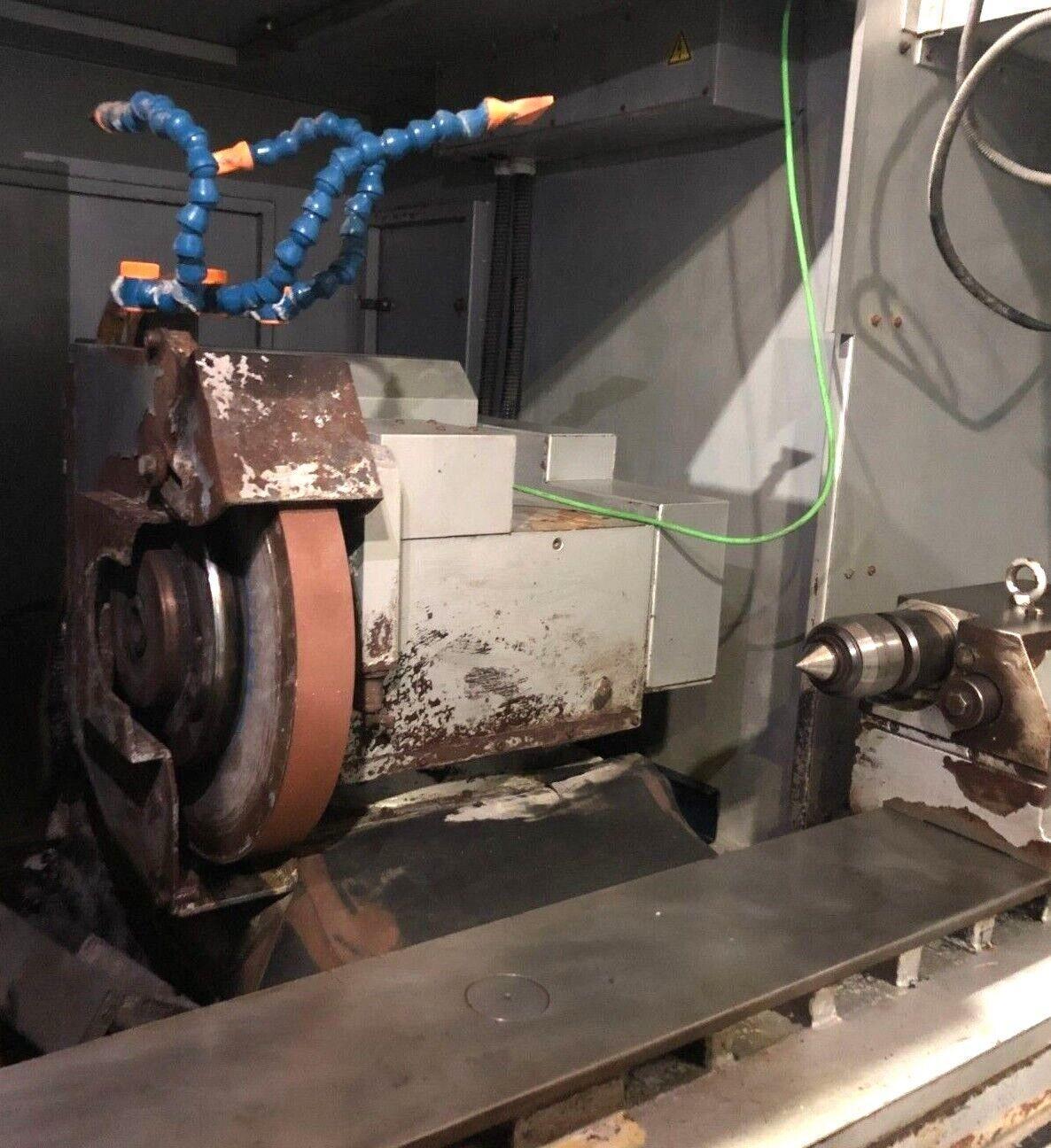

| Grinding Wheel: |
| Speed: 1890- 2687 RPM |
| Wheel Size: 17.91″ X 2.95″ X 5″ |
| Wheelhead: |
| X Axis Travel Distance: 11.81″ |
| Swivel Angle: +/- Fixed |
| Least Travel Increment: 0.0001” |

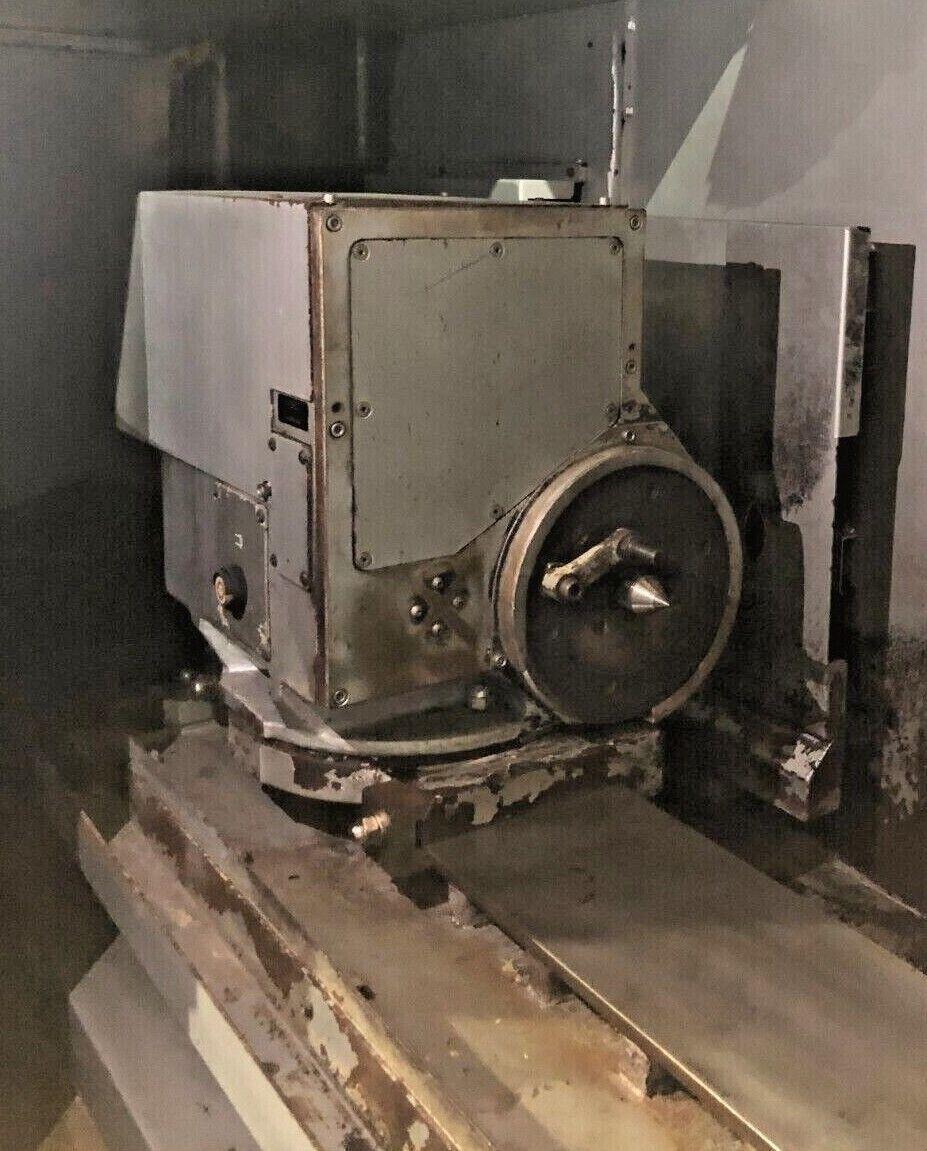

| Workhead: |
| Swivel Angle: Fixed |
| Center Taper: MT-4 |
| Spindle Bore Dia.: 0.79″ |
| Table: |
| Z Axis Travel Distance: 50″ |
| Swivel Angle: 0 ~ -8.5 Degree |
| Least Travel Increment: 0.0001” |

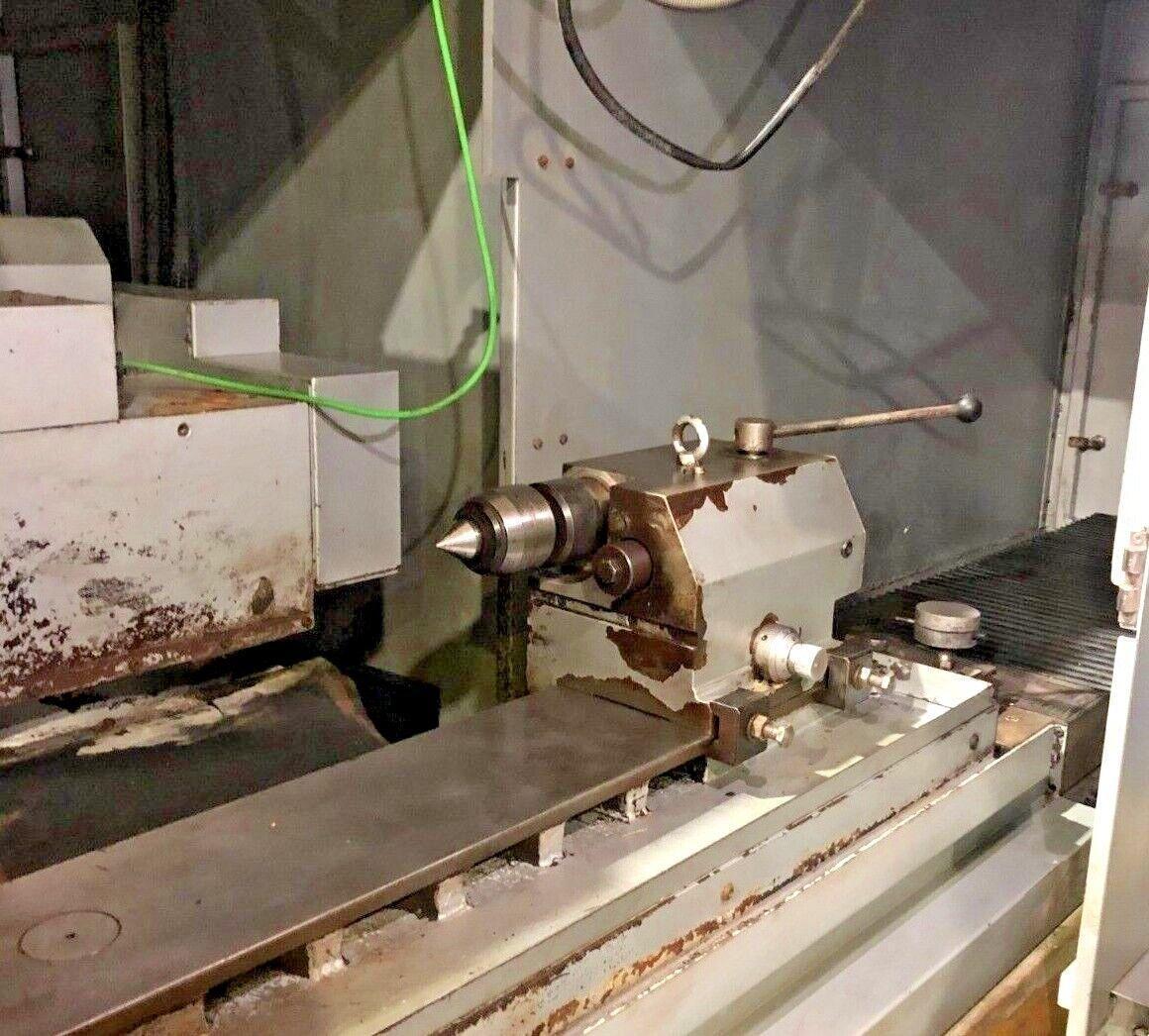

| Tailstock: |
| Tailstock Quill Stroke: 1.18″ |
| Tailstock Taper: MT-4 |
| General: |
| Power Source: AC 400 V Three Phase 50 Hz |
| Power Requirement: 20 kva |
| Overall Dimensions: 165″ x 92″ x 77″ High |
| Weight : 4999.9 kg Approx. |
| Categories | CNC Grinders, CNC Turning Centers |
|---|
| Series | Okamoto OGM Series |
|---|
| Categories | CNC Grinders |
|---|
