Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

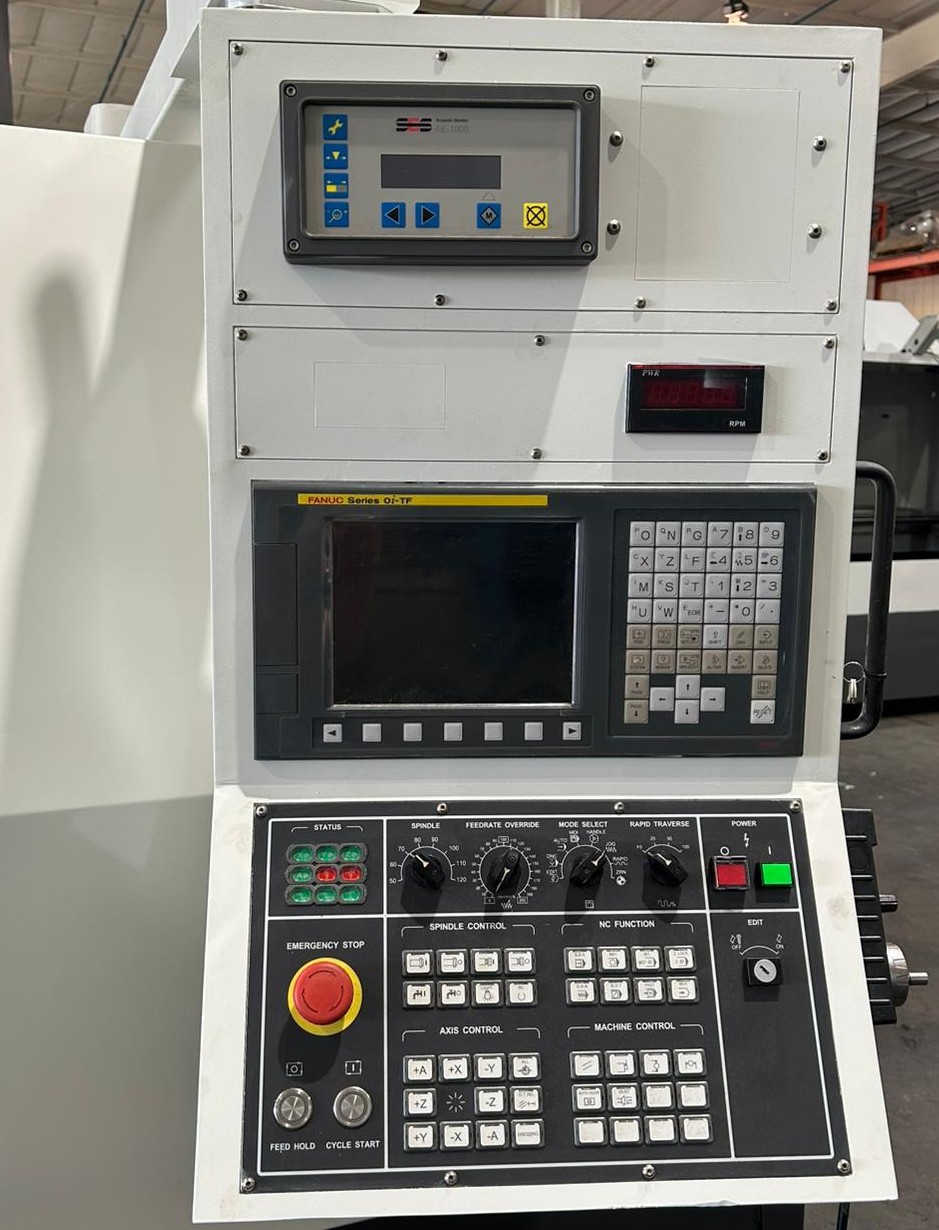

| Fanuc Oi-TF CNC Control |
| Absolute/Incremental Combined Programming |
| Swivelable Table |
| MPG Handwheel Control |
| Inch / Metric Conversion |
| Stored Stroke Check |
| Auto Reference Point Return |
| Automatic Acceleration & Deceleration |

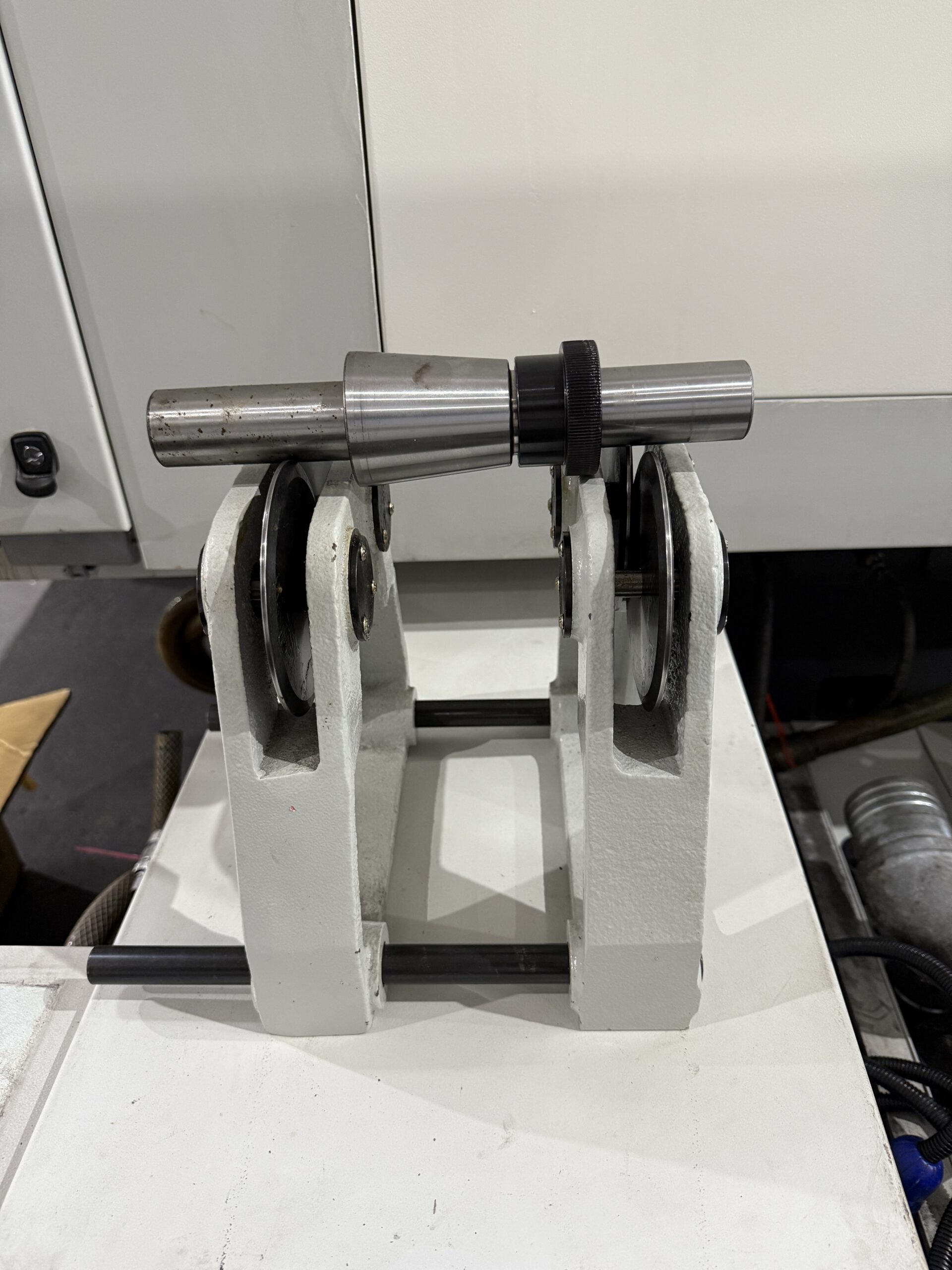

| Manual Wheel Balancing System |

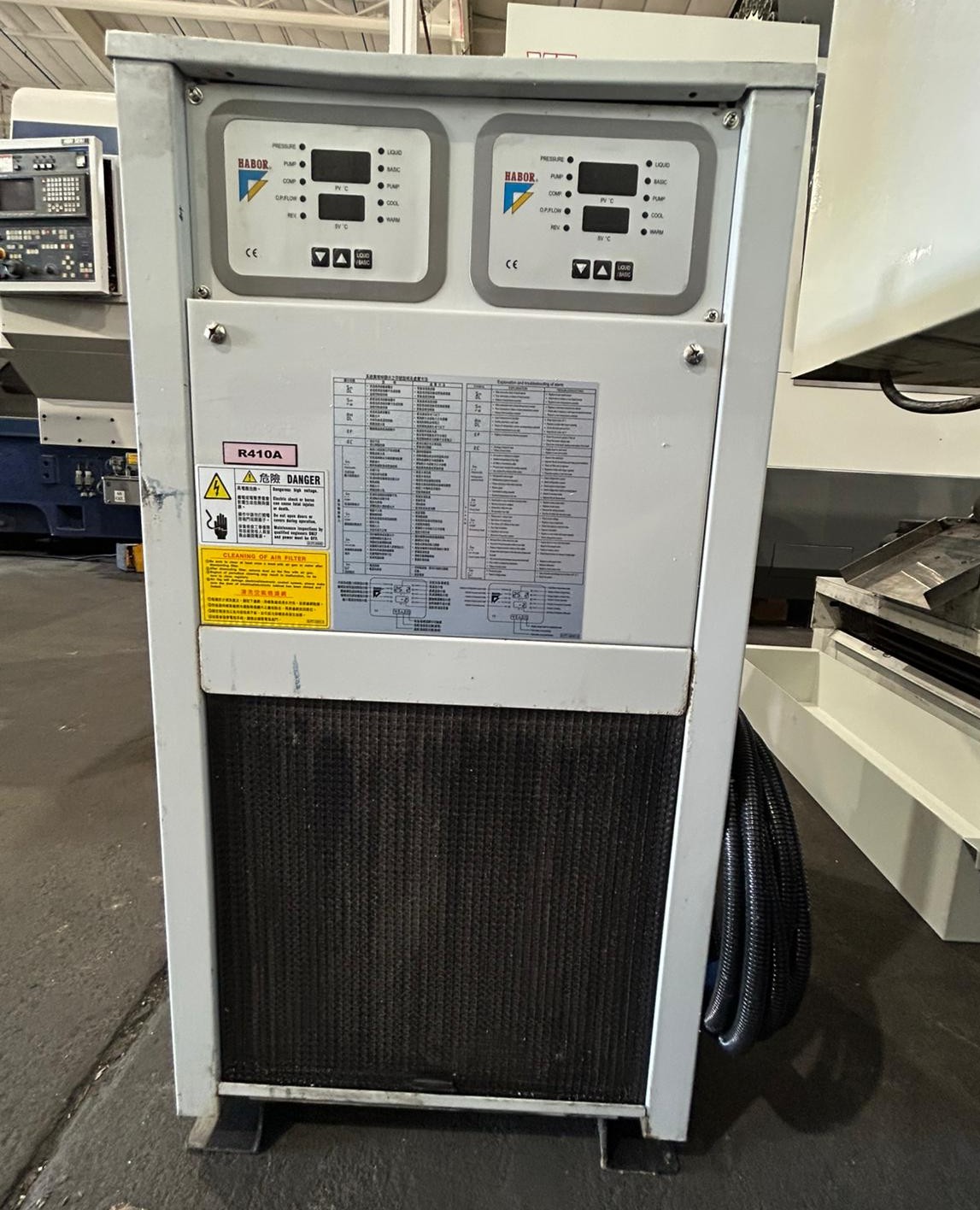

| Spindle Chiller Unit |

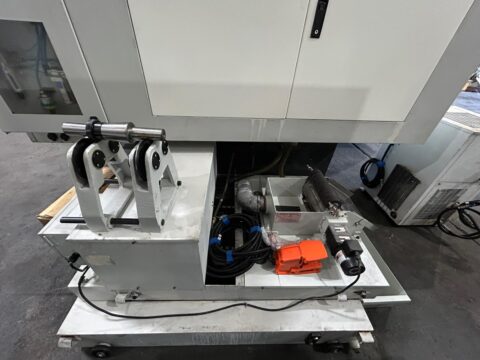

| Paper Filtration System |
| Coolant System |
| Hydraulic Tailstock |
| Automatic Lubrication system |
| Levelling Pads |
| Capacity: |
| Max Grinding Diameter: 14.17″ |
| Max Grinding Length: 23.62″ |
| Max load Capacity: 330 lbs |
| Swing Over Table: 15″ |
| Center Distance Between Spindle & Slide Table: 24″ |
| Distance Between Centers: 24″ |
| Grinding Wheel: |
| Speed: 2000 RPM |
| Wheel Size: 20″ X 2″ – 4″ X 6″ |
| Grinding Wheel Seat: |
| Feed Angle: 90 Degree |
| Maximum Feeding Speed: 236 IPM |
| Least Travel Increment: 0.001 Degree |
| Total Feeding Travel: 11.02″ |
| Motor: 10 HP |
| Workhead: |
| Speed: 10 – 600 RPM |
| Center Taper: MT-4 |
| Motor: 1.5 HP |
| Table: |
| Rotation Angle: +/- 9 Degree |
| Least Travel Increment: 0.001 Degree |
| Rapid Feed Rate: 393 IPM |
| Tailstock: |
| Tailstock Quill Stroke: 1″ |
| Tailstock Taper: MT-4 |
| General: |

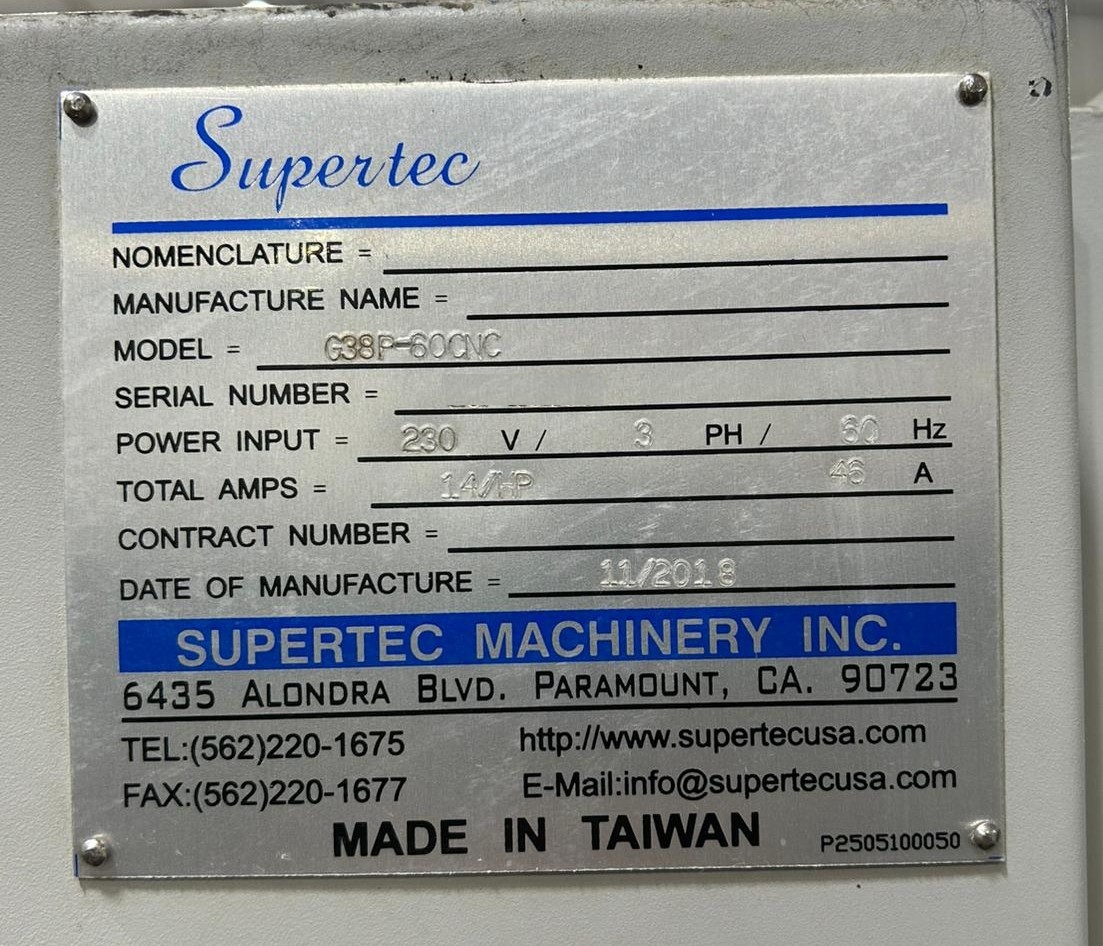

| Power Source: AC 230 V / Three Phase / 60 Hz |
| Power Requirement: 6.5kva |
| Overall Dimensions: 187″ x 90″ x 90″ High Approx. |
| Weight: 14330 lbs Approx. |
