Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

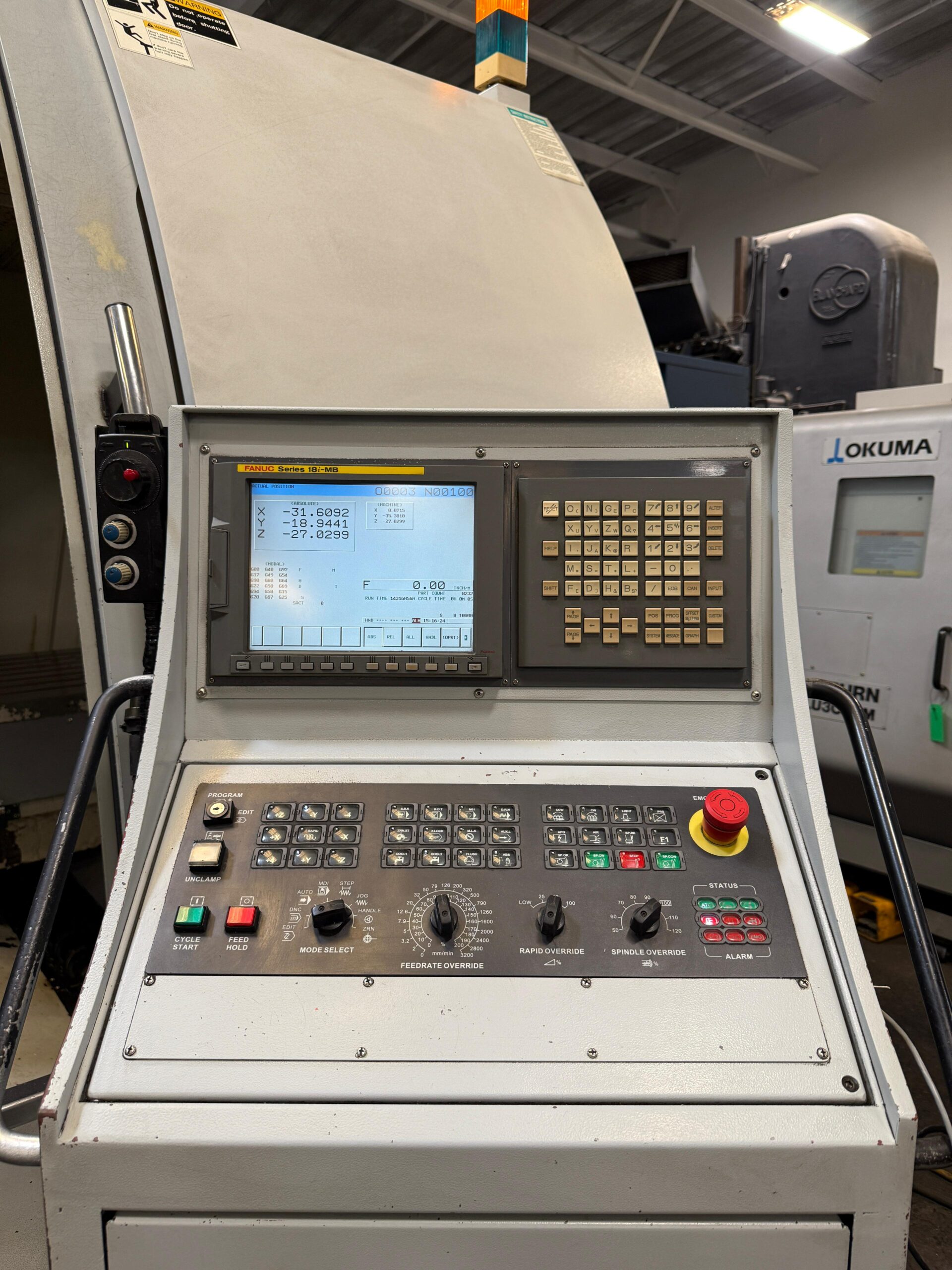

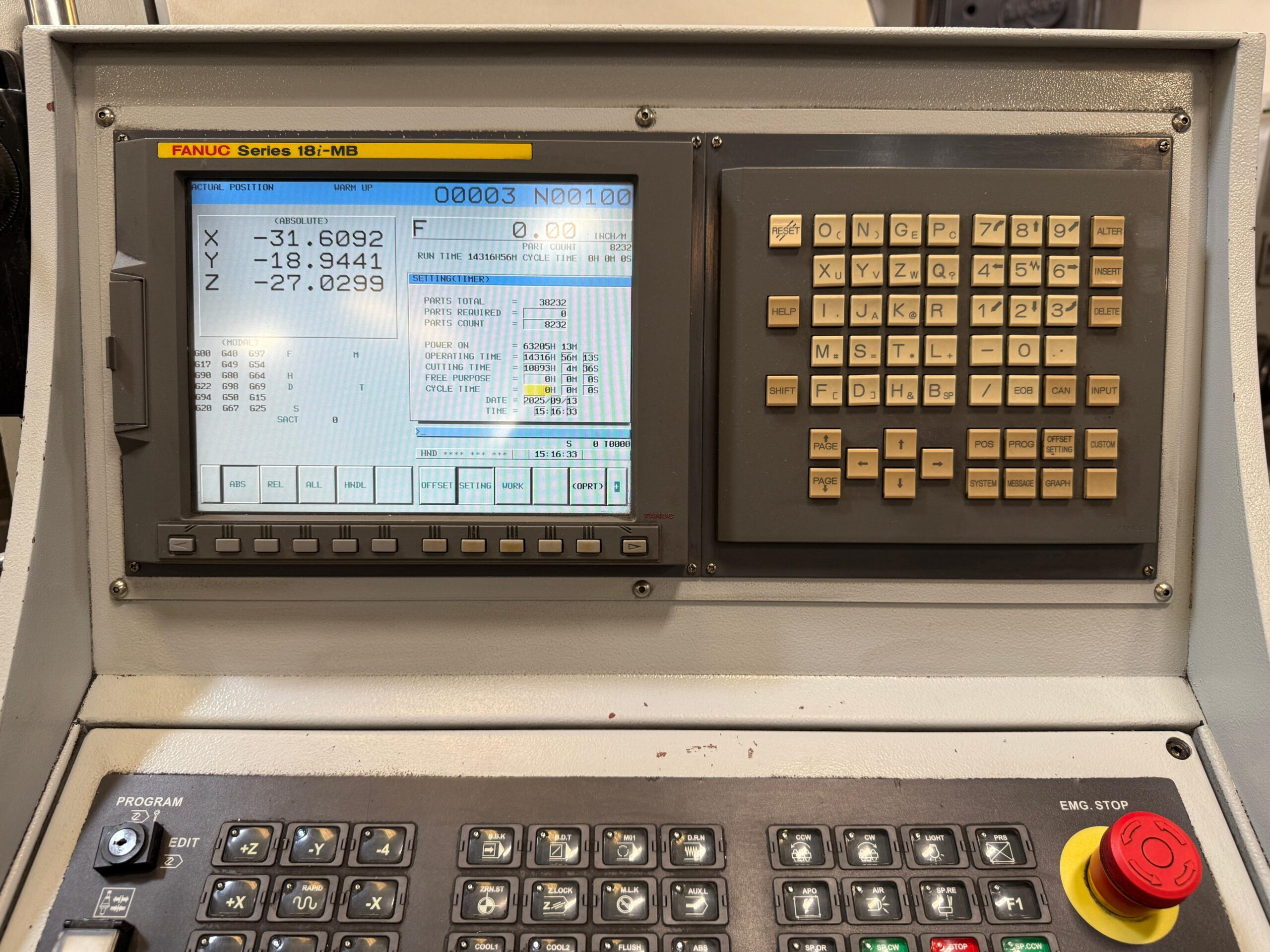

| Fanuc Series 18i-MB CNC Control |
| Linear Guideways Construction |
| 10,000 RPM High Speed Spindle |
| 40 Spindle Taper |

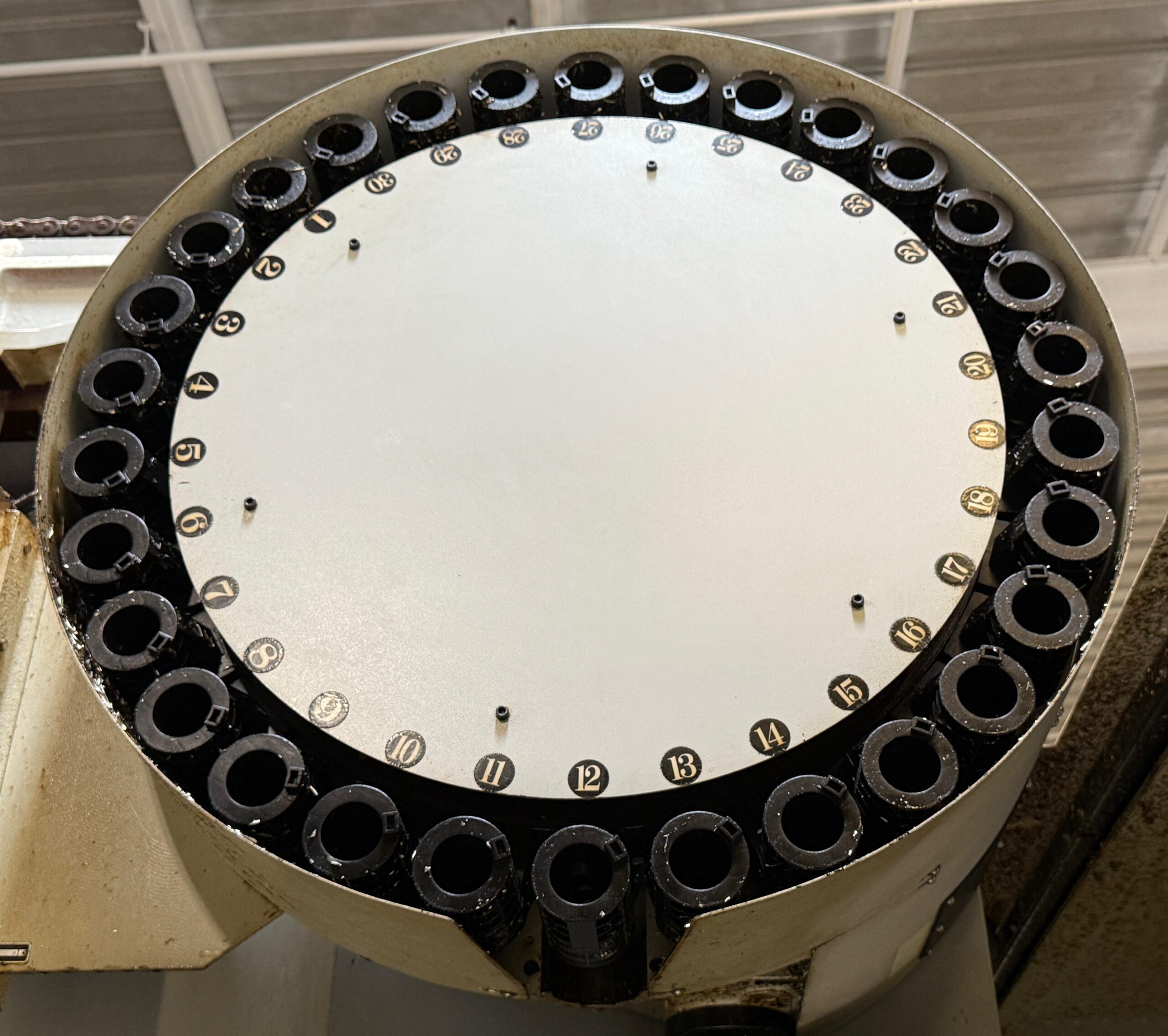

| 30 Station Automatic tool changer |
| Spindle Chiller Unit |
| MPG Hand Wheel Control |
| Rigid Tapping |
| Coolant System |

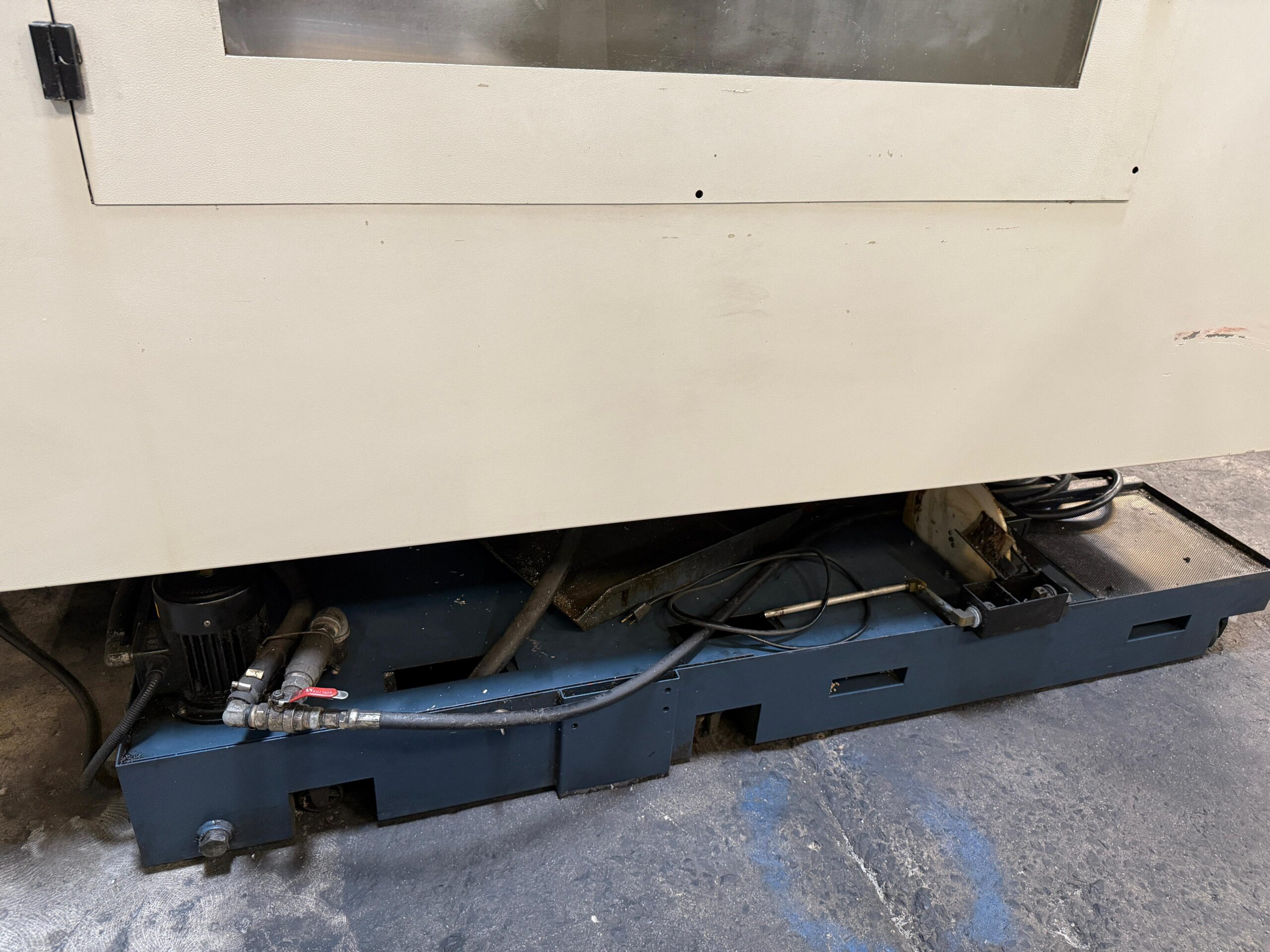

| Dual Chip Auger |

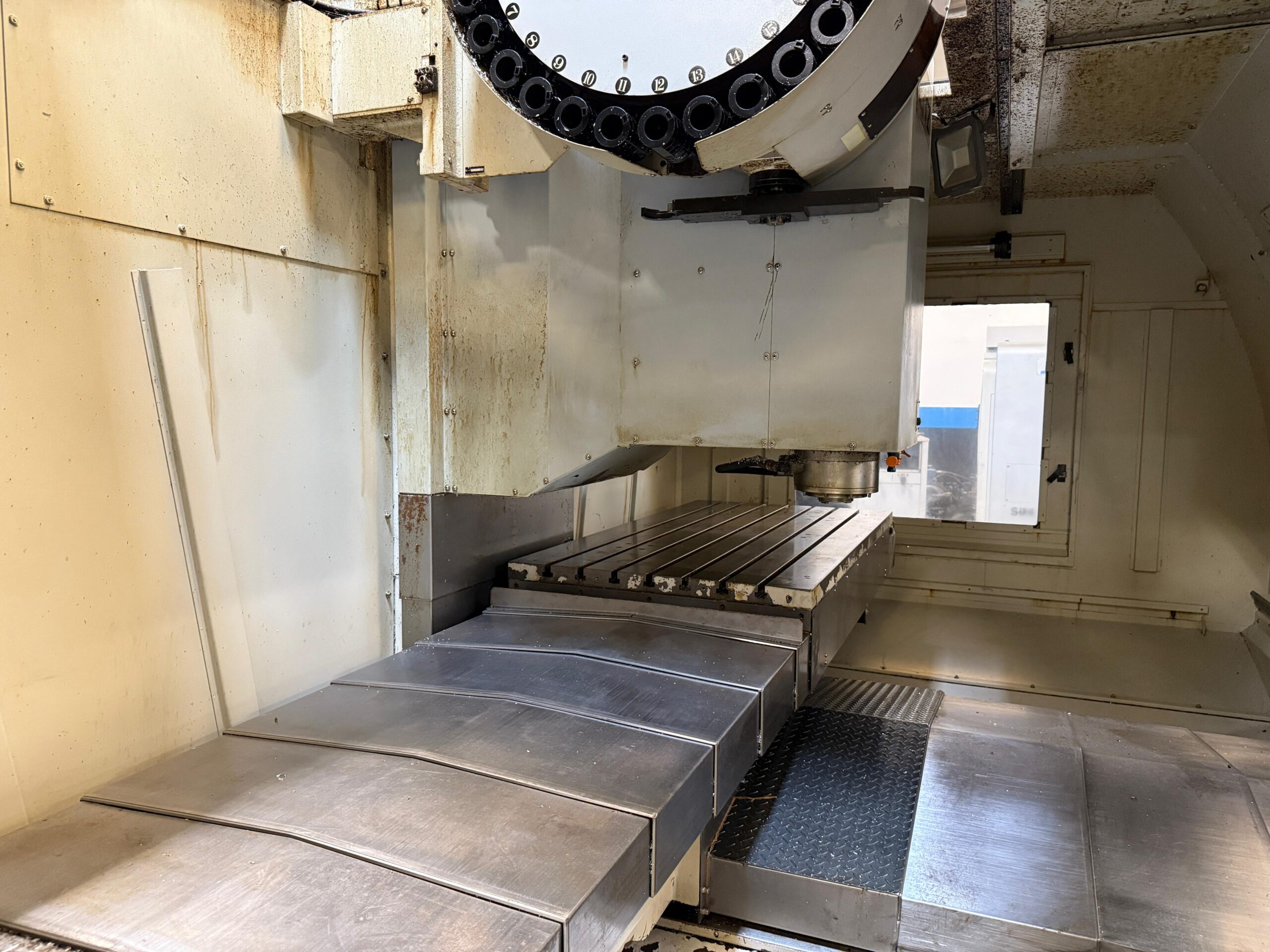

| Table: |
| Length: 66.93″ |
| Width: 33.46″ |
| Number of Std T-Slots: 7 |
| Max Weight on Table: 4,410 lbs |
| Travel: |
| X-Axis: 62.99″ |
| Y-Axis: 35.43″ |
| Z-Axis: 31.49″ |
| Rapid Traverse Rates X & Y Axis: 787 Inch Per Minute |
| Rapid Traverse Rates Z Axis: 590 Inch Per Minute |
| Cutting Feed Rates: 314 Inch Per Minute |
| Spindle Nose to Table: (Min.- Max.): 3.93″ – 35.43″ |
| Automatic Tool Changer: |
| Capacity: 30 Station |
| Max Tool Dia: 4.921″ |
| Max. tool length: 13.78″ |
| Max. tool weight: 33.06 lbs |
| Spindle: |
| Taper Size: 40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 20 HP |
| General: |
| Air Required: 85 psi 6 scfm |

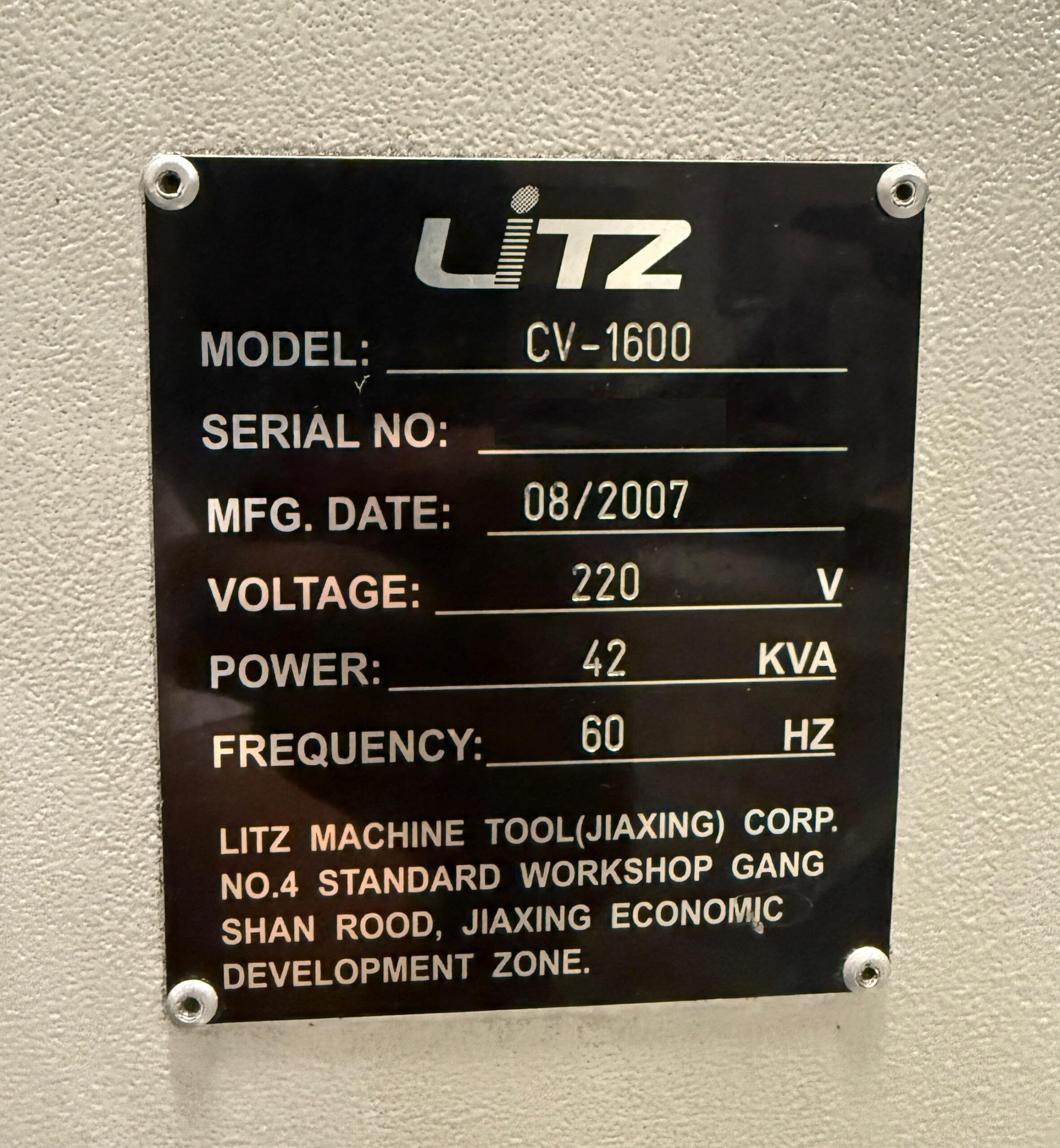

| Power: 220v / 50/60 Hz / 3-Phase / 42 kva |
| Machine Dimensions: 152″ x 144″ x 132″ High Approx. |
| Weight: 41,887 lbs Approx. |
| Categories | CNC Vertical Machining Centers - VMC |
|---|
| Series | Litz CV Series |
|---|
| Categories | CNC Vertical Machining Centers - VMC |
|---|
