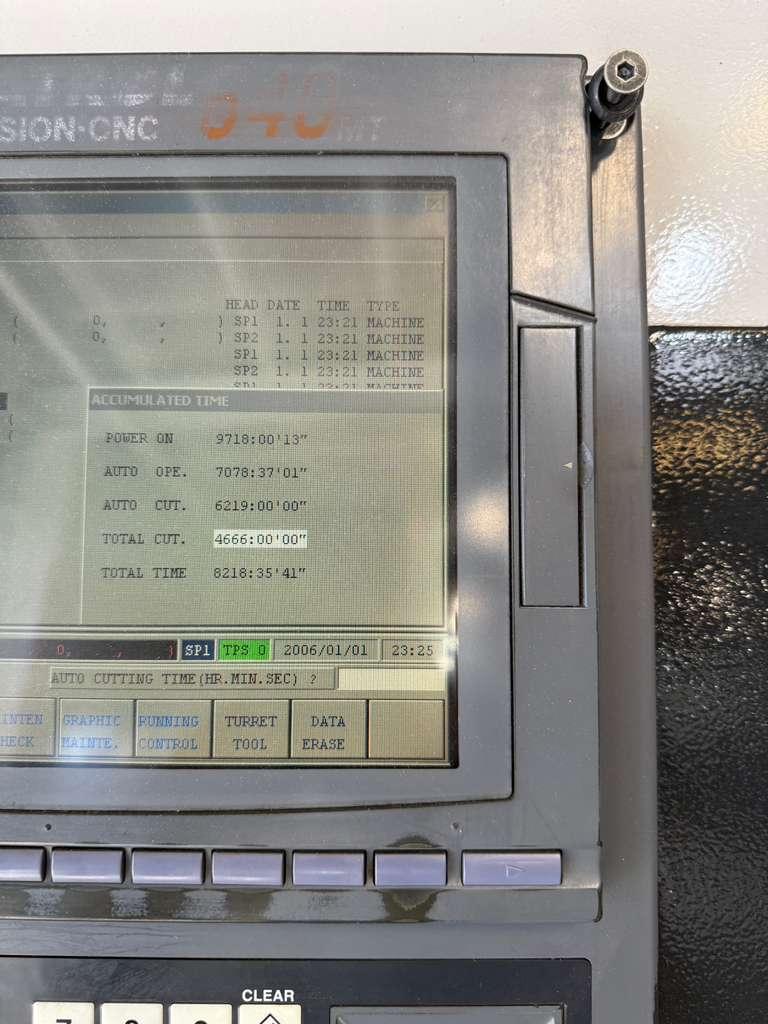

Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

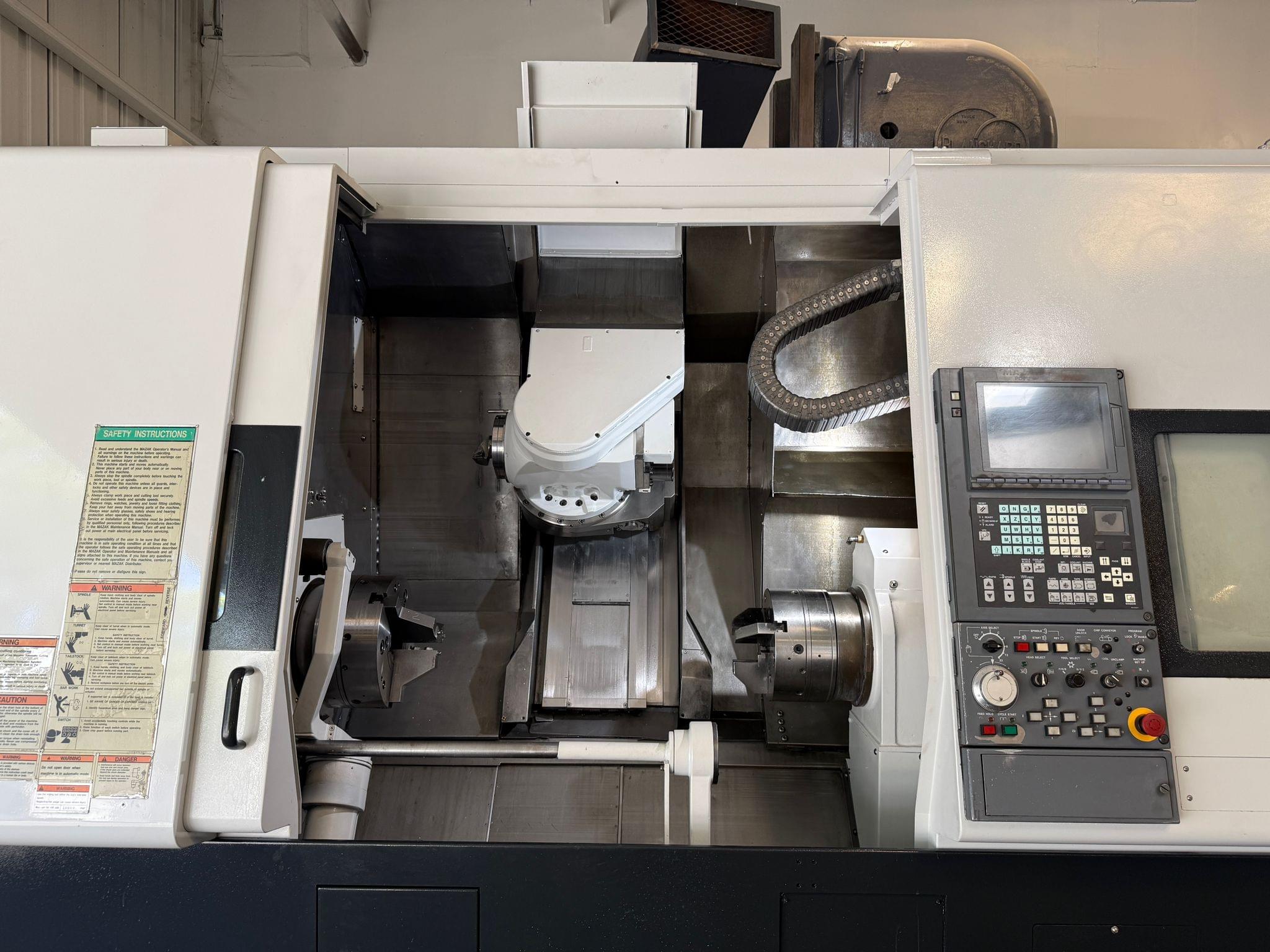

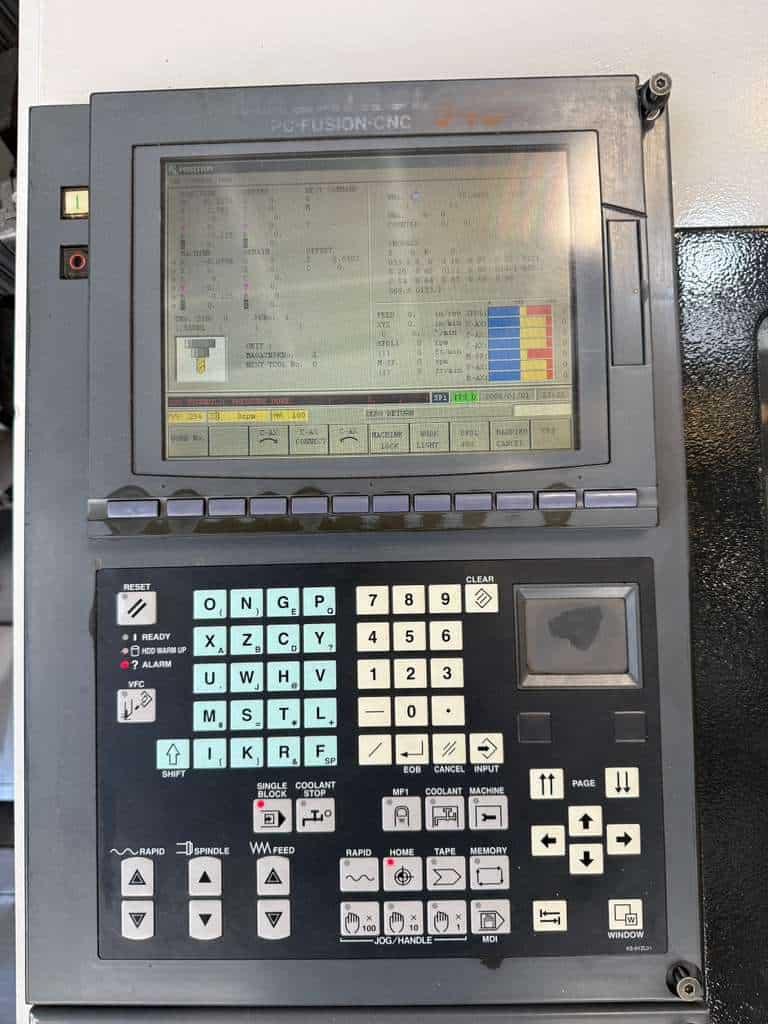

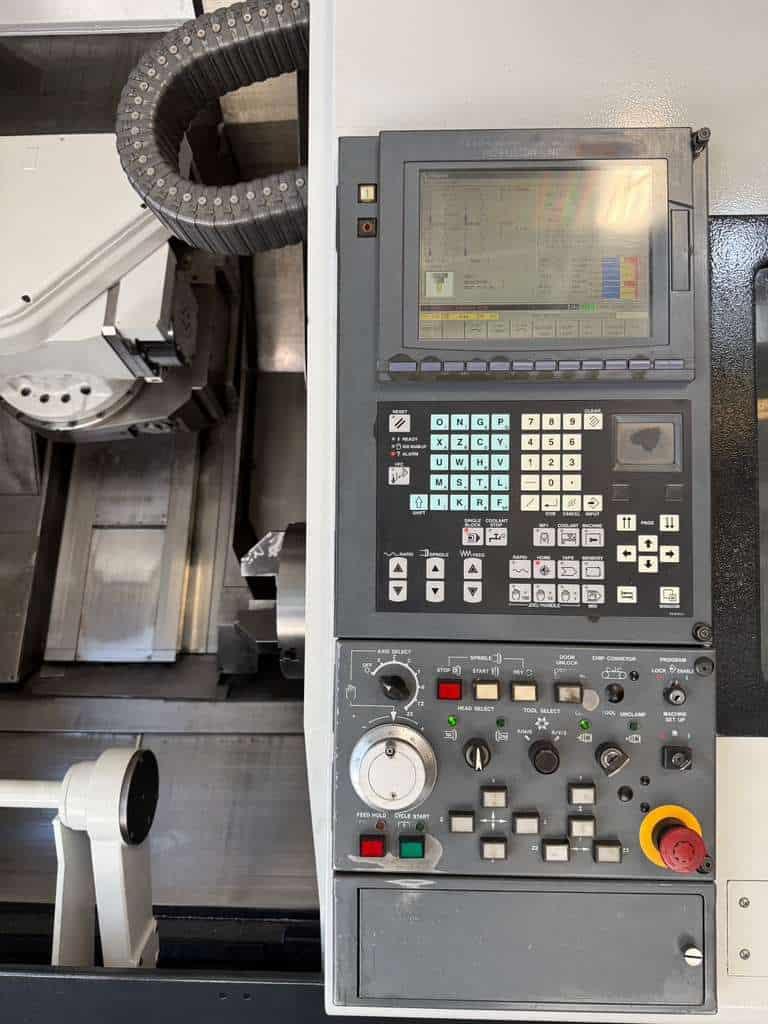

| Mazatrol Fusion 640MT CNC Control |

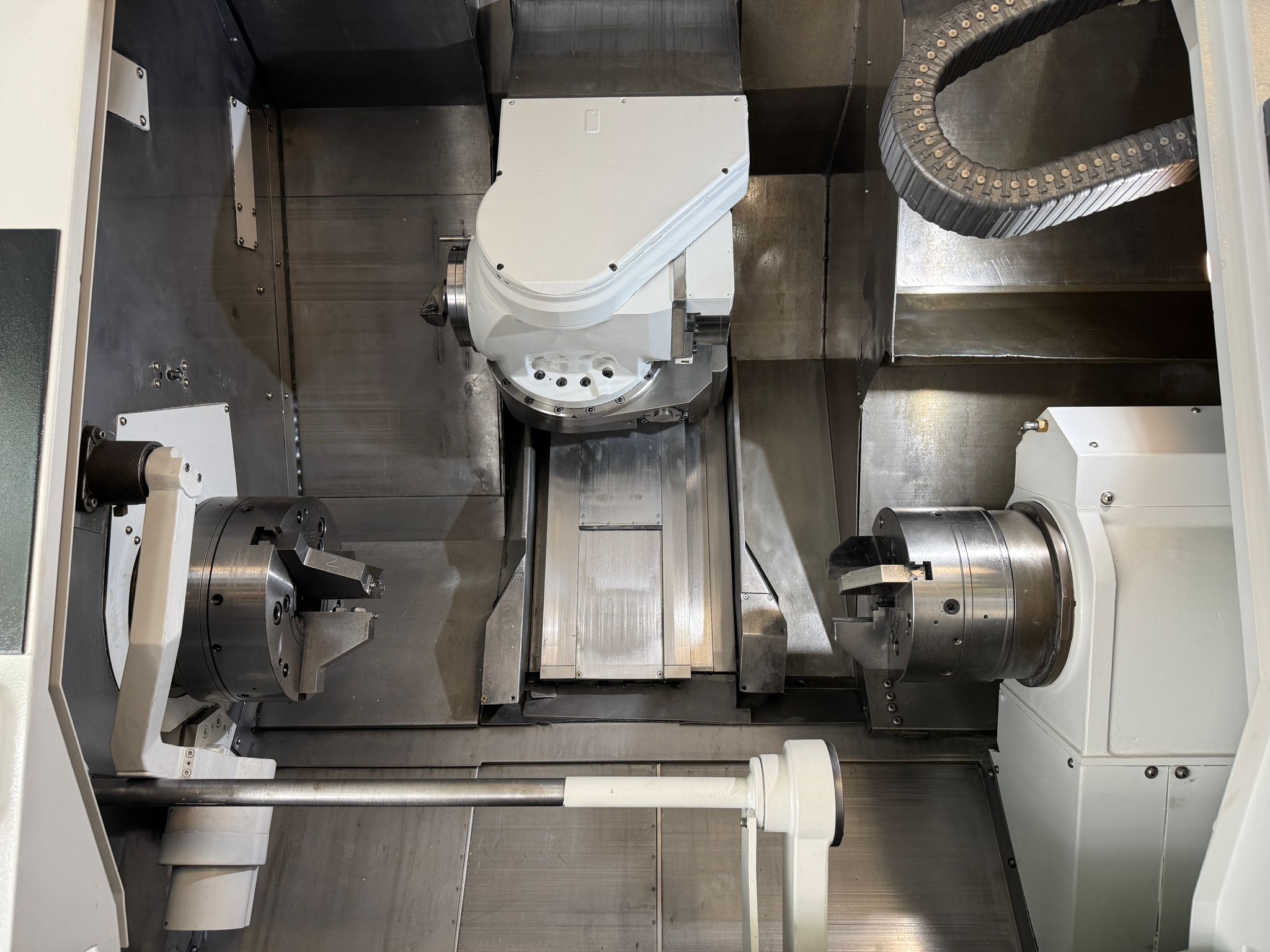

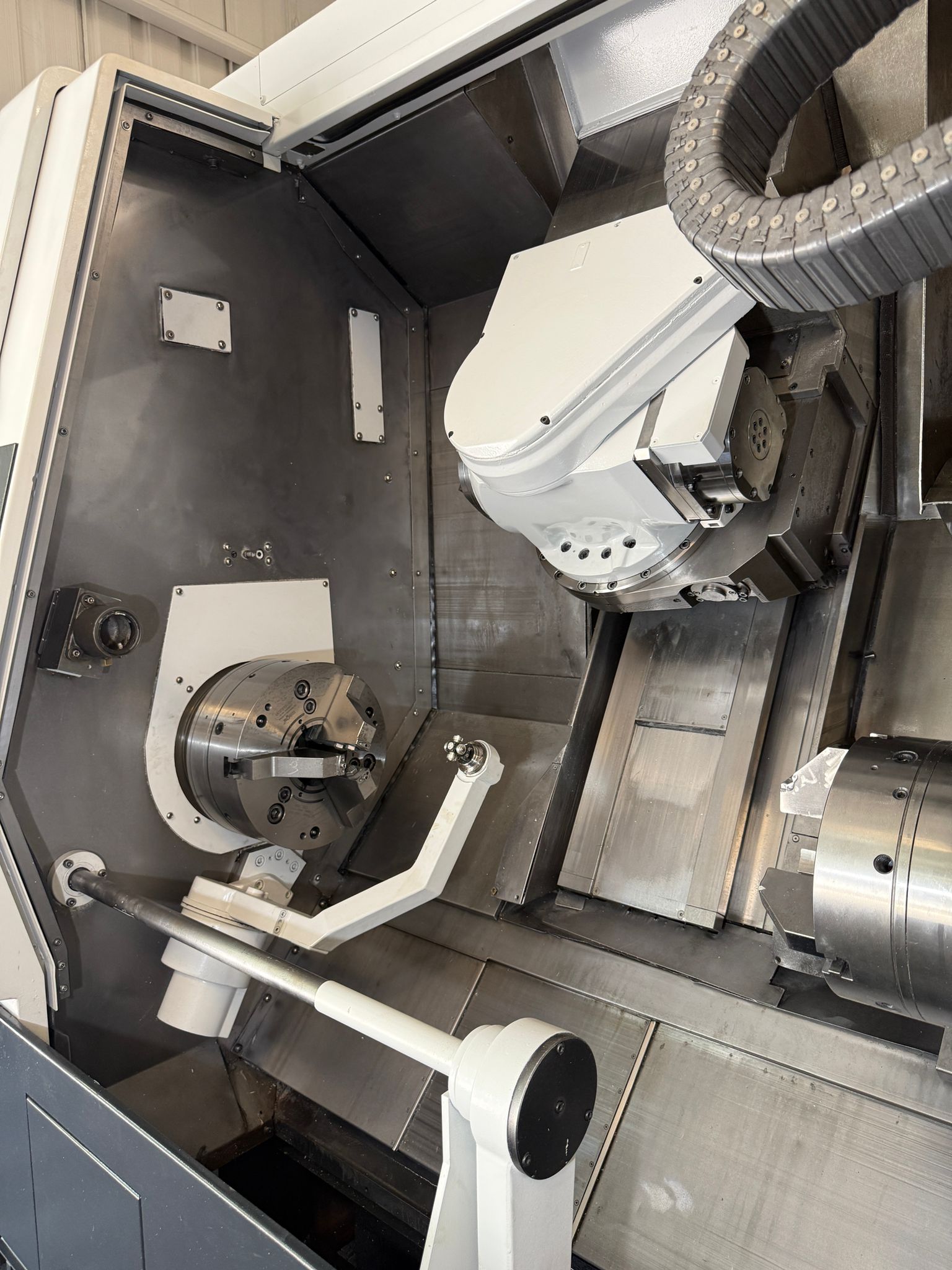

| 10,000 RPM Pendulum Milling Head |
| 40 Station Tool Magazine |

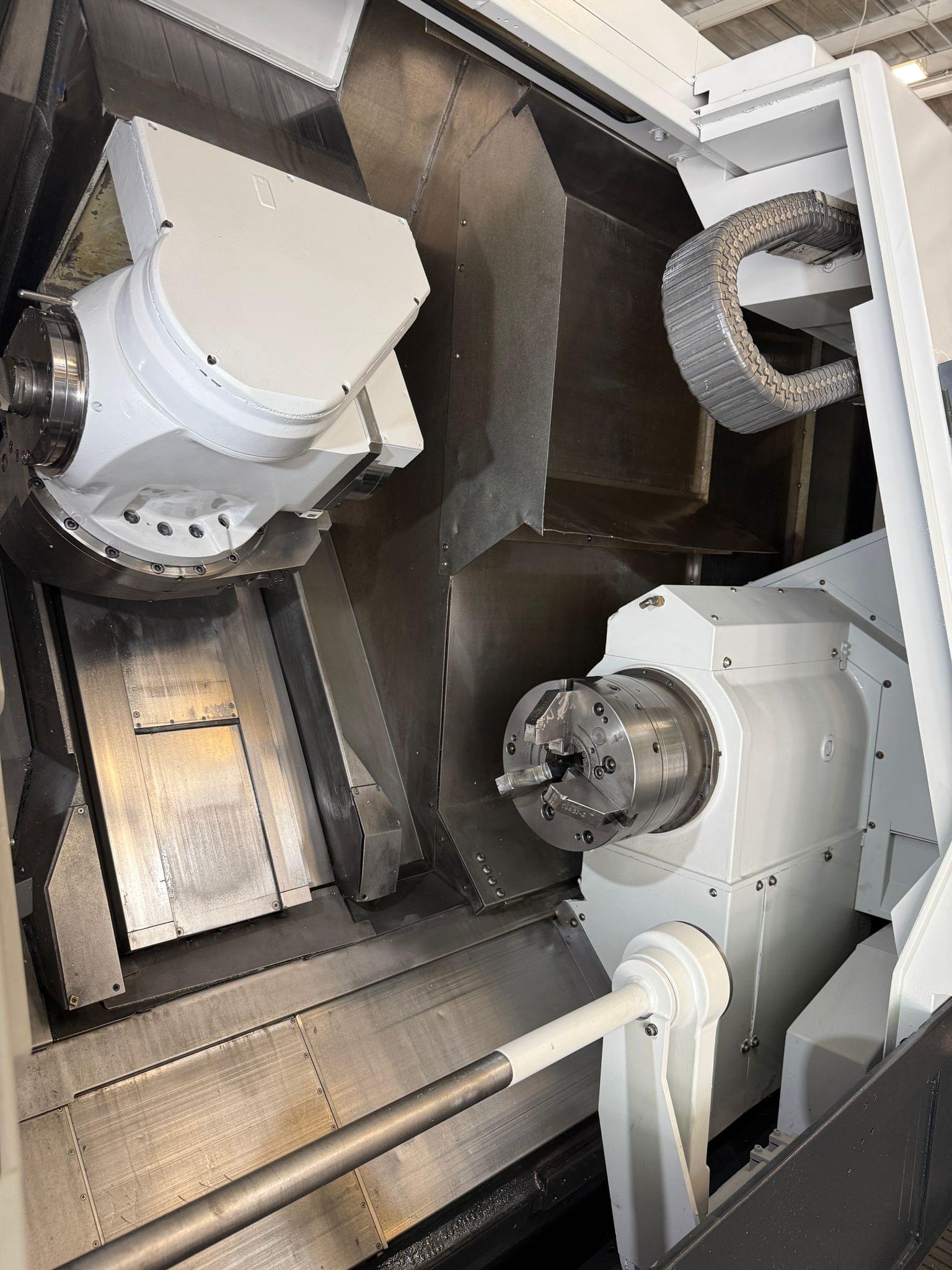

| Sub Spindle |
| Full C-Axis on Both Spindles |
| Y Axis Capability |

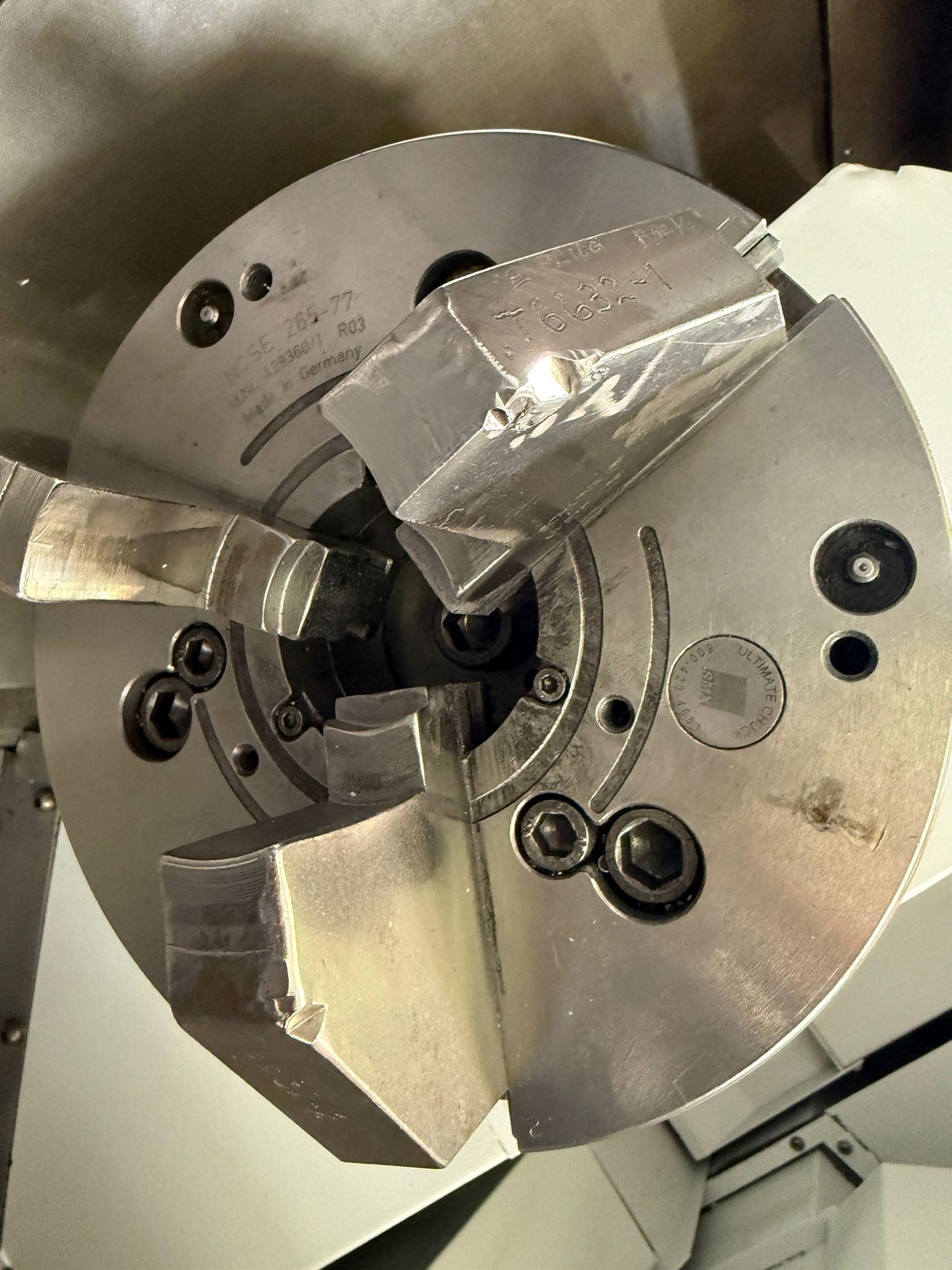

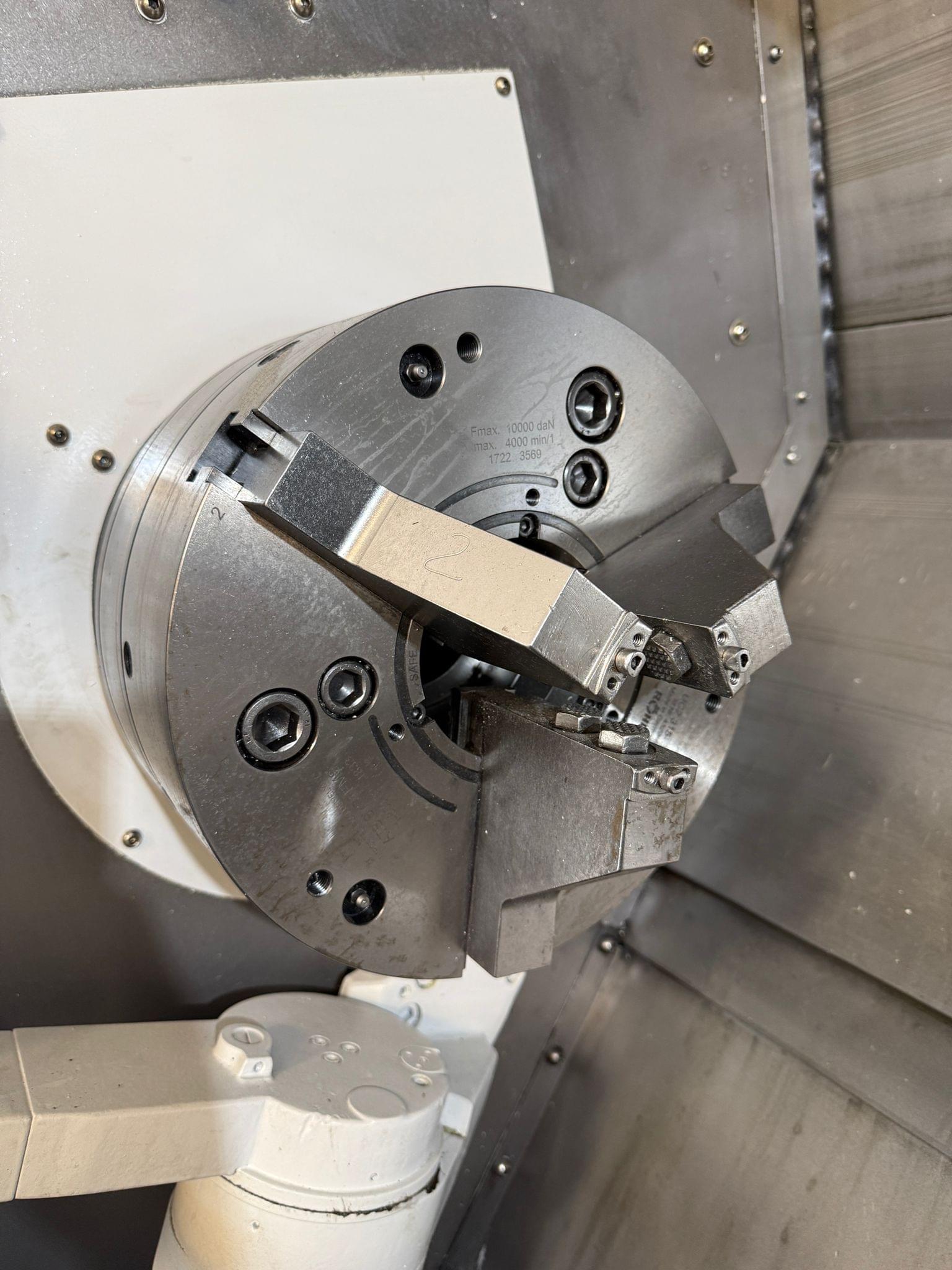

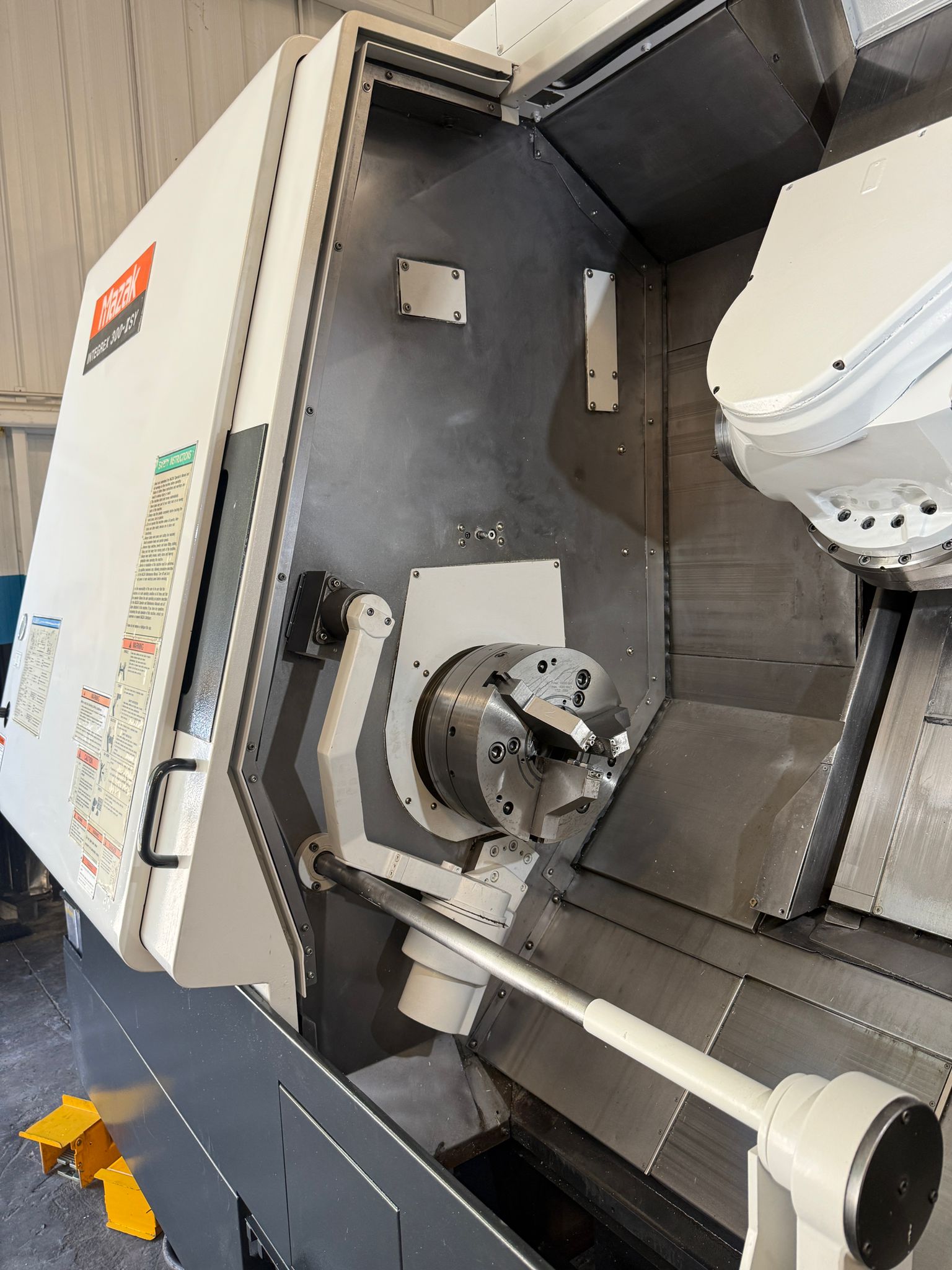

| 12.4″ 3-Jaw Chuck on Main Spindle |

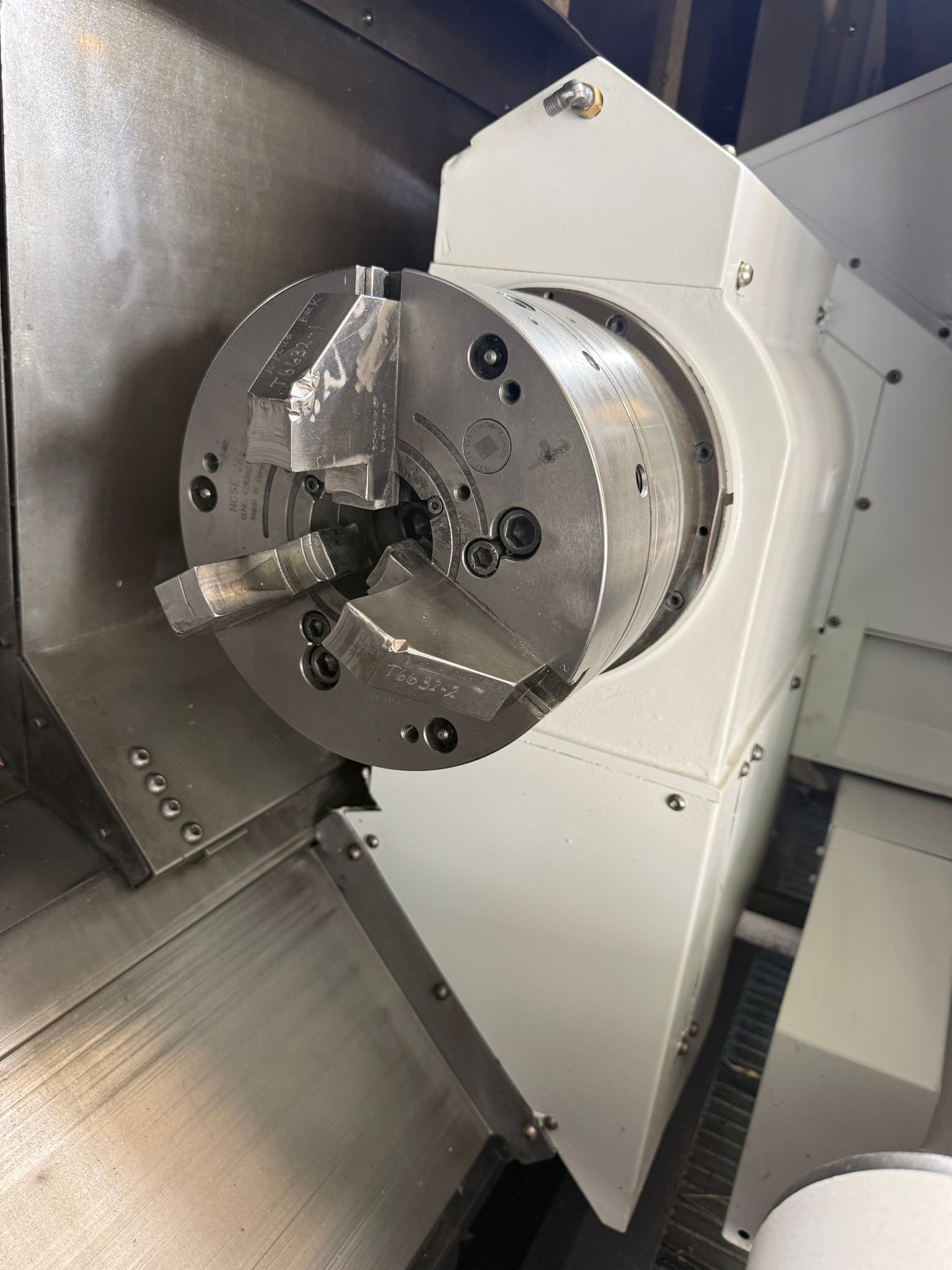

| 10.4″ 3-Jaw Chuck on Sub Spindle |
| Tool Presetter |
| Part Cather |
| Rigid Tapping |
| Coolant System |

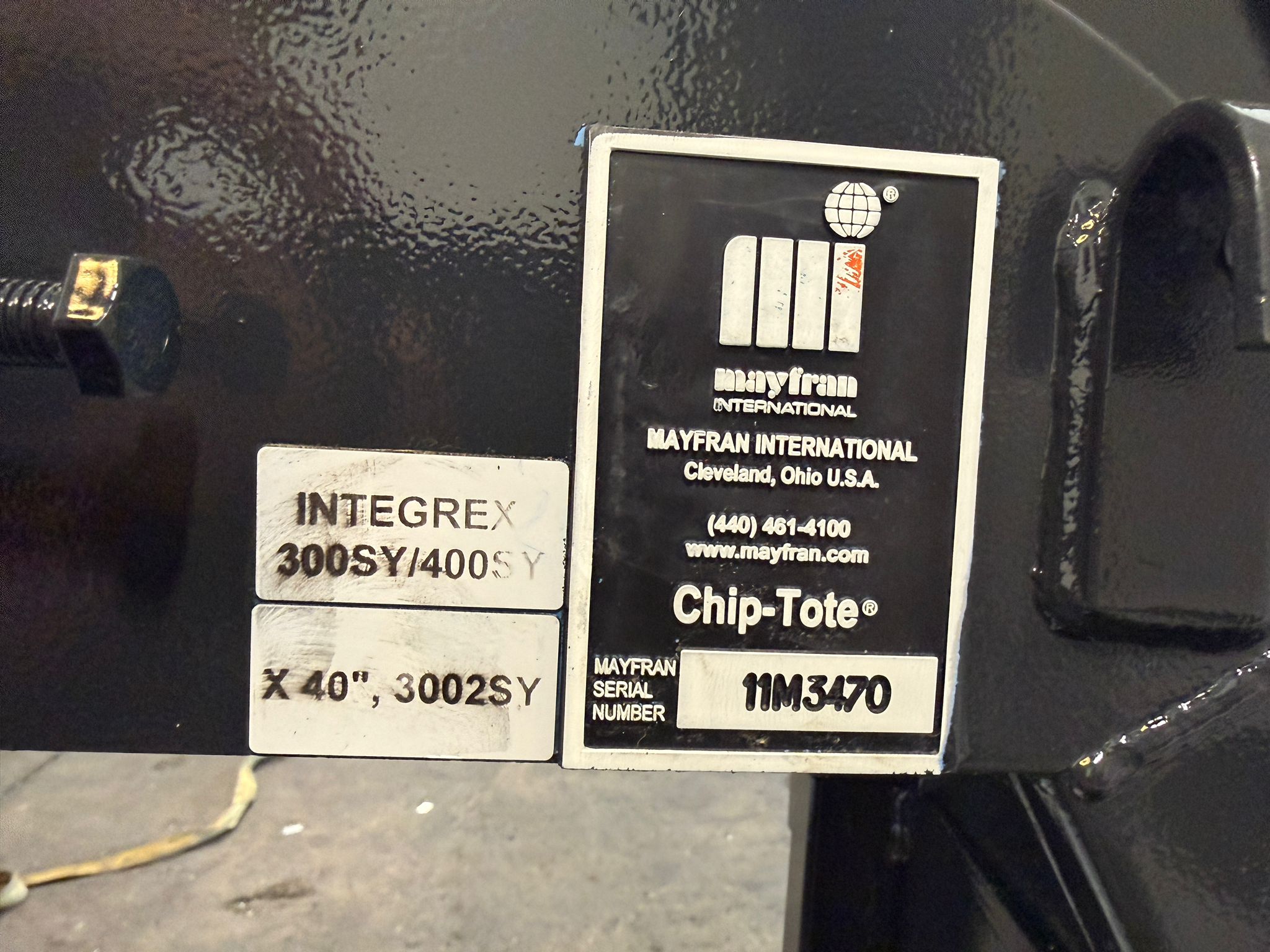

| Chip Conveyor |

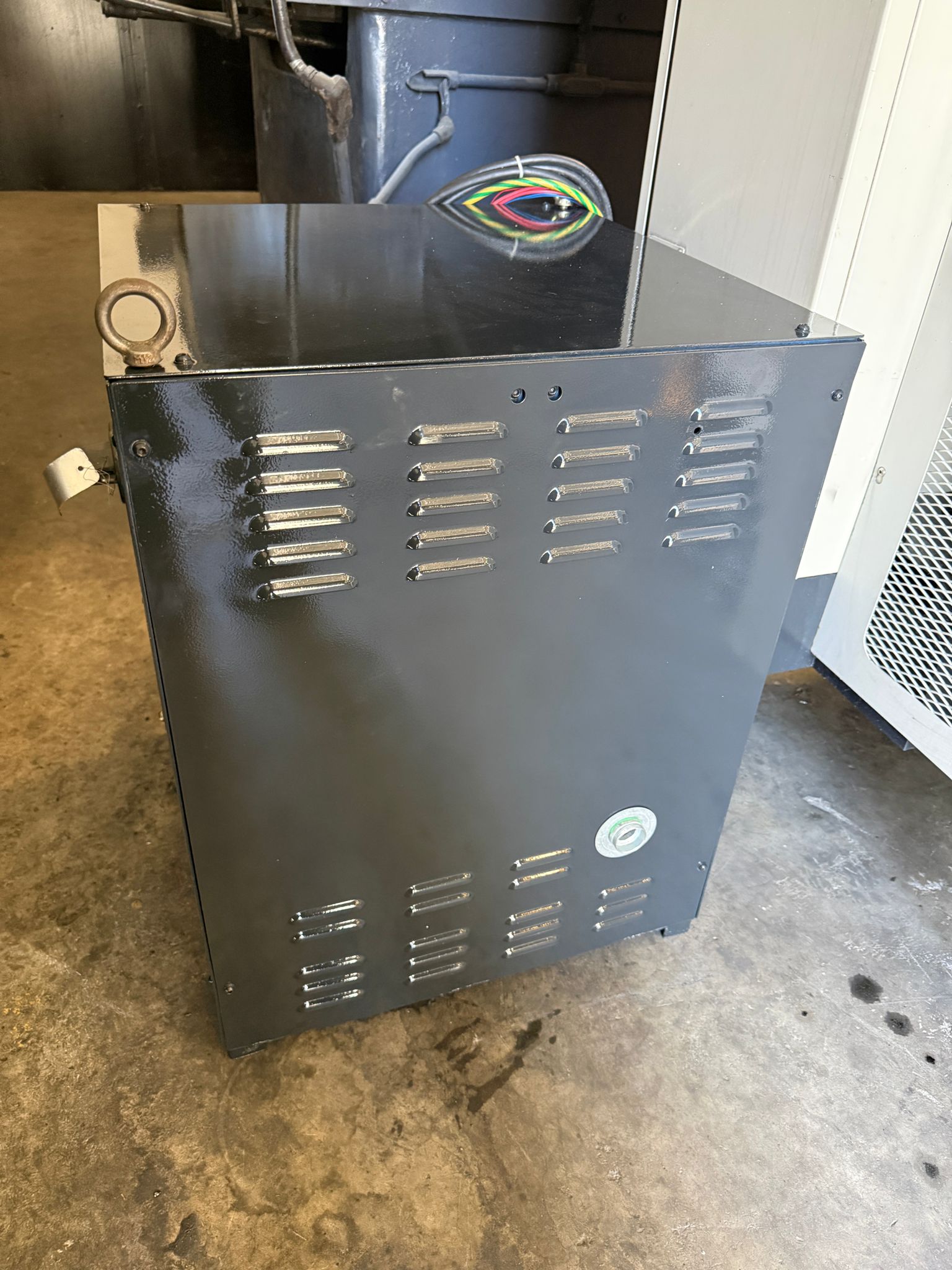

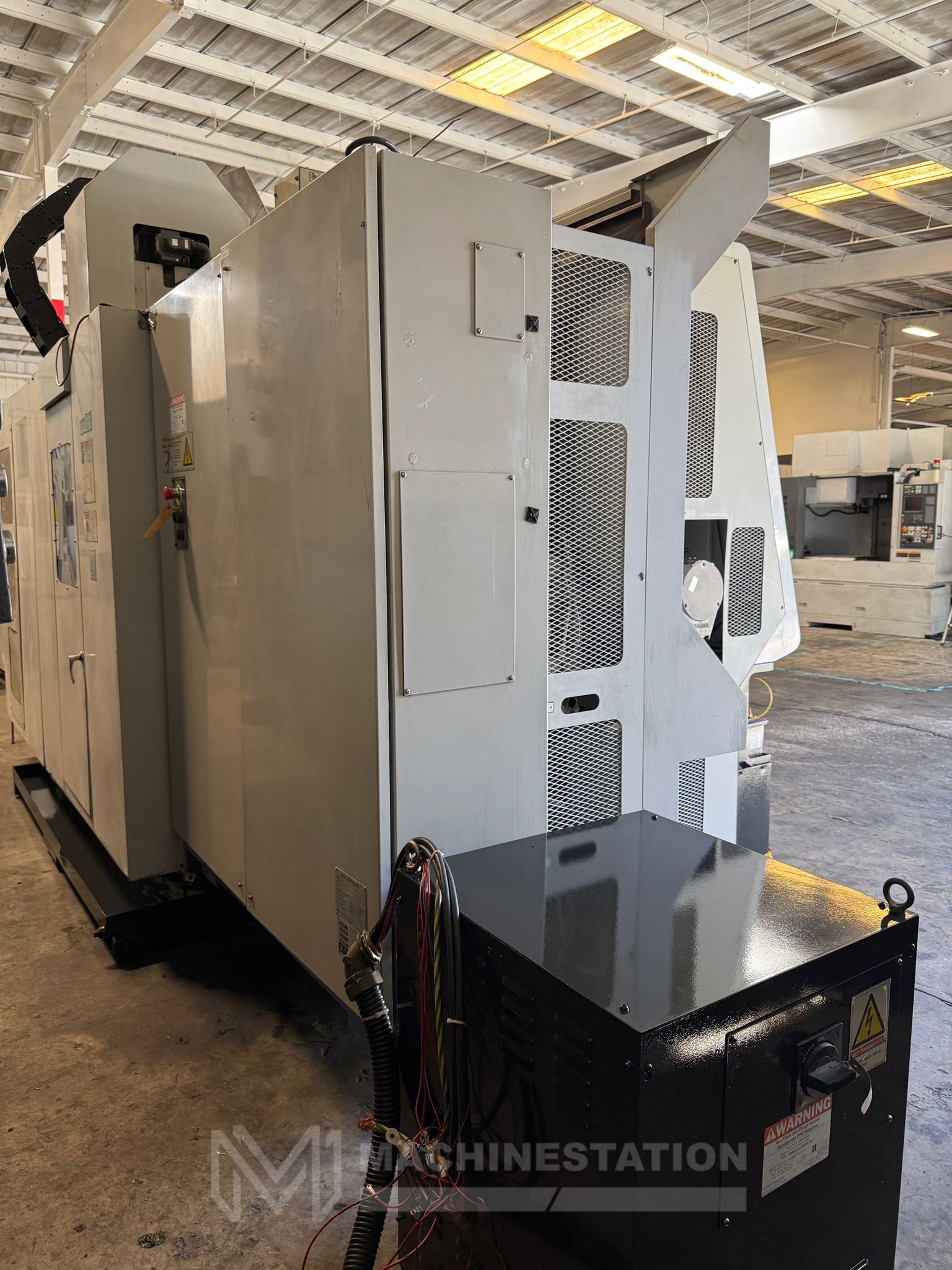

| Transformer |
| Foot Switches |
| Books and Manuals |
| Capacity: |
| Max Turning Diameter: 30″ |
| Max Turning Length: 60″ |
| Max Bar Capacity: 3.46″ |
| Swing Over Bed: 30.0″ |
| Distance Between Centers: 60″ |
| Travels: |
| X Axis Travel: 24.80″ |
| Y Axis Travel: 9.06″ (+/-4.53″) |
| Z Axis Travel: 62.40″ |
| W Axis Travel (Sub Spindle): 60.24″ |
| B Axis Travel: 225 Degree |
| C Axis: 360 Degree (0.001 Degree) |
| X Rapid Traverse Rate: 1181 Inch Per Minute |
| Y Rapid Traverse Rate: 591 Inch Per Minute |
| Z Rapid Traverse Rate: 1181 Inch Per Minute |
| Main Spindle: |
| Main Spindle Nose: A2-8 |
| Main Spindle Bore: 4.1″ |
| Main Spindle Speed: 35 – 3500 RPM |
| Main Spindle Motor: 40 HP |
| Sub Spindle: |
| Sub Spindle Nose: A2-8 |
| Sub Spindle Bore: 3.1″ |
| Sub Spindle Speed: 35 – 3500 RPM |
| Sub Spindle Motor: 30 HP |
| Milling Head: |
| Single Station Pendulum Head with 40 ATC |
| Tool Type: Capto C6 |
| Spindle Speed: 15-10,000 RPM |
| Spindle Motor: 25 HP |
| Spindle 90° Index Time: 0.5 sec |
| General: |

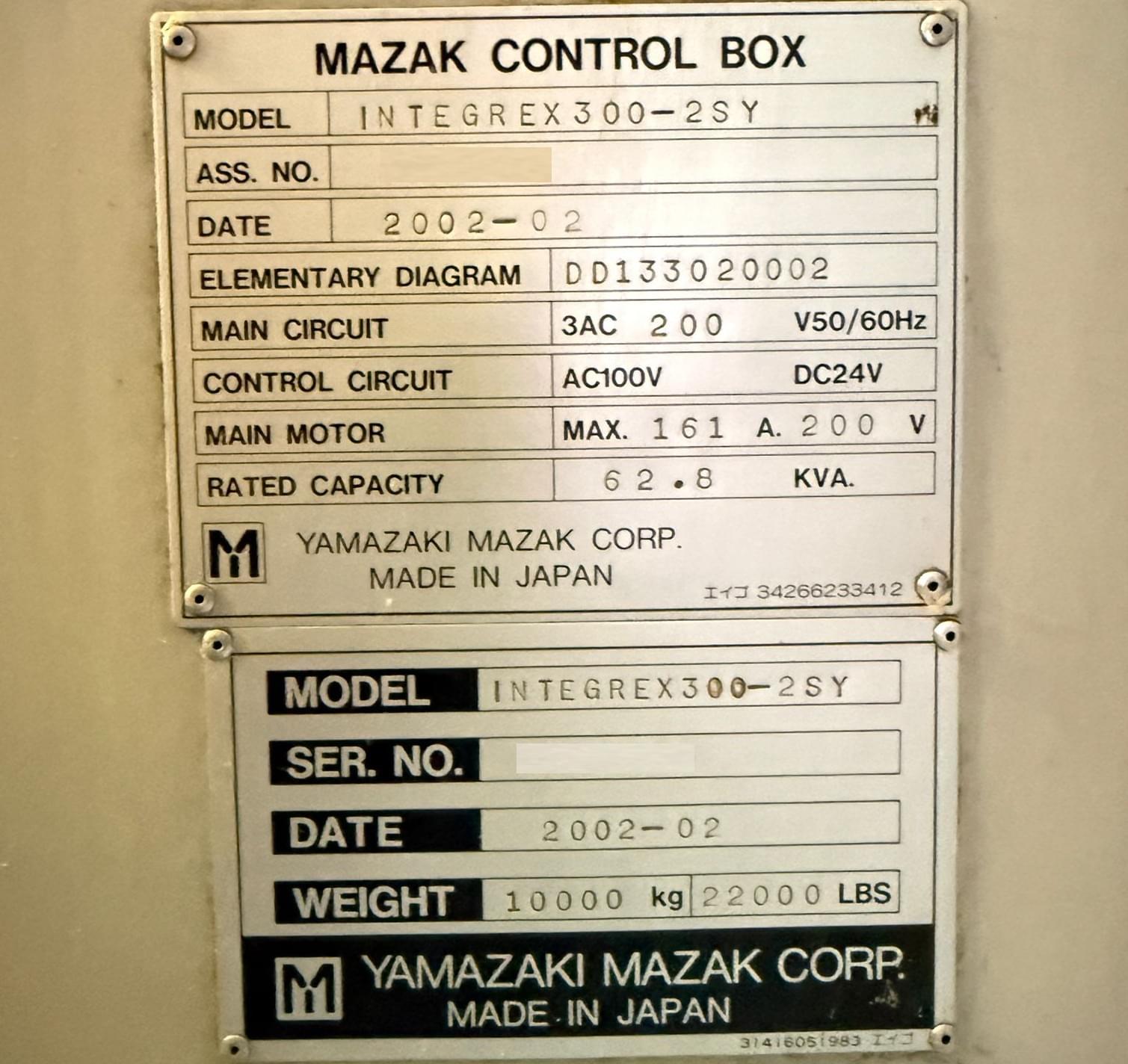

| Power Source: AC 200 V, Three Phase, 50/60 Hz |
| Power Requirement: 62.8 Kva |
| Overall Dimensions: 193.4″ x 93.0″ x 110.2″ High Approx. |
| Weight: 22,000 lbs Approx. |
