Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

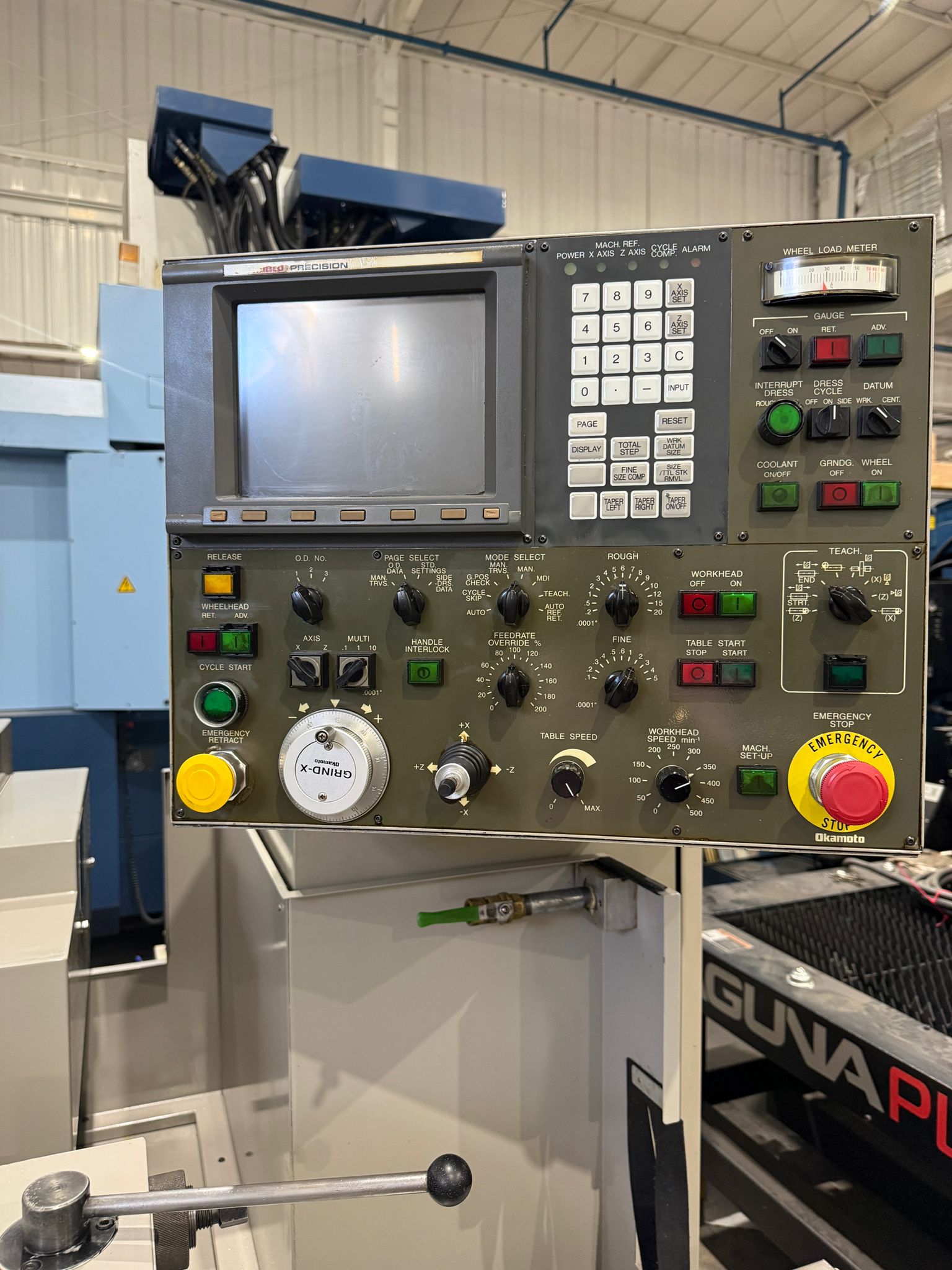

| Fanuc Oi-TB CNC Control |
| Absolute/Incremental Combined Programming |
| Swivelable Table |
| MPG Control |
| Inch / Metric Conversion |
| Tailstock |
| Auto Reference Point Return |

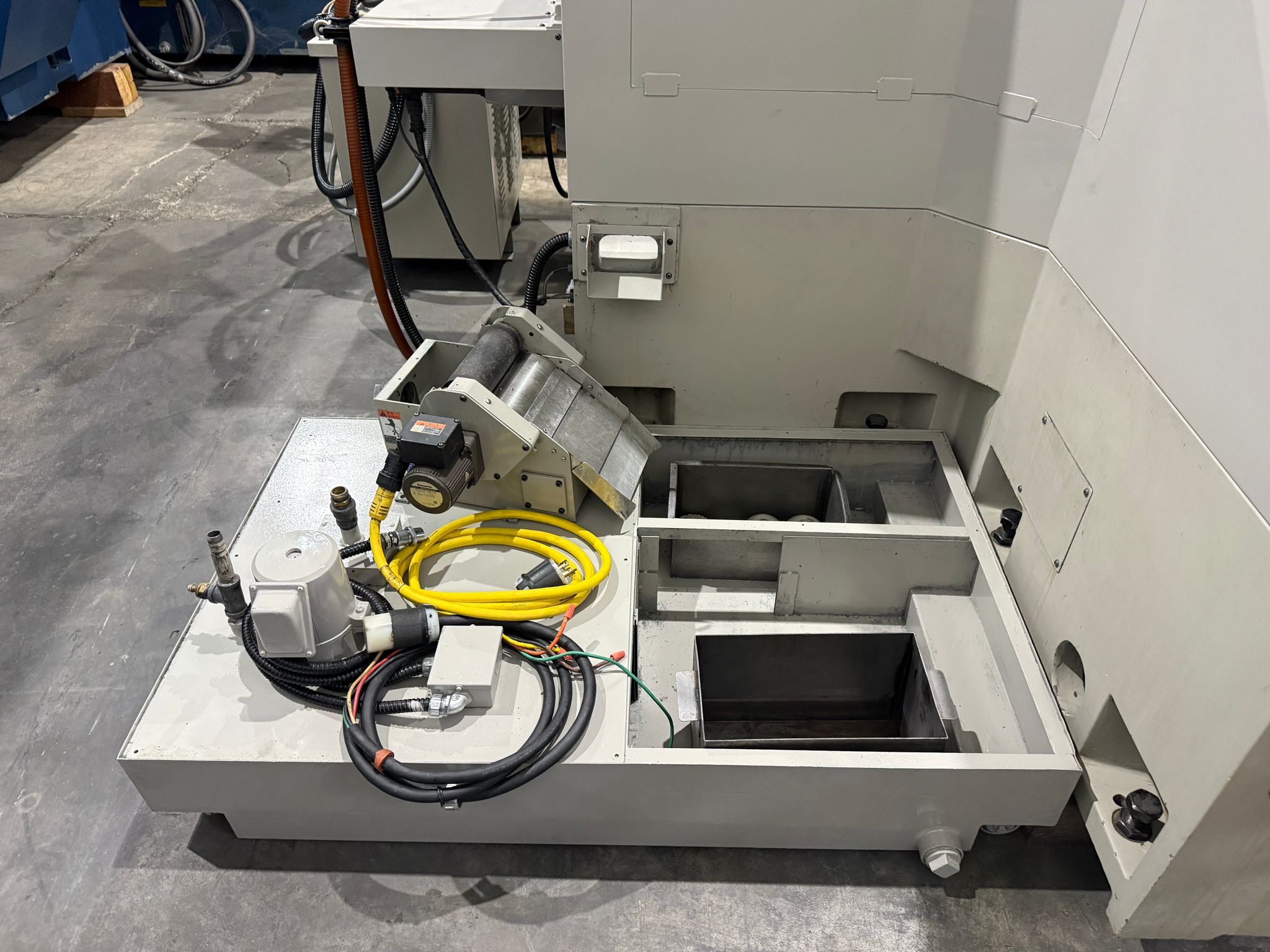

| Coolant System |

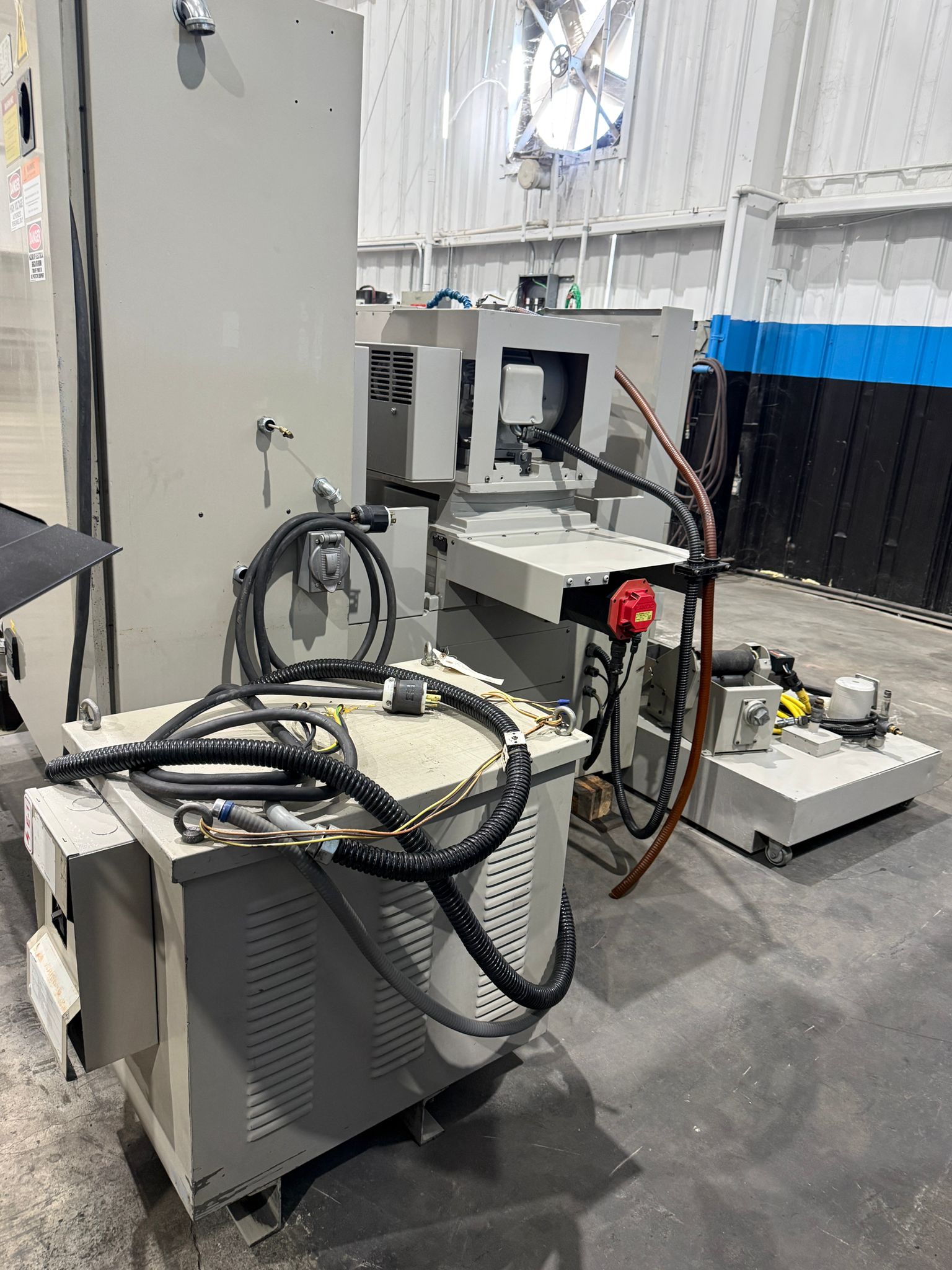

| Transformer |
| Capacity: |
| Max Grinding Diameter: 12.0″ |
| Max Grinding Length: 19.68″ |
| Max Weight Between Centers: 330 lbs |
| Swing Over Table: 12.6″ |
| Distance Between Centers: 20.0″ |
| Grinding Wheel: |
| Speed: 1845 RPM |
| wheel Size: 16″ x 2″ x 5″ |
| Grinding Wheel Spindle Motor: 5 HP |
| Wheelhead: |
| Total Stroke (X-Axis): 11.8″ |
| Automatic Infeed: 0.00001” – 0.004″ |
| Minimum Increment: 0.00001” |
| Continuous Feedrate: 160 IPM |
| Manual Pulse Feed (x.1 , x1, x10) : 0.00001″ , 0.0001″ , 0.001″ |
| Wheelhead Rapid Retract: 1.5″ |
| Grind Feed Override: 0 – 200% |

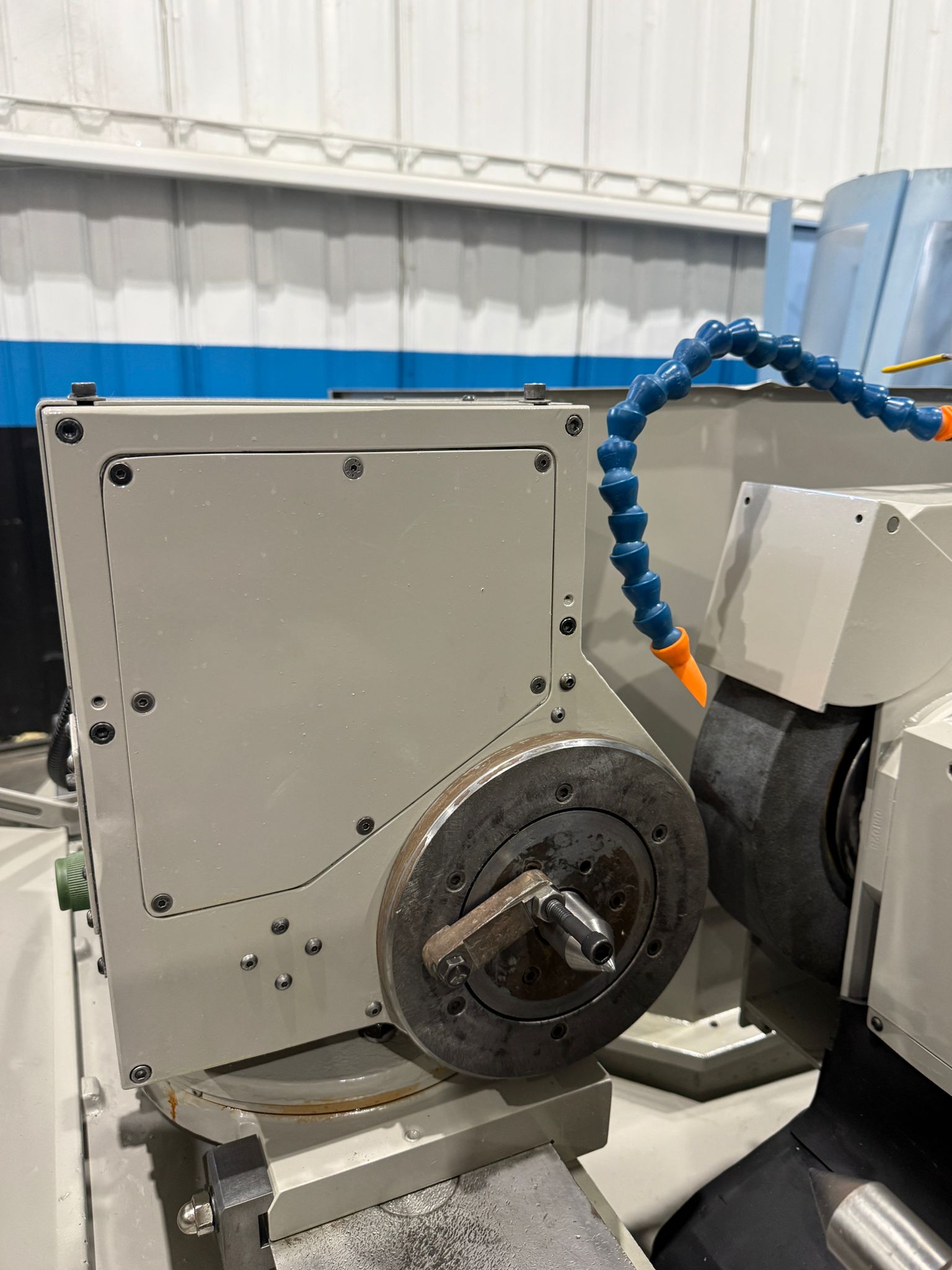

| Workhead: |
| Center Taper: MT-4 |
| Speed: 10 – 500 RPM |
| Motor: 1 HP |
| Table: |
| Maximum Table Travel: 34″ |
| Swivel Angle: 0 to .10° |
| Traverse Speed: 0 – 400 IPM |
| Manual Pulse Feed (x.1 , x1, x10) : 0.00001″ , 0.0001″ , 0.001″ |
| Rapid Feedrate: 400 IPM |
| Feedrate Override: 0 – 200% |
| Tailstock: |
| Tailstock Quill Stroke: 1.2″ |
| Tailstock Taper: MT-4 |
| General: |

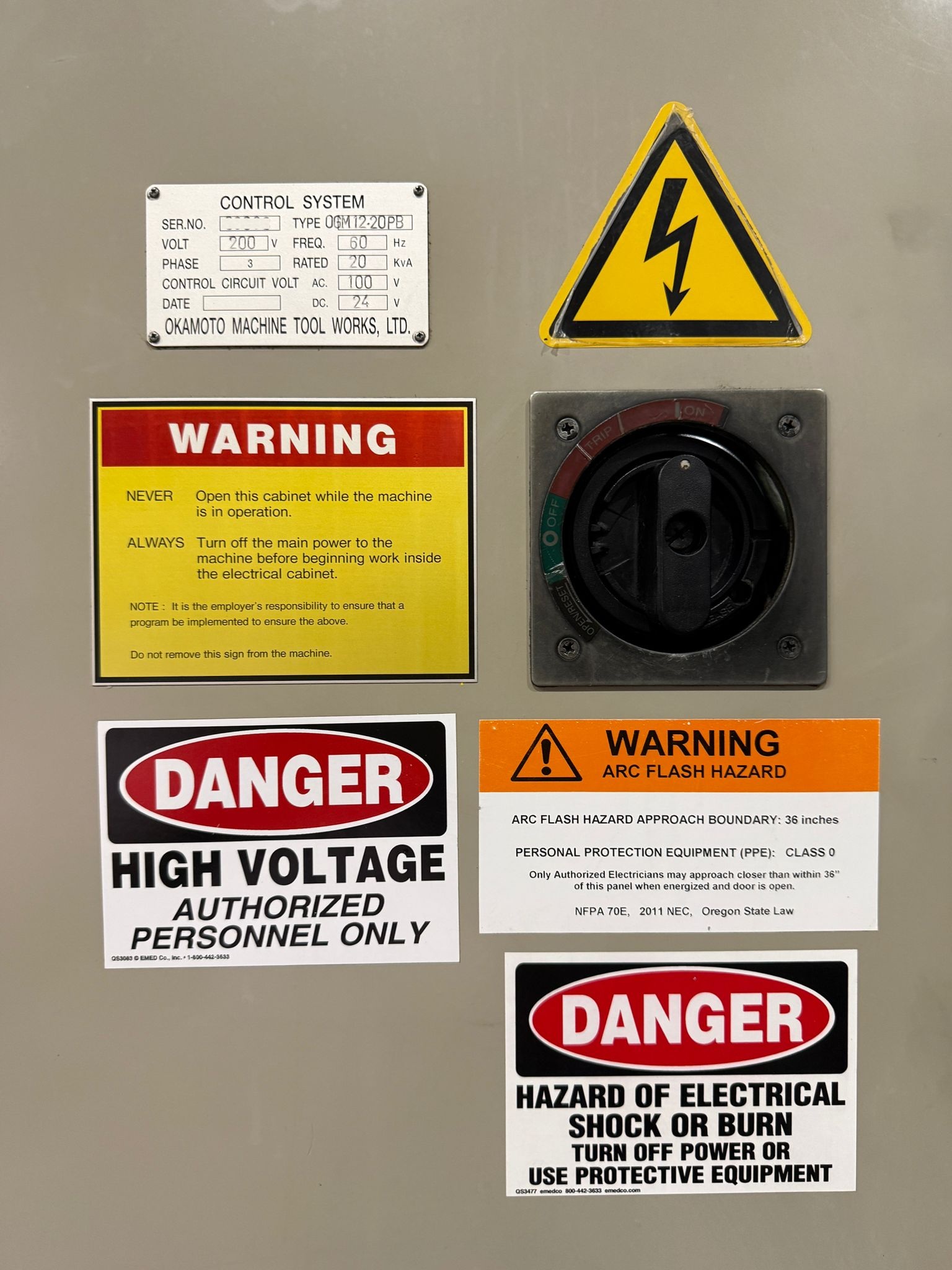

| Power Source: AC 200 V Three Phase 60 Hz |
| Power Requirement: 20 kva |
| Overall Dimensions: 143″ x 76″ x 67″ High |
| Weight : 7700 lbs Approx. |
