*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112321 |
| Make: | Mazak |
| Model No.: | Variaxis 630-5X |

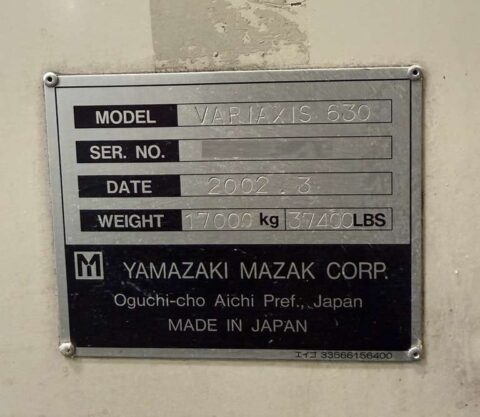

| Year of Manufacture: | 2002 |
| Condition: | Used – Good |
| Equipped With: |
|---|

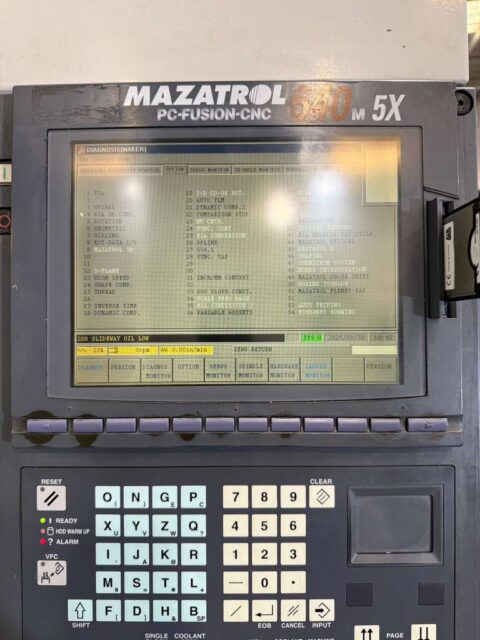

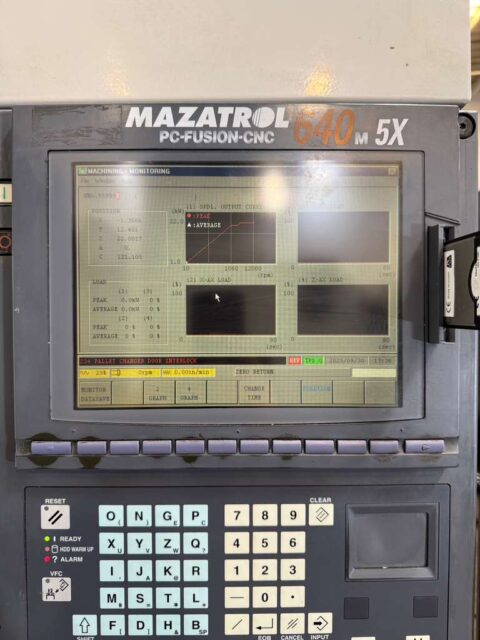

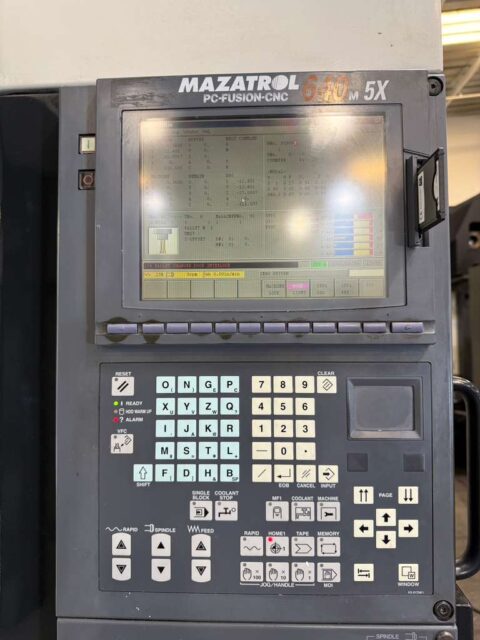

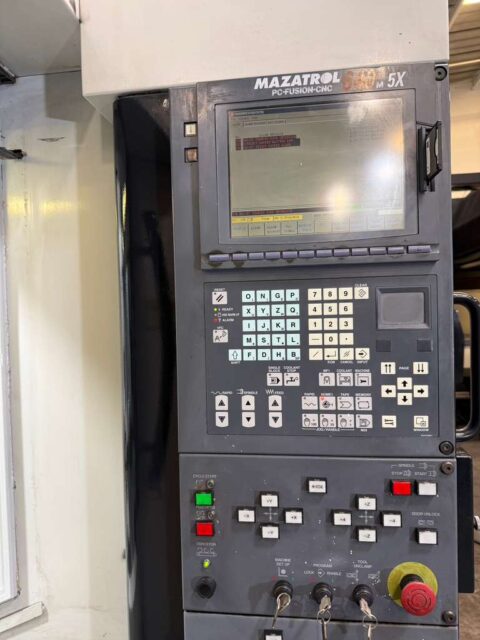

| Mazatrol PC-Fusion 640M 5X CNC Control |
| Simultaneous 5 Axis Cutting |

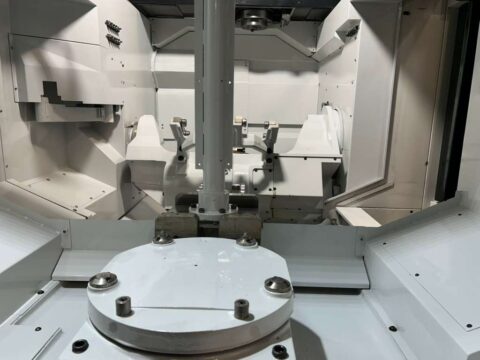

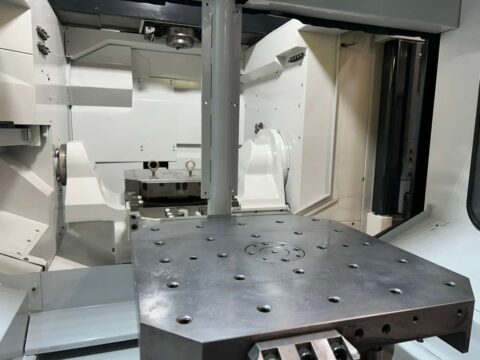

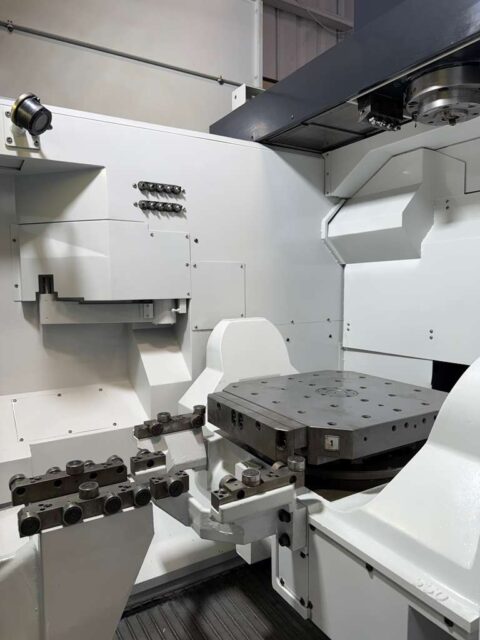

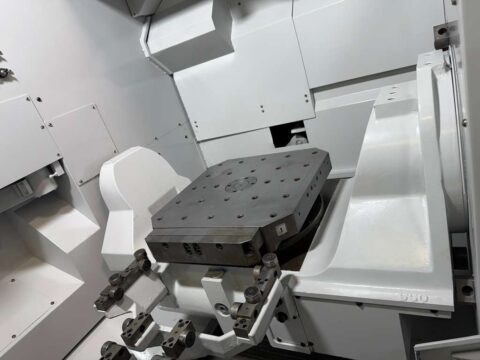

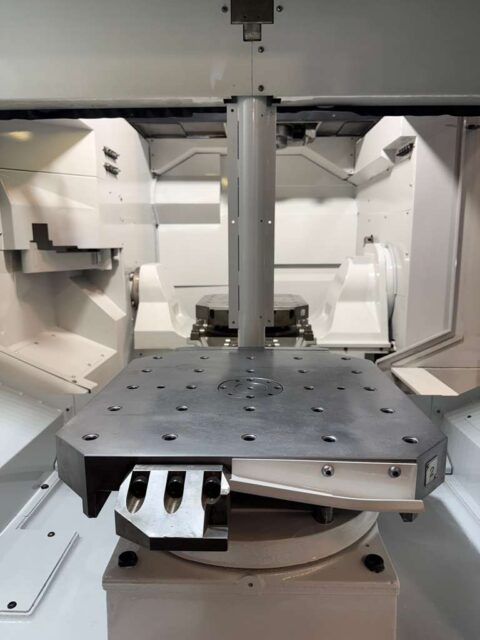

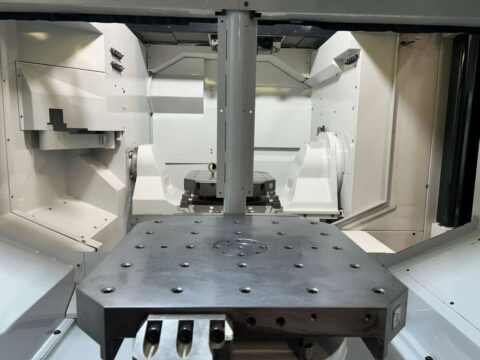

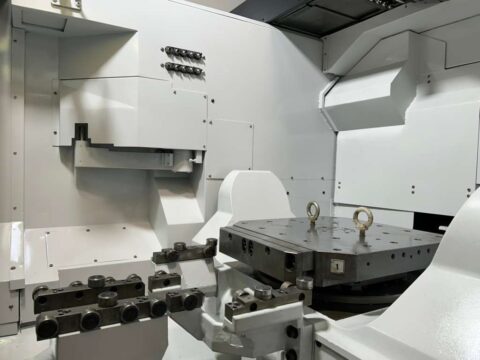

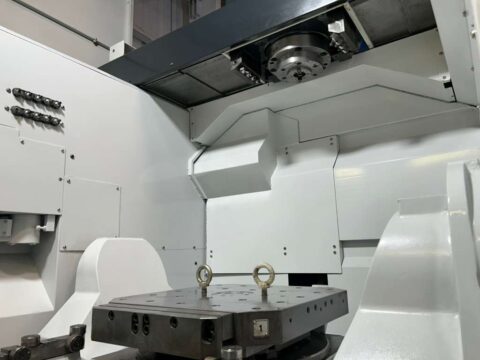

| Programmable Swiveling Trunnion Table |

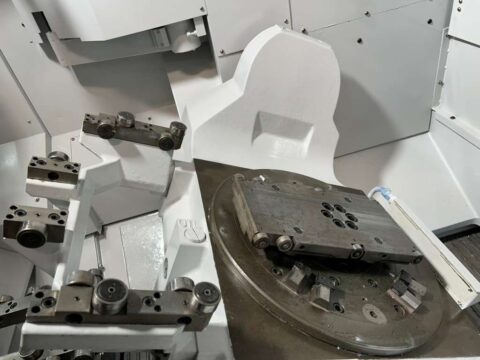

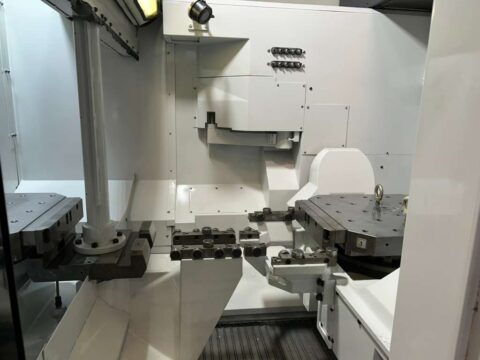

| 2 No. Pallet Changer 19.7 x 19.7” |
| 12,000 RPM High Precision Spindle |
| Through Spindle Coolant |

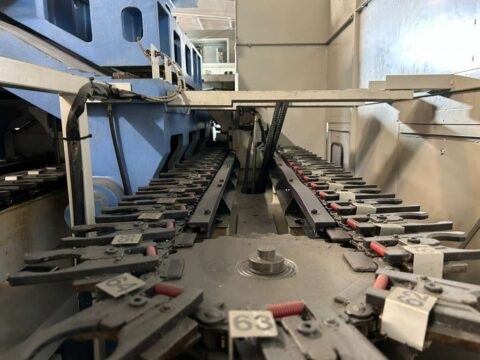

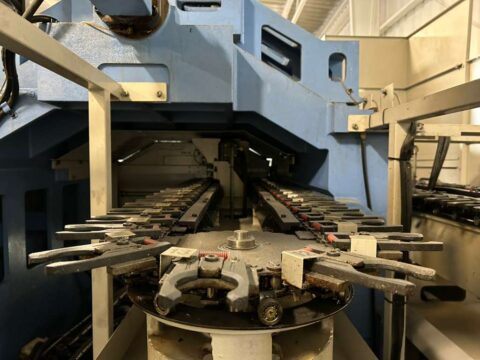

| 80 Station Automation Tool Changer |
| 1969 IPM Fast Rapid Traverse Rate |
| Renishaw Probing System Ready (Needed Probe) |
| PCMCIA Card Slot |
| Helical Interpolation |
| Spindle Chiller |
| Spindle Orientation |
| Rigid Tapping |
| Absolute Incremental Programming |
| High Pressure Coolant System |

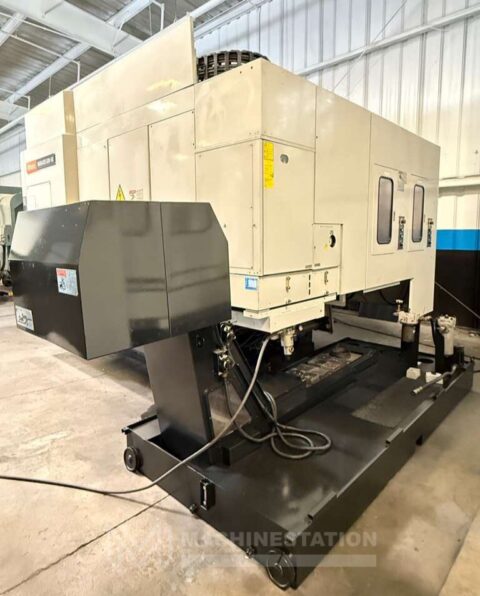

| Chip Conveyor |

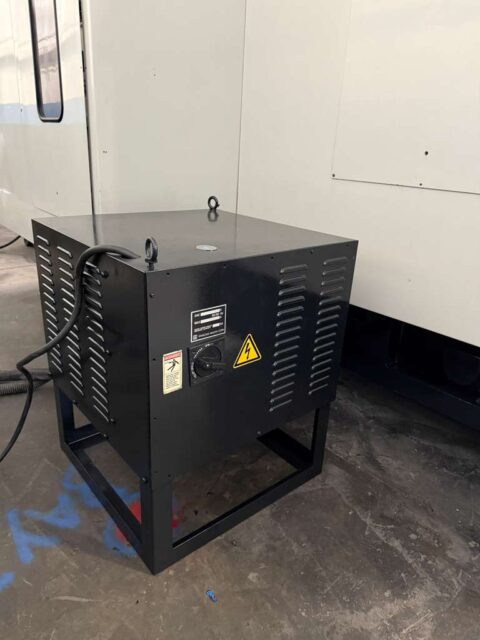

| Transformer |
| Work light |
| Travels: |
|---|
| X-Axis: 24.80″ |
| Y-Axis: 30.12″ |
| Z-Axis: 20.08″ |
| A-Axis: – 120° + 30° ( 150° Table Tilt ) |
| C-Axis: 360° ( Table Rotate ) Min. Increment: 0.001° |
| Pallet: |
|---|
| No. of Pallets: 2 |
| Length: 19.70″ |
| Width: 19.70″ |
| Max Workpiece Diameter: 24.80″ |
| Max Workpiece Height: 19.70″ |
| Max Weight on Table: 1102 lbs |

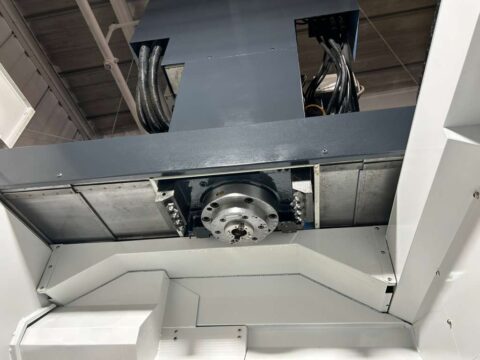

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Max. Speed: 12,000 RPM |
| Power: 30 HP |
| Feed rates: |
|---|
| Rapid X, Y & Z : 1969 Inch Per Minute |
| Cutting Feedrate: 1574 Inch Per Minute |
| Tool changer: |
|---|
| Capacity: 80 Station |
| Taper: CAT-40 |
| Max Tool Size: 3.15″ |
| Max Tool Length: 14.17″ |
| Max Tool Weight: 17.6 lbs. |
| Tool Change Time: 5.5 Second |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 50kva / 400v / 3-Phase |
| Shipping Dimension: 162″ X 96″ x 126″ High Approx. |
| Weight: 37,400 lbs Approx. |
