*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112893 |

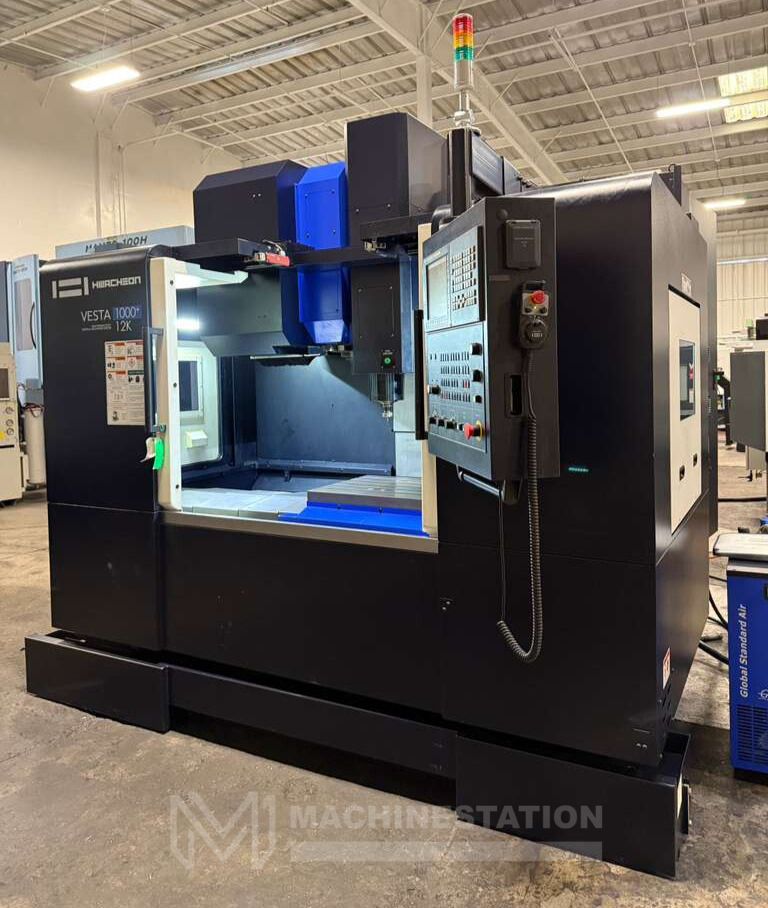

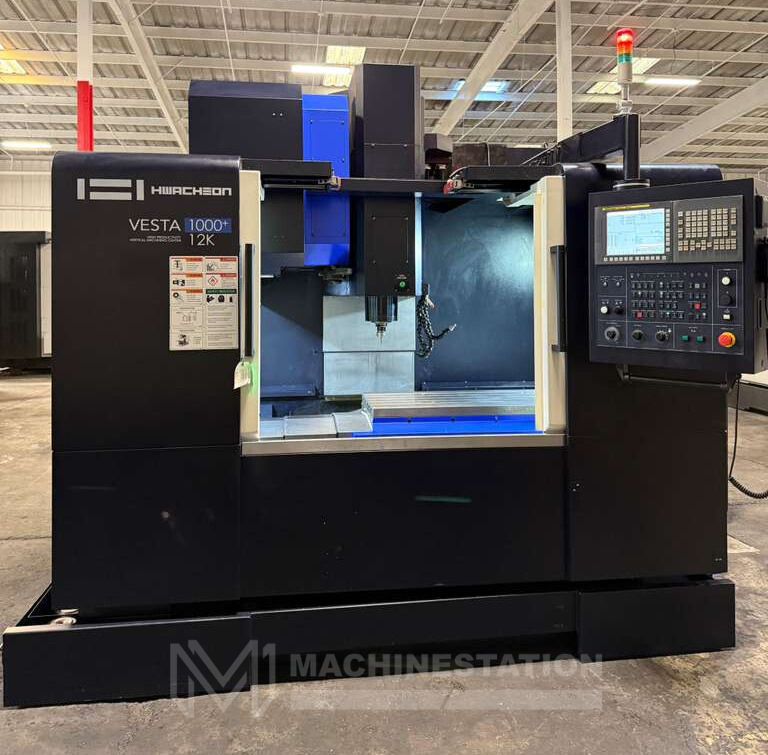

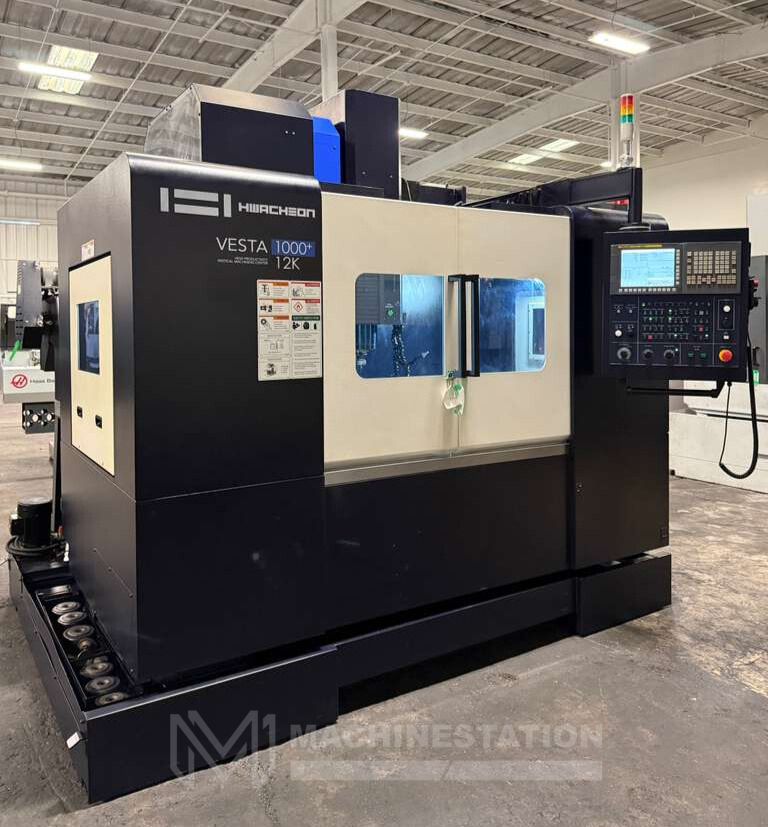

| Make: | Hwacheon |
| Model No.: | Vesta 1000+ |
| Year of Manufacture: | 2019 |
| Condition | Used – Excellent |
| Equipped With: |
|---|

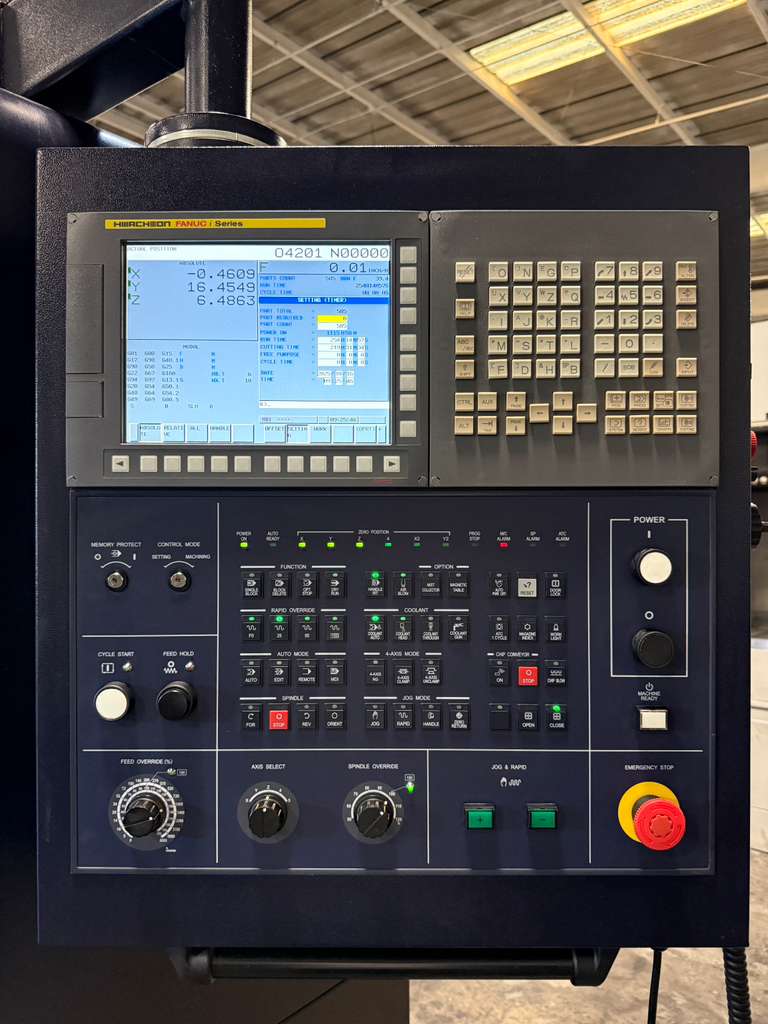

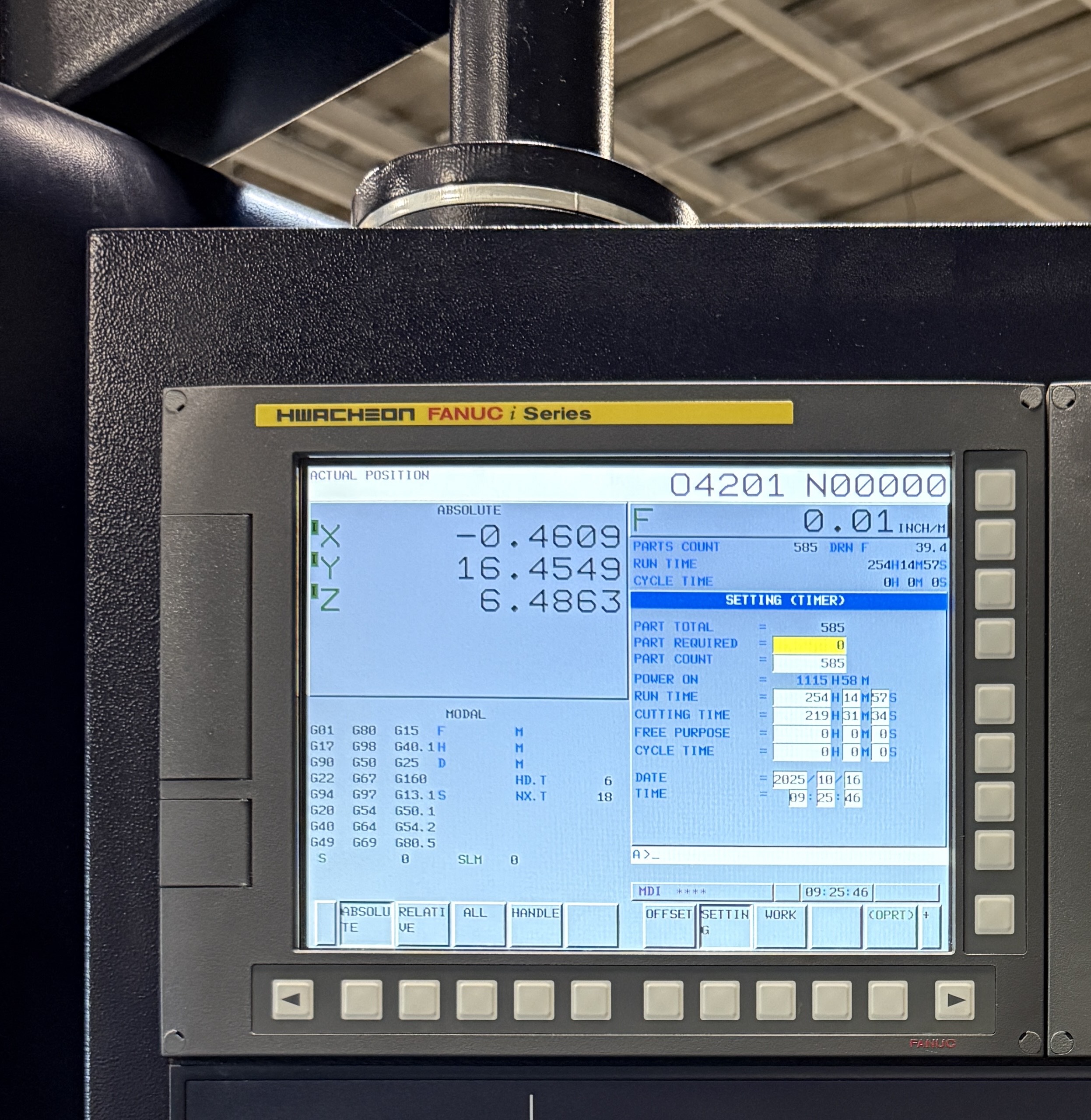

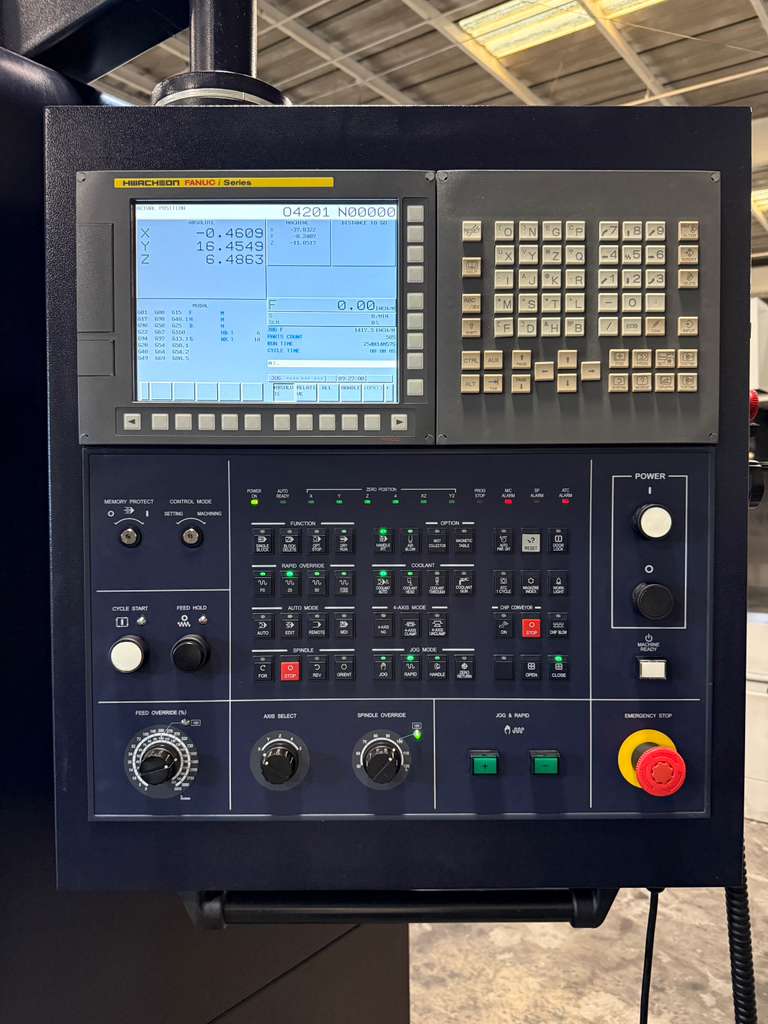

| Hwacheon Fanuc i-Series CNC Control |
| Linear Way Construction |
| 12,000 RPM High Speed Spindle |
| Through Spindle Coolant |
| Renishaw Probing System (Probe Included) |
| CAT-40 Taper Spindle |

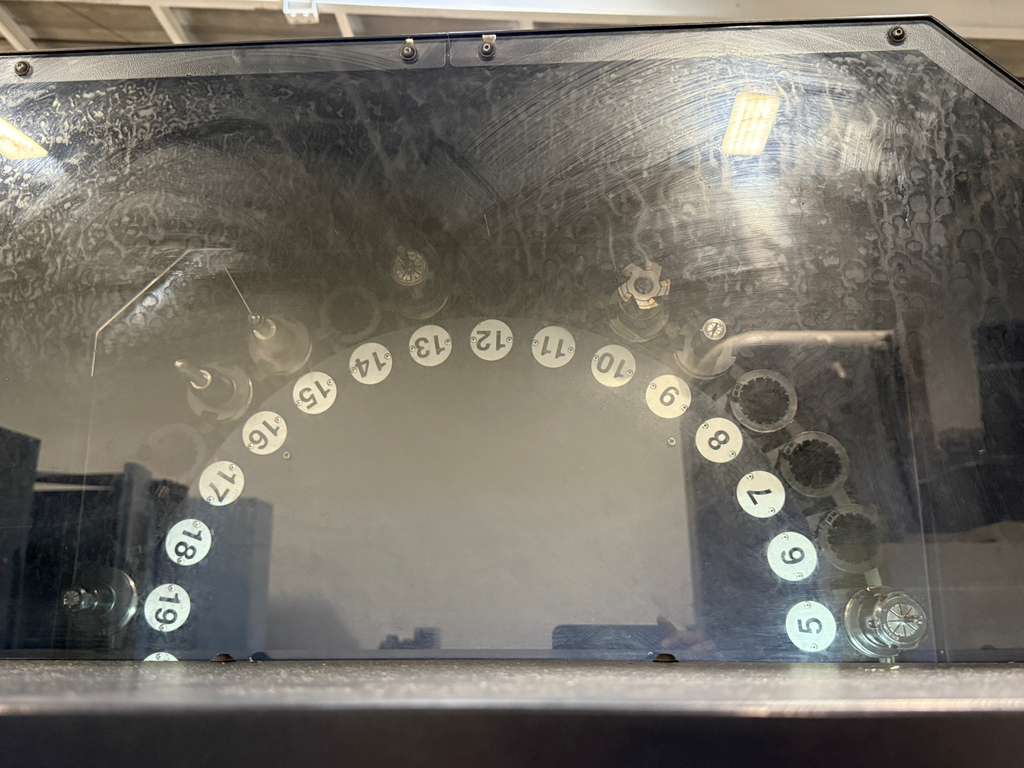

| 30 Station Side Mounted Tool Changer |
| PCMCIA Card Slot, Ethernet, RS-232C Port |
| MPG Handwheel Control |
| Rigid Tapping |

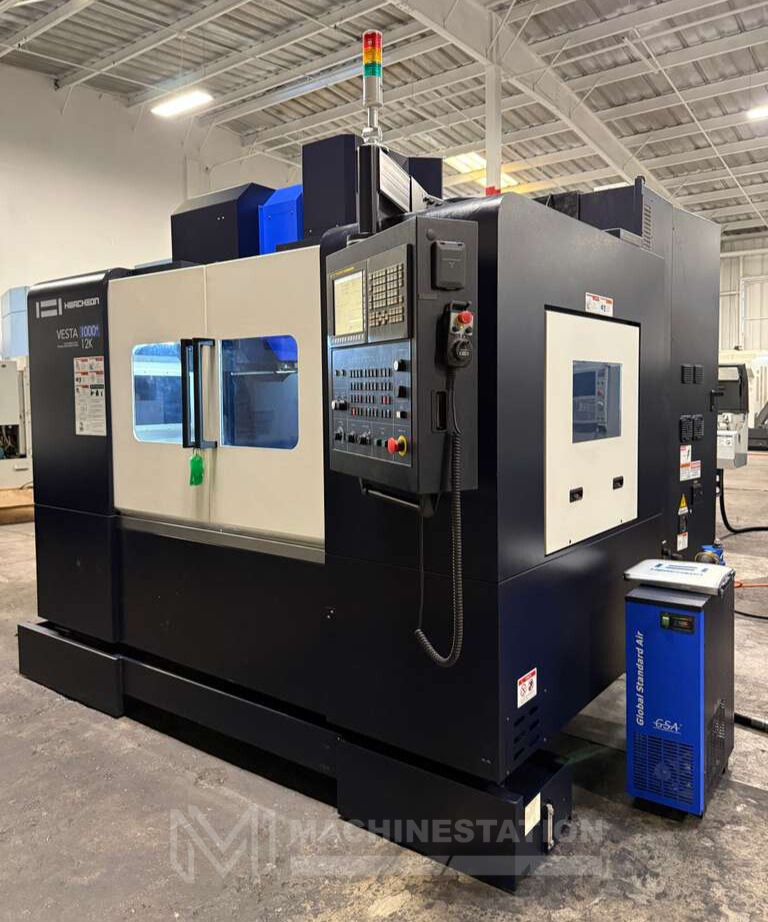

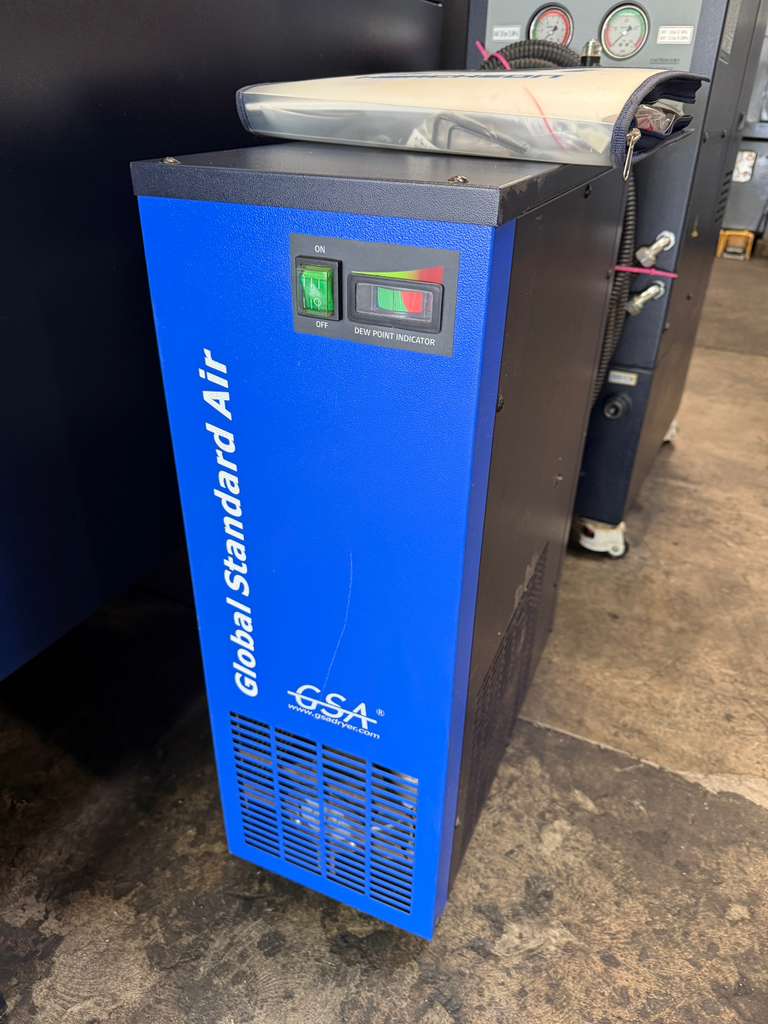

| GSA Air Dryer |

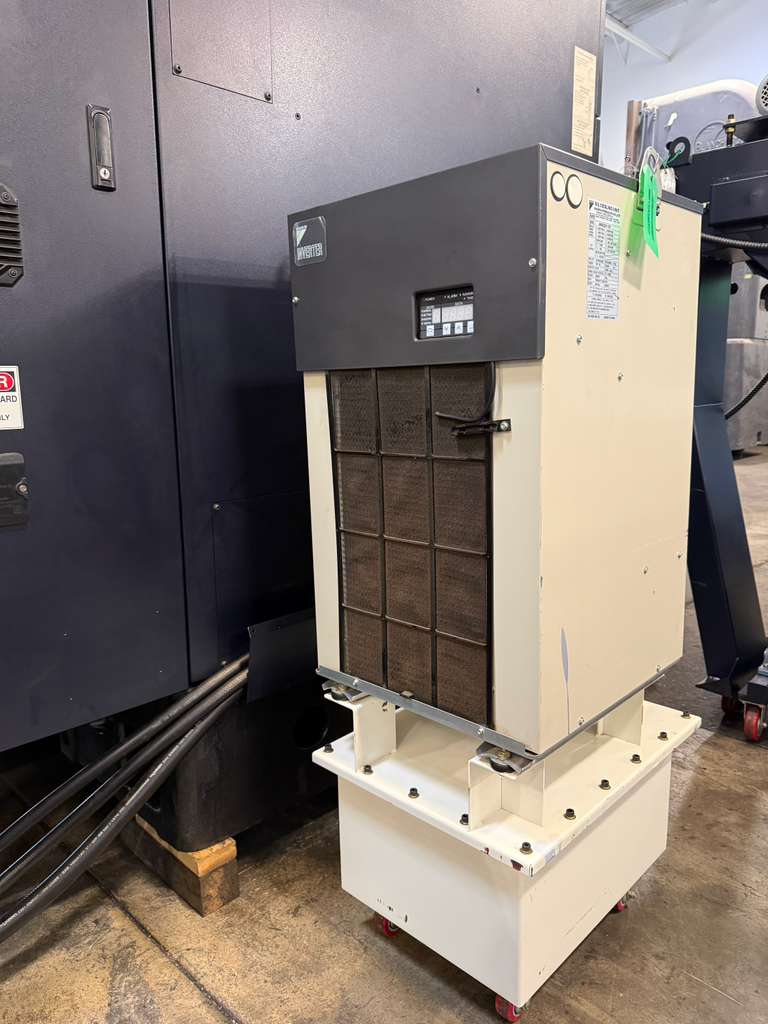

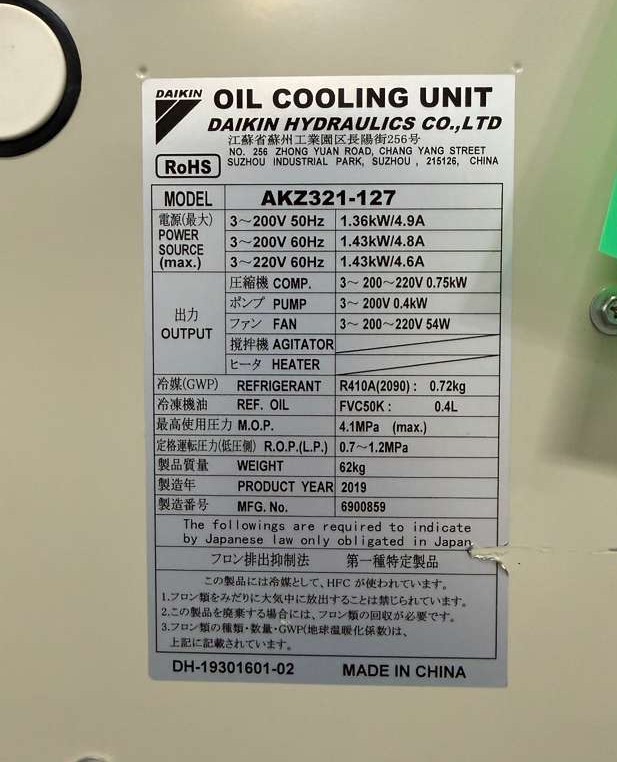

| Daiken Oil Cooling Unit |

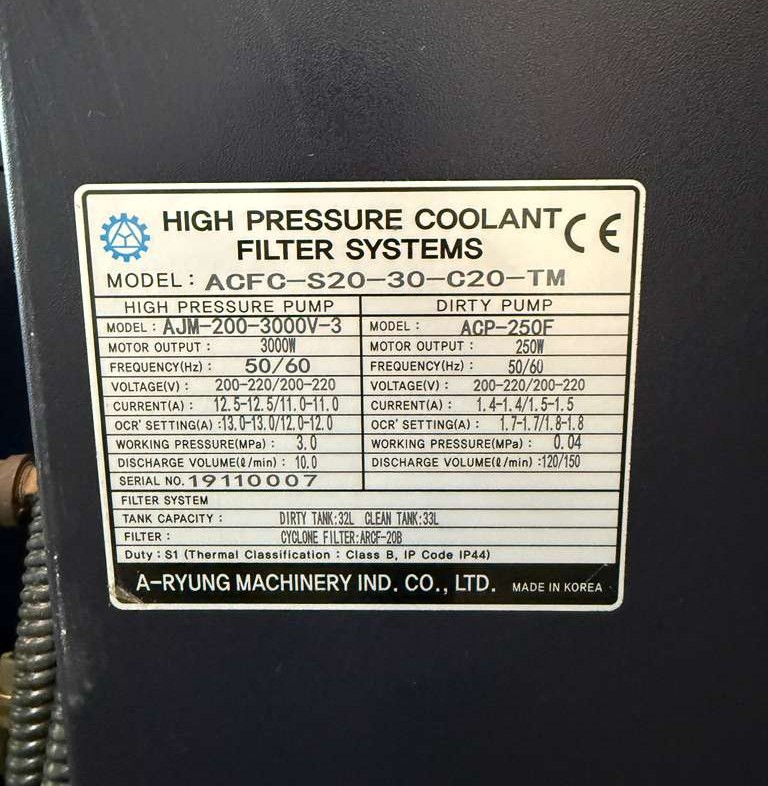

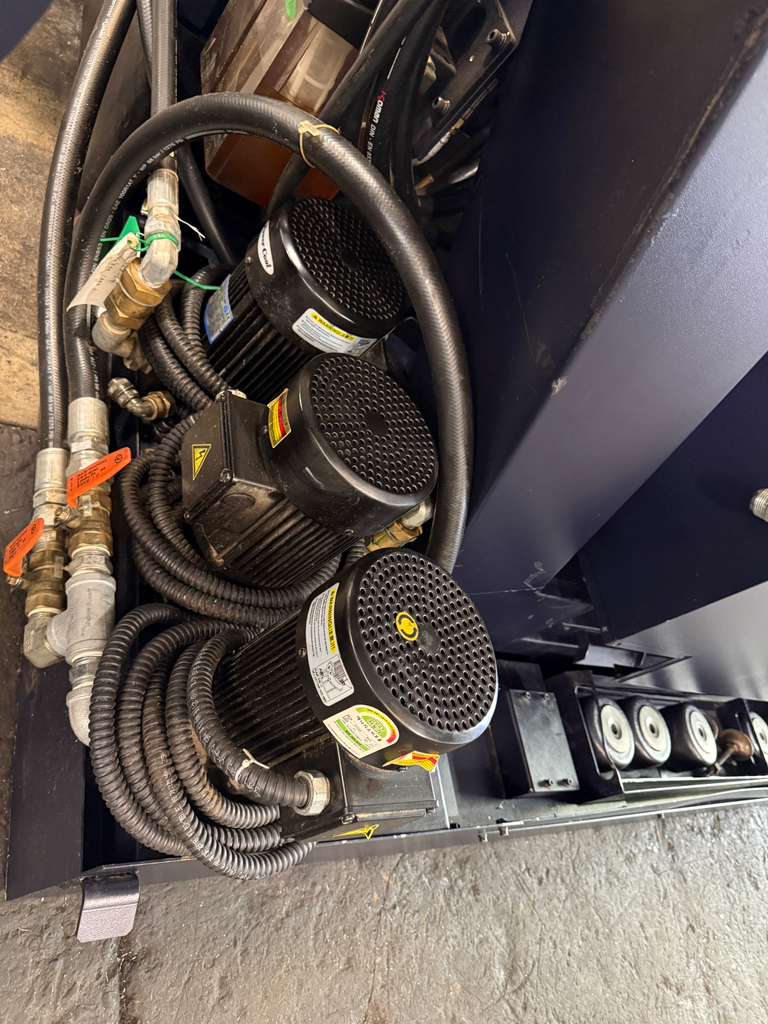

| High Pressure Coolant Filter system |

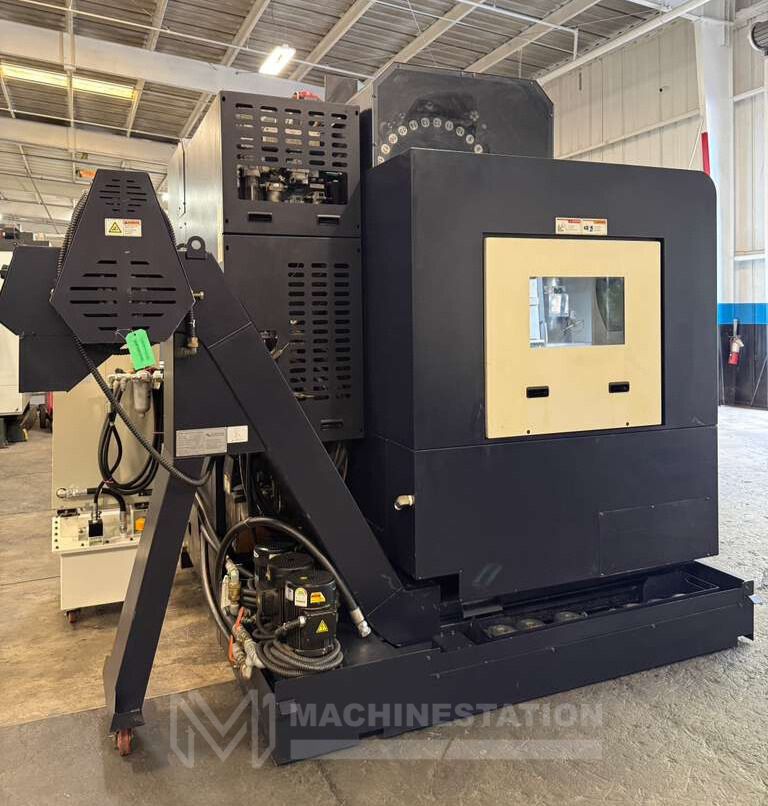

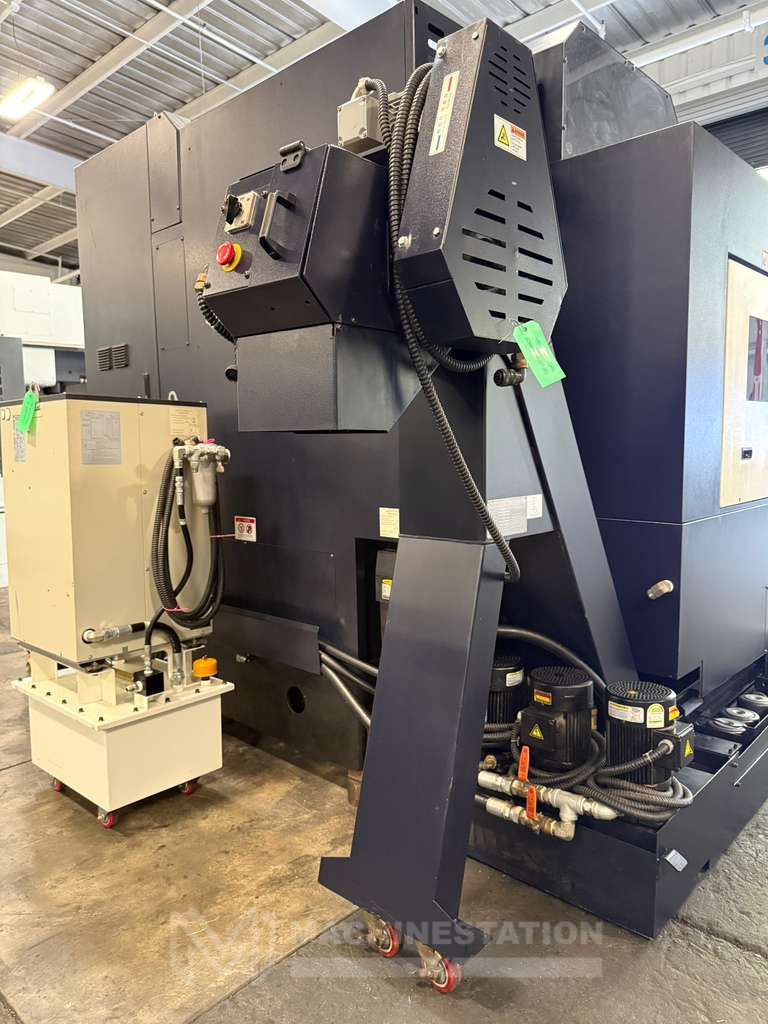

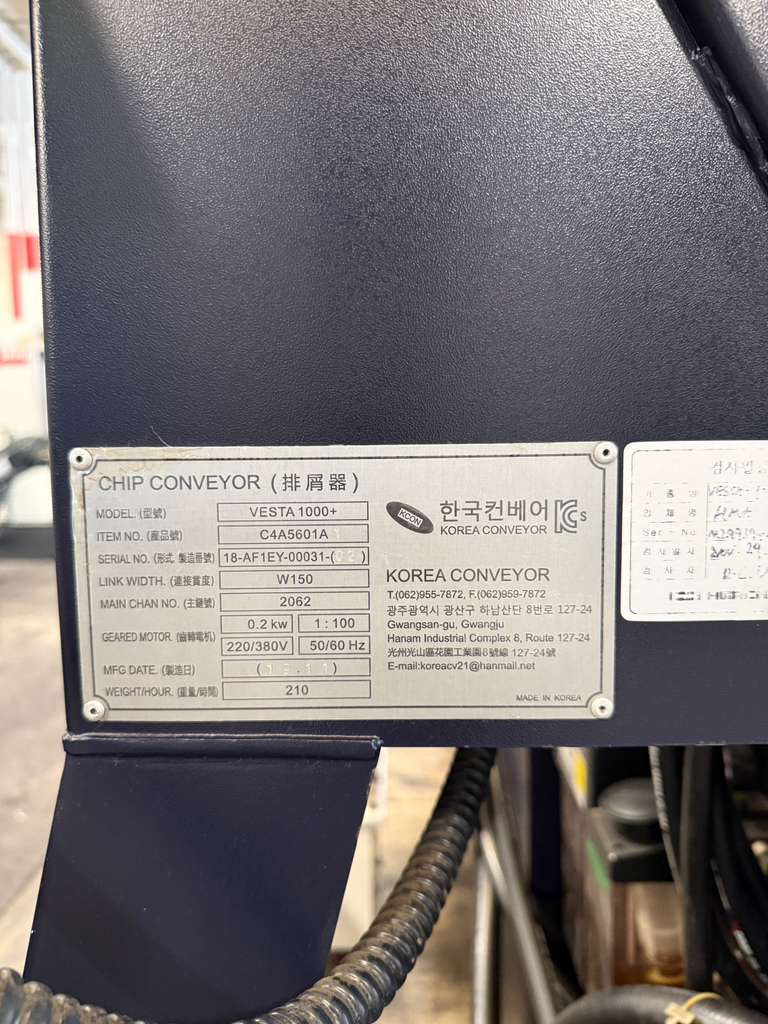

| Side or Rear Mounted Chip Conveyor |
| Books & Manuals |
| Levelling Pads |
| Travels: |
|---|
| X-Axis: 39.37″ |
| Y-Axis: 21.65″ |
| Z-Axis: 19.69″ |
| Rapid Traverse Rates X & Y Axis: 1417 Inch Per Minute |
| Rapid Traverse Rates Z Axis: 1181 Inch Per Minute |
| Cutting Feed Rates: 945 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.12″ – 24.8″ |

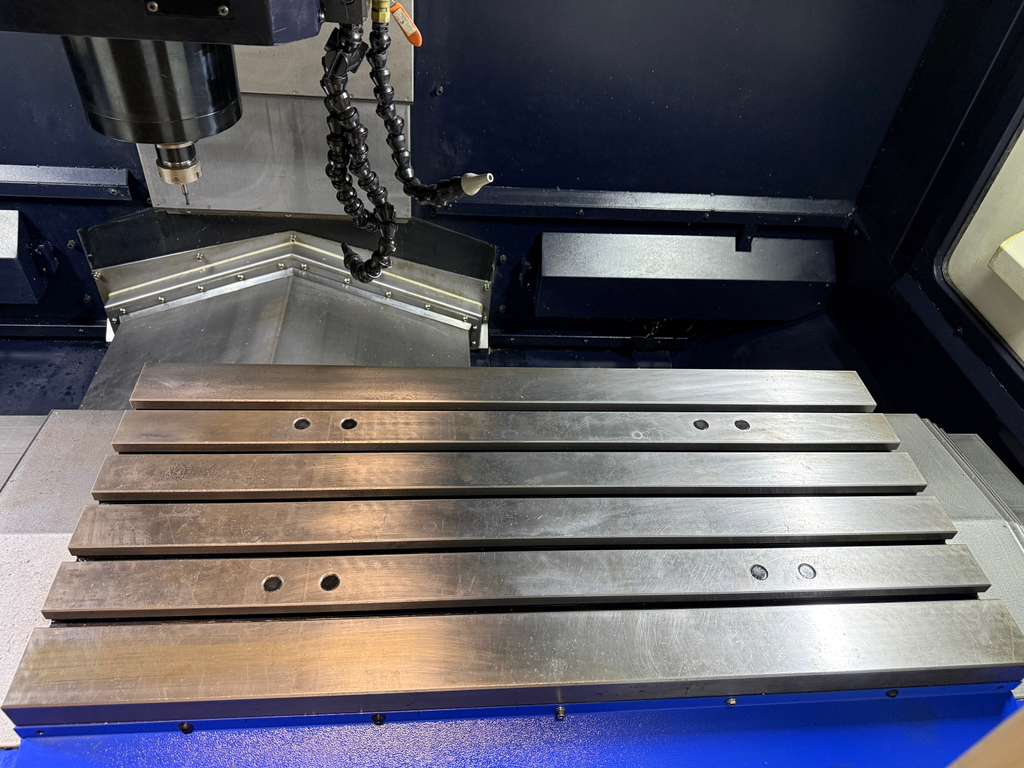

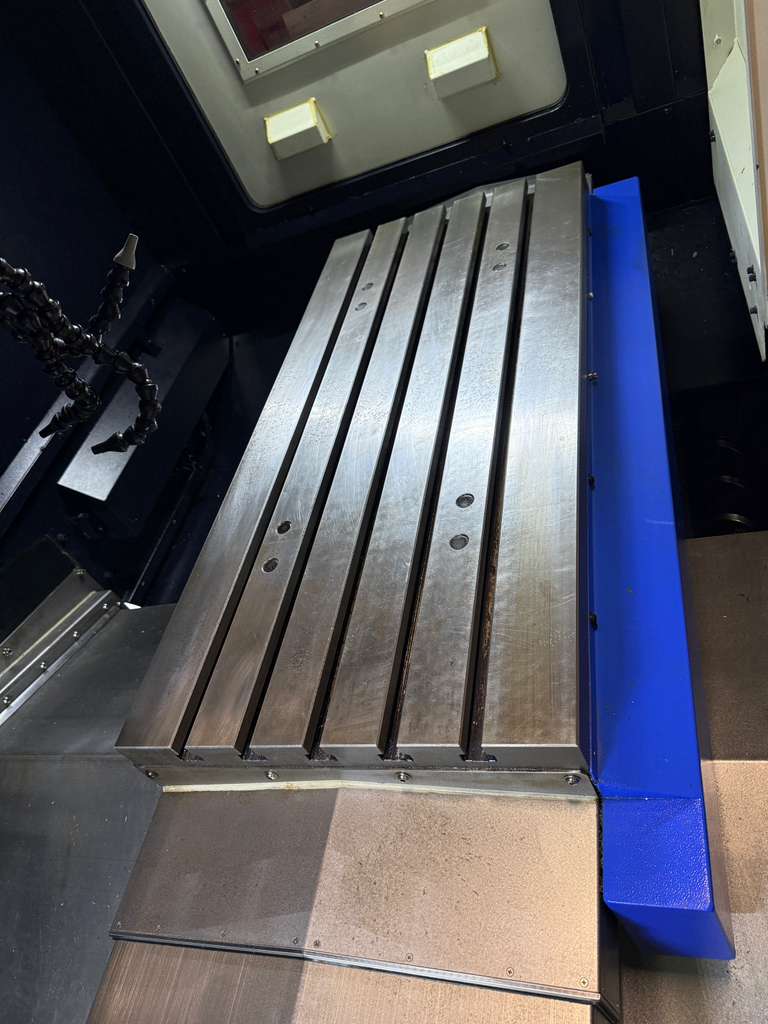

| Table: |
|---|
| Length: 44.49″ |
| Width: 19.76″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 0.71″ x 3.15″ |
| Max Weight on Table: 1543 lbs |

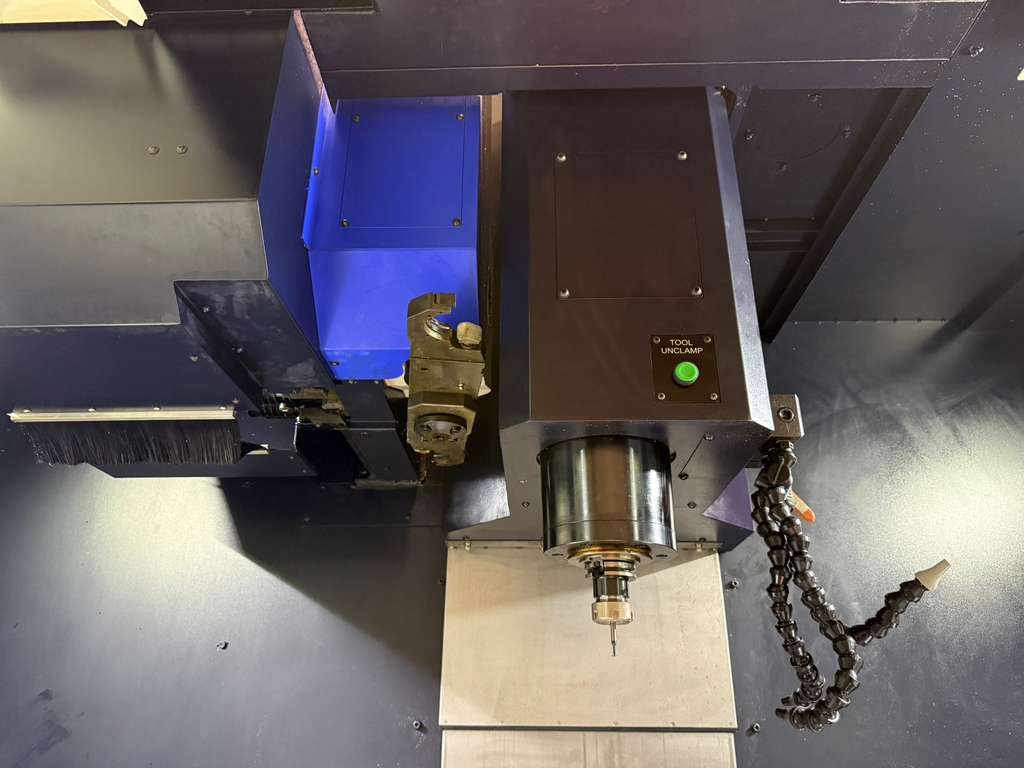

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 25 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Tool Weight: 17.64 lbs |
| Max Tool Dia: 2.95″ – 5.91″ |
| Max Tool Length: 11.81″ |
| General: |
|---|
| Air Required: 80 psi 4 scfm |
| Power: 220v / 40 kva / 3-Phase |
| Overall Dimensions: 112″ x 95″ x 104″ High Approx. |
| Weight: 11,111 lbs Approx. |
