Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

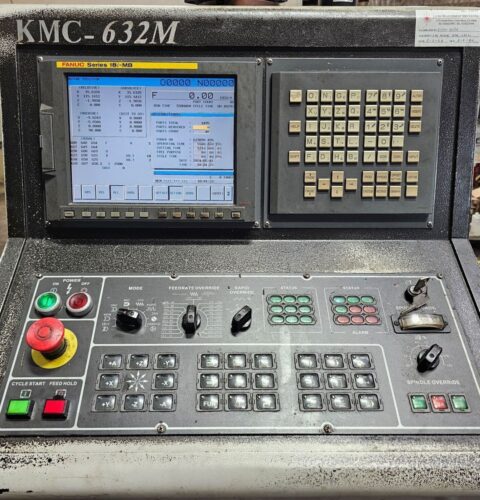

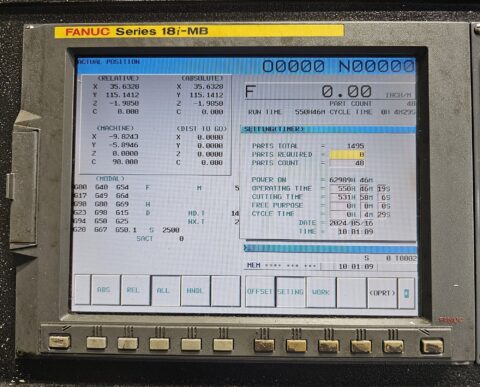

| Fanuc 18iMB CNC Control |
| 236.22″ X 102.36″ Table |
| 30 Station Side Mount Tool Changer |
| CAT-50 Spindle Taper |
| 35 HP high torque spindle motor |
| 4000 RPM Spindle |
| Rigid Tapping |
| Spindle Orientation |
| PCMCIA Card Slot |
| RS-232 Port |
| Auto Lubrication System |
| Coolant System |
| 4th Axis Ready |
| Spindle Chiller Unit |
| Screw Type Chip Conveyor |
| Chip Conveyor |
| All side Guardians Comes with Machine |
| Aluminum Fixture Plate Mounted on Table |
| Travels: |
| X-Axis: 245.27″ |
| Y-Axis: 151.57″ |
| Z-Axis: 43.30″ |
| Distance Between Columns: 125.98″ |
| Distance From Table Surface to Spindle Nose: 13.6″ – 56.9″ |
| Distance From Table Surface to Horizontal Spindle Center: 5.2″ – 48.5″ |
| Rapid Traverse X-Axis: 276 IPM |
| Rapid Traverse X-Axis: 393 IPM |
| Cutting Feedrates: 196 IPM |
| Table: |
| Length: 236.22″ |
| Width: 102.36″ |
| Max Weight on Table: 33,000 lbs |

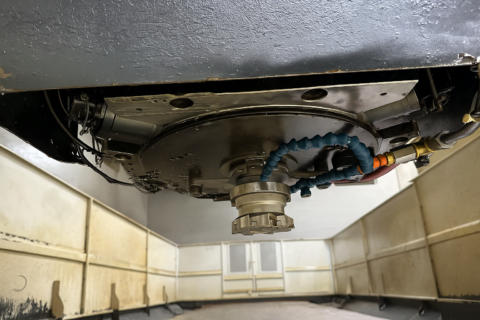

| Spindle: |
| Taper Size: CAT-50 |
| Speed Range: 4400 RPM (4000) |
| Spindle Power: 35 HP |
| Automatic Tool Changer: |
| CAT-50 Taper |
| Capacity: 30 |
| Max Tool Weight (V/H): 44 lbs / 33 lbs |
| Max Tool Length (V/H): 13.80″ / 11.80″ |
| Max Tool Diameter (Without Adjacent Tools): 5.70″ (7.87″) |
| General: |
| Air Required: 98 psi 4 scfm |
| Power: 205-235v / 66FLA / 3-Phase 70 Kva |
| Overall Dimensions: 564″ x 295″ x 200″ High |
| Weight: 127160 lbs. |
