Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

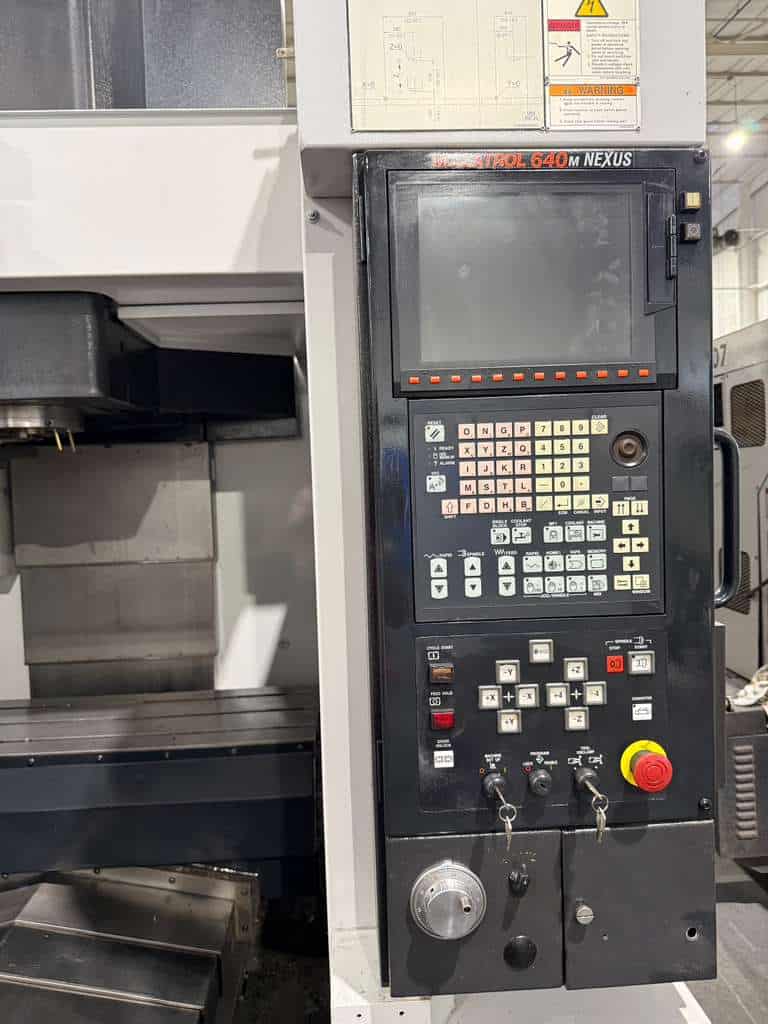

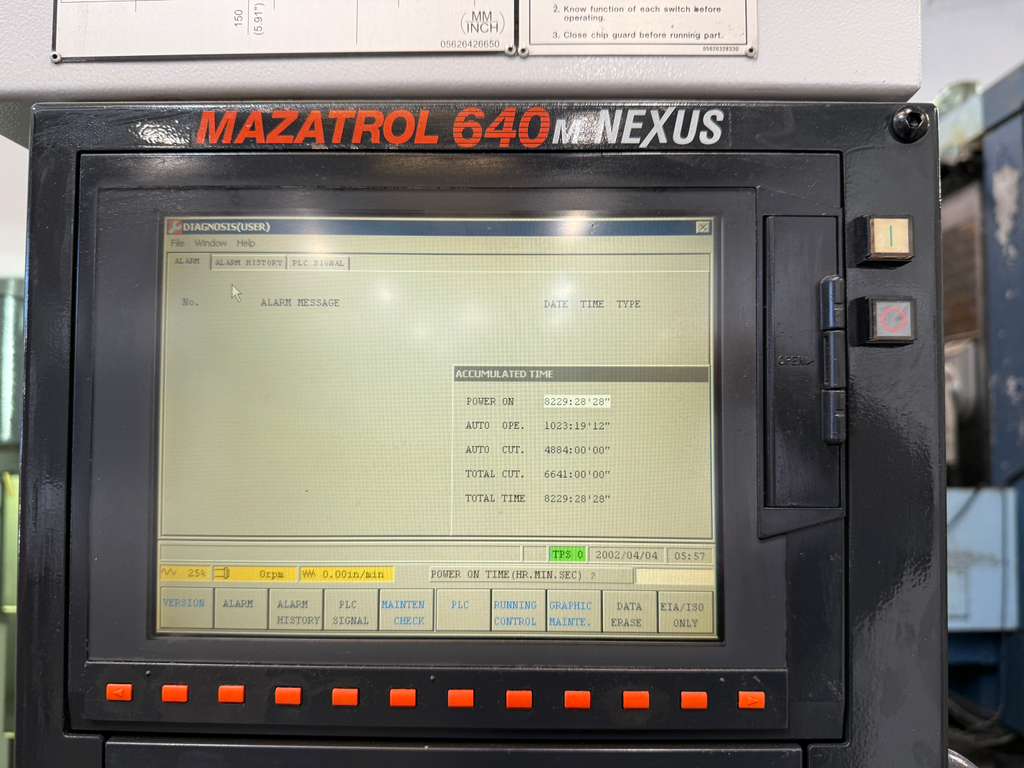

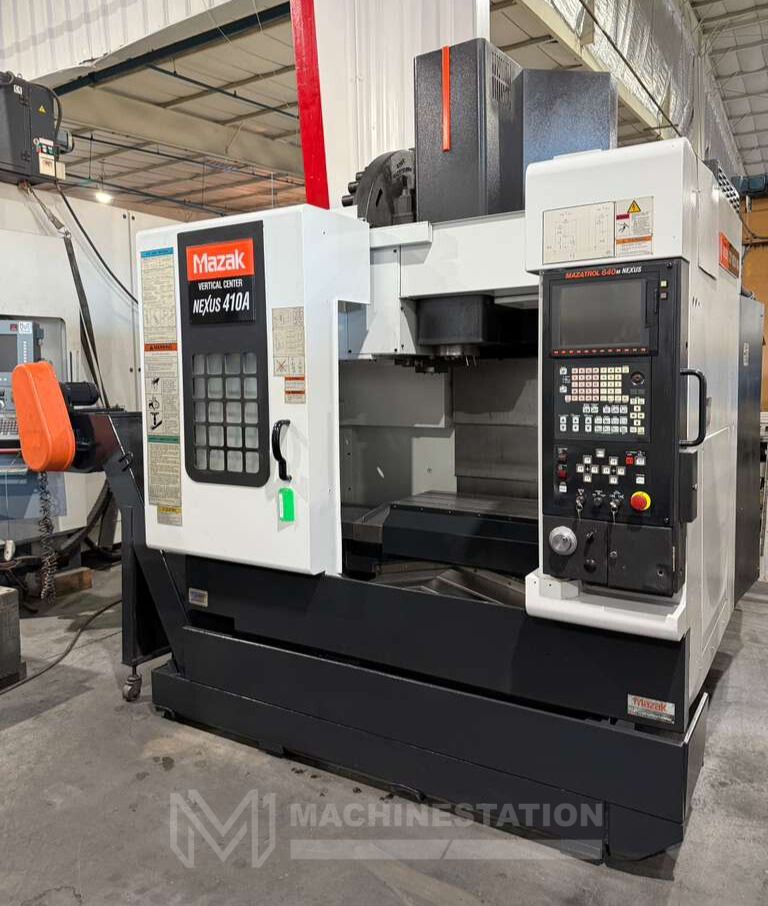

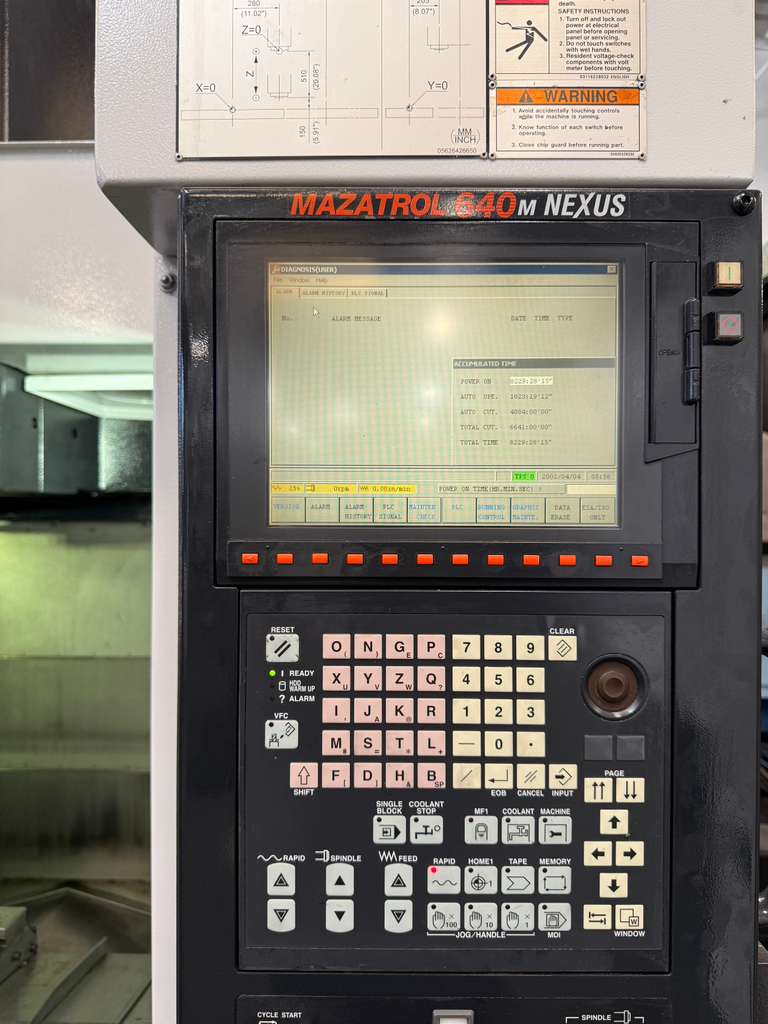

| Mazatrol 640M Nexus CNC Control |
| 12,000 RPM High Speed Spindle |
| 20 HP High Torque Spindle |
| 30 Station Automatic tool changer |
| CAT-40 Taper Spindle |
| MPG Control |
| RS-232 Port & Floppy Drive |
| Rigid Tapping |

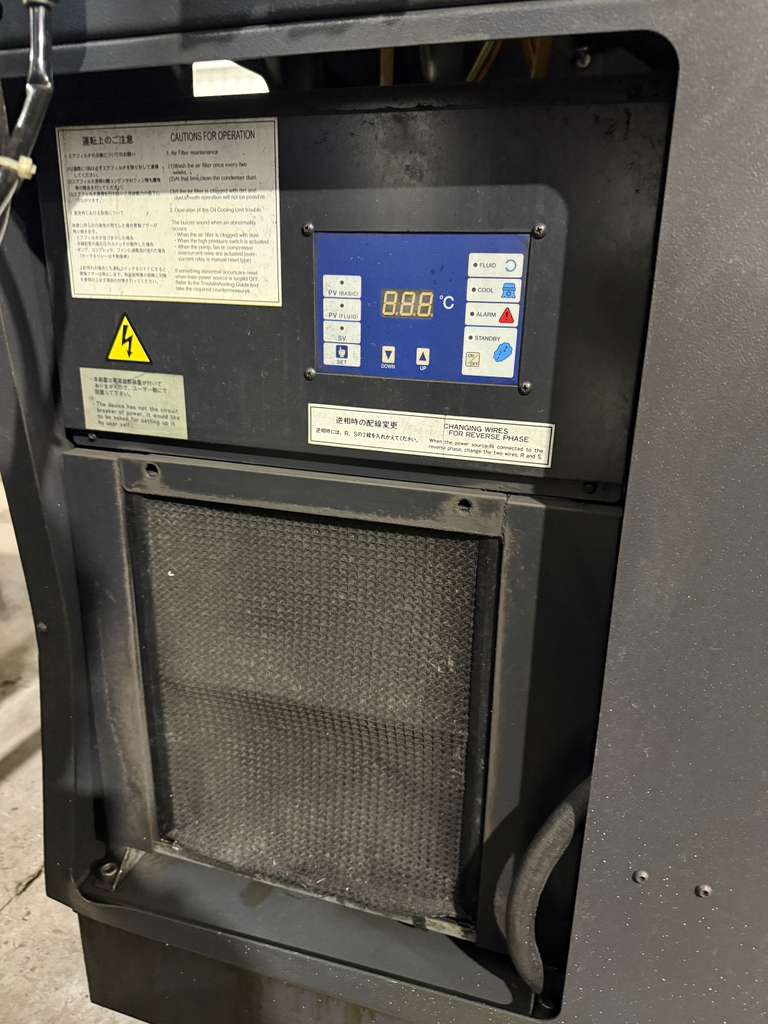

| Chiller Unit |
| Coolant System |
| Transformer |
| Travels: |
| X-Axis: 22.04″ |
| Y-Axis: 16.14″ |
| Z-Axis: 20.08″ |
| Rapid Traverse Rates Axis: 1417 IPM |
| Cutting Feed Rates: 987 IPM |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 26″ |

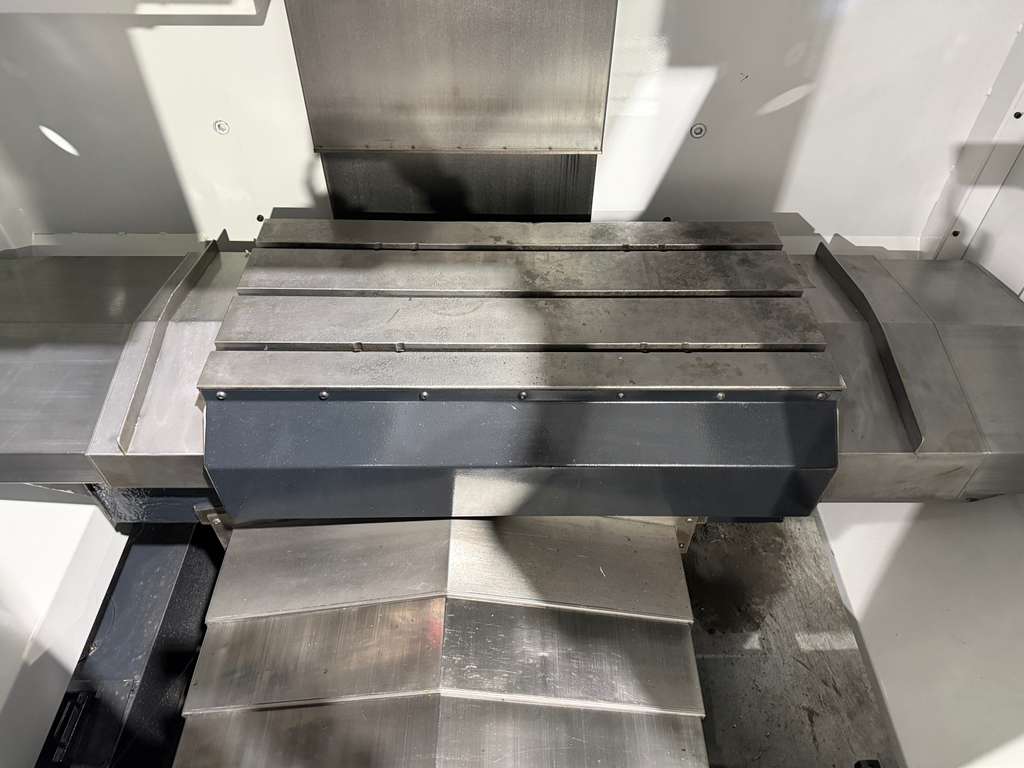

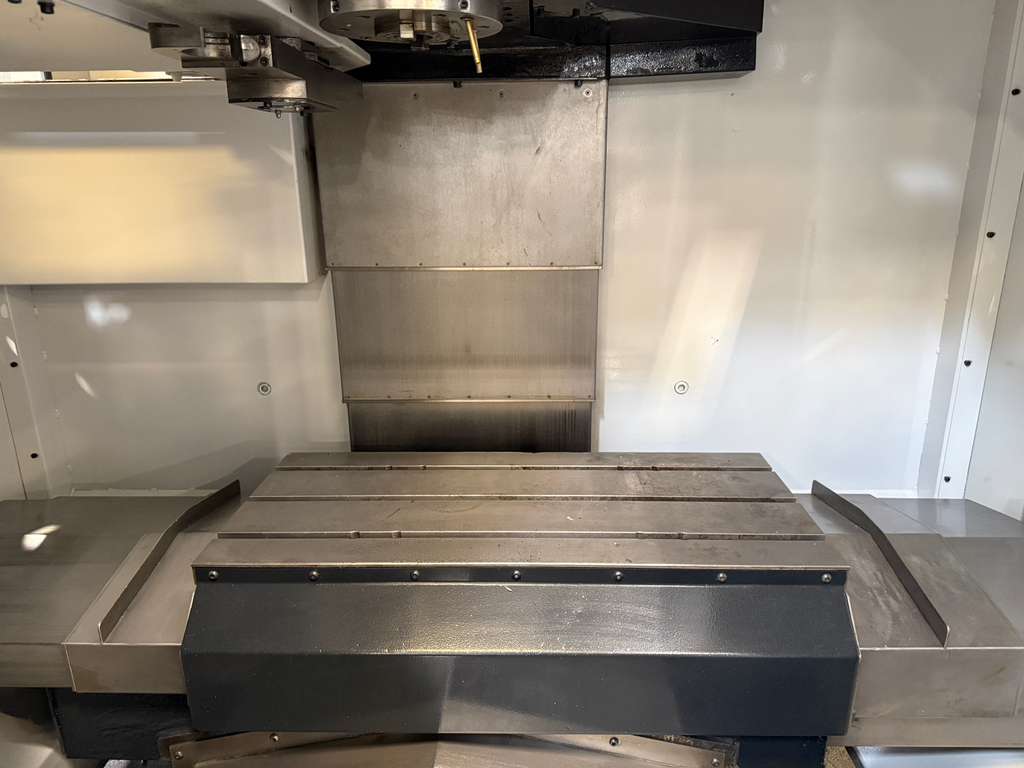

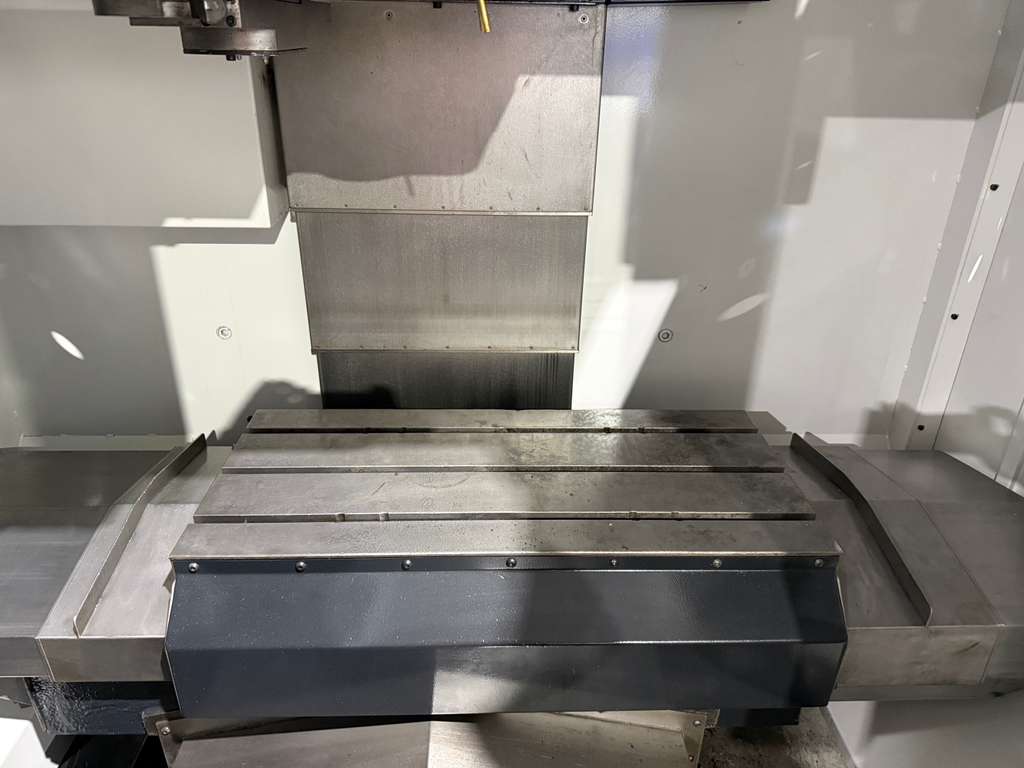

| Table: |
| Length: 36.00″ |
| Width: 16.14″ |
| Max Weight on Table: 1102 lbs |

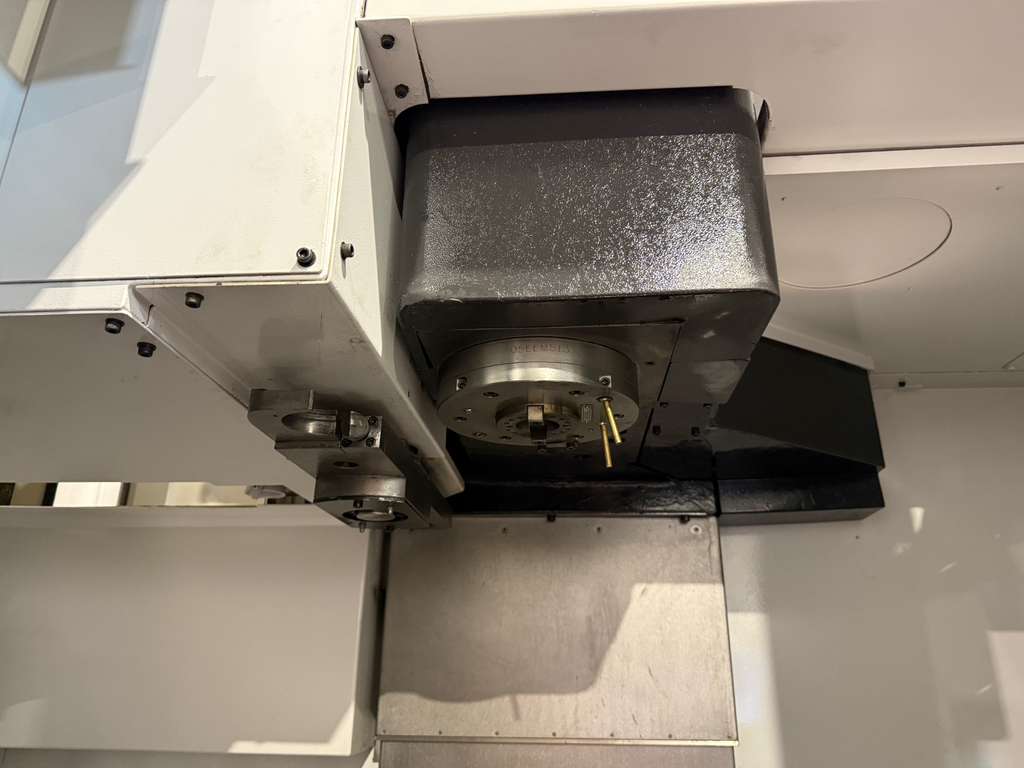

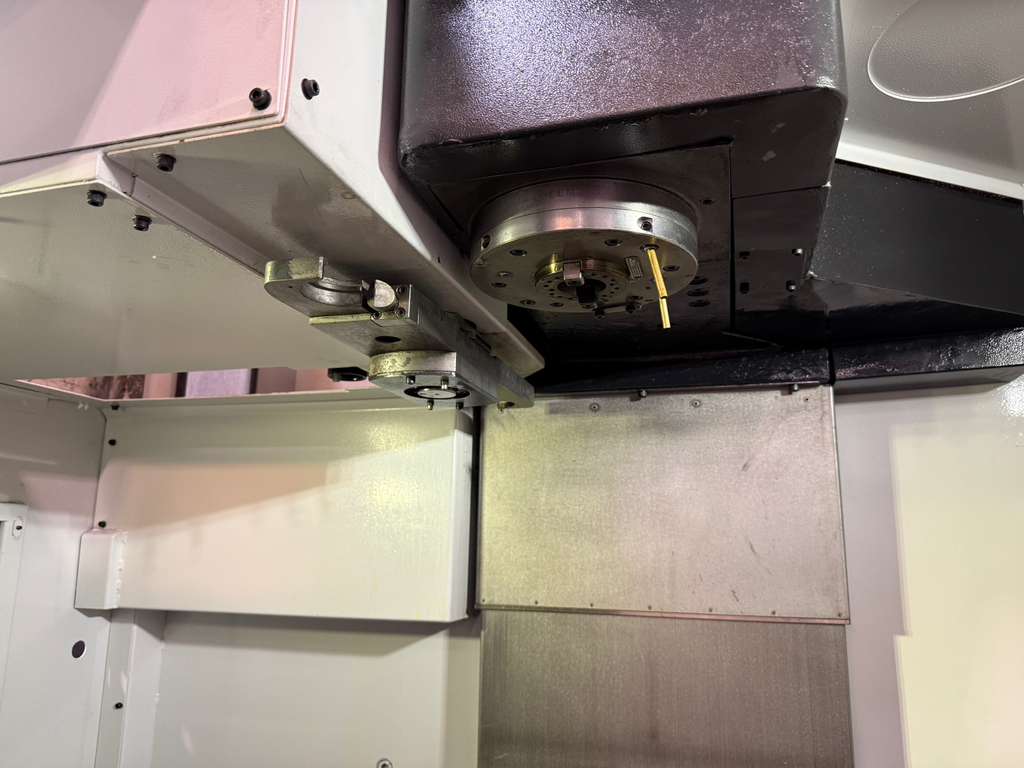

| Spindle: |
| Taper Size: CAT-40 |

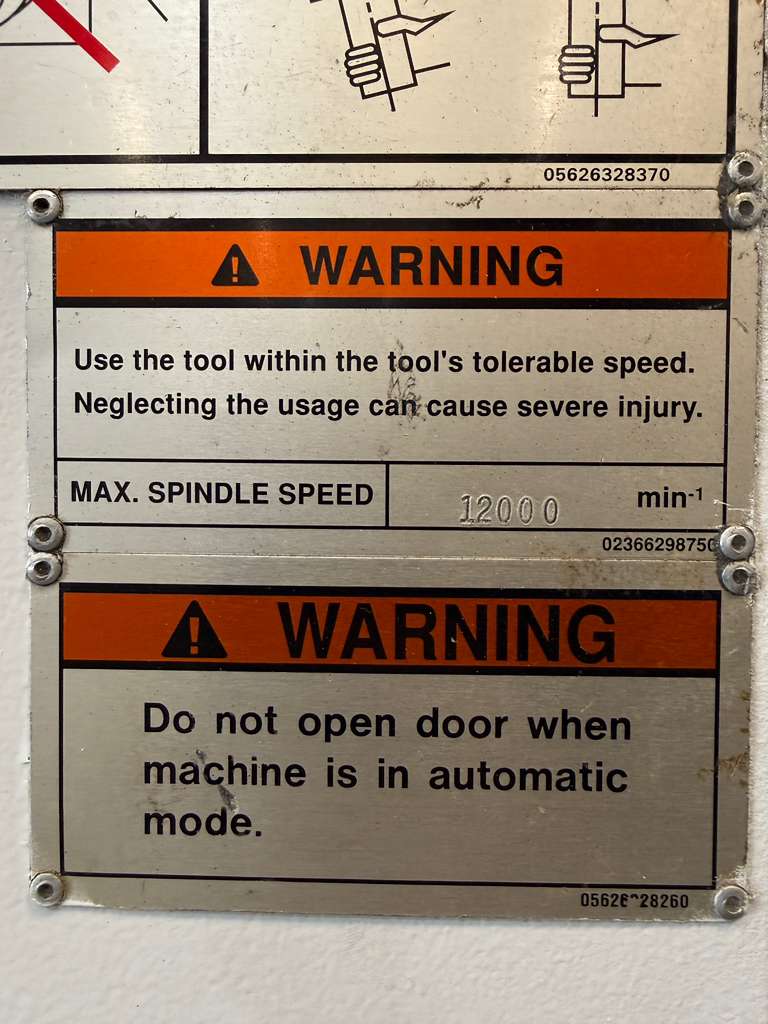

| Speed Range: 12000 RPM |
| Spindle Power: 20 HP |

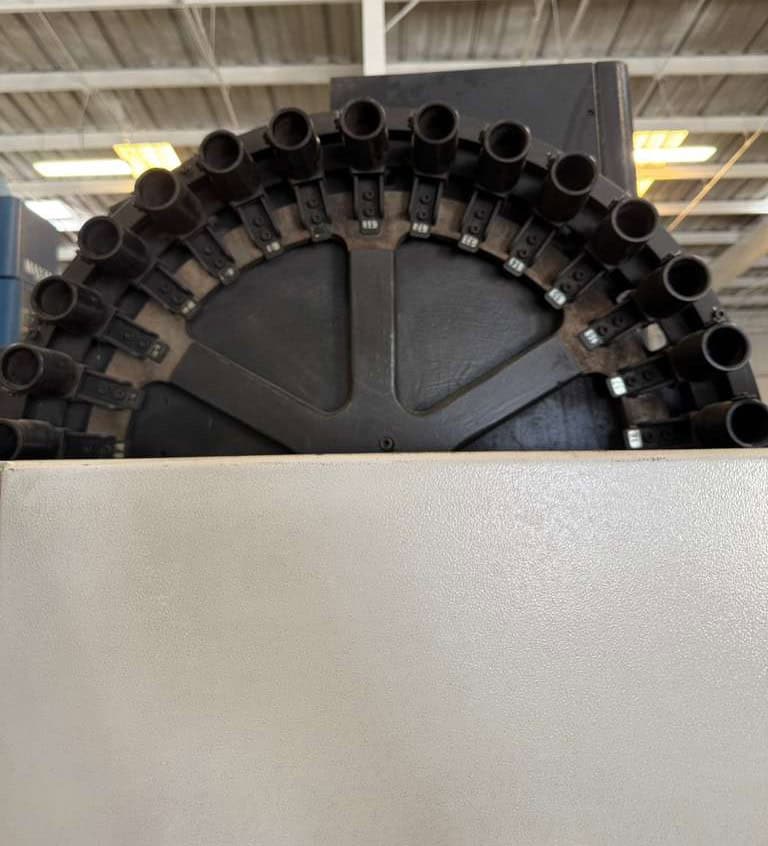

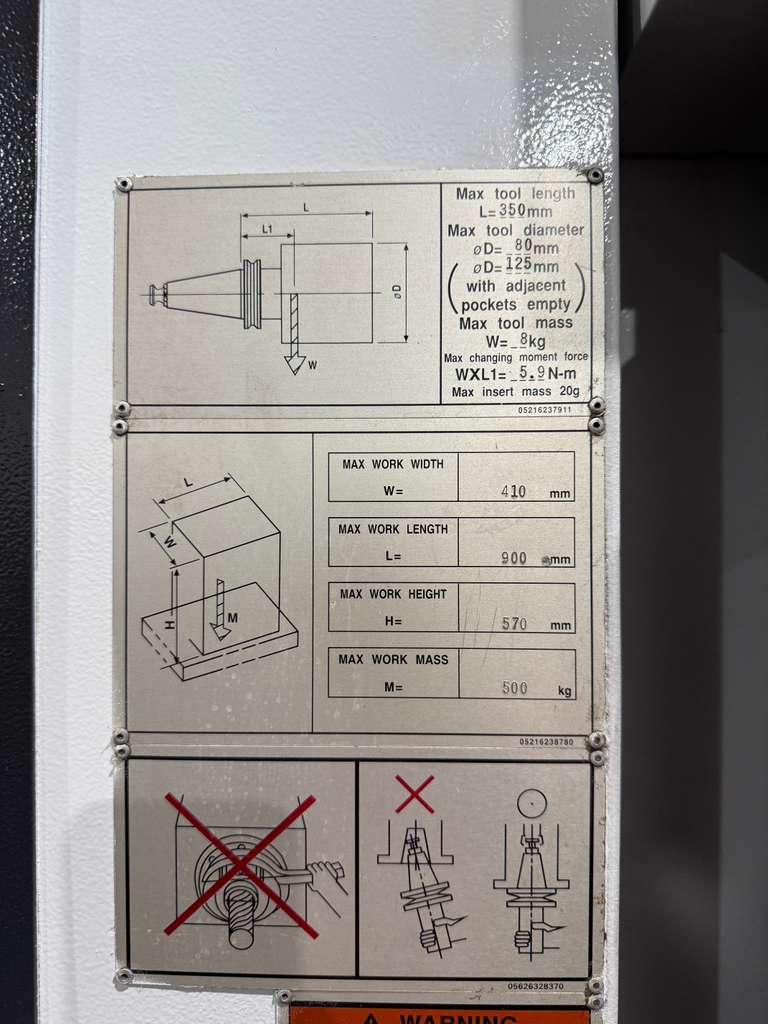

| Automatic Tool Changer: |
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.25″ – 4.92″ |
| Max Tool Length: 13.78″ |
| Tool Changing Time : 1.3 Seconds |
| General: |
| Air Required: 100 psi, 4 scfm |

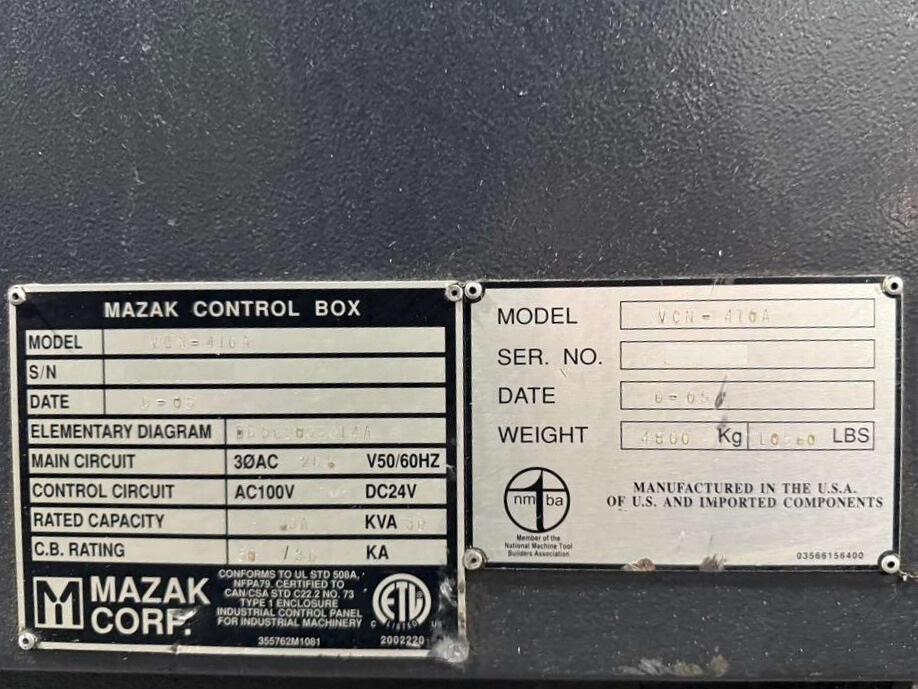

| Power: 220v / 30 kva / 3-Phase |
| Overall Dimensions: 102.3″ x 101.32 x ” High Approx. |
| Weight: 10,560 lbs Approx. |
