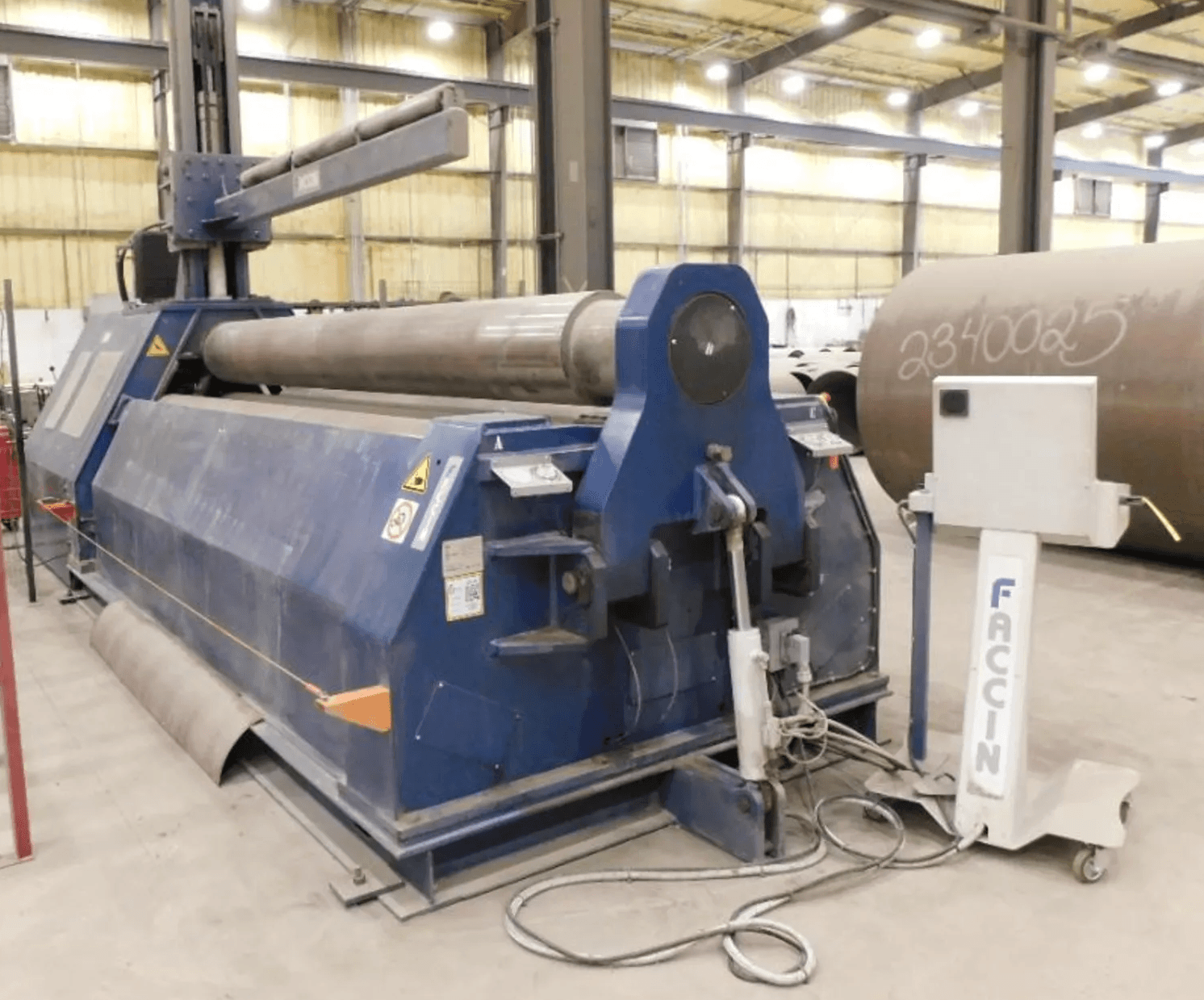

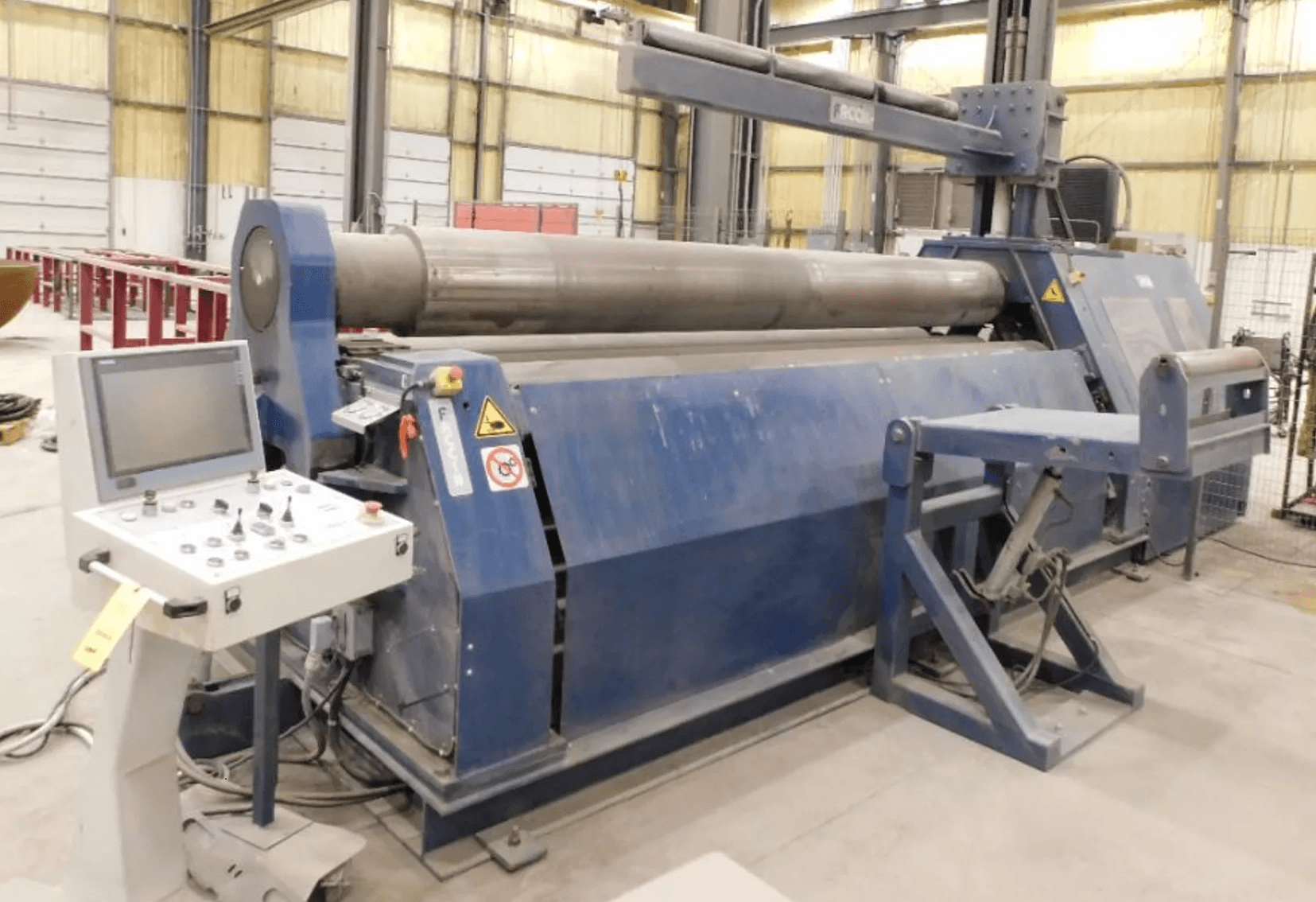

Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |
|---|
| CNC Control with Touchscreen |
| 4-Roll Double Pinch System |
| Hydraulic Drop End |
| Cone Bending Capability |
| Overhead Support Arm |
| Side Support System |
| Foot Pedal Control |
| Emergency Stop System |
| Capacity: |
|---|
| Max Rolling Width: 10 ft (120″) |
| Max Plate Thickness: 1.37″ |
| Pre-Bending Capacity: High-capacity 4-roll pre-bending |
| Roll Configuration: 4-Roll (Double Pinch Design) |
| Rolls: |
|---|
| Top Roll: Heavy-duty precision roll |
| Bottom Roll: Hydraulic driven |
| Side Rolls: Hydraulic positioning for pre-bending |
| Roll Type: Hardened alloy steel rolls |
| Control System: |
|---|
| CNC Programmable Rolling Cycles |

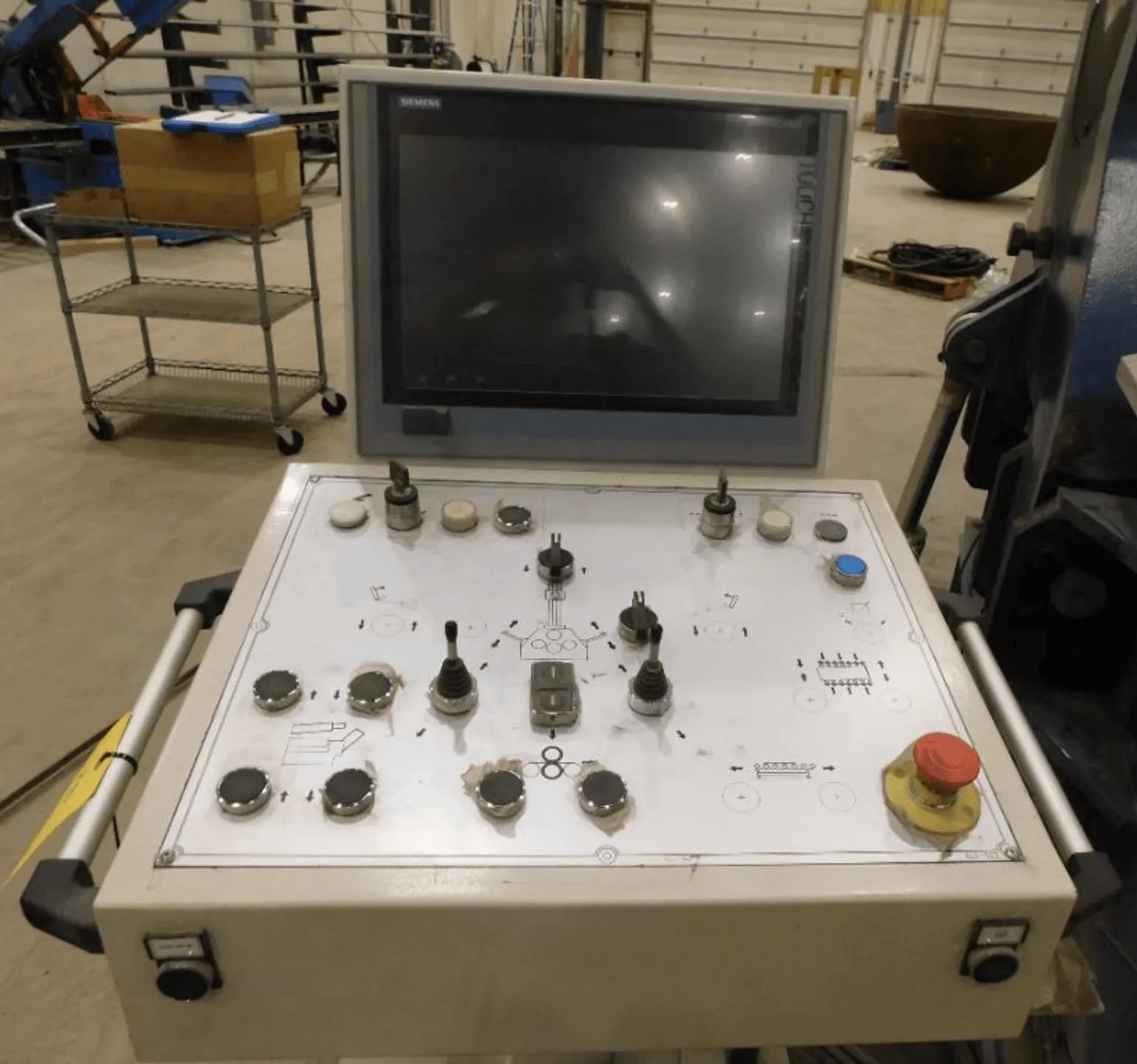

| Touchscreen Operator Interface (Siemens-based) |
| Automatic Bending Sequences |
| Memory for Multiple Programs |
| Drive System: |
|---|
| Hydraulic Drive System |
| High Torque Rolling Capability |
| Independent Side Roll Control |
| Electrical: |
|---|
| Voltage: 480V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Dimensions: |
|---|
| Floor Space (L x W x H): 220″ x 90″ x 85″ H (approx.) |
| Machine Weight: 35,000 – 45,000 lbs |
| Additional Requirements: |
|---|
| Operator Access: 36″ minimum |
| Material Loading Area: 8 ft – 12 ft front & rear |
| Maintenance Clearance: 36″ – 48″ |
| General: |
|---|
| Air Required: 80 PSI (approx.) |
| Power Requirement: 480V / 60–80 kVA / 3-Phase |
