Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

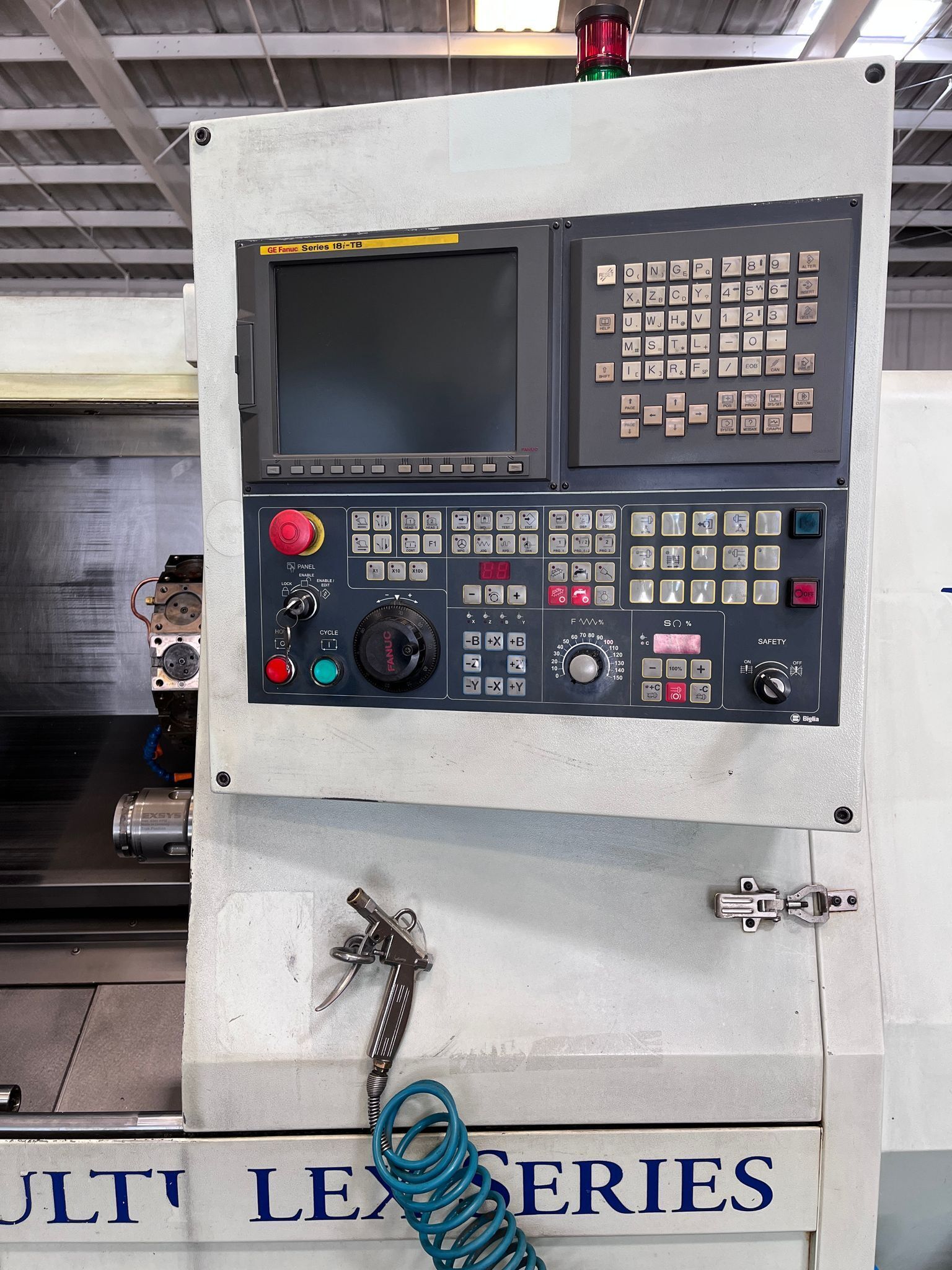

| Fanuc 18i-TB CNC Control |

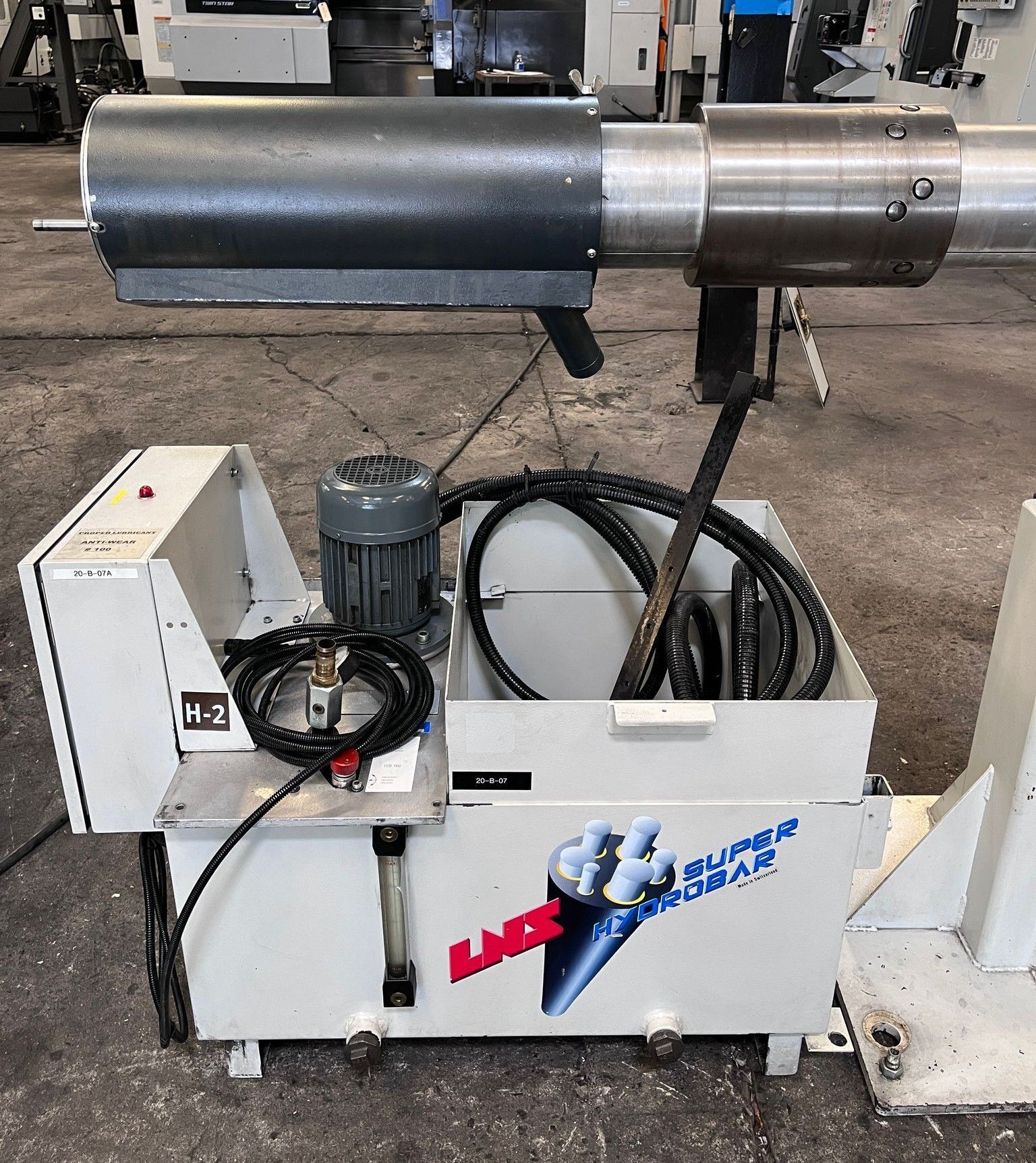

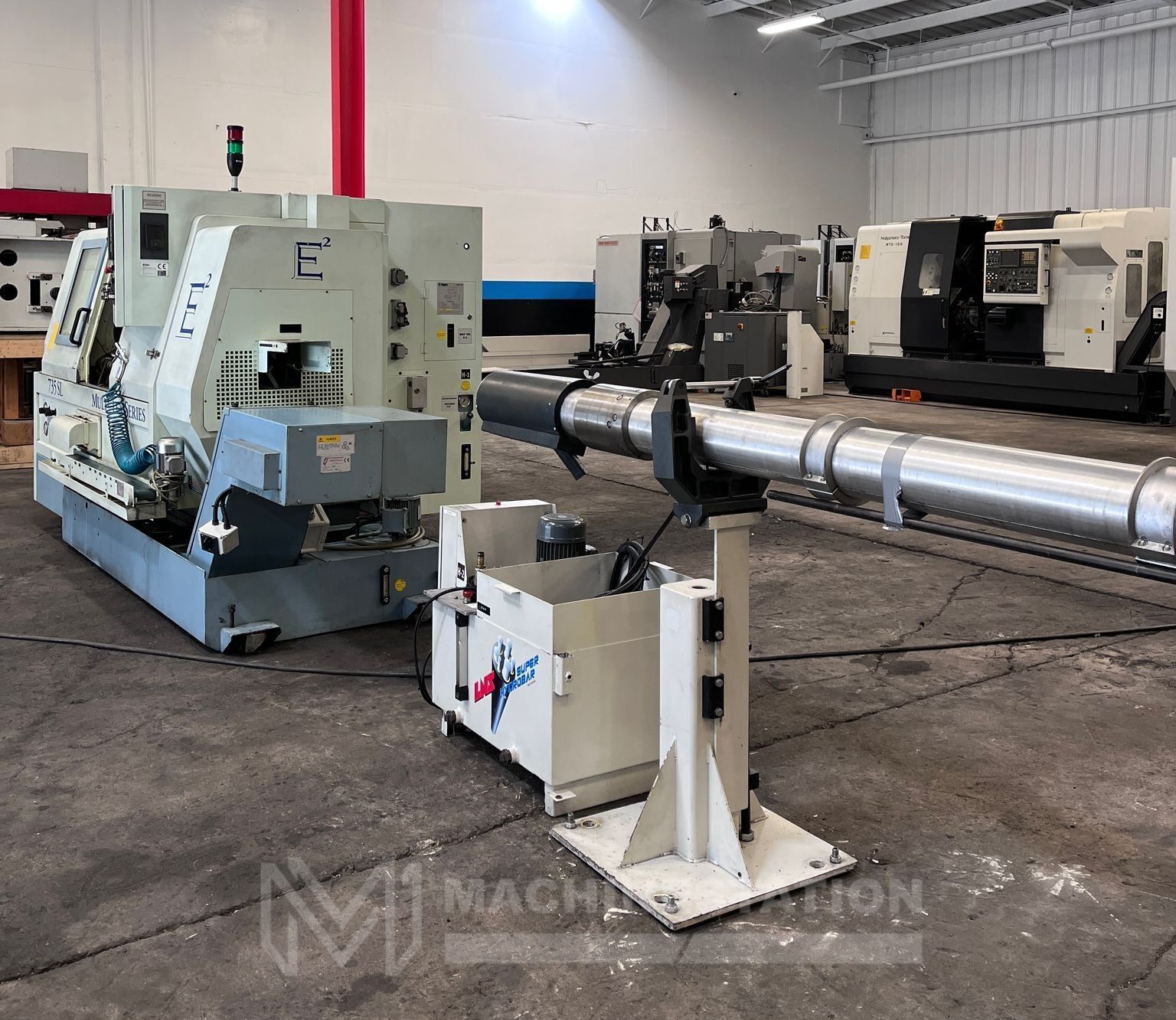

| LNS Super Hydrobar Bar Feeder |

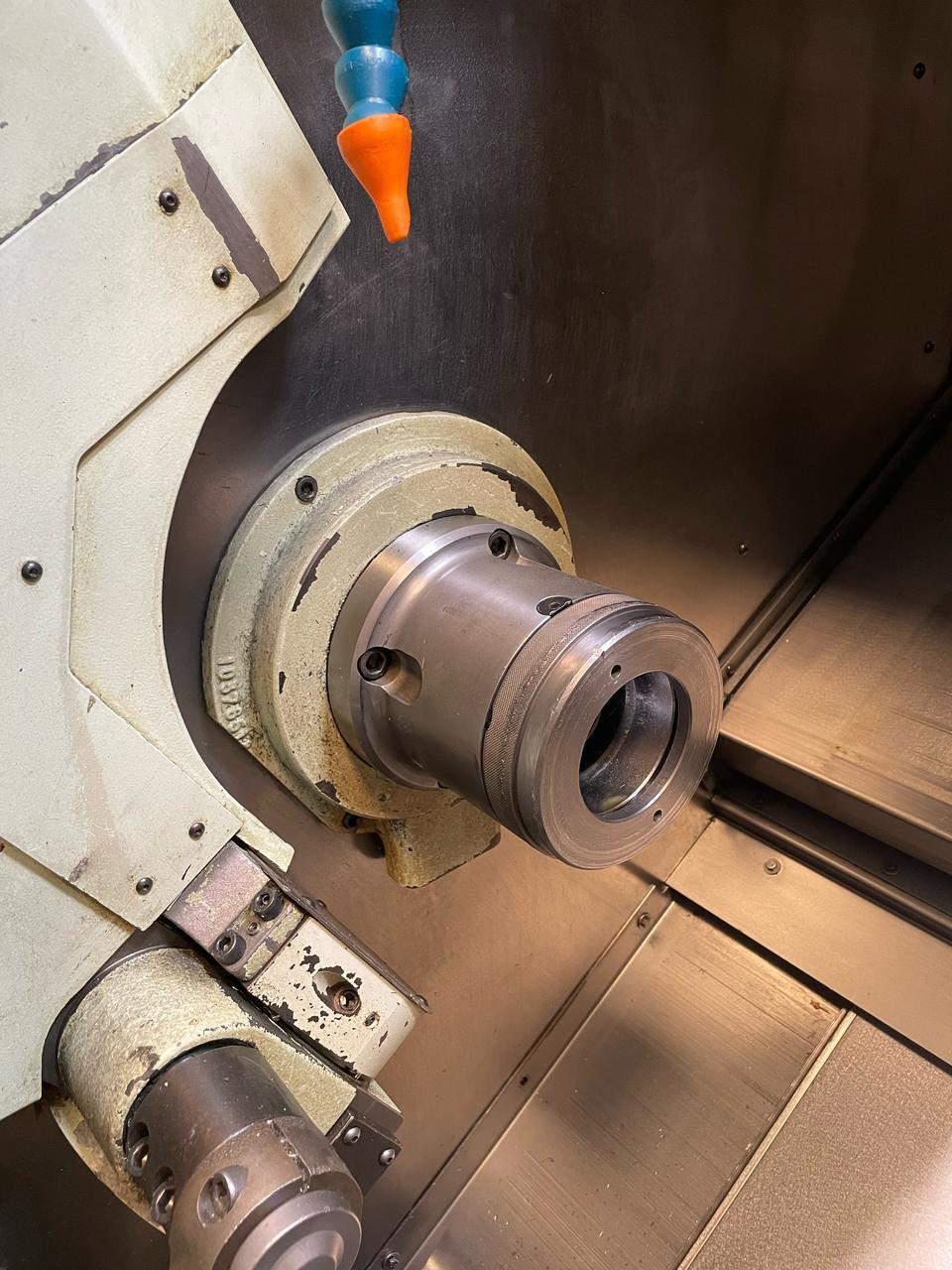

| Collet Chuck On Main Spindle (Capable 10″ Chuck) |

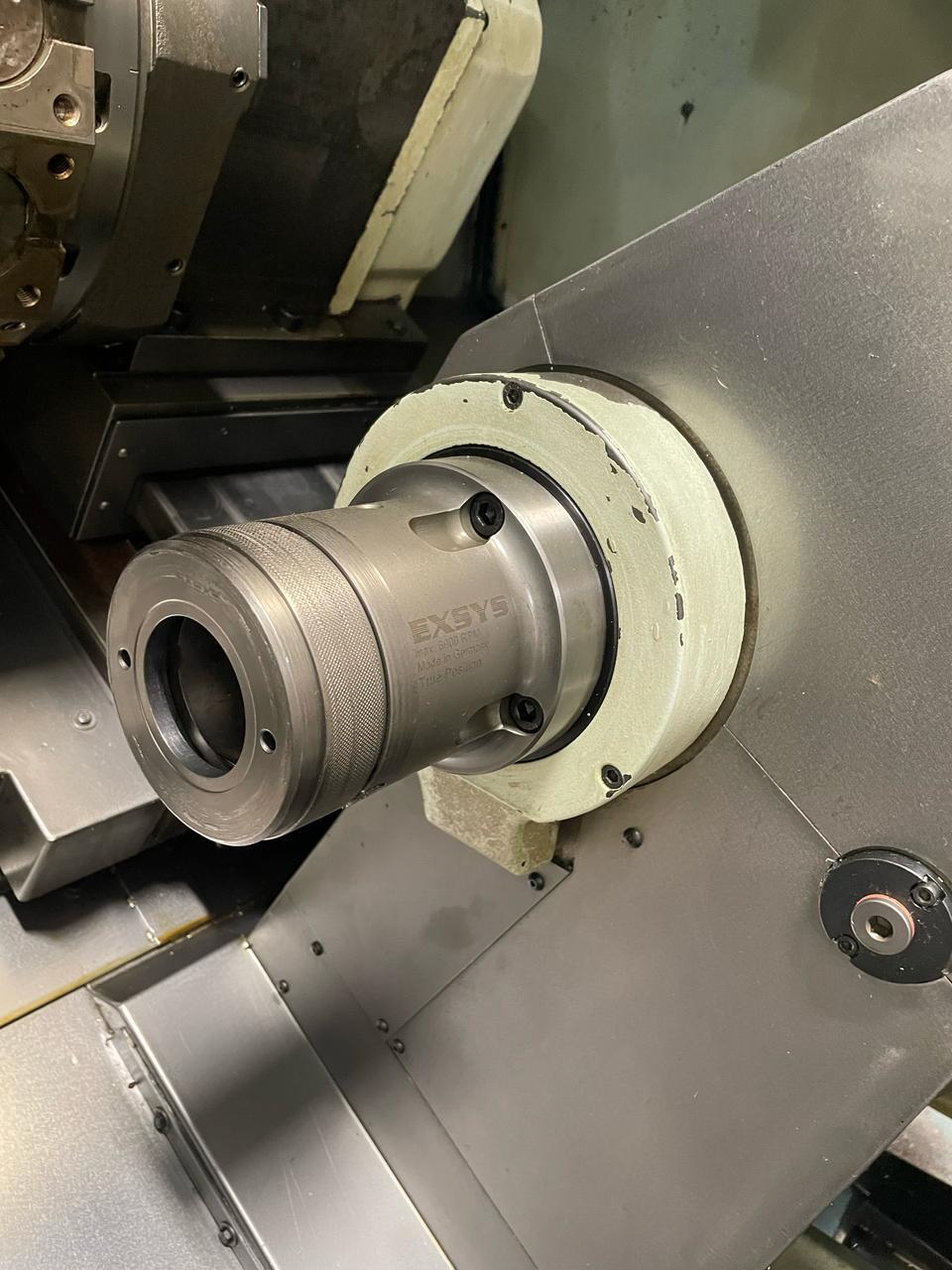

| Collet Chuck On Sub Spindle (Capable 8″ Chuck) |
| Sub Spindle |
| Servo Controlled Full C-Axis on Both Spindles |

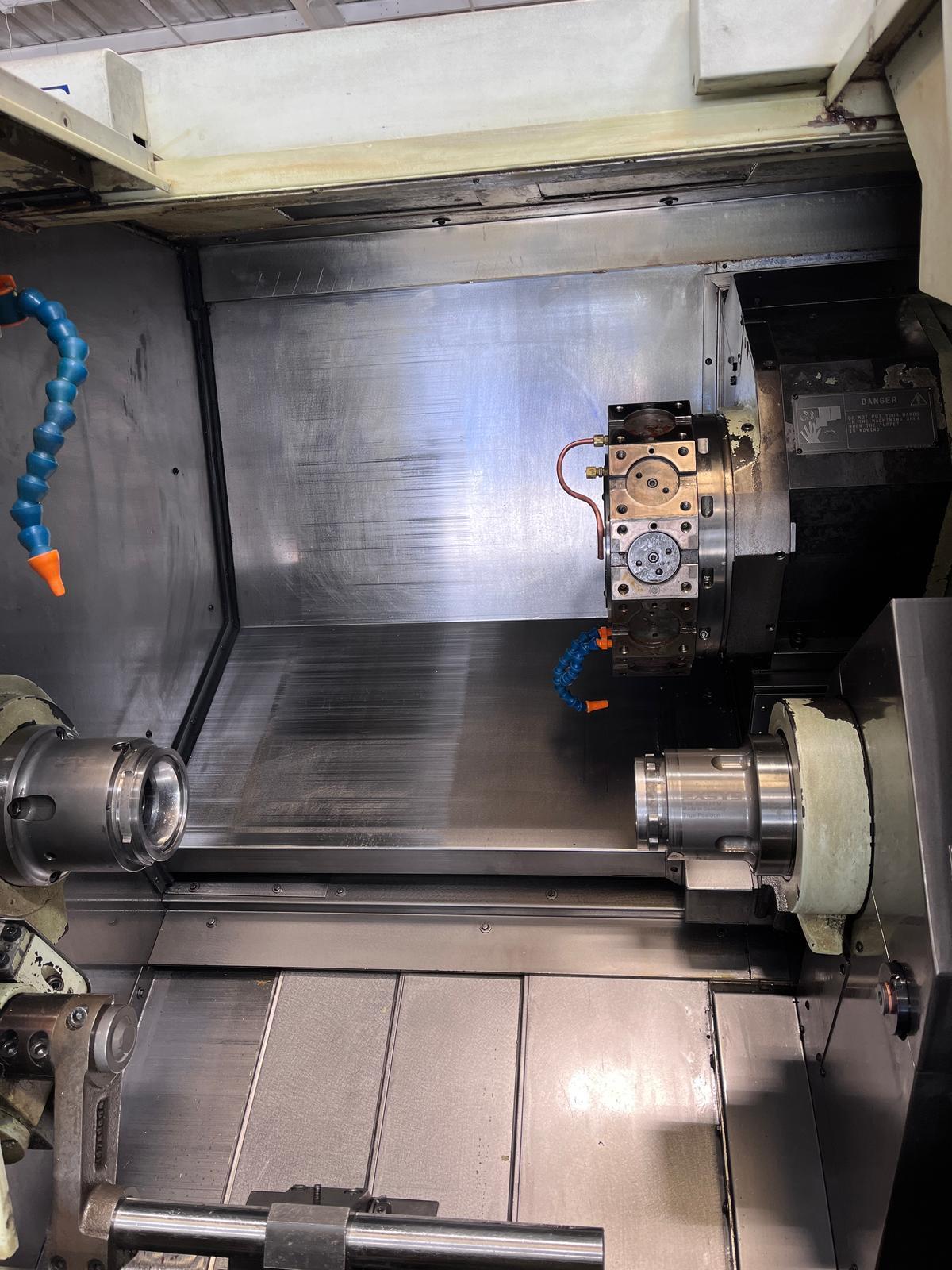

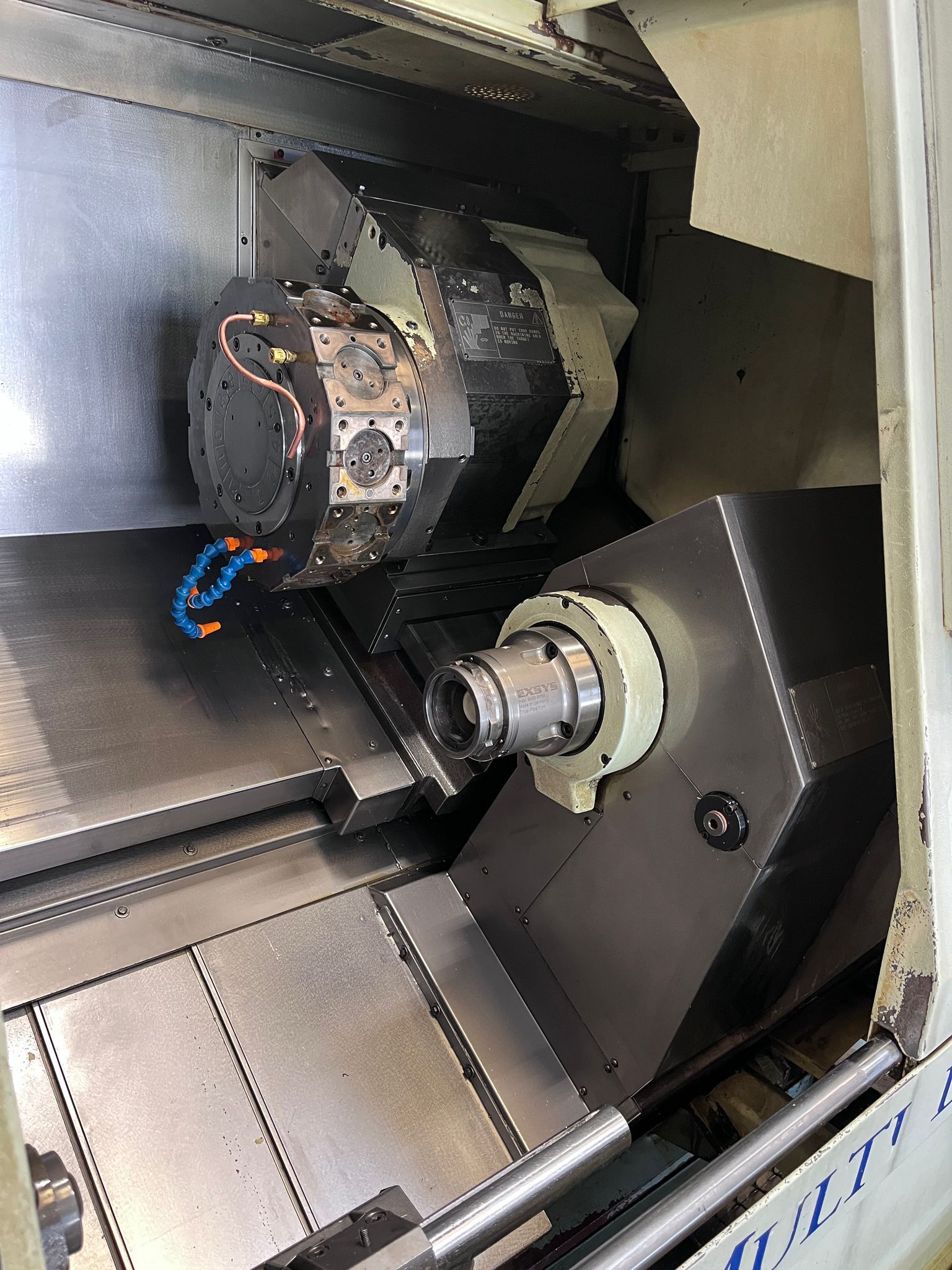

| 12 stations Live Tool Turret |
| Automatic Tool Presetter |

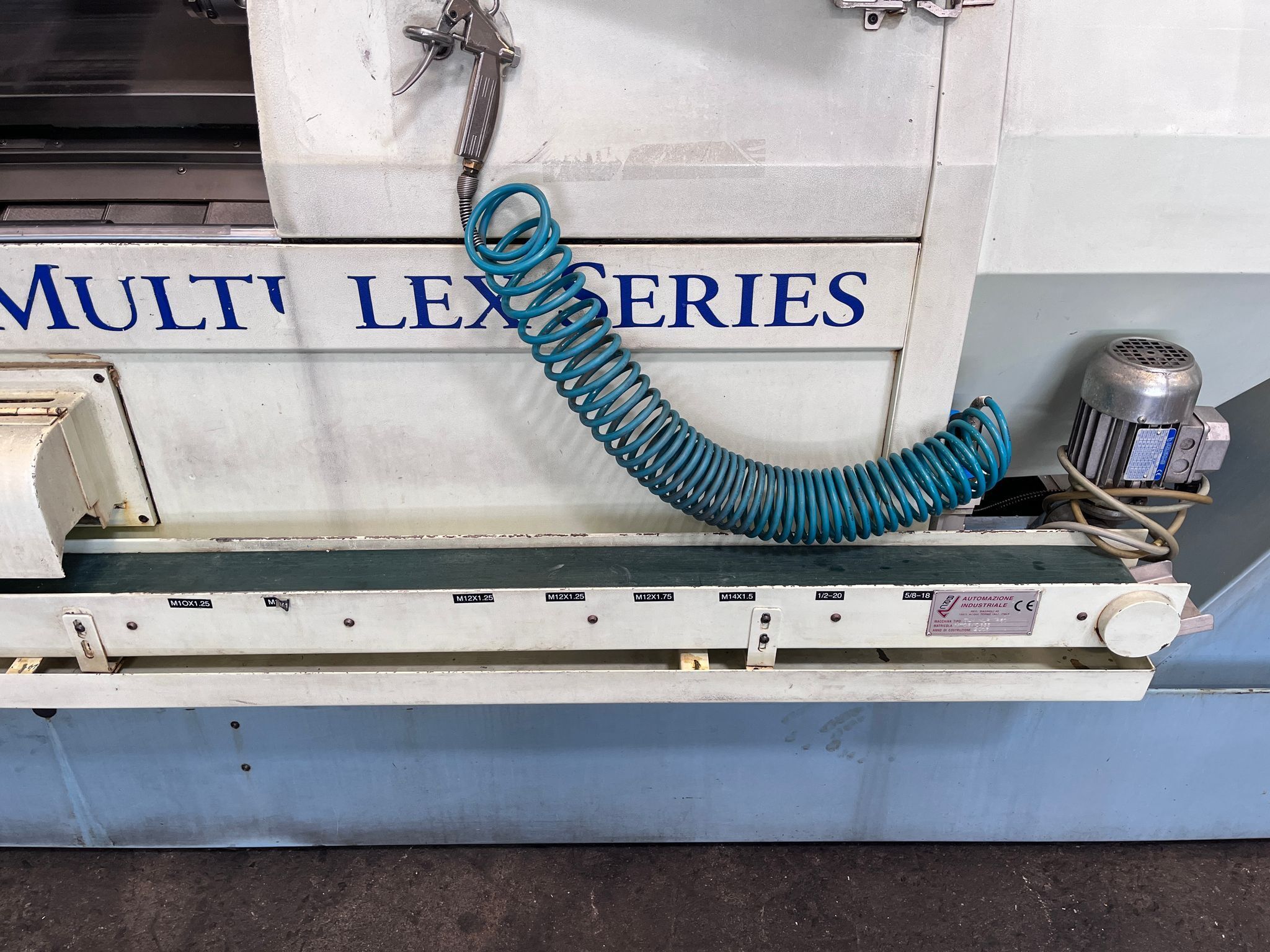

| Part Catcher & Conveyor |
| Rigid Tapping on Both Spindles |
| Coolant System |
| Automatic Lubrication System |
| Chip Conveyor |
| Capacity: |
| Max Turning Diameter : 12.6″ |
| Max Turning Length : 20.08″ |
| Max Swing Over Bed: 22.83″ |
| Max Bar Capacity Main Spindle : 2.7″ |
| Travels: |
| X Axis Travel : 6.7″ |
| Z Axis Travel : 22.0″ |
| W Axis Travel ( Sub Spindle ): 19.3″ |
| C Axis: 360° (0.001°) Both Spindle |
| Main Spindle: |
| Main Spindle Nose: A2-6 |
| Main Spindle Bore: 3.15″ |
| Main Spindle Bar Capacity: 2.7″ |
| Main Spindle Speed: 4,000 RPM |
| Main Spindle Power: 35 HP |
| Sub Spindle: |
| Sub Spindle Nose: A2-5 |
| Sub Spindle Bore: 2.17″ |
| Sub Spindle Bar Capacity: 2.7″ |
| Sub Spindle Speed: 5,000 RPM |
| Sub Spindle Power: 15 HP |
| Turret: |
| Turret Capacity: 12 Stations |
| Live Tool Speed: 4,000 RPM |
| Live Tools Motor: 5 HP |
| Turret Index Time: 0.15 Sec. |
| Turret Type: BMT55 |
| General: |
| Power Source: 220v / 50/60 Hz / 3-Phase |
| Overall Dimensions: 155″ X 77″ X 87″ High Approx. |
| Weight: 10,782 lbs. Approx. |
