Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |
|---|

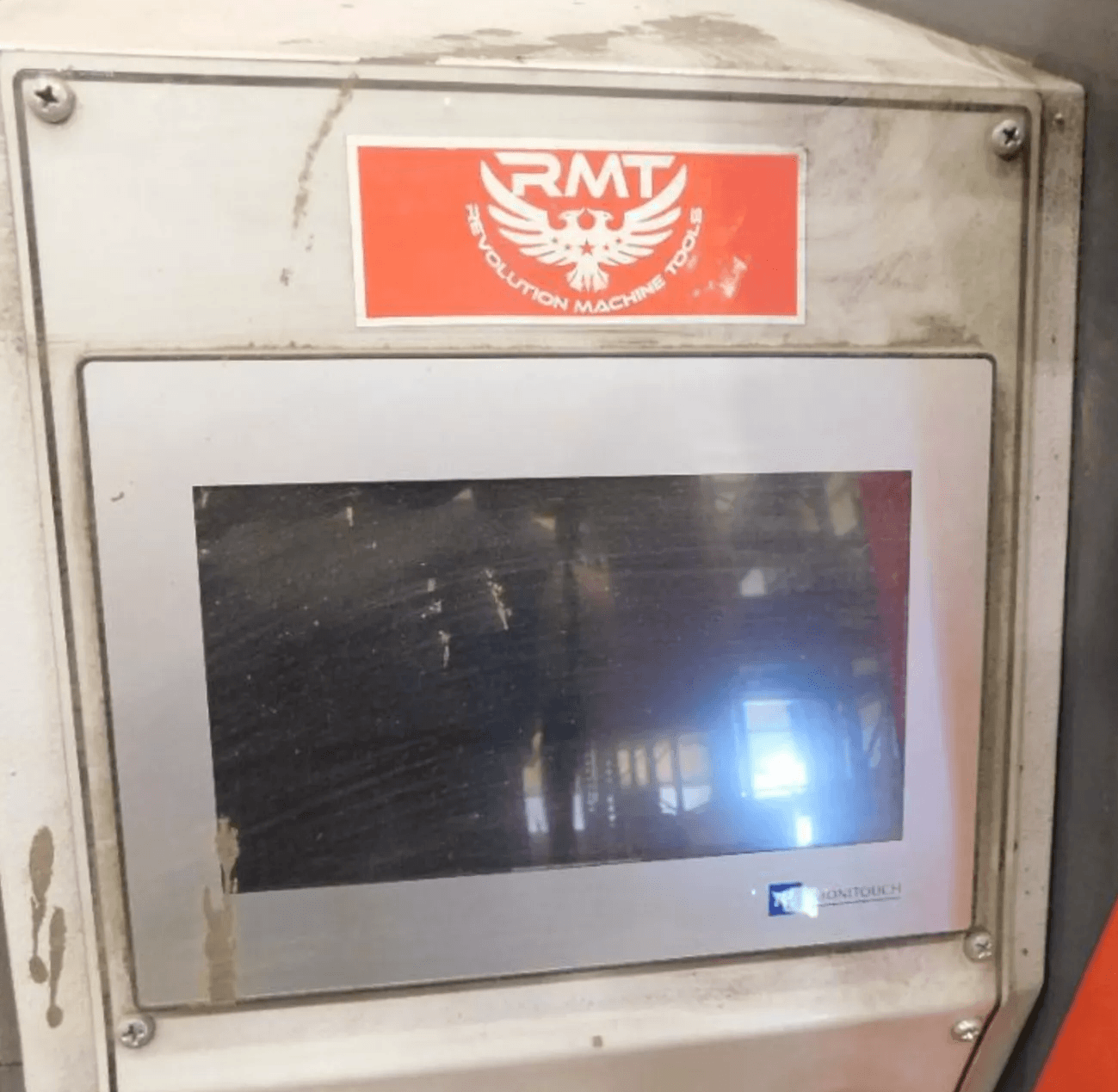

| NC Touchscreen Control |
| Programmable Backgauge |
| Front Support Arms |
| Hydraulic Hold-Down System |
| Foot Pedal Control |
| Emergency Stop System |
| Capacity: |
|---|
| Max Cutting Length: 4 Meter (157″) |
| Max Cutting Thickness: 15/64″ (~6 mm mild steel) |
| Shear Type: Mechanical Guillotine Shear |
| Cutting System: |
|---|
| Blade Type: Straight Shear Blades |
| Cutting Angle: Fixed |
| Hold Downs: Hydraulic Hold-Down Clamping System |
| Backgauge: |
|---|
| Backgauge Type: NC Programmable |
| Backgauge Travel: 24″ – 40″ (typical) |
| Drive System: |
|---|
| Main Motor: 10.5 HP |
| Drive Type: Mechanical Drive System |
| Electrical: |
|---|
| Voltage: 480V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Dimensions: |
|---|
| Floor Space (L x W x H): 180″ x 80″ x 65″ H (approx.) |
| Machine Weight: 5,070 lbs |
| Additional Requirements: |
|---|
| Operator Access: 36″ recommended |
| Maintenance Clearance: 36″ – 48″ |
| Material Handling Space: 60″+ (front & rear) |
| General: |
|---|
| Air Required: 80 PSI (approx.) |
| Power Requirement: 480V / 15–20 kVA / 3-Phase |
| Categories | CNC Mechanical Shear |
|---|---|
| Categories | Shears, Used Fabrication Machines, Previously Sold Machines |
