Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

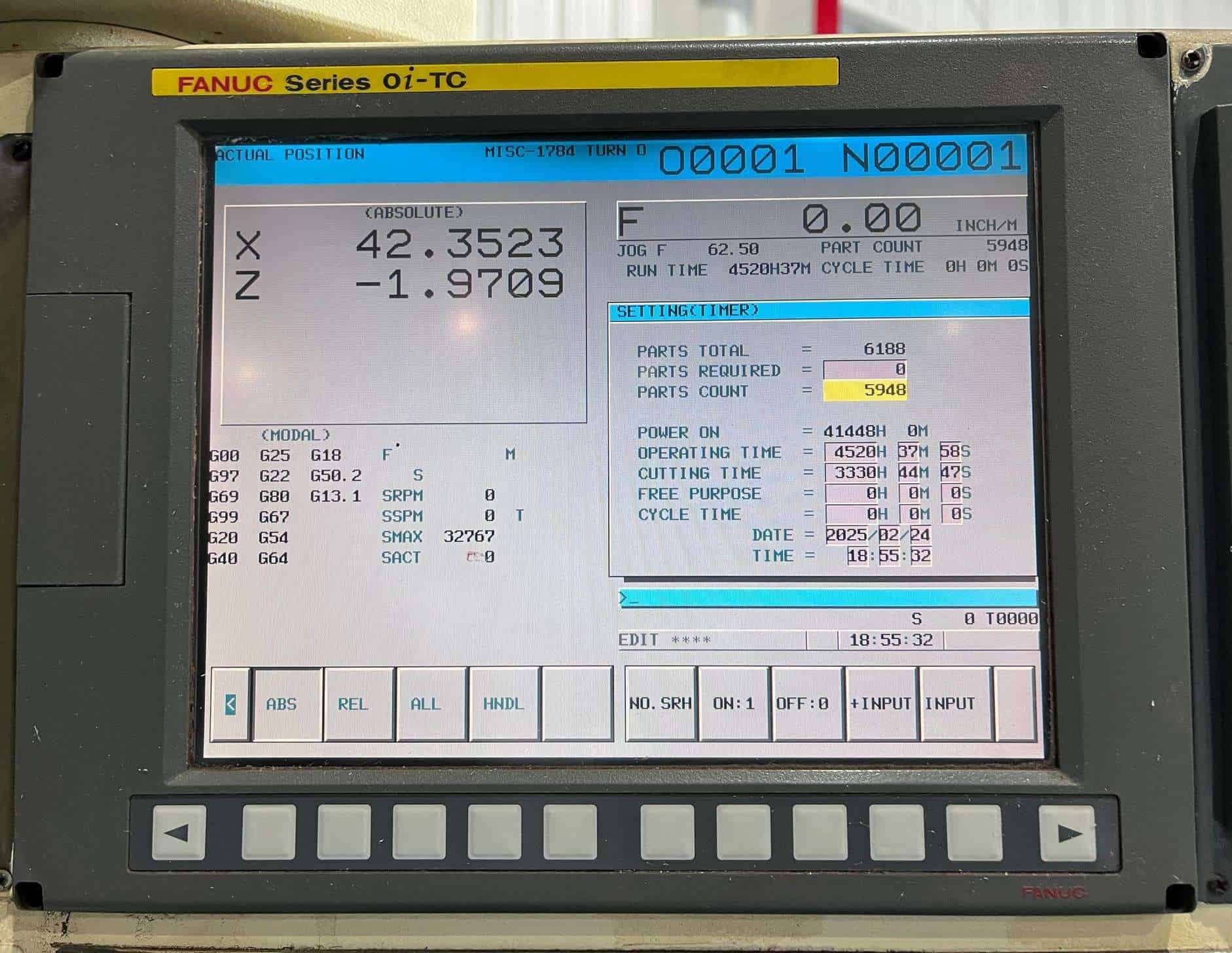

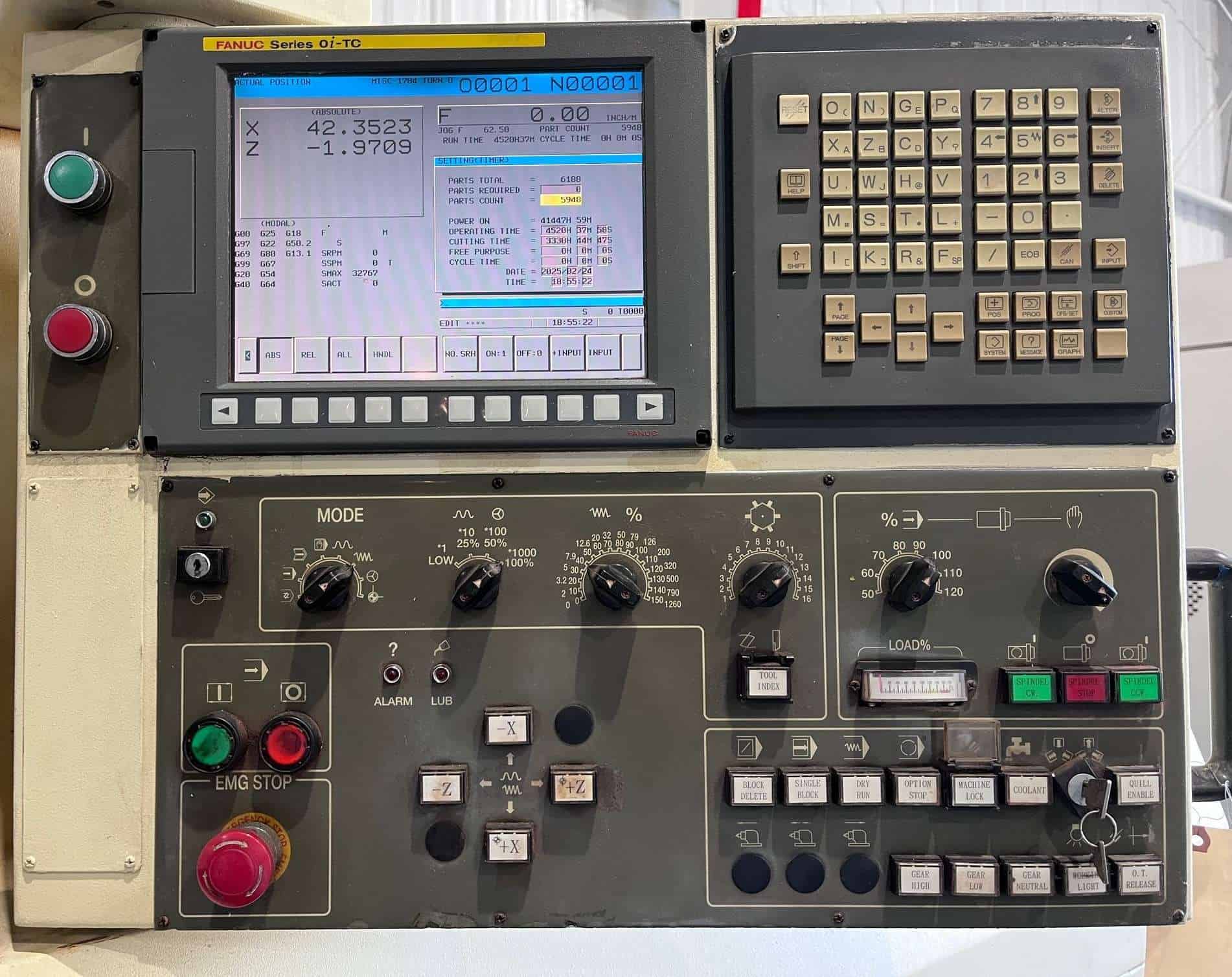

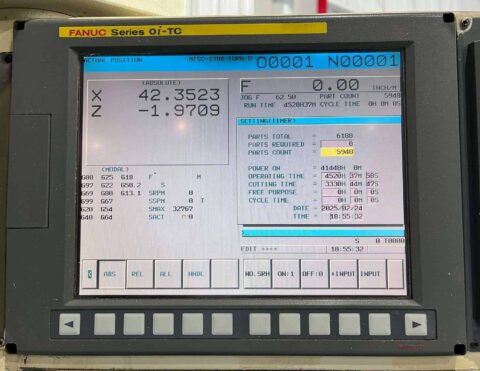

| Fanuc Oi-TC CNC Control |

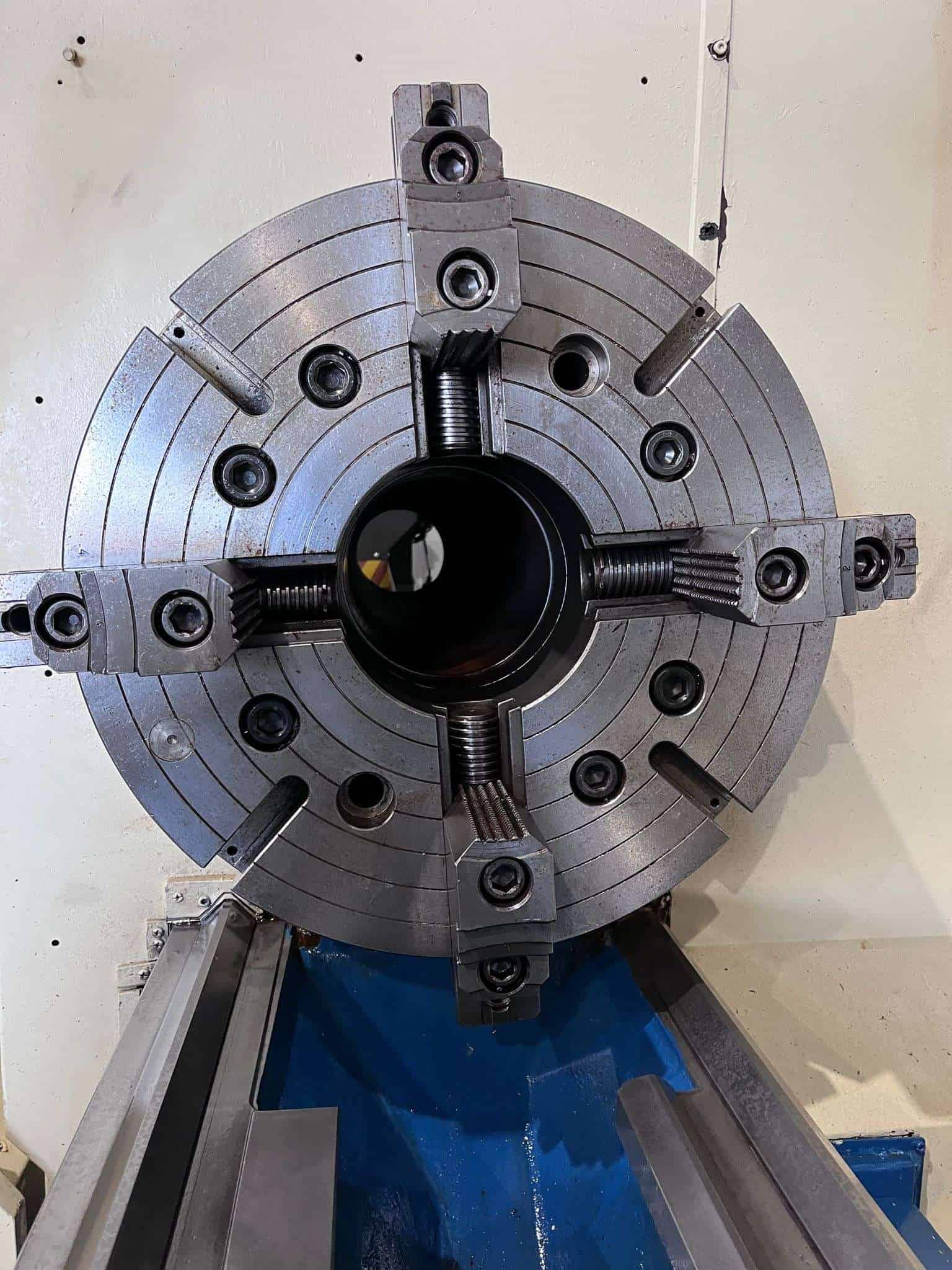

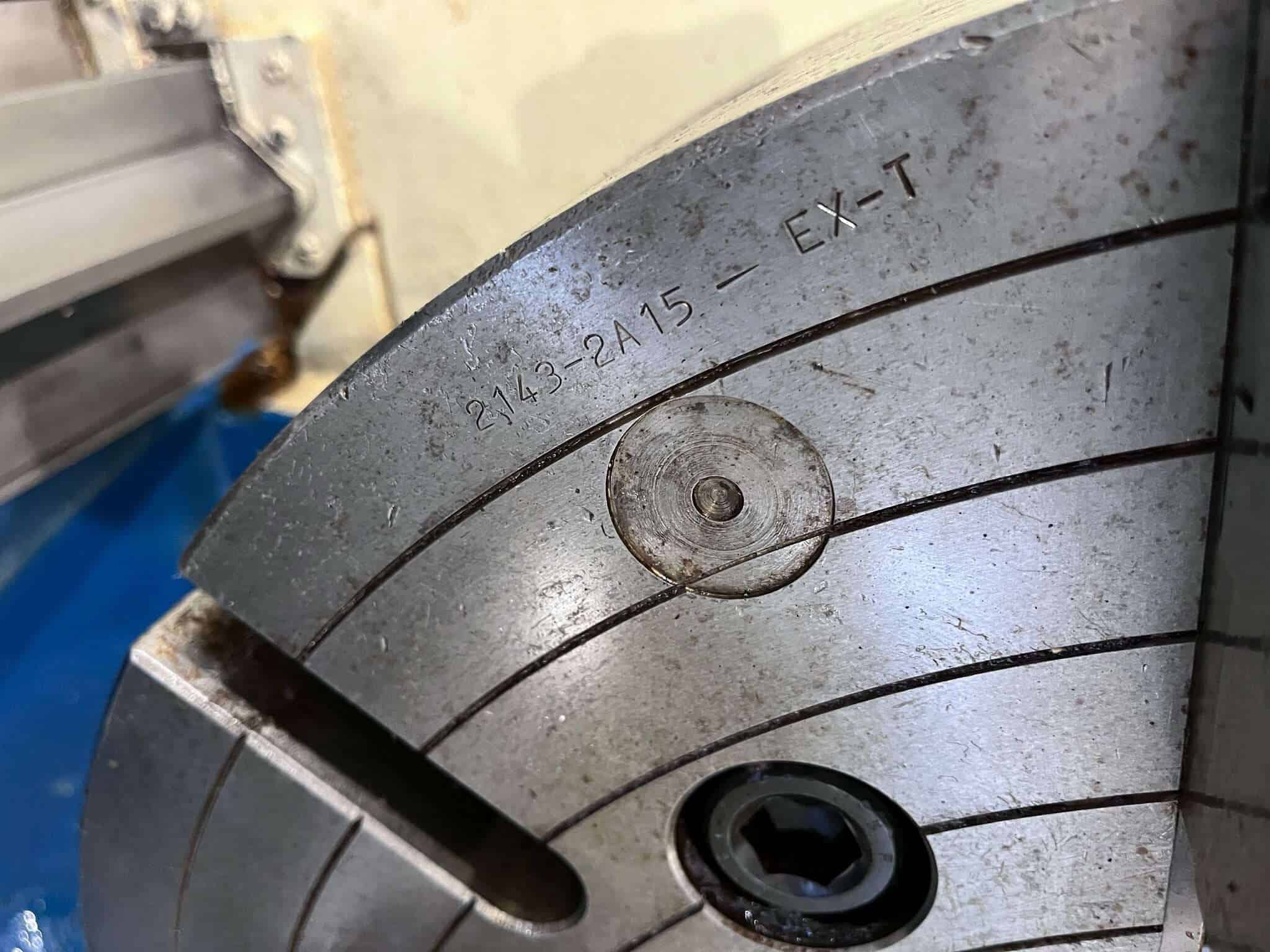

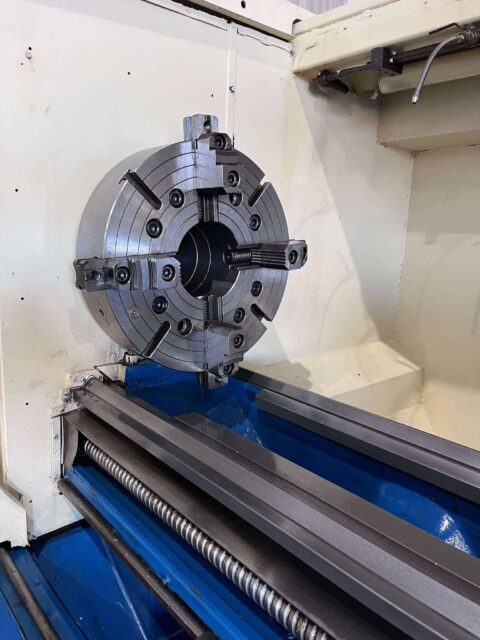

| 21″ 4 Jaw Manual Front Chuck |
| 21″ 4 Jaw Manual Rear Chuck |
| 7.3″ Bore A2-15 Spindle |

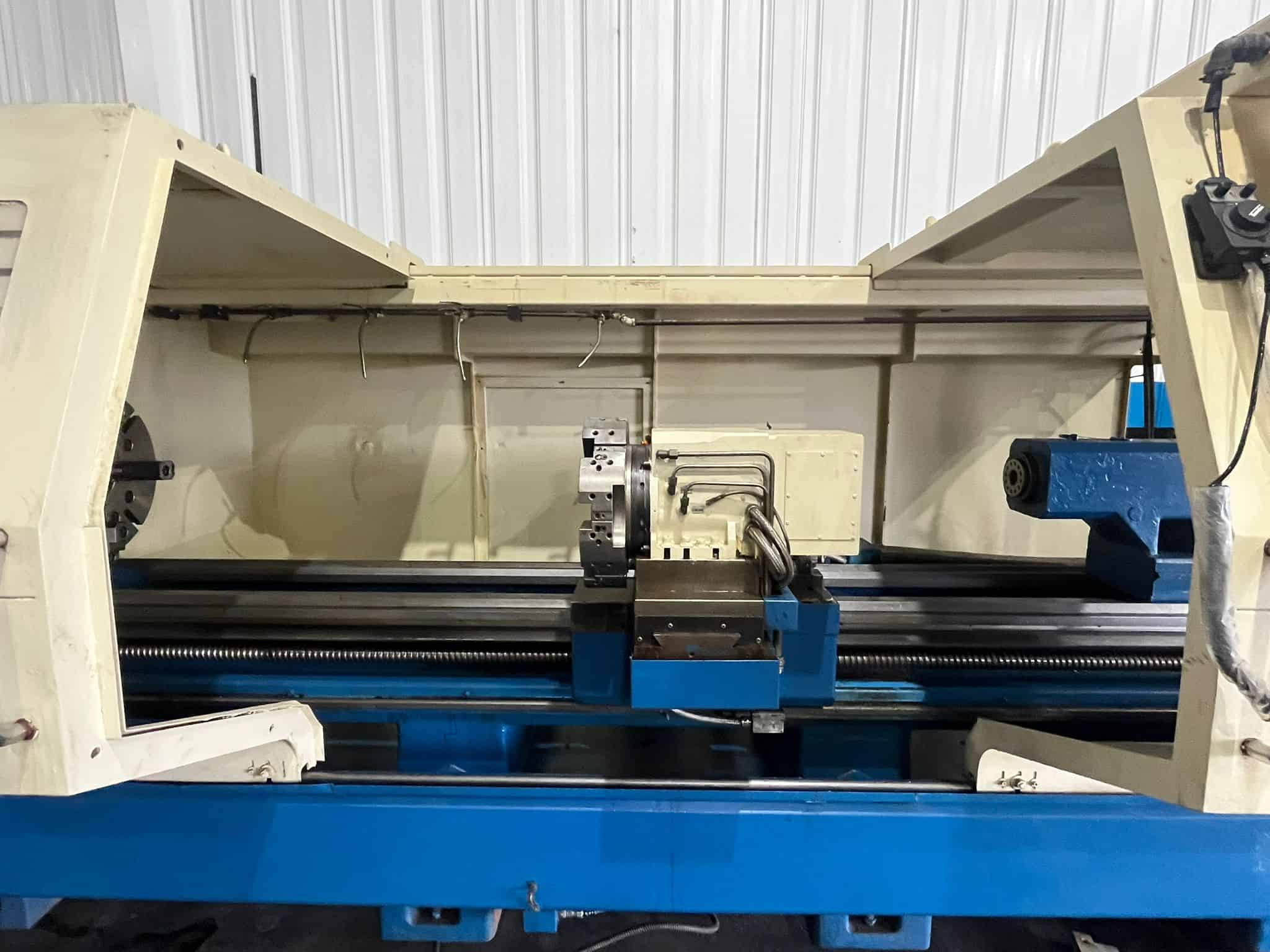

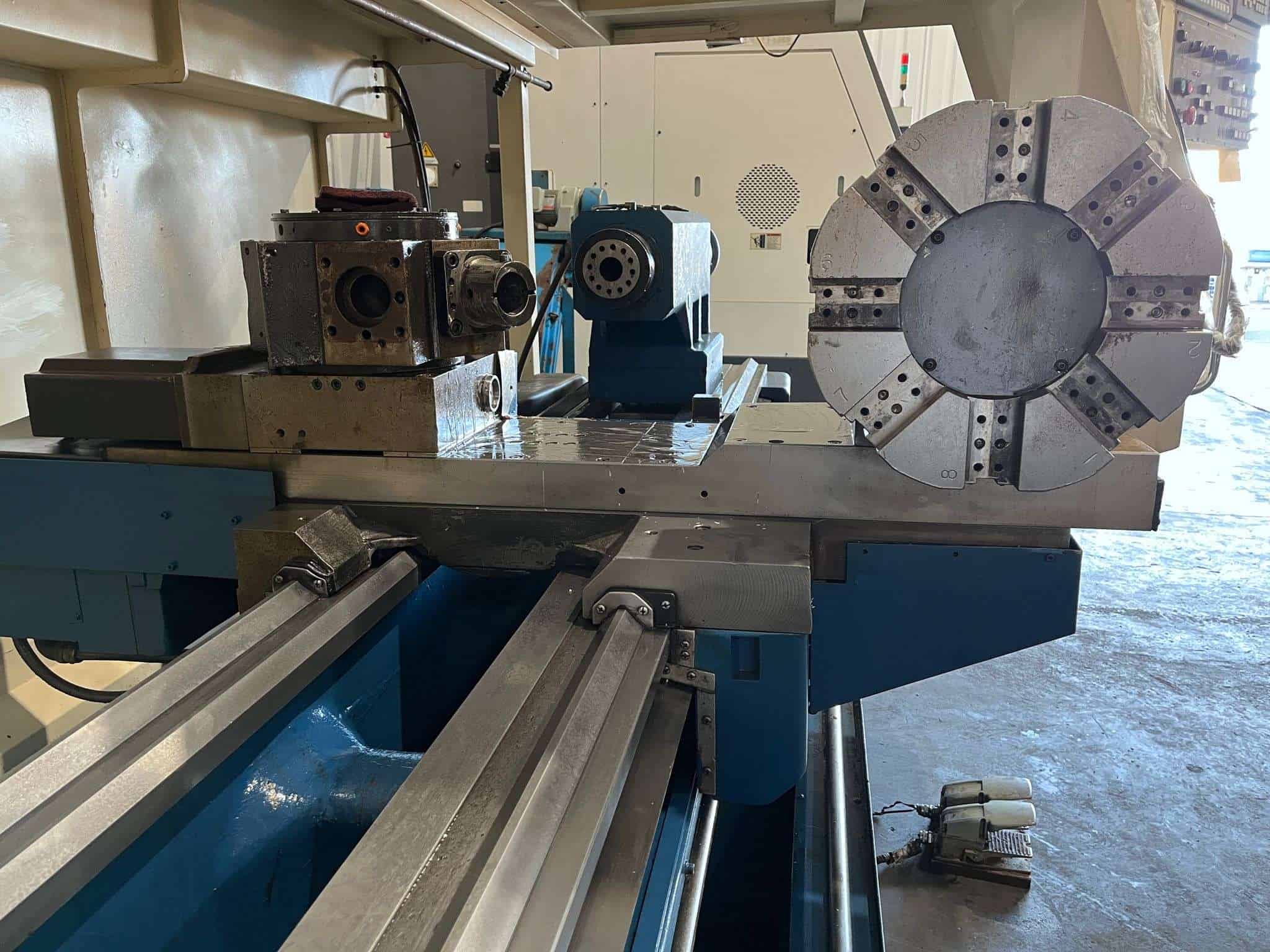

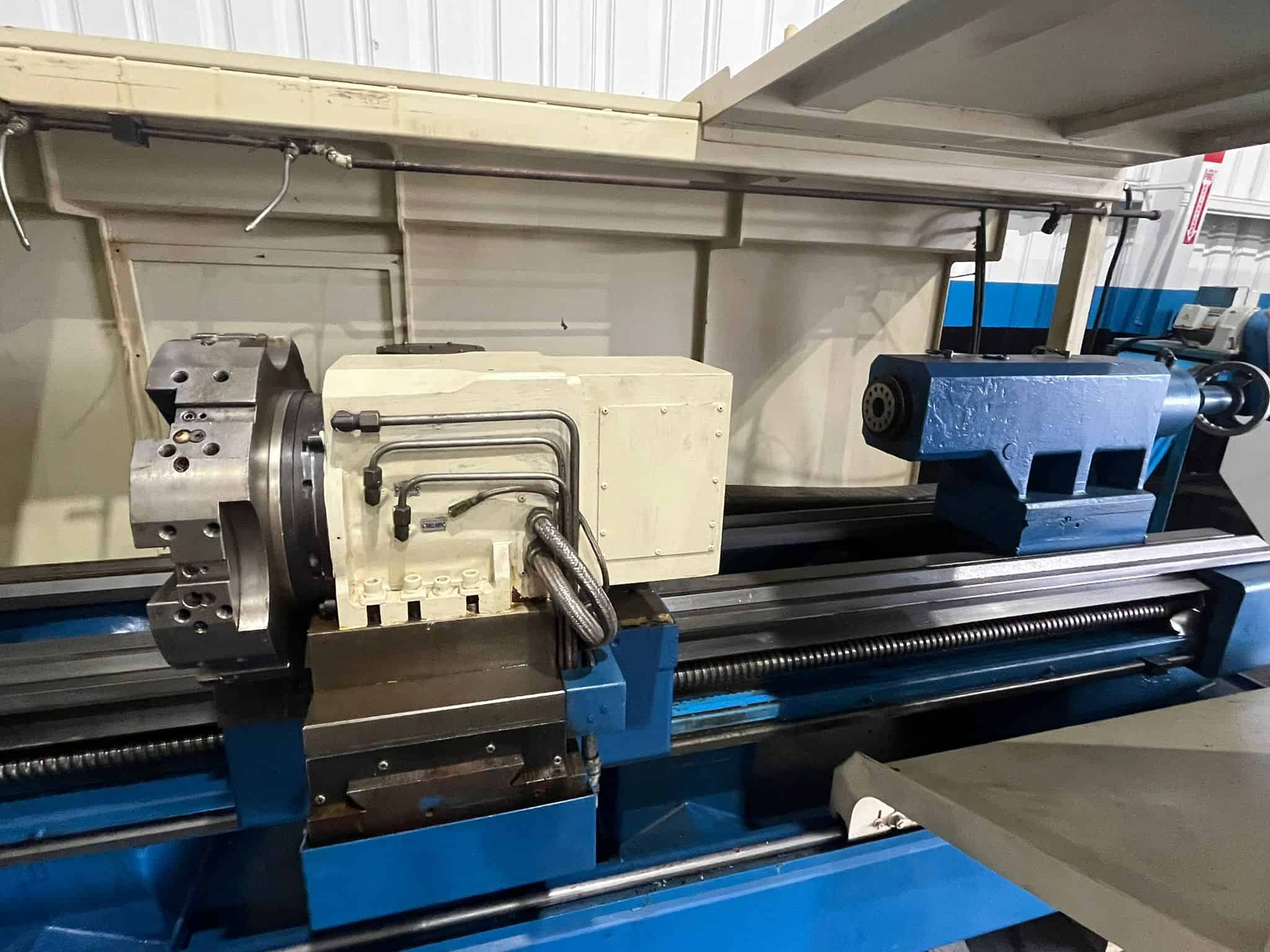

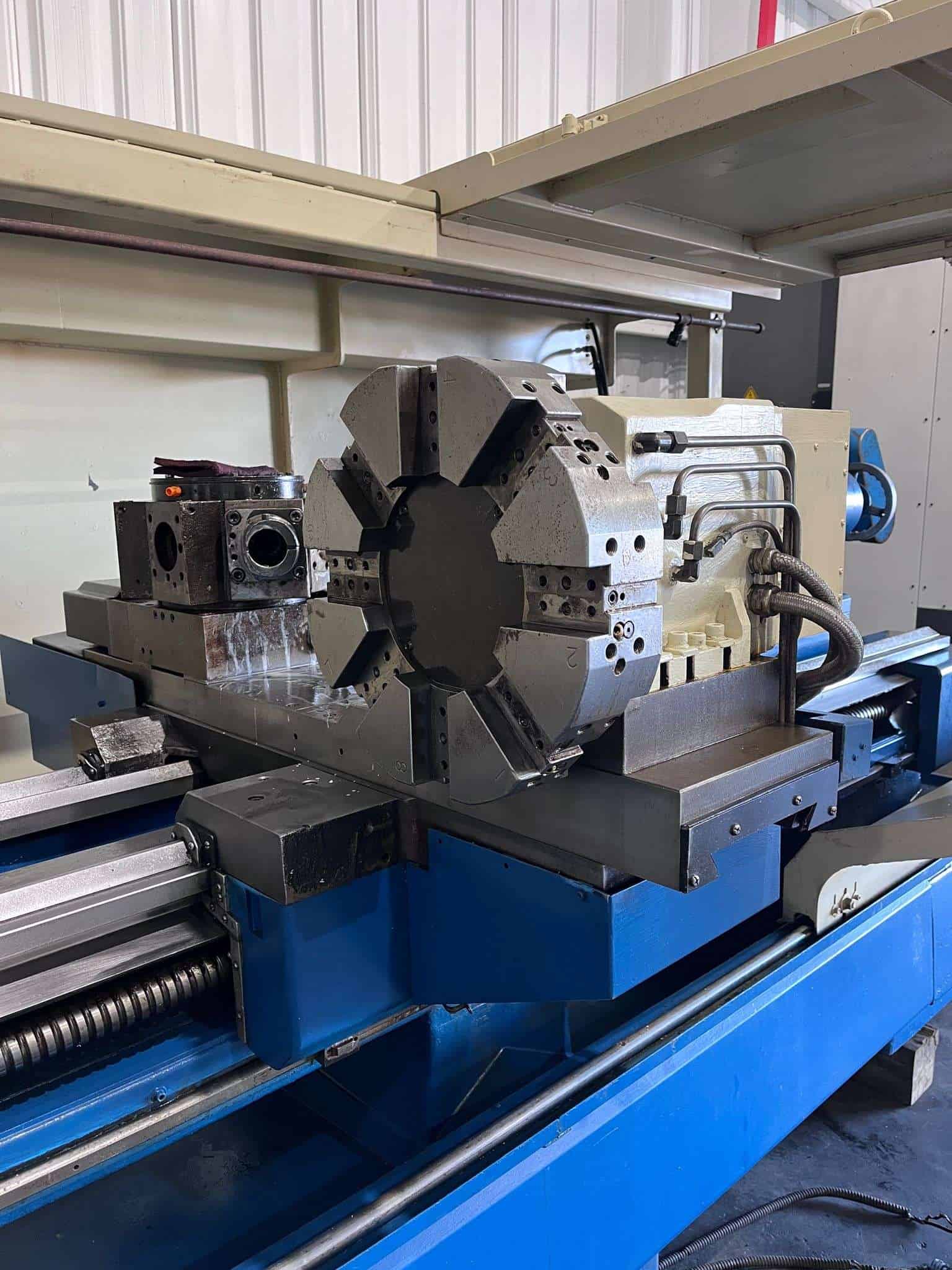

| Dual Turret (V8 Hydraulic & H6 Servo) |
| Tailstock |
| MPG Handwheel Control |
| Foot Switch |
| Levelling Pads |

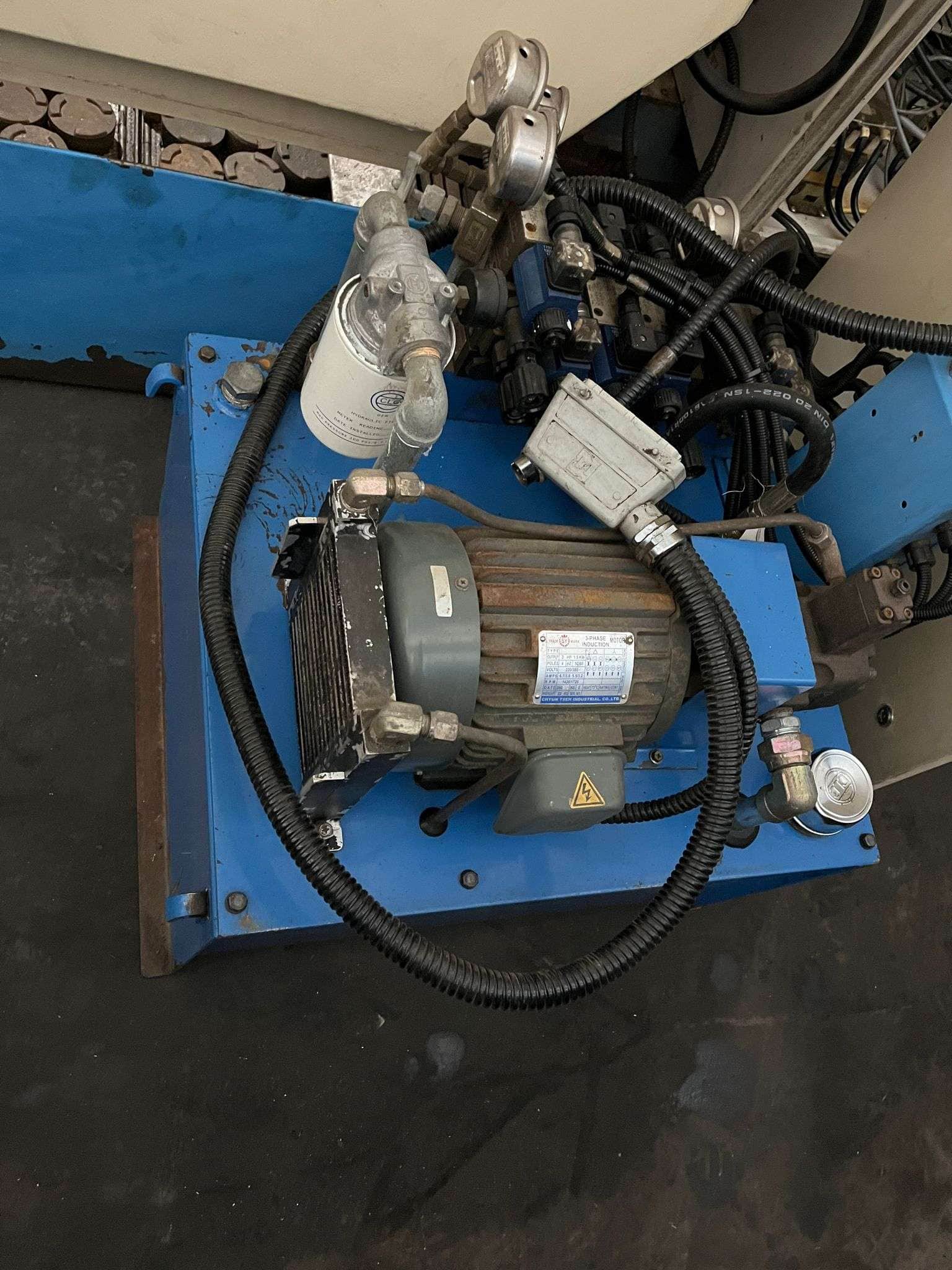

| Coolant System |

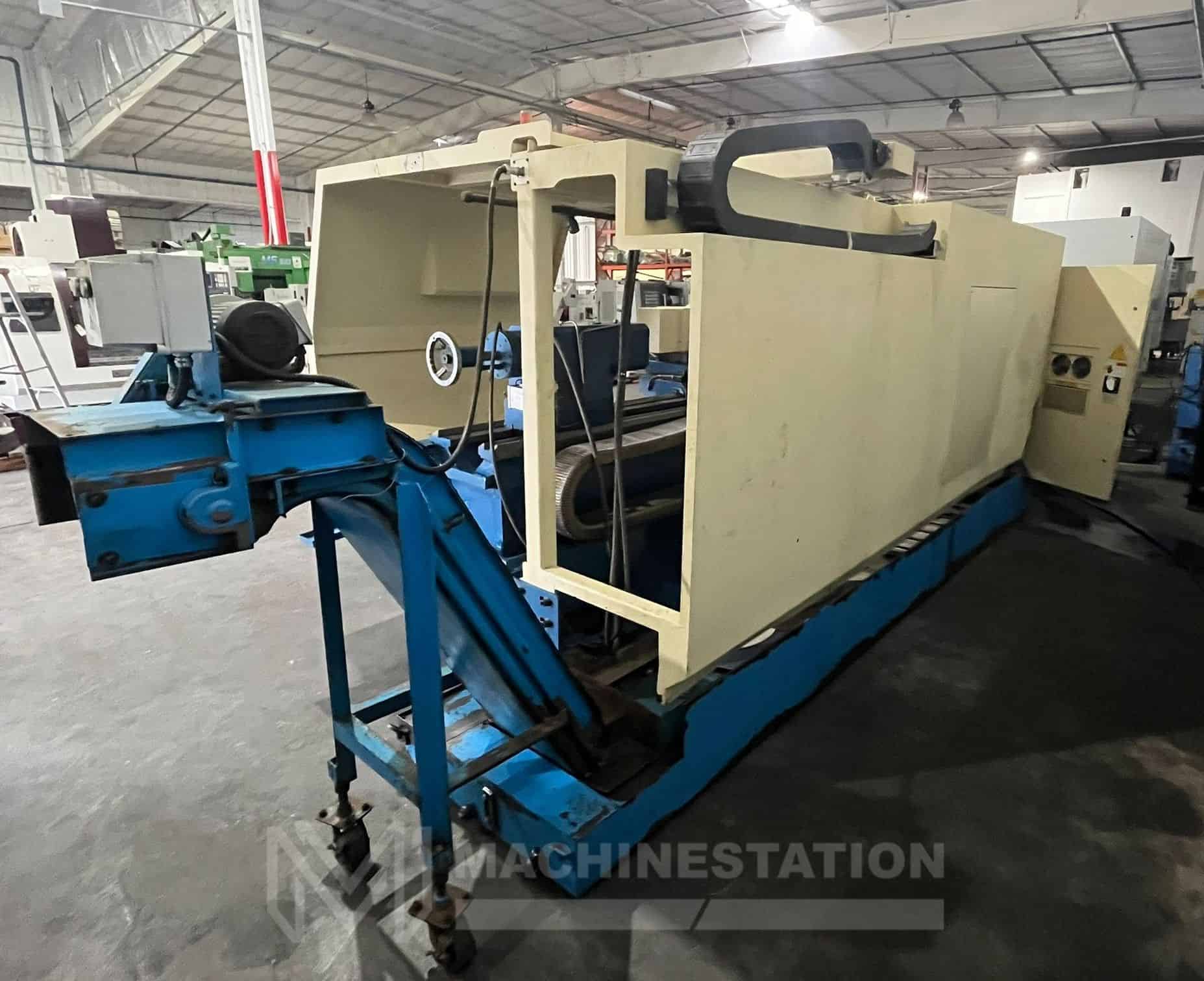

| Chip Pan and Chip Conveyor |
| Capacity: |
| Max Turning Diameter: 14.5″ |
| Max Turning Length: 120.0″ |
| Max Bar Capacity: 7.0″ |
| Swing Over Bed: 26.0″ |
| Width of Bed: 18.0″ |
| Distance Between Centers: 120.0″ |
| Travels: |
| X-Axis: 538.48 mm |
| Z-Axis: 3220.72 mm |
| Rapid Traverse X Axis: 1001 cm/min |
| Rapid Traverse Z Axis: 1001 cm/min |
| Spindle: |
| Spindle Nose: A2-15 |
| Spindle Bore: 7.3″ |
| Spindle Speed: 3 – 1000 RPM |
| Spindle Motor: 22.4 kW |
| Turret: |
| No. of Turrets : 2 Turrets |
| Turret Type: V8 Hydraulic & H6 Servo (Std) |
| Tailstock: |
| Tailstock Quill Dia.: 5.9″ |
| Tailstock Quill Stroke: 8.6″ |
| Tailstock Taper: MT-5 |
| General: |
| Power Source: AC 220 V, Three Phase, 60 Hz, 35 kva |
| Overall Dimensions: 273″ x 91″ x 79″ High Approx. |
| Weight : 8382.4 kg Approx. |
