*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: |
112877 |
| Make: |
Litz Hitech |
| Model: |
CV-1000 |
| Year of Manufacture: |
2007 |
| Equipped With: |

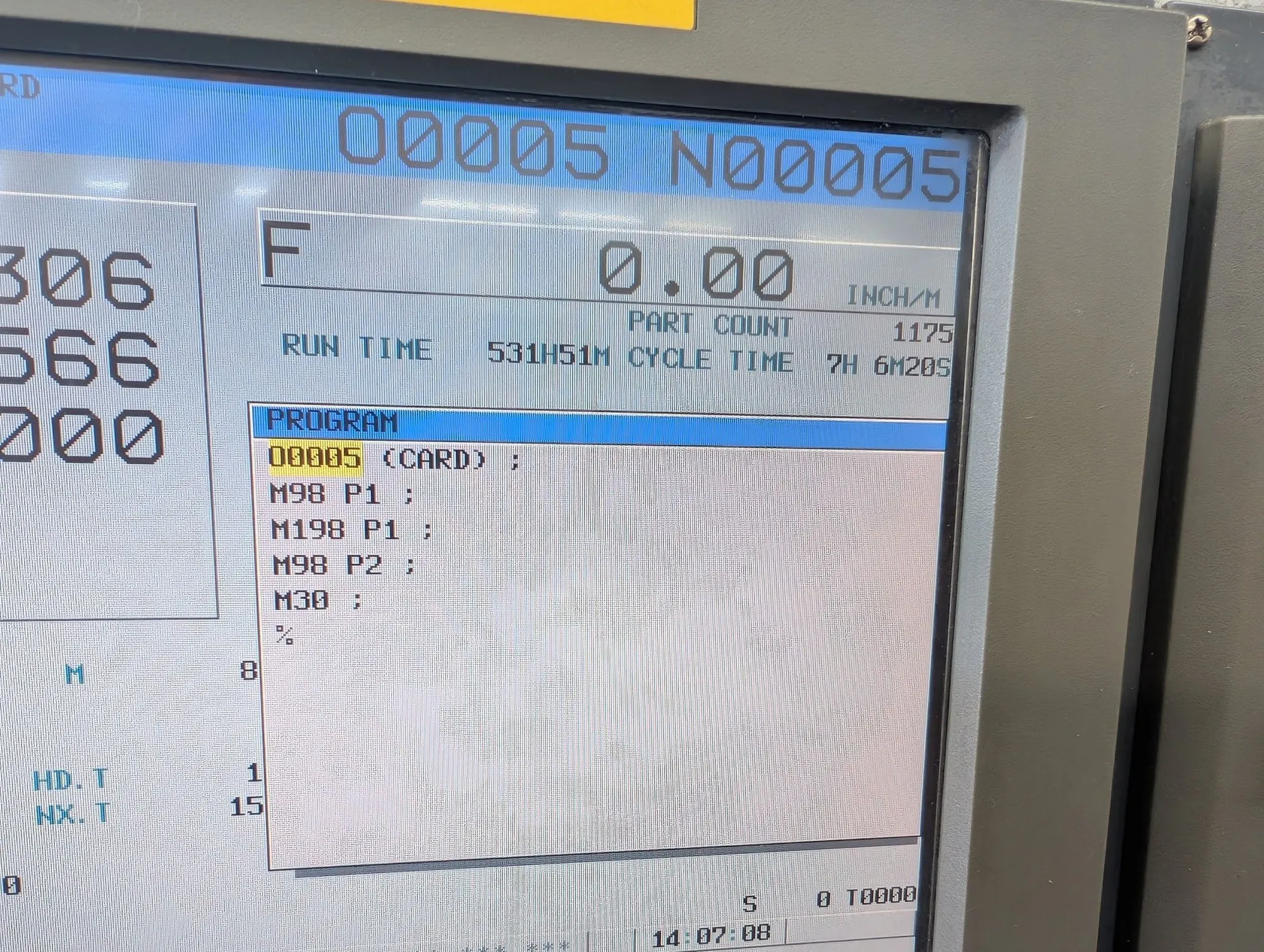

- Fanuc 18i-MB CNC Control
- 8000 RPM High Speed Spindle
- 24 Station Automatic tool changer
- Spindle head coolant cooling system
- Table riser block
- Dual Chip Auger
|

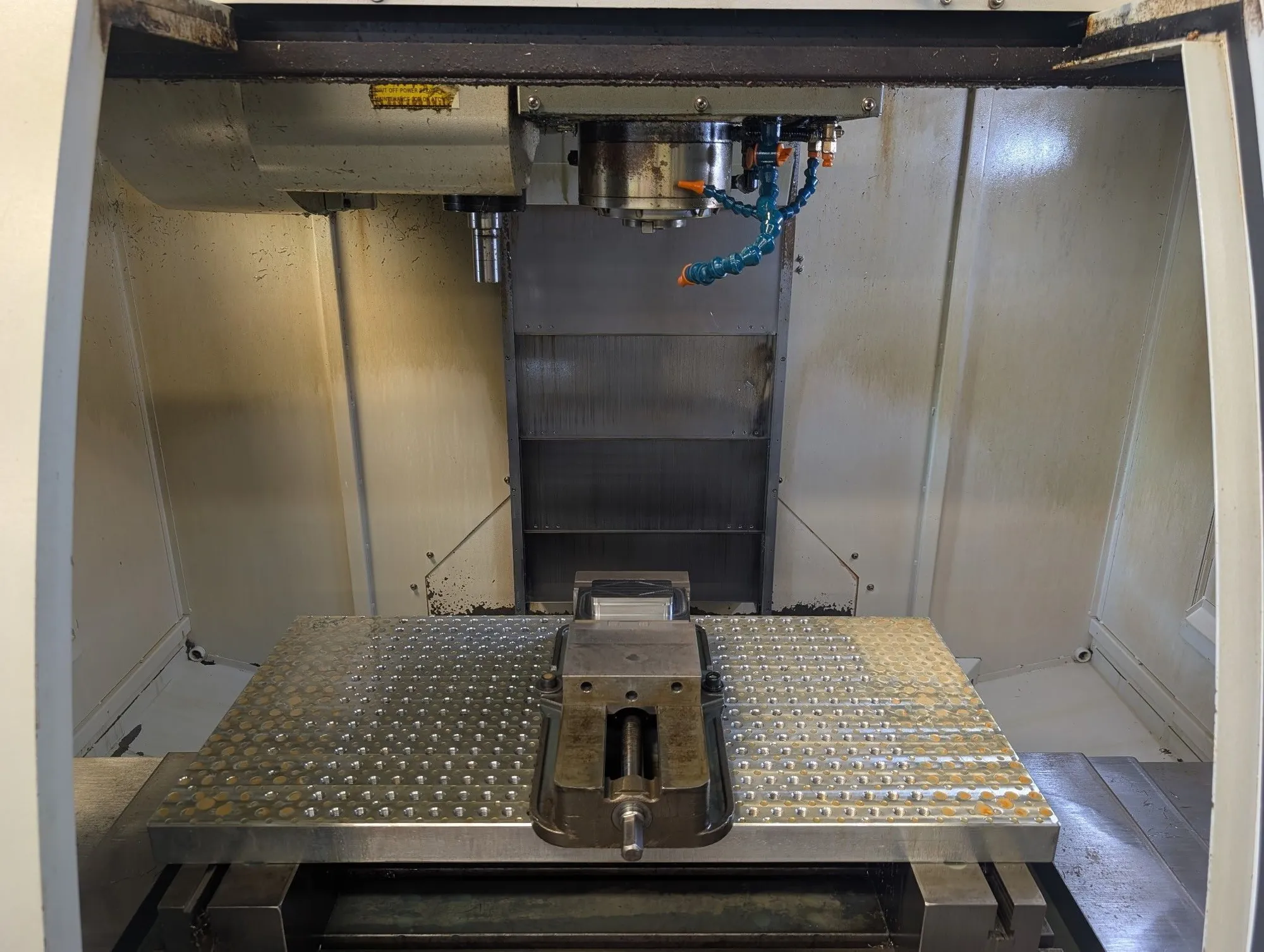

| Table: |
- Length: 39.37″
- Width: 22.05″
- Number of Std T-Slots: 5
- Max Weight on Table: 749.8 kg
|
| Travel: |
- X-Axis: 40.16″
- Y-Axis: 22.05″
- Z-Axis: 23.62″
- Rapid Traverse Rates X & Y Axis: 1417 Inch Per Minute
- Rapid Traverse Rates Z Axis: 944 Inch Per Minute
- Cutting Feed Rates: 787 Inch Per Minute
- Spindle Nose to Table(Min.- Max.):4.72- 28.34
|
| Automatic Tool Changer: |
- Capacity: 24 Station
- Max Tool Dia: 3.15″
- Max. tool length: 11.81″
- Max. tool weight: 8 kg
|
| Spindle: |
- Taper Size: 40
- Speed Range: 8000 RPM
- Spindle Power:8.2 kW
|
| General: |
- Air Required: 85 psi 6 scfm
- Power: 220v / 50/60 Hz / 3-Phase / 40 kva
- Weight: 7499.7 kg
|
