*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112876 |

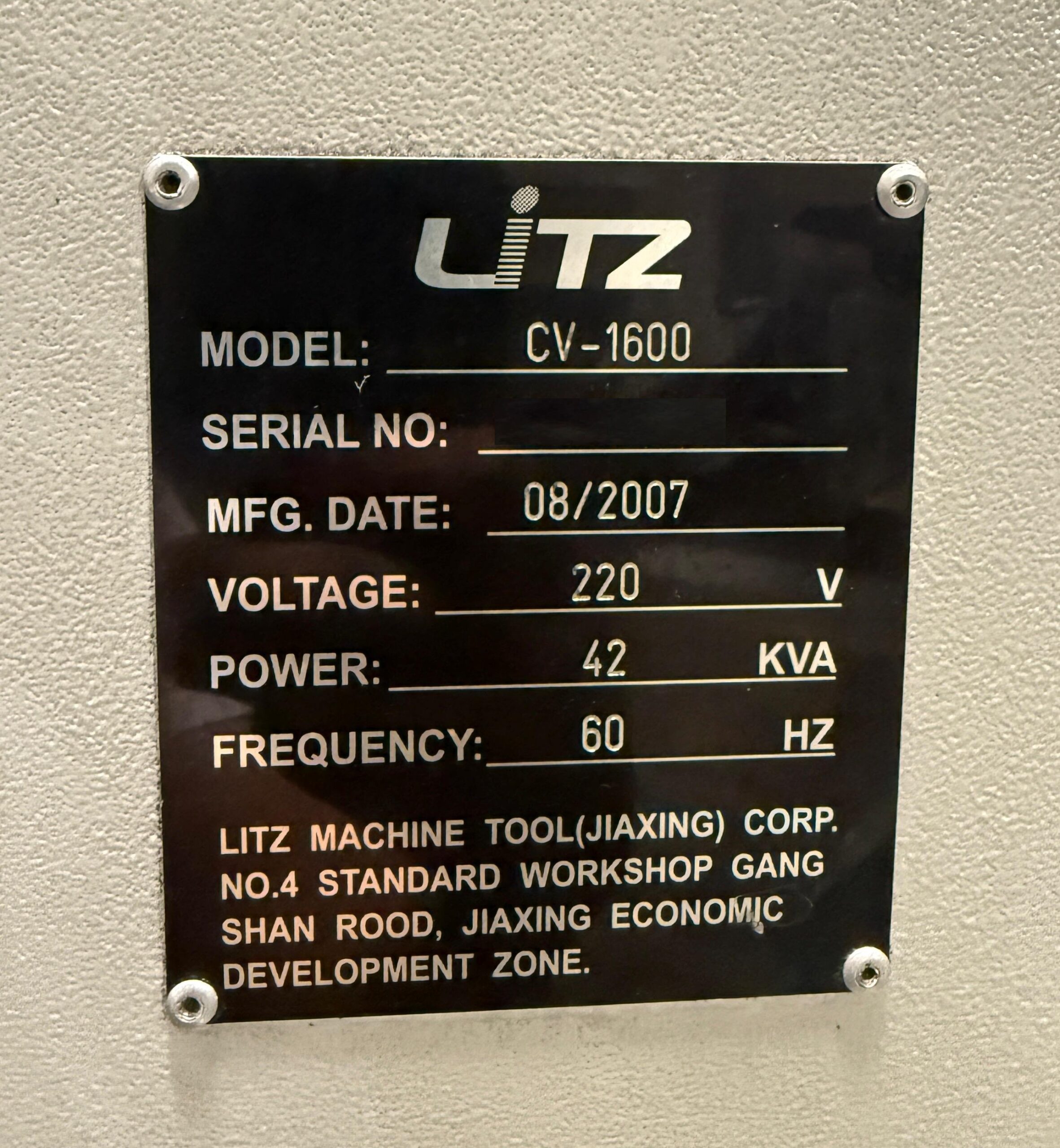

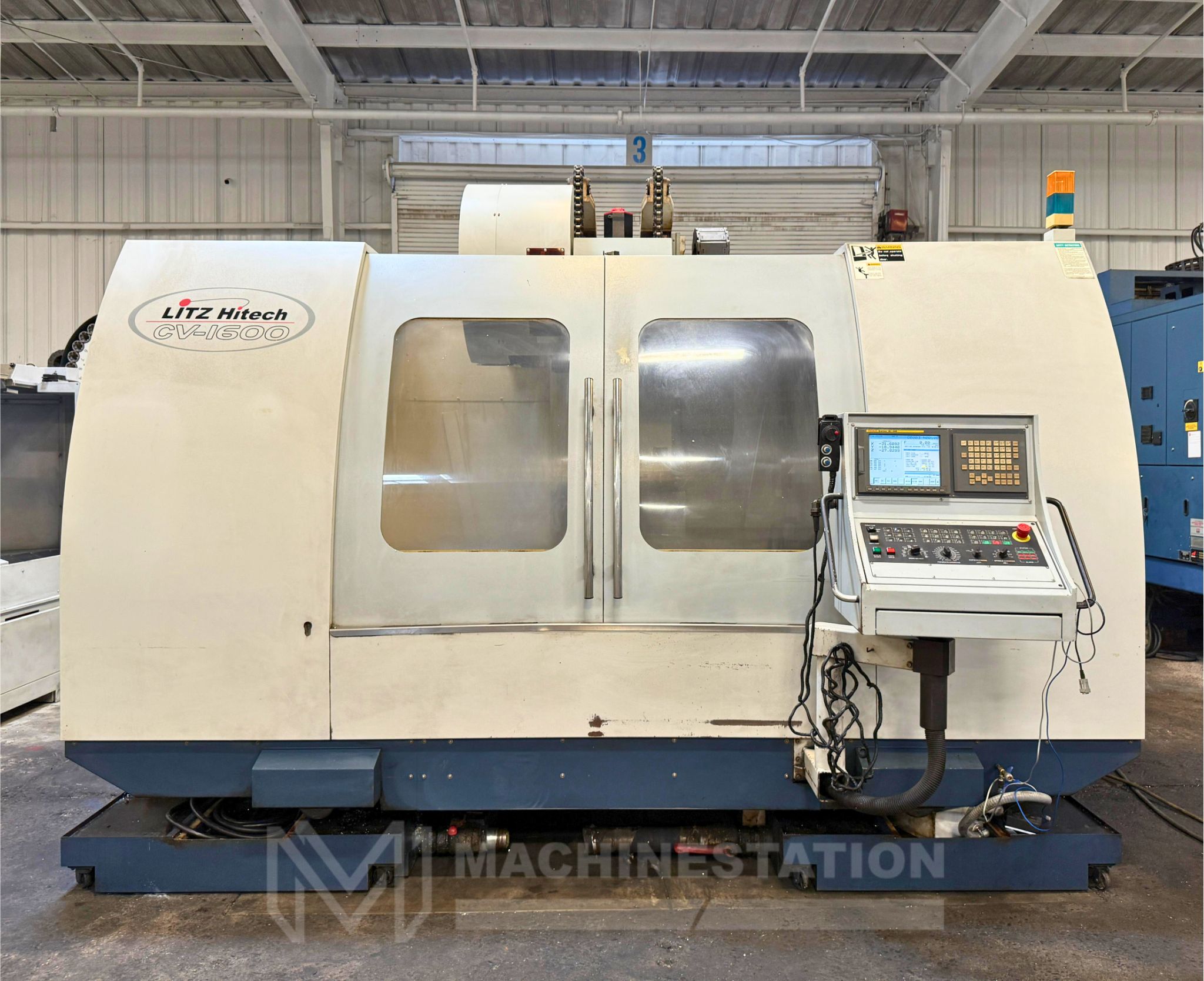

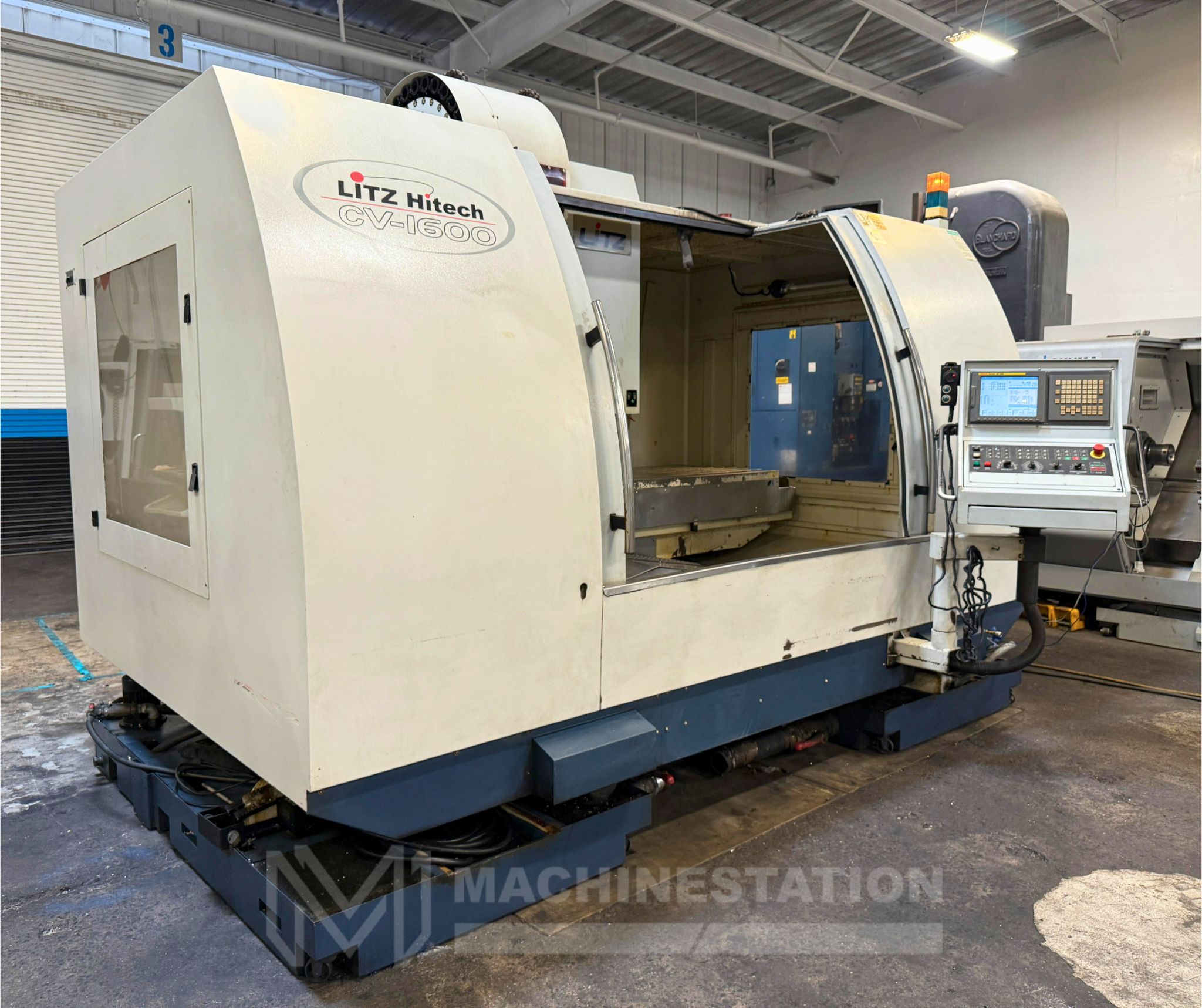

| Make: | Litz Hitech |
| Model: | CV-1600 |
| Year of Manufacture: | 2007 |
| Equipped With: |
|---|

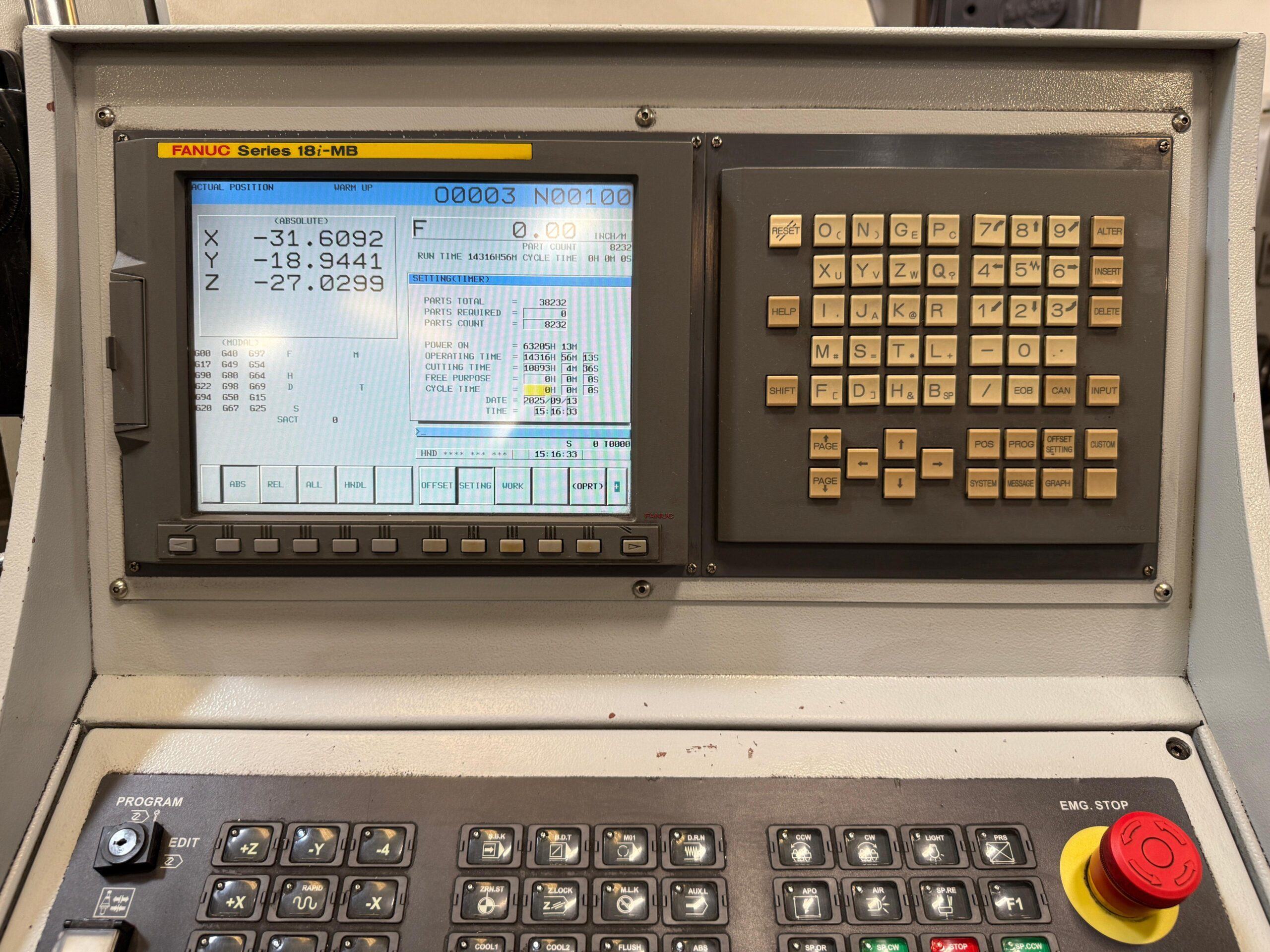

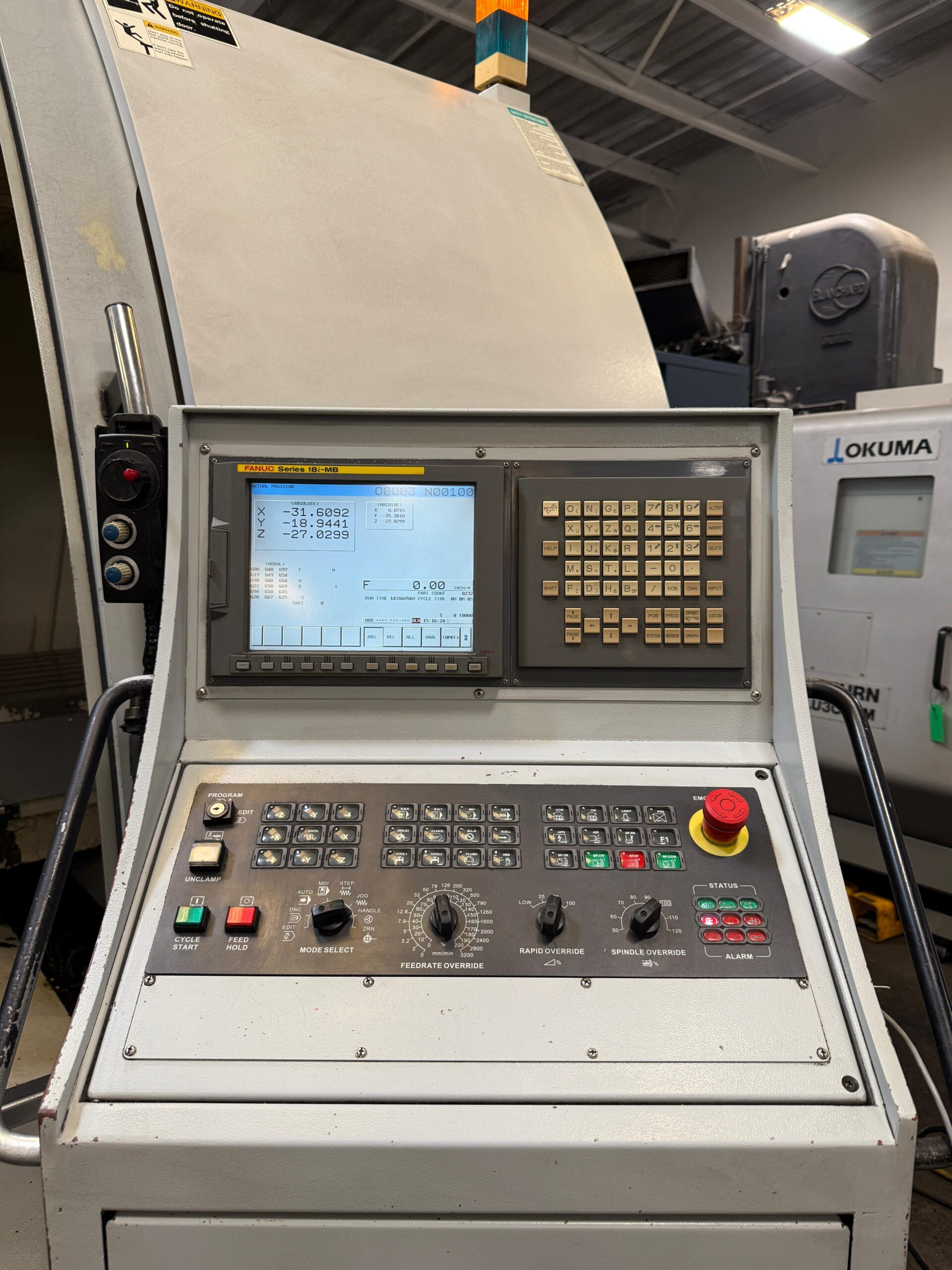

| Fanuc Series 18i-MB CNC Control |
| Linear Guideways Construction |
| 10,000 RPM High Speed Spindle |
| 40 Spindle Taper |
| 30 Station Automatic tool changer |

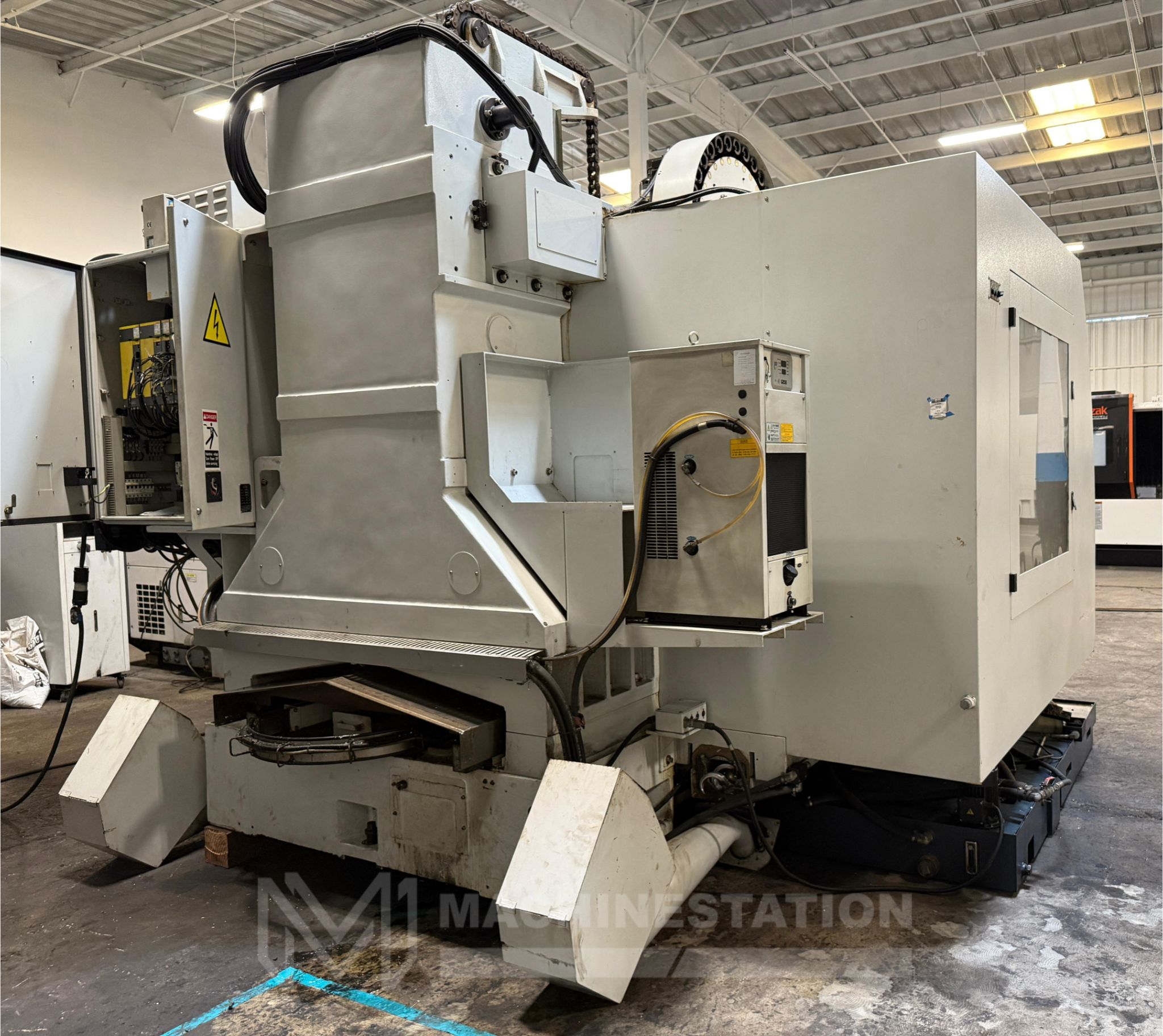

| Spindle Chiller Unit |
| MPG Hand Wheel Control |
| Rigid Tapping |

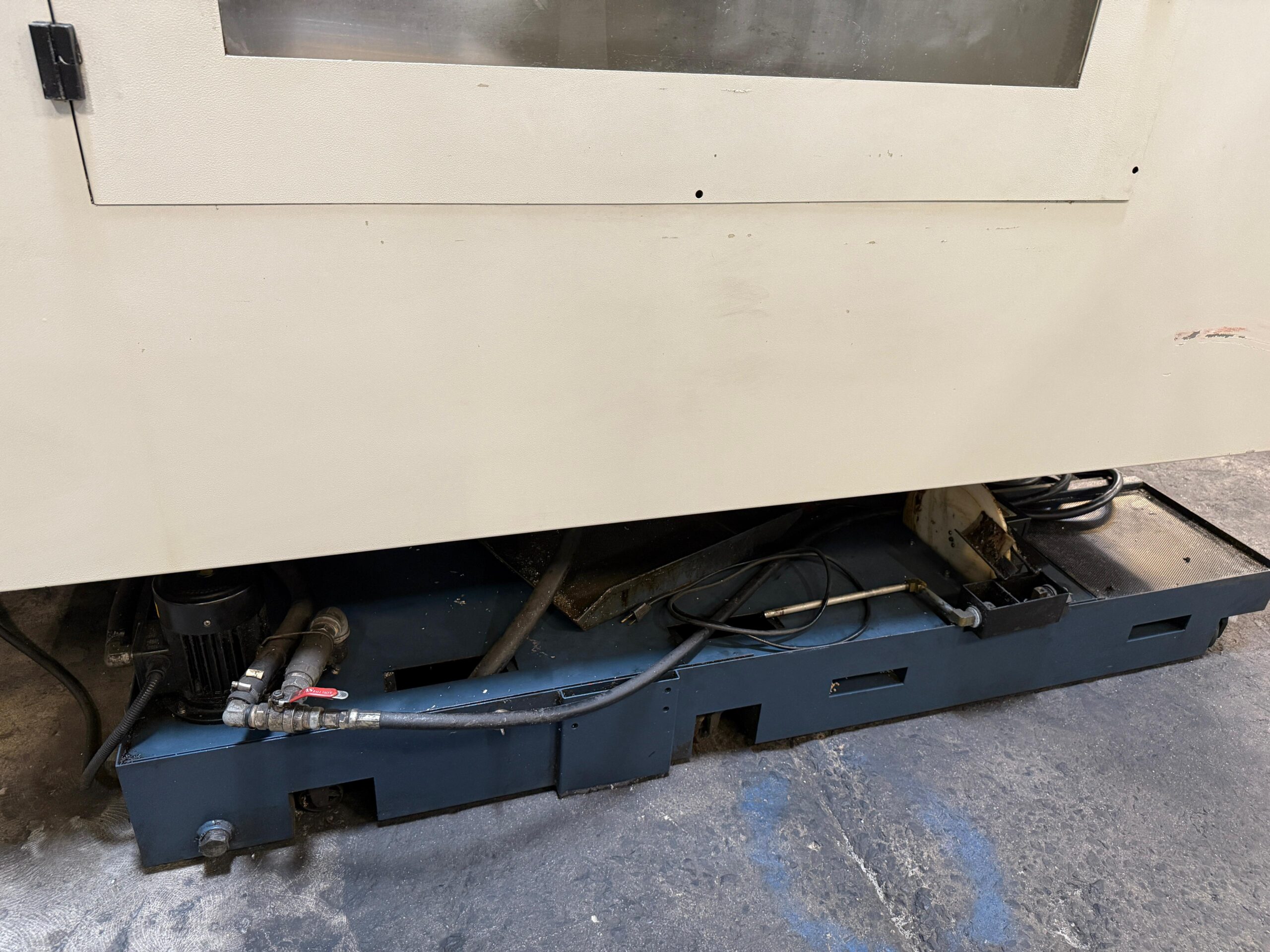

| Coolant System |
| Dual Chip Auger |

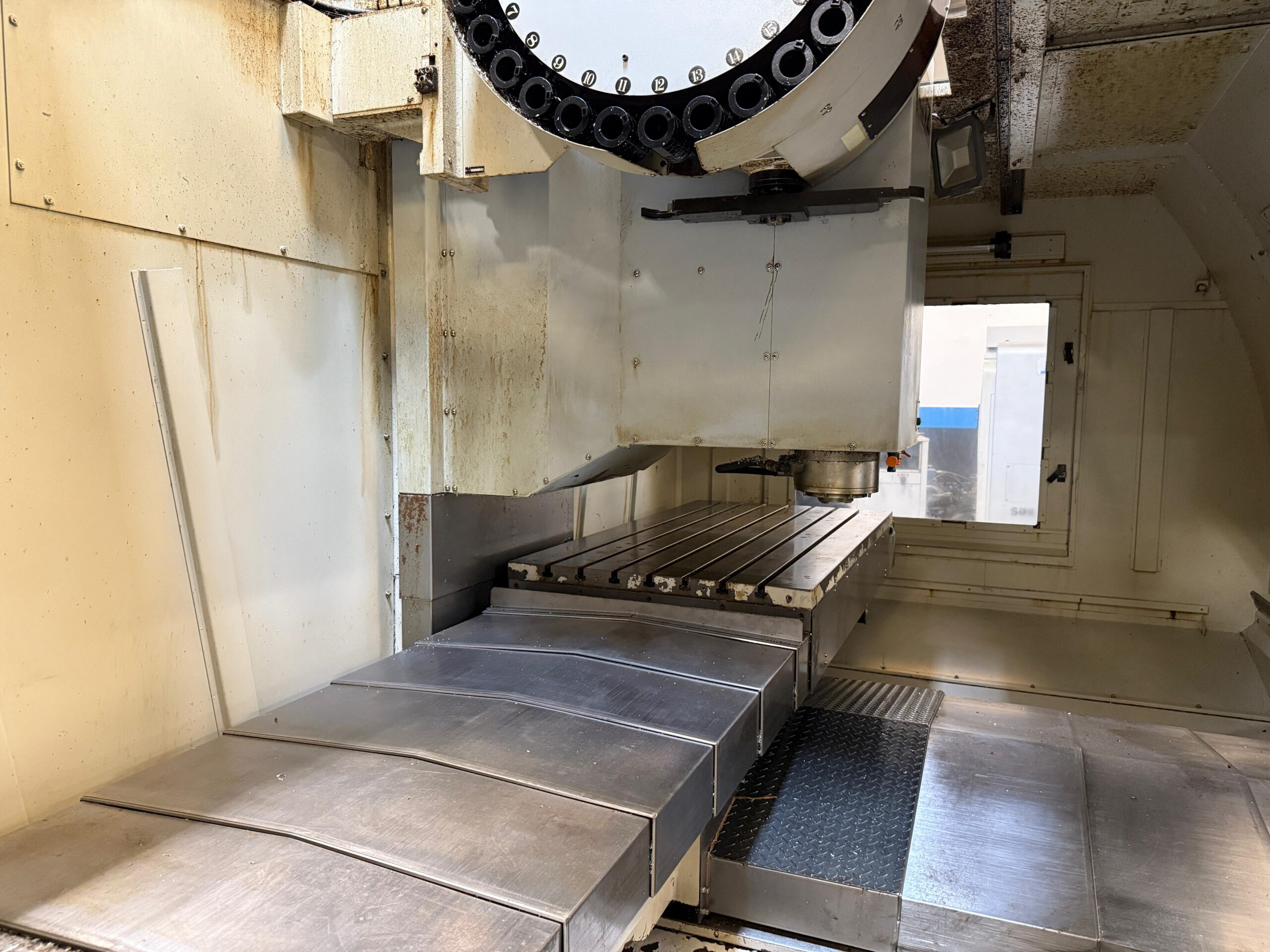

| Table: |
|---|
| Length: 1700.02 mm |
| Width: 33.46″ |
| Number of Std T-Slots: 7 |
| Max Weight on Table: 2000.3 kg |
| Travel: |
|---|
| X-Axis: 1599.95 mm |
| Y-Axis: 899.92 mm |
| Z-Axis: 799.85 mm |
| Rapid Traverse Rates X & Y Axis: 787 Inch Per Minute |
| Rapid Traverse Rates Z Axis: 590 Inch Per Minute |
| Cutting Feed Rates: 314 Inch Per Minute |
| Spindle Nose to Table: (Min.- Max.): 99.82 mm – 899.92 mm |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station |
| Max Tool Dia: 124.99 mm |
| Max. tool length: 350.01 mm |
| Max. tool weight: 15 kg |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 14.9 kW |
| General: |
|---|
| Air Required: 85 psi 6 scfm |
| Power: 220v / 50/60 Hz / 3-Phase / 42 kva |
| Weight: 18999.6 kg |
