*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

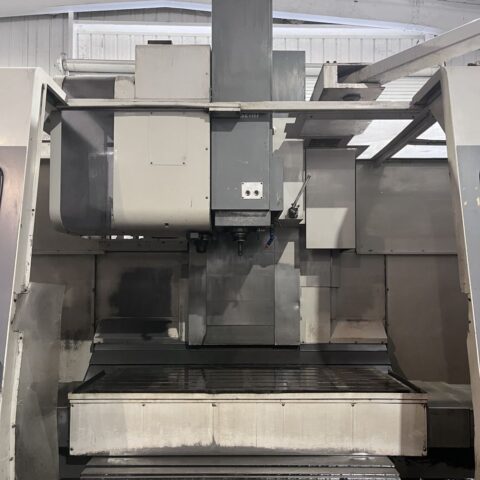

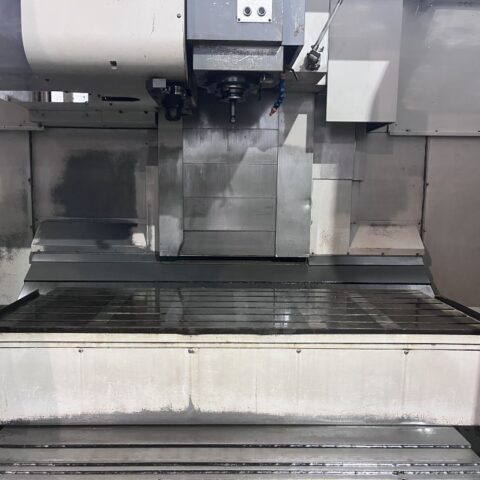

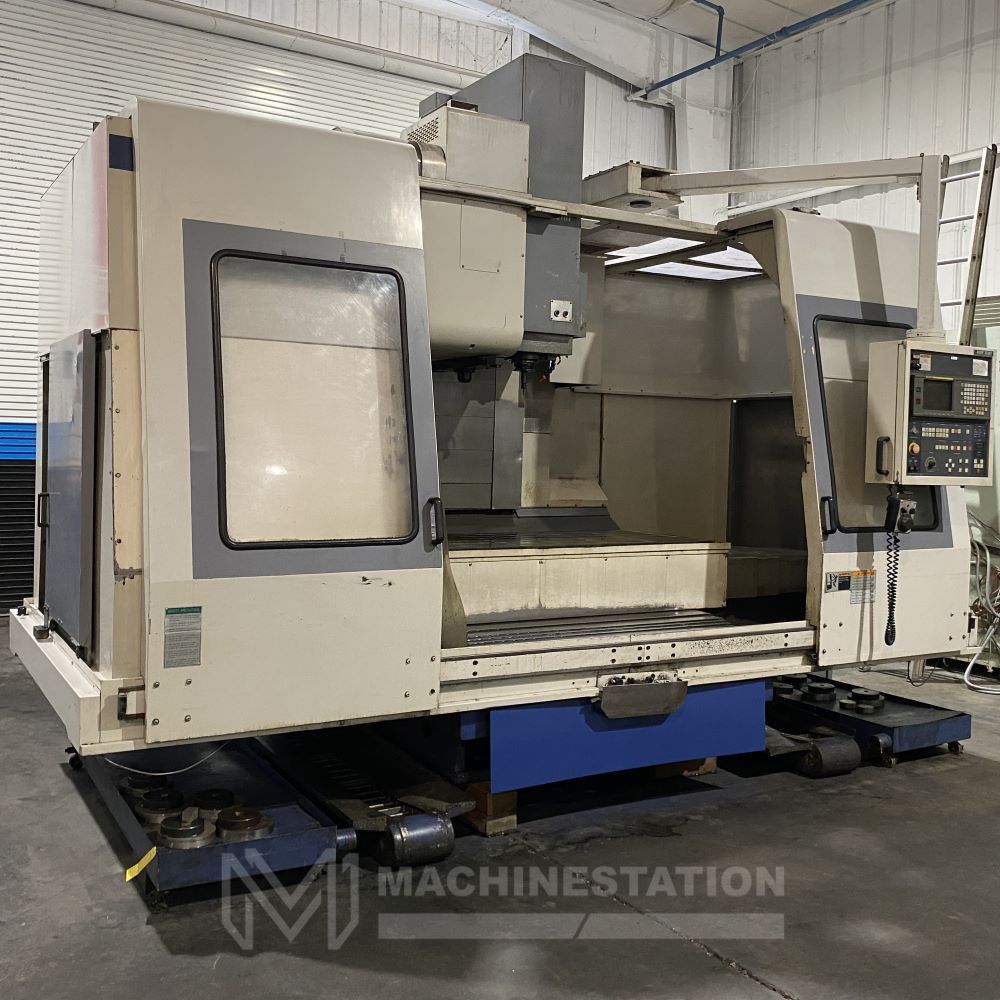

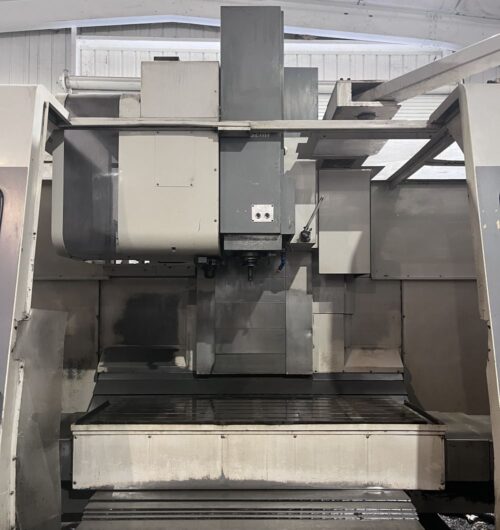

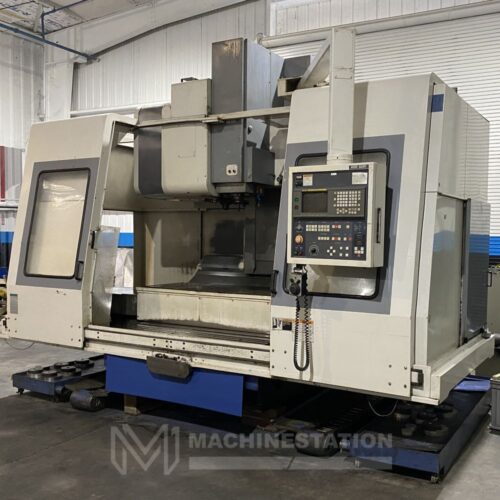

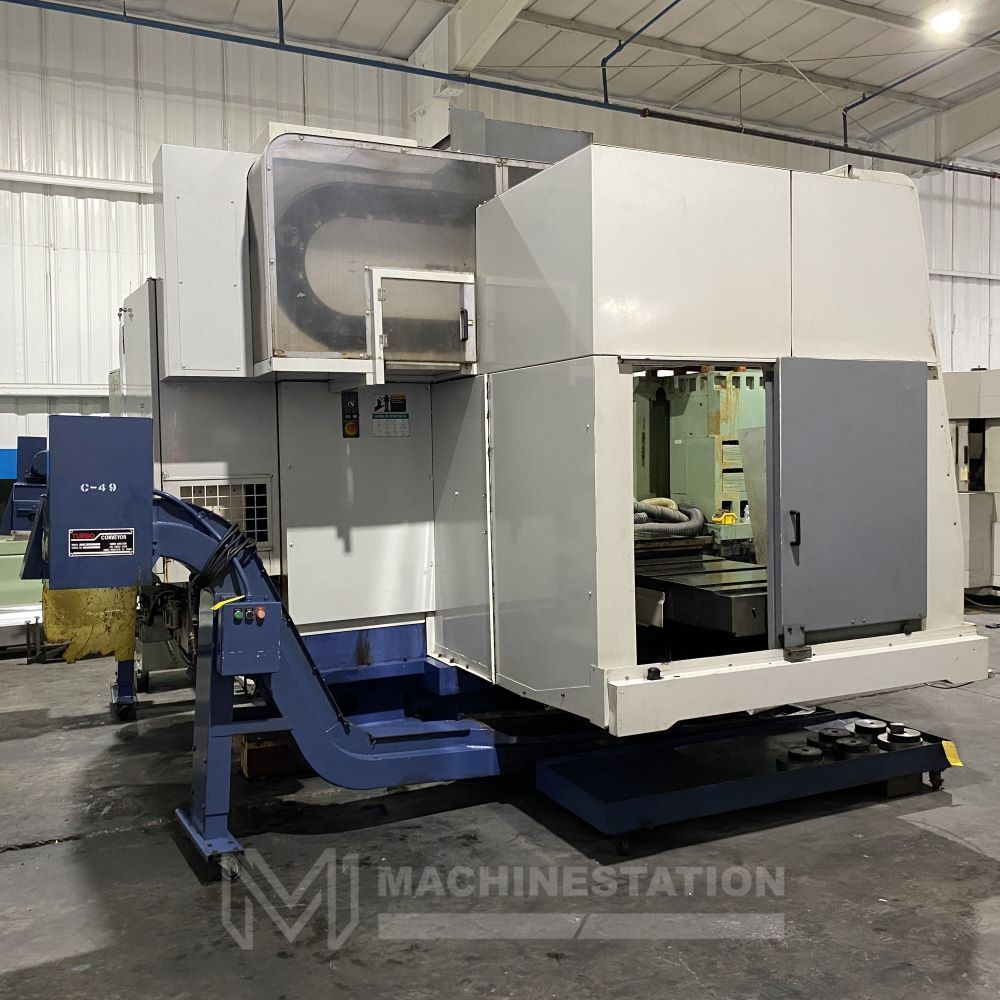

| Make: | MORI SEIKI |
| Model: | MV65/50 |
| Year: | 1997 |
| Condition: | Used – Good |
| Features: |
|---|

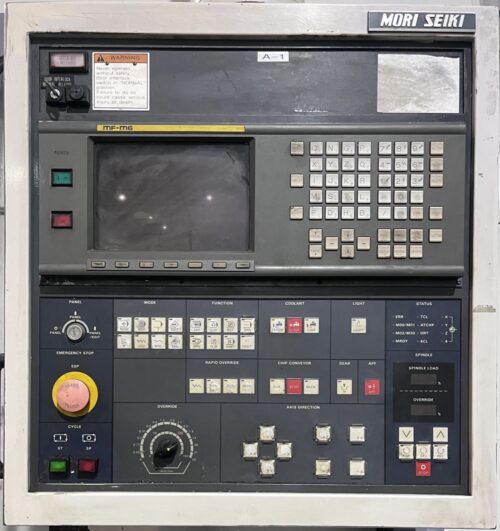

| Mori Seiki MF-M6 ( Fanuc) CNC Control |
| 4th Axis Ready |
| Box Ways Construction |
| 50 Taper 4000 RPM Spindle |
| 26.1 kW Spindle Drive |

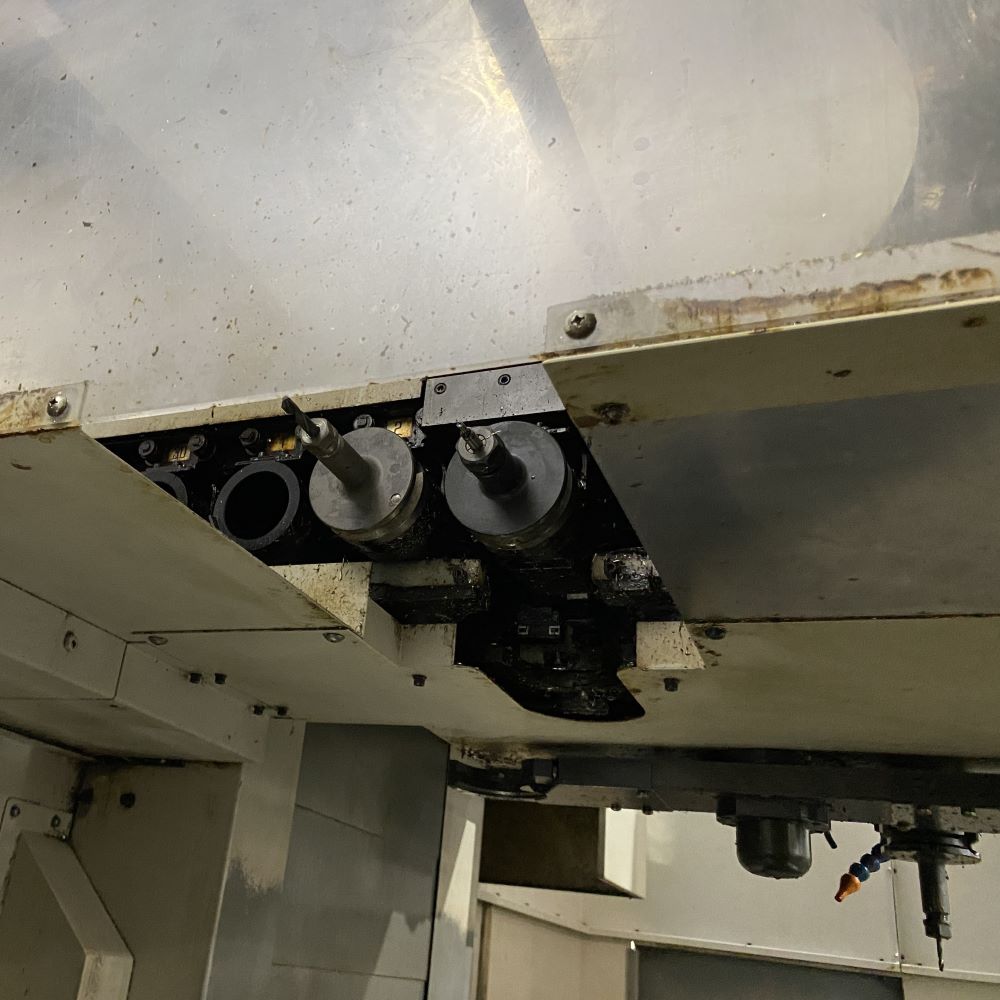

| 30 Station Side Mount Tool Changer |

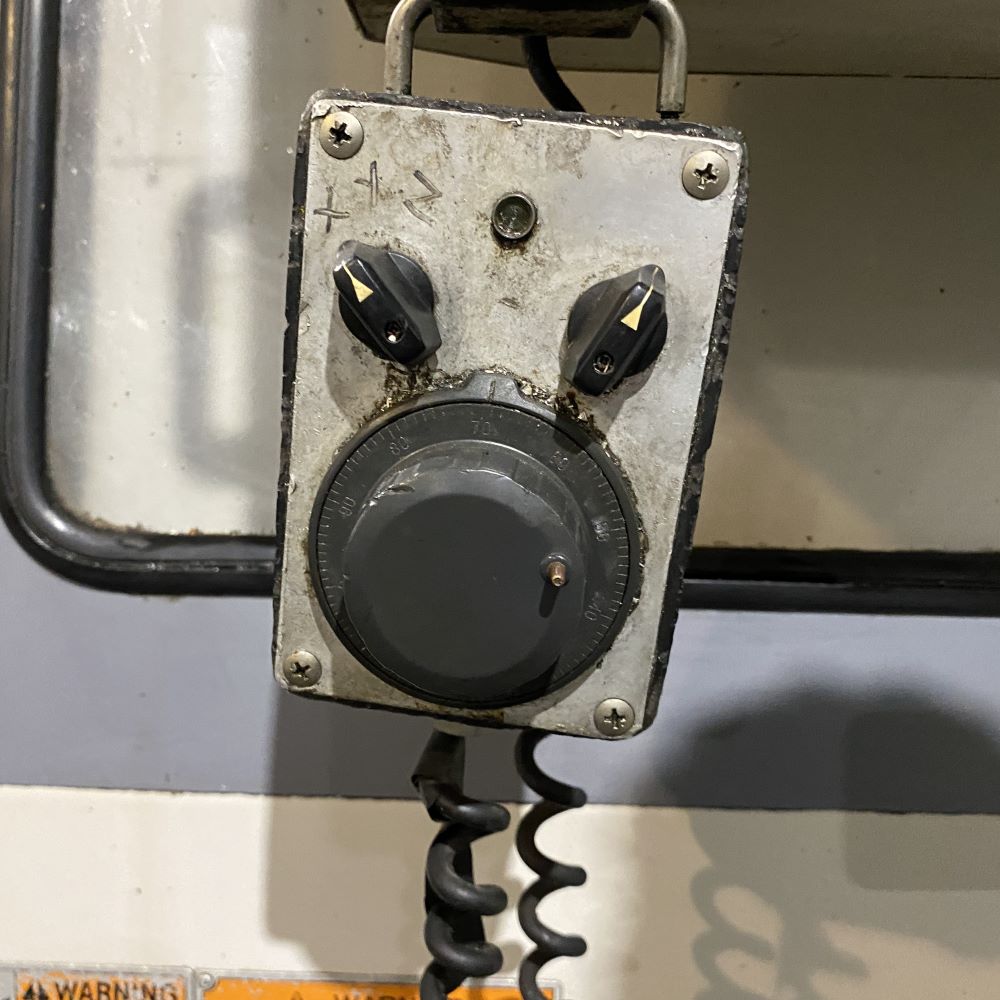

| MPG Hand Wheel Control |
| RS-232 Port |
| Spindle Orientation |
| Rigid Tapping |

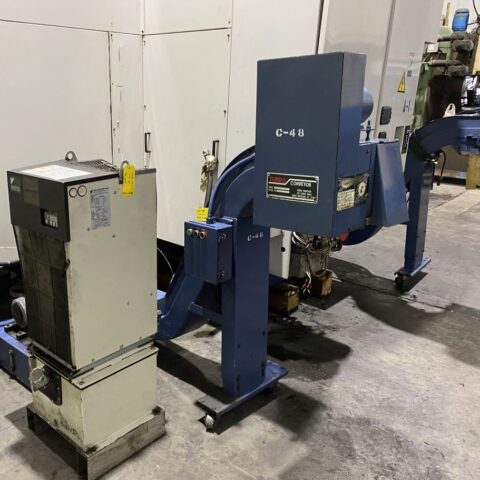

| Spindle Chiller Unit |
| Coolant System |

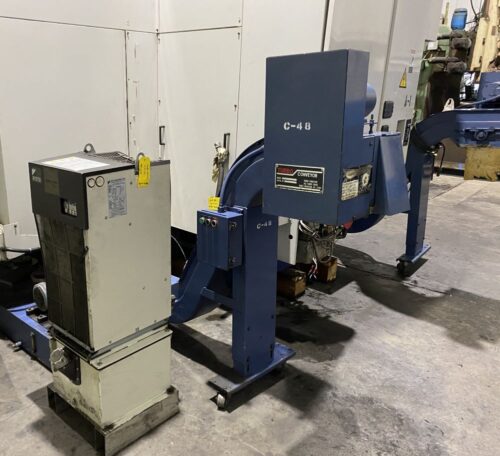

| Dual Chip Conveyor |
| Books and Manuals |

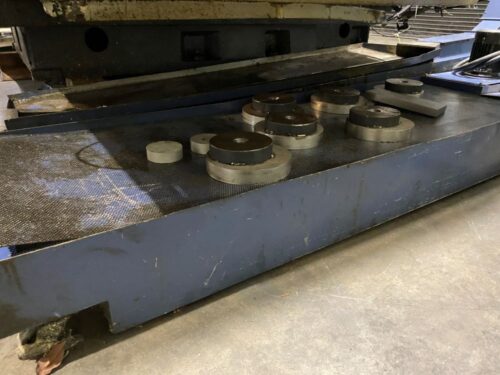

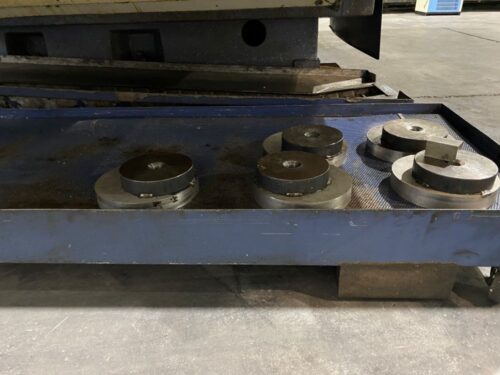

| Levelling Pads |
| Travels: |
|---|
| X-Axis: 60″ |
| Y-Axis: 25″ |
| Z-Axis: 25″ |
| Rapid Traverse Rate: 1499 cm/min |

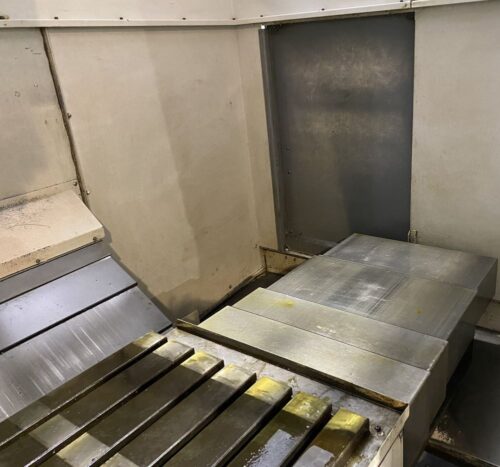

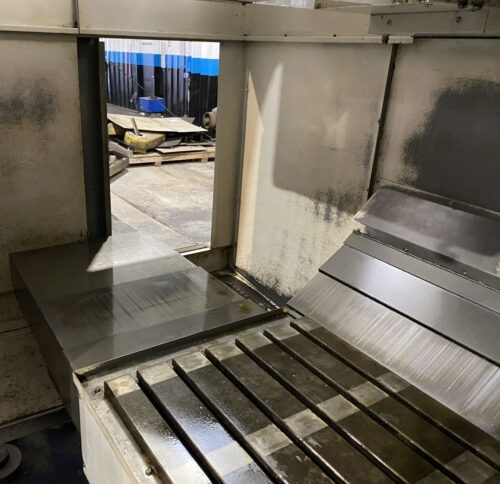

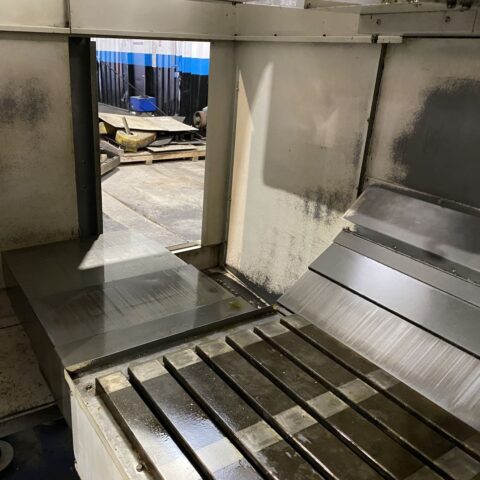

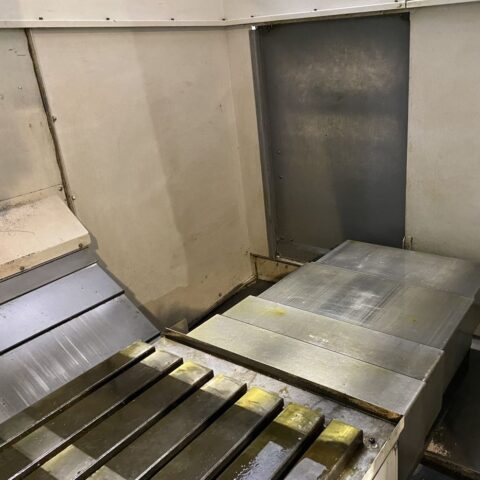

| Table: |
|---|
| Length: 66″ |
| Width: 26″ |
| Max Weight on Table: 1999.9 kg |

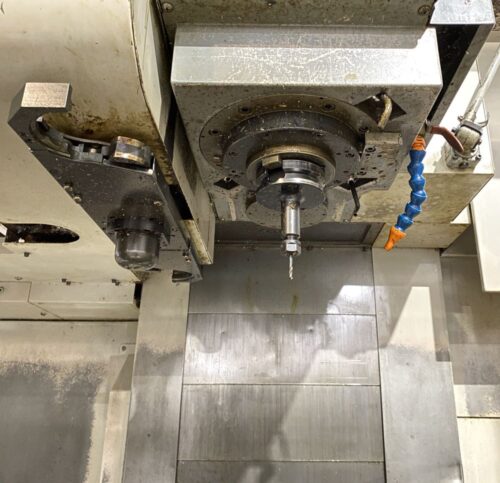

| Spindle: |
|---|
| Taper Size: CAT-50 |
| Speed Range: 4000 RPM |
| Spindle Power: 26.1 kW |

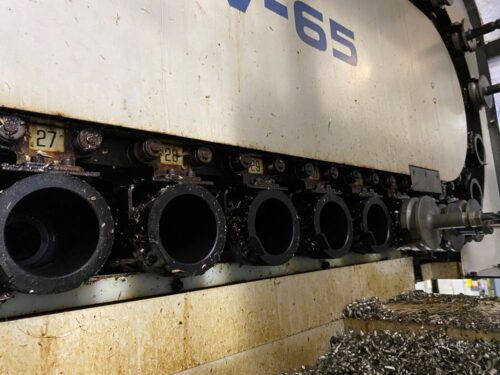

| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 15 kg |
| Max Tool Length: 13.78″ |
| Max Tool Diameter: 4.90″ |
| General: |
|---|
| Air Required: 80 psi 4 scfm |

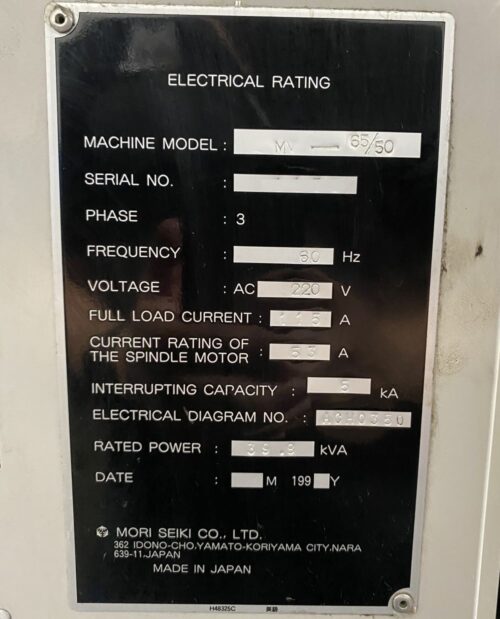

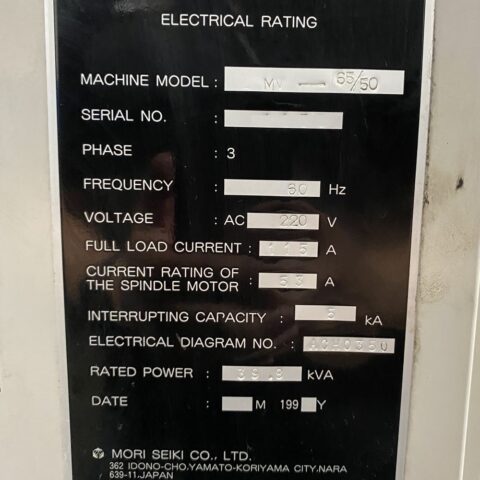

| Power: 220v / 66FLA / 3-Phase / 39.8 kva |
| Overall Dimensions: 169″ x 145″ x 122″ High |
| Weight: 13999.7 kg. Approx. |
