*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

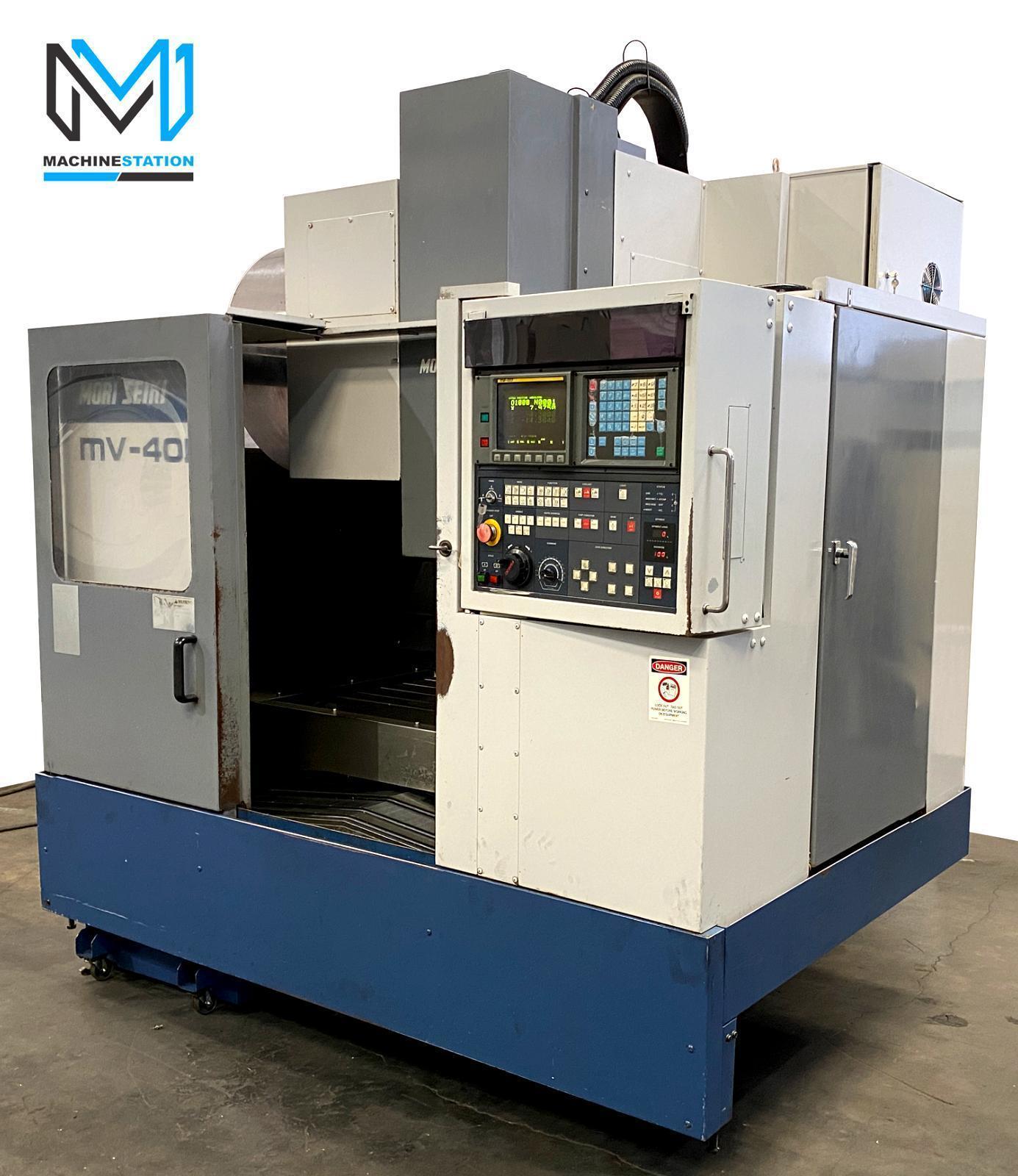

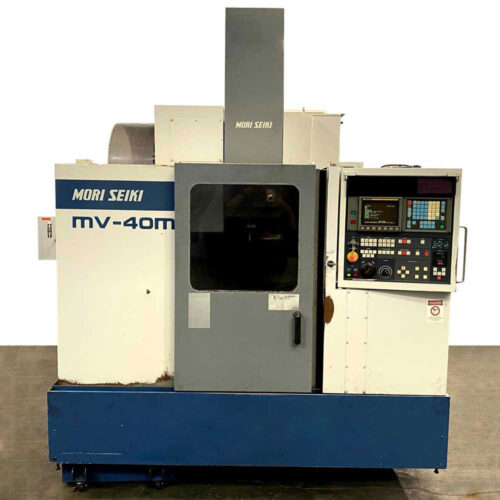

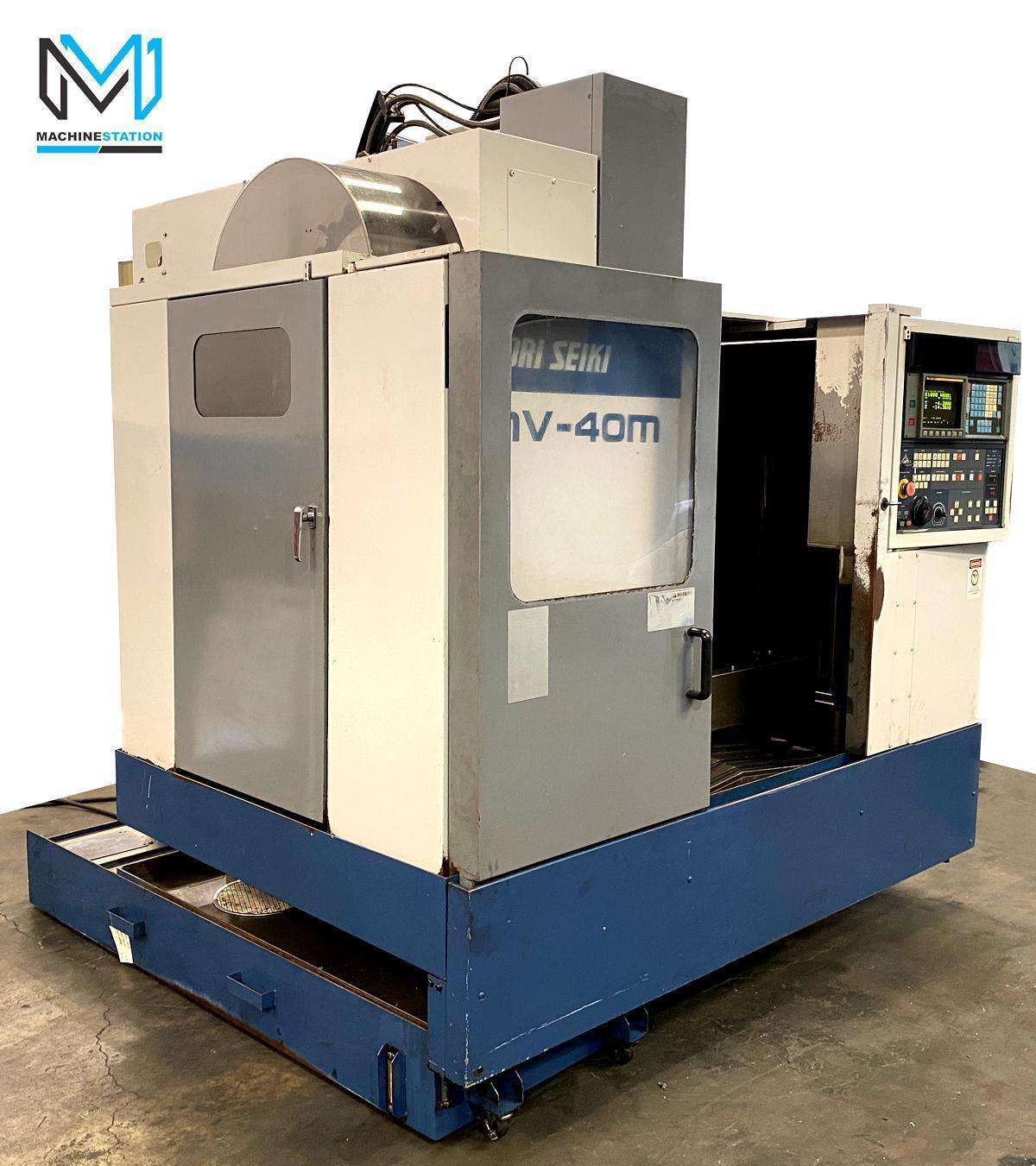

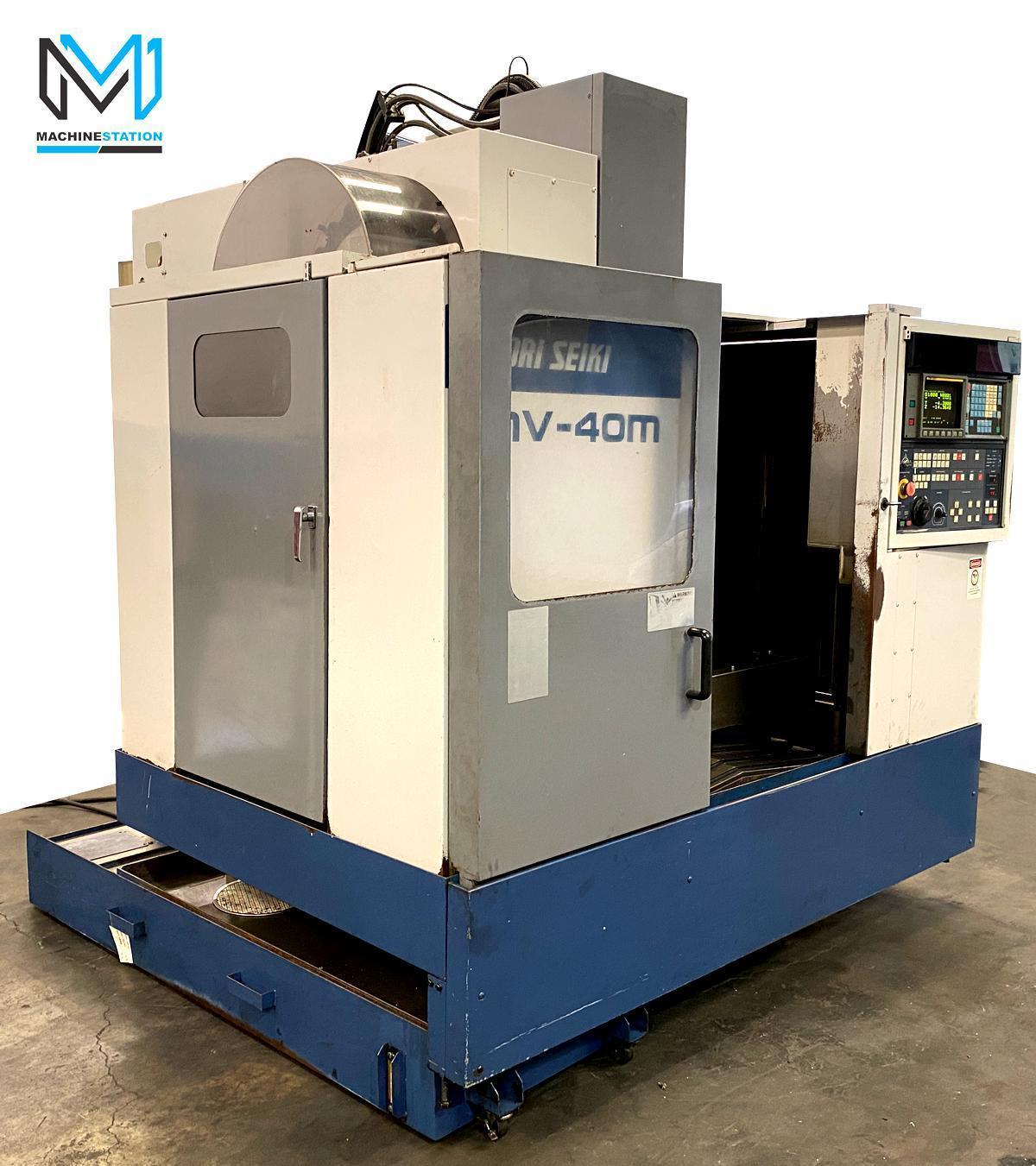

| Make: | MORI SEIKI |
| Model: | MV40M |
| Year: | 1993 |
| Condition: | Used – Good |
| Features: |
|---|

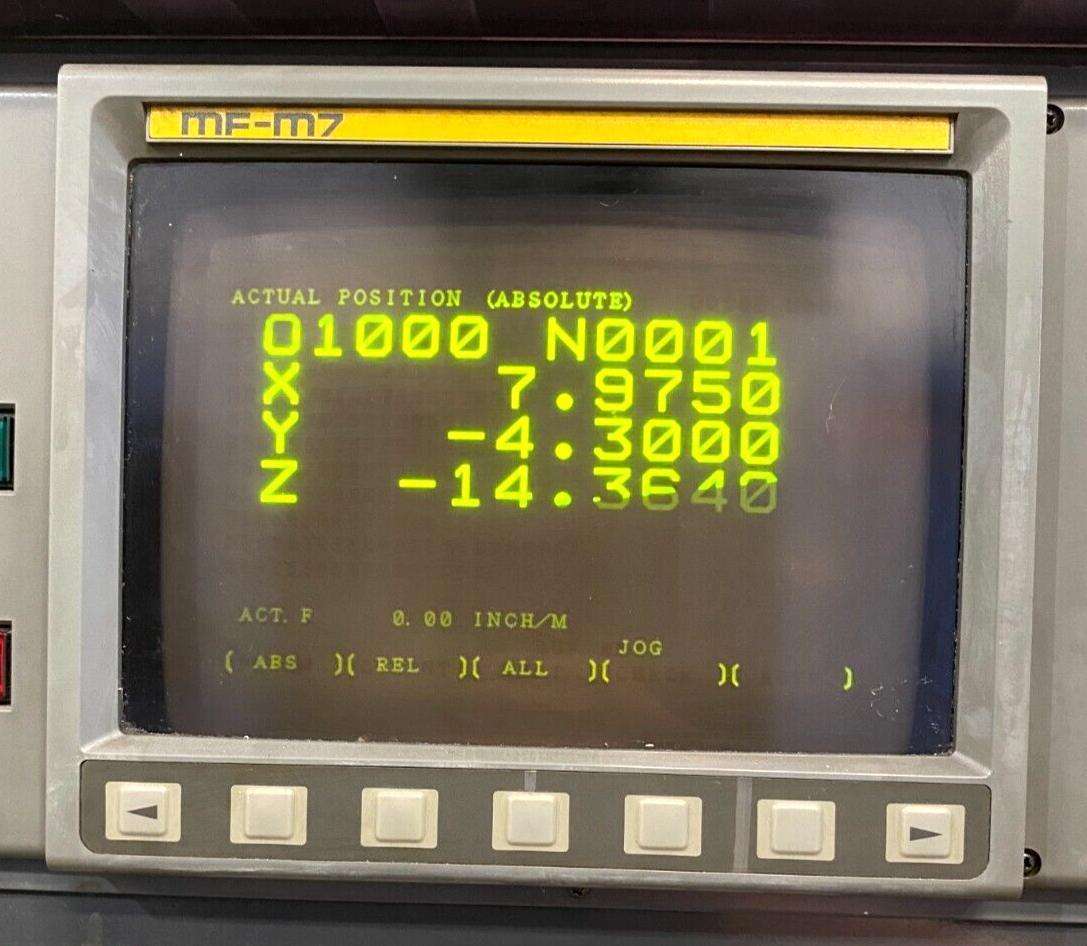

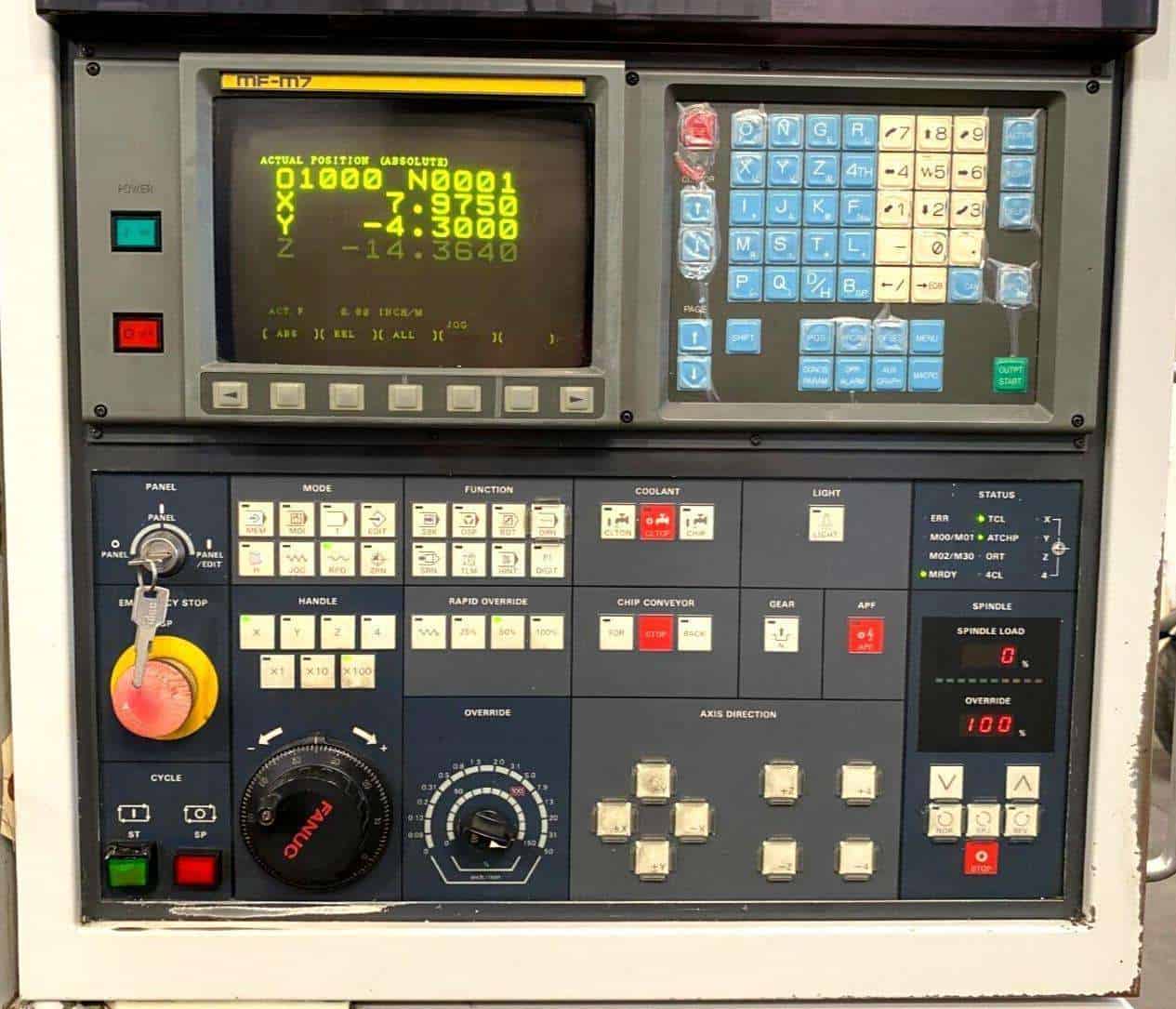

| MF-M7 ( FANUC ) CNC Control |

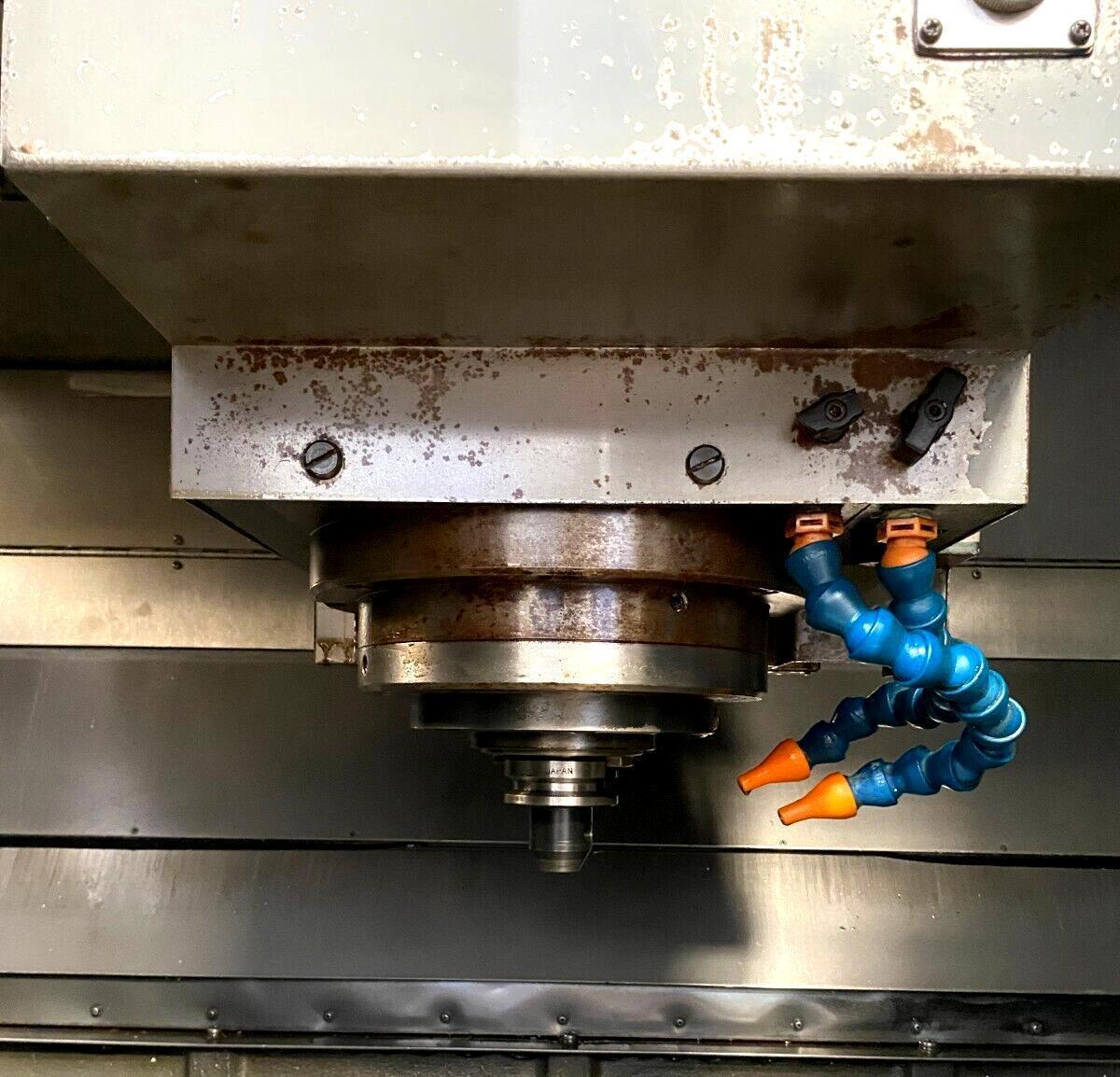

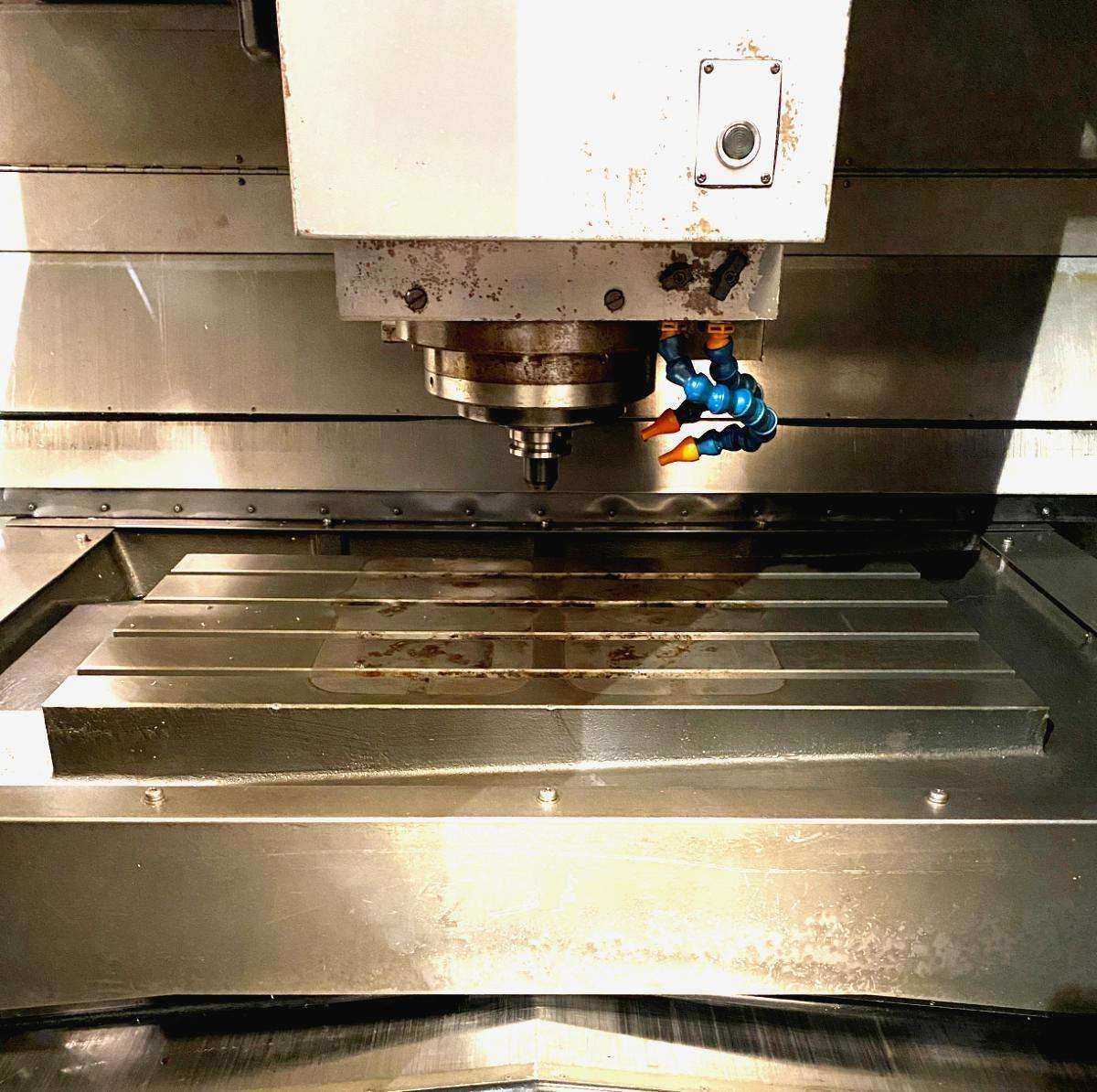

| 40 Taper 8000 RPM Spindle |

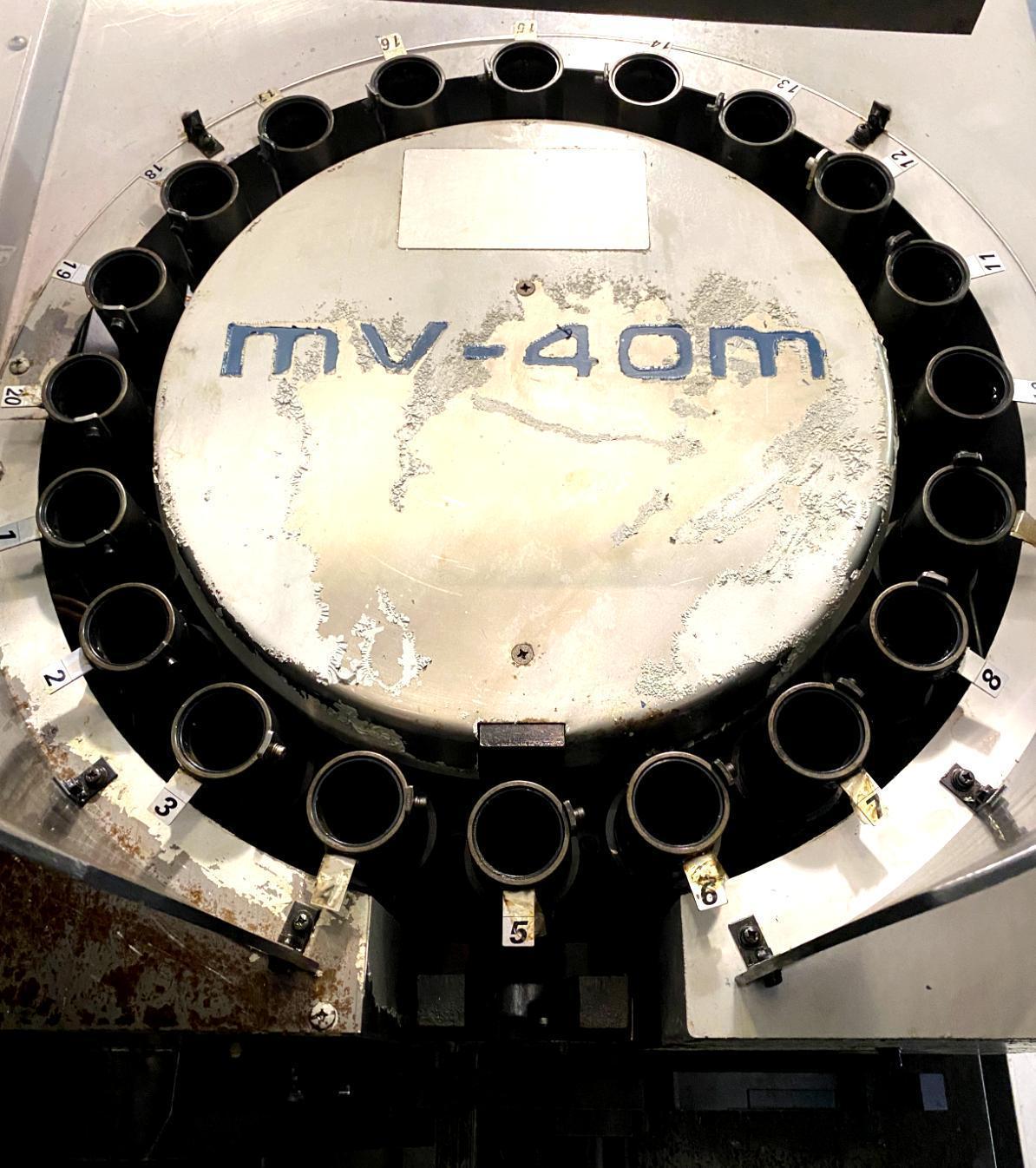

| 20 Station Side Mounted Tool Changer |
| Box Ways Construction |
| MPG Control |
| RS-232 Port |
| Spindle Orientation |
| Rigid Tapping |
| Coolant System with tank |
| Work Light |
| Books & Manuals |
| Travels: |
|---|
| X-Axis: 558.8 mm |
| Y-Axis: 408.94 mm |
| Z-Axis: 459.74 mm |
| Spindle Nose to Table (Min.- Max.): 149.86 mm – 609.6 mm |

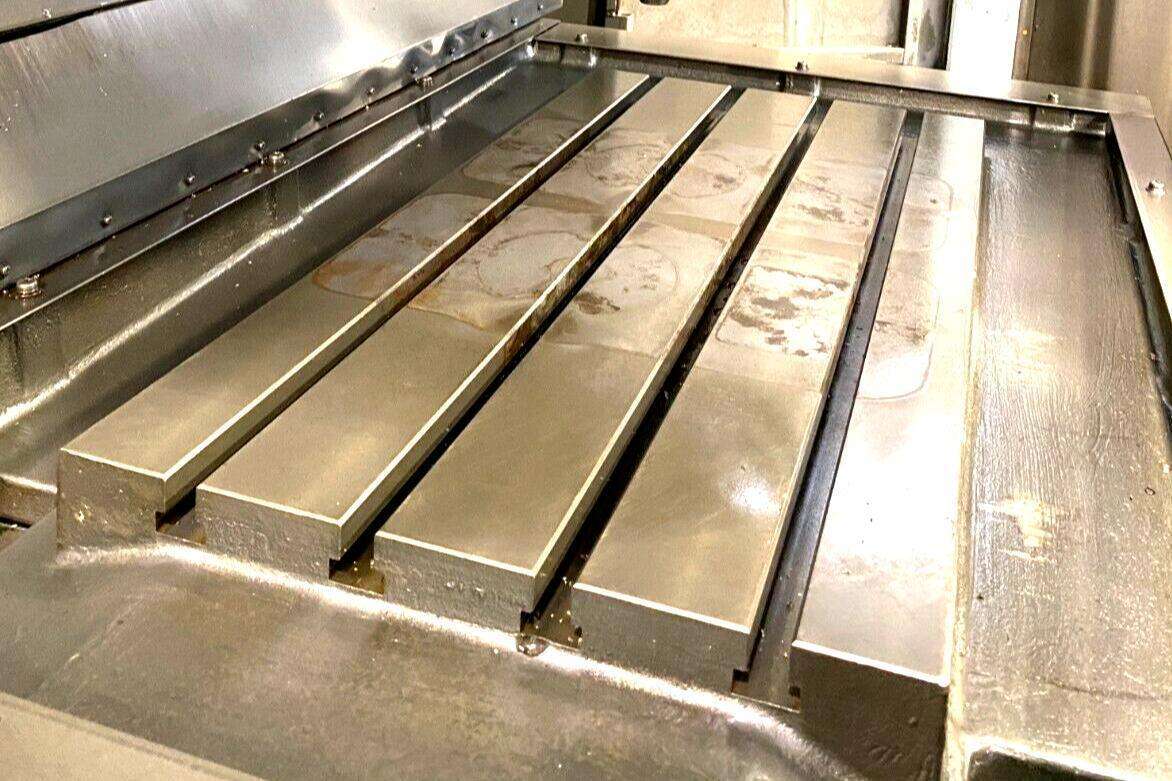

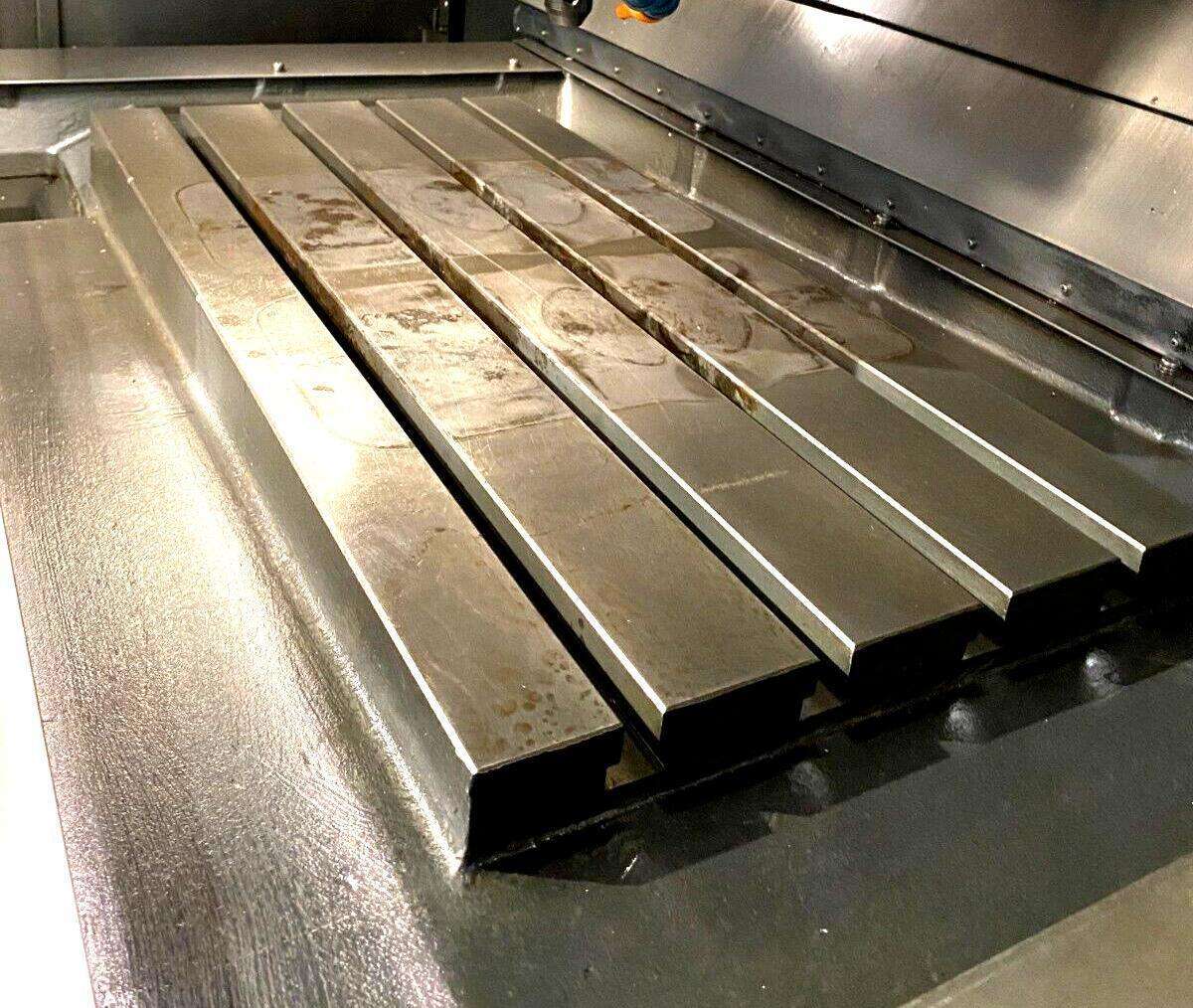

| Table: |
|---|
| Length: 899.16 mm |
| Width: 449.58 mm |
| Max Weight on Table: 699.9 kg |
| Spindle: |
|---|
| Taper Size: BT-40 |
| Speed Range: 8000 RPM |
| Spindle Power: 11.2 kW |
| Feed Rate: |
|---|
| Rapid X Y & Z: 1999 cm/min |
| Cutting Feed rate: 998 cm/min |
| Automatic Tool Changer: |
|---|
| 40 Taper |
| Capacity: 20 |
| Max Tool Weight: 6.8 kg |
| Max Tool Length: 299.72 mm |
| Max Tool Dia: 124.46 mm |
| General: |
|---|
| Air Required: 80 psi 4 scfm |
| Power: 205-220v / 66FLA / 3-Phase |
| Overall Dimensions: 2209.8 mm L X 2286 mm W X 2743.2 mm High |
| Weight: 3891.8 kg |
| “No Charges for loading at list Price” |
