*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | DMG MORI |

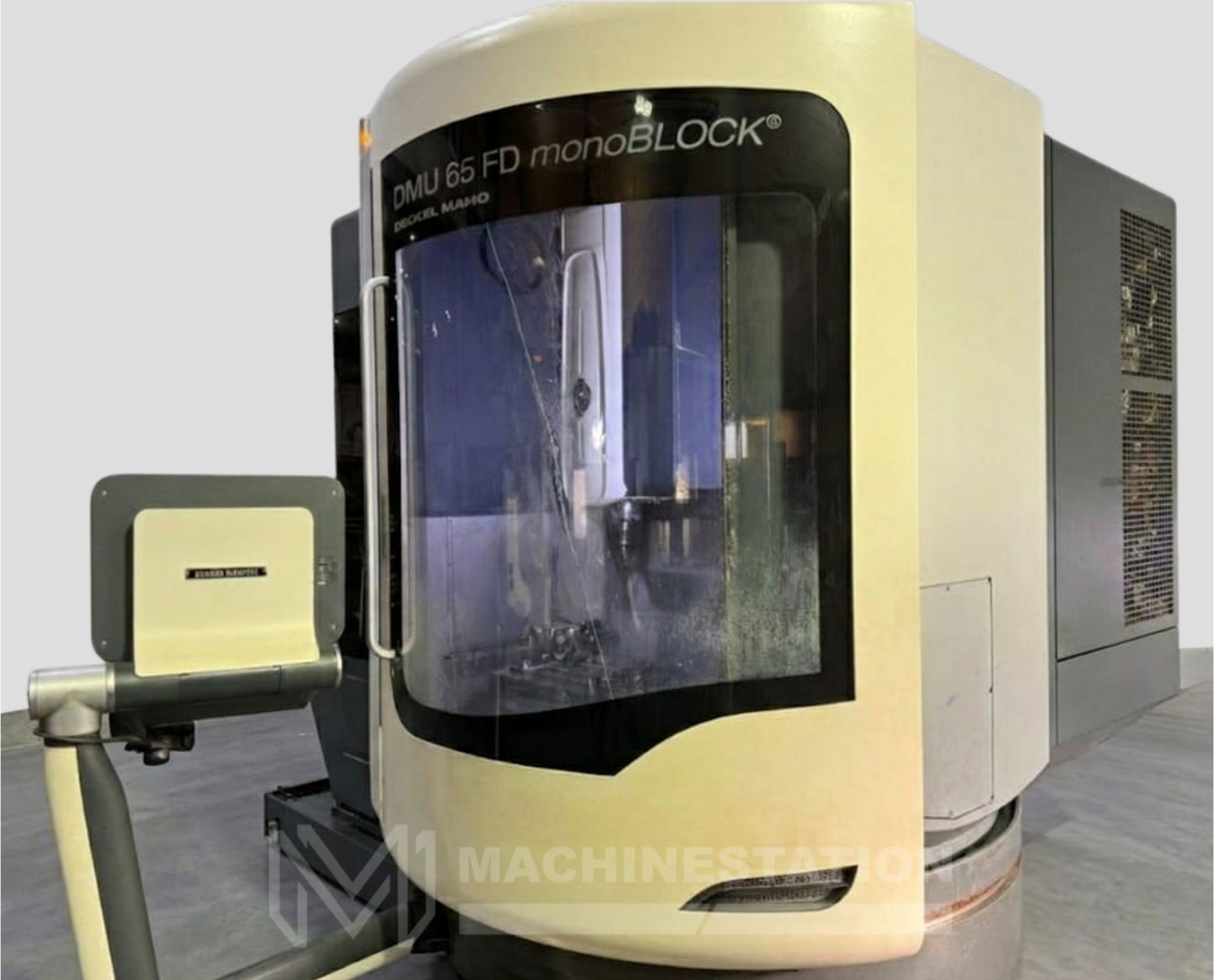

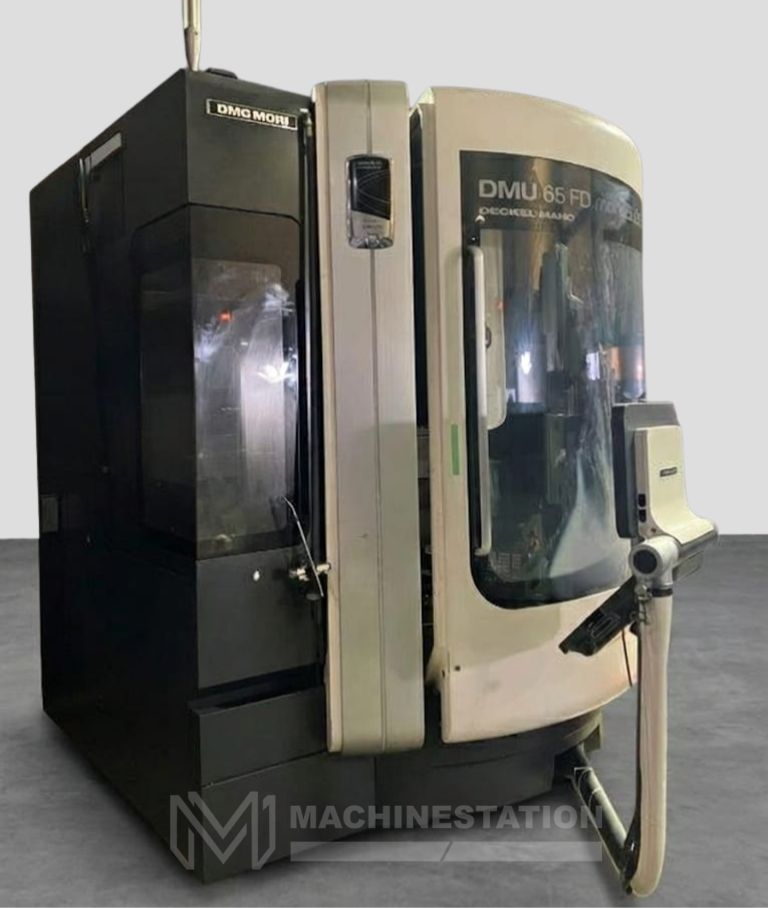

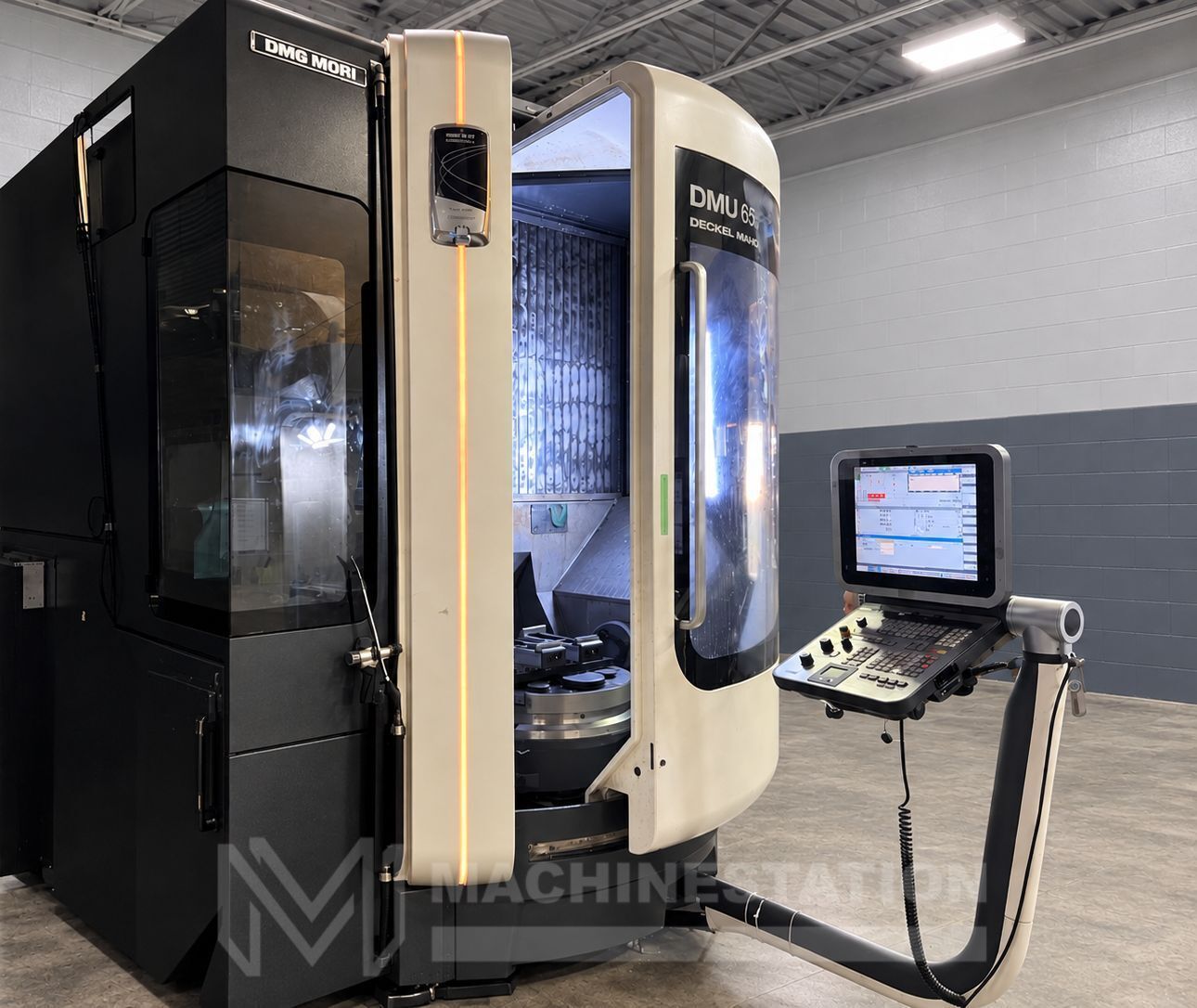

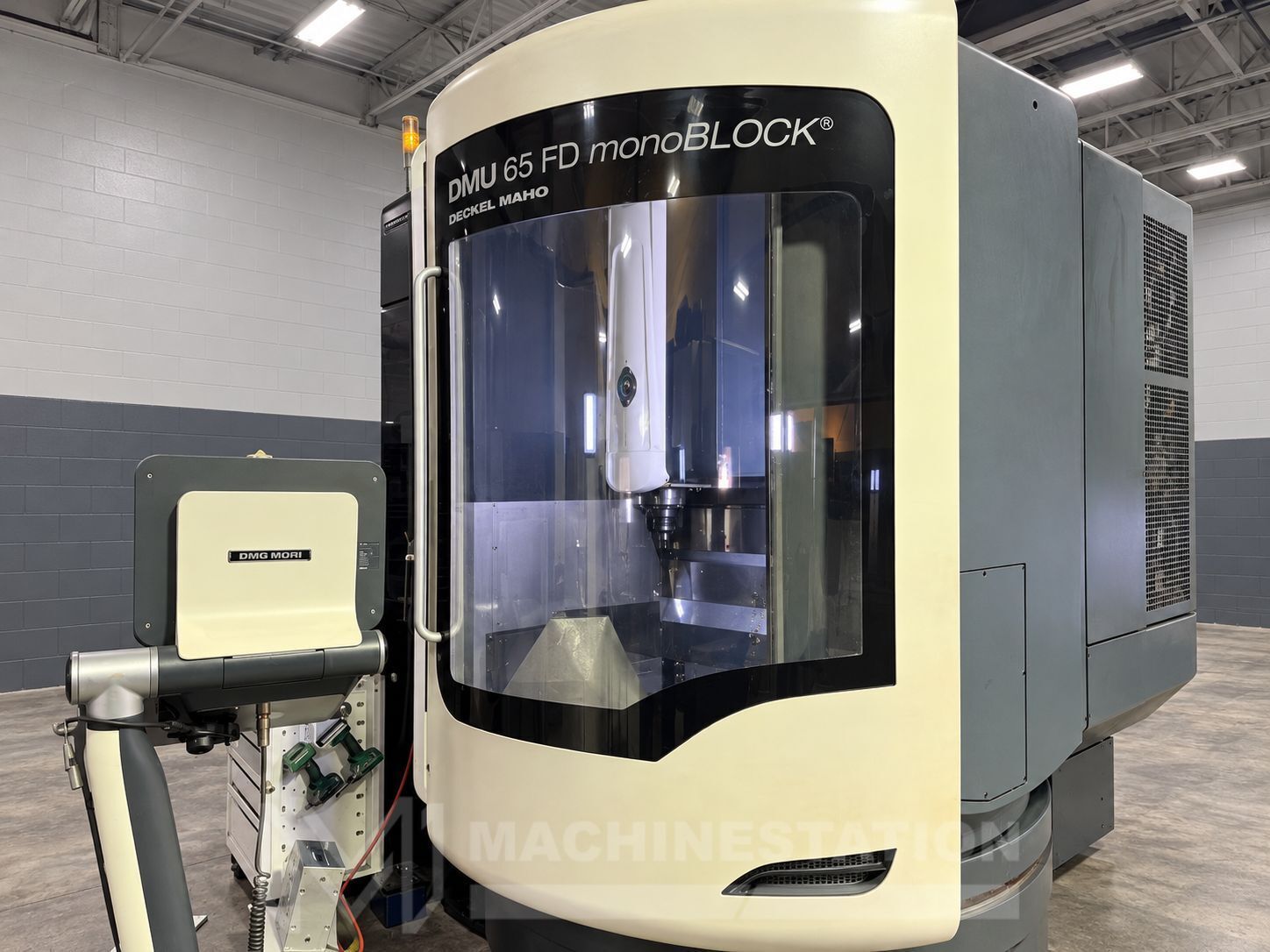

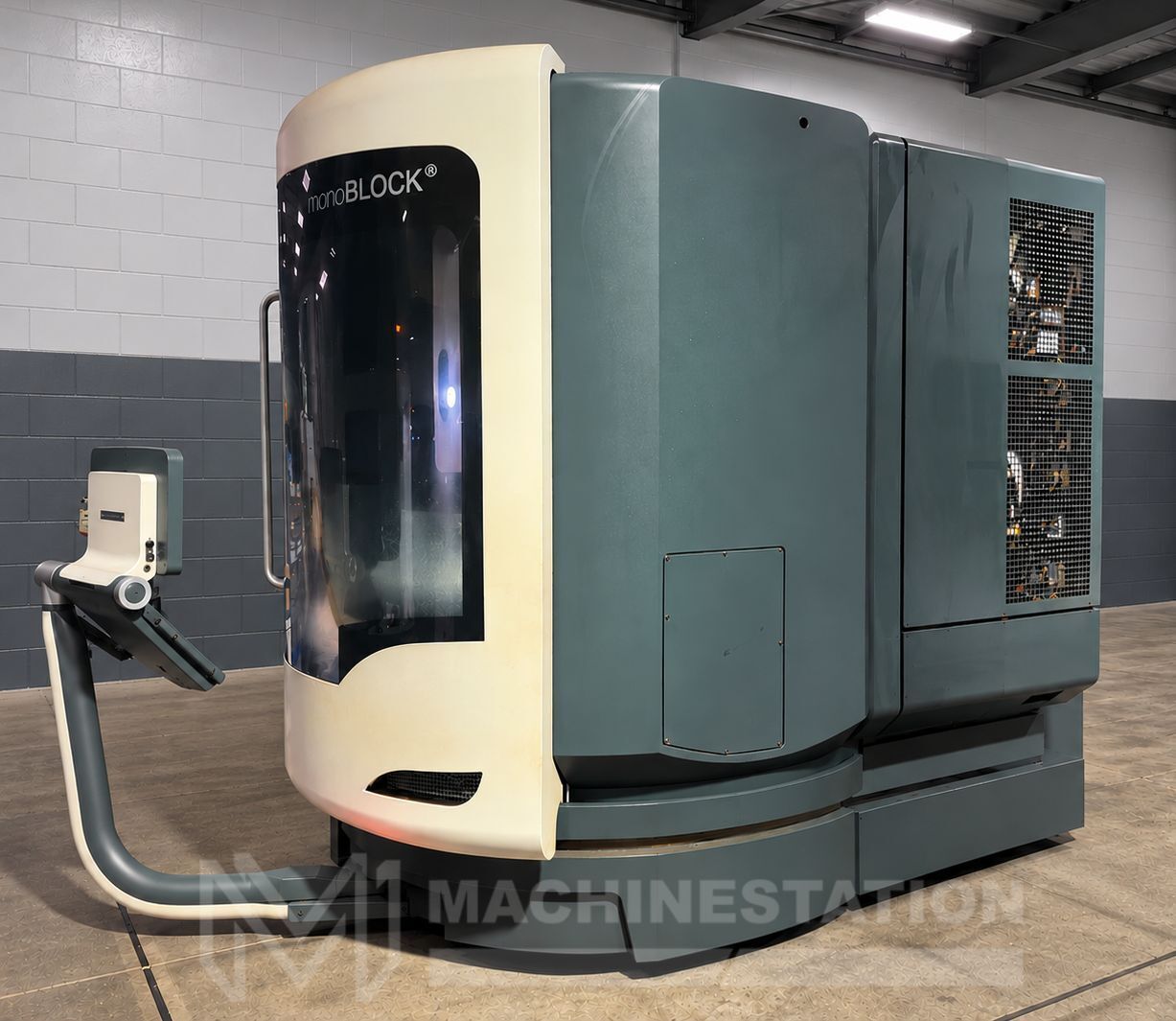

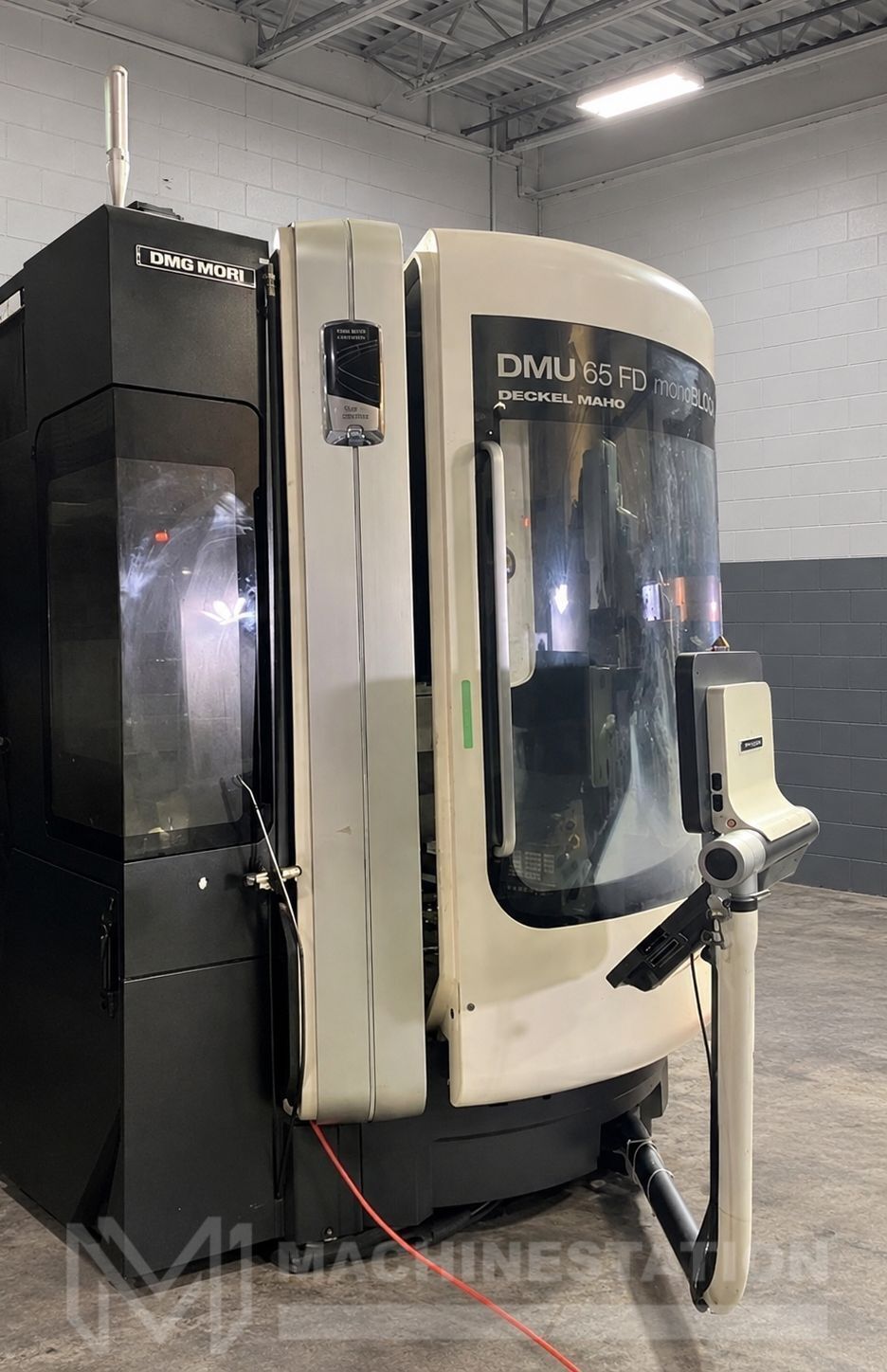

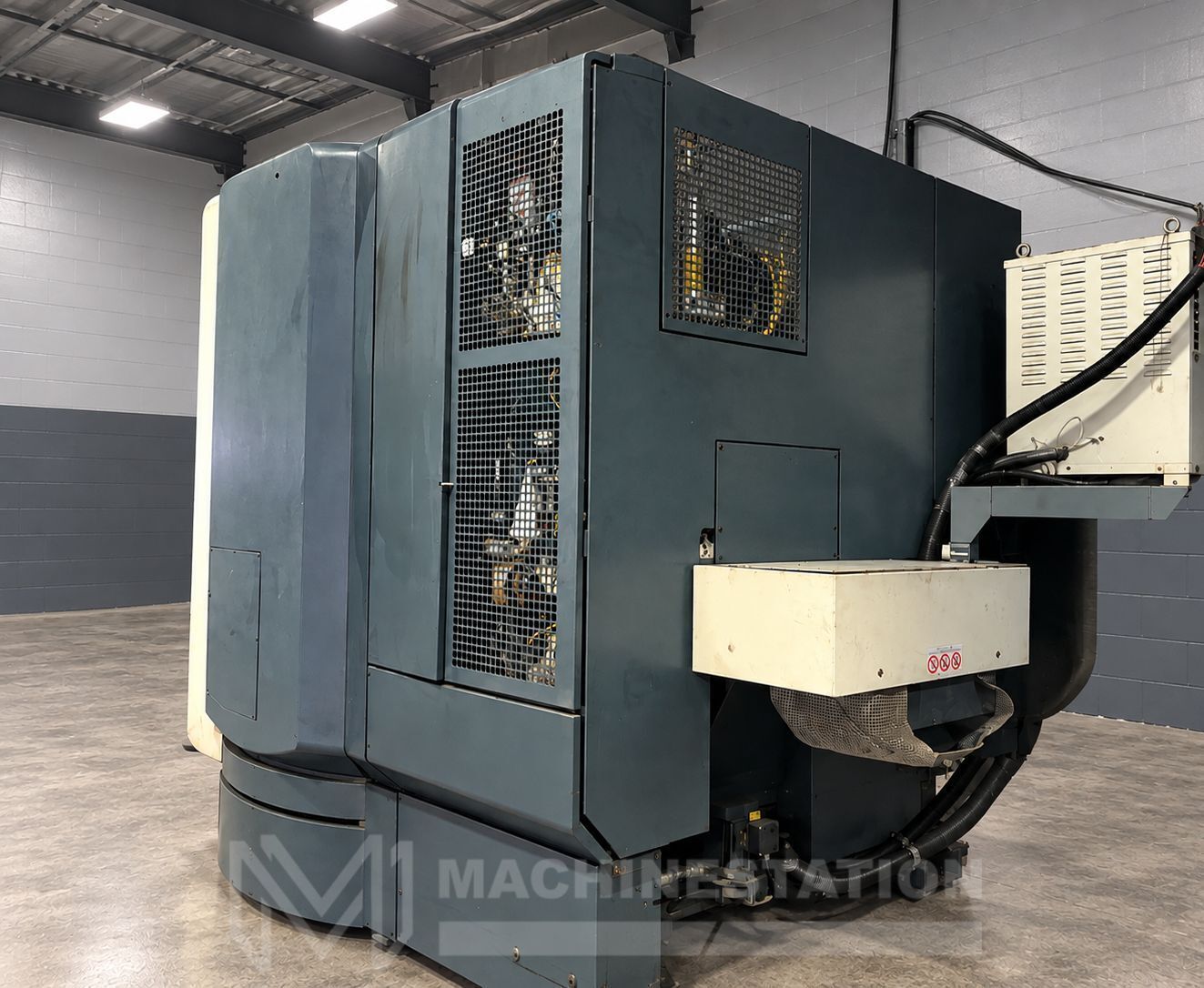

| Model: | DMU 65FD monoBLOCK |
| Year: | 2012 |
| Condition: | Used – Good |
| Features: |
|---|

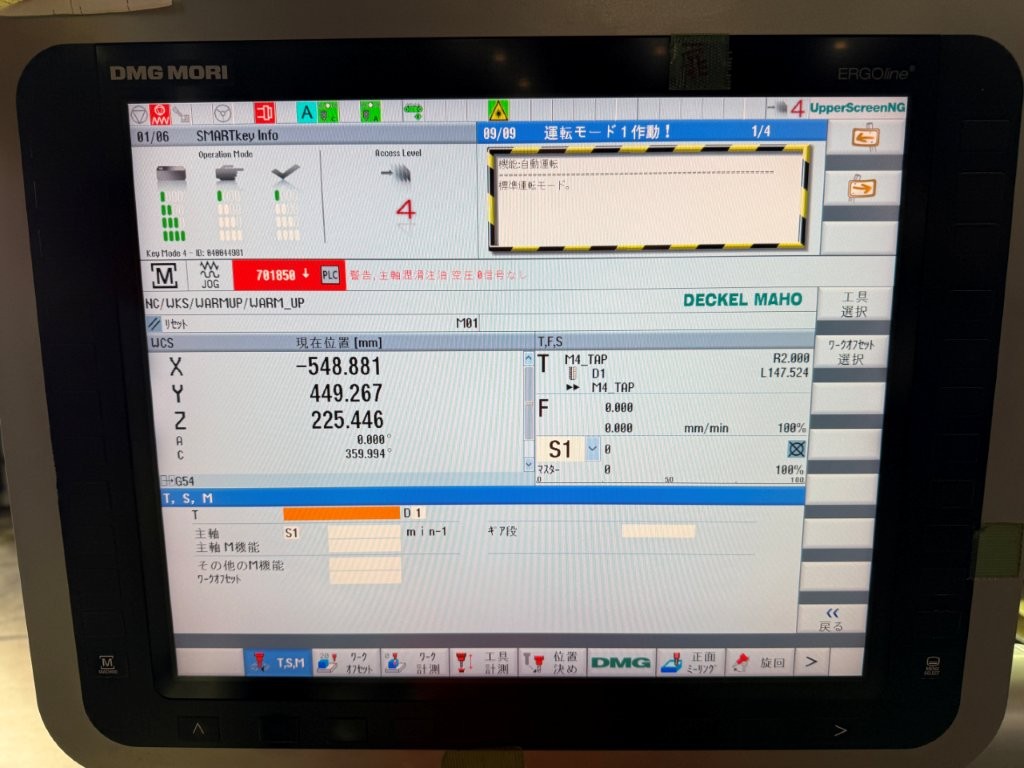

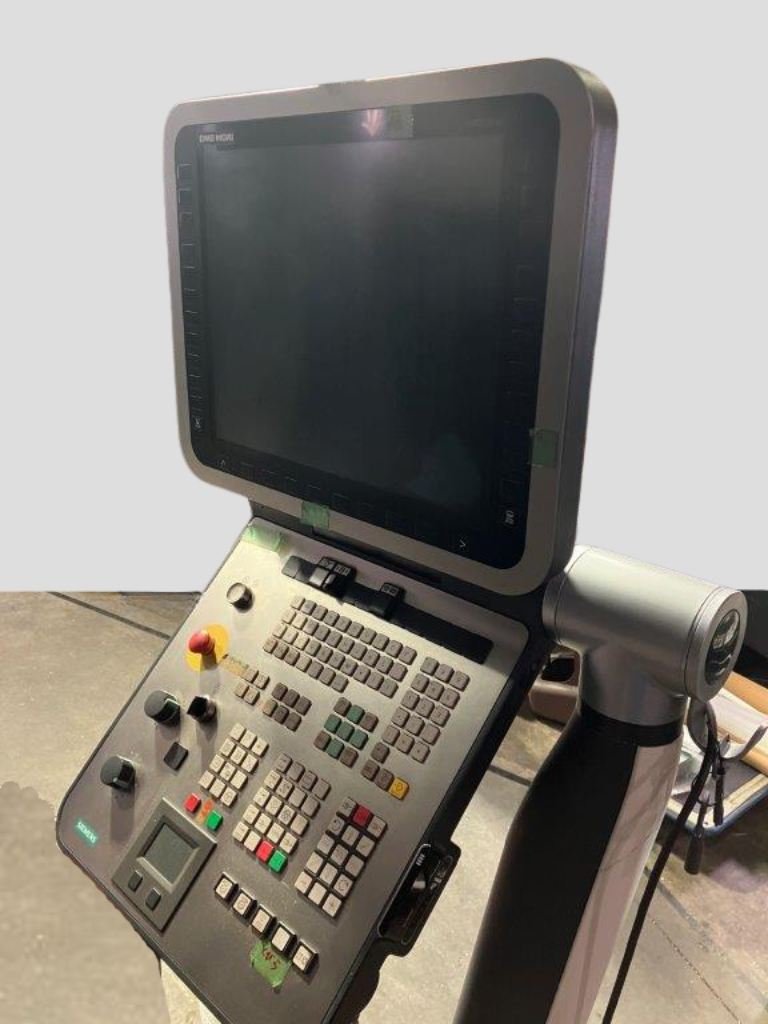

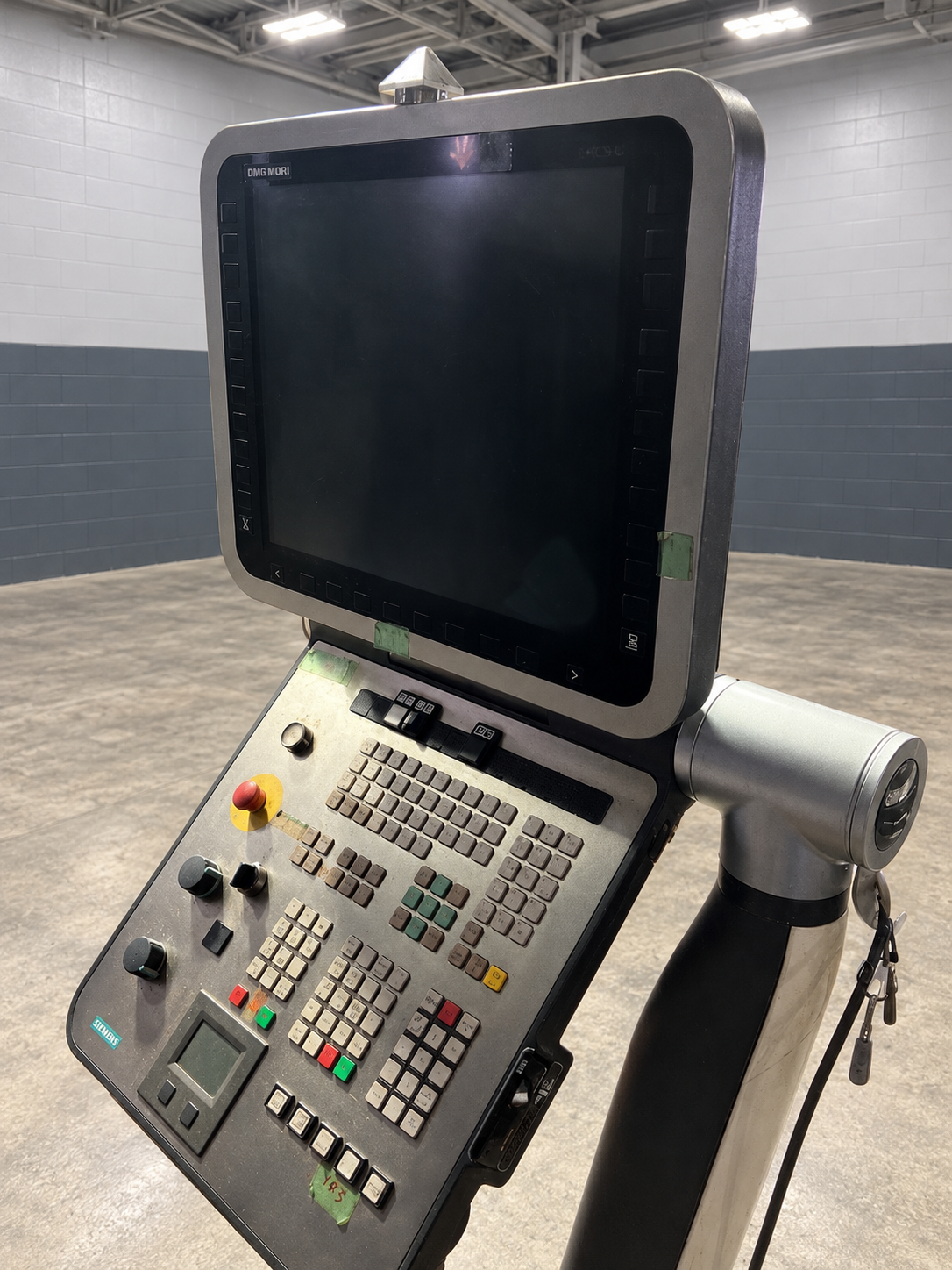

| Seimese 840D ERGOline CNC Control |
| 5 Axis Simultaneous Machining |
| 25.59″ Programmable Swivelling Trunnion Table |

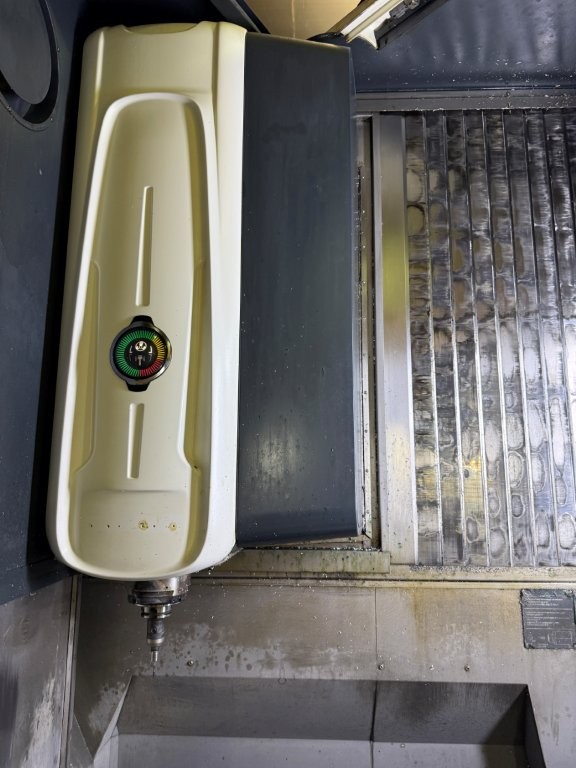

| 18,000 RPM High Speed Spindle |

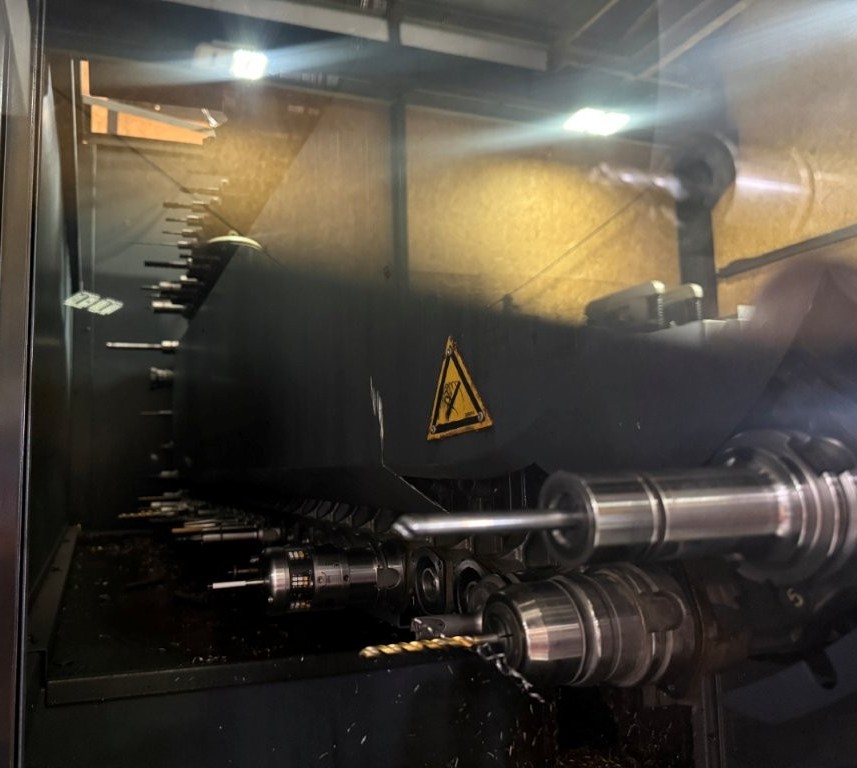

| 60 Station Automatic Tool Changer |
| Through Spindle Coolant |

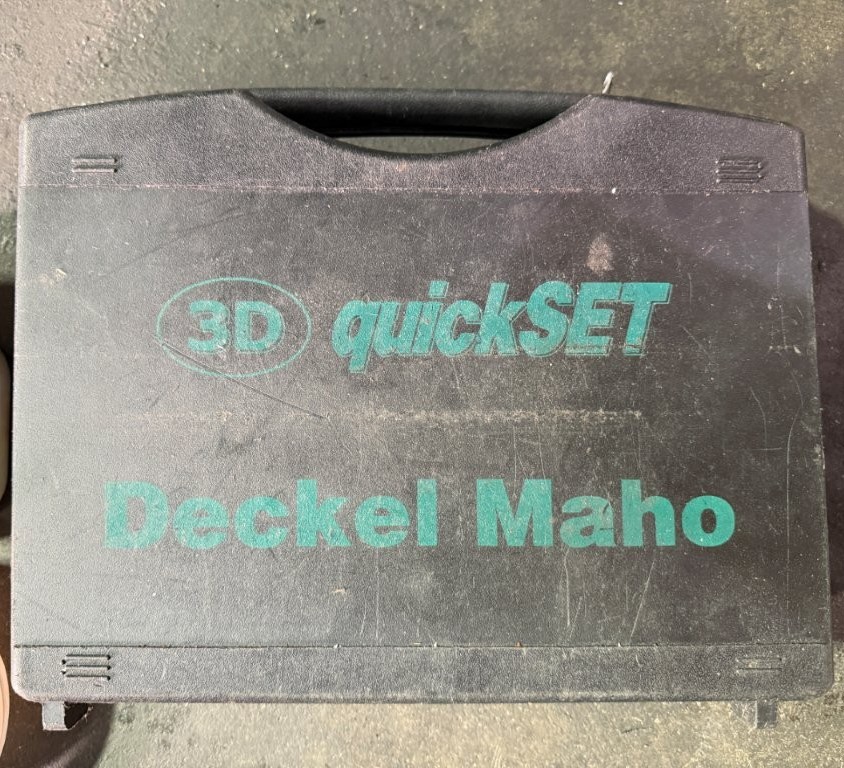

| 3D QuickSet |
| Mill-Turn Operation Up to 12,00 RPM on C Axis |

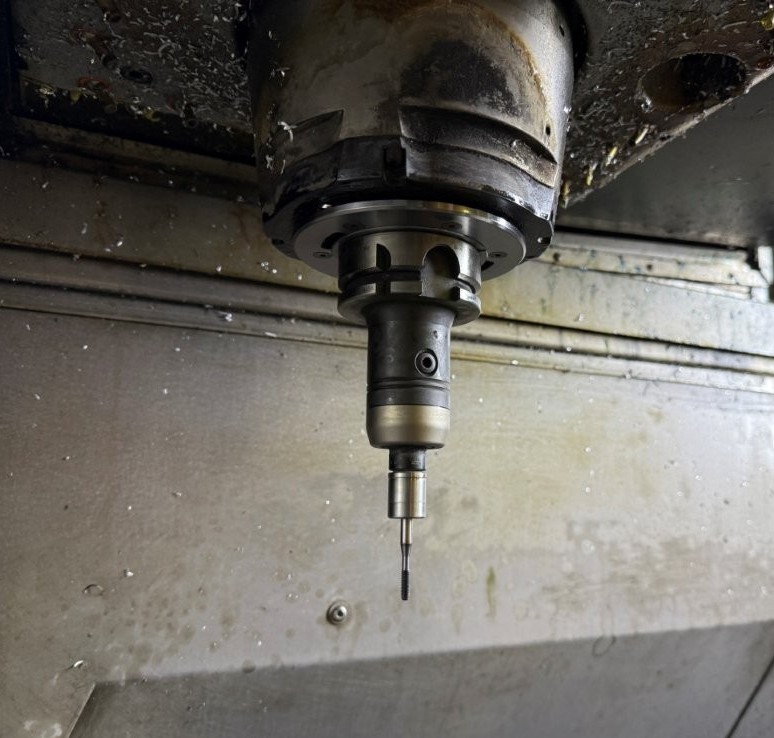

| Touch Probe |
| PCMCIA Card Slot |
| Thermal Compensation |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |

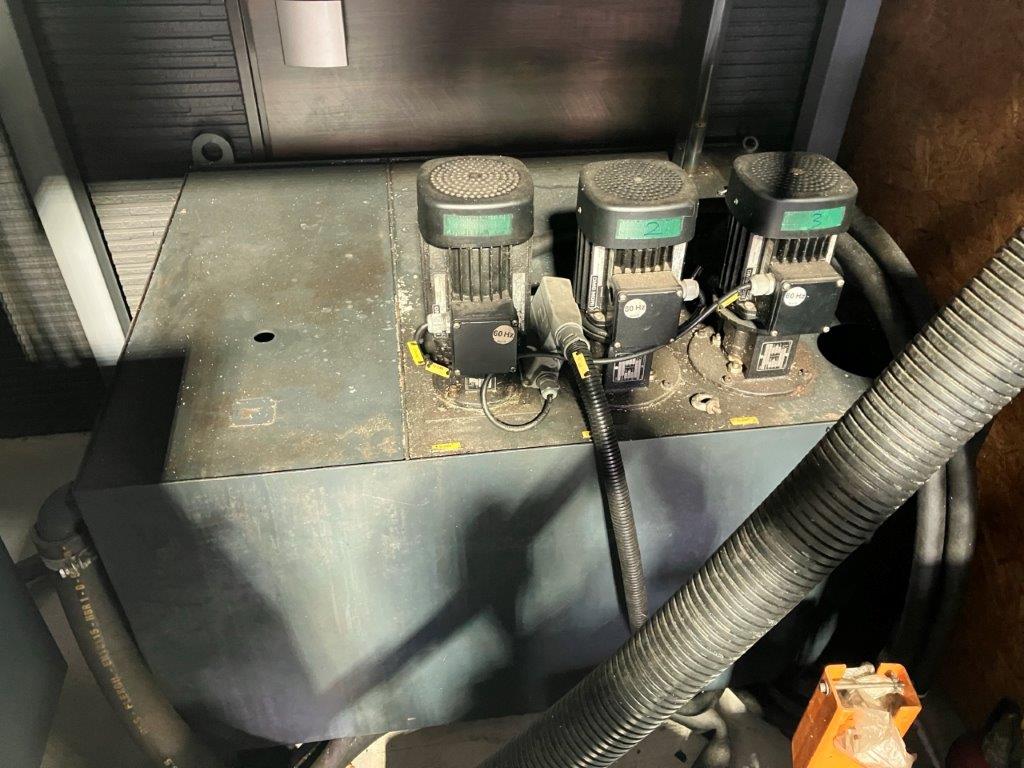

| High Pressure Coolant System |
| Chip Conveyor |
| Books and Manuals |

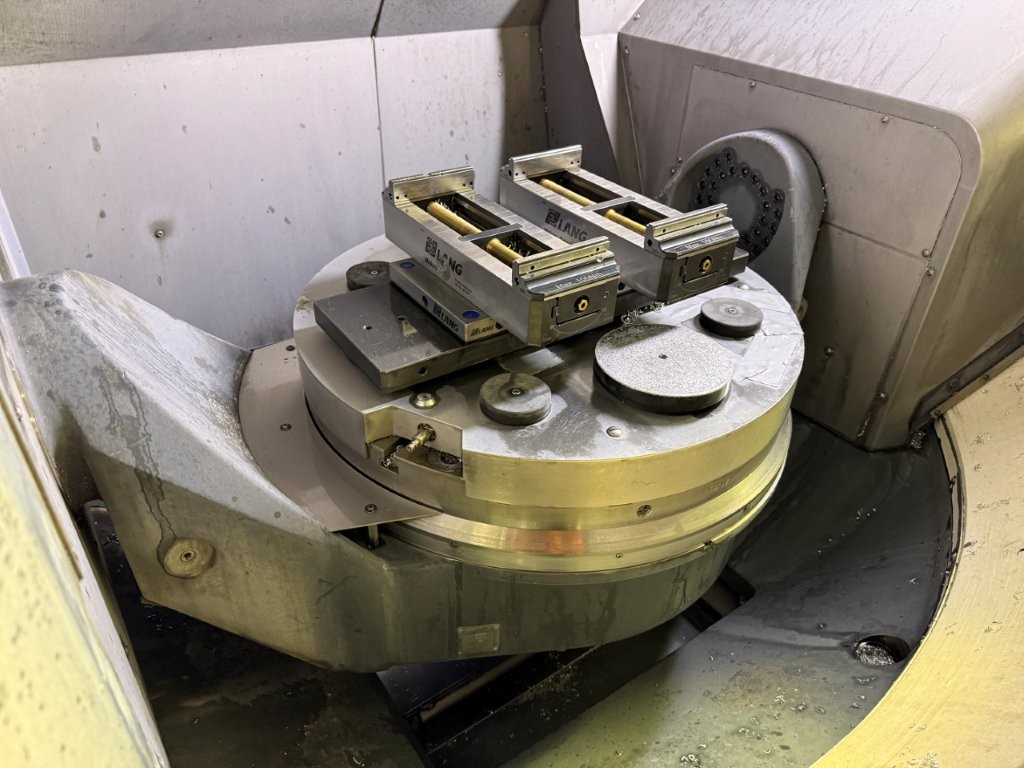

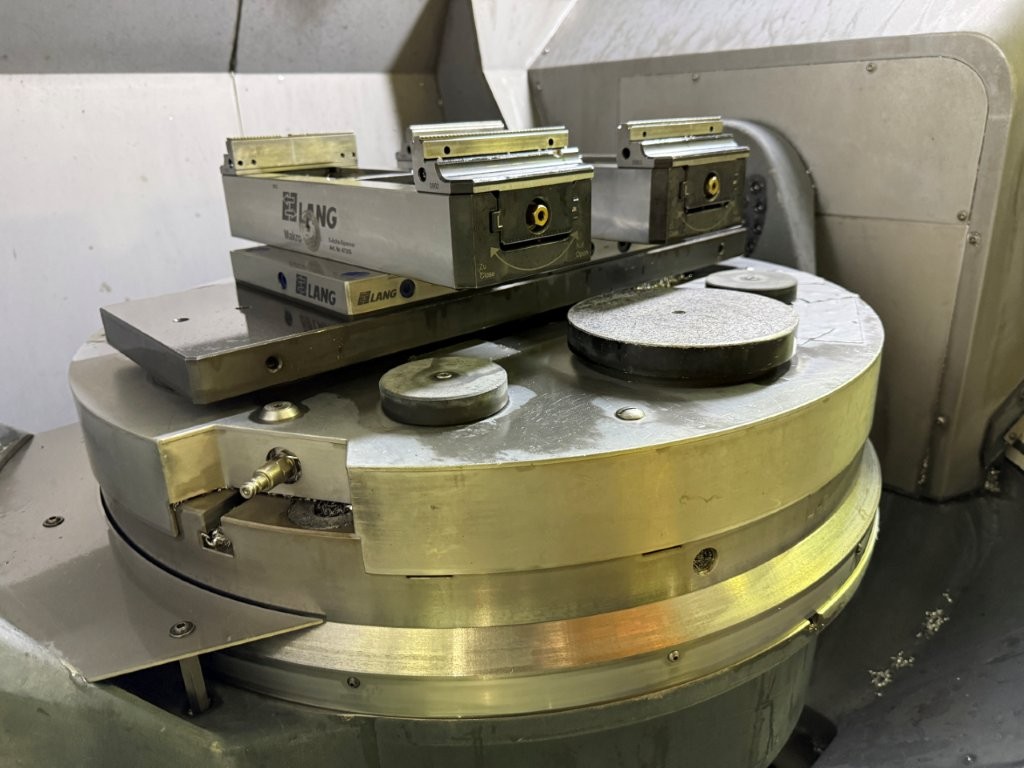

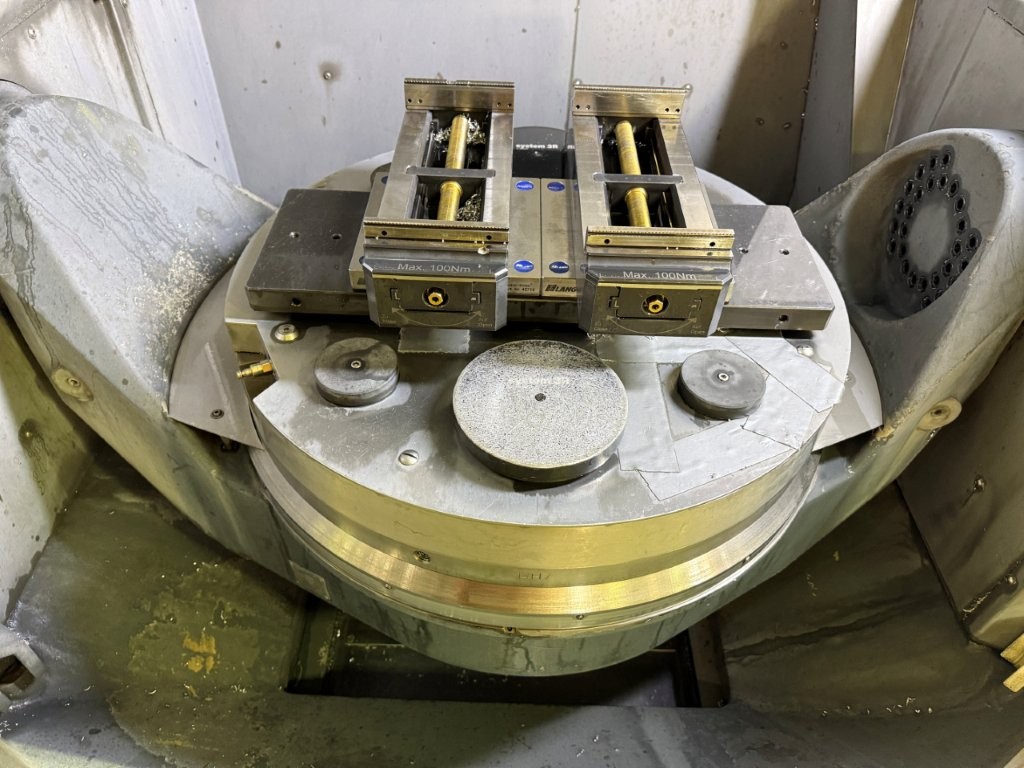

| Swivelling Trunnion Table: |
|---|
| Table Diameter: 25.59″ |
| Maximum Work Piece Diameter: 33.07″ |
| Max. Height: 19.7″ |
| Max Weight on Pallet: 1322 lbs |
| Mill-Turn Operation Up to 12,00 RPM on C Axis |
| Travel: |
|---|
| X Axis: 28.9″ |
| Y Axis: 25.6″ |
| Z Axis: 22.0″ |
| A Axis: ( Table Tilt ) |
| C Axis: 360° ( Table Rotate ) |

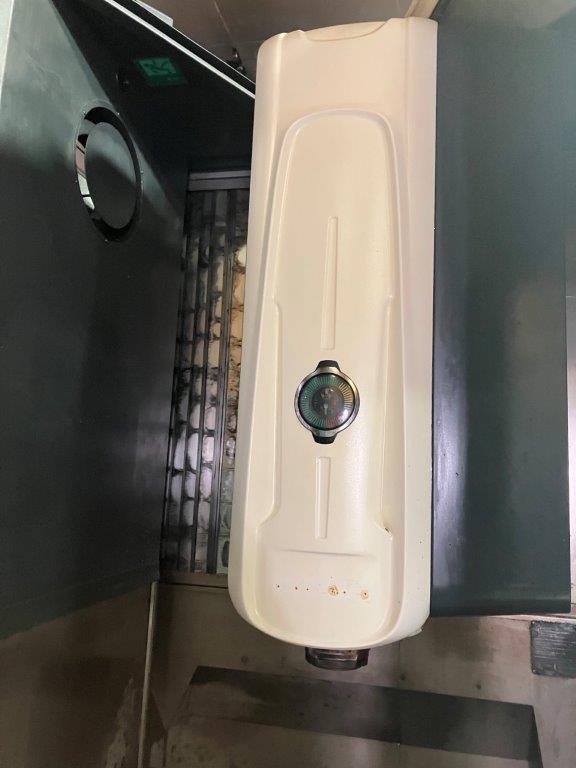

| Spindle: |
|---|
| Taper Size: HSK-A63 |
| Speed Range: 18,000 RPM |
| Spindle Power: 47 HP |
| Feed Rates: |
|---|
| Rapid X Y & Z: 1574 Inch Per Minute |
| Feed Rate : 1574 Inch Per Minute |
| Tool Changer: |
|---|
| Capacity: 60 Tools |
| Taper: HSK-A63 |
| Max Tool Size: 6.3″ X 12.4″ |
| Max Tool Weight: 17.7 lbs. |
| Tool Change Time: 4.9 Second |

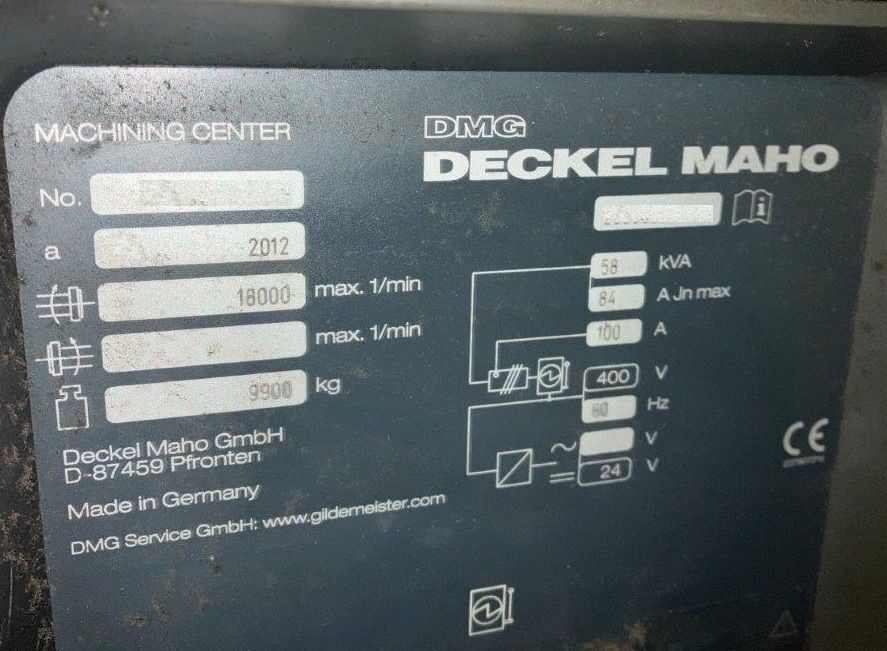

| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 58 kva / 400v / 3-Phase |
| Overall Dimensions: 141″ x 97″ x 114″ High Approx. |
| Weight: 21,825 lbs |
