Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

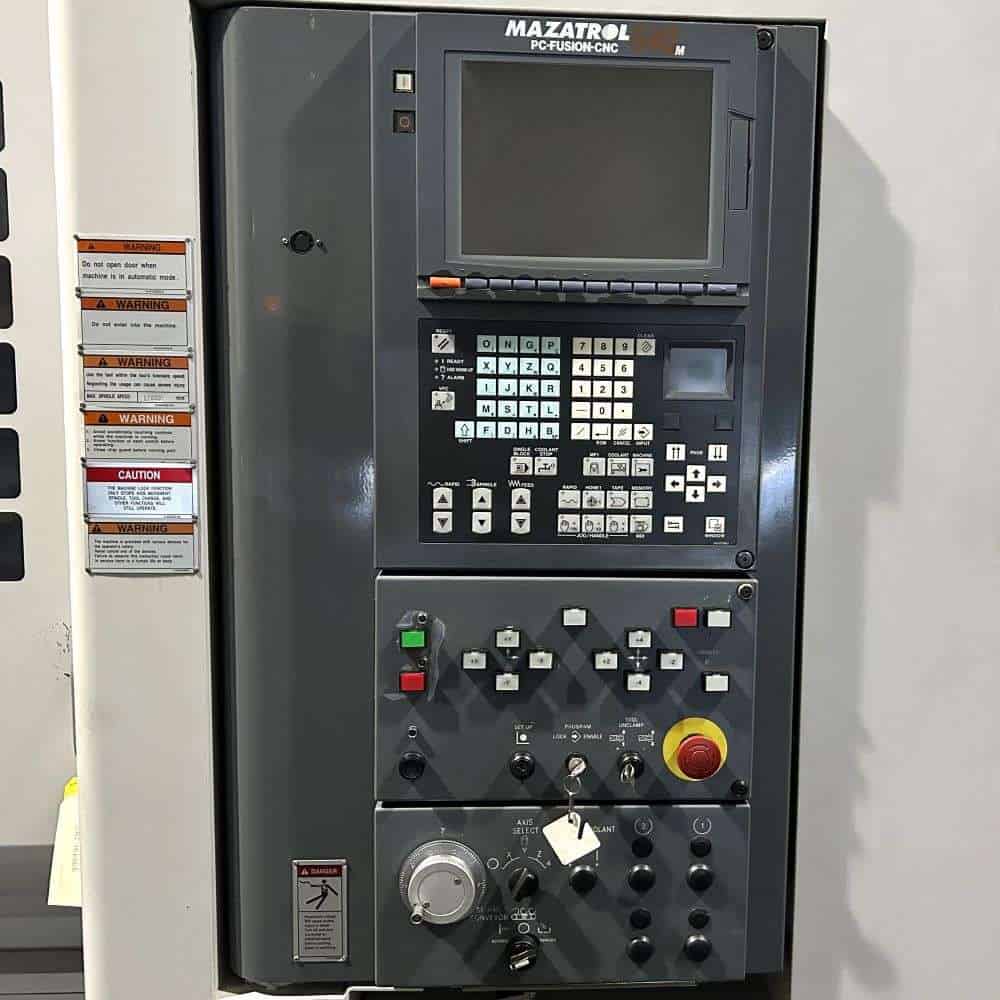

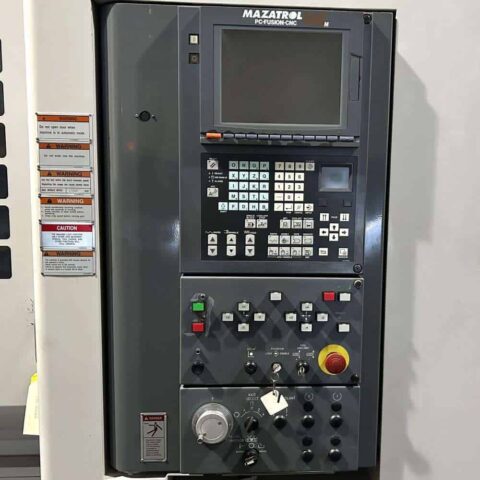

| Mazatrol 640M PC Fusion CNC Control |

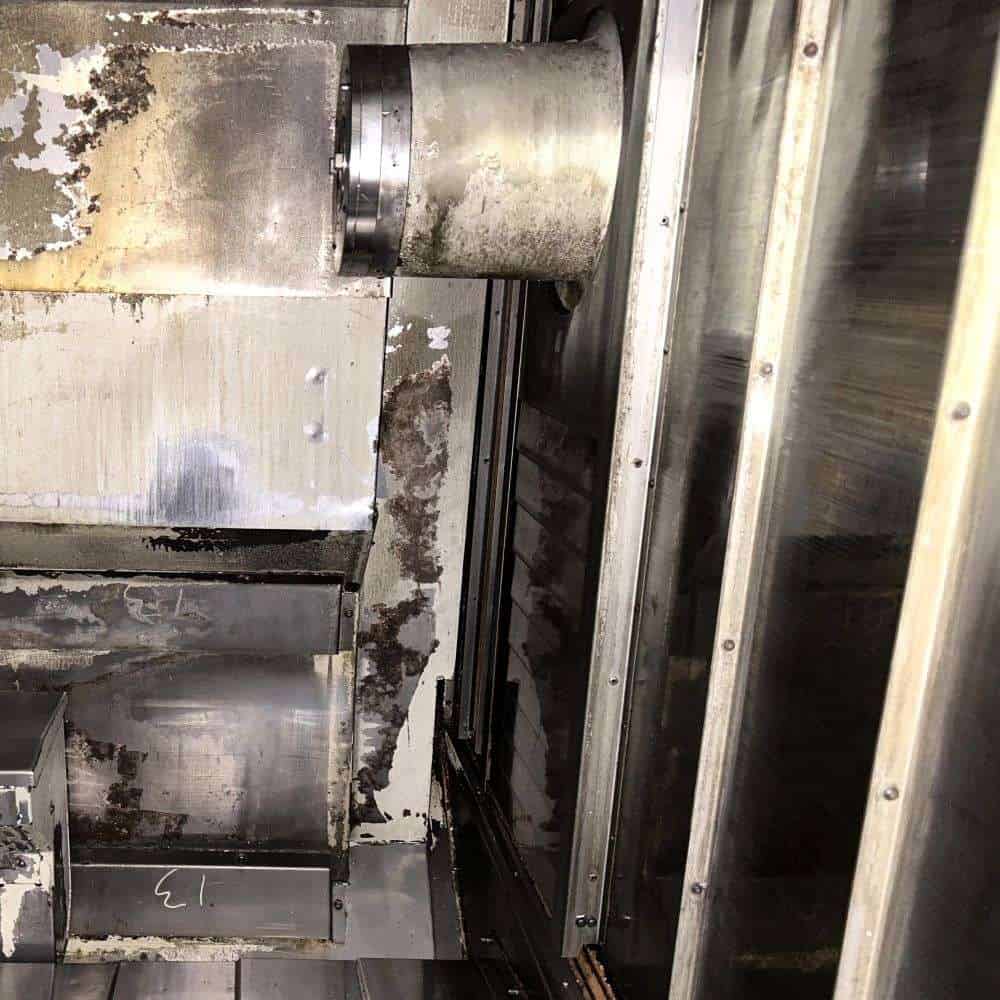

| 12,000 RPM High Precision Spindle |
| Through Spindle Coolant |

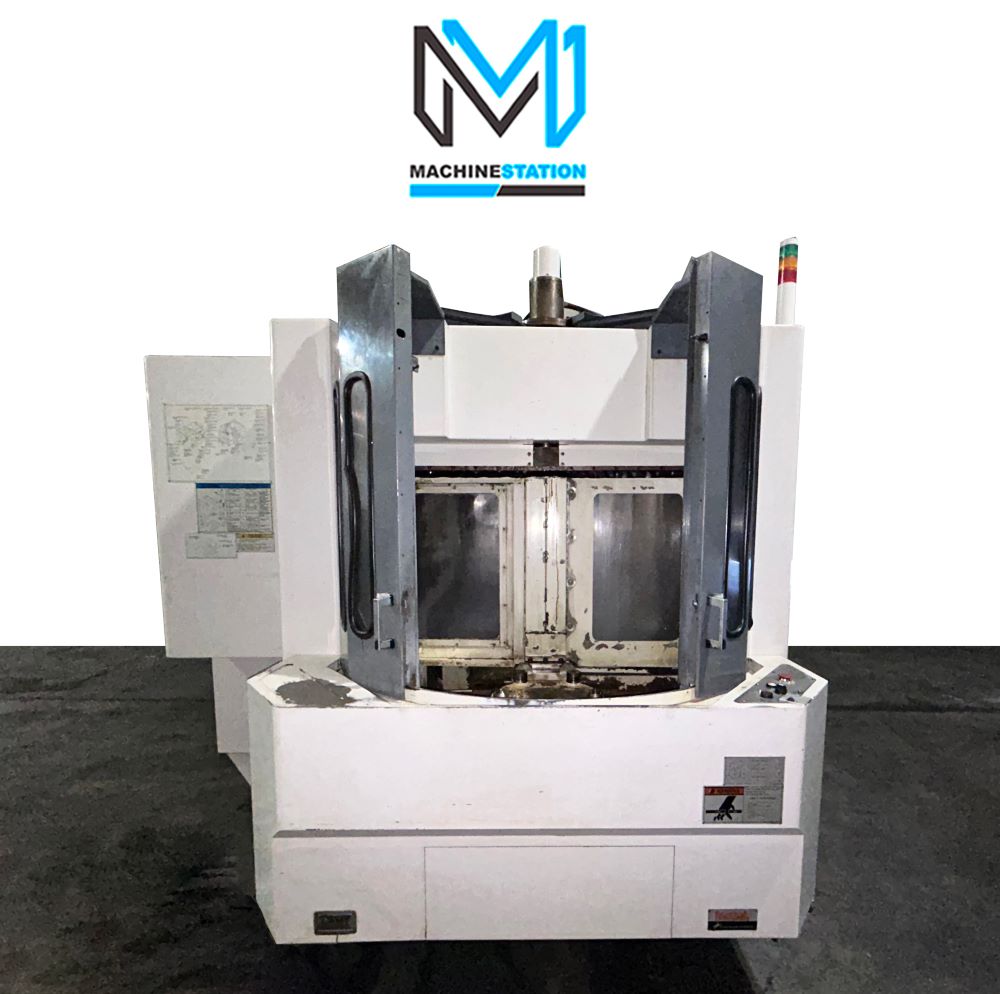

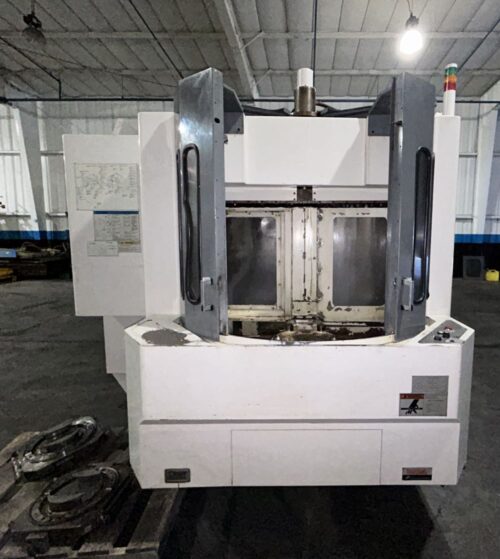

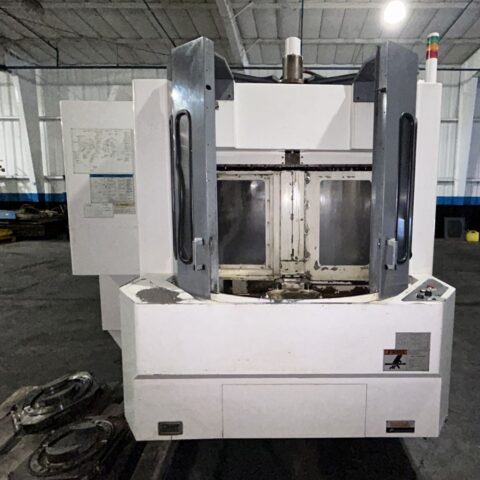

| Twin Pallet Changer |
| 40 Station Automatic Tool Changer |
| RS-232 Port |
| Pallet Seat Detection |
| Spindle Orientation |
| Rigid Tapping |
| Fast Rapid Traverse Rate |
| Flood coolant with large coolant tank |

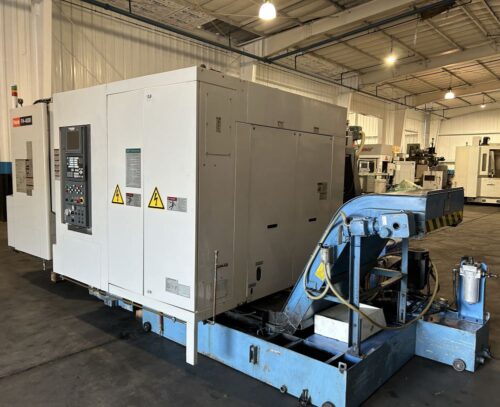

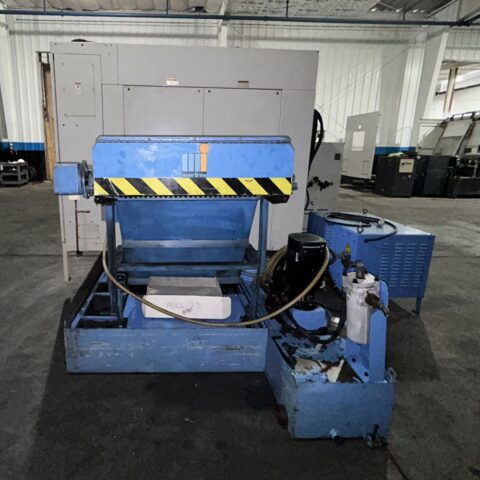

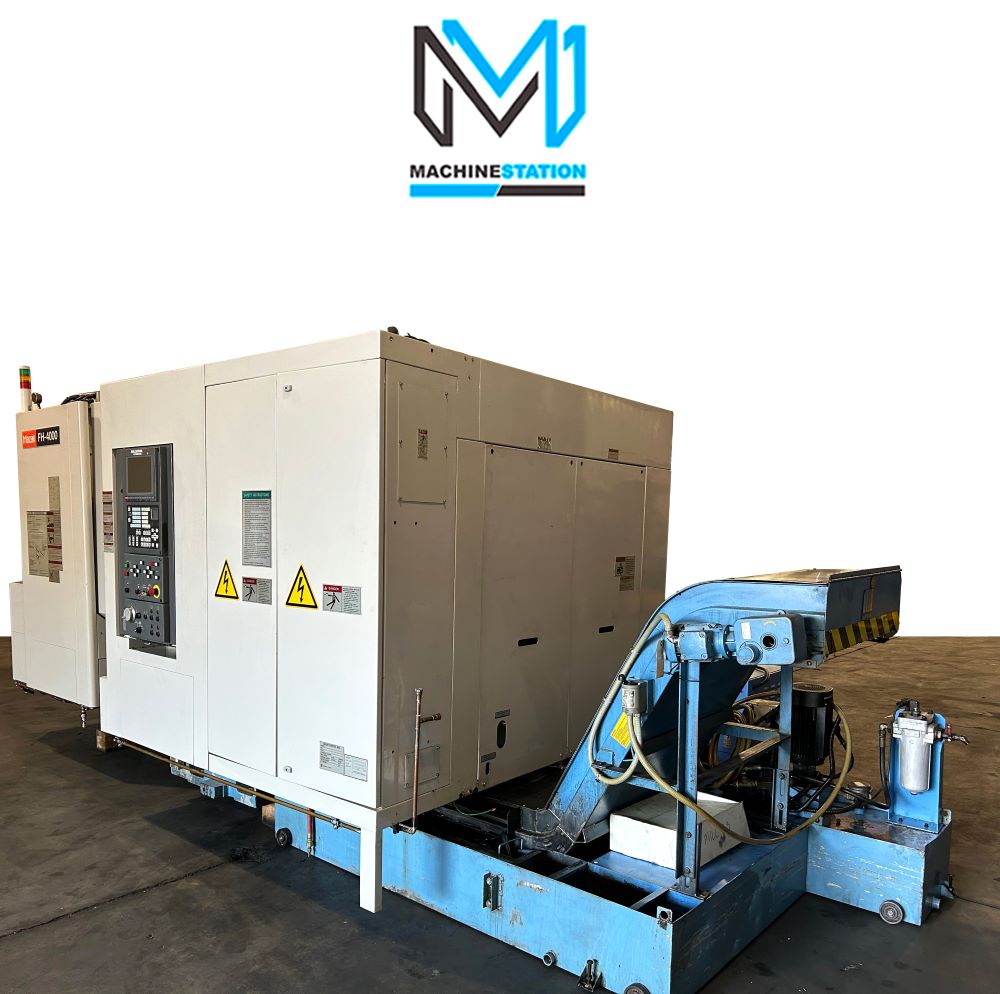

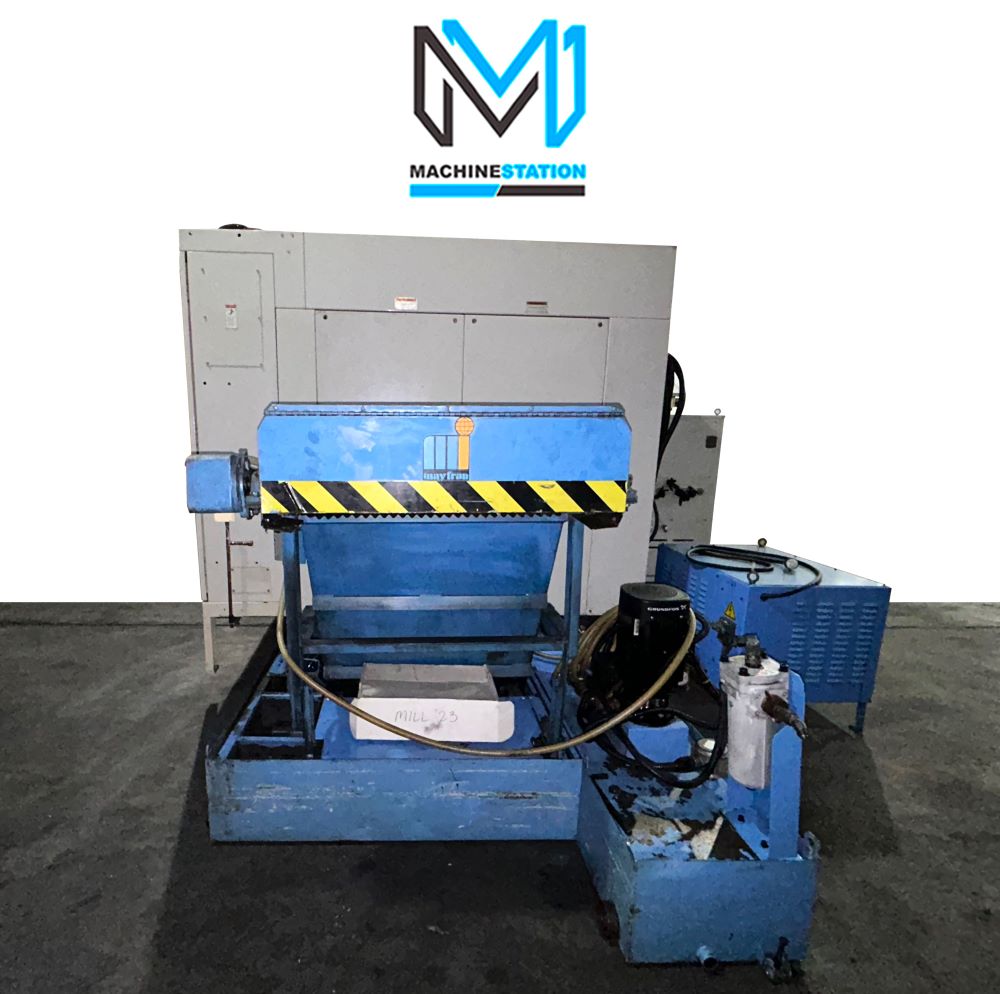

| Chip Conveyor |
| Travels: |
| X Axis: 22″ |
| Y Axis: 20″ |
| Z Axis: 24.8″ |
| B Axis: 1° Indexing (4th Axis) |
| Spindle Nose to Table Center: 119.89 mm – 749.81 mm |
| Spindle Center to Table Top: 99.82 mm – 612.14 mm |

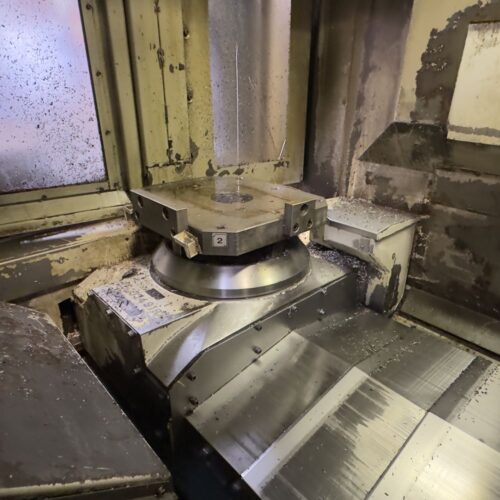

| Table: |
| Length: 15.75″ |
| Width: 15.75″ |
| Max Weight on Table: 299.8 kg |
| Max Workpiece Diameter: 559.82 mm |
| Max Workpiece Height: 629.92 mm |
| Index Time: 1.7 Sec / 90 Degree |
| Spindle: |
| Taper Size: 40 |
| Max. Speed: 12,000 RPM |
| Power: 22.4 kW |
| Feed rates: |
| Rapid X, Y & Z : 1417 Inch Per Minute |
| Cutting Feedrate: 1417 Inch Per Minute |
| Automatic Tool changer: |
| Capacity: 40 Tools |
| Taper: 40 |
| Max Tool Diameter: 99.06 mm |
| Max Tool Length: 12.60″ |
| Max Tool Weight: 8 kg. |
| Tool Change Time: 3.5 Second |
| General: |
| Air Required: 90 psi, 4 scfm |

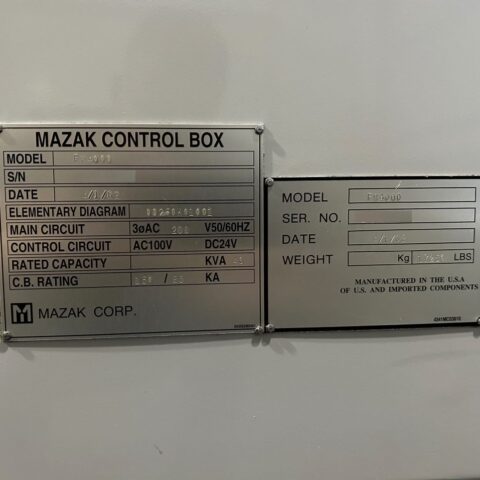

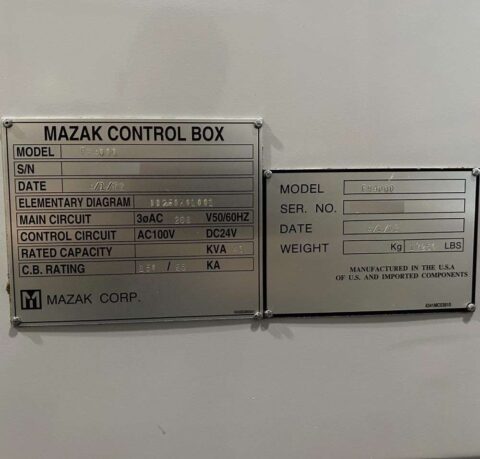

| Power: 49 kva / 205-220v / 3-Phase |
| Overall Dimensions: 4038.6 mm X 2514.6 mm x 97″ High |
| Weight: 7824.5 kg |
