Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

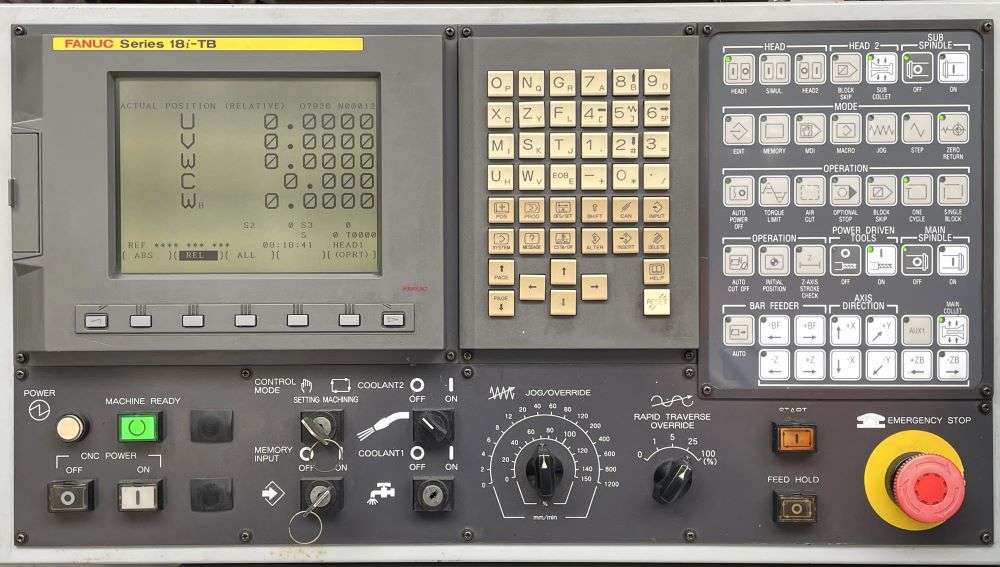

| Fanuc 18i-TB CNC Control |
| Full C Axis and Live Tools Capable |
| Long Parts Capable |
| Main & Back Spindle Synchronization |
| High Speed Rapid Traverse: 741 IPM |
| High Speed Program Processing |
| Absolute Position Detection |
| Automatic Lubrication System |
| Coolant Tank |
| Books and Manuals |
| Capacity: |
| Max Turning Diameter: 5/12″ (16 mm) |
| Max Turning Length: 8″ (205 mm) |

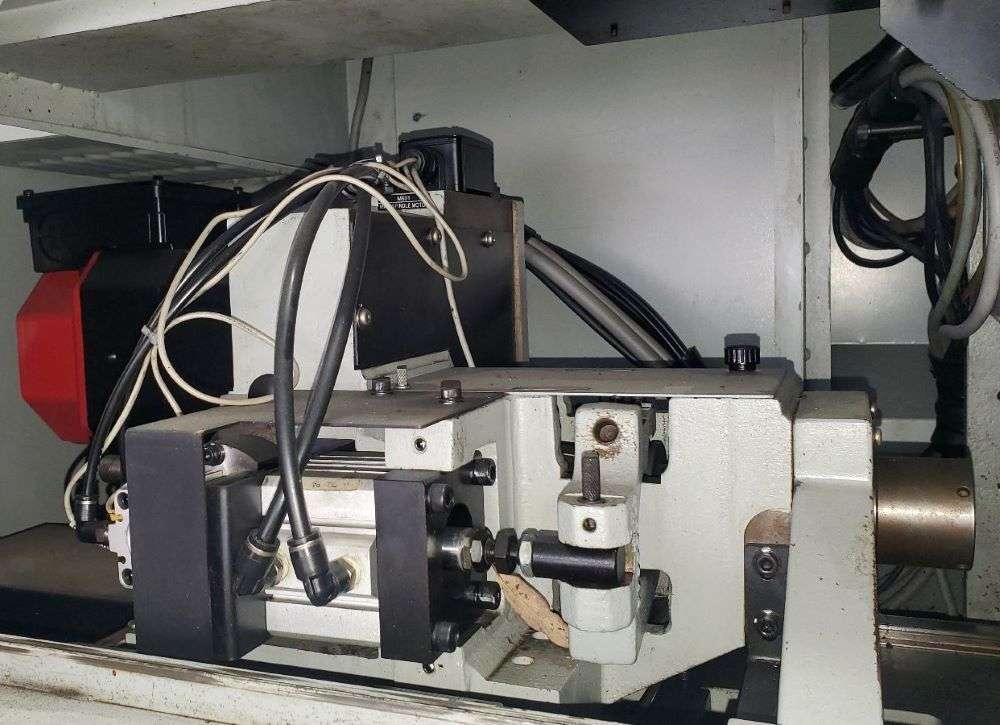

| Max Turning Length with Gripping Unit: 6.3/19″ (155 mm) |
| Max Bar Capacity: 5/12″ (16 mm) |
| Tool Capacity: 16 |
| Spindle: |
| Main Spindle Index: 0.01 Degree (C-axis control) |
| Main Spindle Bore: 5/12″ (16 mm) |
| Main Spindle Speed: 10,000 RPM |
| Back Spindle Motor: 3.7 kw |
| Back Spindle Index: 1 Degree |
| Back Spindle Speed: 8000 RPM |
| Back Spindle Motor: 1 kw |

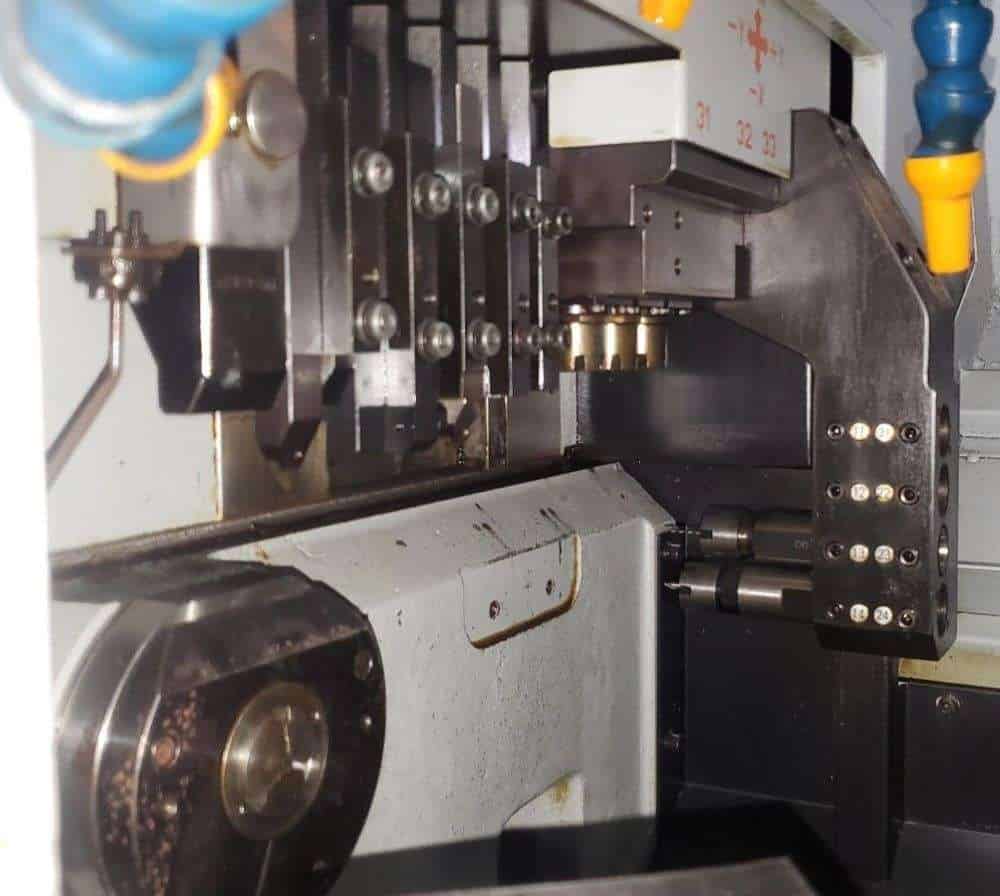

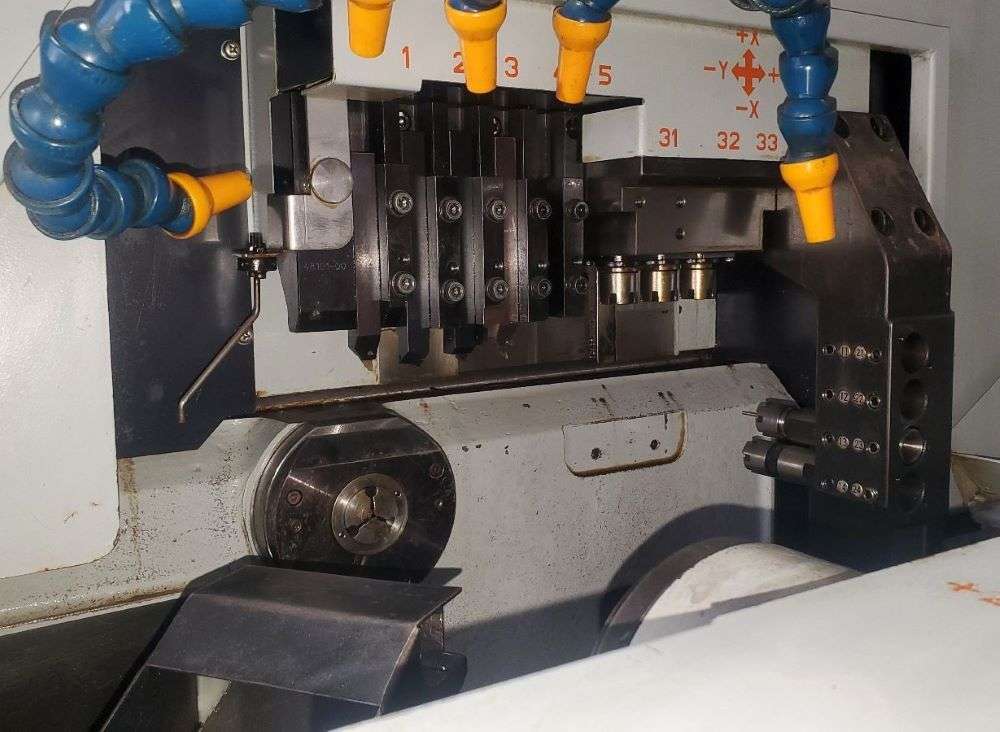

| Standard Tools: |
| Turning Tools: 5 |
| Stationary Tools: 8 |
| Max Drilling Capability: 25/64″ (10mm) |
| Max Tapping Capability: M8 x P1.25 |
| Die Cutting Capability: M8 x P1.25 |
| Power Driven Tools Attachment: |
| Power Driven Tools: 3 |
| Max Front Drilling: 15/64″ (6 mm) |
| Max Front Tapping: M6 x P1.0 |
| Max Front Milling: 15/64″ (6 mm) |
| Driven Tool Speed: 5000 RPM |
| Driven Tool Motor: 0.4 kw |
| General: |
| Power Source: AC 220 V/ Three Phase/ 60 Hz |
| Overall Dimensions: 74″ x 42″ x |
| Categories | Swiss Type Lathe |
|---|
| Categories | CNC Turning Centers |
|---|
