Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

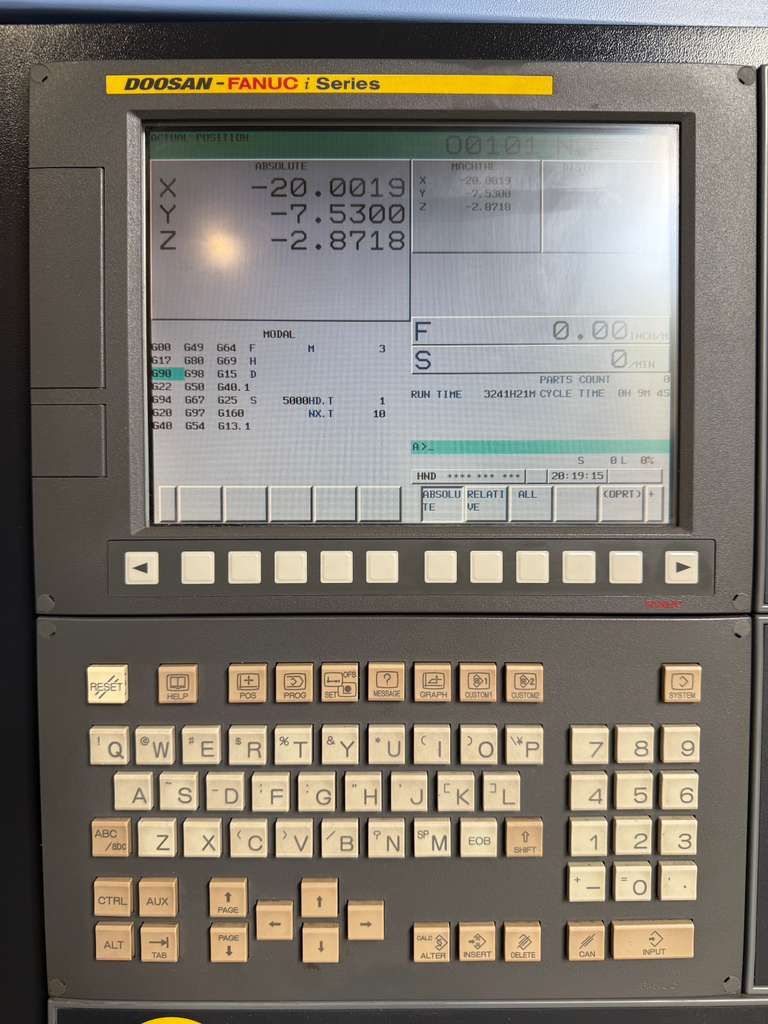

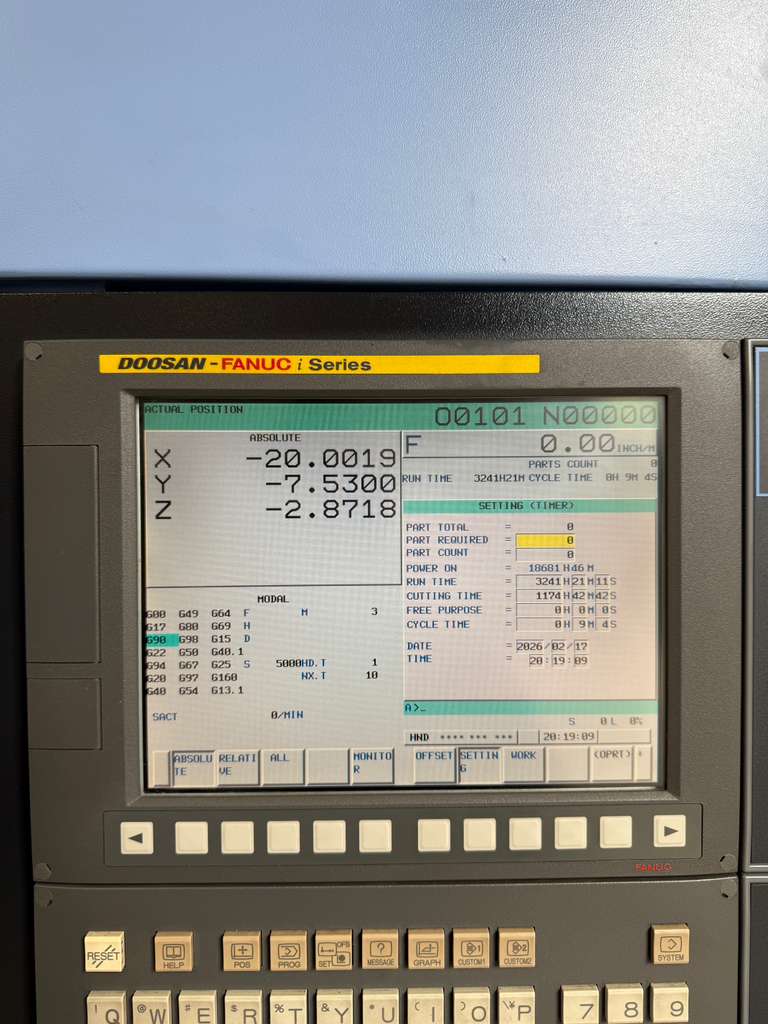

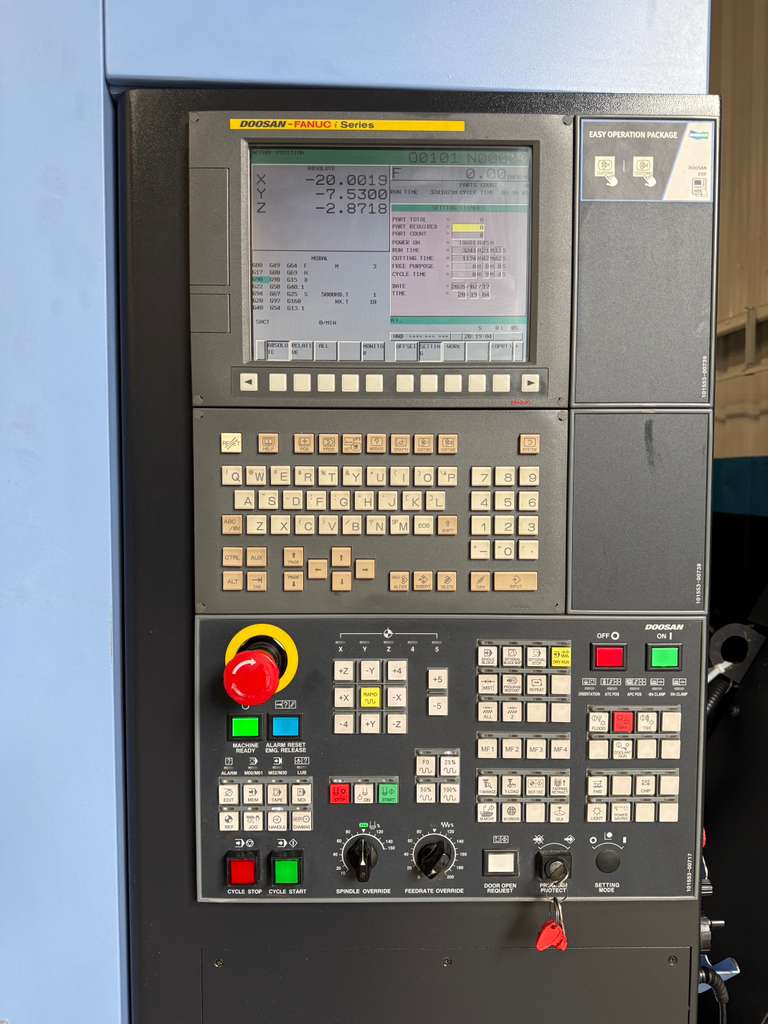

| Doosan Fanuc i-Series CNC Control |
| 8,000 RPM Spindle |
| Through Spindle Coolant |
| Renishaw Probing System Ready (Probe Needed) |

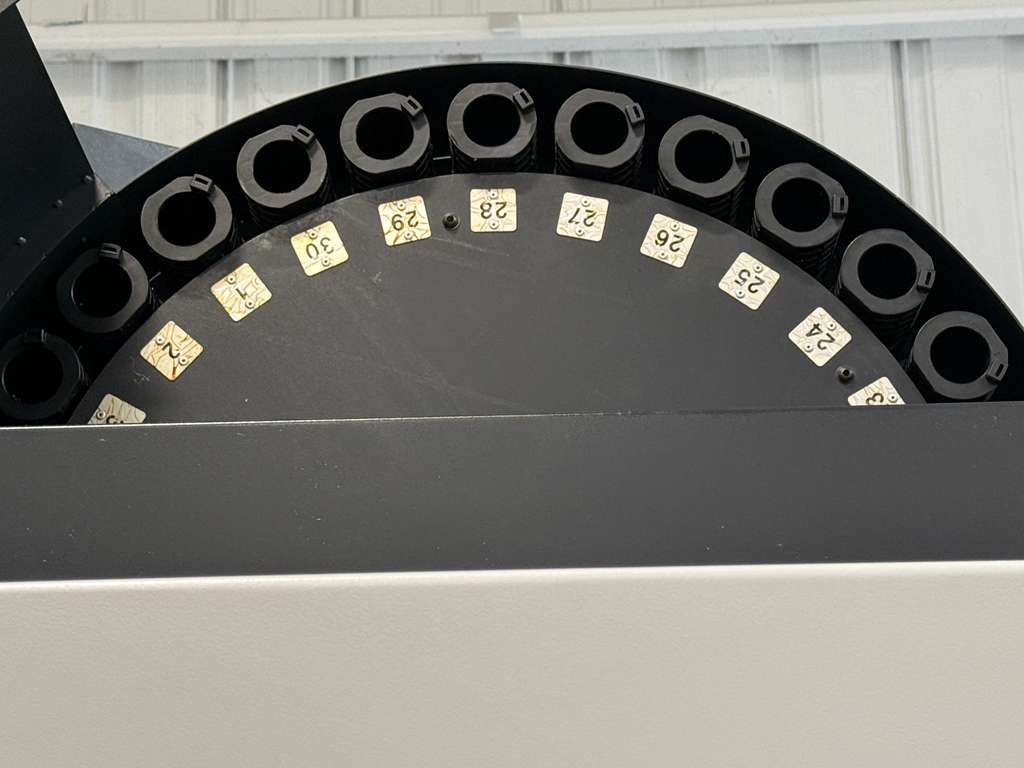

| 30 Station Automatic Tool changer |
| CAT-40 Taper Spindle |
| USB Drive |

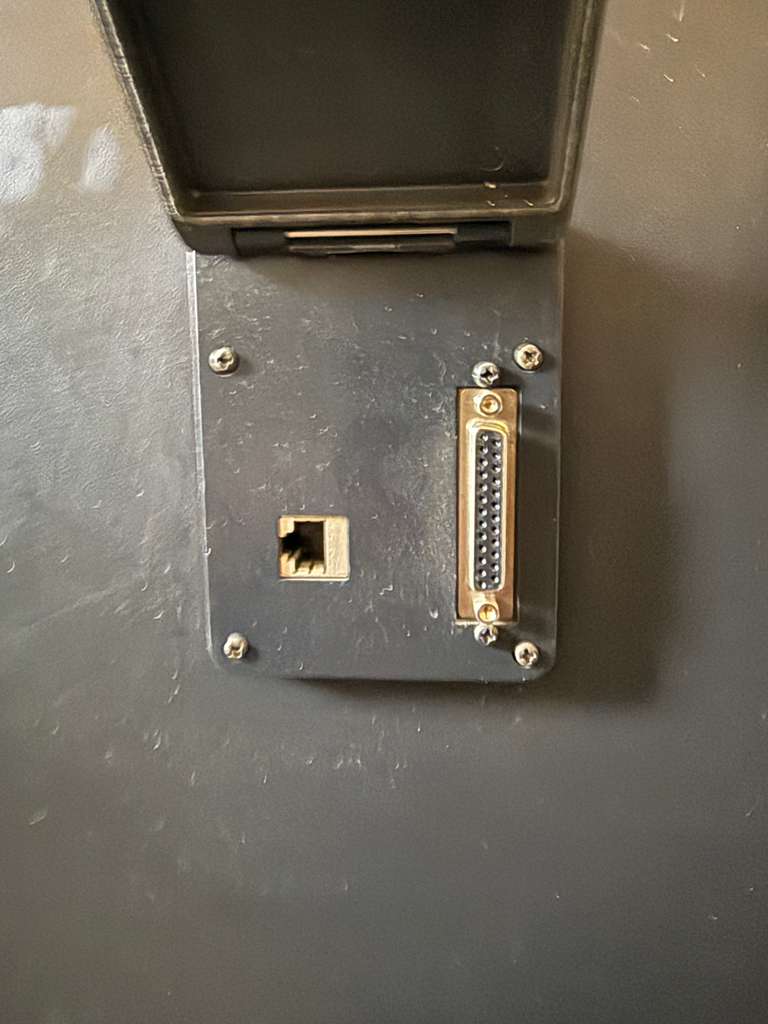

| PCMCIA Card Slot & RS-232 Port |
| MPG Hand Wheel Control |
| Automatic Lubrication System |
| Rigid Tapping |
| Coolant System |

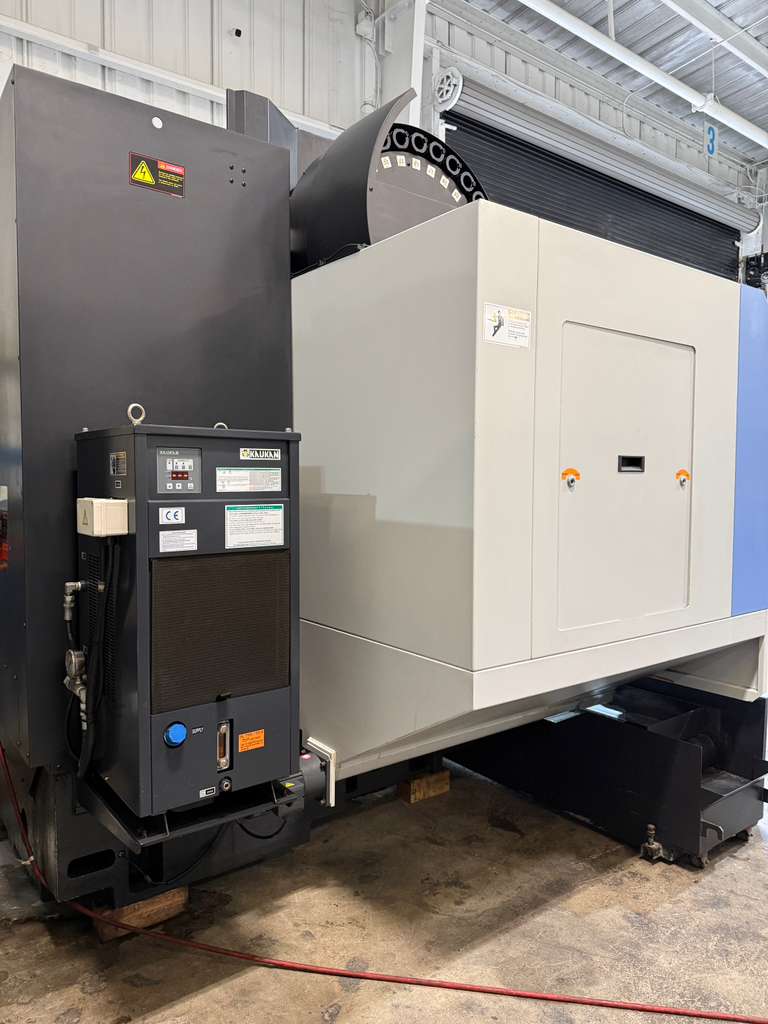

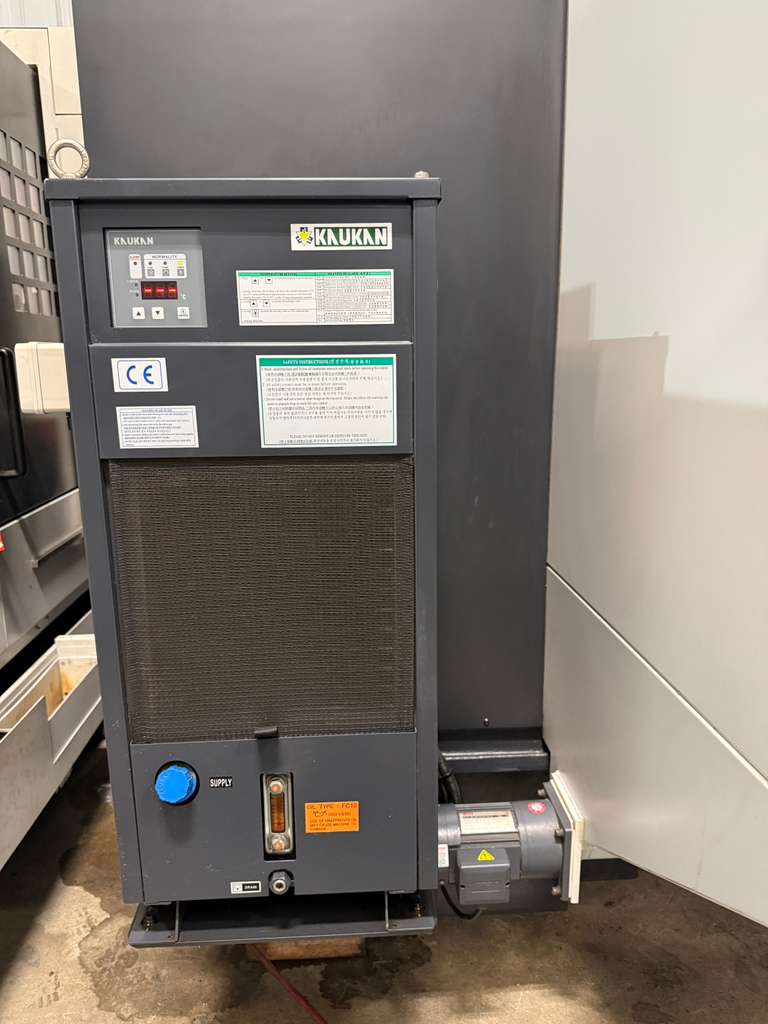

| Spindle Chiller Unit |
| LNS Chip Conveyor |
| Books & Manuals |
| Levelling Pads |
| Travels: |
| X-Axis: 40.2″ |
| Y-Axis: 21.3″ |
| Z-Axis: 20.1″ |
| Rapid Traverse Rates X & Y Axis: 1417 IPM |
| Rapid Traverse Rates Z Axis: 1181 IPM |
| Cutting Feed Rates: 590 IPM |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0 |

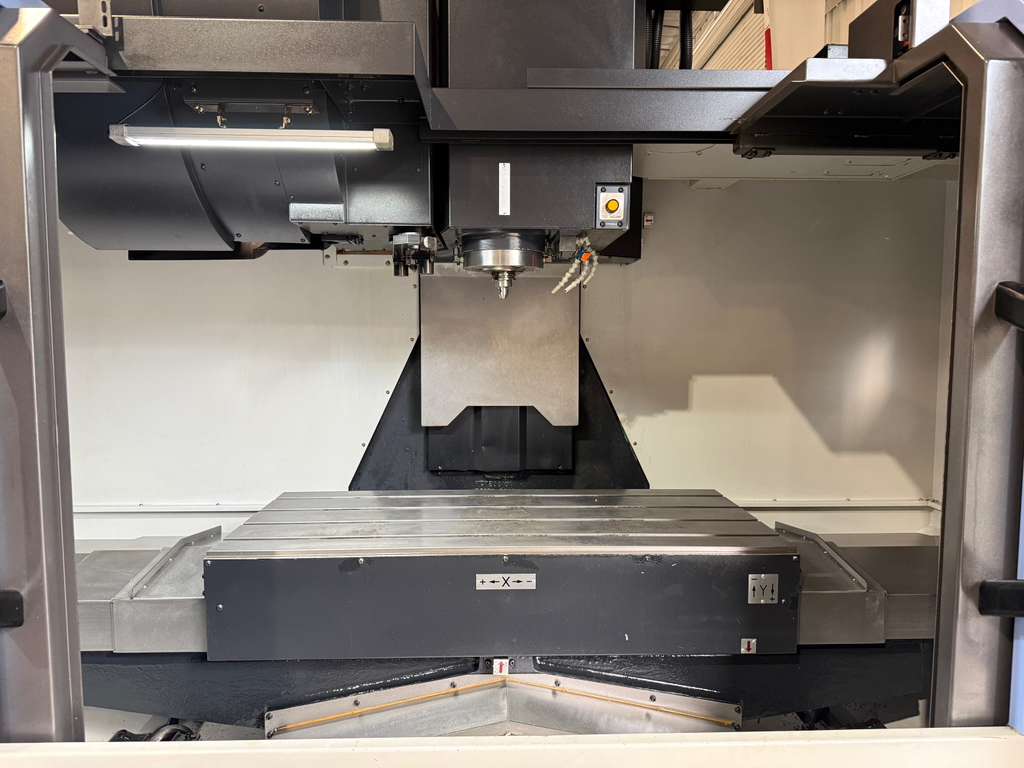

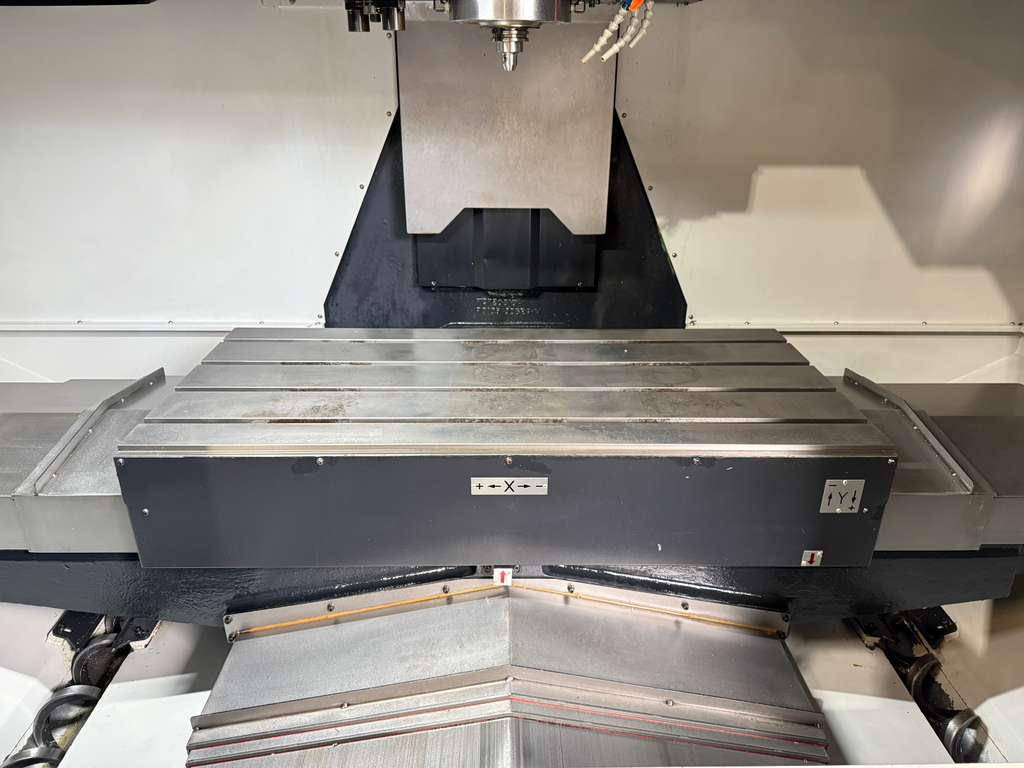

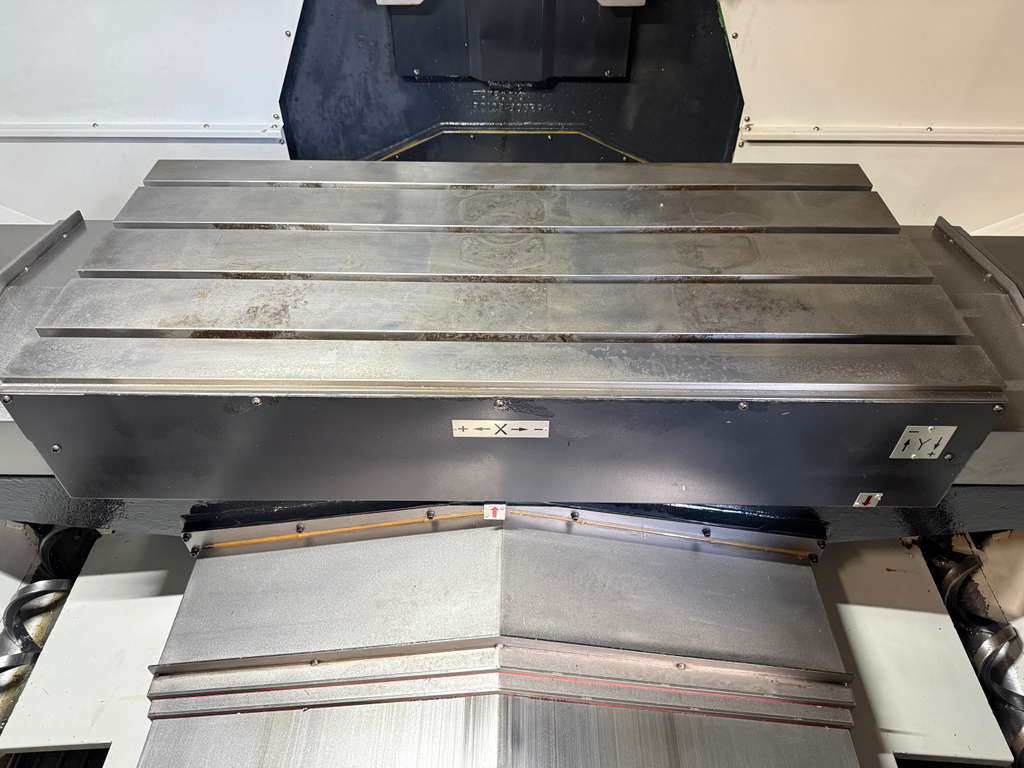

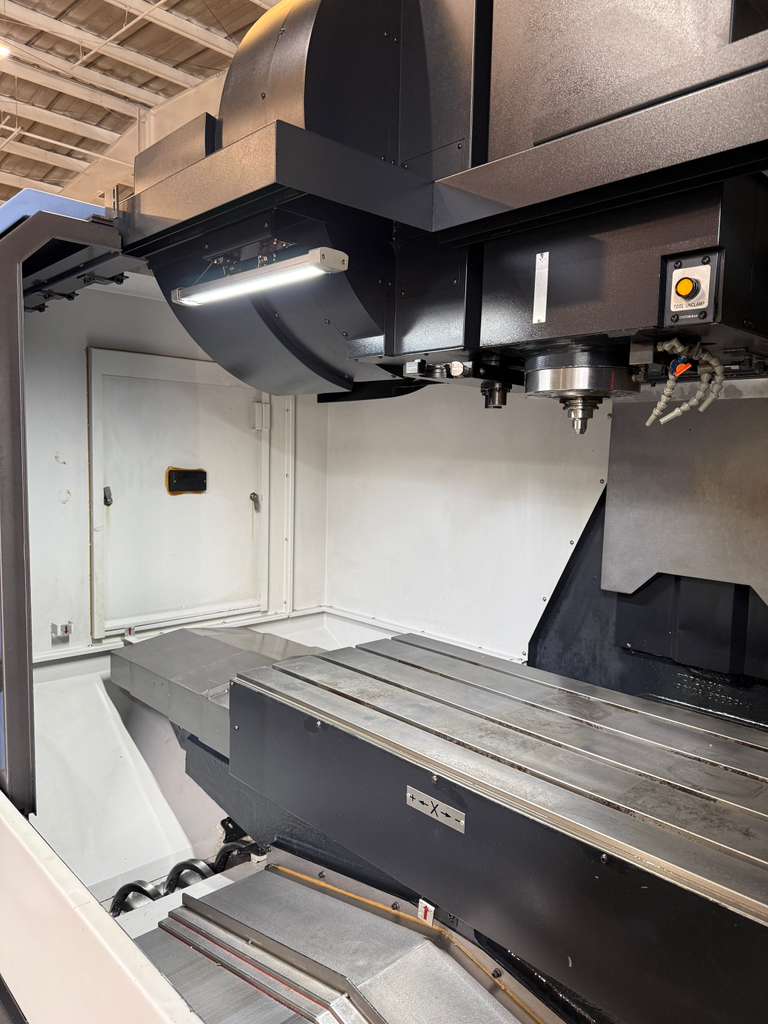

| Table: |
| Length: 47.2″ |
| Width: 21.3″ |
| Number of Std T-Slots: 4 |
| T-Slot Width: 4.9″ x 0.7″ |
| Max Weight on Table: 1764 lbs |

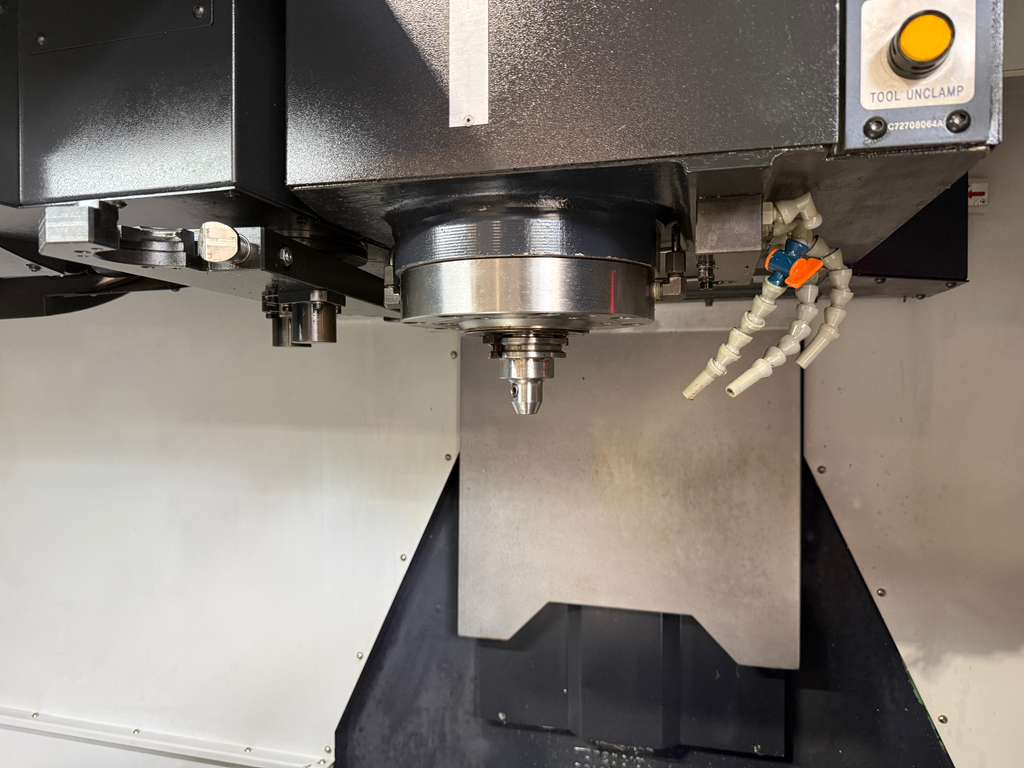

| Spindle: |
| Taper Size: CAT-40 |
| Speed Range: 8,000 RPM |
| Spindle Power: 12 HP |
| Automatic Tool Changer: |
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.1″ -4.9″ |
| Max Tool Length: 11.81″ |
| Tool Changing Time : 1.3 Seconds |
| General: |
| Air Required: 90 psi 4 scfm |

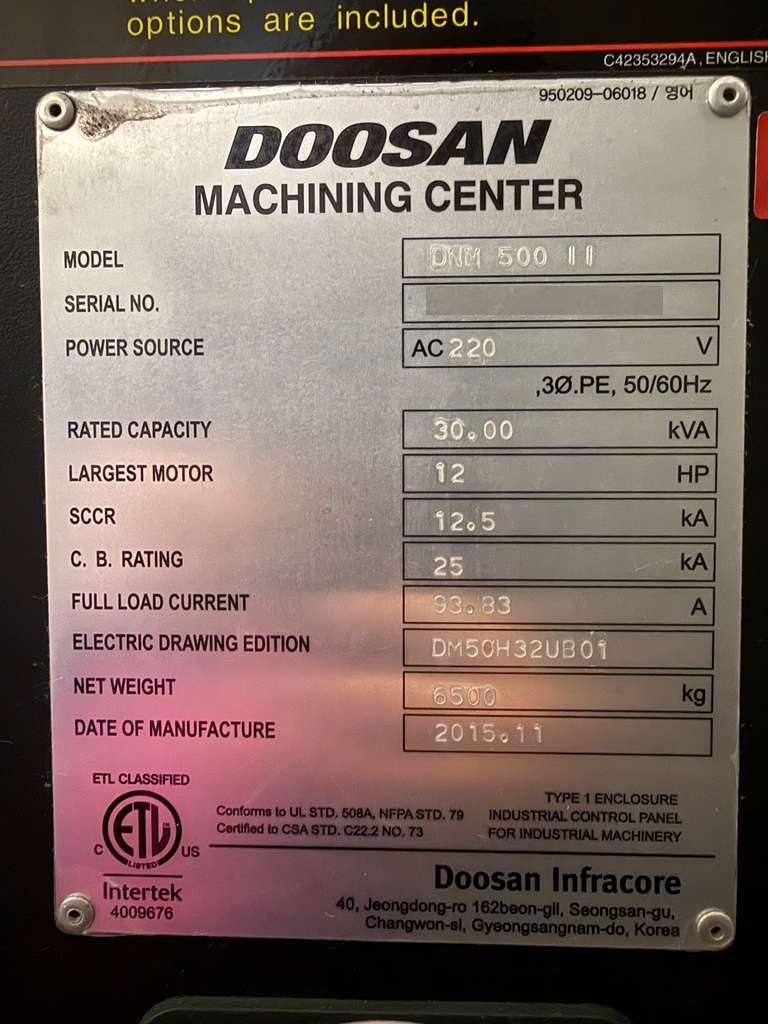

| Power: 220v / 30 kva / 3-Phase / 50/60 Hz |
| Overall Dimensions: 116″ x 96″ x 107″ High |
| Weight: 14330 lbs |
