Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.

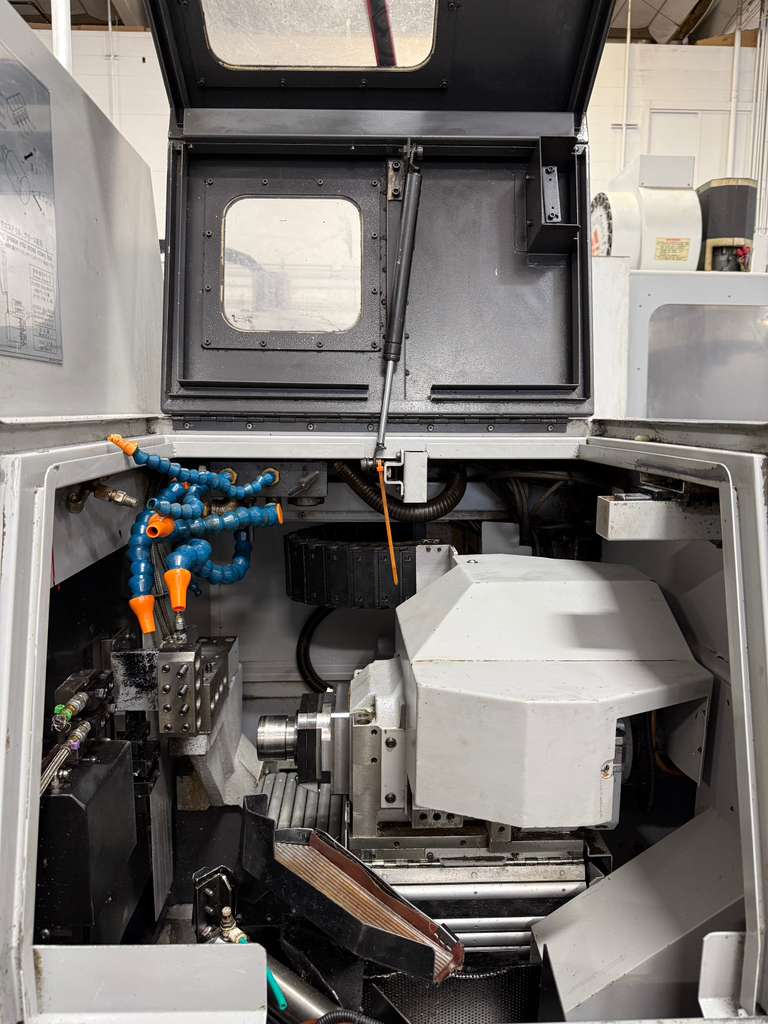

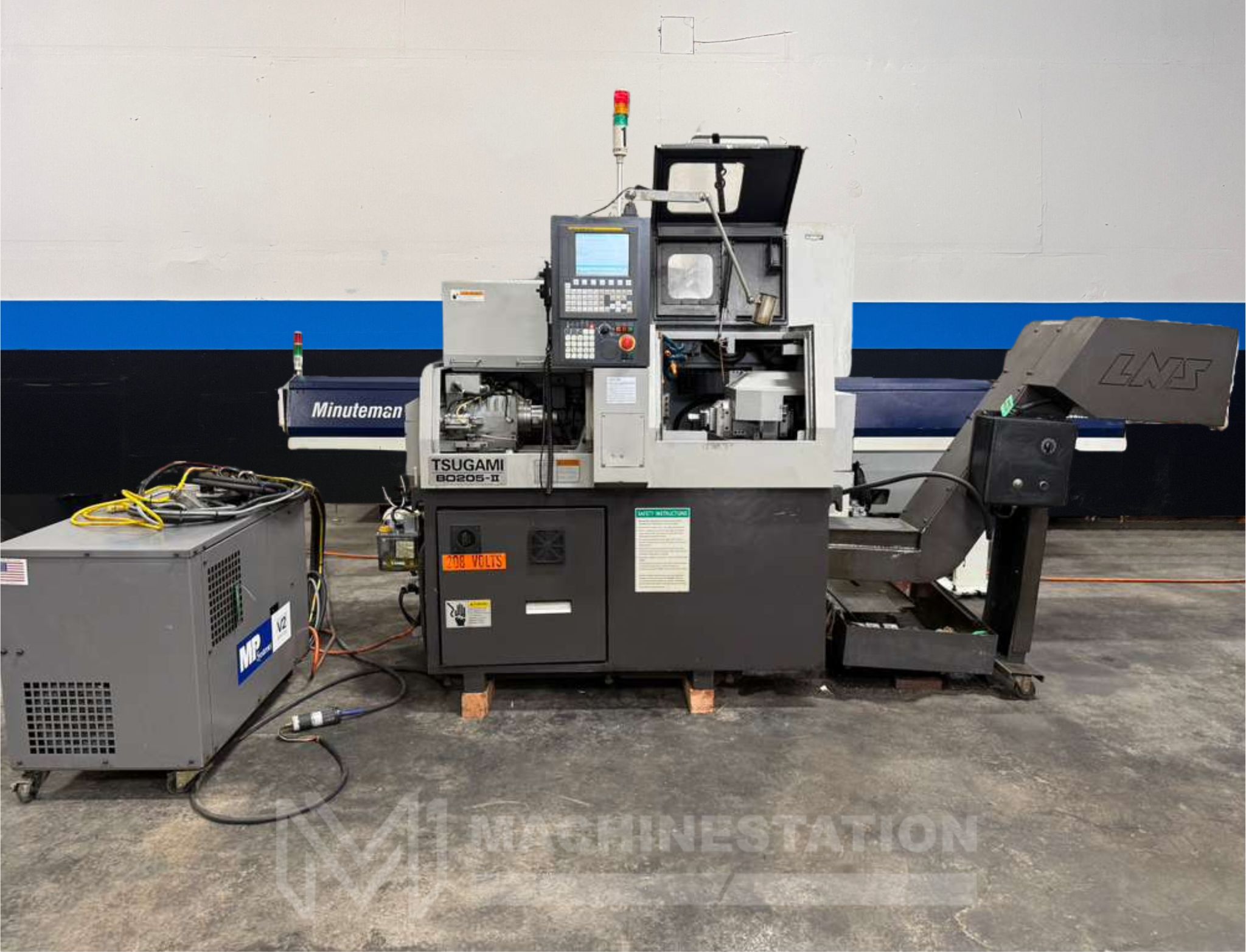

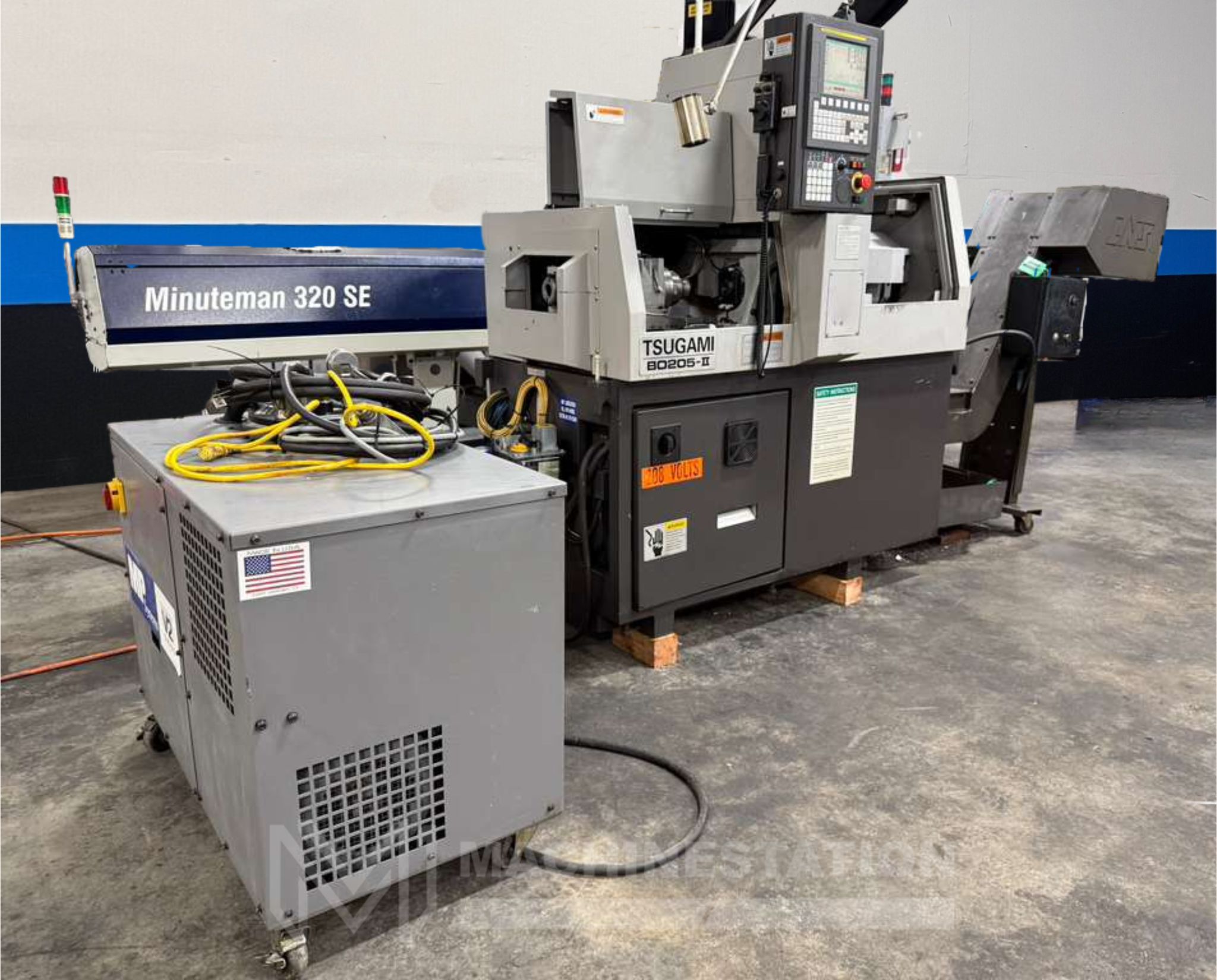

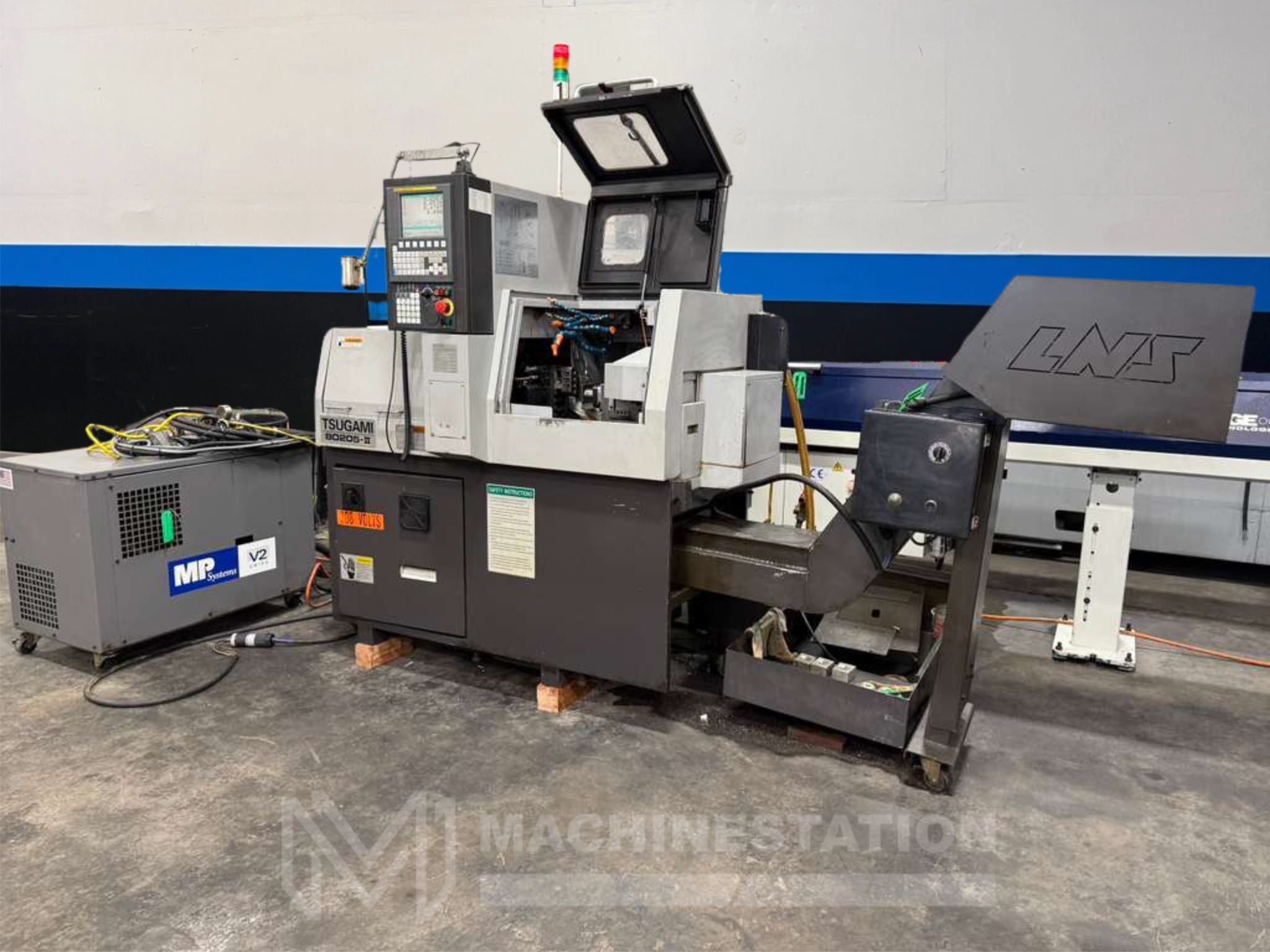

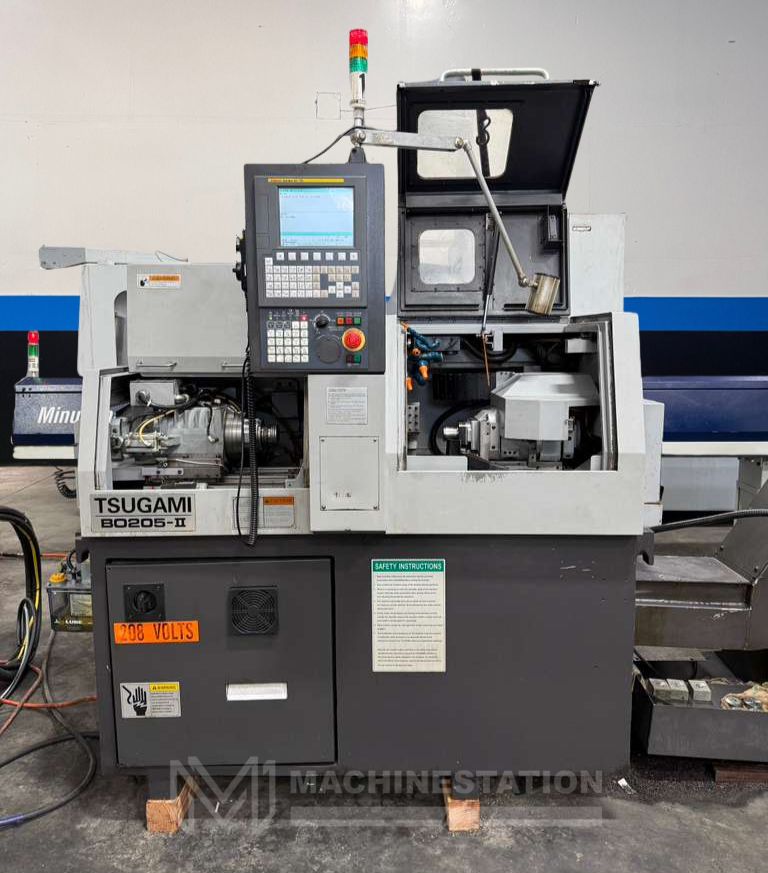

The 2013 Tsugami B0205-II is a CNC Swiss-type automatic lathe with main and back spindle, C and Y axis and live tooling, so complex small parts up to 20 mm bar can be finished in one setup. It comes with a Fanuc 0i-TD control, Edge Minuteman 320 SE bar feeder, high-pressure coolant and LNS chip conveyor, and shows 9,578 cutting hours. It suits automotive, hydraulic fitting, medical and electronics parts. The machine is at our USA warehouse in Lake Elsinore, California, and can be shipped to India. Ask us for a video and price.
| Equipped With: |

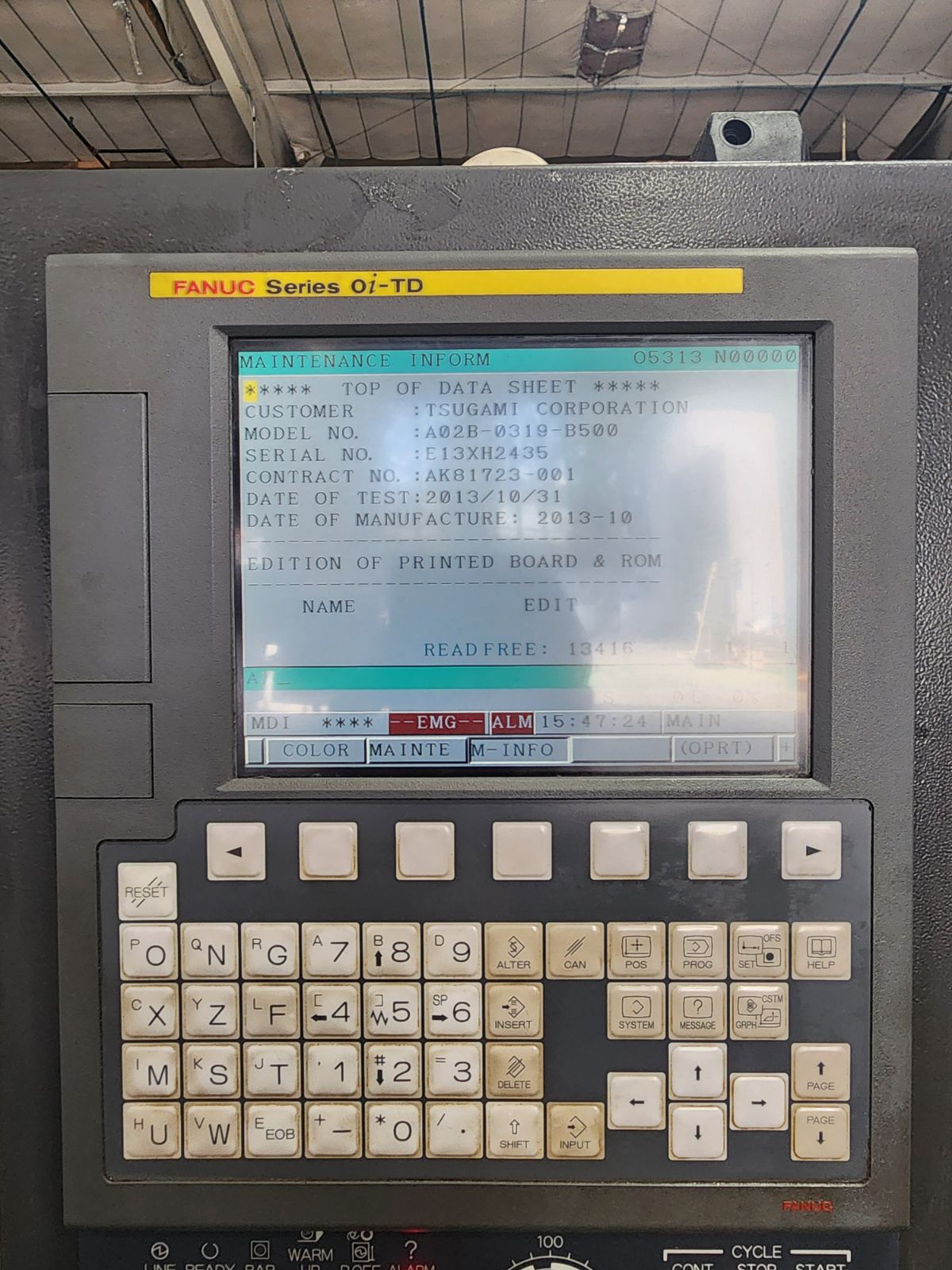

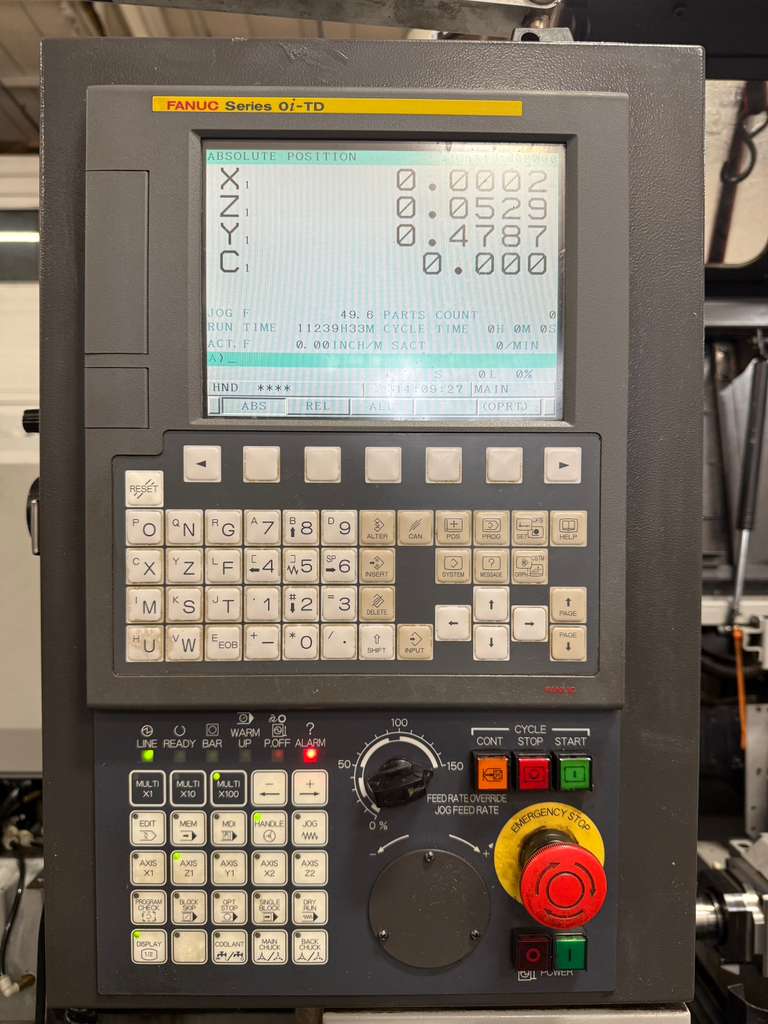

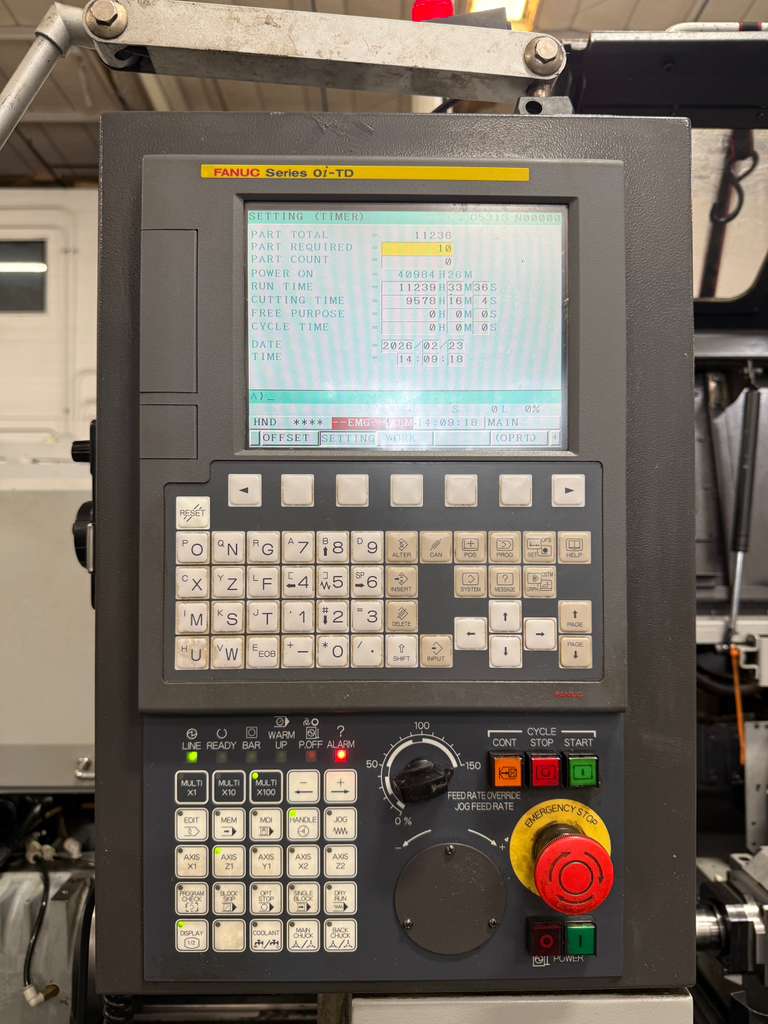

| Fanuc Oi-TD CNC Control |
| Controlled Axes (Linear Axes) X1, X2, Y1, Z1, Z2 |

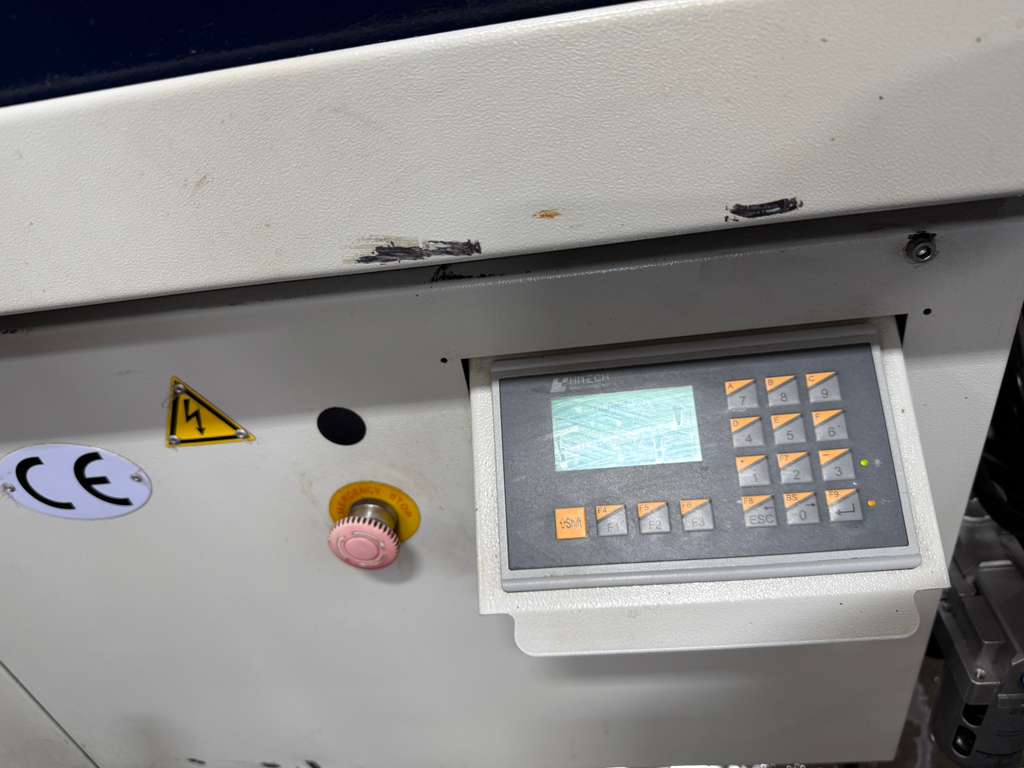

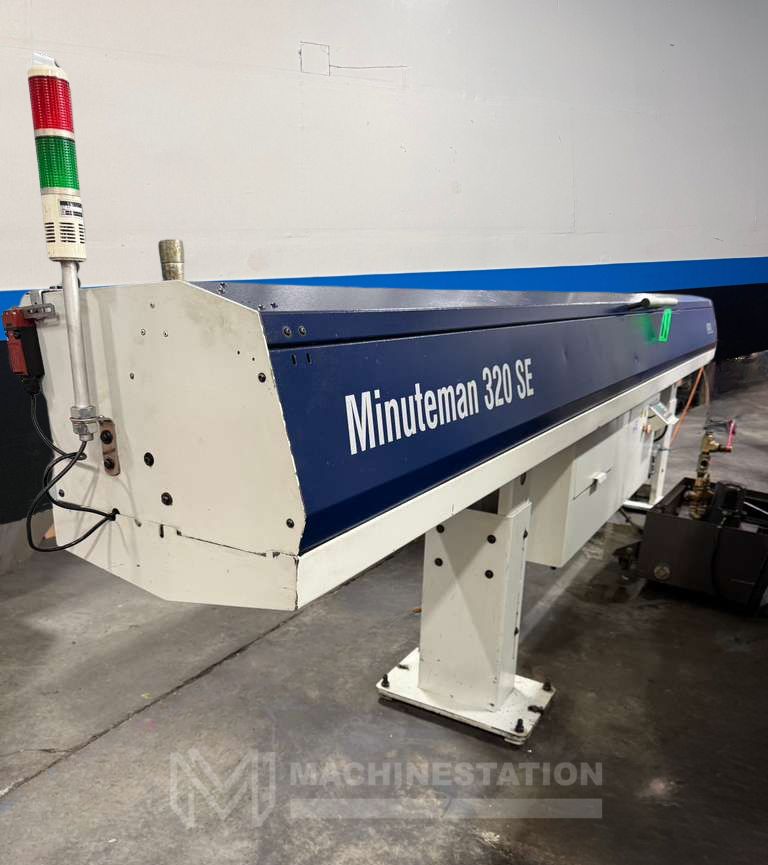

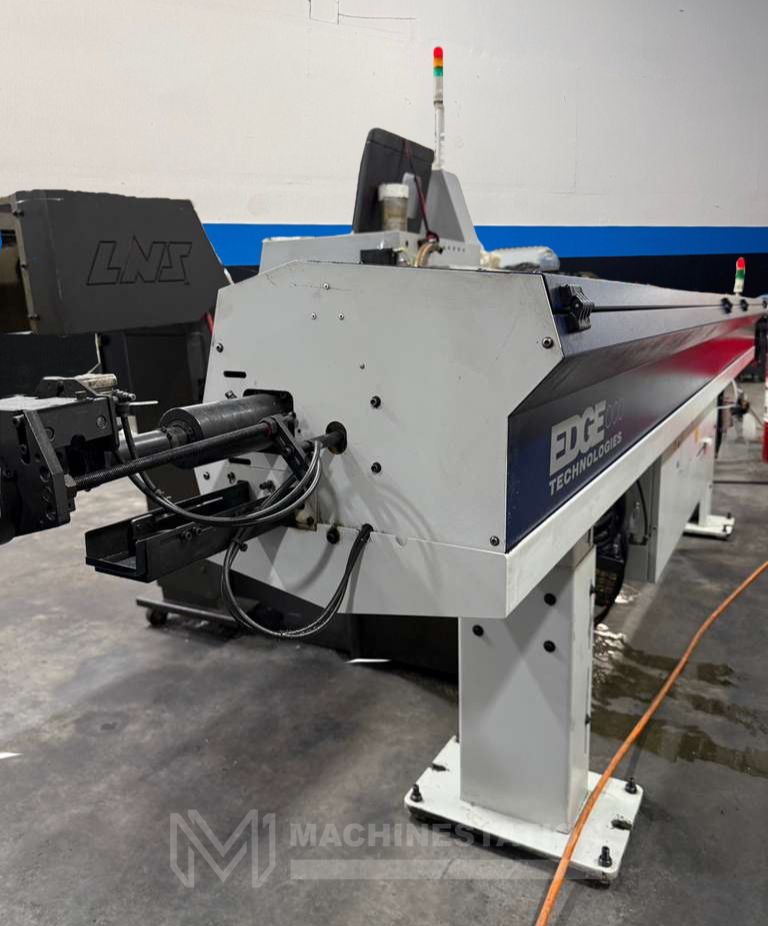

| Comes with Edge Minuteman 320 SE Bar Feeder |

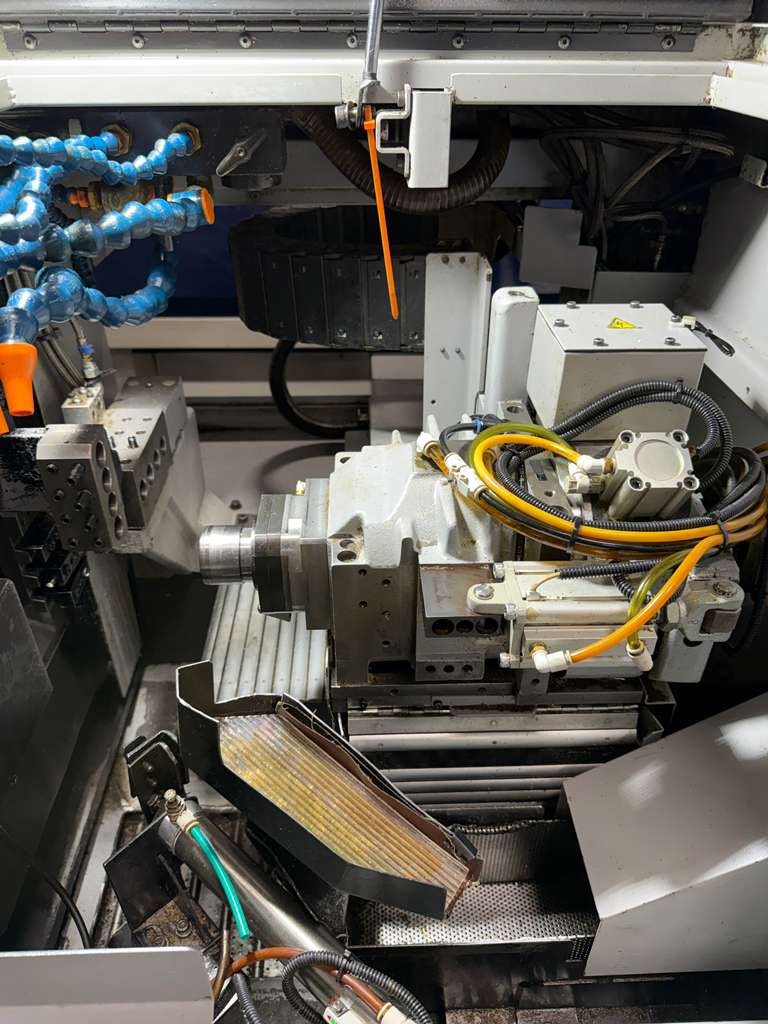

| Back Spindle |
| C & Y Axis Capable |
| Live Tools Capable |
| Long Parts Capable |
| MPG Handwheel Control |
| Parts Catcher |
| Parts Conveyor |
| Main & Back Spindle Synchronization |
| High Speed Rapid Traverse: 1260 IPM (X1: 945 IPM) |
| Automatic Lubrication System |

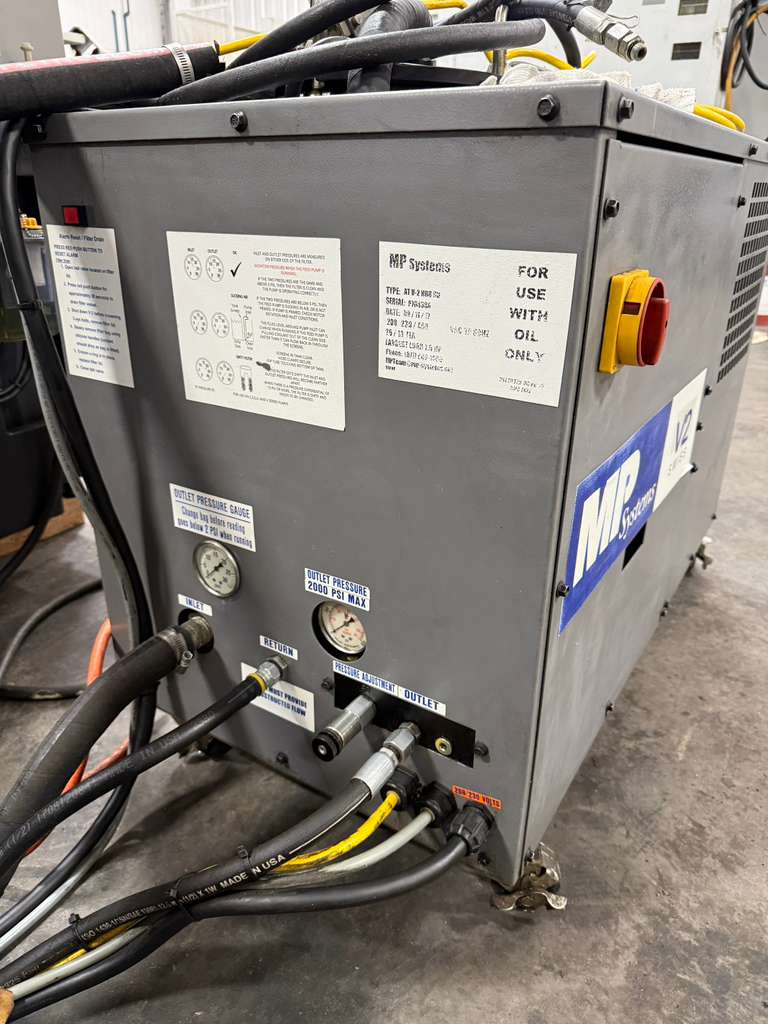

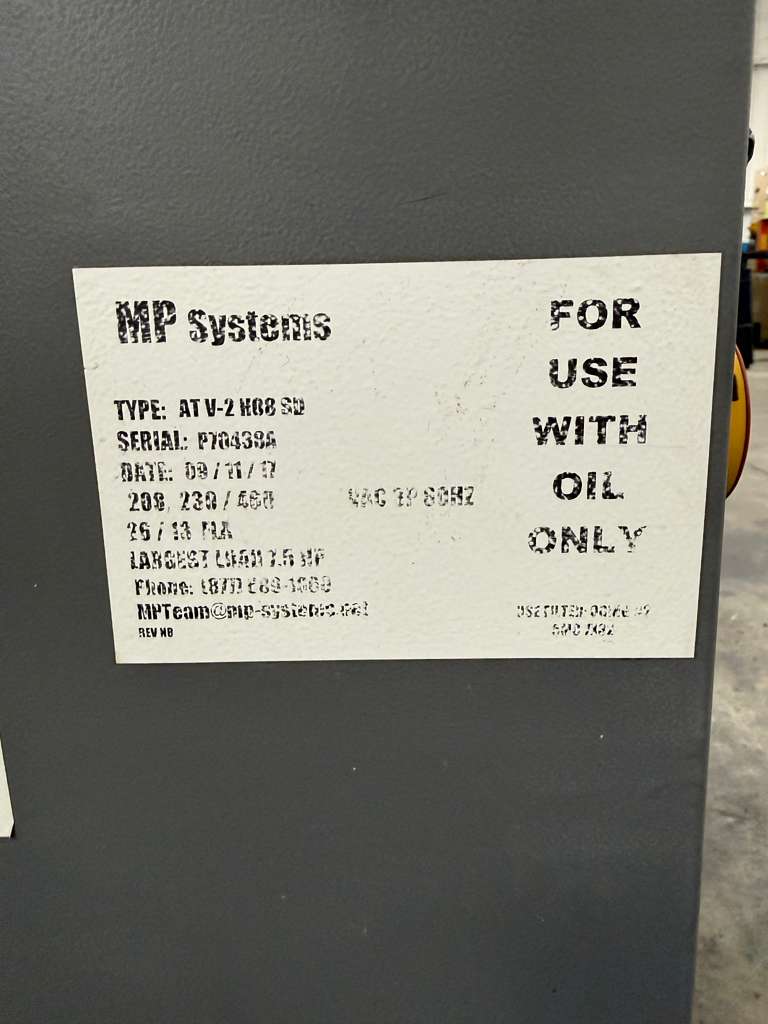

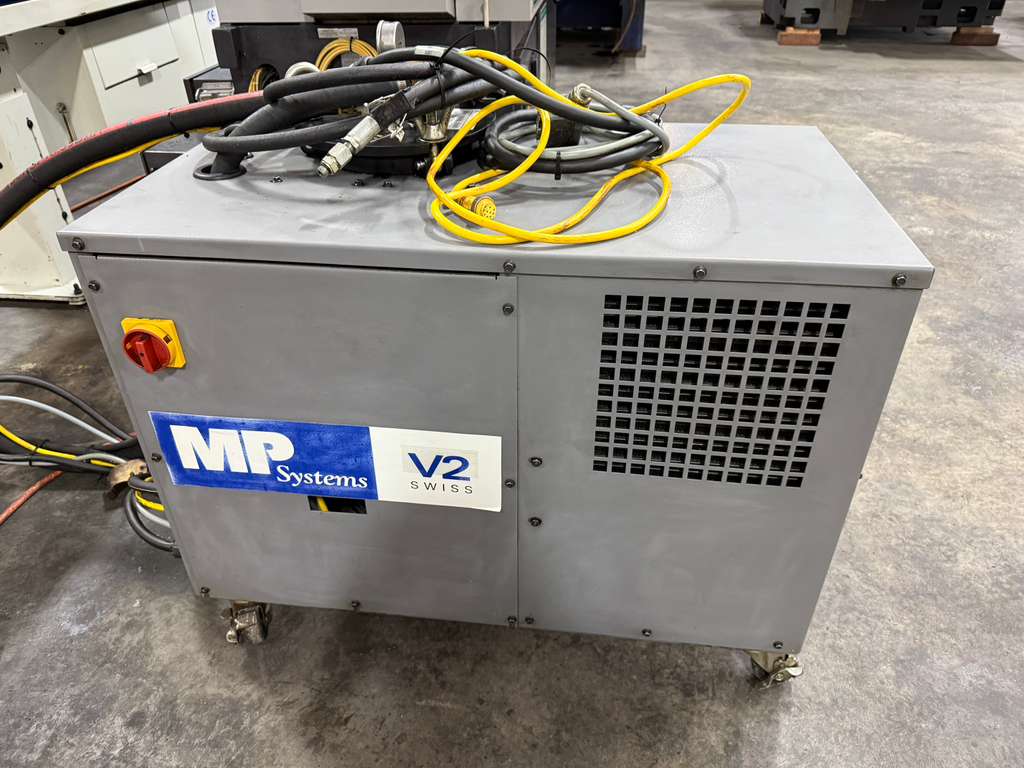

| MP Systems V2 High Pressure Oil Coolant System |
| LNS Chip Conveyor |
| Levelling Pads |
| Capacity: |
| Max Turning Diameter: 0.79″ (20 mm) |
| Max Turning Length: 8.3″ (210 mm) |
| Max Turning Length with Gripping Unit: 6.69″ (170mm) |
| Max Bar Capacity: 0.79″ (20 mm) |
| Total Tool Storage Capacity: 21 Tools |
| Max. Main Spindle Drilling Diameter: 0.39″ (10 mm) |
| Max. Main Spindle Tapping Diameter: M10 x 1.5 |
| Max. Back Spindle Chucking Diameter: 0.79″ (20 mm) |
| Max. Back Spindle Drilling Diameter: 0.31″ (8 mm) |
| Max. Back Spindle Tapping Diameter: M8 x 1.25 |
| Max. Cross Drilling Diameter: 0.236 ( 6 mm) (option) |
| Max. Cross Tapping Diameter: M5 x 0.8 (option) |
| Spindle: |
| Main Spindle Indexing: 360° (Full C-Axis) |
| Main Spindle Bore: 0.79″ (20 mm) |
| Main Spindle Speed: 200 – 10000 RPM |
| Main Spindle Motor: 3.7 kw |
| Back Spindle Indexing: 360° (Full C-Axis) |
| Back Spindle Speed: 200 – 12000 RPM |
| Back Spindle Motor: 2.2 kw |
| Total Tool Storage Capacity: |
| OD Tools: 9 |
| ID Tools: 4 |
| Cross Rotary Tools: 2, 3, 4 (Optional) |

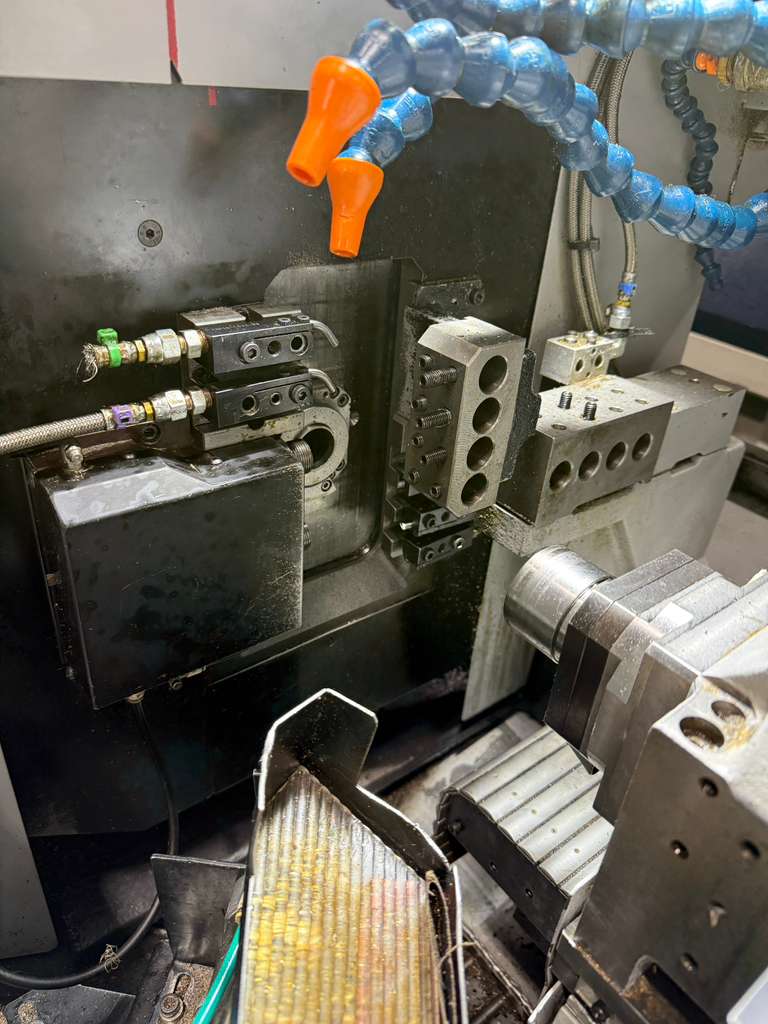

| Front Tool Post: 4 |
| Back Tool Post: 4 |
| General: |
| Power Source: AC 220v / 3-Phase /60 Hz |
| Power Requirement: 11 kva |
| Overall Dimensions: 64.56″ X 42.51″ X 66.93″ High without Bar Feeder |
| Weight: 3,747 lbs. Approx. |
