Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

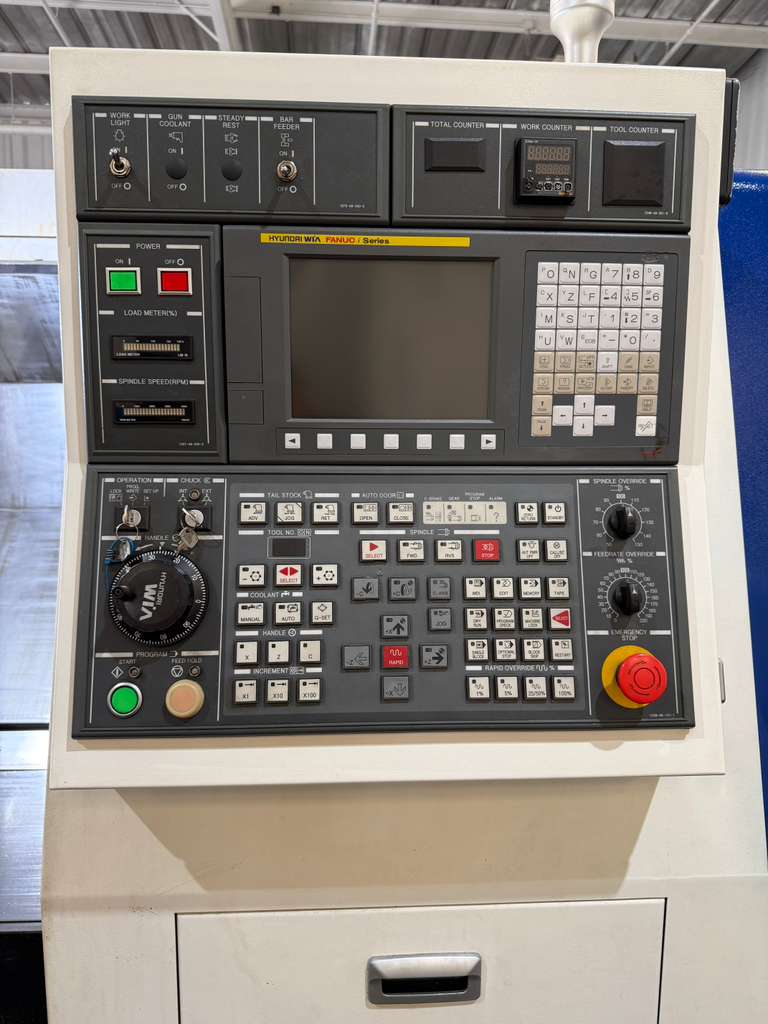

| Hyundai WIA Fanuc i Series CNC Control |
| Linear Ways Construction |

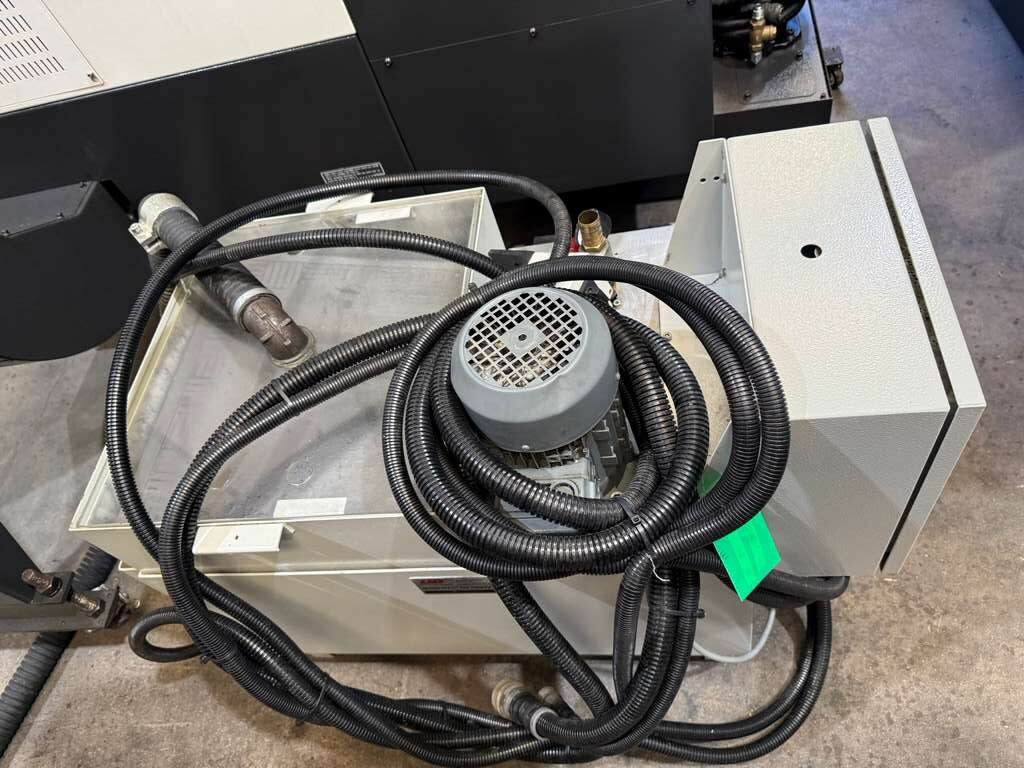

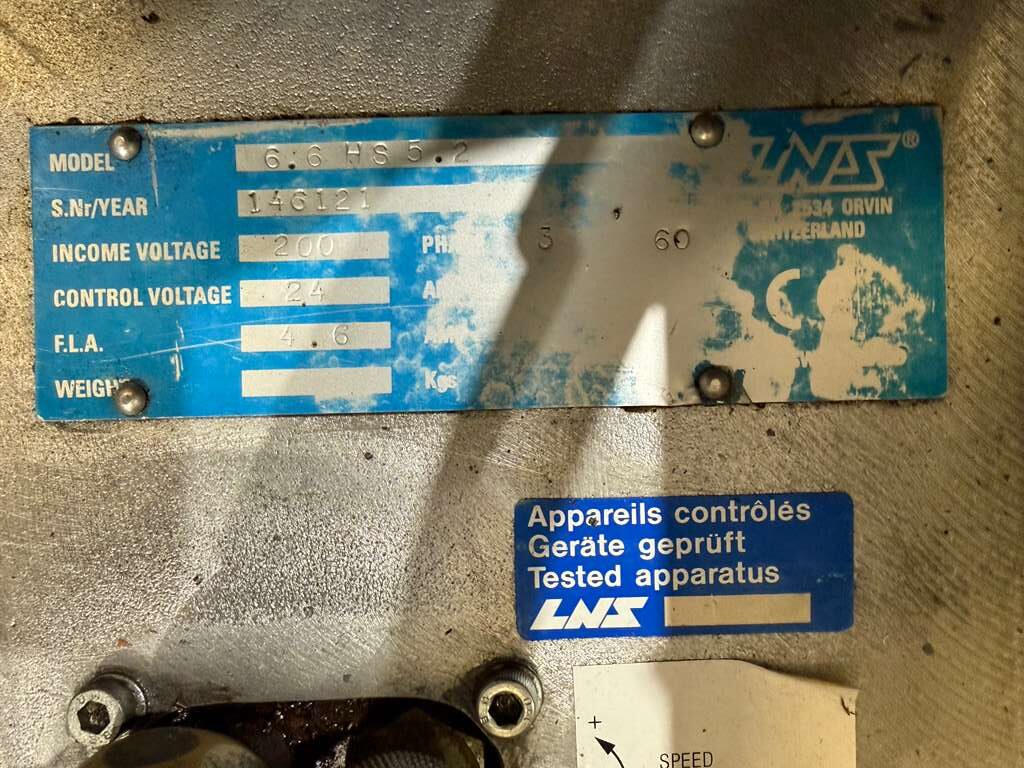

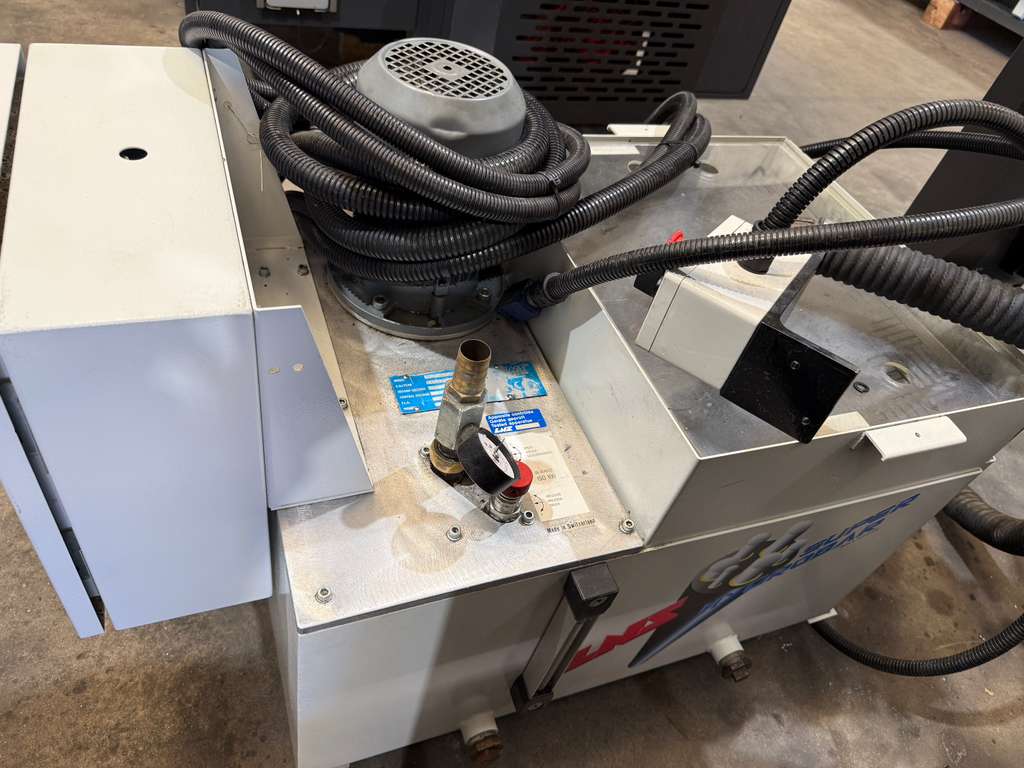

| LNS Super Hydrobar Bar Feeder |

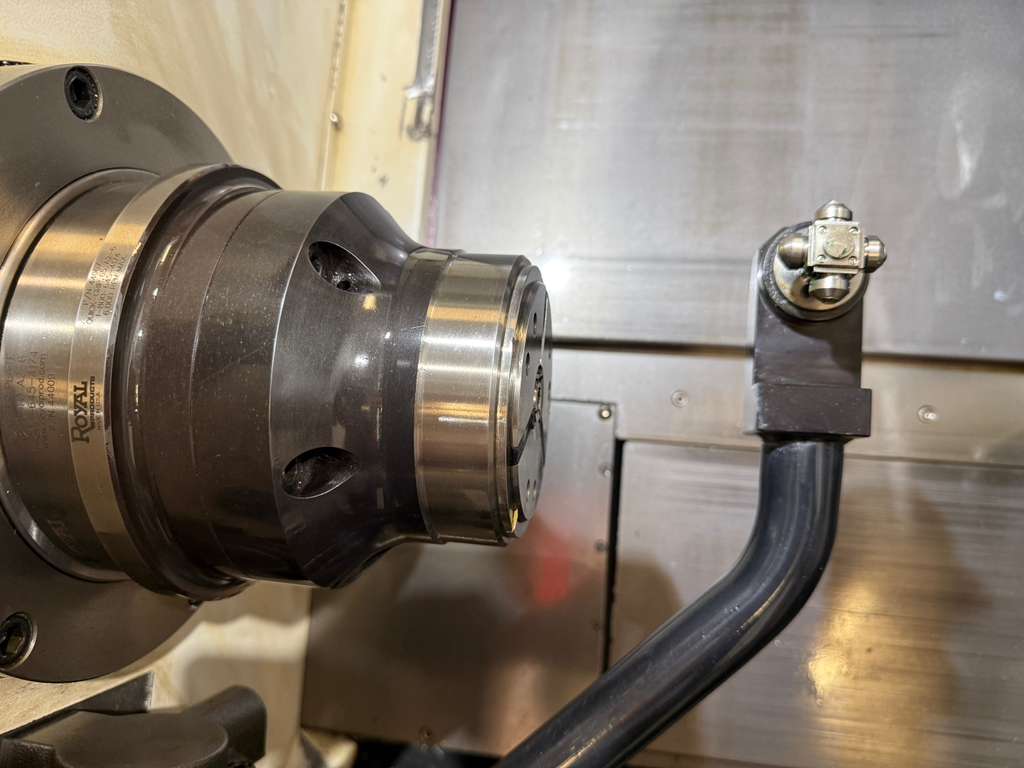

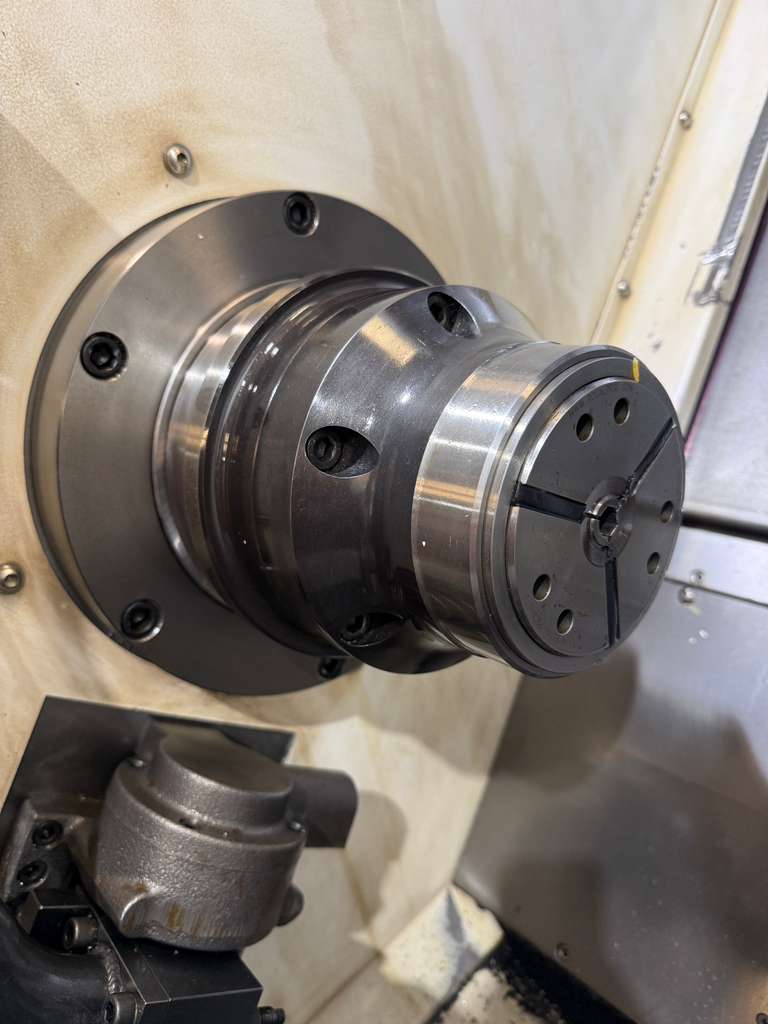

| Royal Quick Grip 65 Collet Chuck (8″ Chuck Capable) |

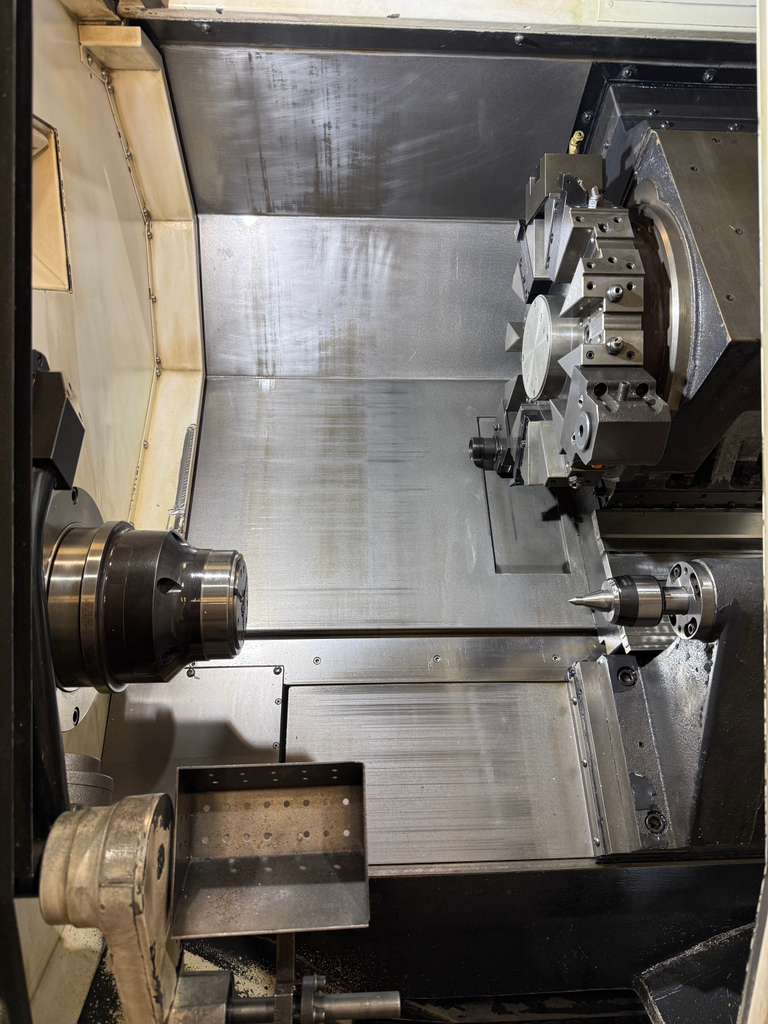

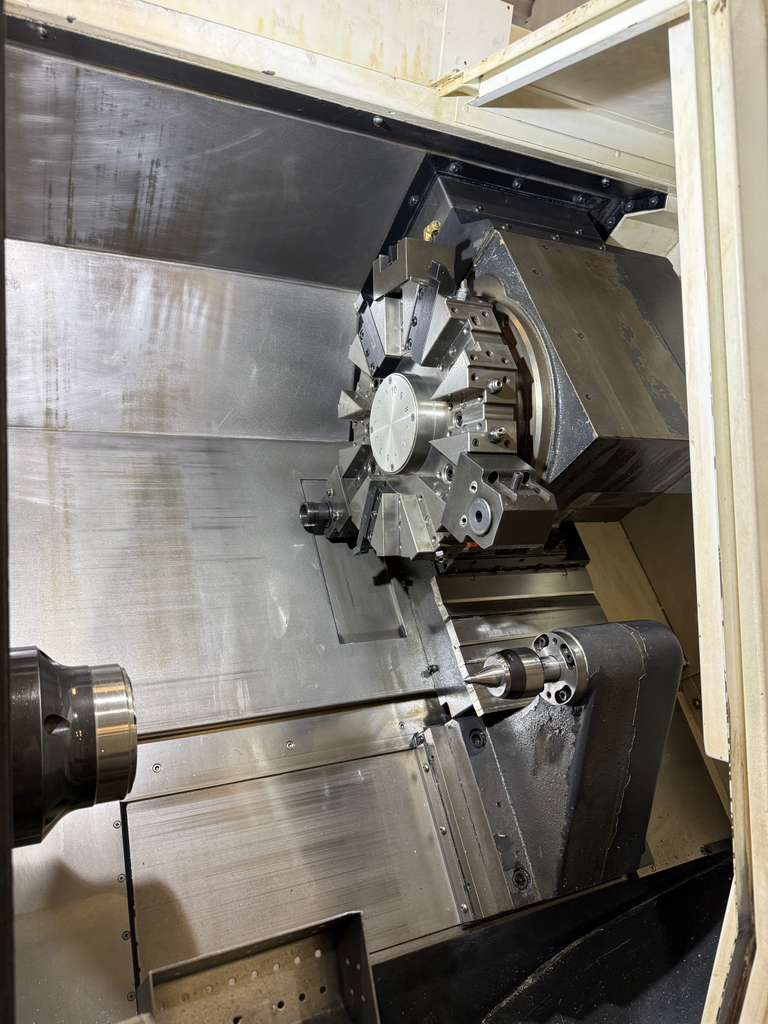

| 12 Station Automatic Turret |
| Tool Presetter |
| Parts Catcher |
| Programmable Tailstock |
| Coolant System |

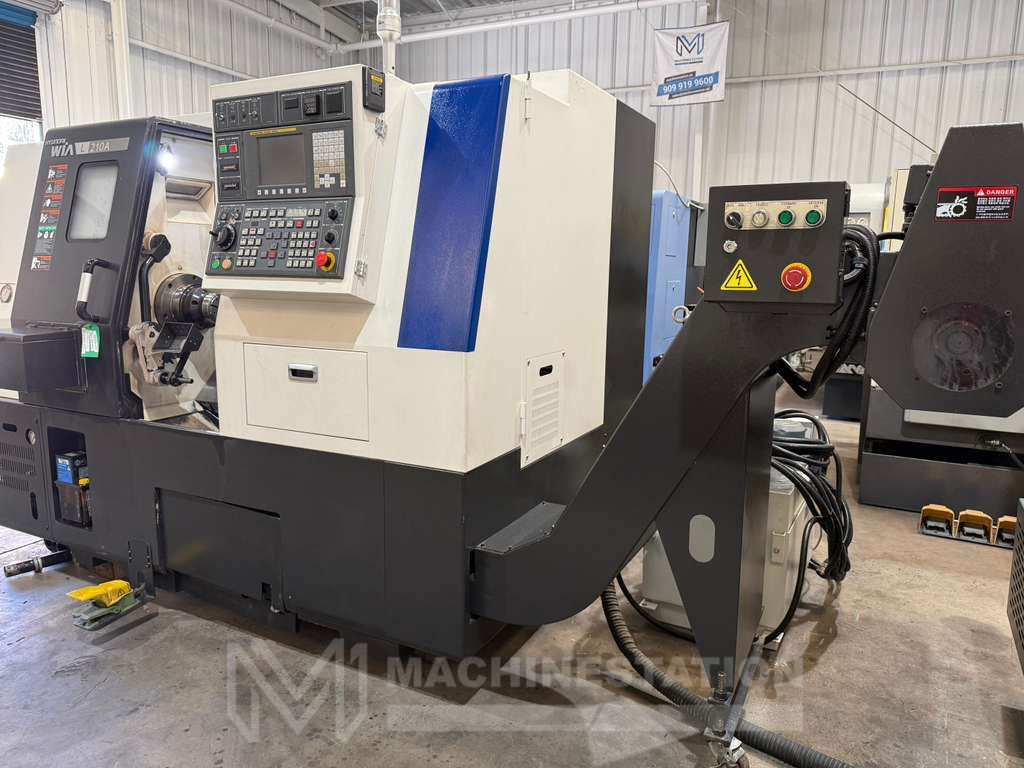

| Chip Conveyor |
| Foot Switch |

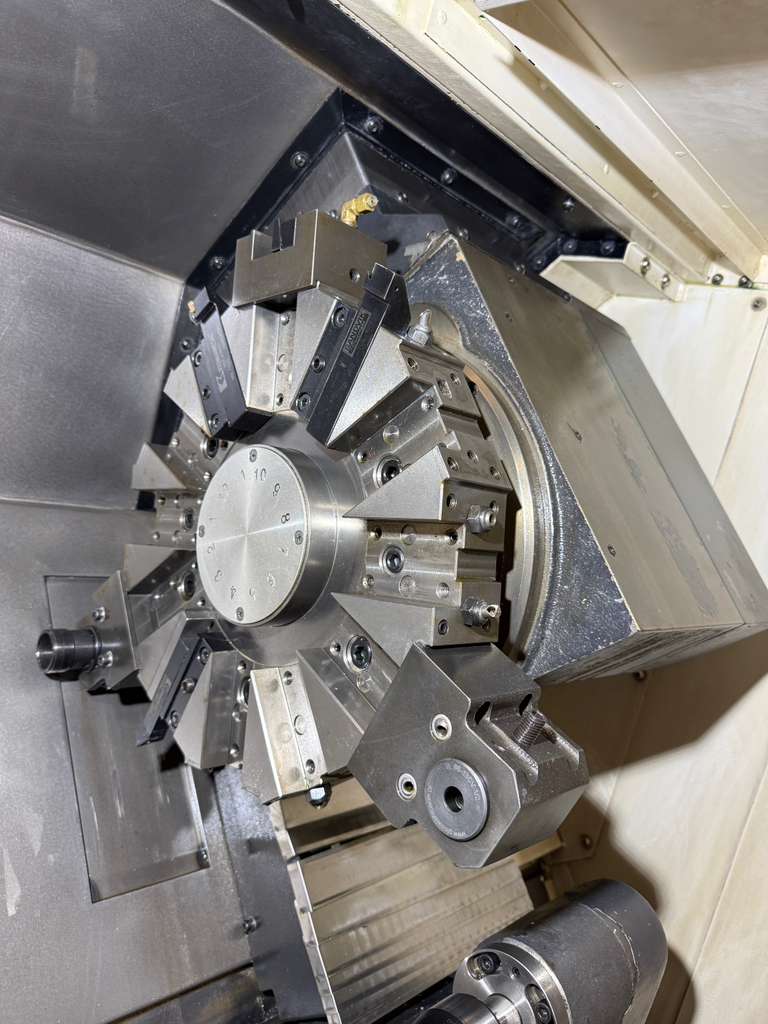

| (2) Boring Tool Holders (1) Turning Tool Holder Are Mounted on Turret (As shown in the images) |
| Capacity: |
| Max Turning Diameter: 13.8″ |
| Max Turning Length: 16.1″ |
| Swing Over Bed: 21.7″ |
| Swing Over Carriage: 13.8″ |
| Max Bar Capacity: 2.6″ |
| Travels: |
| X Axis Travel: 8.3″ |
| Z Axis Travel: 17″ |
| Rapid Traverse X Axis: 1,417 IPM |
| Rapid Traverse Z Axis: 1,417 IPM |
| Spindle: |
| Spindle Nose: A2-6 |
| Spindle Bore: 3.0″ |
| Spindle Speed: 4,000 RPM |
| Spindle Motor: 20 HP |
| Turret: |
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.12 Second |
| Tool Size: 1″ OD / 1.3″ ID |

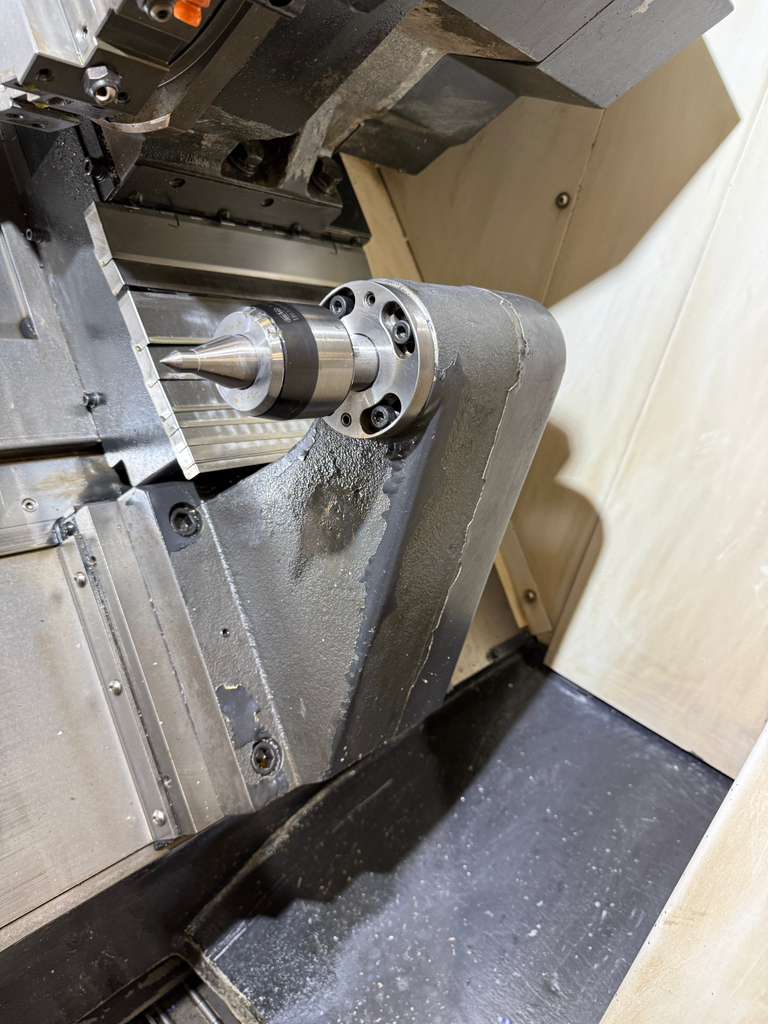

| Tailstock: |
| Tailstock Taper: MT4 |
| Tailstock Quill Diameter: 2.2″ |
| Tailstock Travel: 15.7″ |
| General: |

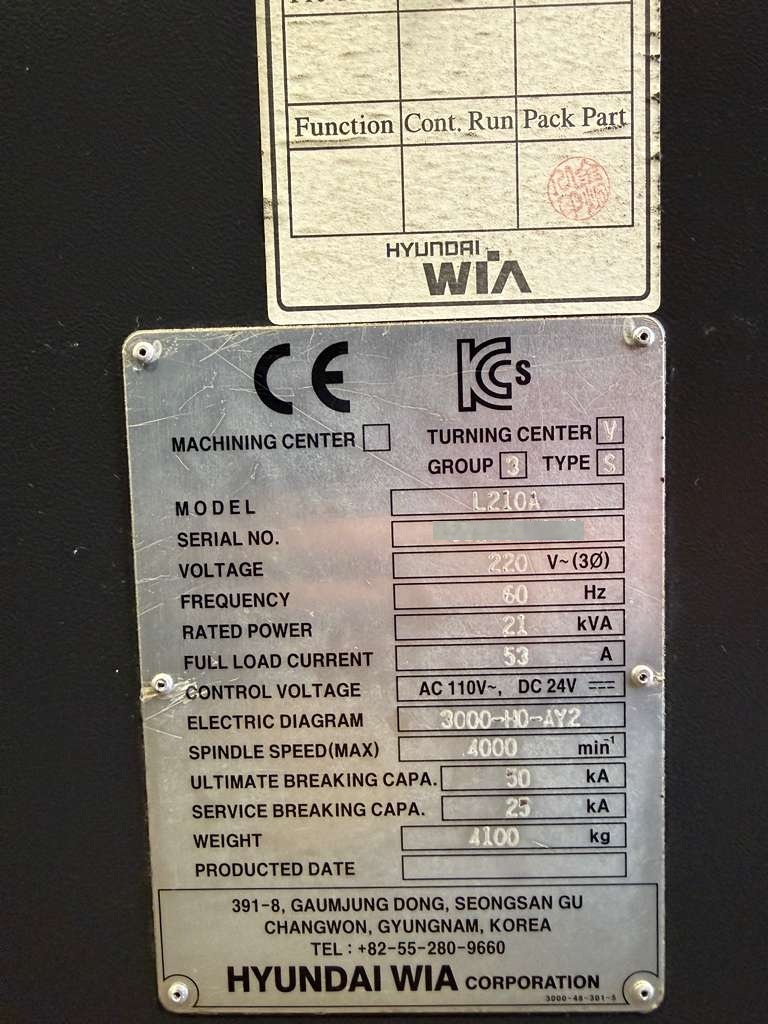

| Power: 21 kVA, 220v / 3-Phase / 60 Hz |
| Overall Dimensions: 94.7″ x 65″ x 73.6″ High |
| Weight: 9,039 lbs |
