Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

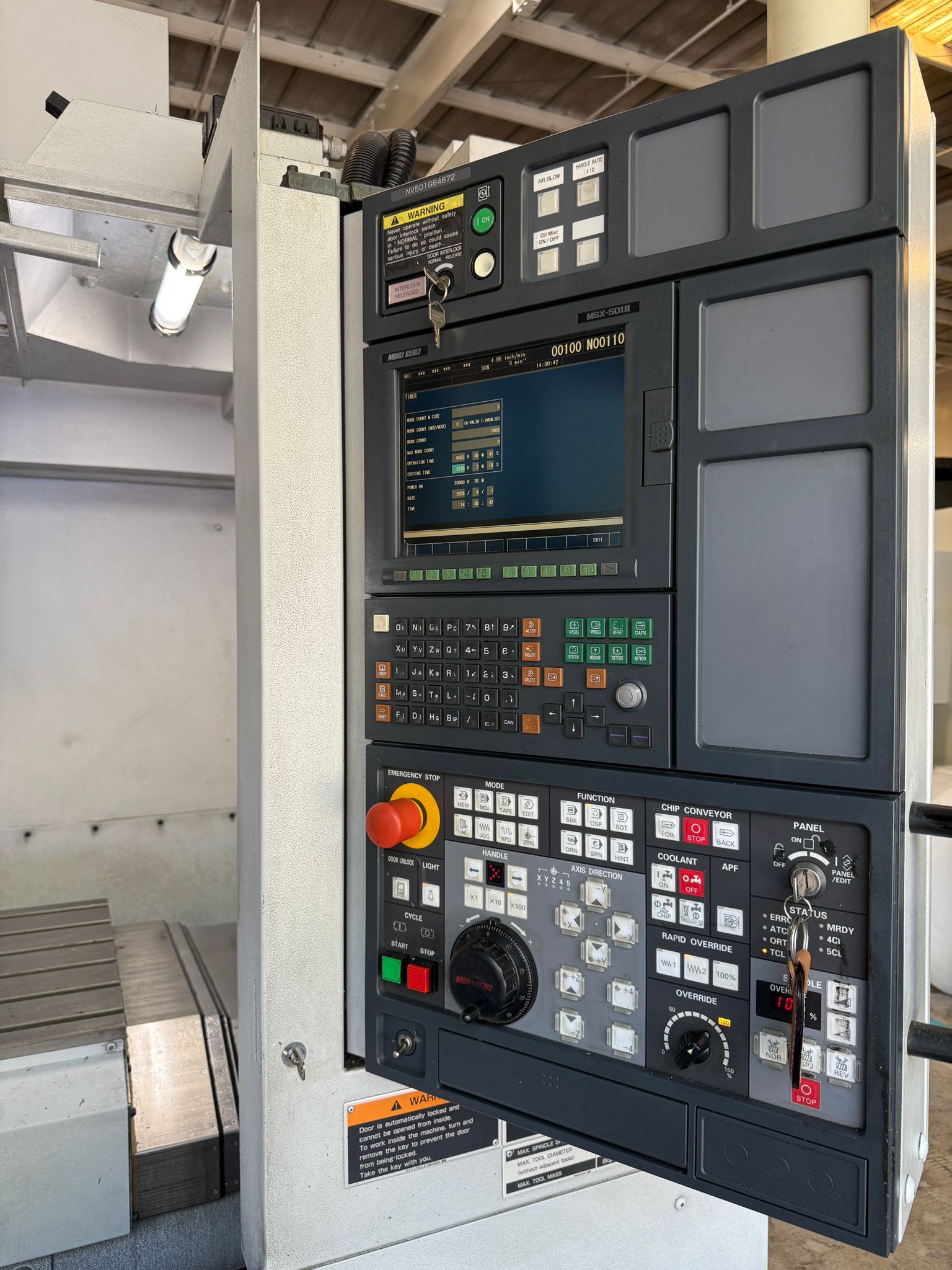

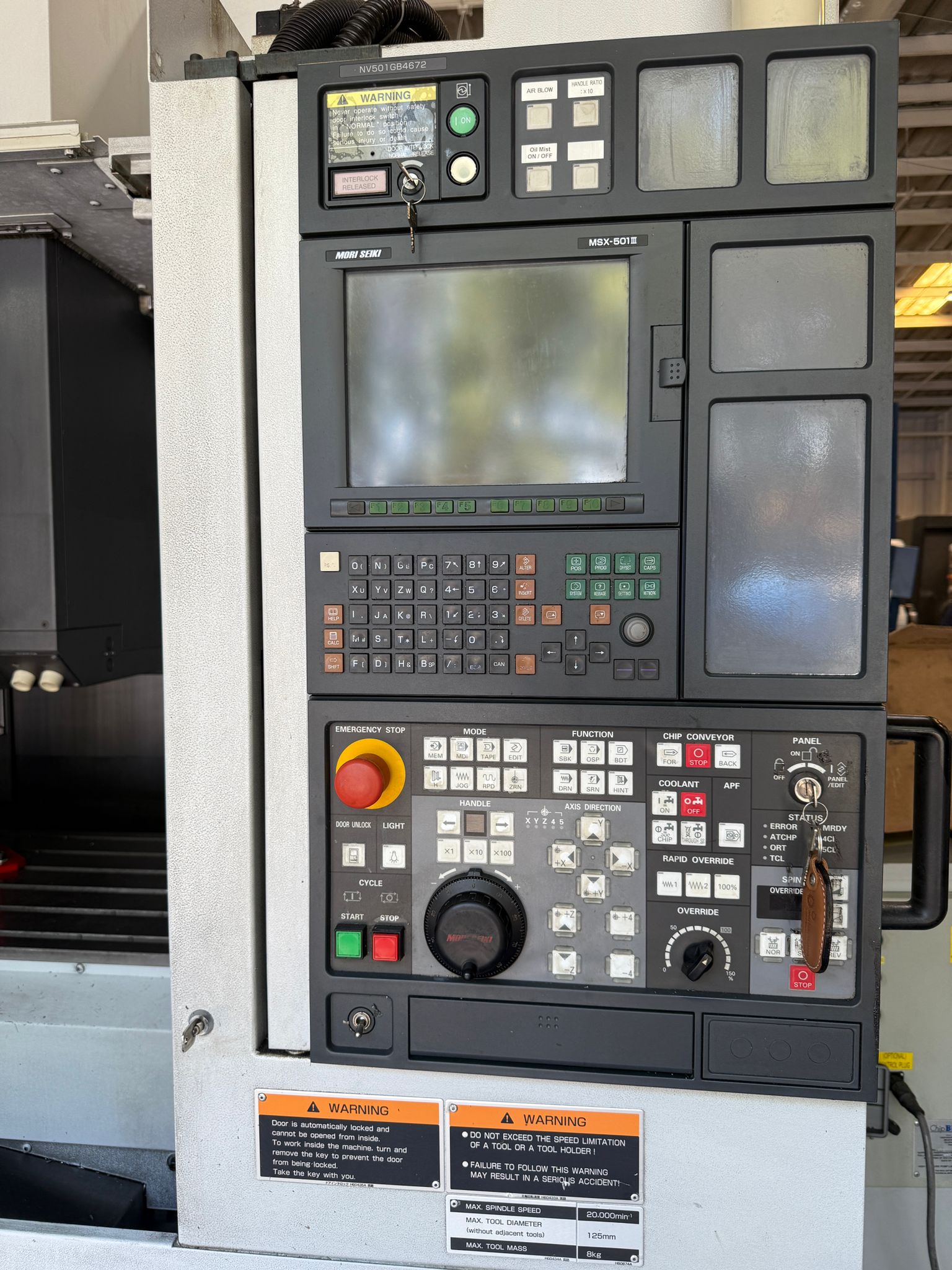

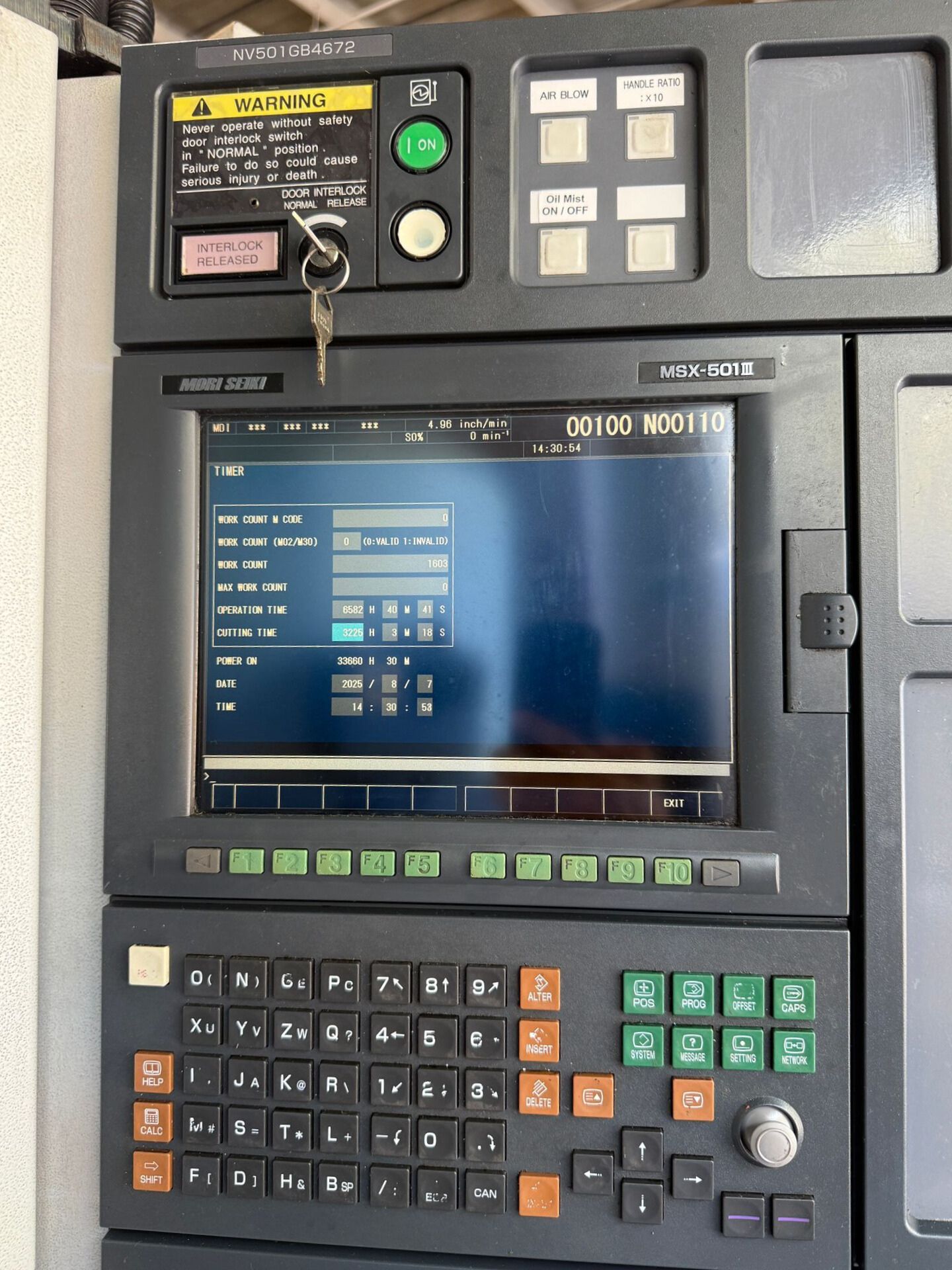

| MSX-501III ( FANUC ) CNC Control |
| 20,000 RPM High Speed Spindle |
| Through Spindle Coolant |

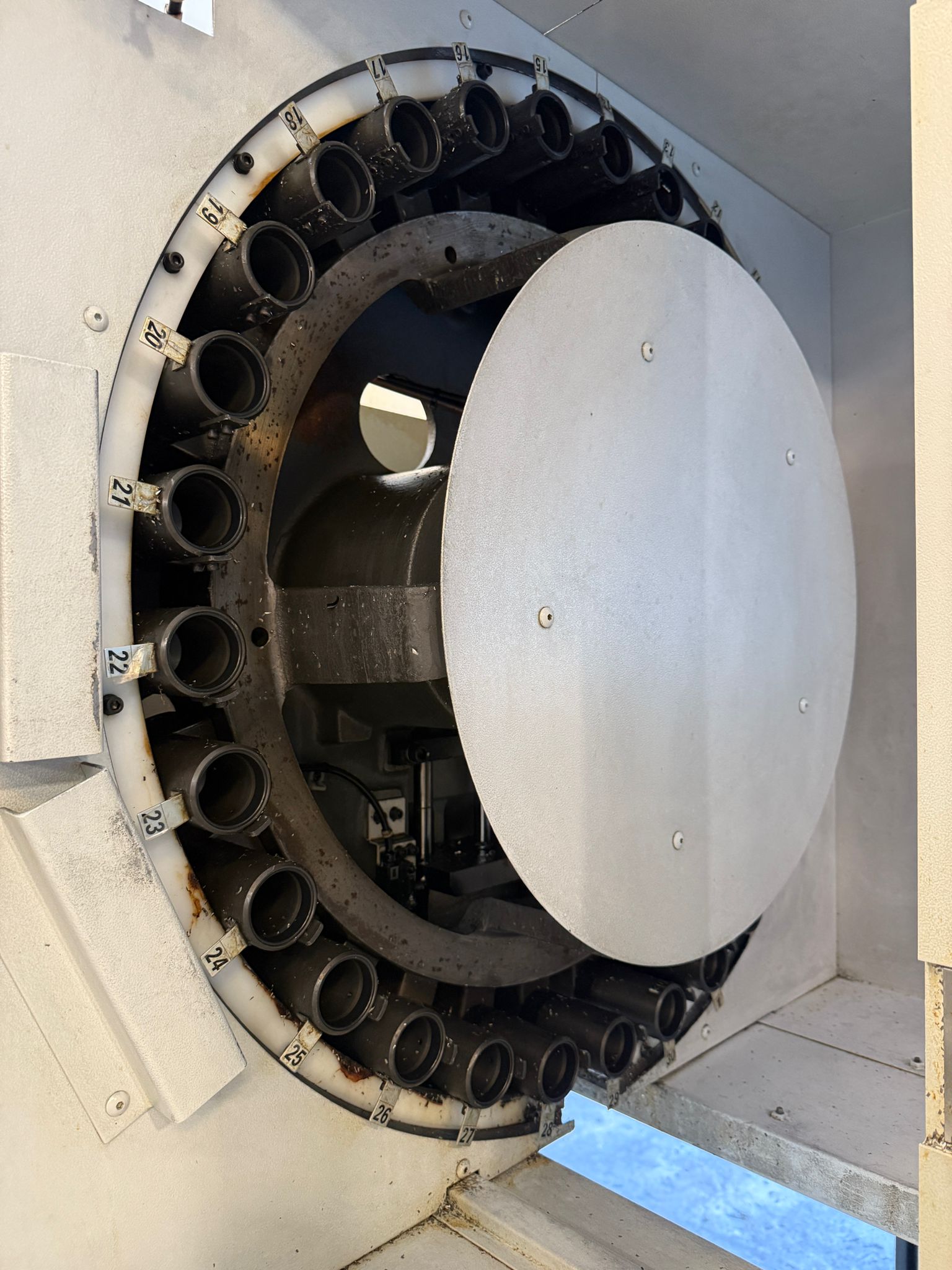

| 30 Station Automatic Tool Changer |
| 25 HP high torque Spindle Motor |

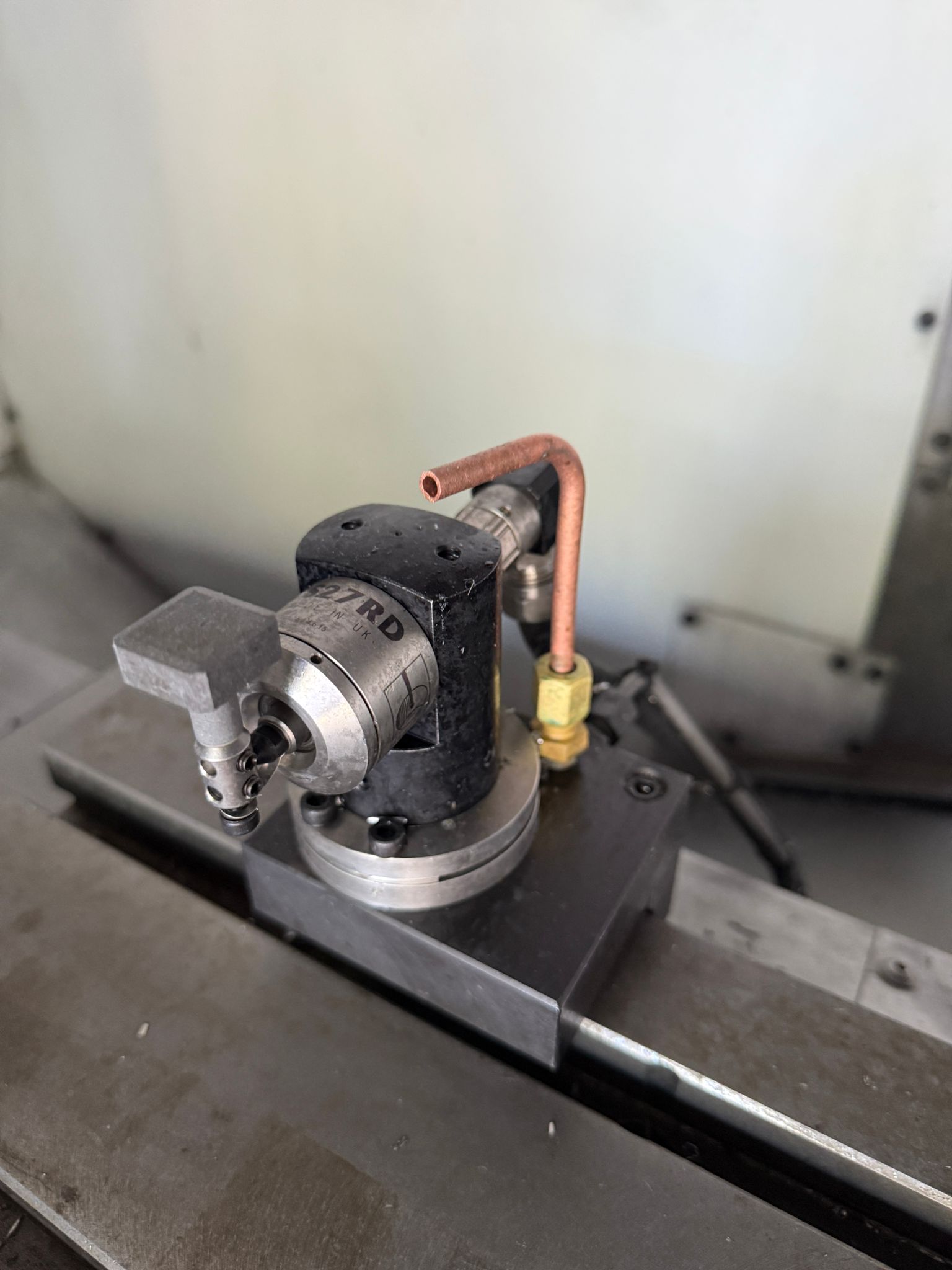

| Tool Presetter |
| Rigid Tapping |

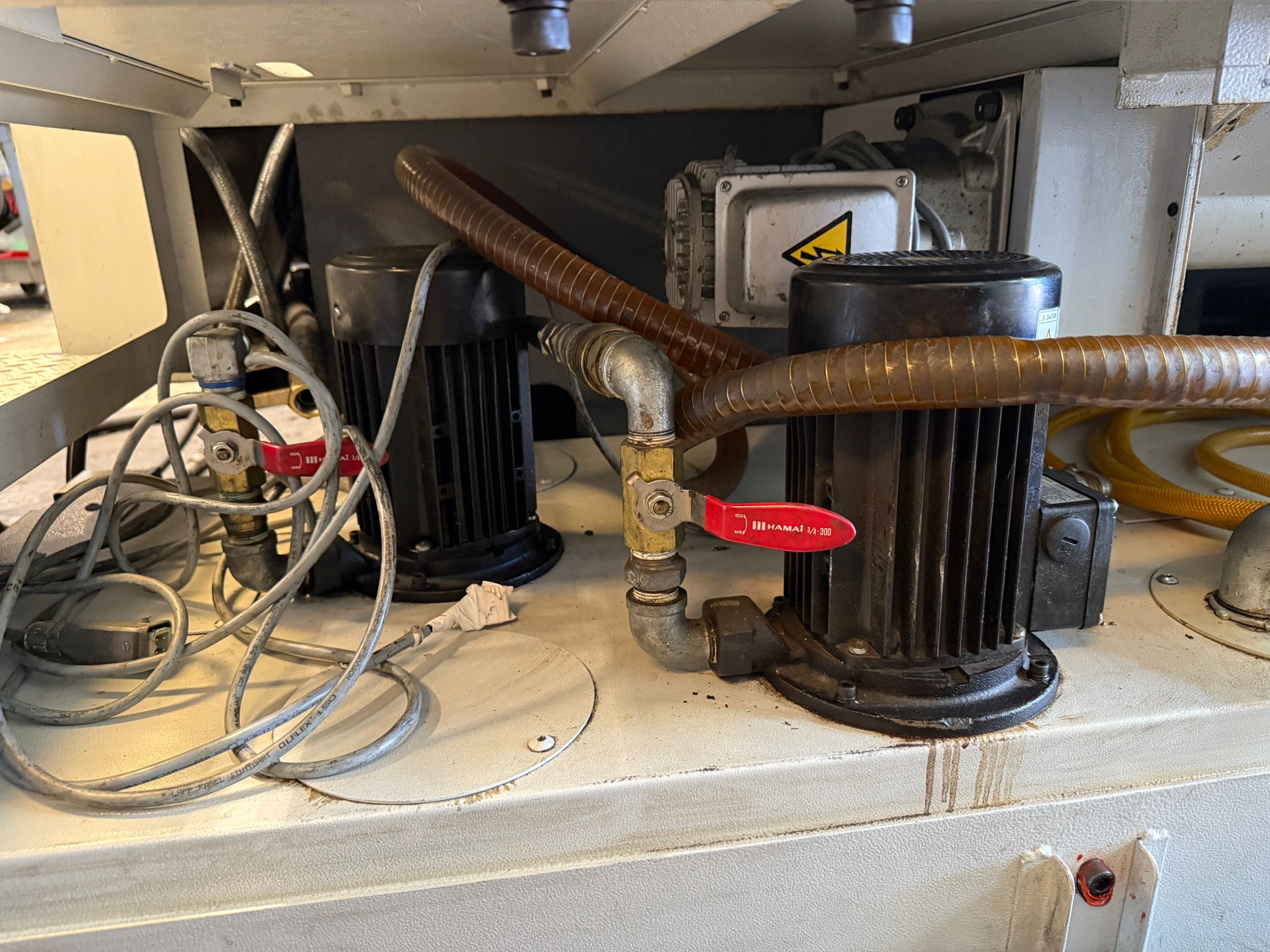

| Coolant System |

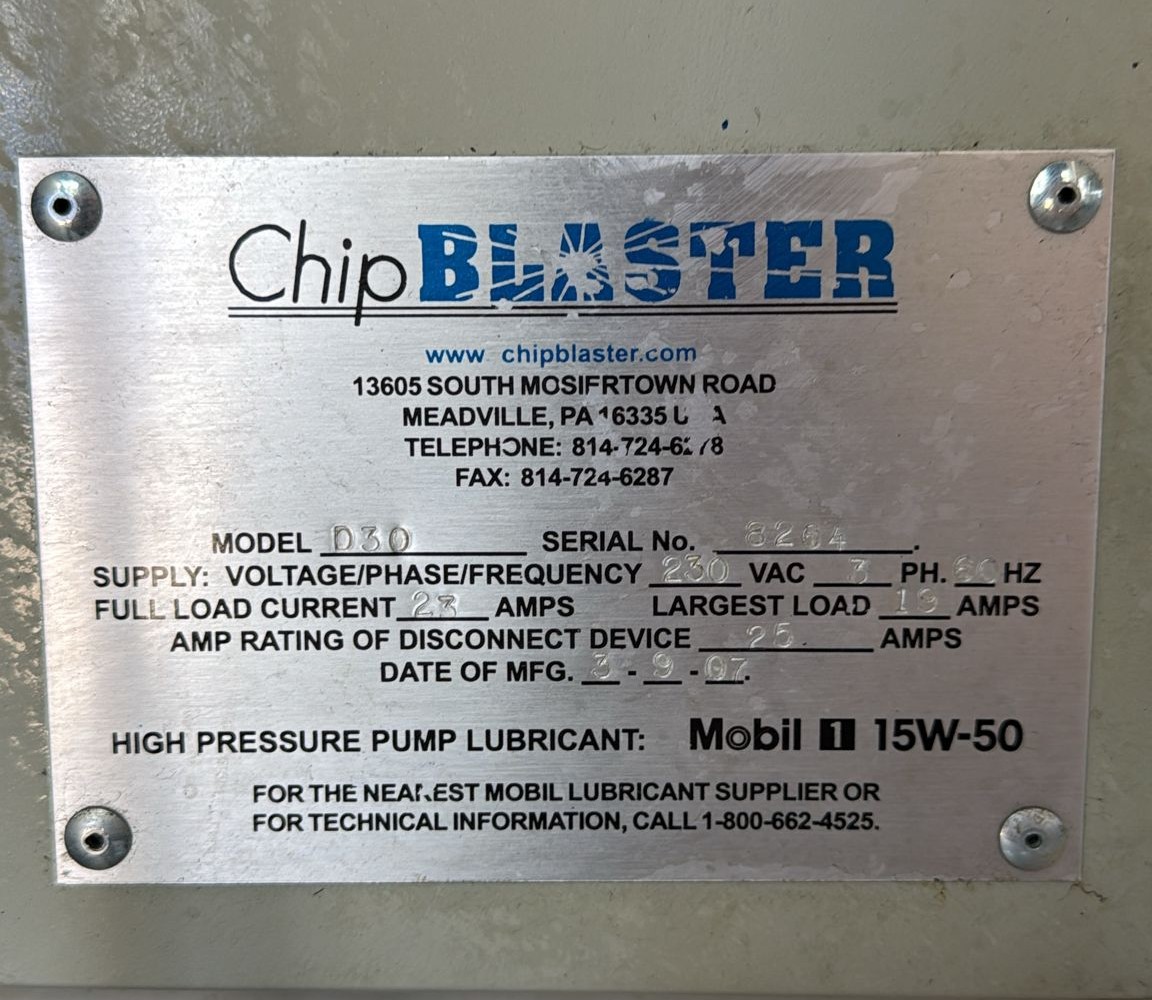

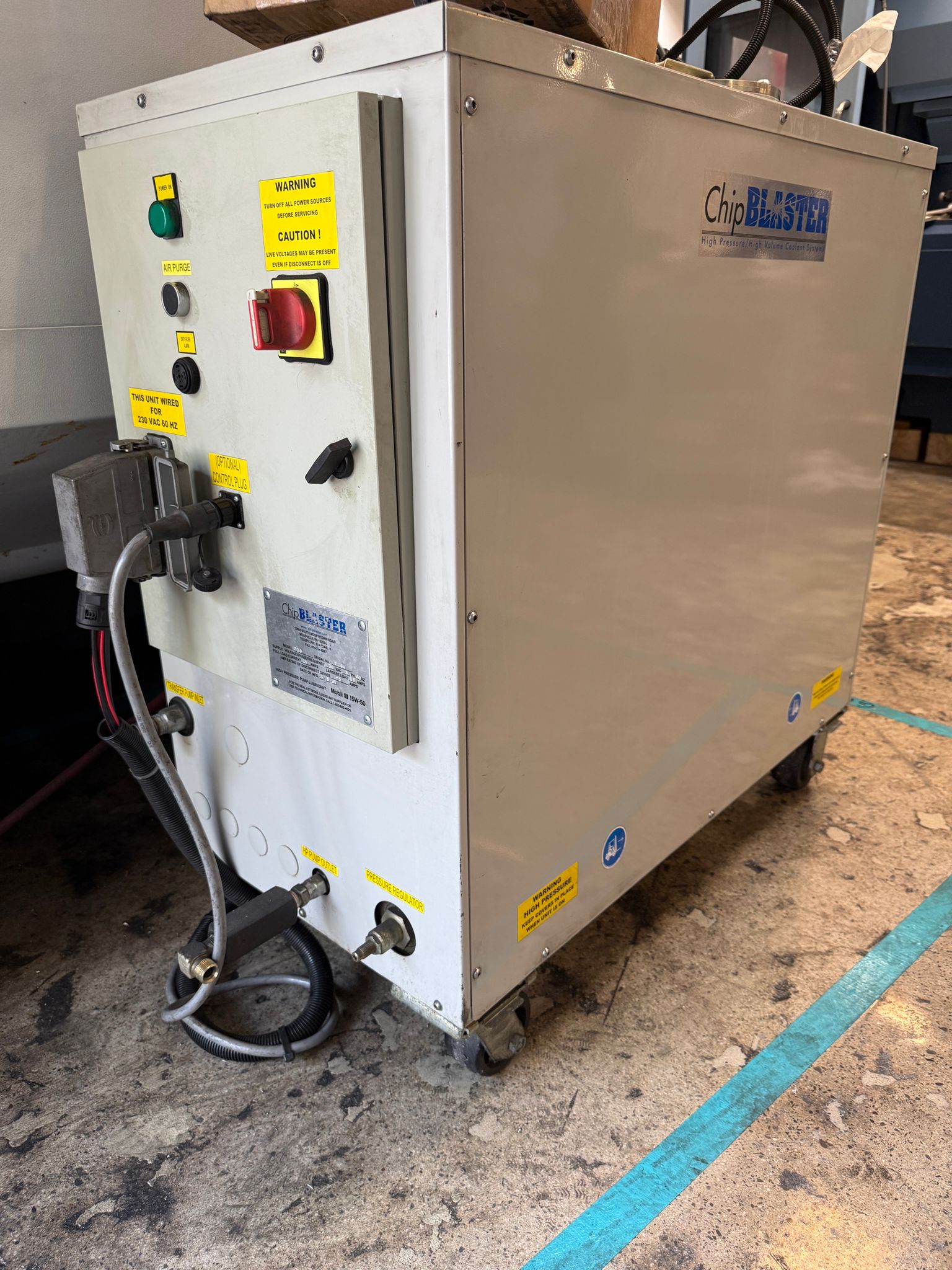

| D-30 Chip Blaster High Pressure Unit |

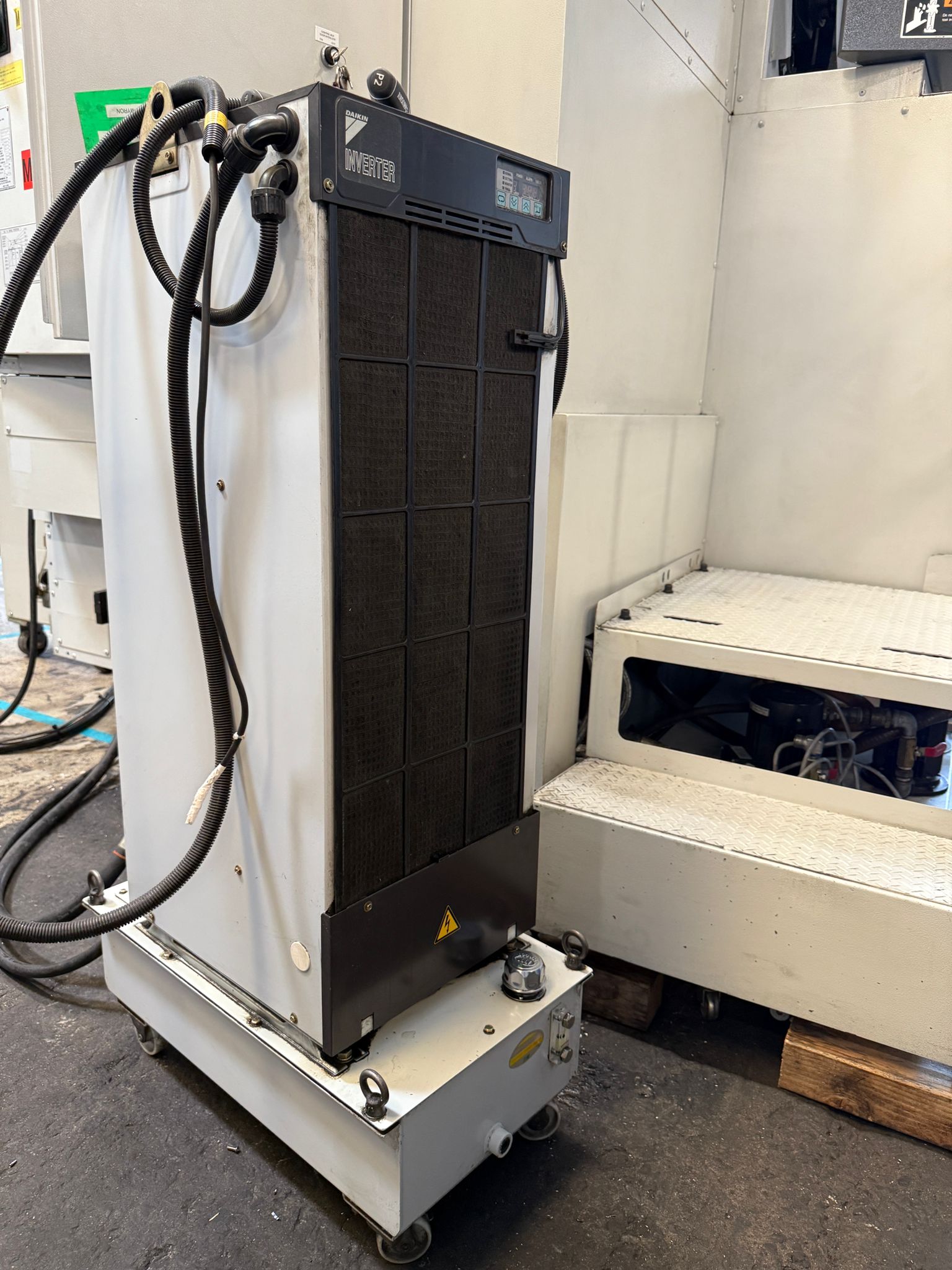

| Spindle Chiller Unit |
| Books & Manuals Set |
| Levelling Pads |
| Travels: |
| X-Axis: 40.2″ |
| Y-Axis: 20.1″ |
| Z-Axis: 20.1″ |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″ |

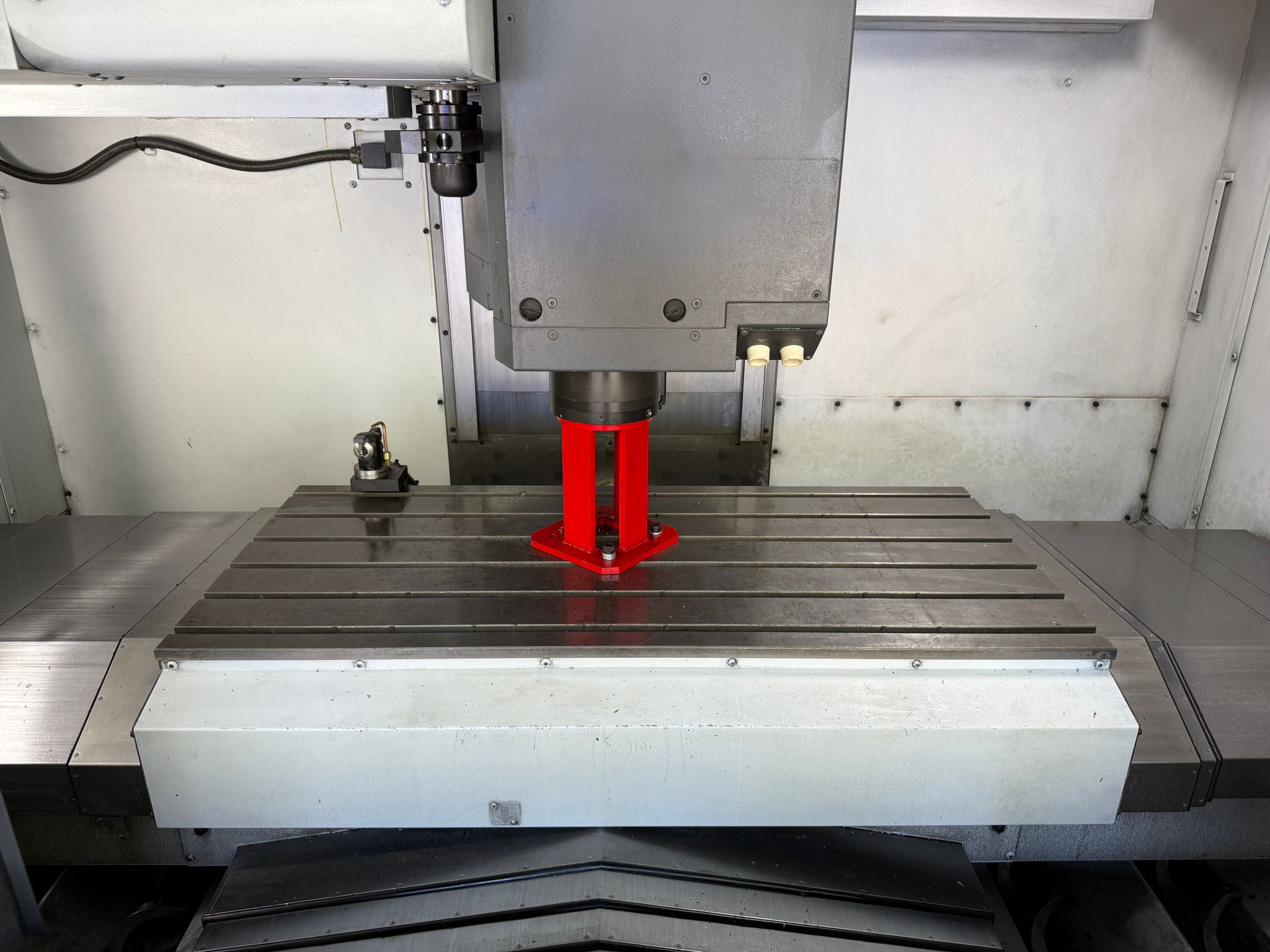

| Table: |
| Length: 52.0″ |
| Width: 23.6″ |
| Max Weight on Table: 2640 lbs |
| Number of T-slots & Size: 6 × 0.7″ × 3.9″ |
| Spindle: |
| Taper Size: BT-40 |
| Speed Range: 20,000 RPM |
| Spindle Power: 25 HP |
| Feed Rate: |
| Rapid X, Y & Z: 787 inch/PM |
| Cutting Feed rate: 787 inch/PM |
| Automatic Tool Changer: |
| BT-40 Taper |
| Capacity: 30 |
| Max Tool Weight: 17.6 lbs |
| Max Tool Length: 11.8″ |
| Max Tool Dia: 4.92″ |
| General: |
| Air Required: 80 psi, 4 scfm |

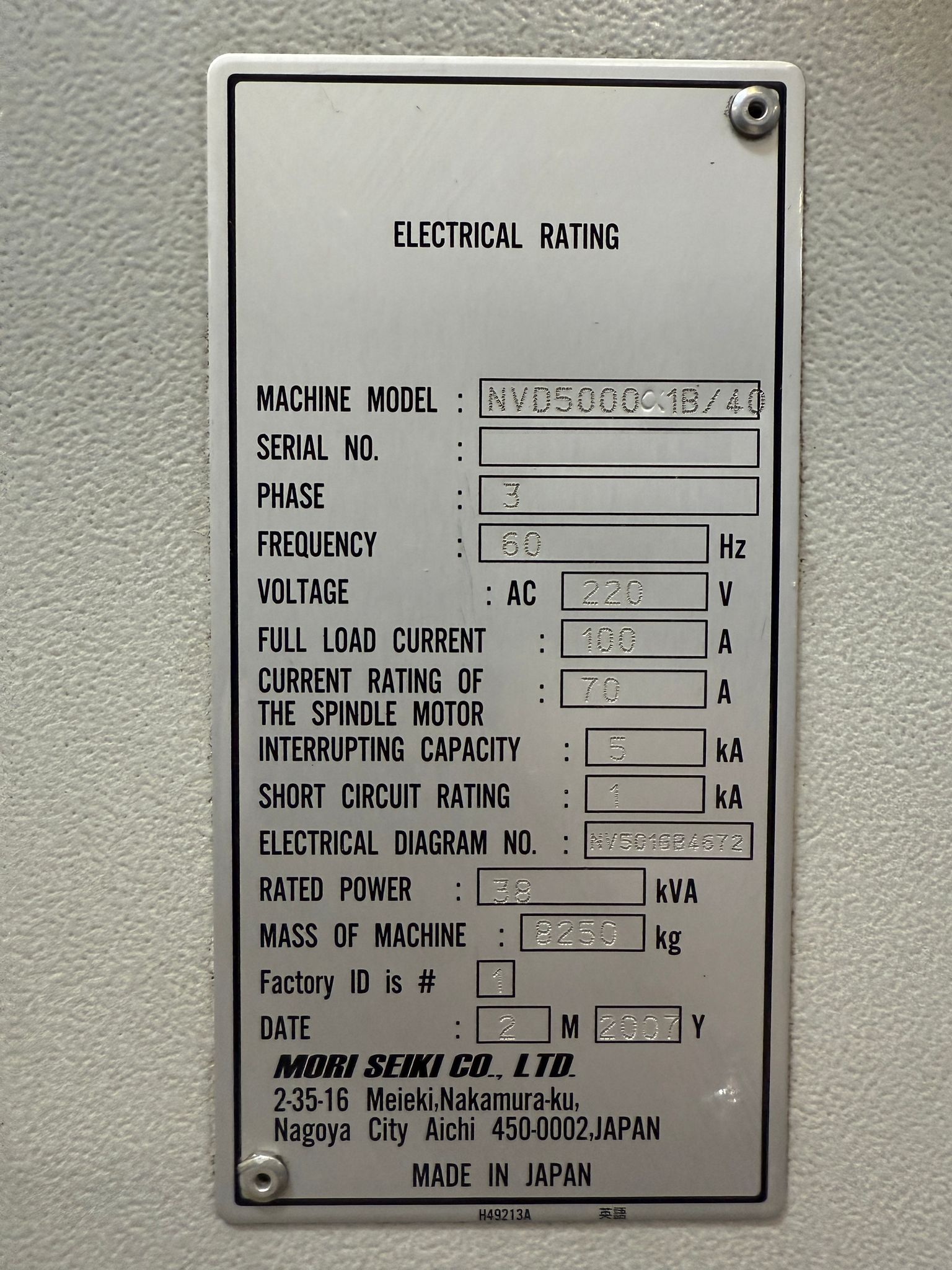

| Power: 220v / 66FLA / 3-Phase / 38 kva |
| Overall Dimensions: 110″ L X 108″ W X 102″ High |
| Weight: 18,190 lbs Approx. |
