Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

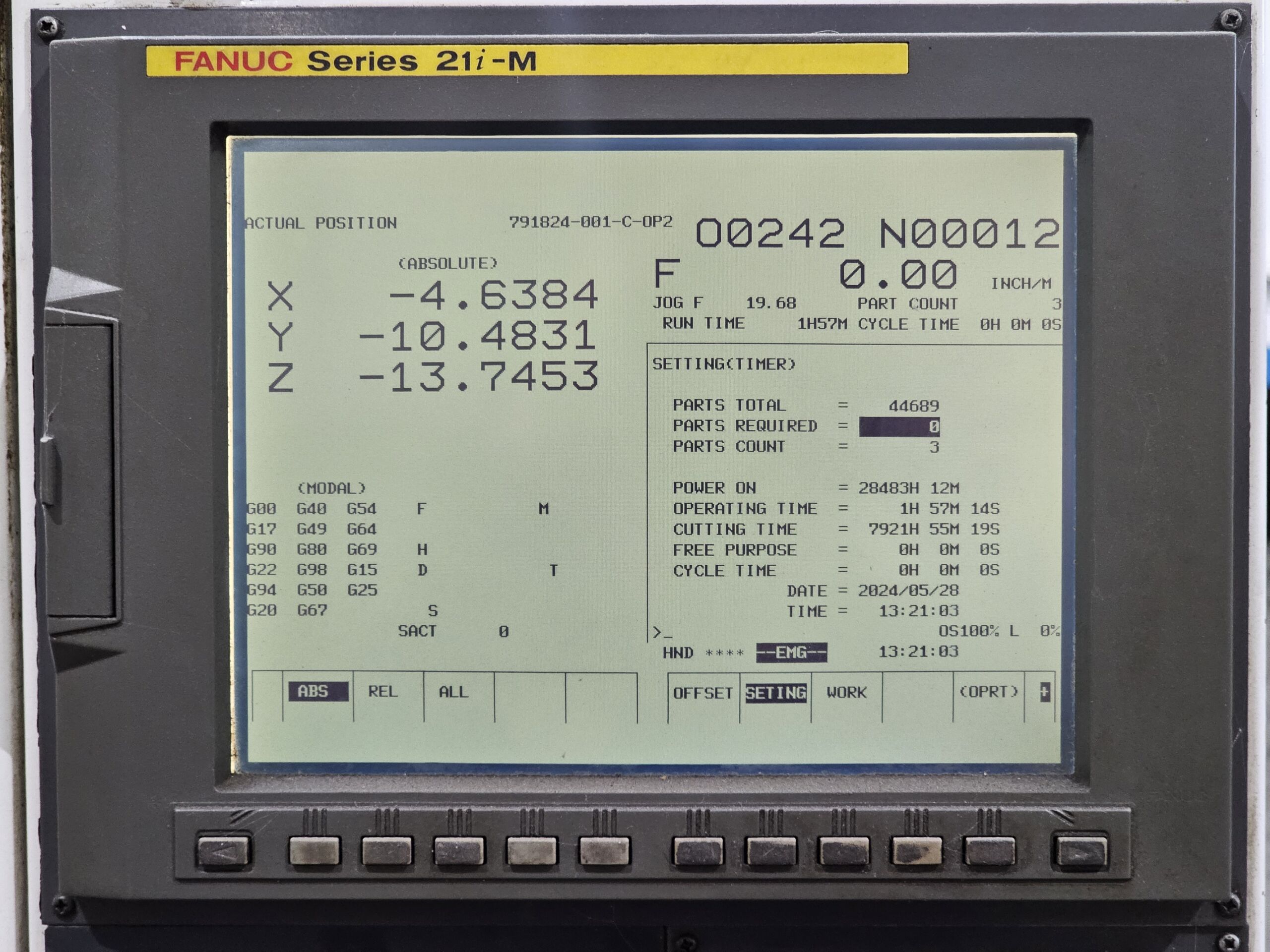

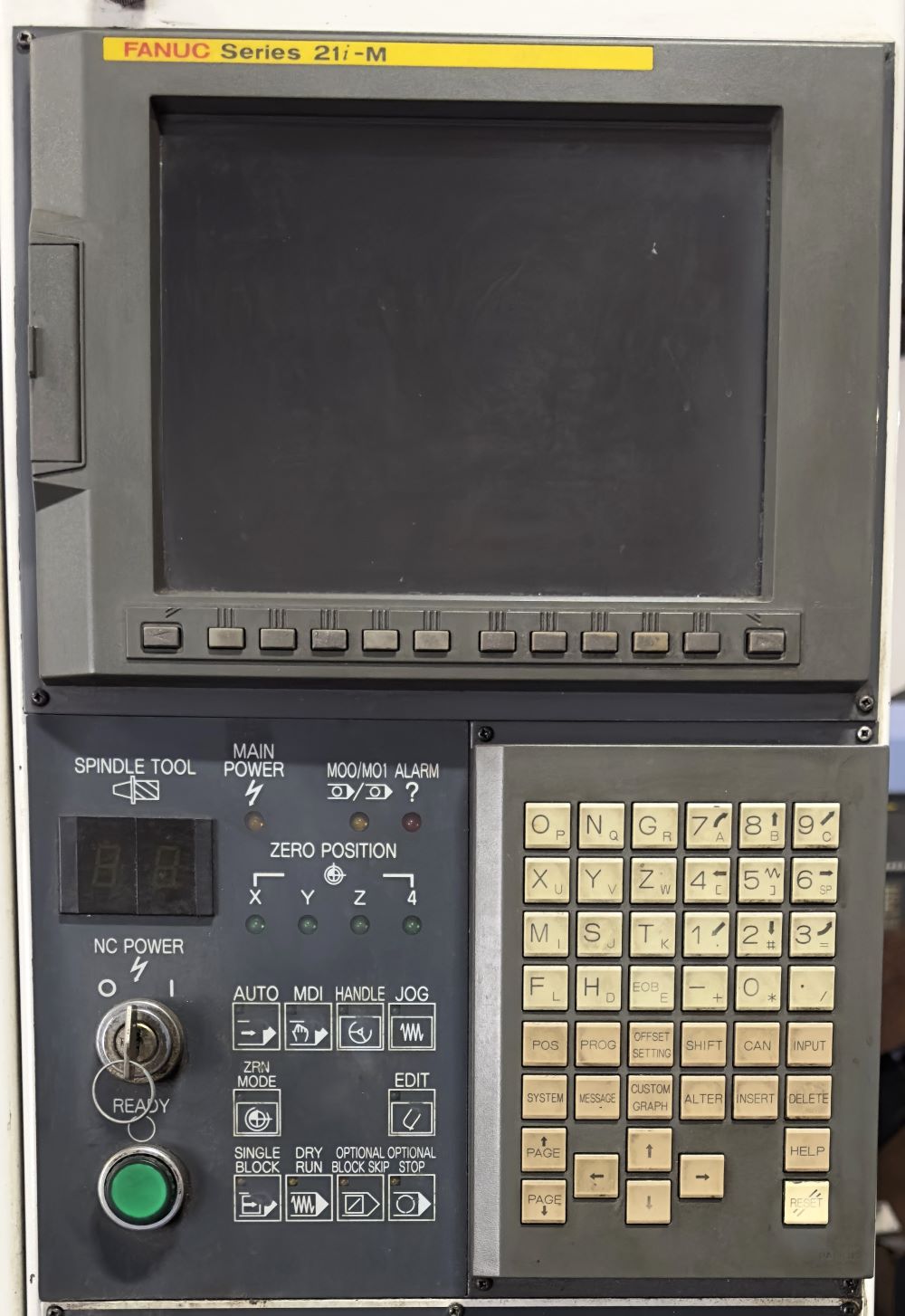

| Fanuc 21i-M CNC Control |
| 8,000 RPM Precision Spindle |
| 20 Station Automatic tool changer |
| PCMCIA Card Slot |
| MPG Control |
| Rigid Tapping |
| Spindle Orientation |
| Telescopic way covers |

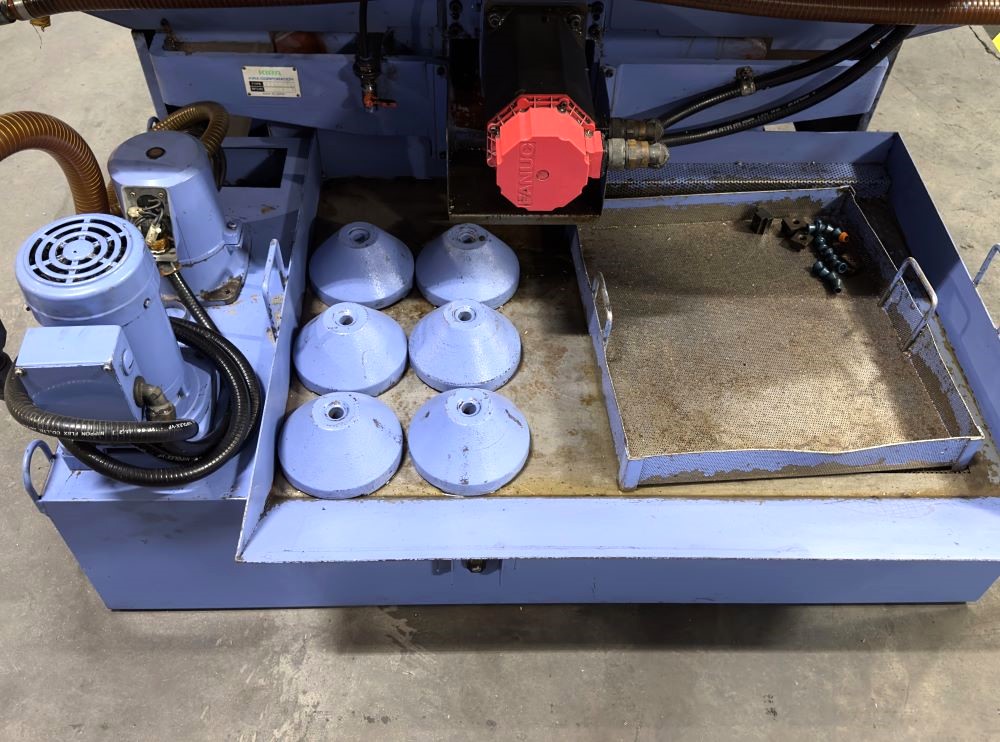

| Coolant Tank |
| Levelling Pads |
| Travels: |
| X-Axis: 23.62″ |
| Y-Axis: 15.75″ |
| Z-Axis: 15.75″ |
| Rapid Traverse Rates X, Y Axis: 1890 Inch Per Minute |
| Rapid Traverse Rates Z Axis: 1417 Inch Per Minute |
| Cutting Feed Rates: 945 Inch Per Minute |

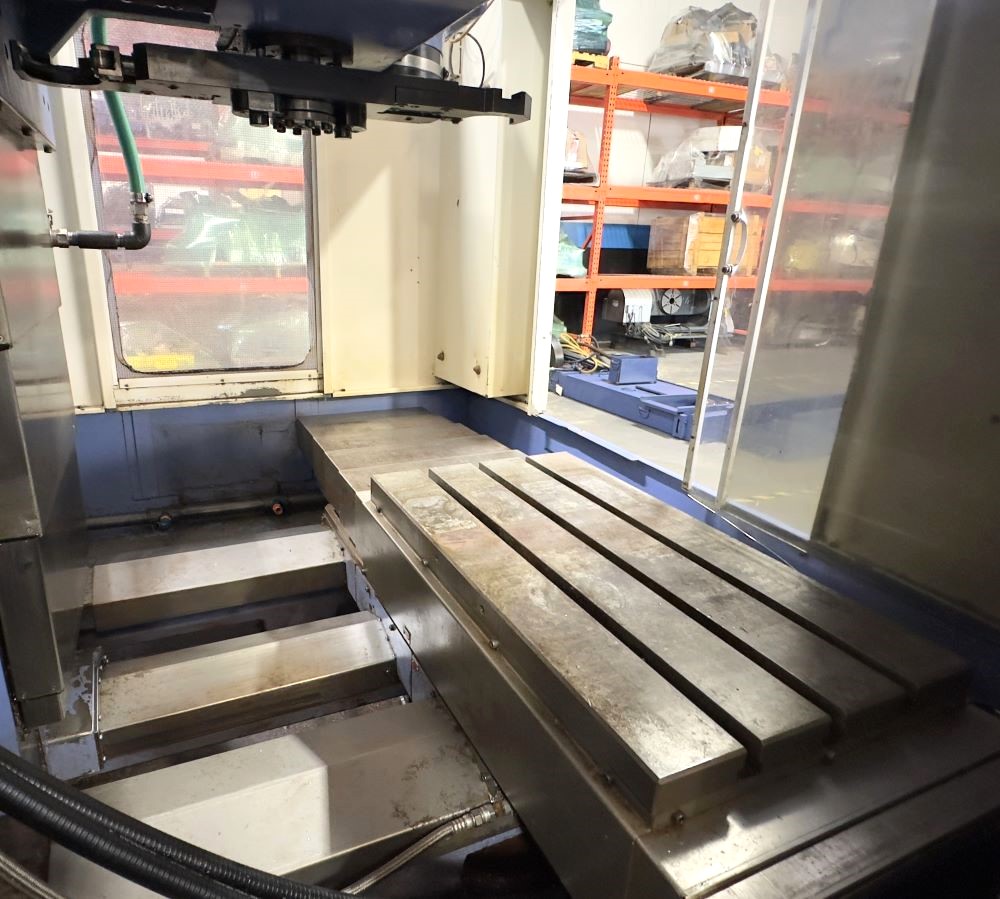

| Table: |
| Length: 27.55″ |
| Width: 15.75″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 441.5 lbs |
| Spindle: |
| Spindle: Taper Size: CAT-40 |
| Speed Range: 8,000 RPM |
| Spindle Power: 7.5 kW |
| Automatic Tool Changer: |
| Capacity: 20 |
| Tool Weight: 15.43 lbs |
| Max Tool Dia: 3.54″ |
| Max Tool Length: 11.8″ |
| Tool Changing Time: 1.2 Seconds |
| General: |
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 11 kva / 3-Phase |
| Overall Dimensions: 63″ x 93″ x 104″ High |
| Weight: 6614.09 lbs |
| Categories | CNC Vertical Machining Centers - VMC |
|---|
| Categories | CNC Vertical Machining Centers - VMC, Previously Sold Machines |
|---|
