Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

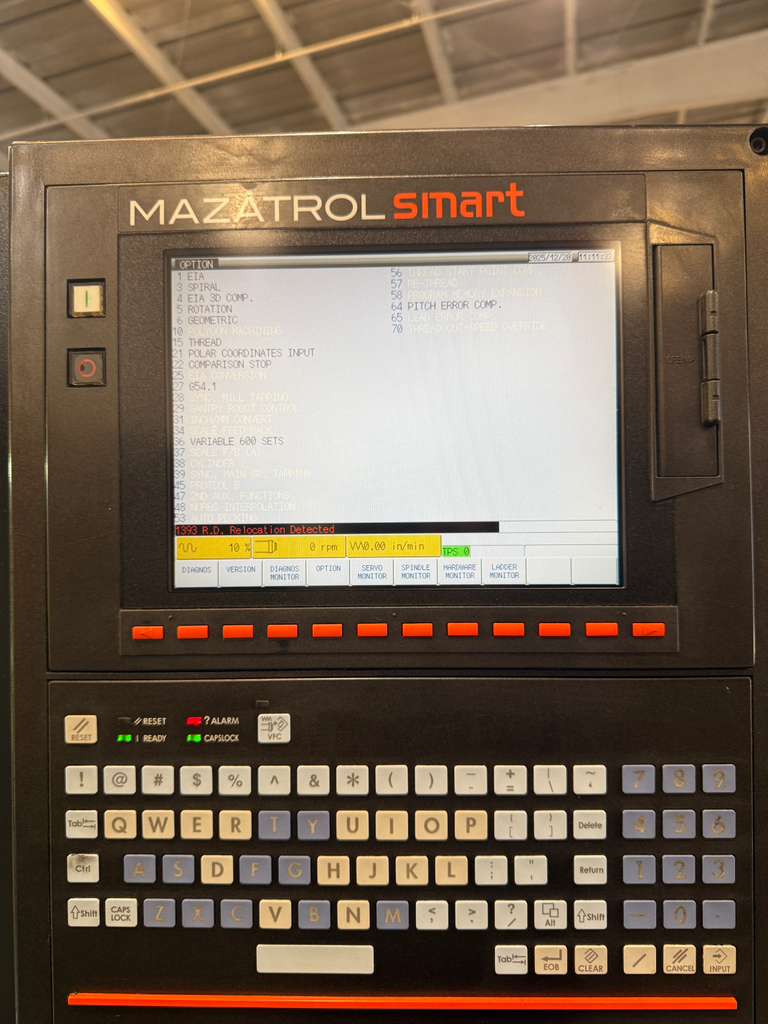

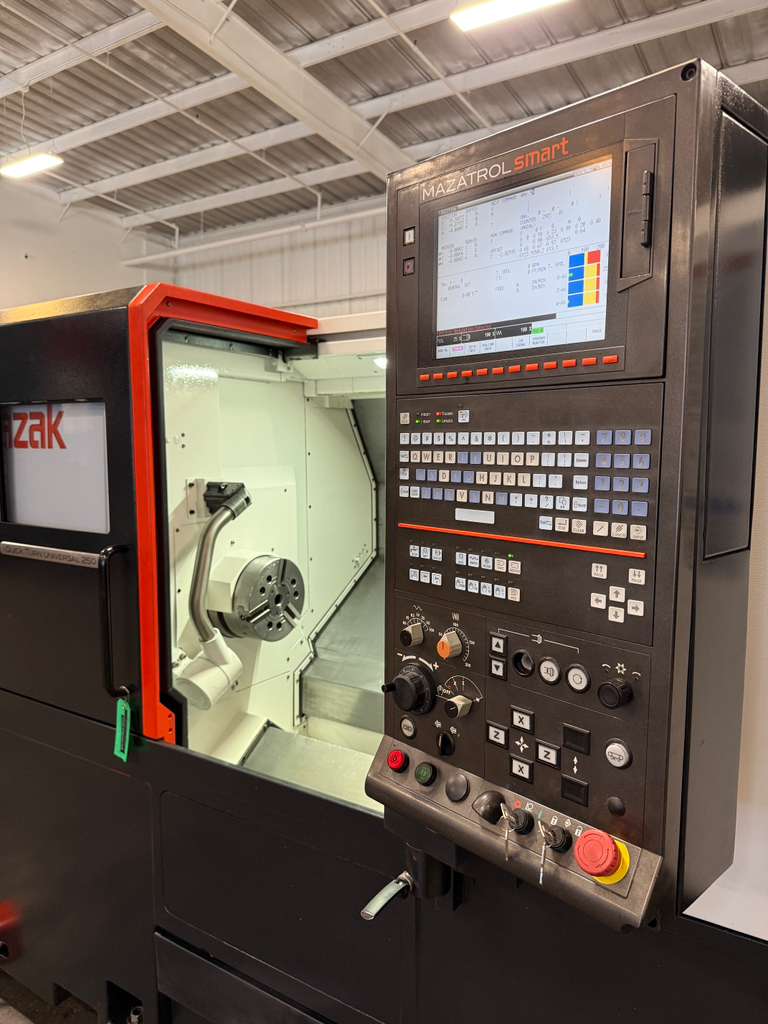

| Mazatrol Smart CNC Control |

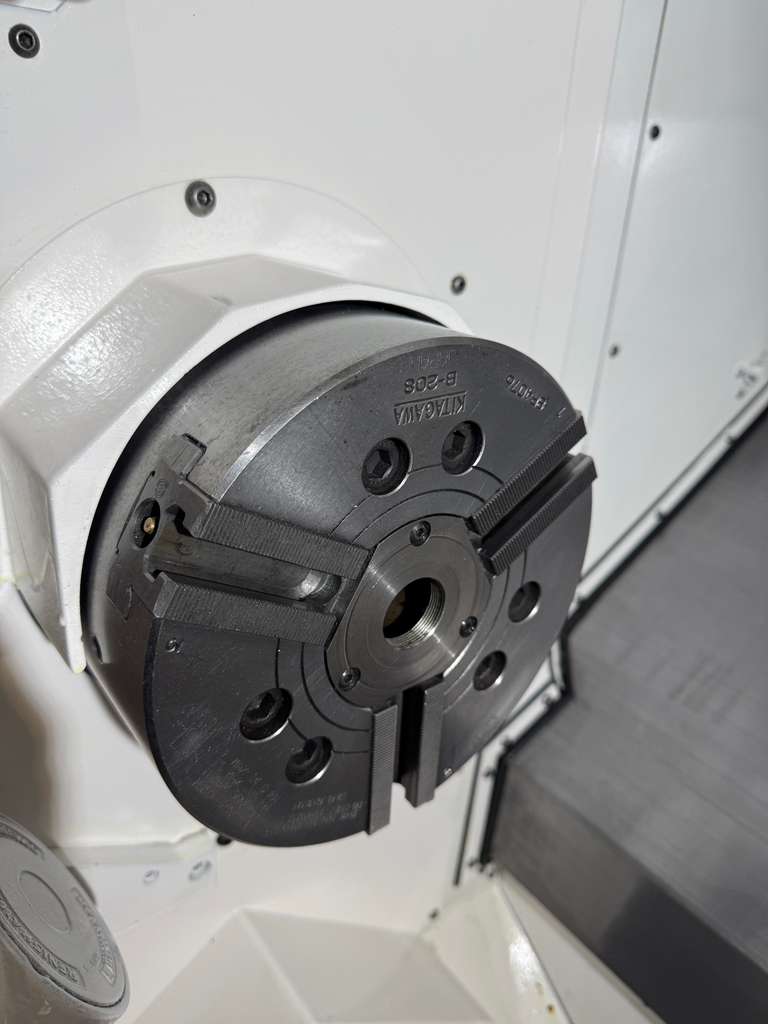

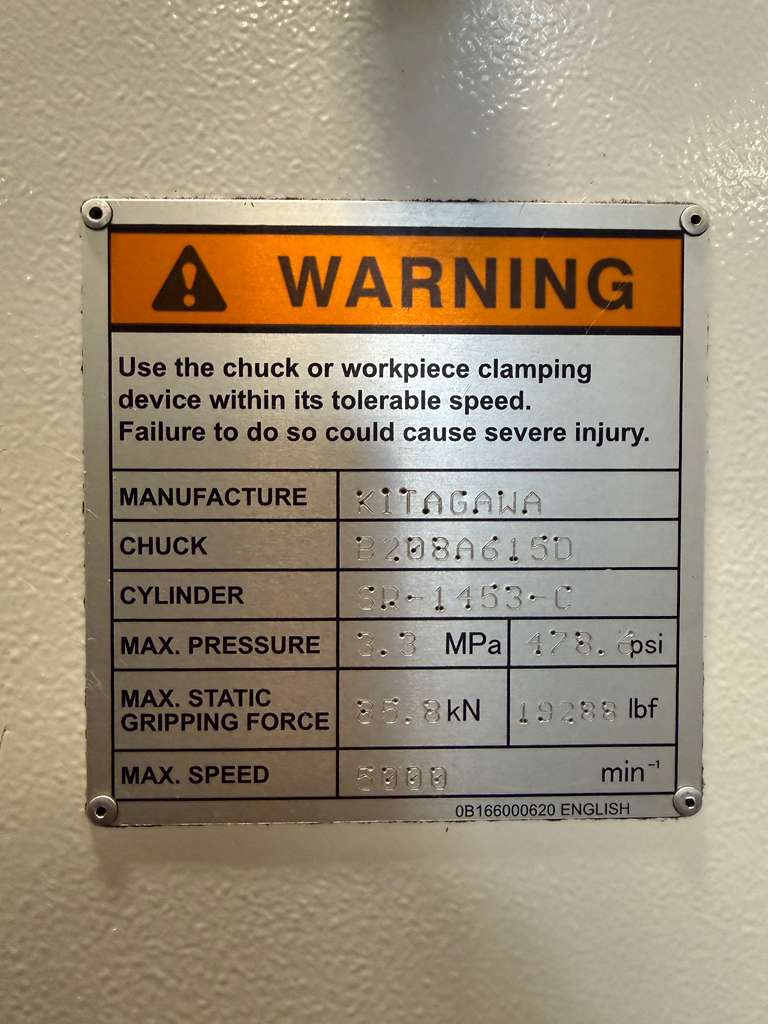

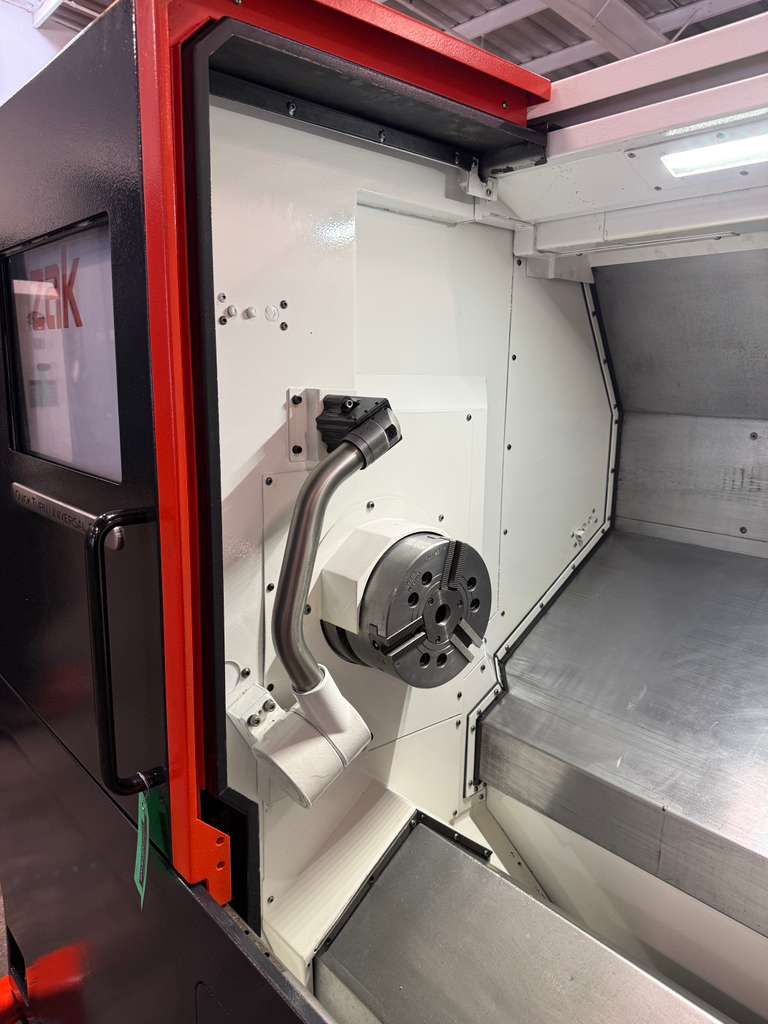

| 203.2 mm 3- Jaw Kitagawa B-208 Hydraulic Chuck |

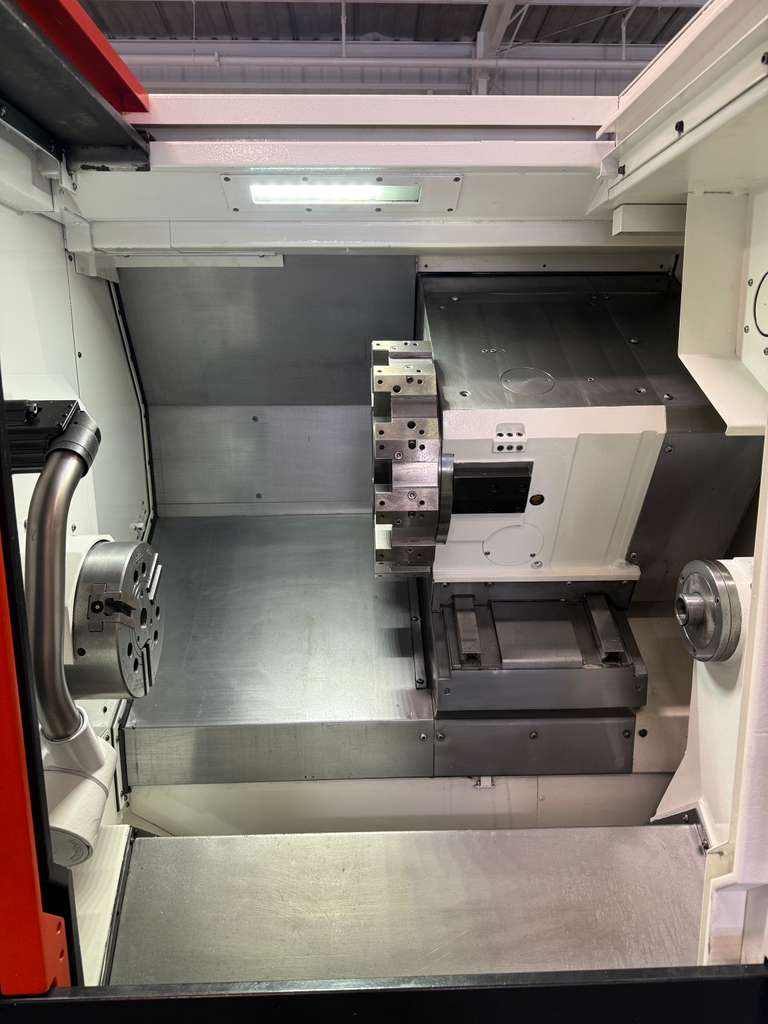

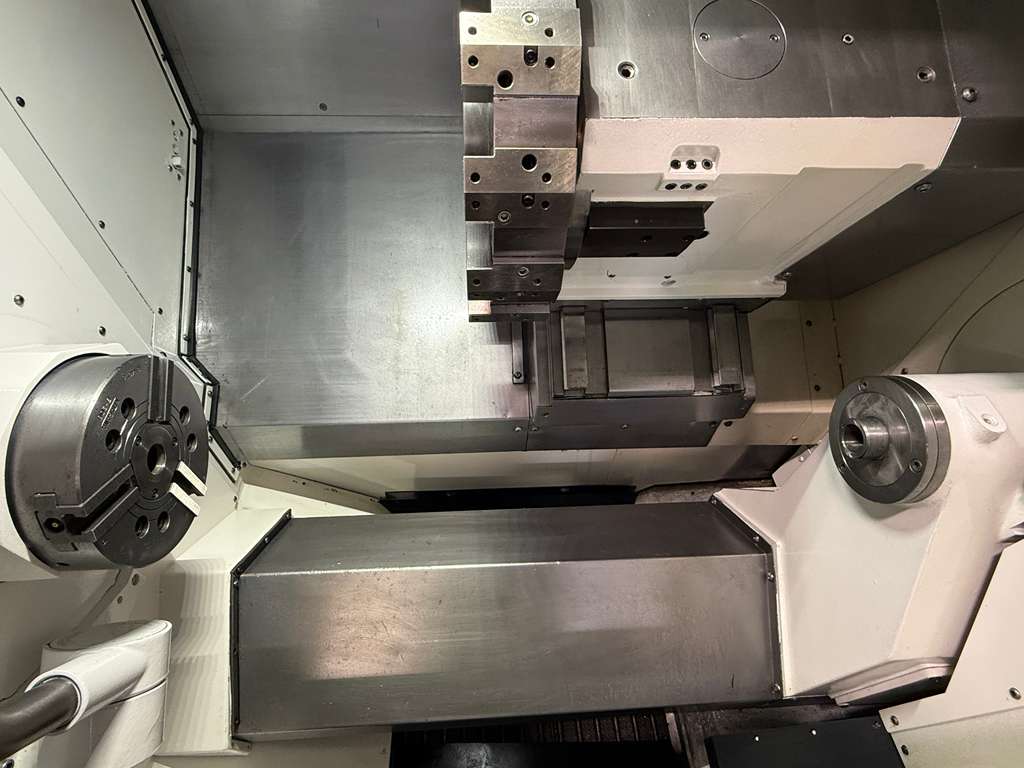

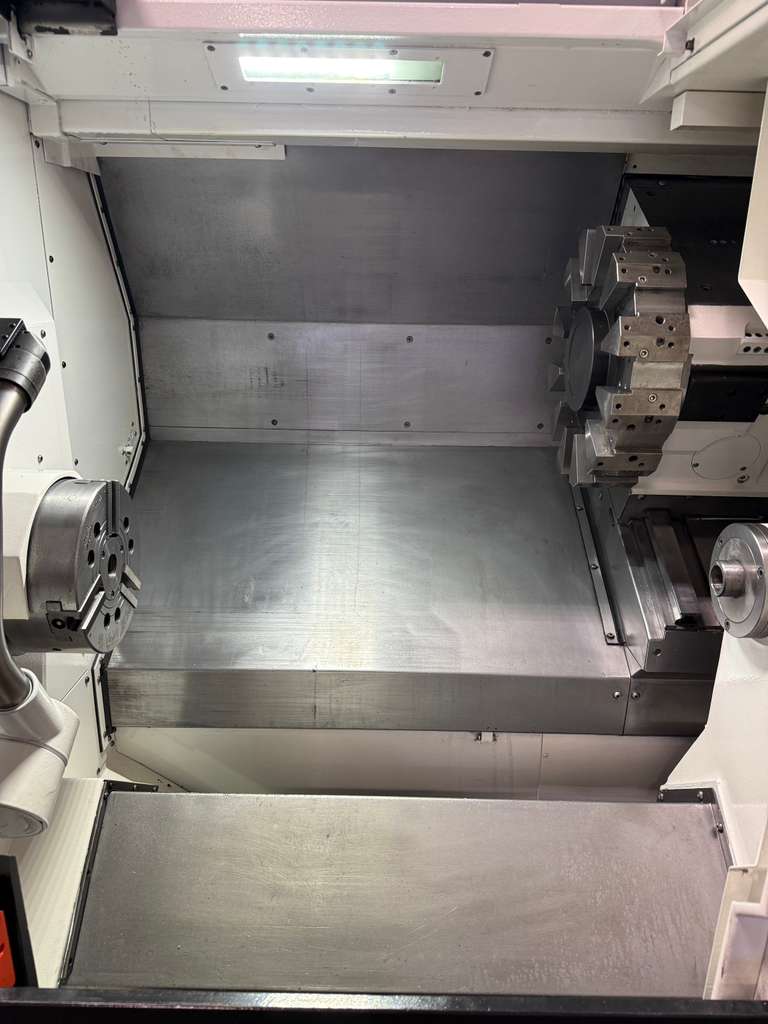

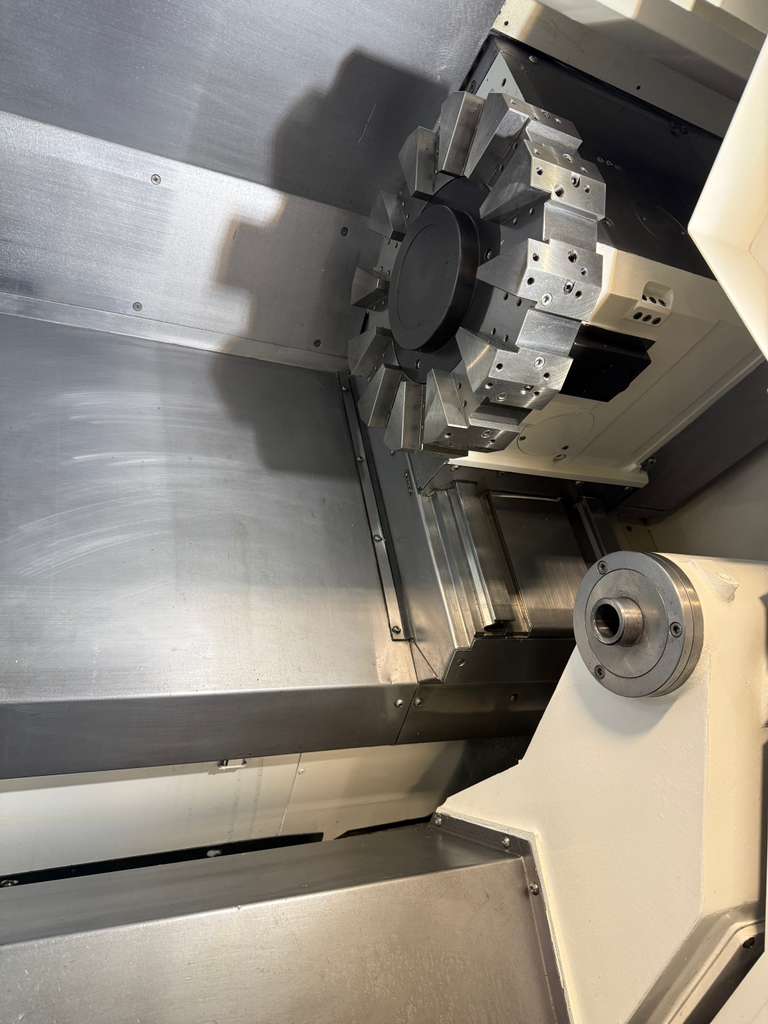

| 12 stations Drum Turret Bolt on Type |

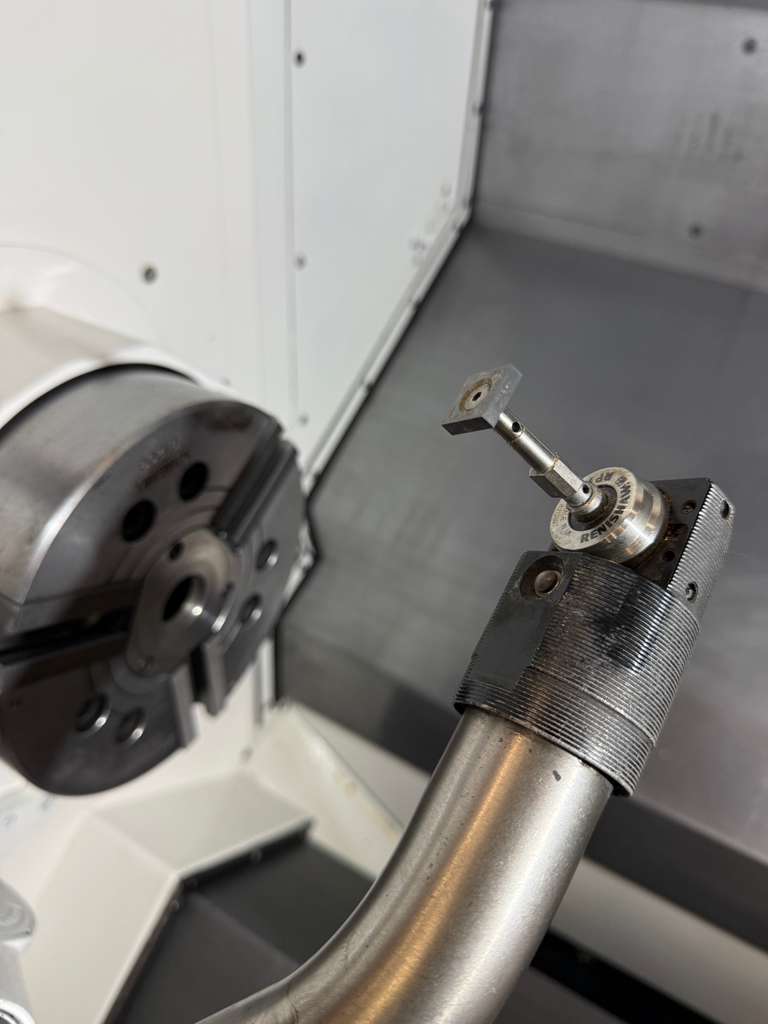

| Automatic Tool Presetter |
| Rigid Tapping |
| Coolant System |
| Automatic Lubrication System |

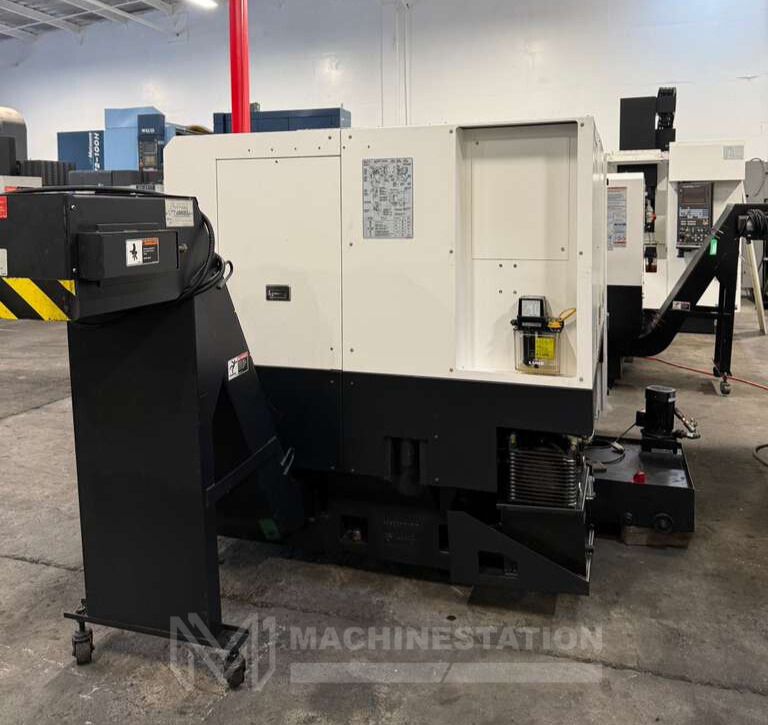

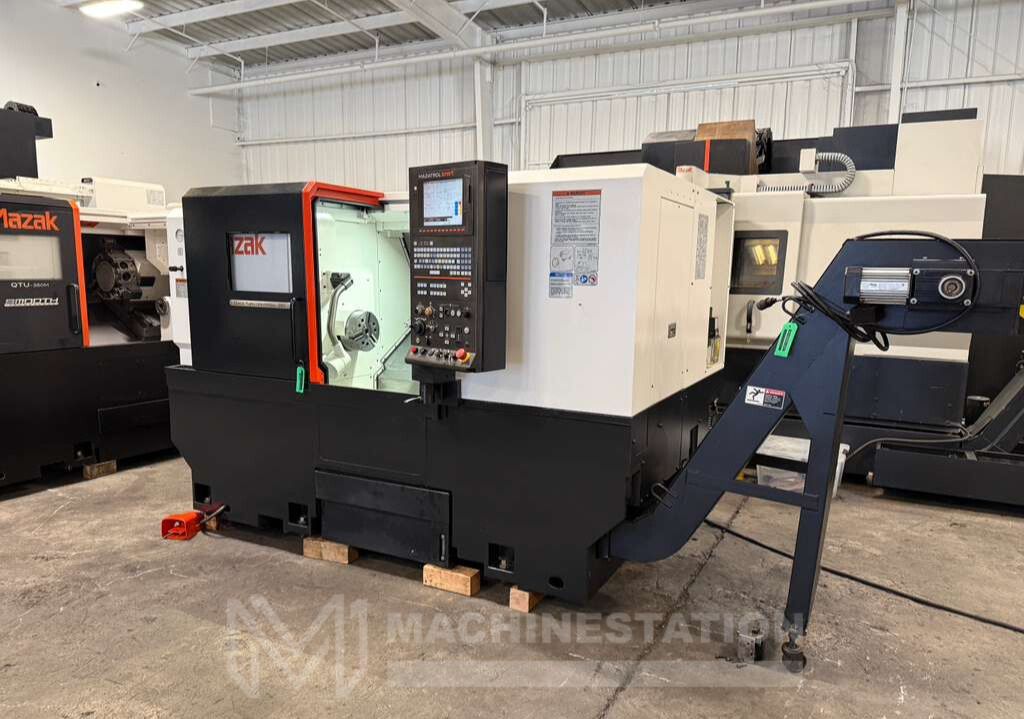

| Chip Conveyor |
| Foot Switch |
| Levelling Pads |
| Capacity: |
| Max Turning Diameter : 16.25″ |
| Max Turning Length : 21.03″ |
| Max Swing Over Bed: 27.40″ |
| Max Bar Capacity : 2.00″ |
| Travels: |
| X Axis Travel : 8.50″ |
| Z Axis Travel : 25.00″ |
| Feedrate: |
| Rapid Traverse X Axis: 3000 cm/min |
| Rapid Traverse Z Axis: 3599 cm/min |
| Spindle: |
| Spindle Bore: 2.99″ |
| Spindle Nose: A2-6 |
| Spindle Speed: 4,500 RPM |
| Spindle Power: 14.9 kW |
| Turret: |
| Turret Capacity: 12 Stations |
| OD Tool Size: 25.4 mm |
| Max Boring Bar Size: 38.1 mm |
| Turret Index Time: 0.18 Sec. |
| Tailstock: |
| Tailstock Taper: MT-5 |
| Tailstock Travel: 336.55 mm |
| Tailstock Type: Programmable |
| General: |

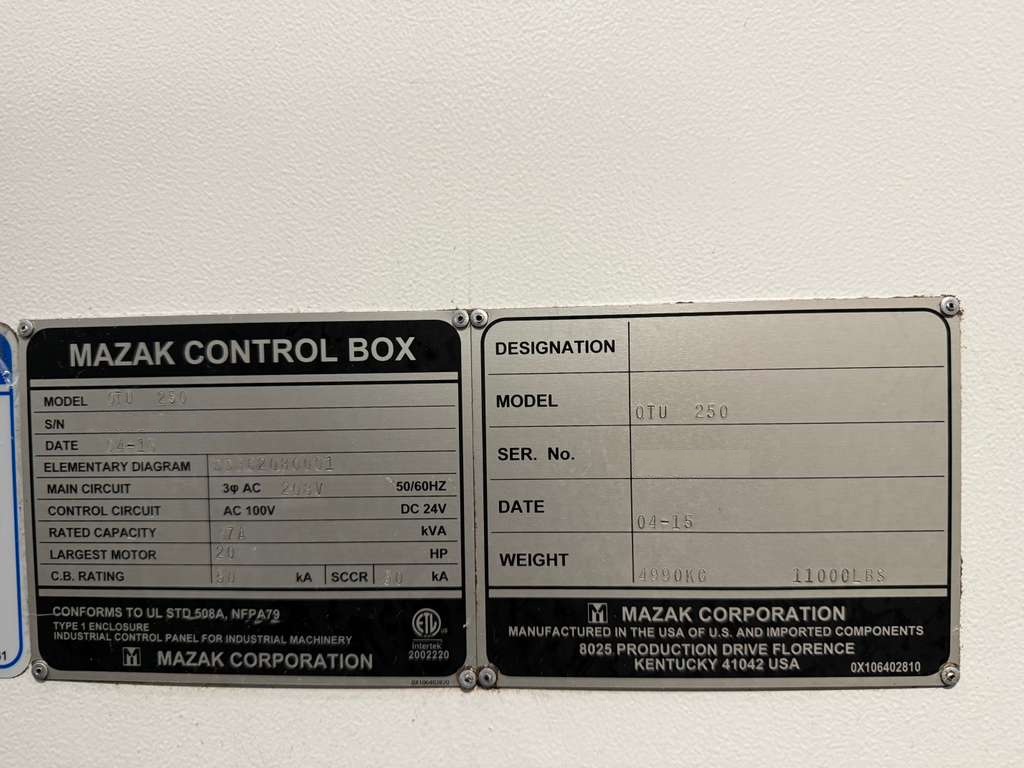

| Power Source: 208v / 50/60 Hz / 3-Phase / 27.3 kva |
| Overall Dimensions |
