Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.

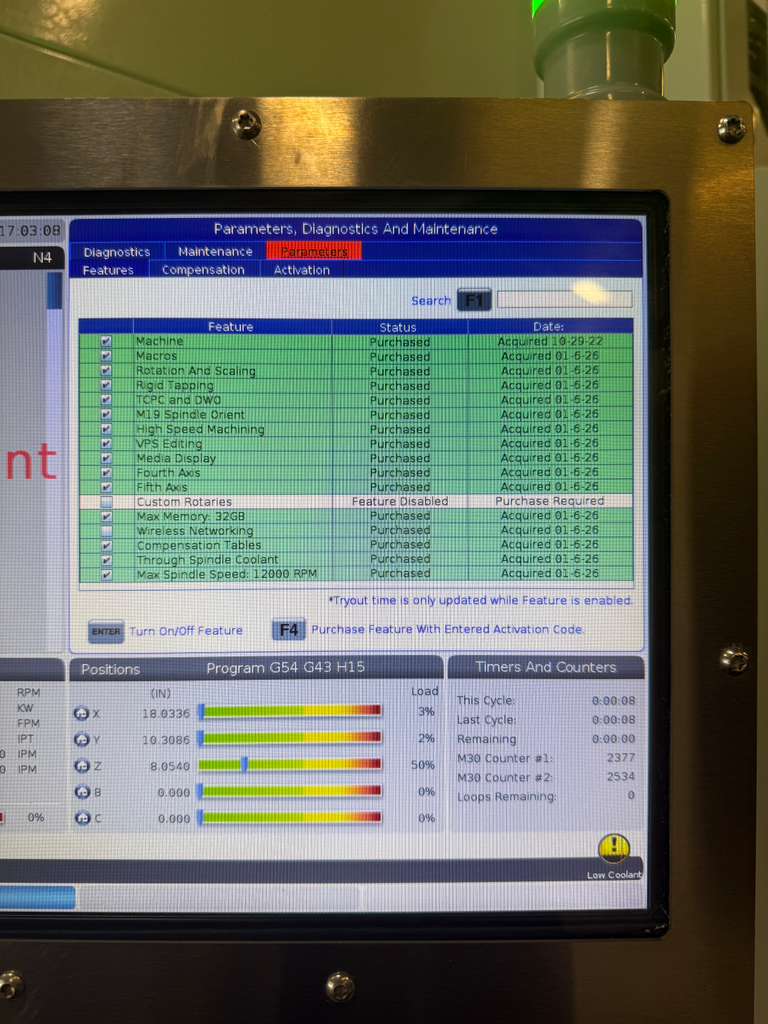

| Features: |
|---|

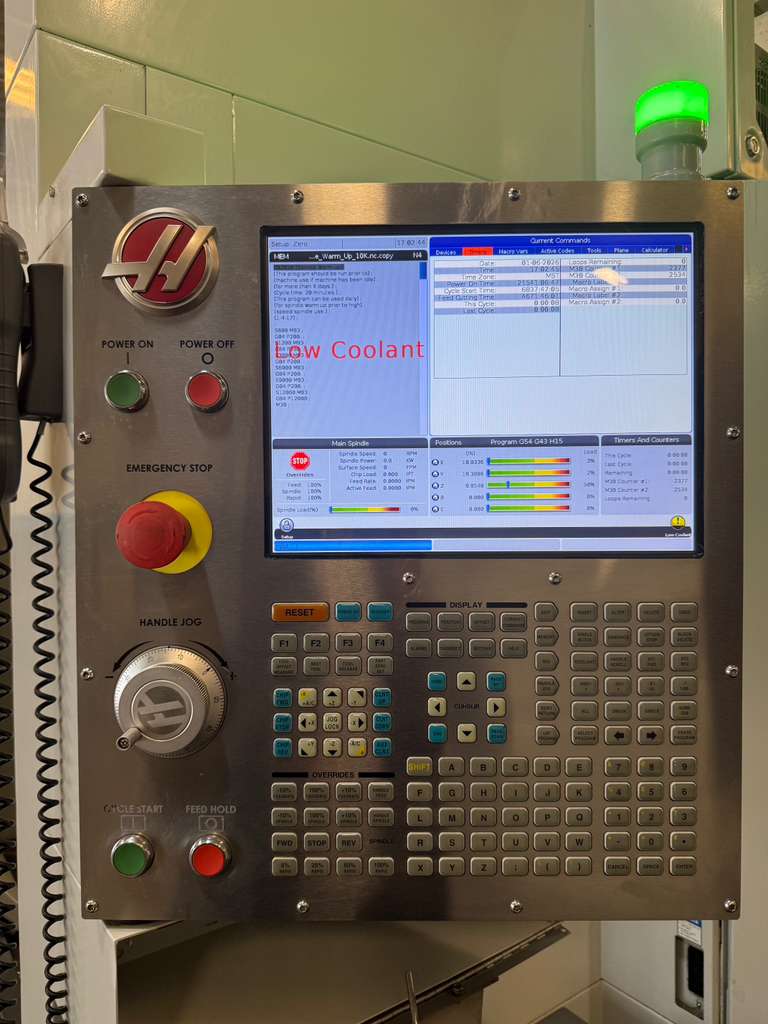

| Haas CNC Control |
| Haas Trunnion Table |
| 12,000 RPM High Speed Spindle |
| 40 Station Automatic Tool Changer |

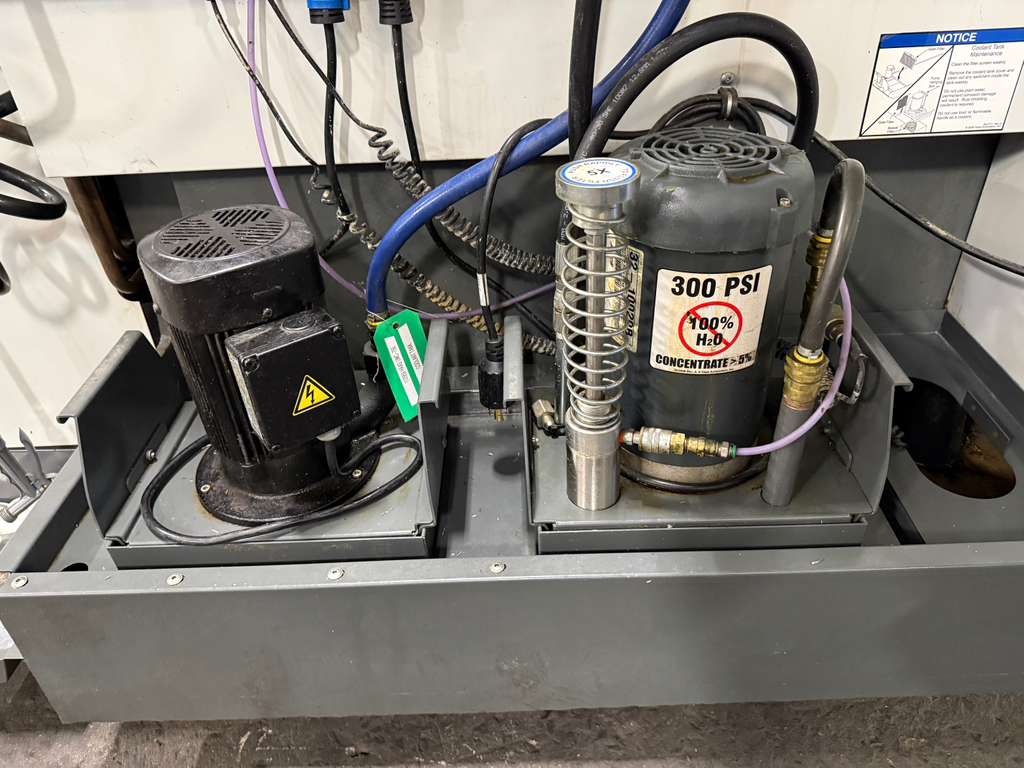

| Through Spindle Coolant – 300 psi |
| High Speed Machining |
| Renishaw Probing System (Probe Needed) |

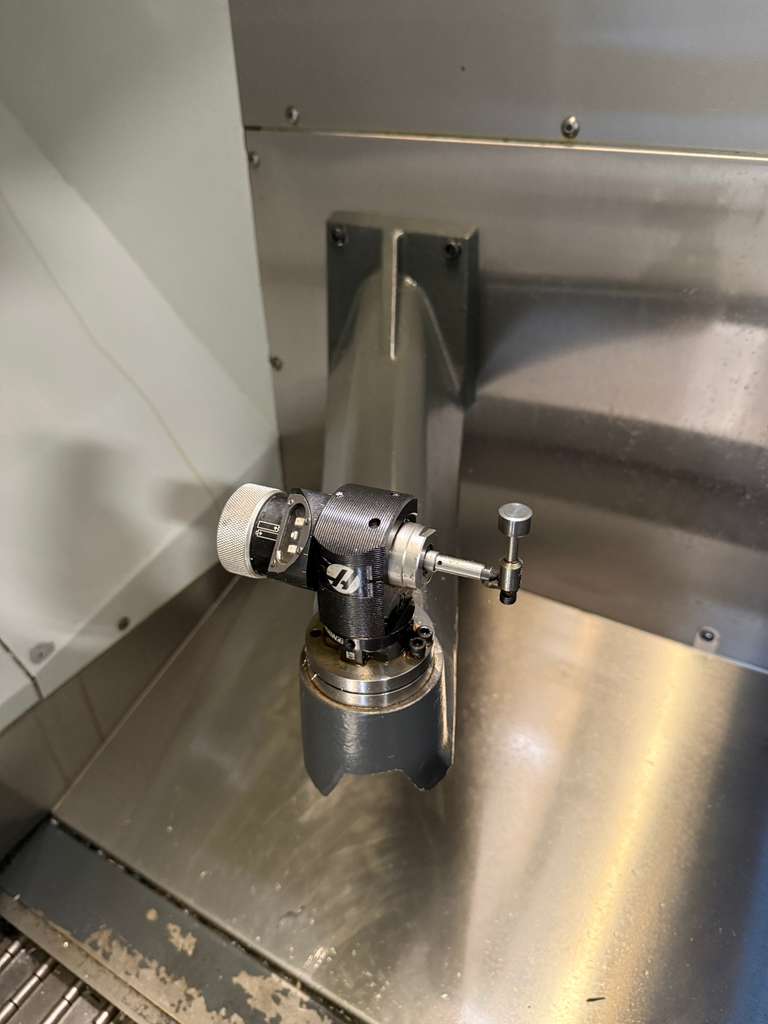

| Tool Presetter |
| 30 HP High Torque Spindle |
| Remote Jog Handle |
| Rigid Tapping |
| Spindle Orientation |
| Macros |
| Rotation and Scaling |
| VPS Editing |
| Media Display M-Code |
| Compensation Tables |
| Programmable Coolant Nozzle |
| 32 GB Expanded Memory |
| Coolant Tank |
| Belt-Type Chip Conveyor |
| Travels: |
|---|
| X-Axis: 30″ |
| Y Axis: 20″ |
| Z Axis: 20″ |
| B-Axis (Table Tilt): + 120° – 35° |
| C Axis: 360° ( Table Rotate ) |
| Rapid Traverse Rates: 900 Inch Per Minute |
| Cutting Feed Rates: 650 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |

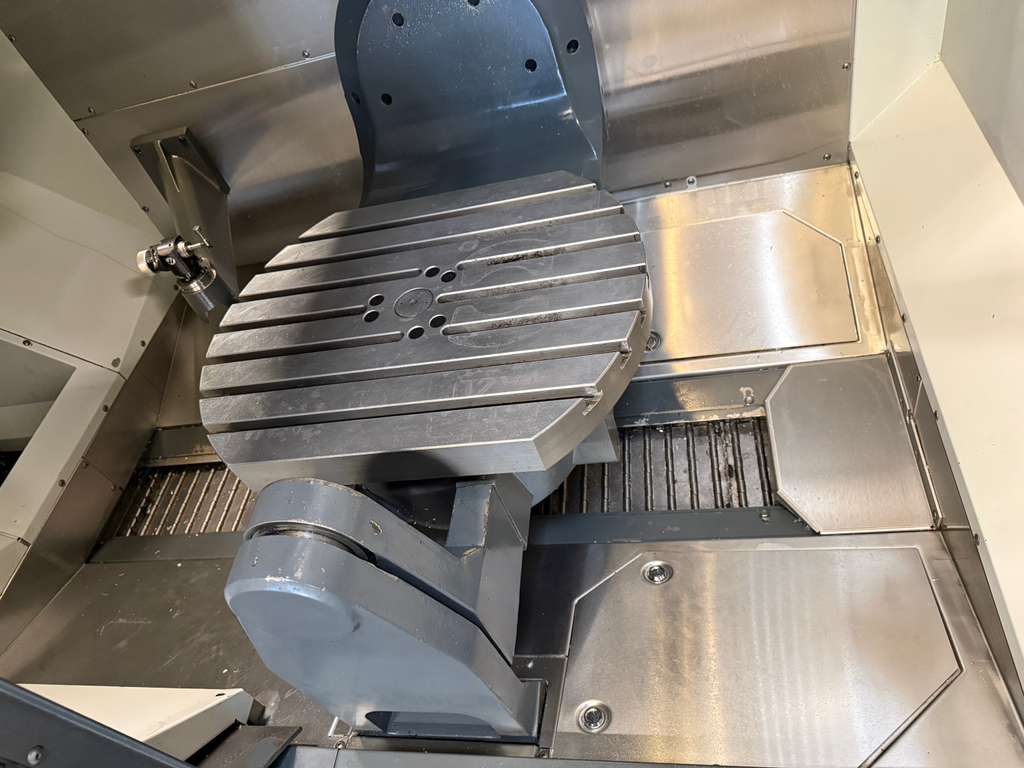

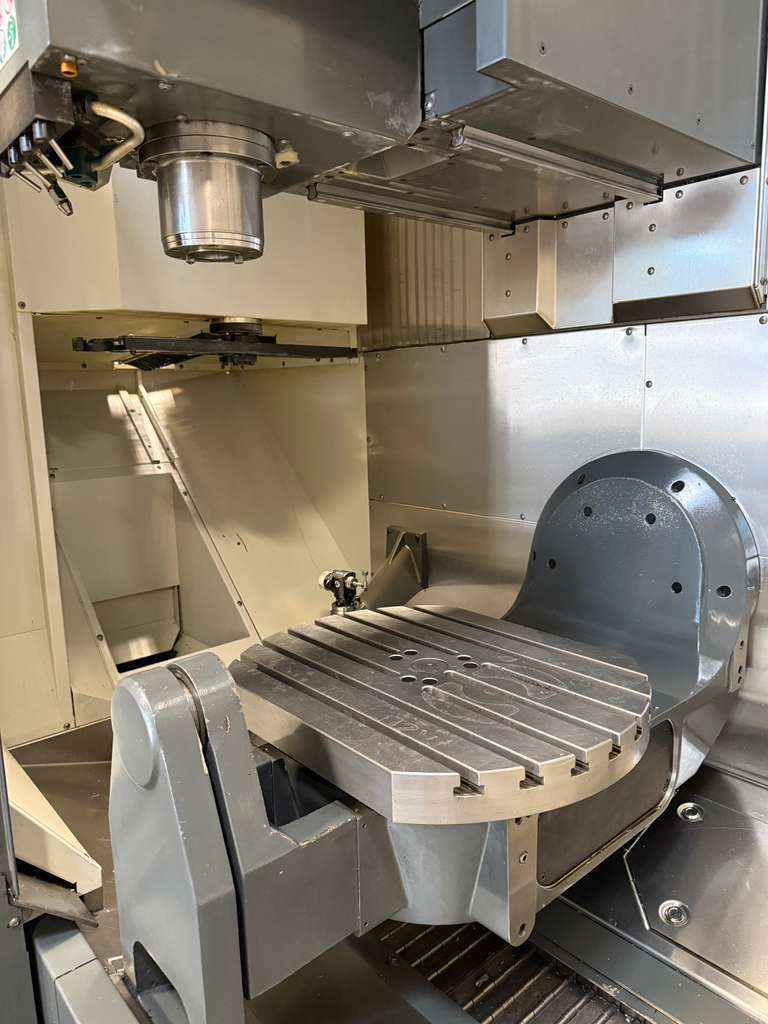

| Trunnion Table: |
|---|
| Platter Diameter: 19.70″ |
| Max Weight on Platter: 660 lbs |
| T-Slot Width: 0.626″ to 0.630″ |
| Number of Std T-Slots: 7 |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 40 Station Side Mounted |
| Max Tool Weight: 12 lbs |
| Max Tool Diameter (Full): 2.5″ |
| Max Tool Diameter (adjacent empty): 5″ |
| Max Tool Length: 12″ |
| Tool-to-Tool Changing Time: 2.8 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

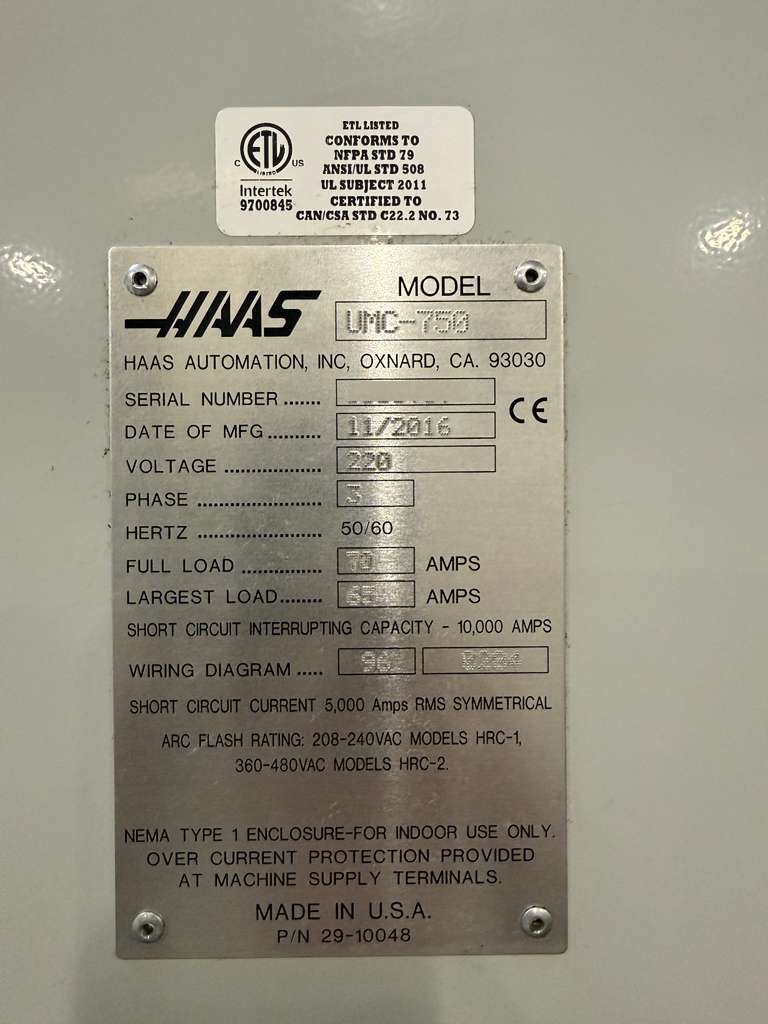

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 168″ x 92.5″ x 110″ High |
| Weight: 14,250 lbs. |
