*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

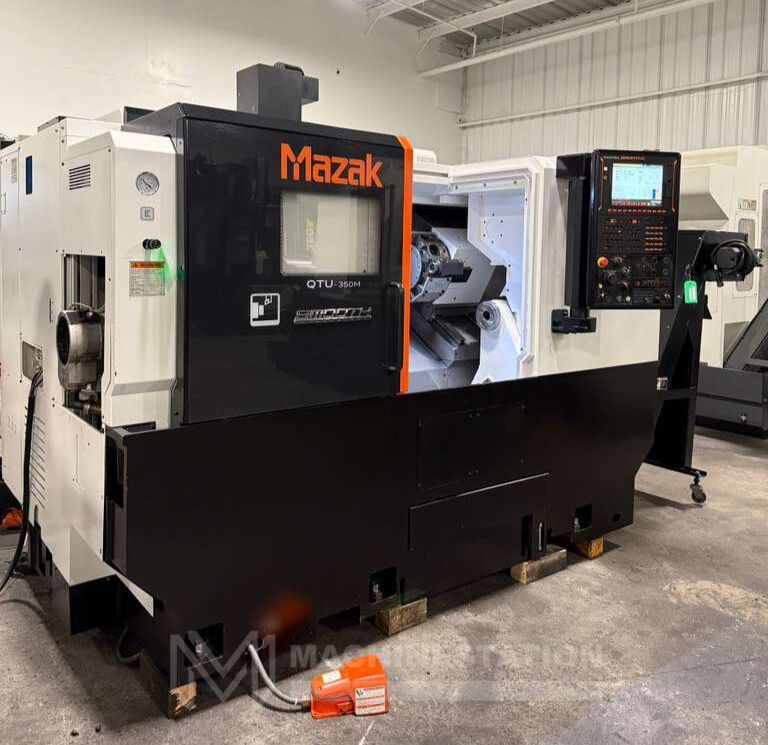

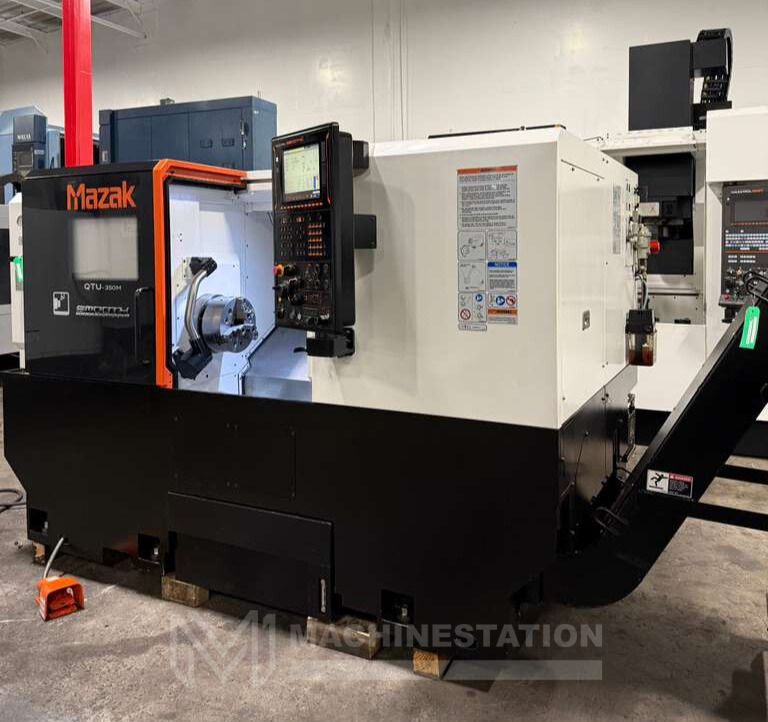

| Make: | Mazak |
| Model: | QTU-350M |
| Year: | 2017 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

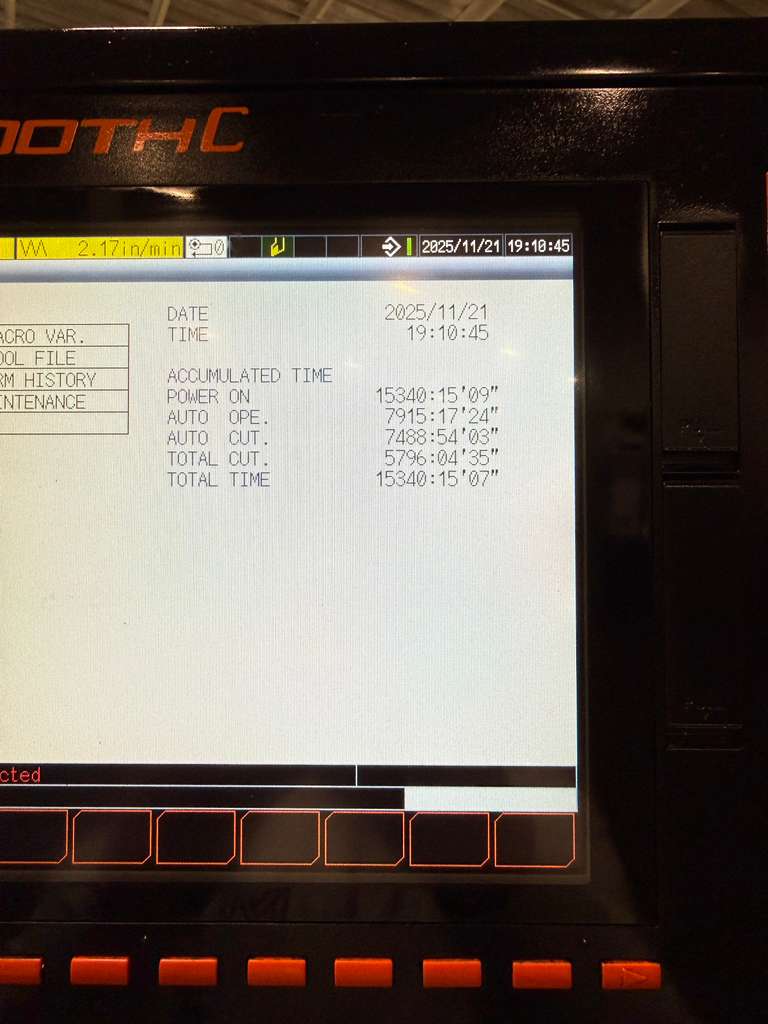

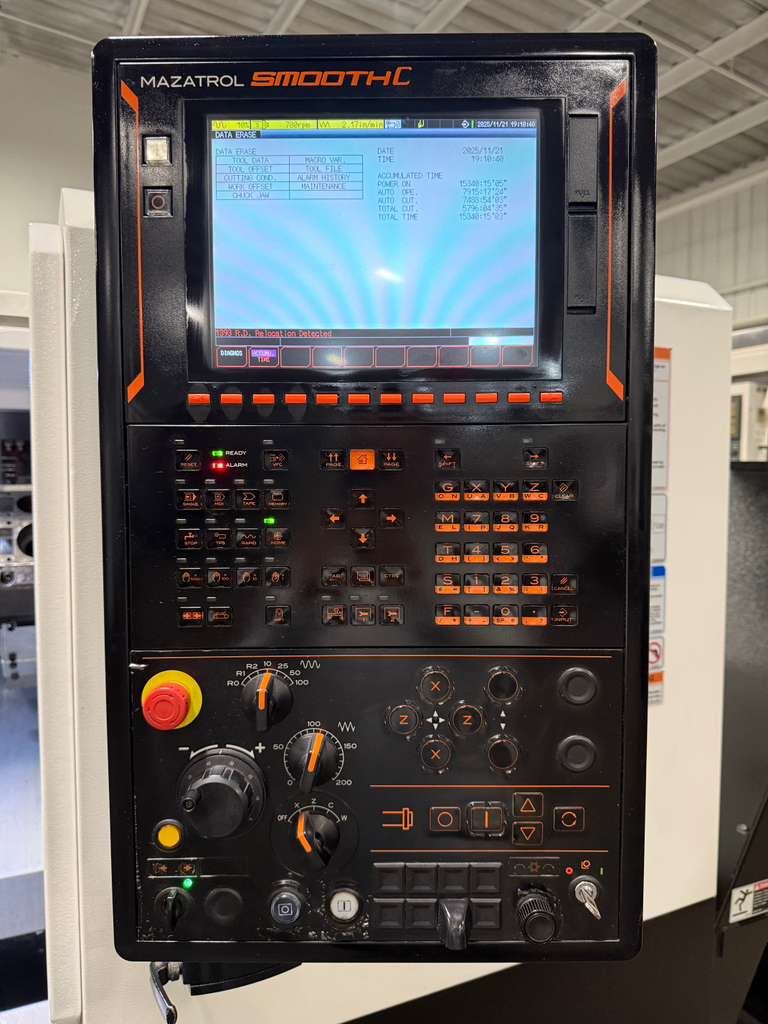

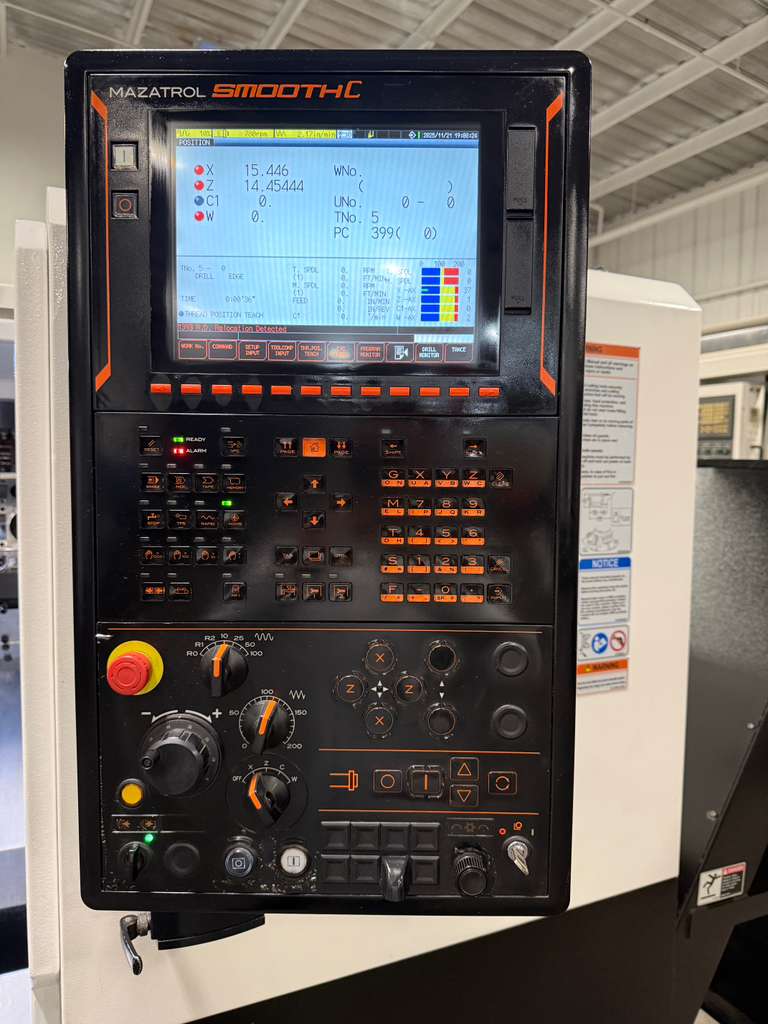

| Mazak SmoothC CNC Control |
| Linear Ways Construction |

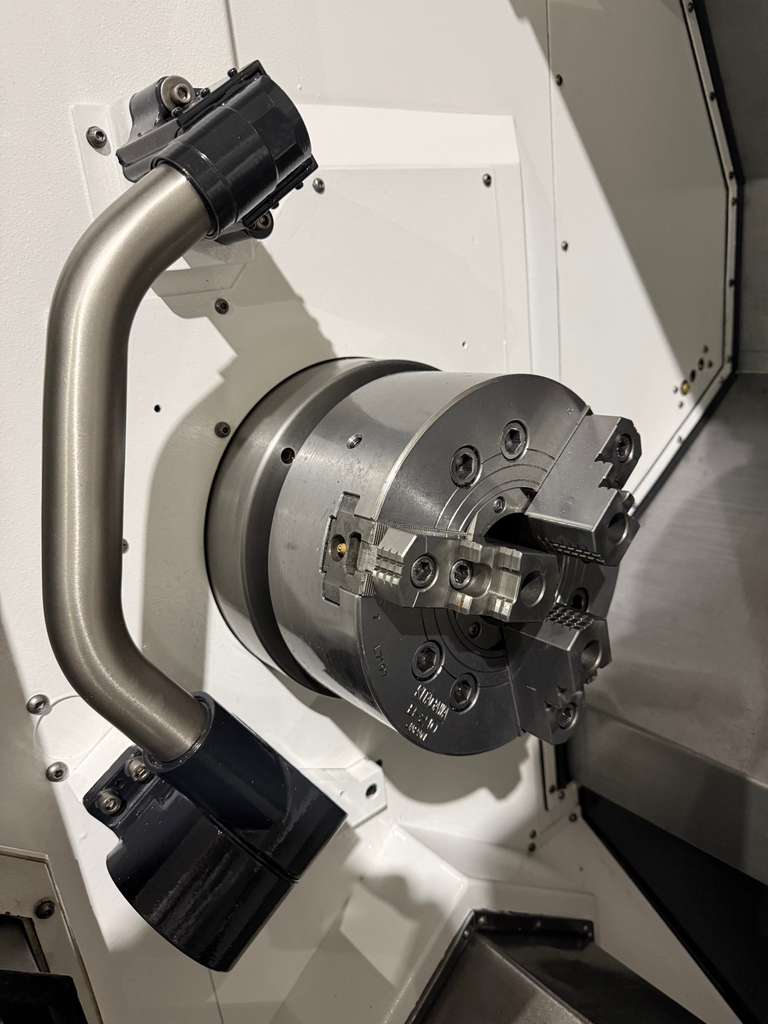

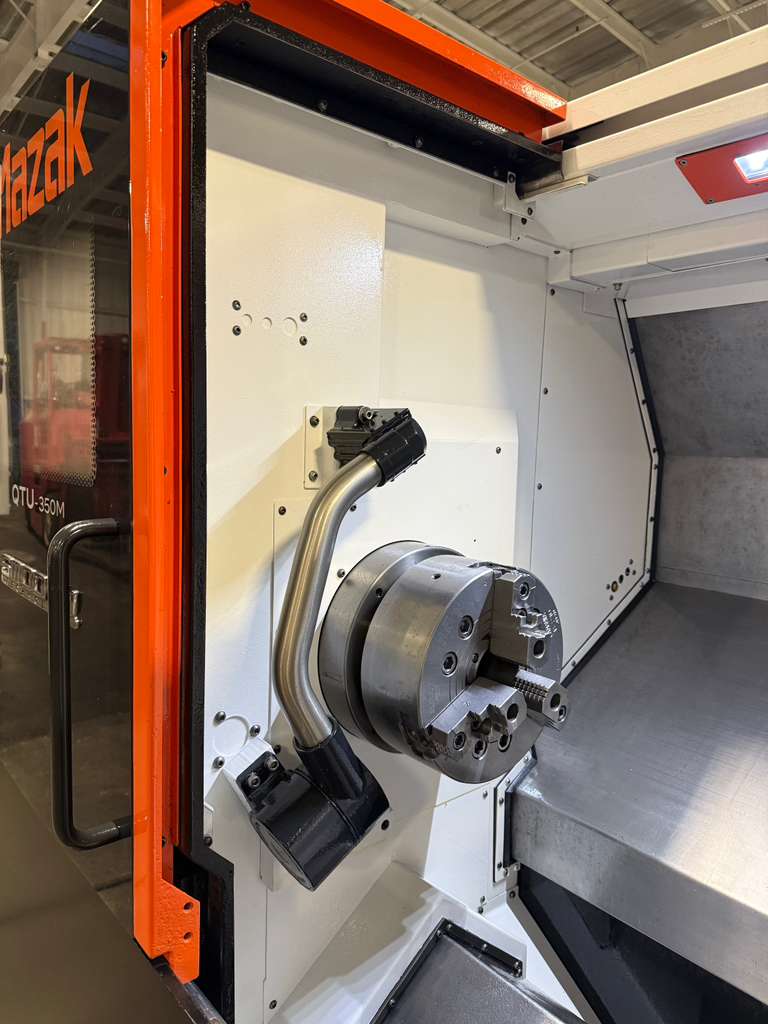

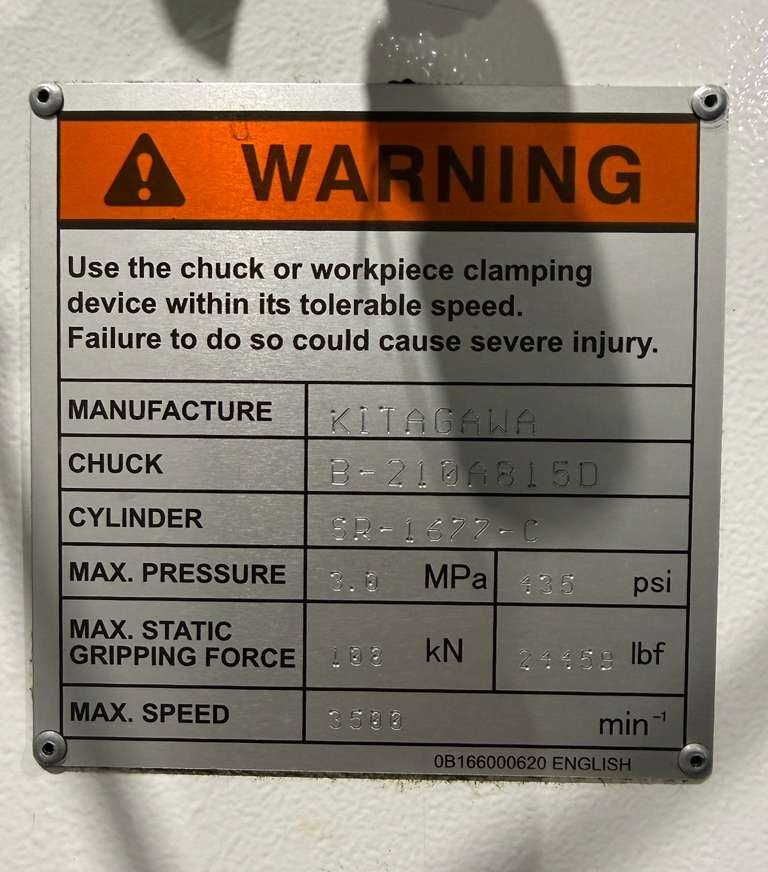

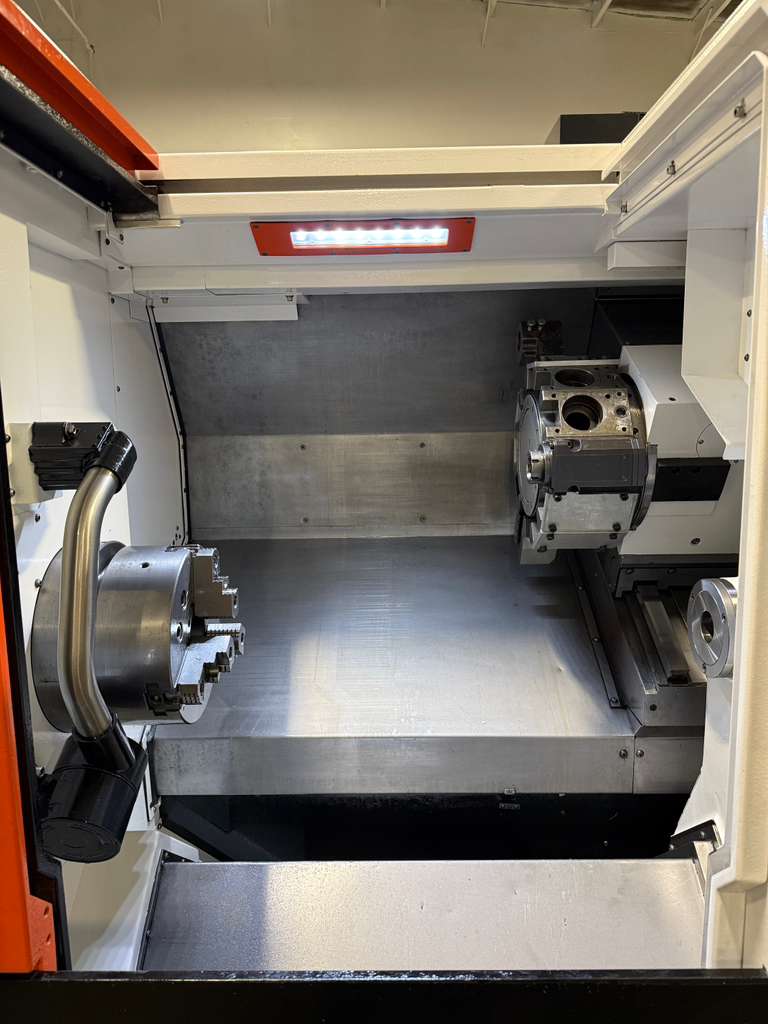

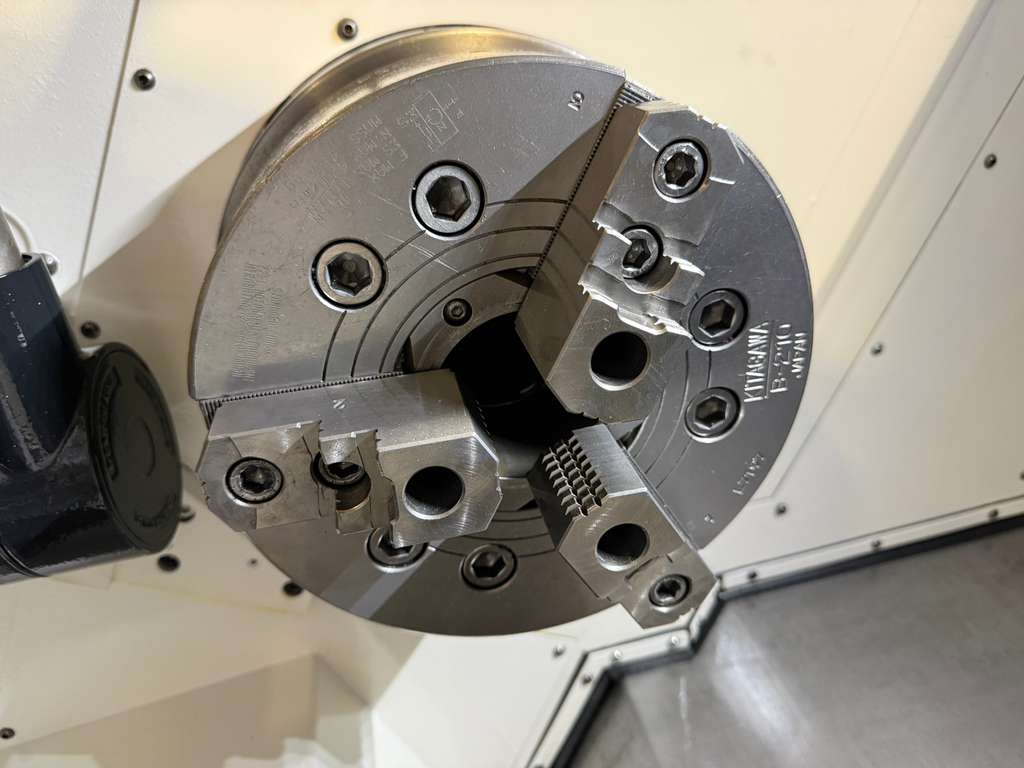

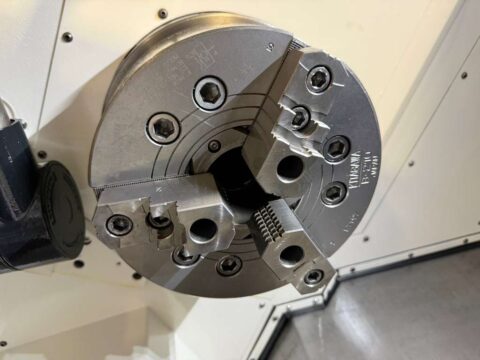

| 254 mm 3-Jaw Kitagawa Hydraulic Chuck |
| Servo-Controlled C-Axis on Spindle |

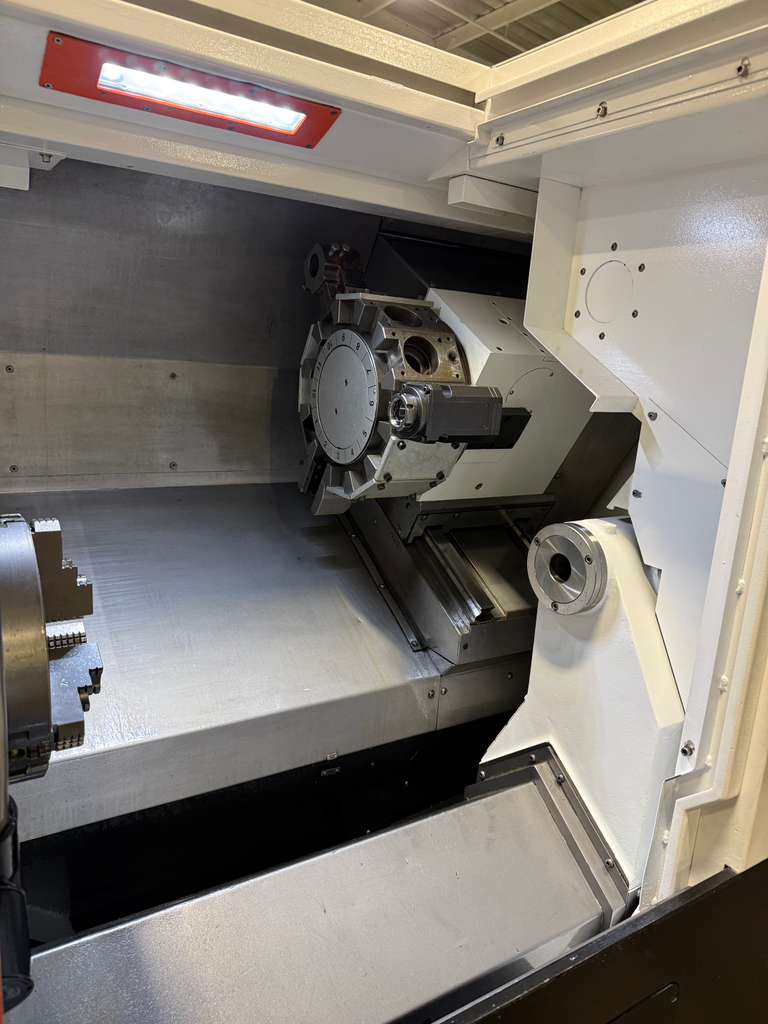

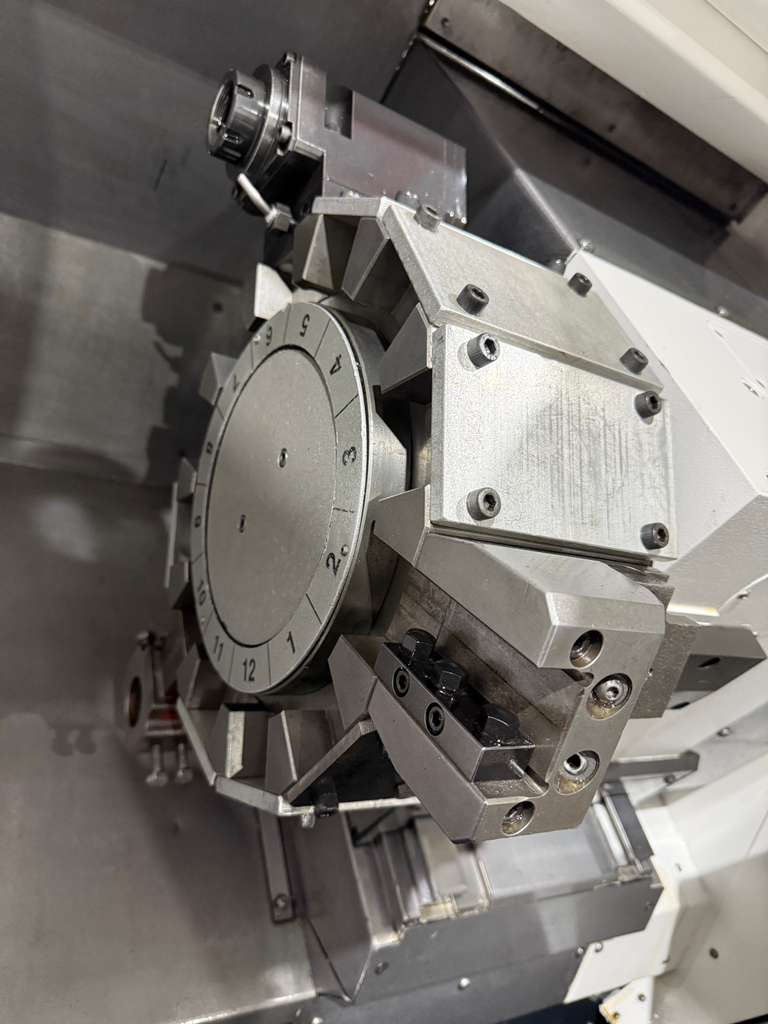

| 12-Station Live Tool Turret |
| Automatic Tool Presetter |

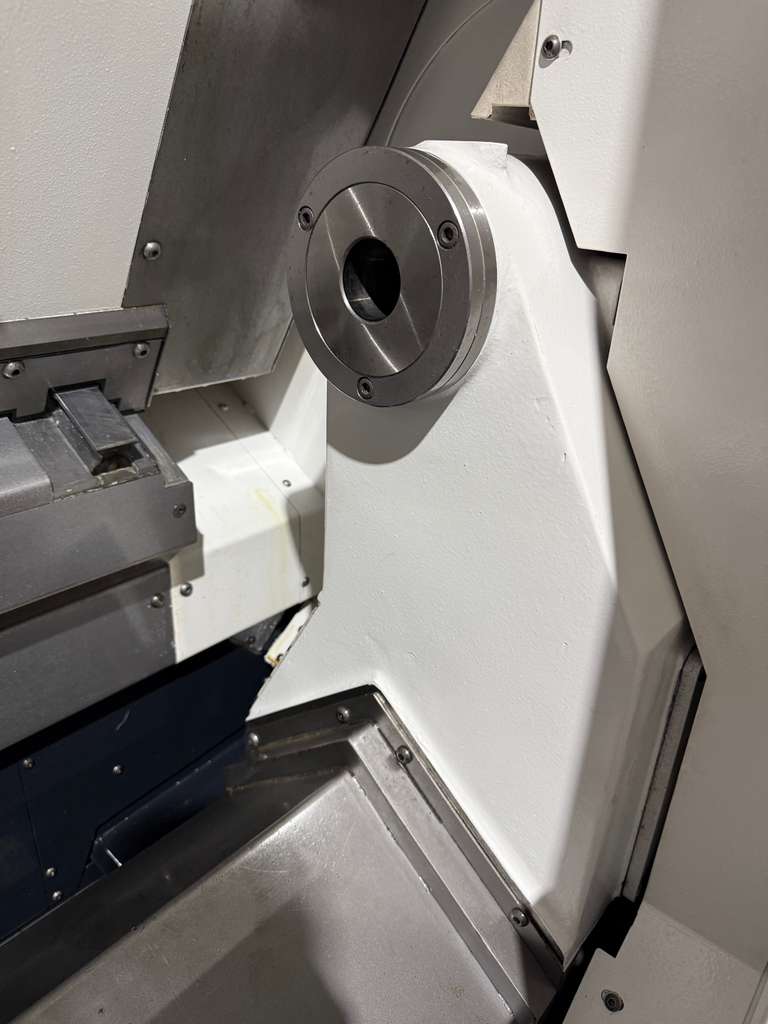

| Programmable Tailstock |
| USB Port |
| Spindle Orientation |
| Rigid Tapping |
| Automatic Lubrication System |

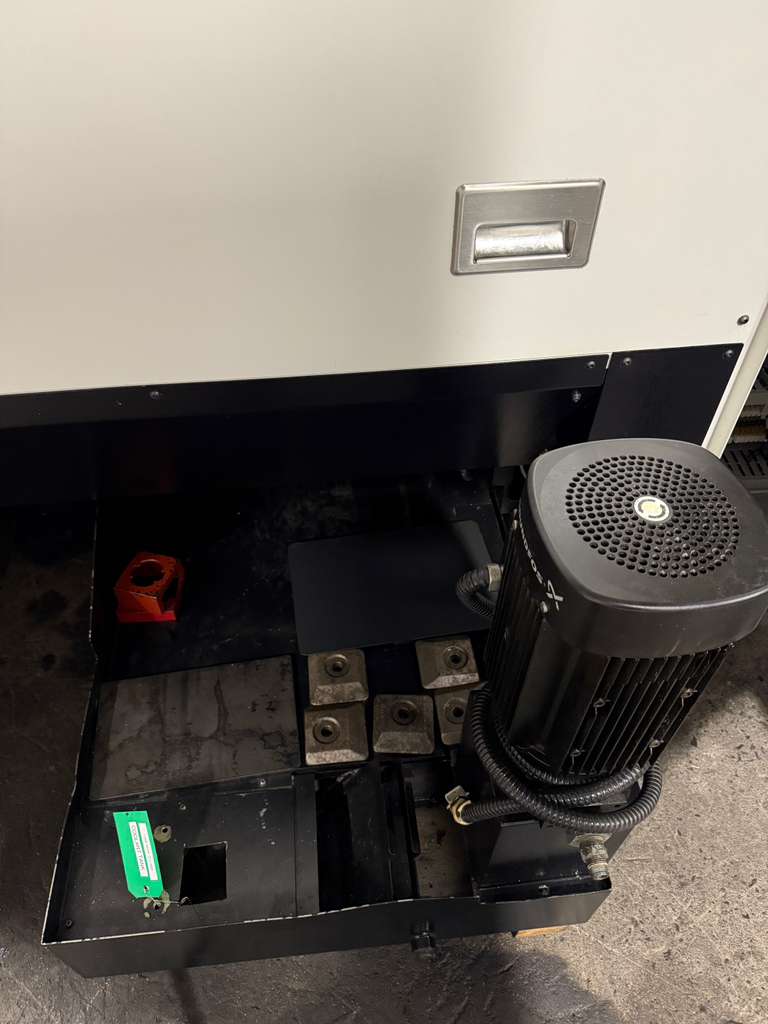

| Coolant System |

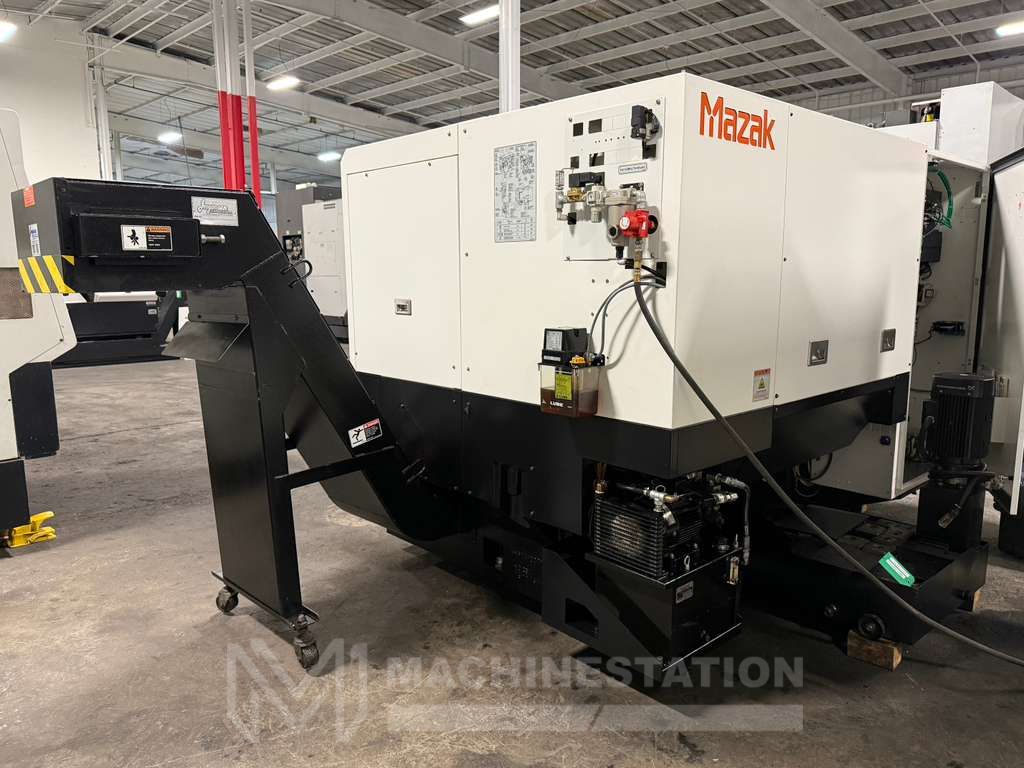

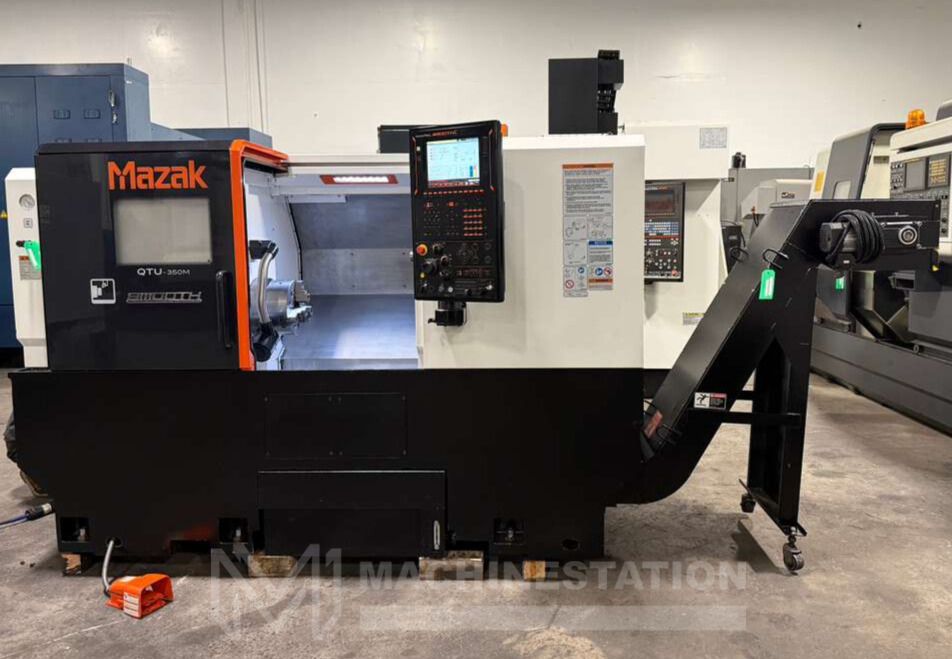

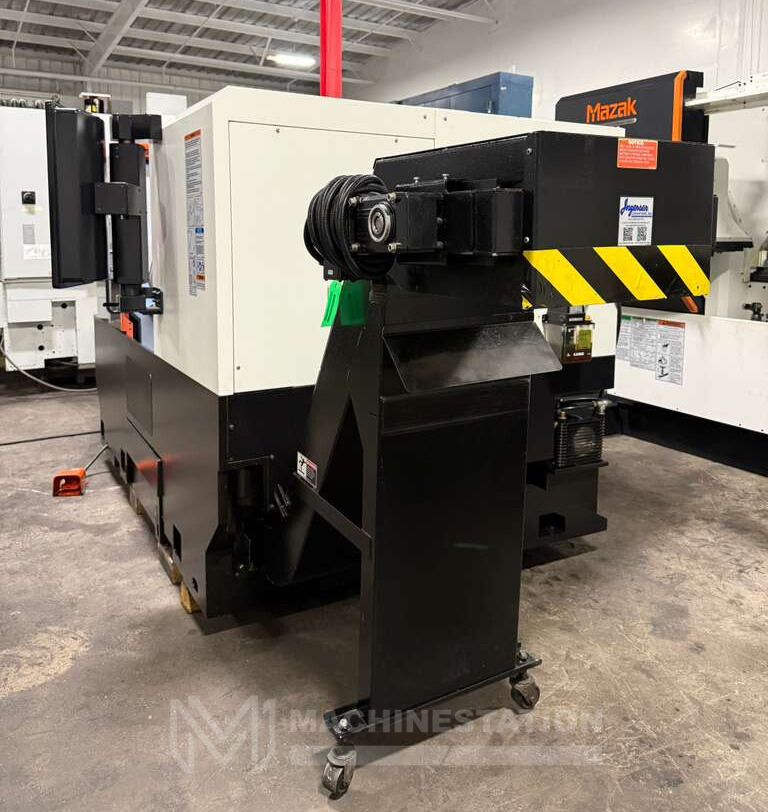

| Chip Conveyor |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 420.12 mm |
| Max Turning Length: 604.52 mm |
| Max Swing Over Bed: 749.3 mm |
| Max Bar Capacity: 76.2 mm |
| Travels: |
|---|
| X-Axis Travel: 273.05 mm |
| Z-Axis Travel: 670.05 mm |
| W-Axis Travel (Tailstock Travel): 647.7 mm |
| C-Axis Rotation: 360° (0.001° indexing) |
| Rapid Traverse X-Axis: 3000 cm/min |
| Rapid Traverse Z-Axis: 3599 cm/min |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Speed: 3,500 RPM |
| Spindle Motor Power: 18.6 kW |
| Turret: |
|---|
| Capacity: 12 Stations |
| Live Tool Speed: 4,500 RPM |
| Live Tool Motor Power: 5.6 kW |
| Tailstock: |
|---|
| Type: Programmable |
| Tailstock Body Travel: 647.7 mm |
| General: |
|---|

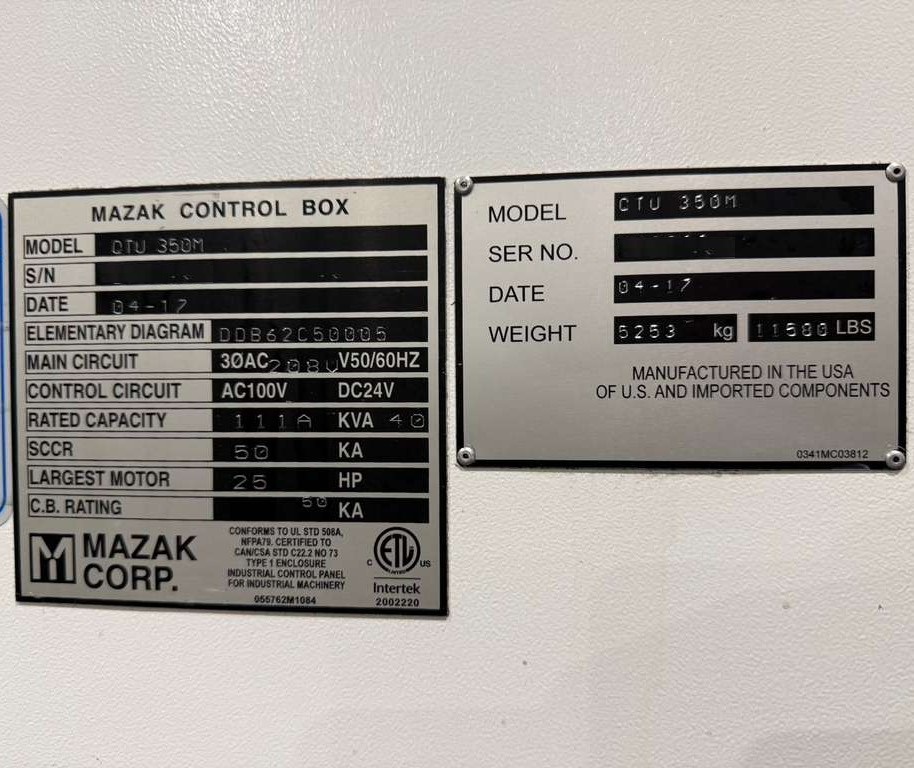

| Power Requirement: 40 KVA / 208V / 50/60 Hz / 3-Phase |
| Overall Dimensions: 3302 mm × 1905 mm × 1905 mm High Approx. |
| Machine Weight: 5252.6 kg |
