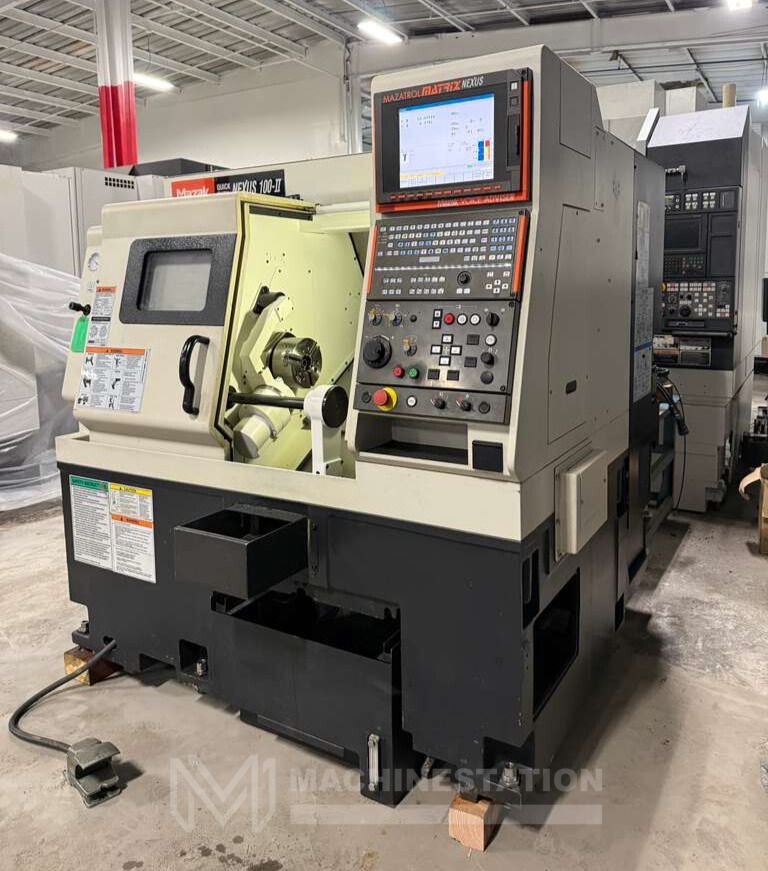

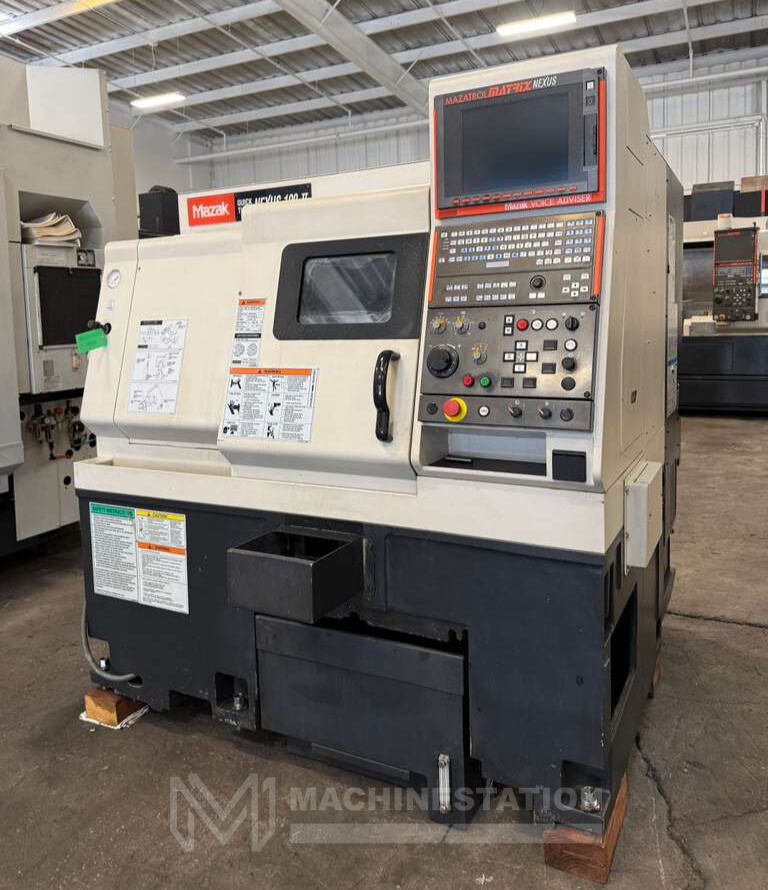

Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

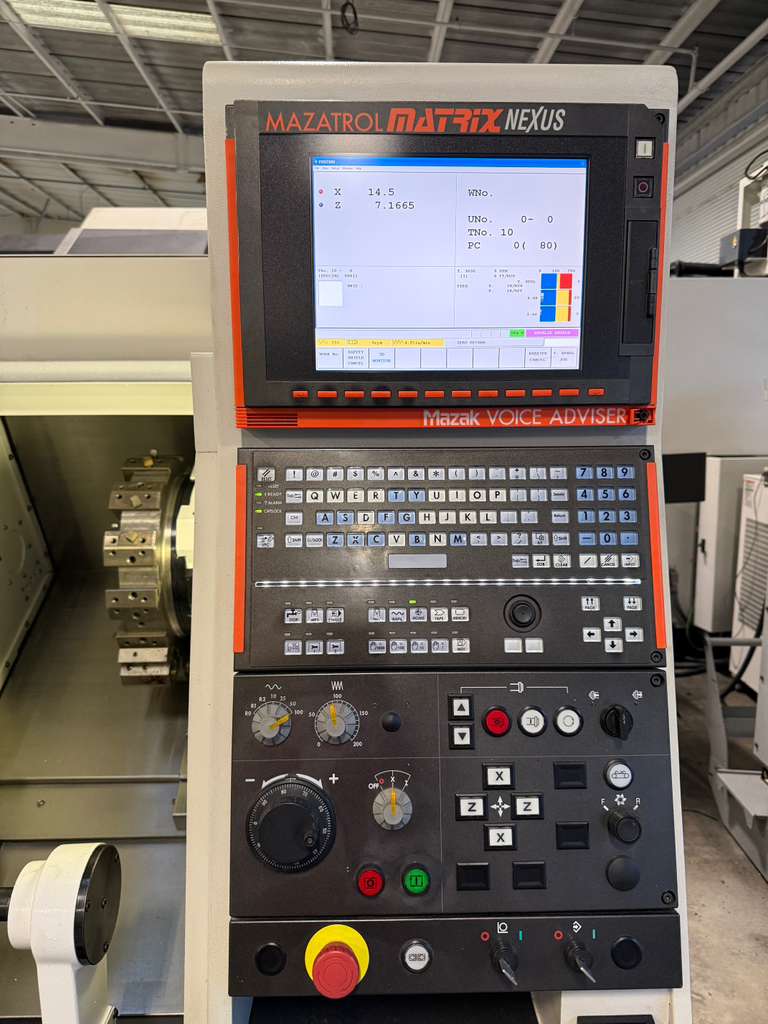

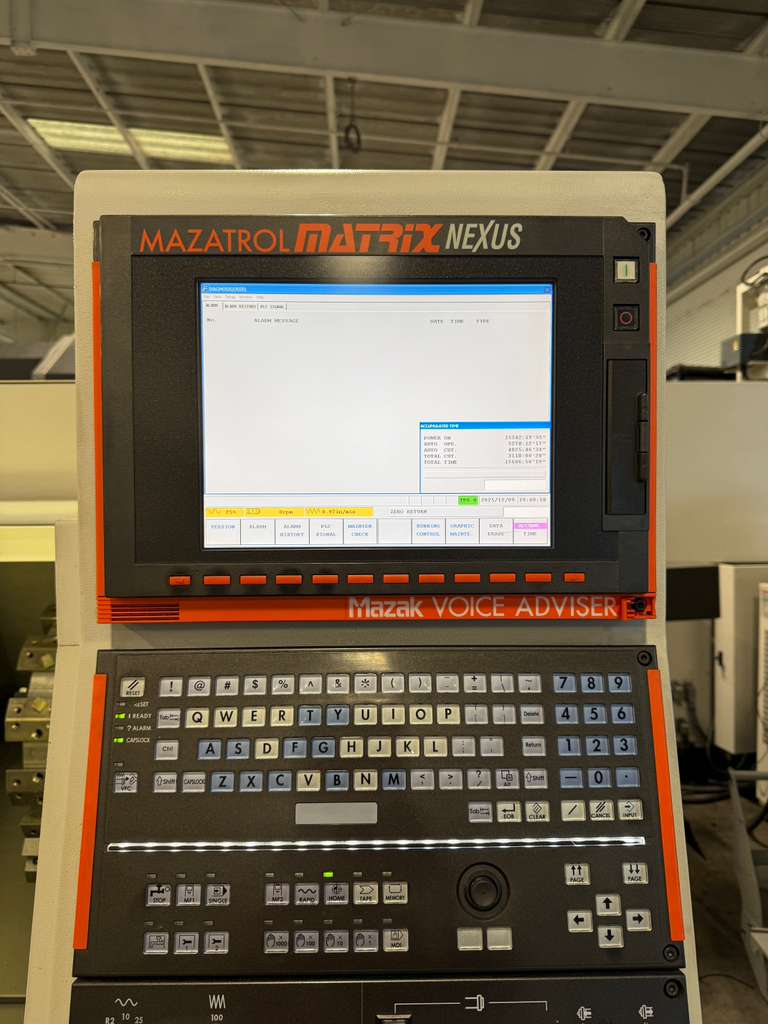

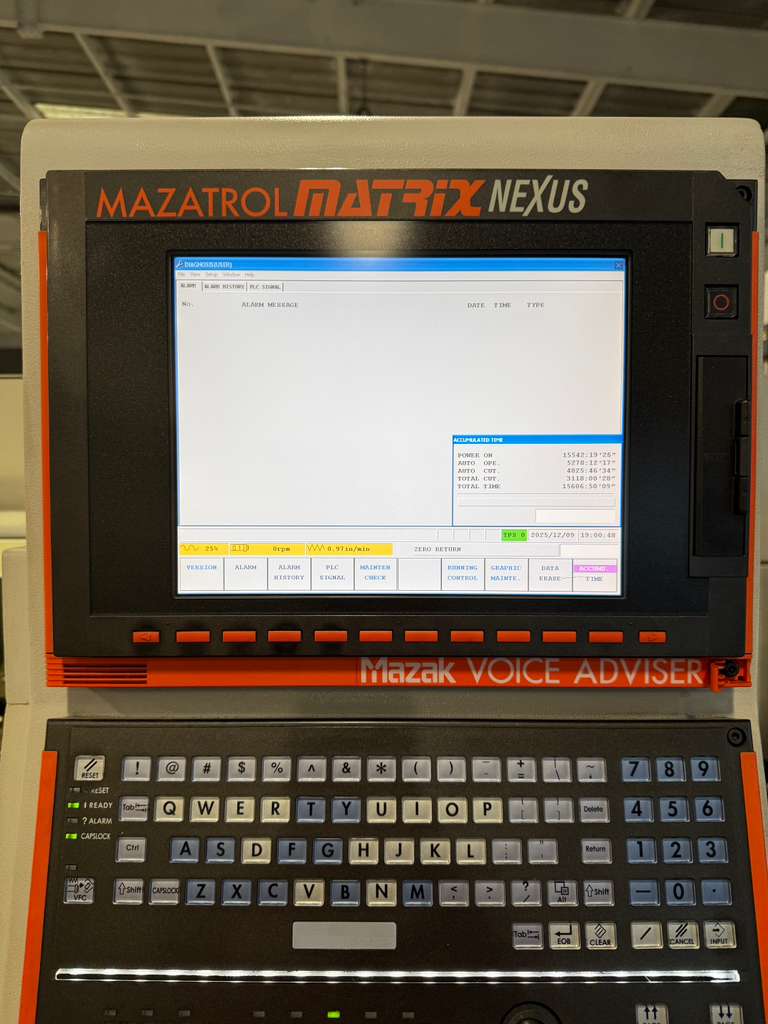

| Mazatrol Matrix Nexus CNC Control |

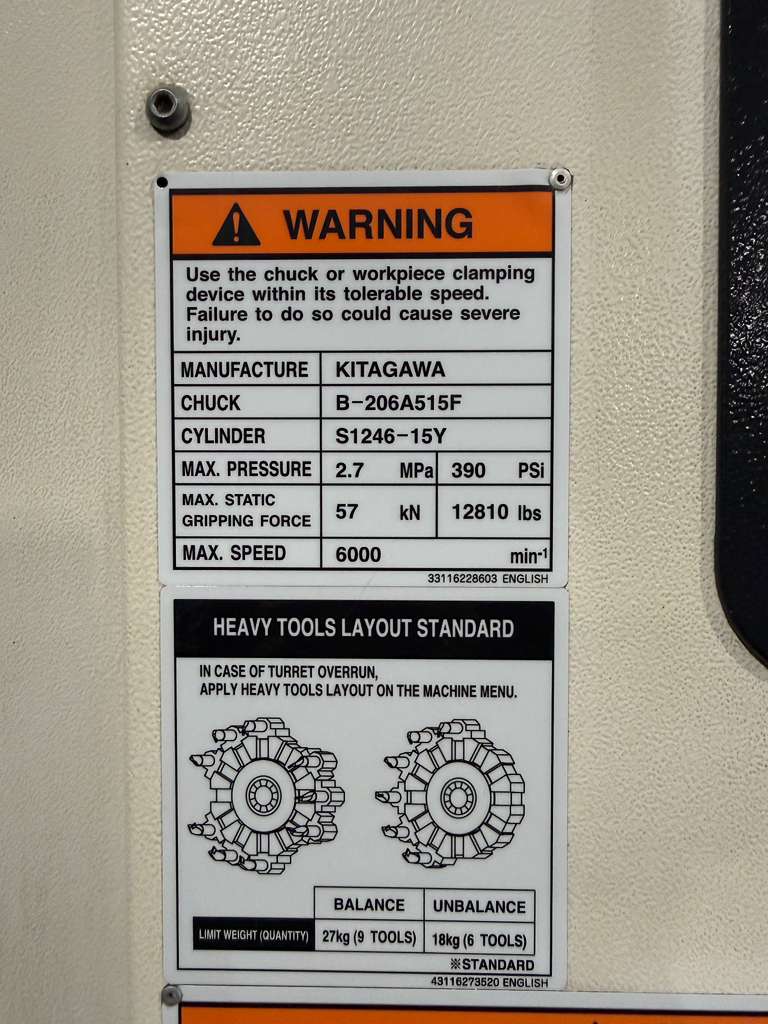

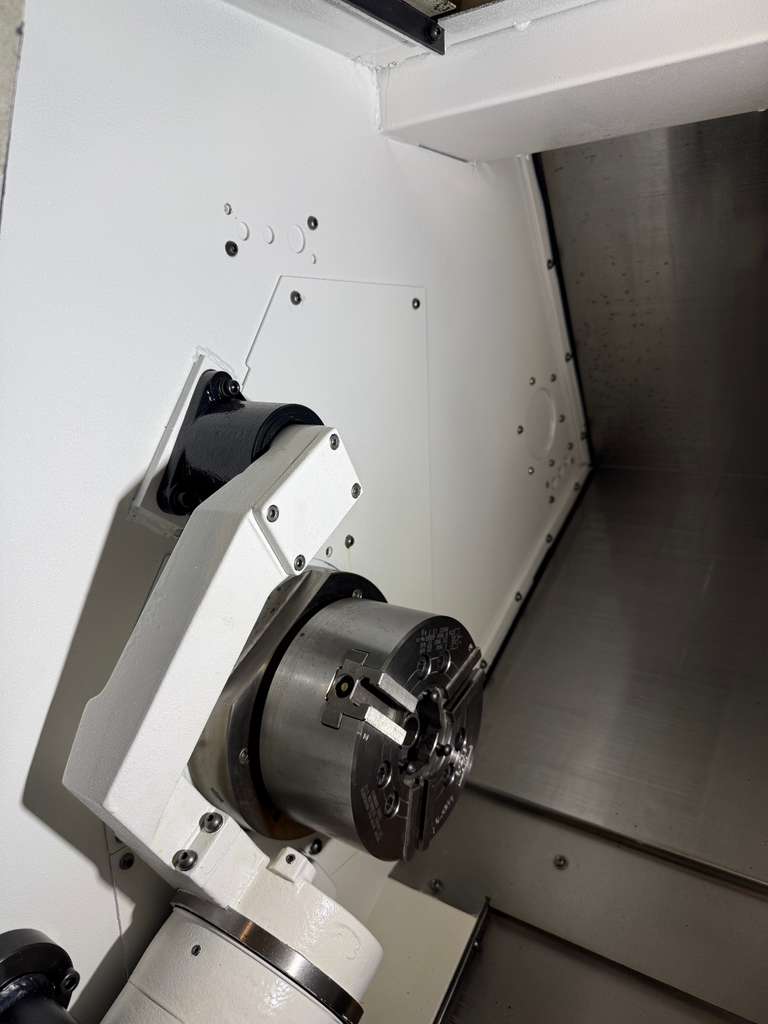

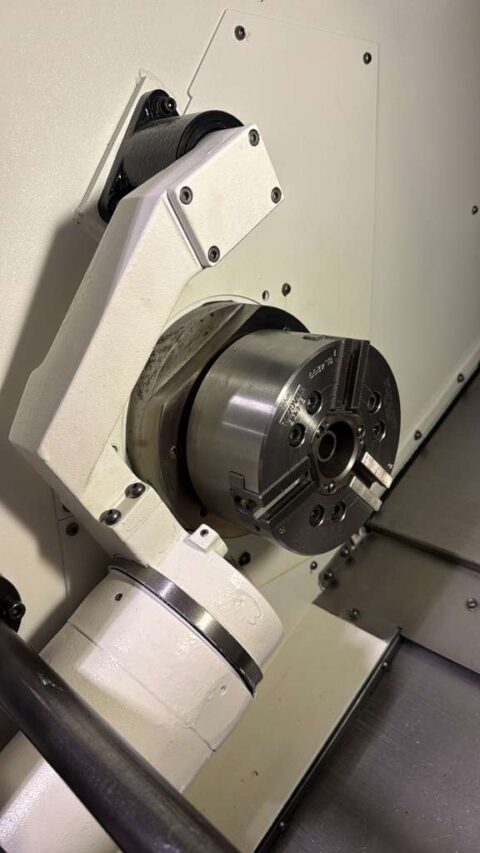

| 152.4 mm 3-Jaw Kitagawa B-206 Chuck |

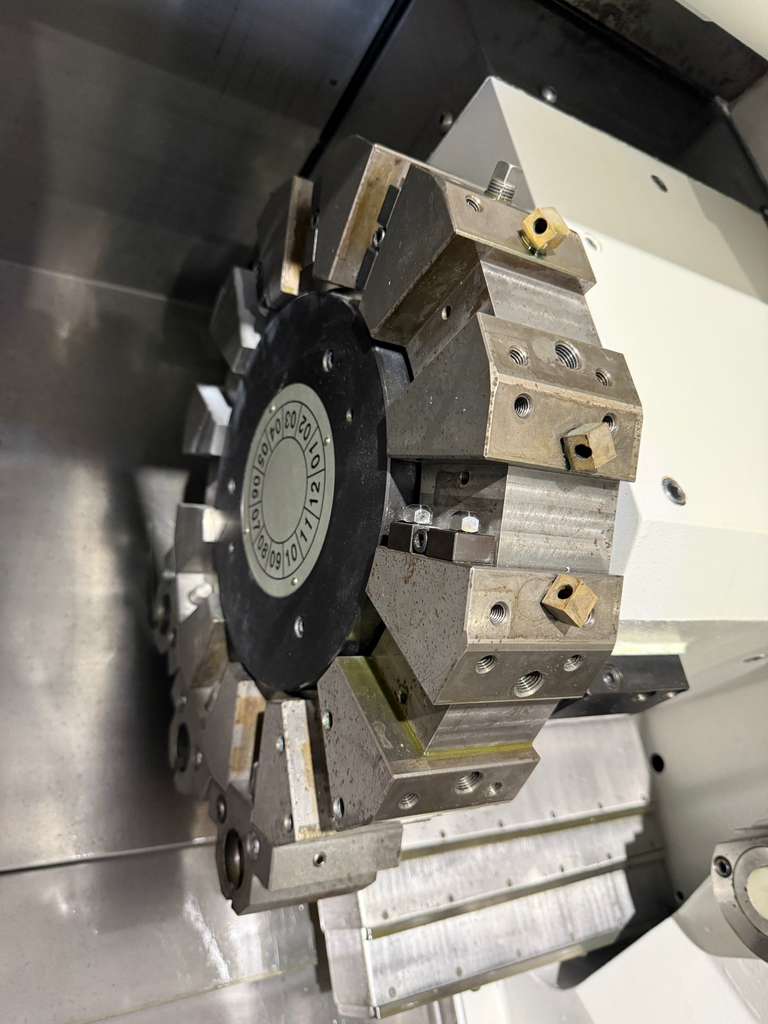

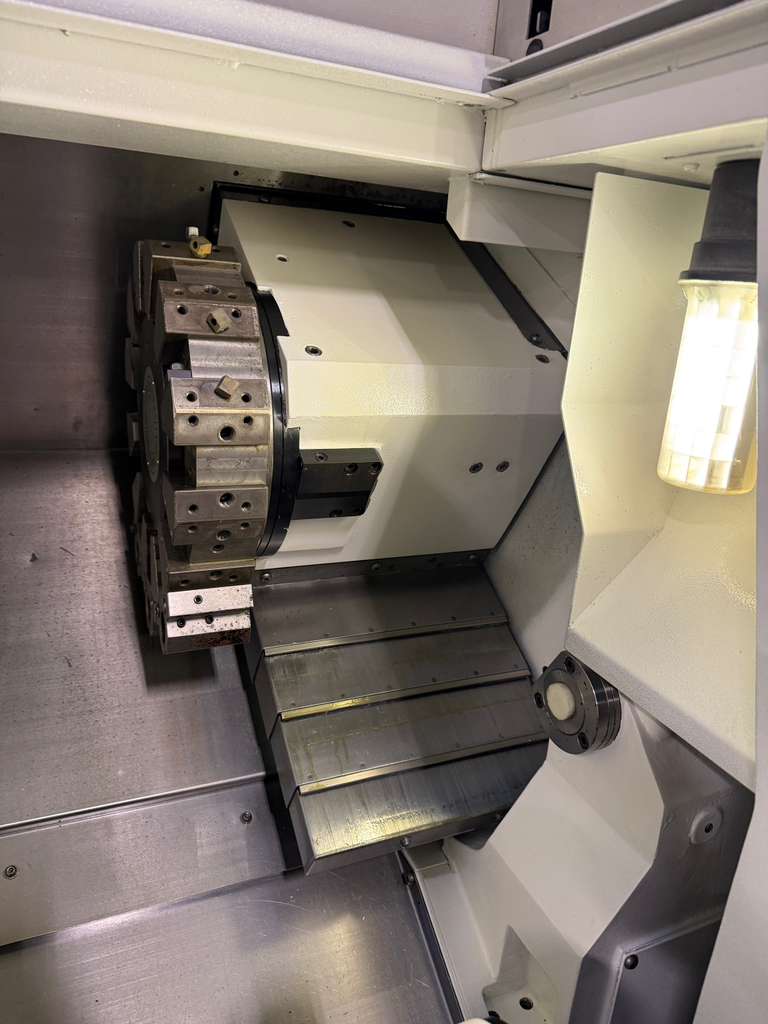

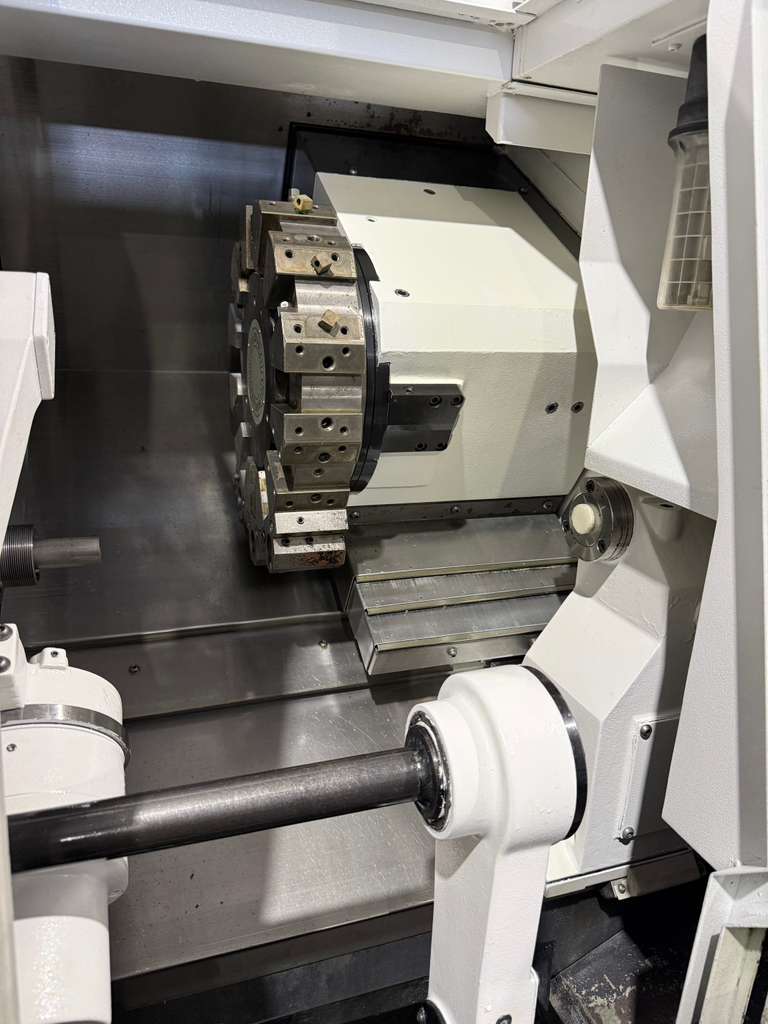

| 12 Stations Automatic Turret |
| Automatic Tool Presetter |
| Parts Catcher |
| Tailstock |

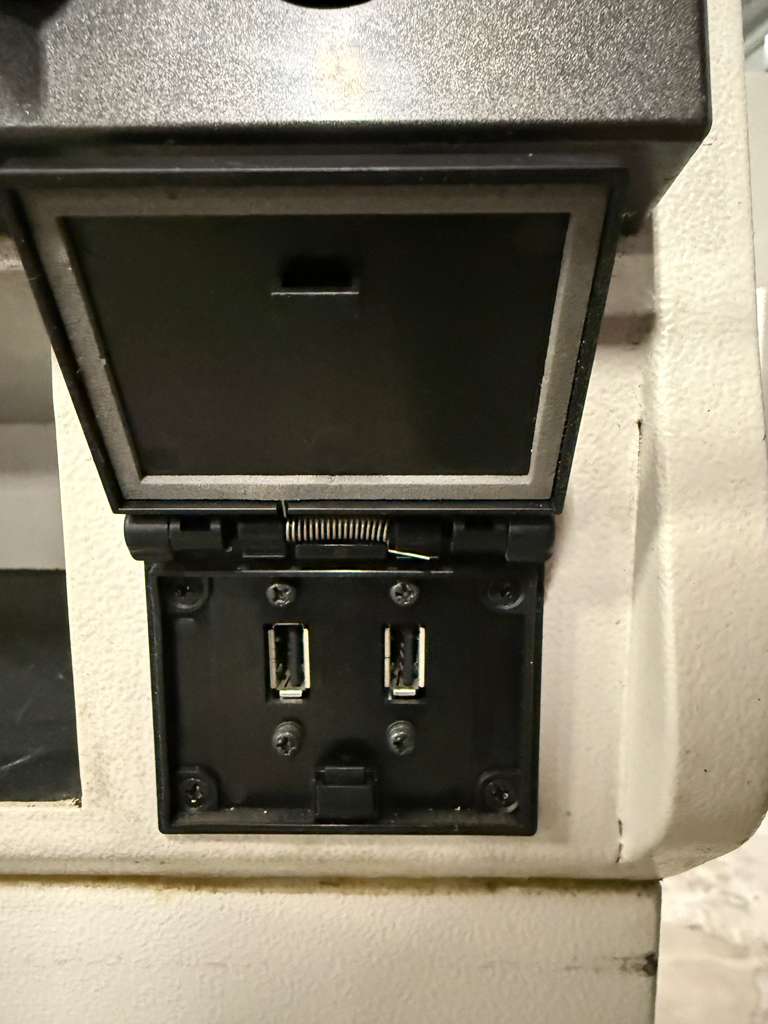

| USB Ports |
| Rigid Tapping |
| Automatic Lubrication System |
| Foot Operated Control for Chuck |
| Coolant System |
| Books & Manuals |
| (3) Boring Tool Holders (Mounted on Turret as Shown in the images) |
| Capacity: |
| Max Turning Diameter : 11.00″ |
| Max Turning Length : 15.82″ |
| Max Swing Over Bed: 21.65″ |
| Max Bar Capacity : 2.00″ |
| Travels: |
| X Axis Travel : 7.25″ |
| Z Axis Travel : 17.88″ |
| Feedrate: |
| Rapid Traverse X Axis: 3000 cm/min |
| Rapid Traverse Z Axis: 3299 cm/min |
| Spindle: |
| Spindle Bore: 2.50″ |
| Spindle Nose: A2-6 |
| Spindle Speed: 6,000 RPM |
| Spindle Power: 11.2 kW |
| Turret: |
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.2 Seconds |
| General: |

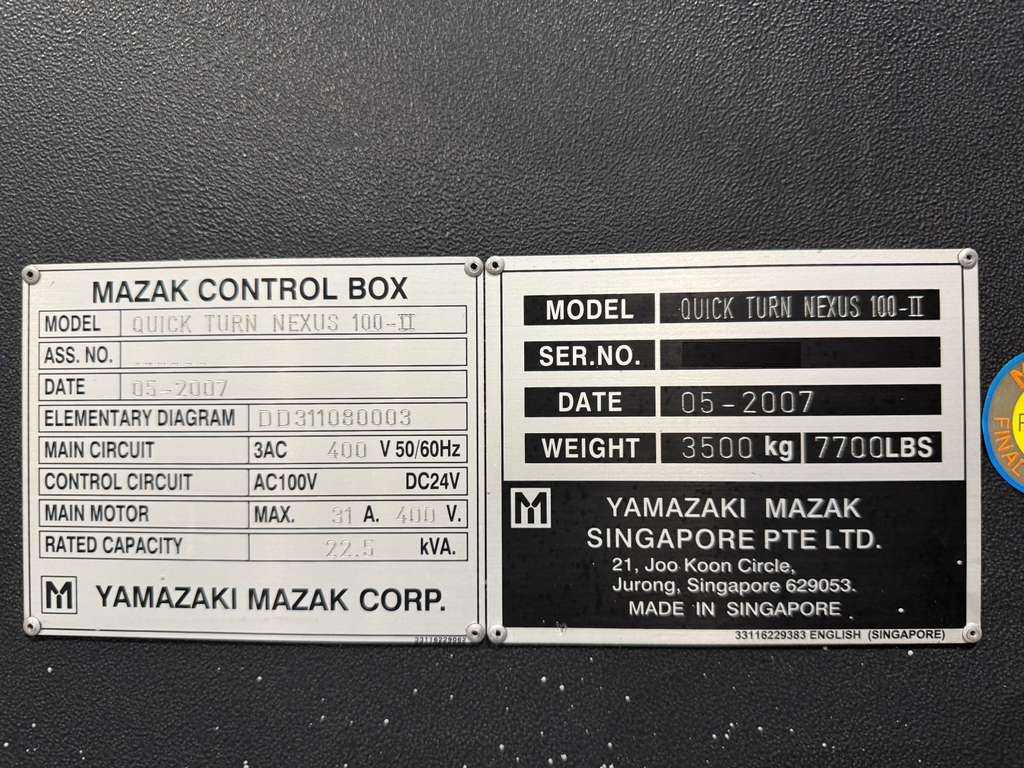

| Power Source: 22.5 kva / 400v / 50/60 Hz / 3-Phase |
| Overall Dimensions: 2108.2 mm X 1701.8 mm X 2006.6 mm High Approx. |
| Weight: 3492.7 kg. Approx. |
| Categories | CNC Turning Centers |
|---|
| Series | Mazak Nexus Series |
|---|
| Categories | CNC Turning Centers, Previously Sold Machines |
|---|
