Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

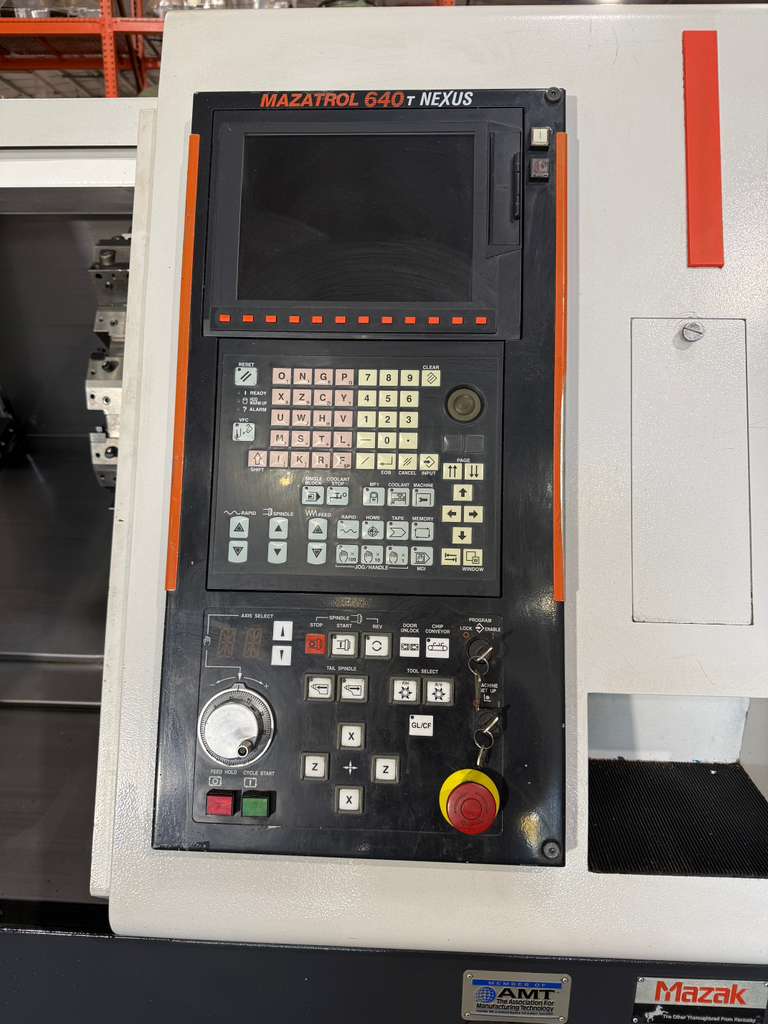

| Mazatrol 640T CNC Control |

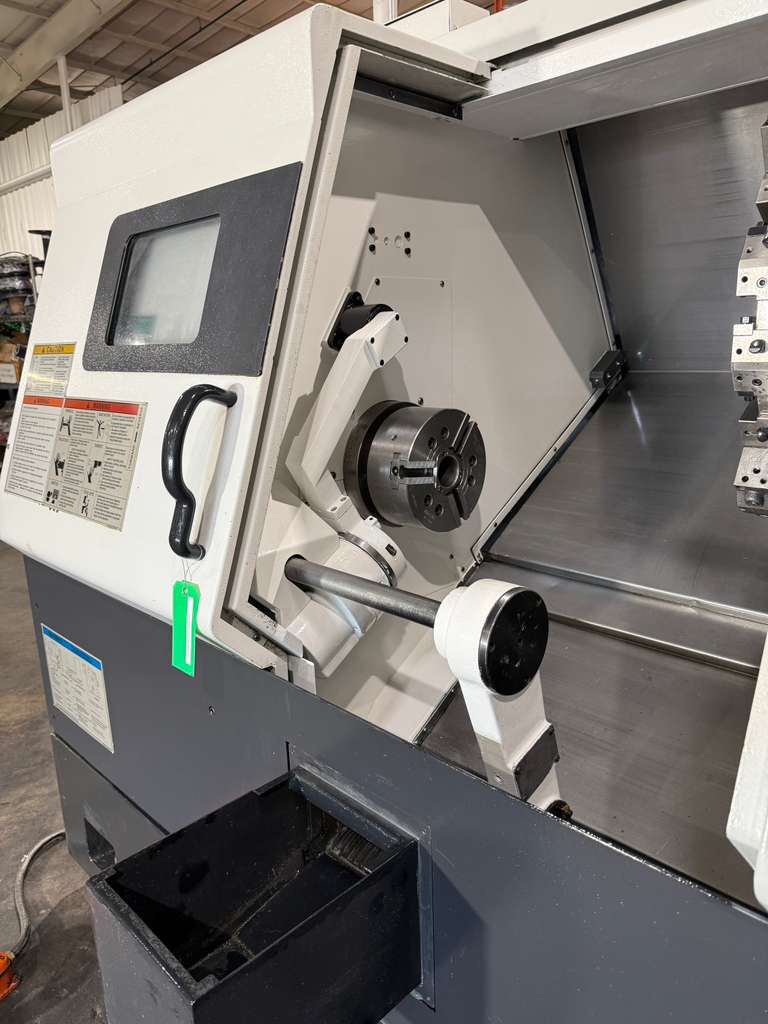

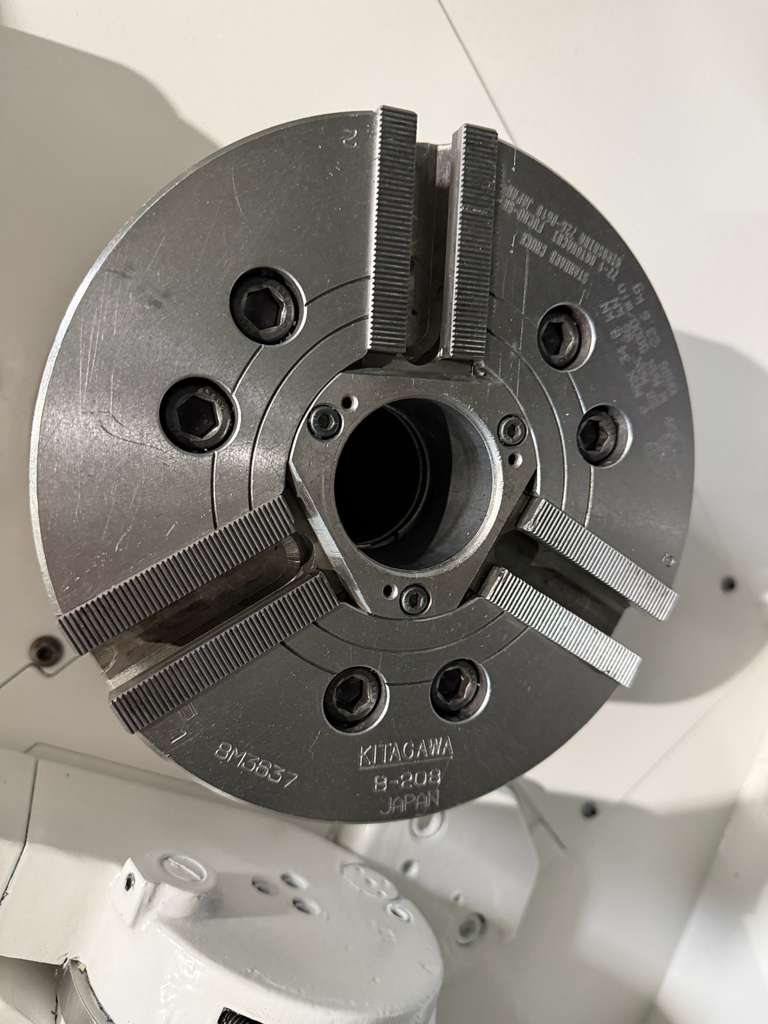

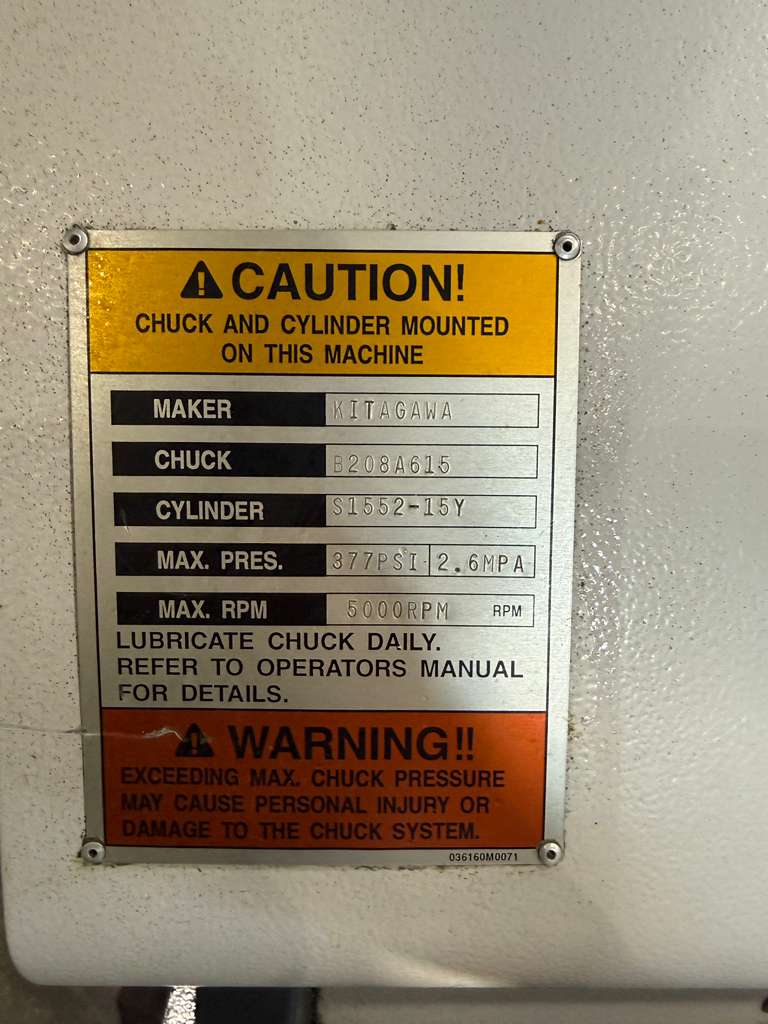

| 8″ 3- Jaw Kitagawa B208 Chuck |

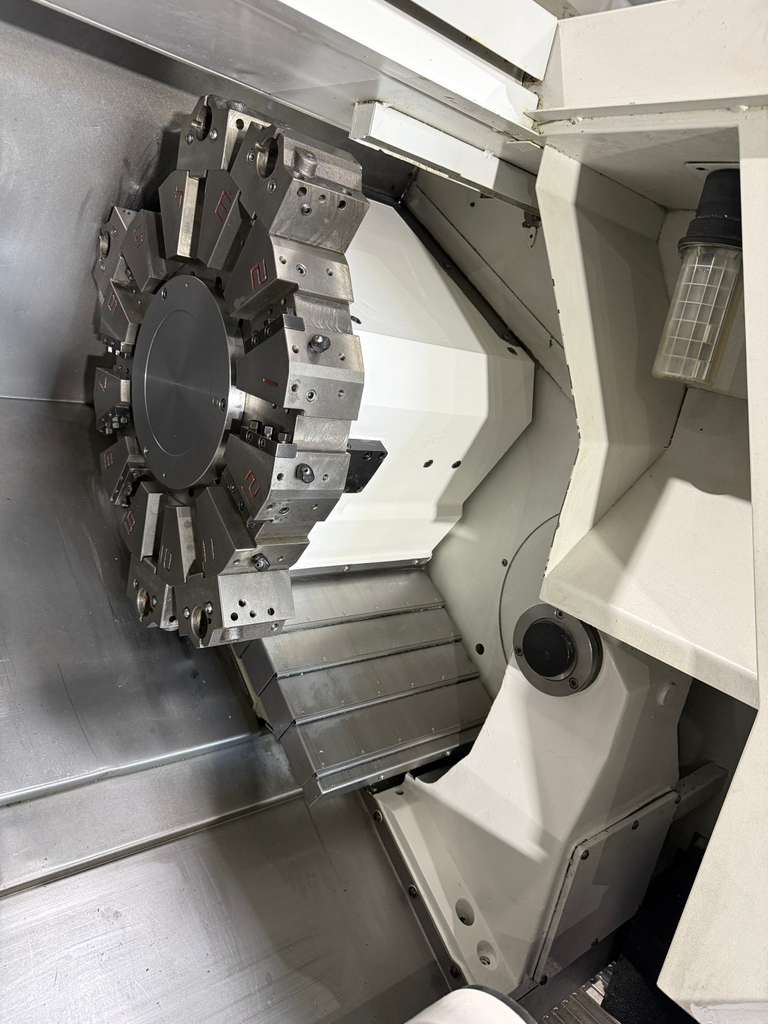

| 12 Stations Automatic Turret |
| Automatic Tool Presetter |
| Parts Catcher |
| Tailstock |
| Rigid Tapping |
| Automatic Lubrication System |
| Foot Operated Control for Chuck |
| Coolant System |
| Chip Conveyor |

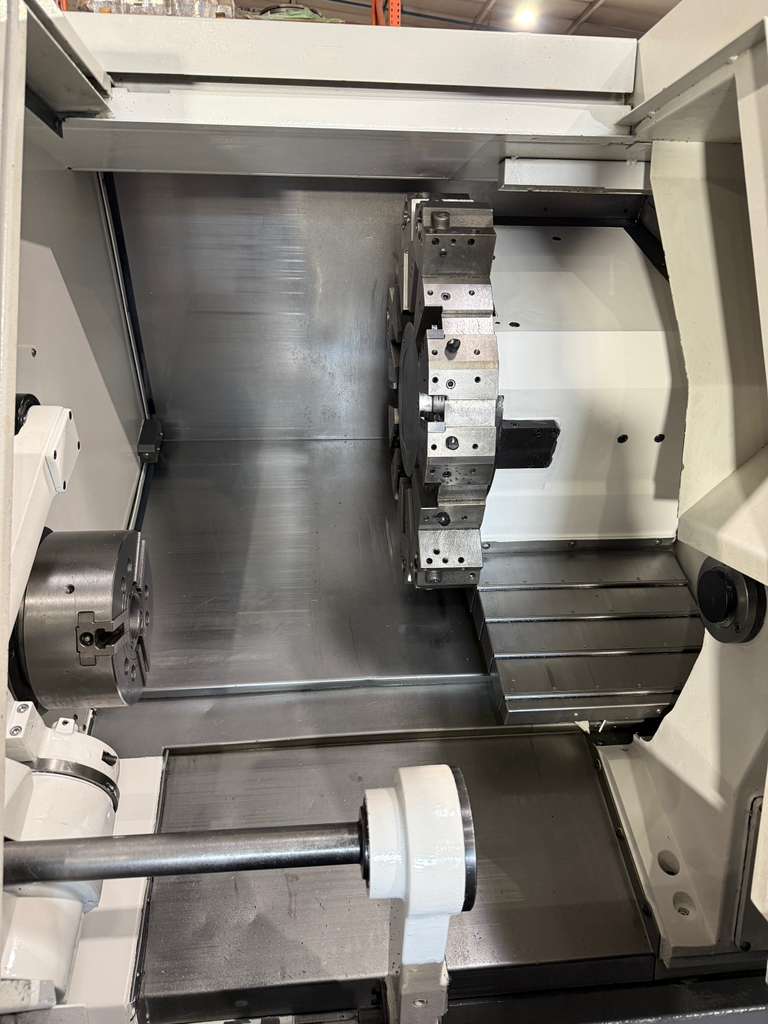

| (5) Boring Tool Holders (Mounted on Turret as Shown in the images) |
| Capacity: |
| Max Turning Diameter : 13.78″ |
| Max Turning Length : 20.16″ |
| Max Swing Over Bed: 24.02″ |
| Max Bar Capacity : 2.60″ |
| Travels: |
| X Axis Travel : 7.50″ |
| Z Axis Travel : 21.13″ |
| Feedrate: |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1299 IPM |
| Spindle: |
| Spindle Bore: 3.0″ |
| Spindle Nose: A2-6 |
| Spindle Speed: 5,000 RPM |
| Spindle Power: 35 HP |
| Turret: |
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.2 Seconds |
| Tailstock: |
| Tailstock Taper: MT-5 |
| Tailstock Quill Diameter : 4.33″ |
| Tailstock Quill Travel : 3.93″ |
| General: |

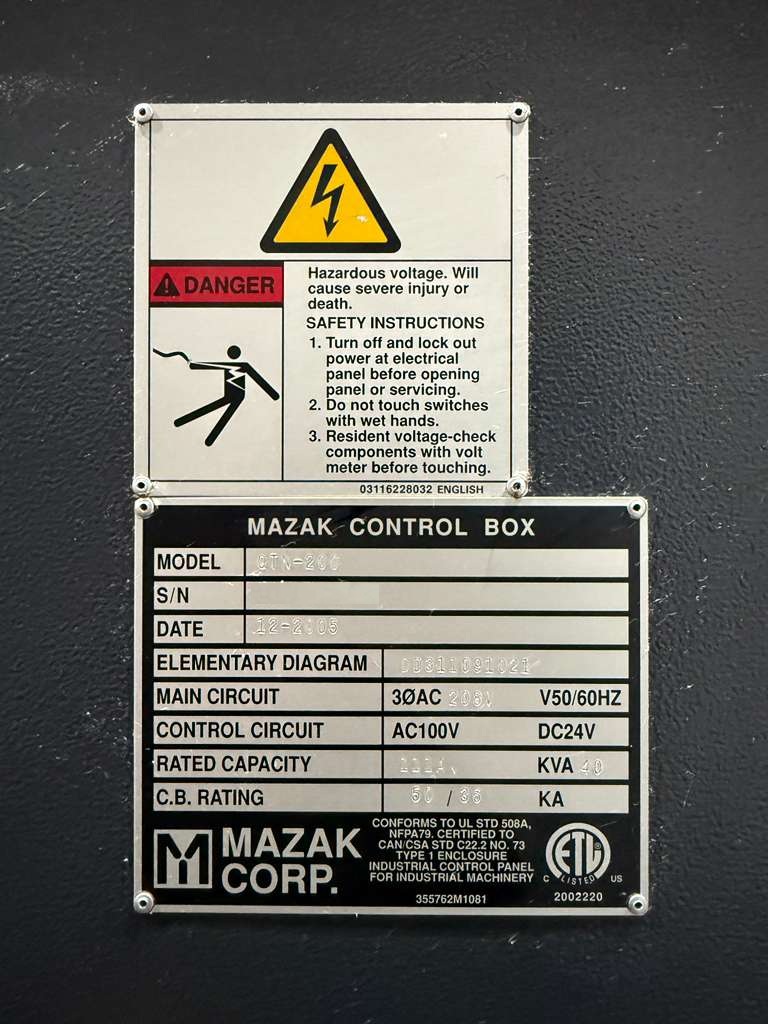

| Power Source: 40 kva / 208v / 50/60 Hz / 3-Phase |
| Overall Dimensions: 137″ X 80″ X 80″ High Approx. |
| Weight: 11,000 lbs. Approx. |
| Categories | CNC Turning Centers |
|---|
| Series | Mazak Nexus Series |
|---|
