*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan DN Solutions |

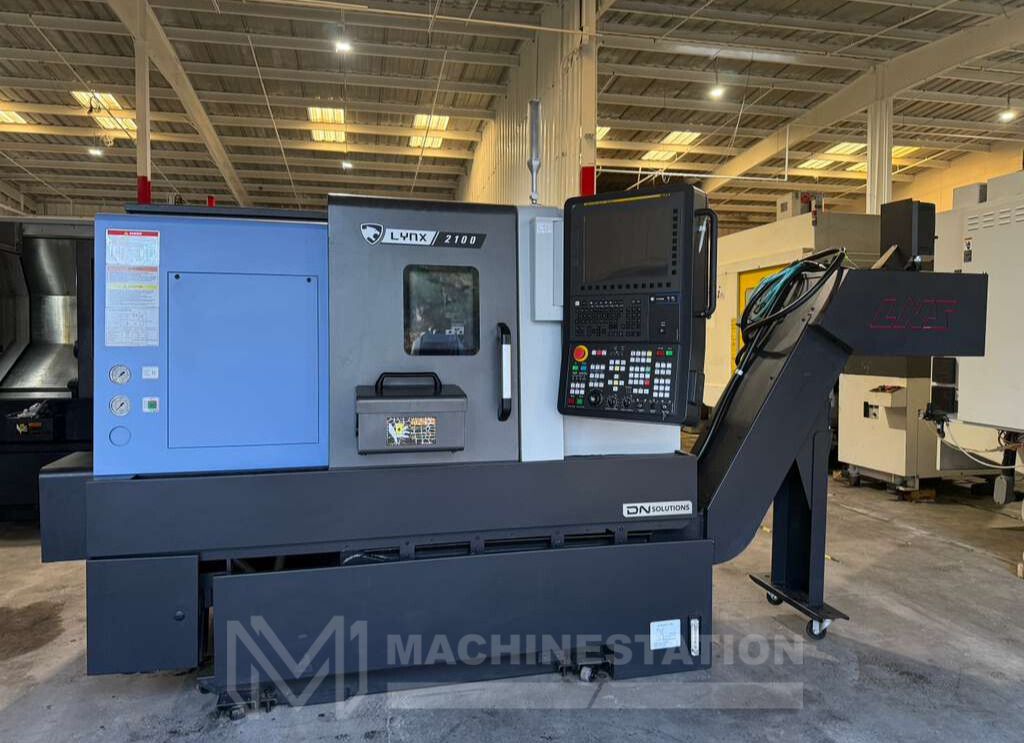

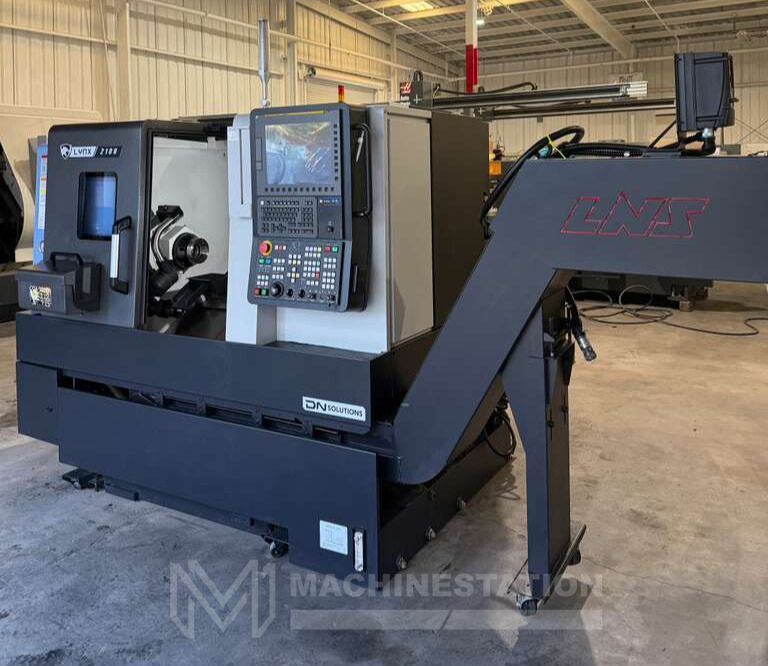

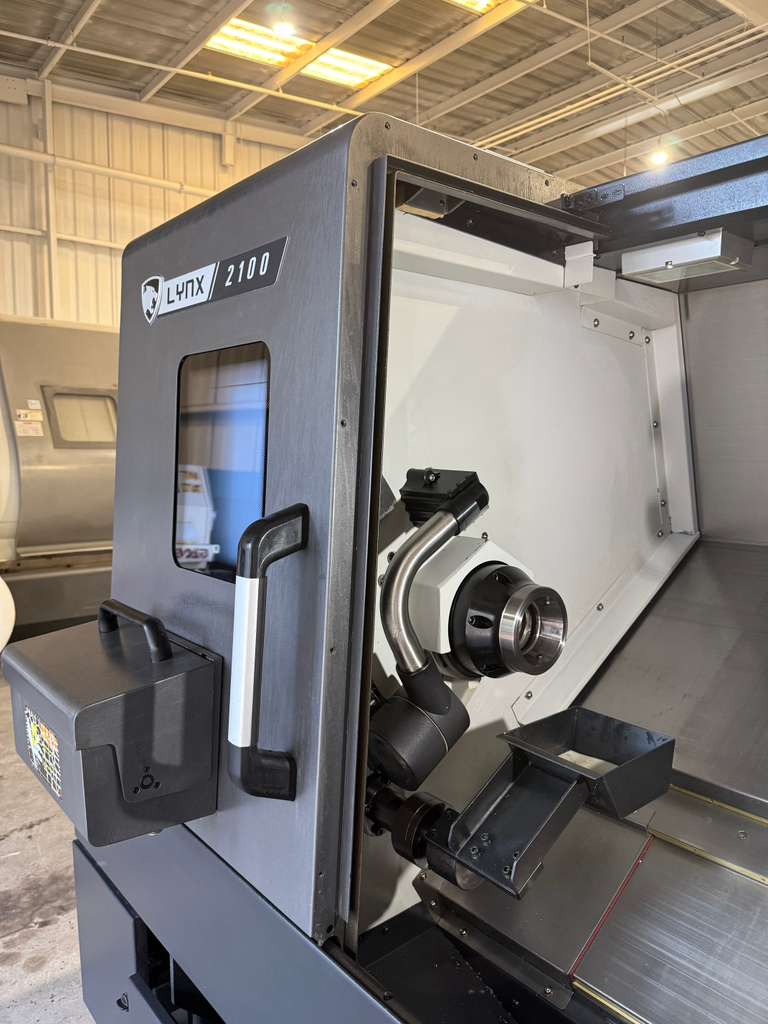

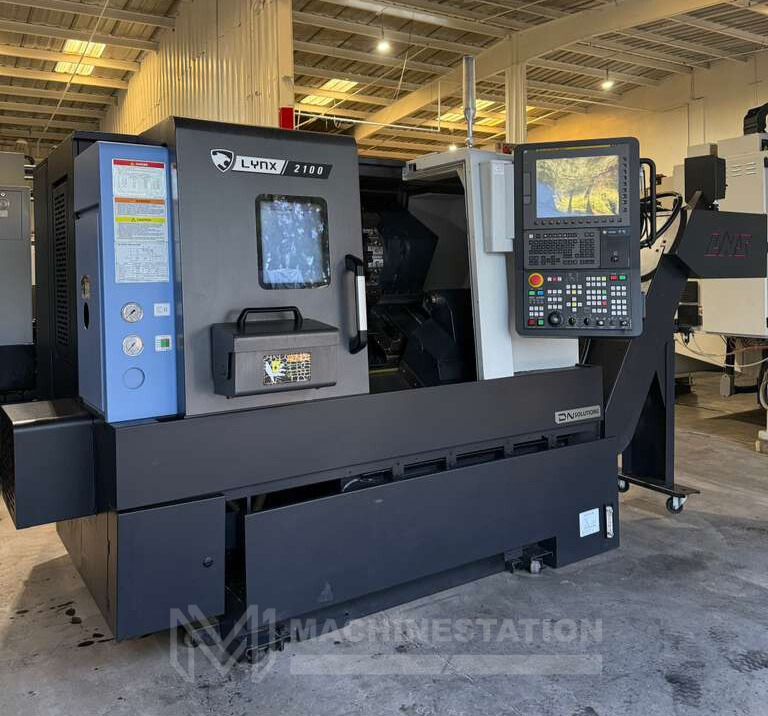

| Model: | Lynx 2100A |
| Year: | 2022 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

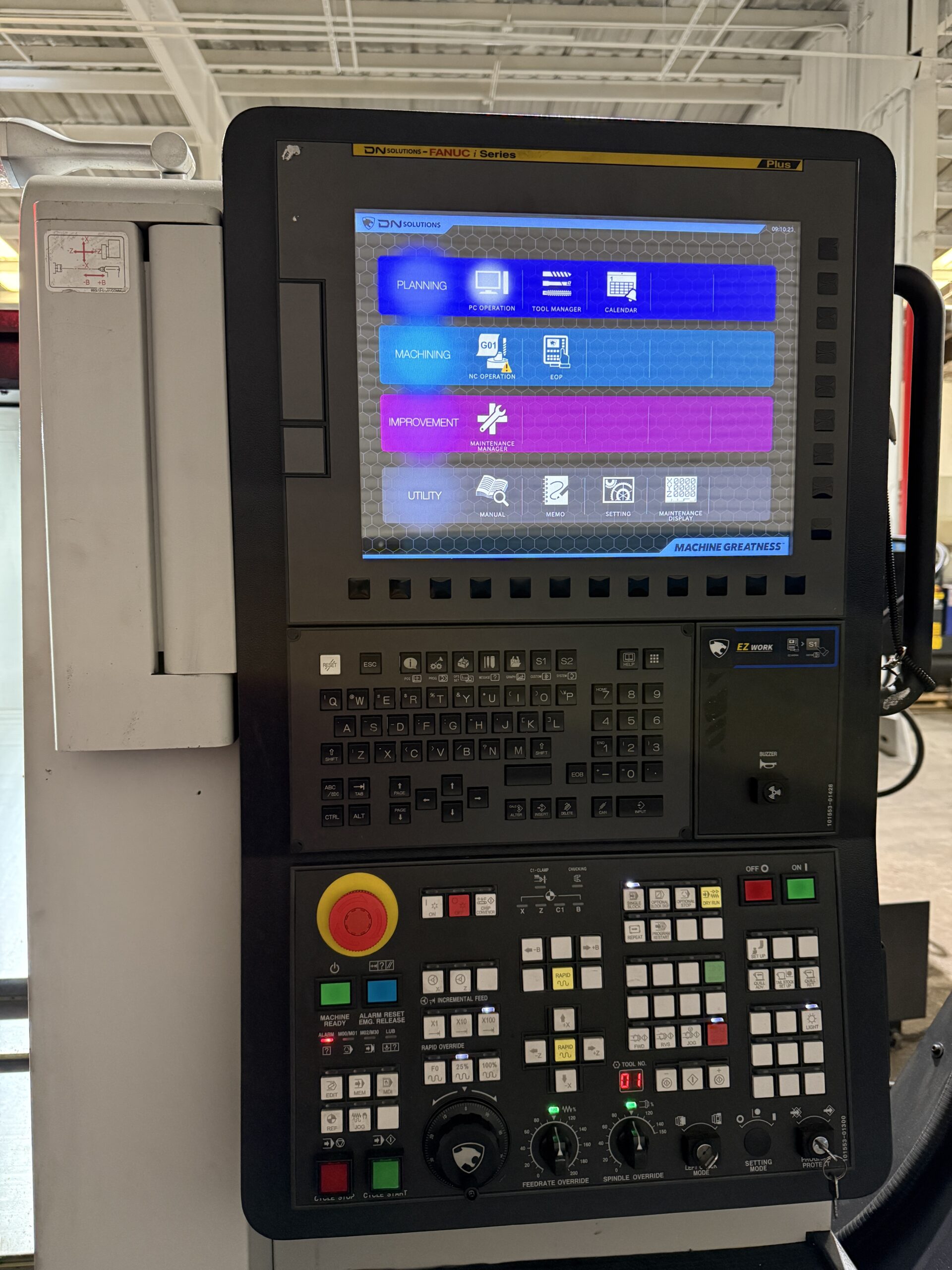

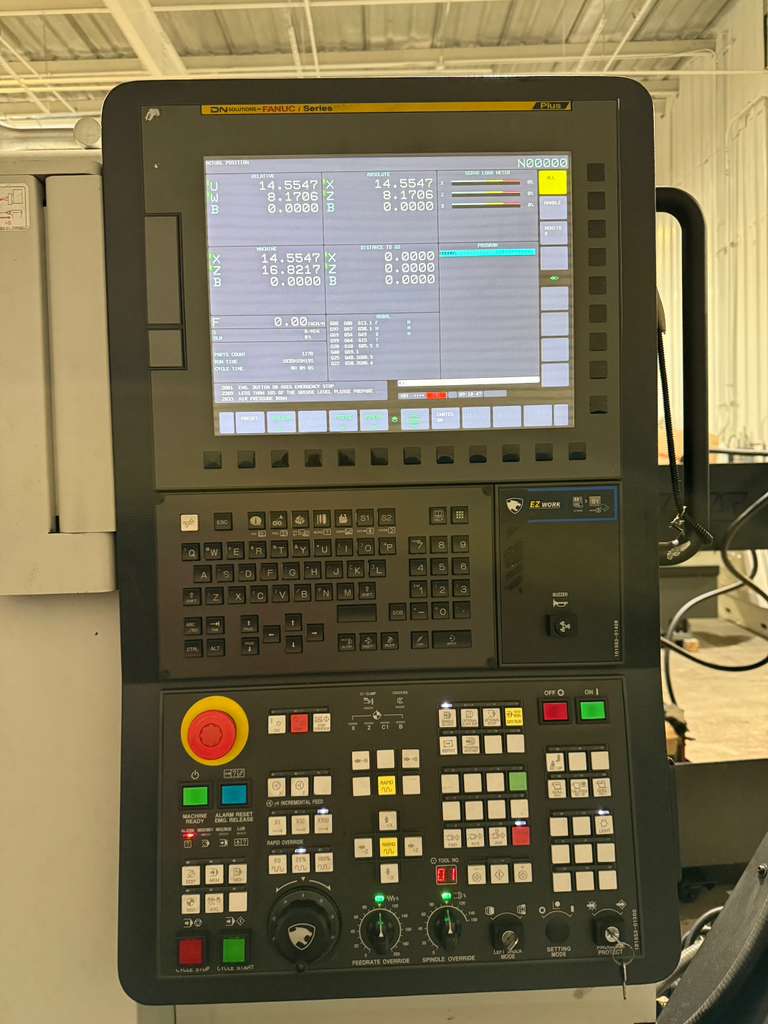

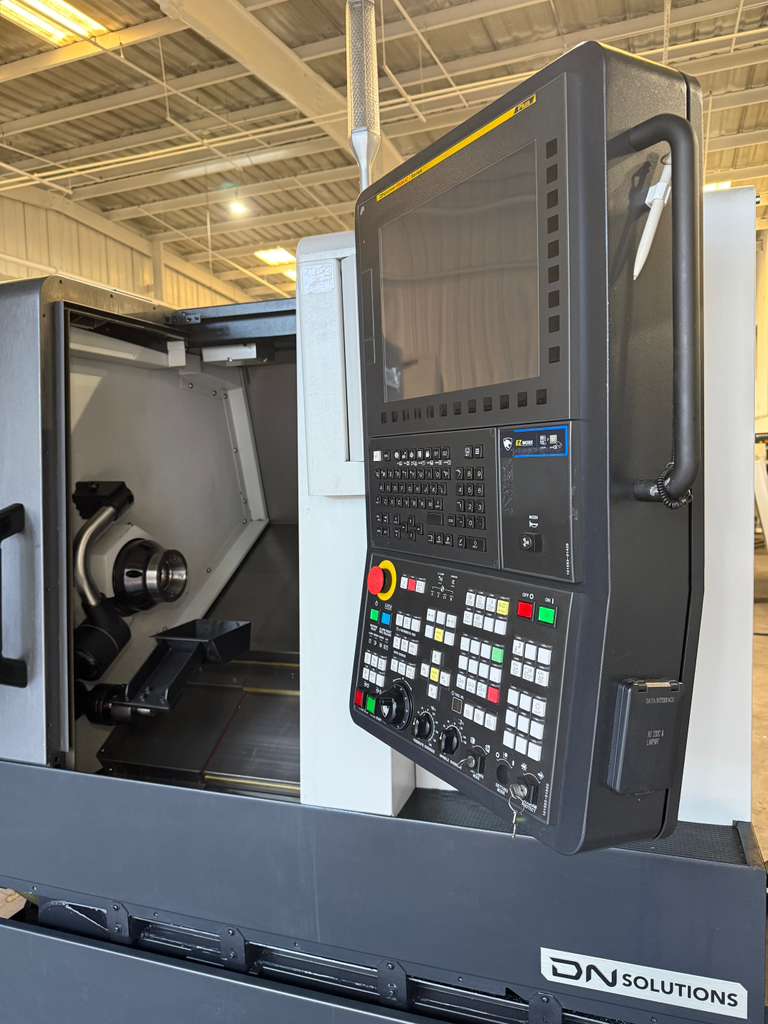

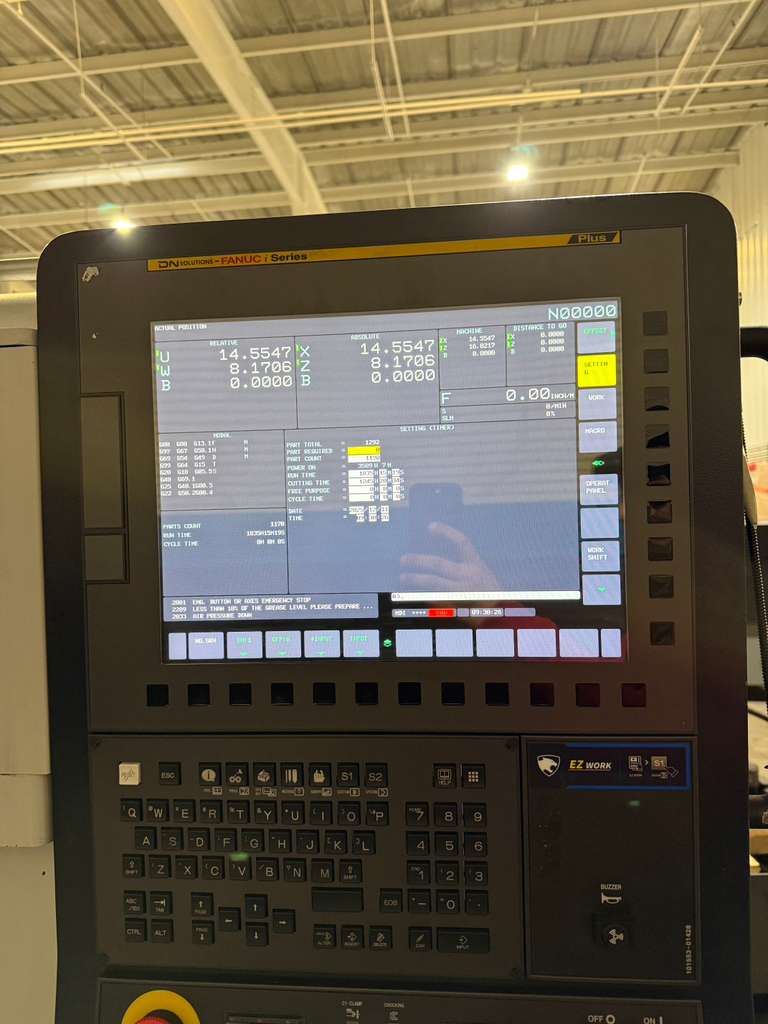

| DN Solutions Fanuc i series Plus Touch Screen CNC Control |
| LNS Super Hydrobar Bar Feeder |

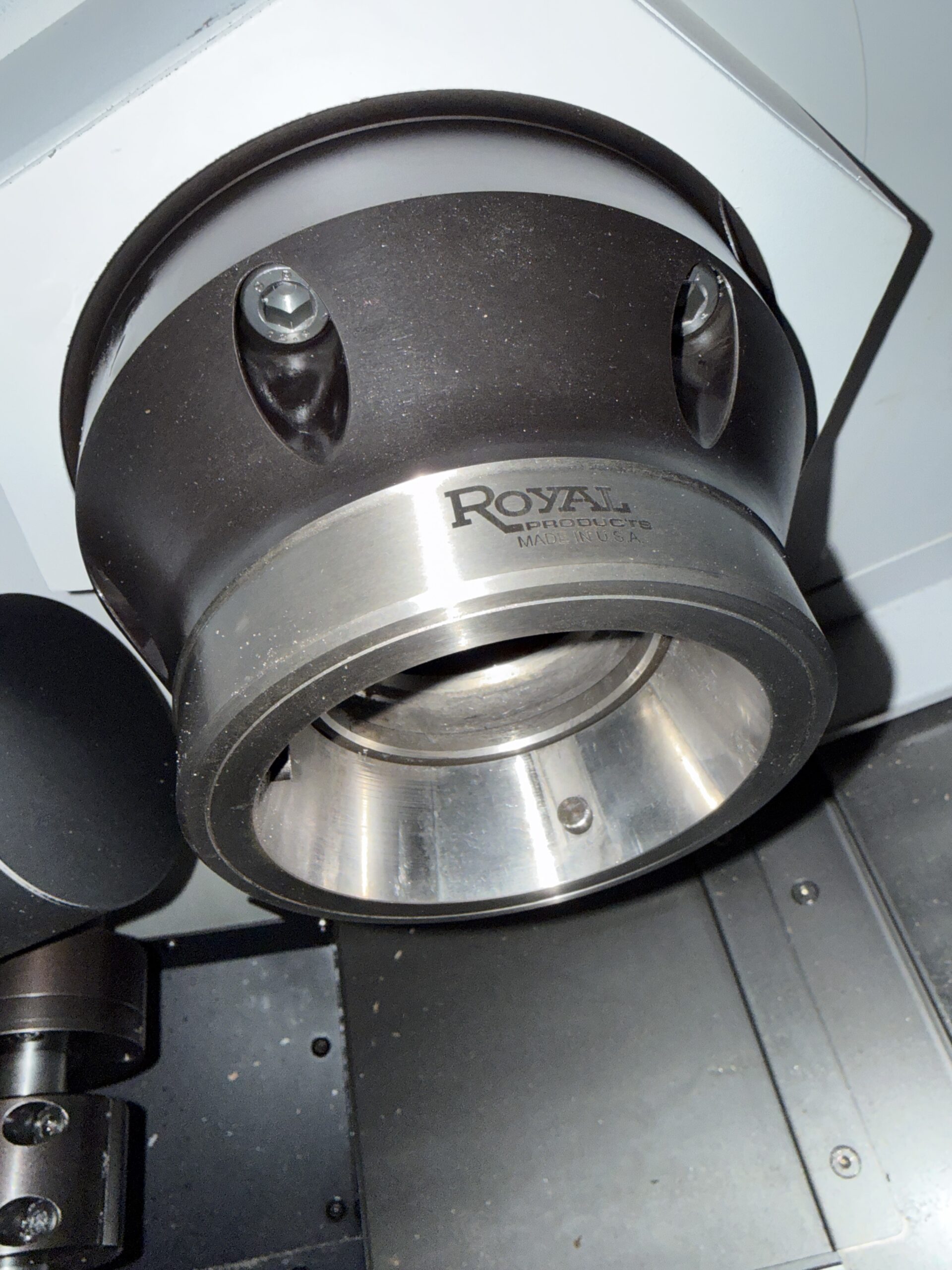

| Royal Quick-Grip QG-52 Collet Chuck (6″ Chuck Capable) (Upgraded $4,810 value Included) |

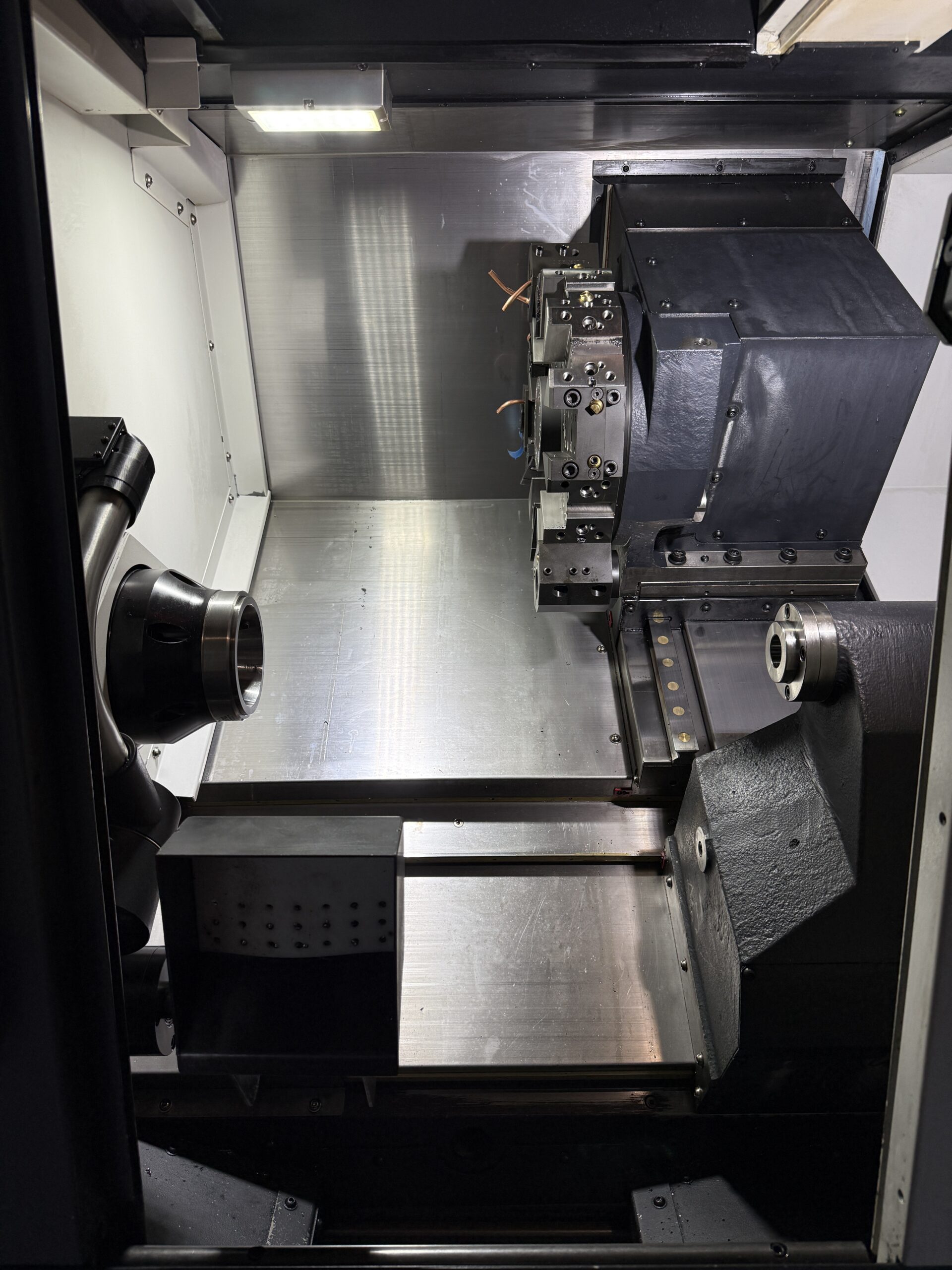

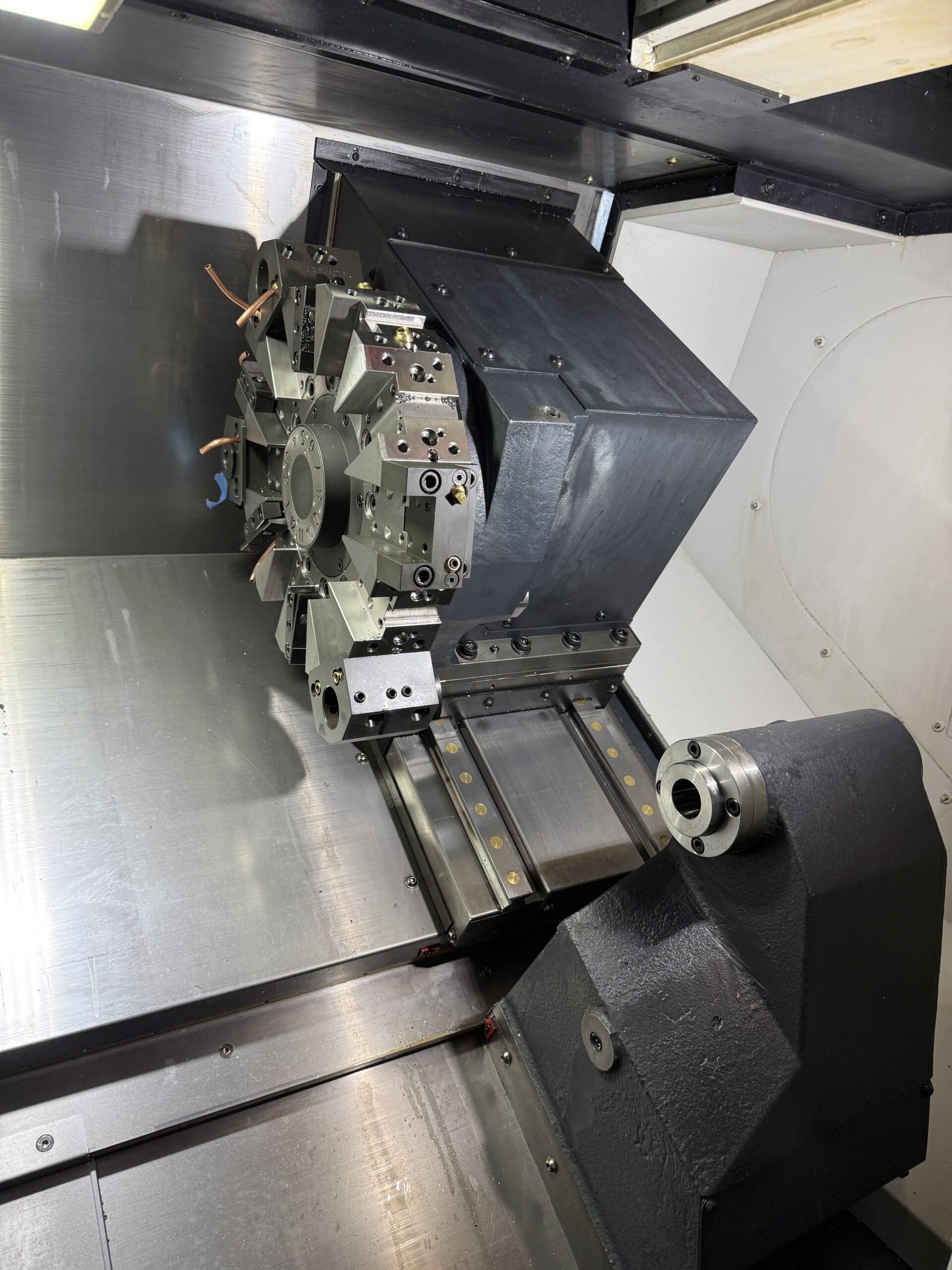

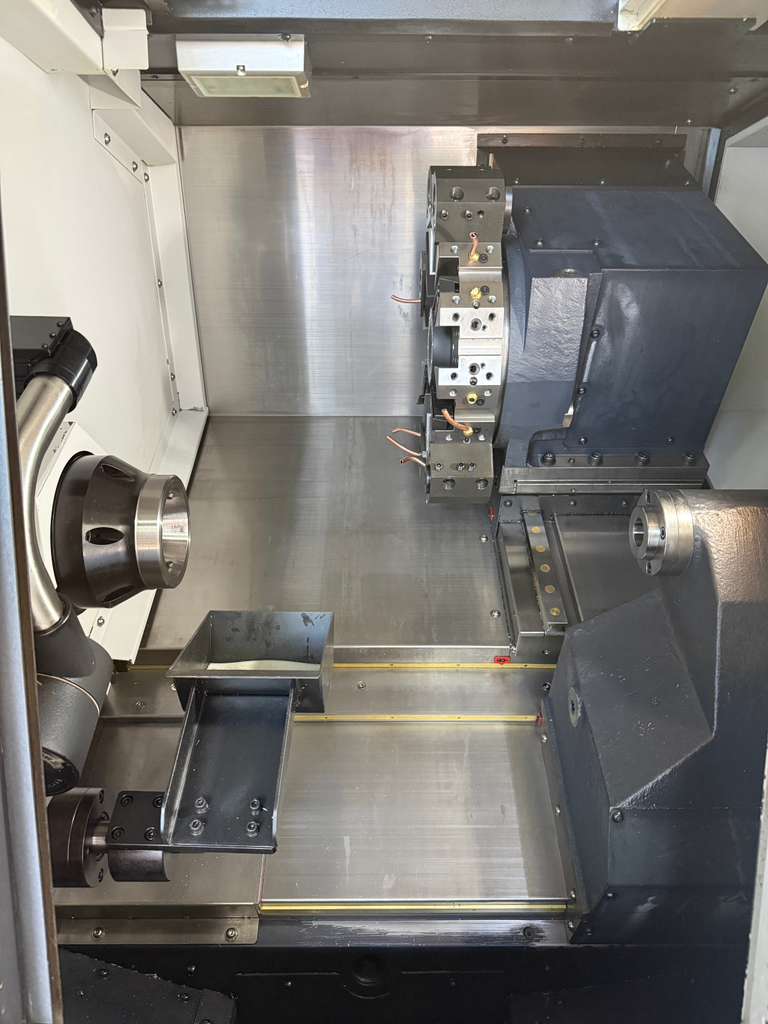

| 12 Station Automatic Turret |
| Programmable Tailstock |
| Tool Presetter |

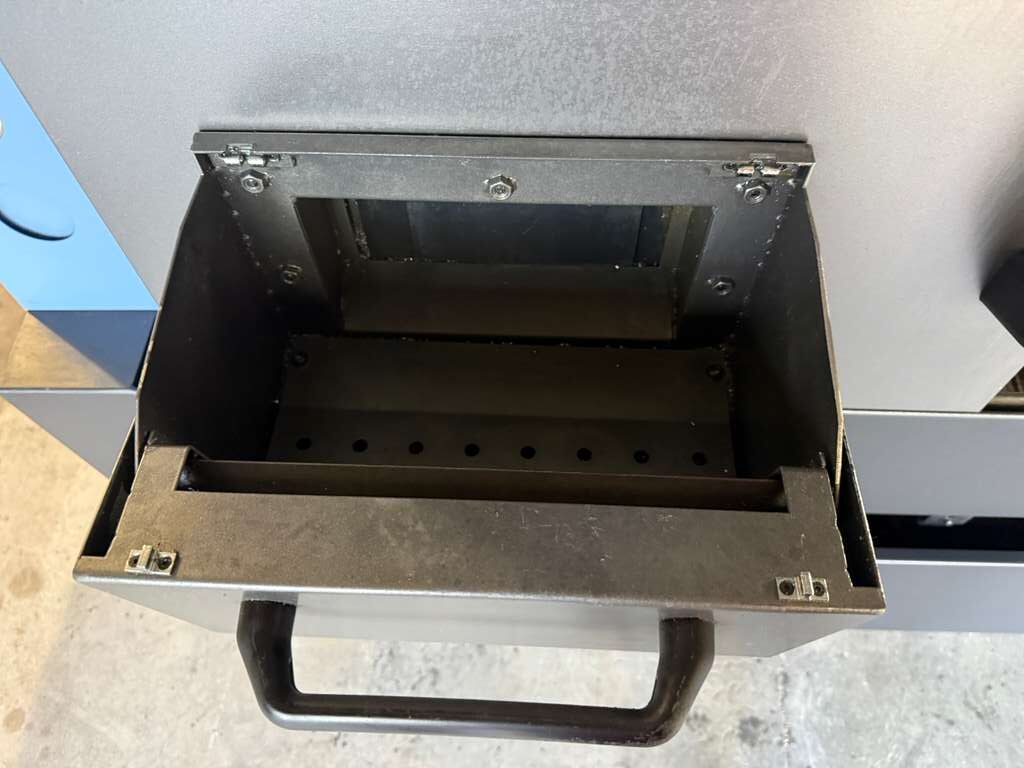

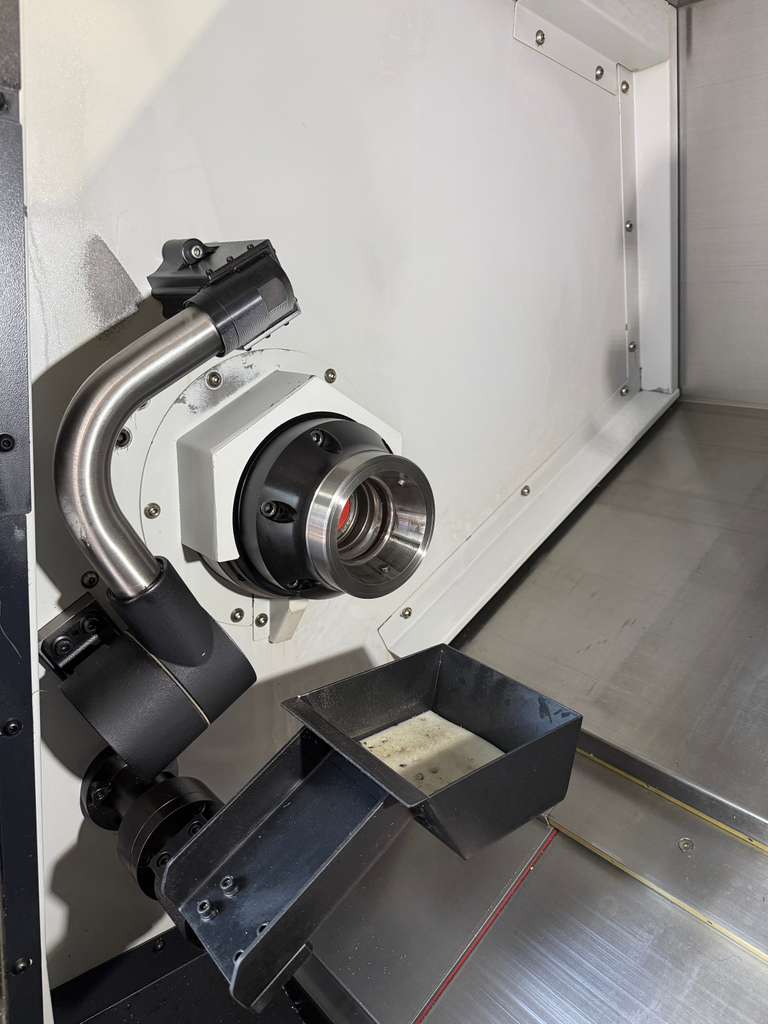

| Parts Catcher |
| PCMCIA Card Interface |

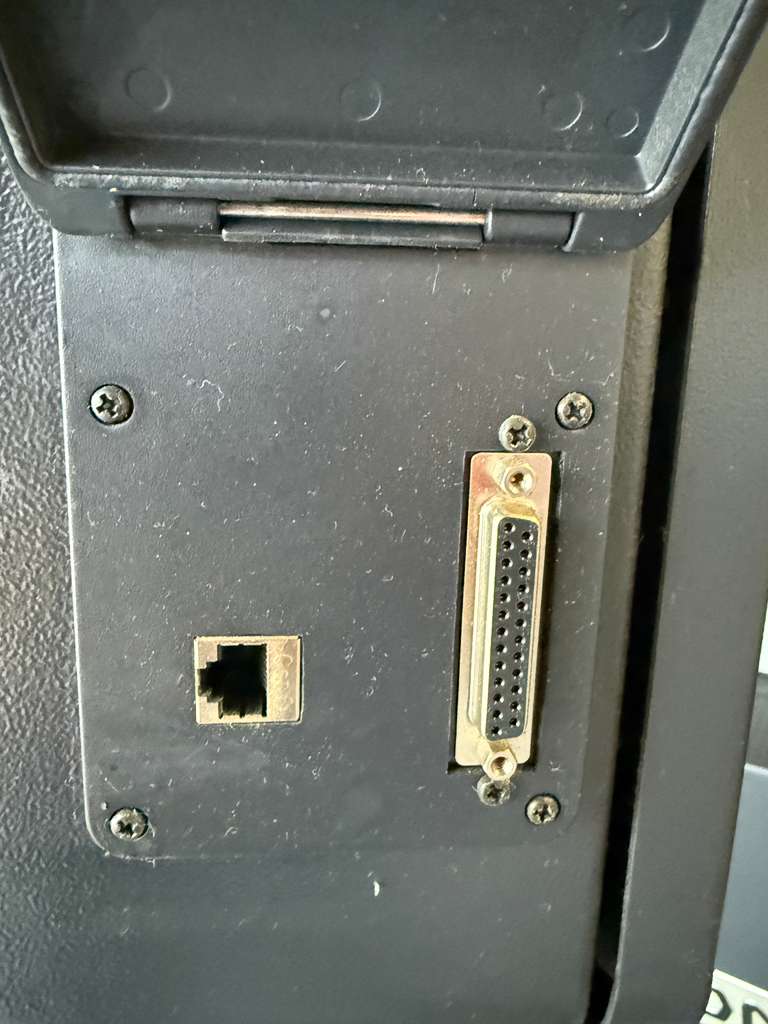

| USB Port & RS-232 Port |
| Foot Switch |

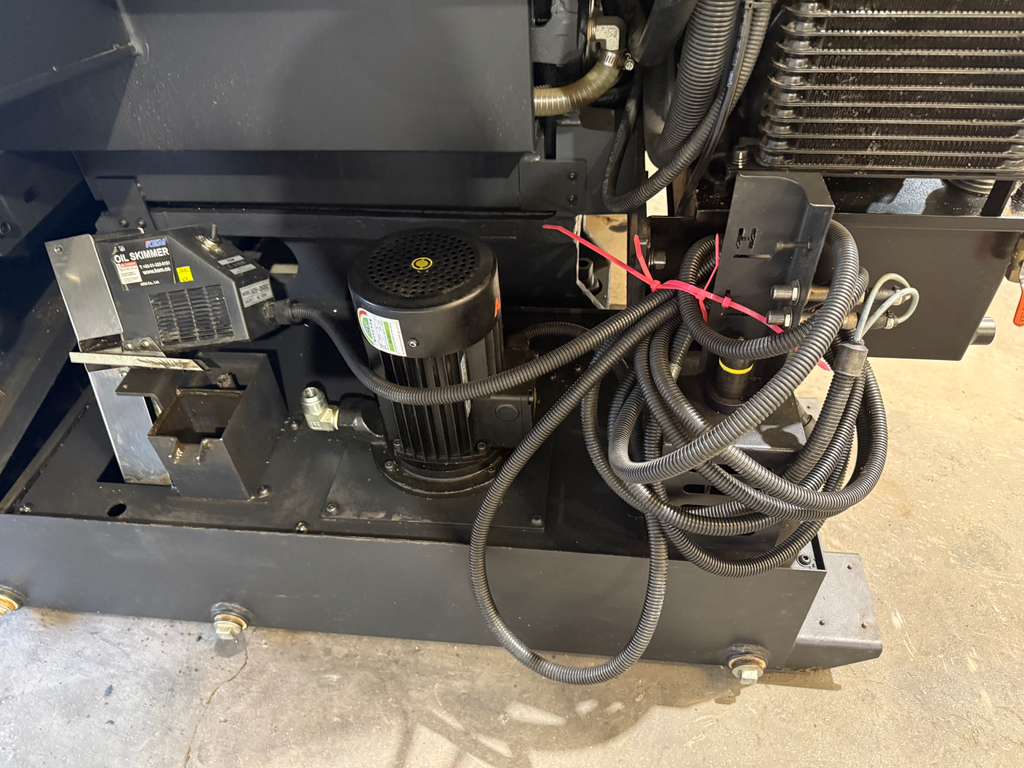

| Coolant System |

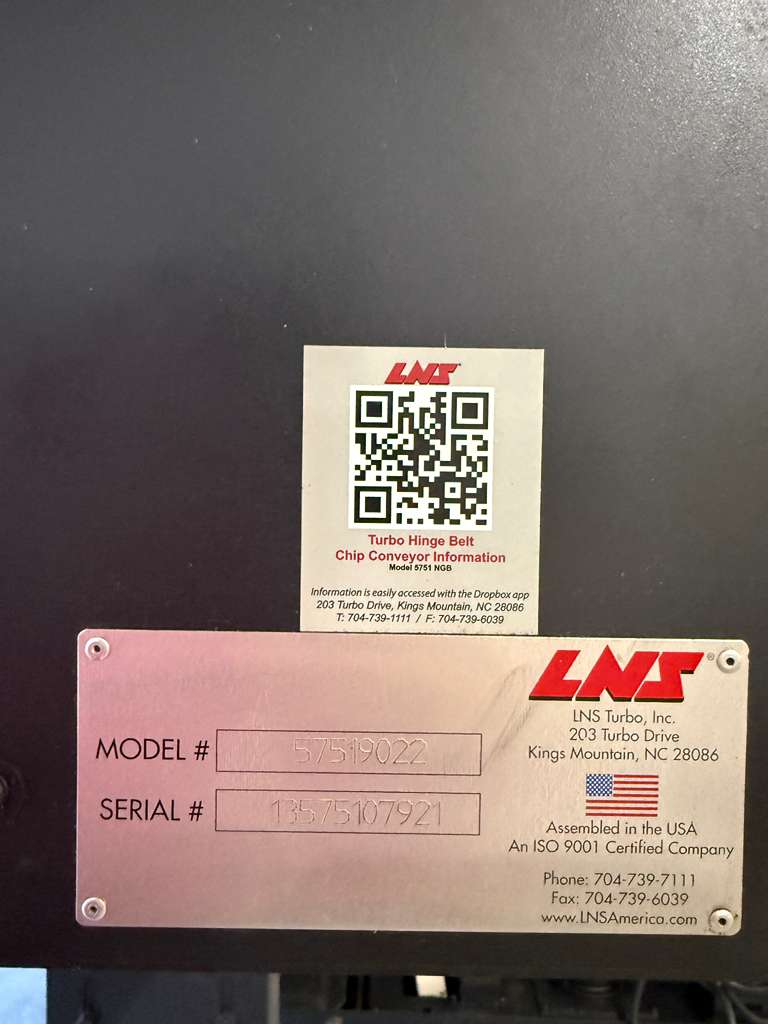

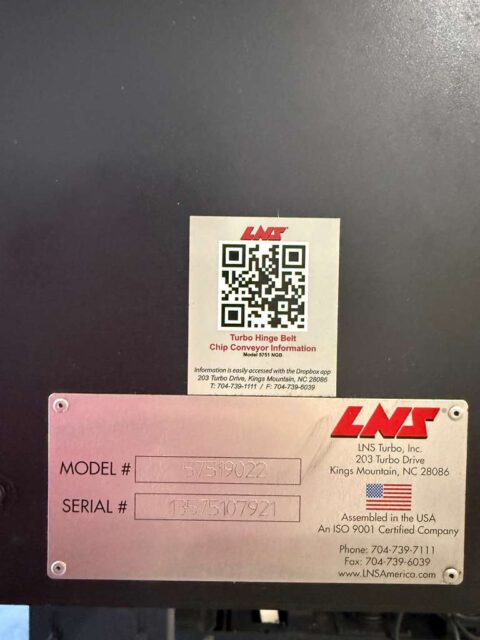

| LNS Chip Conveyor |
| (2) Boring Tool Holders & (2) Square Tool Holders |
| Note: Tool holders mounted on the turret are not included with the machine. |
| Capacity: |
|---|
| Max Turning Diameter: 13.77″ |
| Max Turning Length: 13.00″ |
| Max Bar Capacity: 2.00″ |
| Swing Over Bed: 23.60″ |
| Swing Over saddle: 15.70″ |
| Travels: |
|---|
| X Axis Travel: 8.07″ |
| Z Axis Travel: 13.40″ |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1417 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Bore: 2.4″ |
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 15 HP |
| Turret: |
|---|

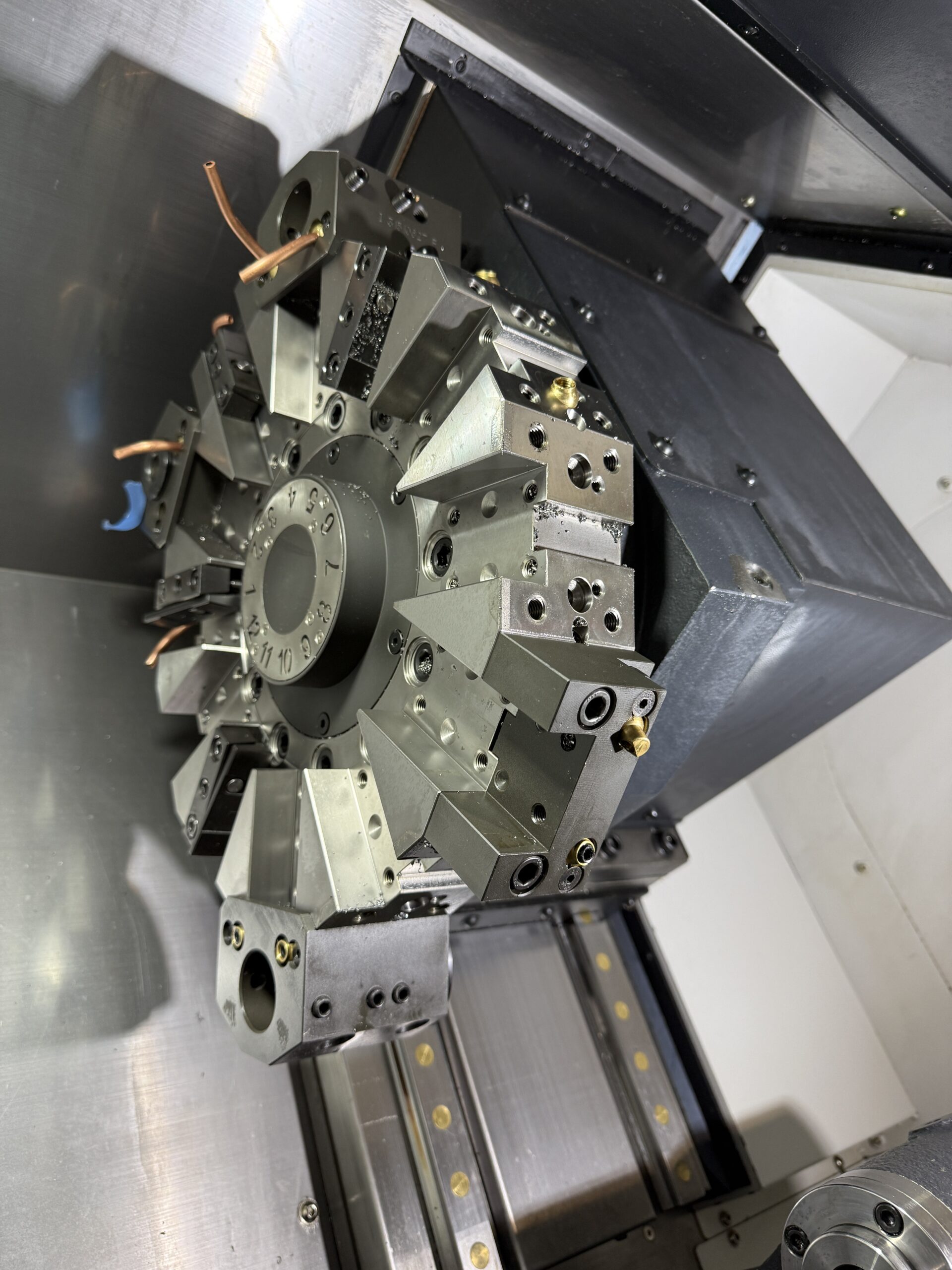

| Turret Capacity: 12 Stations |
| Turret Index Time: 0.11 Second |
| Max OD Tool Size: 1.0″ x 1.0″ |
| Tool Holders Type: Bolt Mounted |

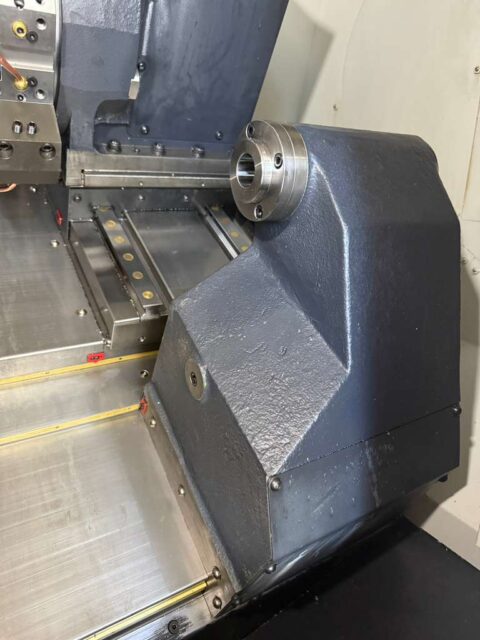

| Tailstock: |
|---|
| Quill Diameter: 2.56″ |
| Travel Distance: 14.1″ |
| Taper Size: MT#4 |
| General: |
|---|

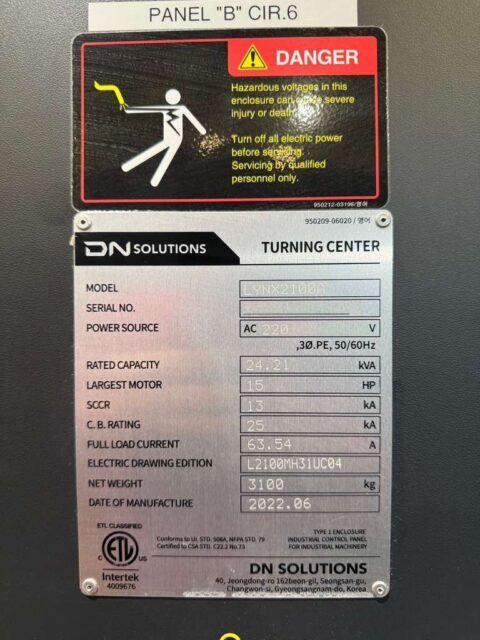

| Power: 24.21 kva, 220v / 3-Phase |
| Overall Dimensions: 91.3″ x 62.8″ x 6.7″ High Approx. |
| Weight: 6,834 lbs. Approx. |
