Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.

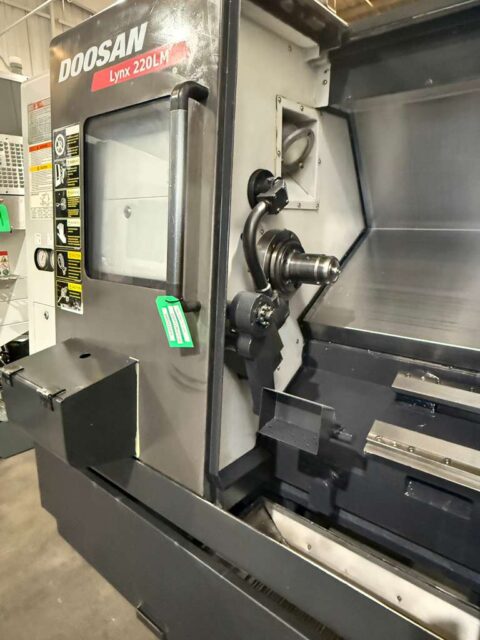

| Equipped With: |

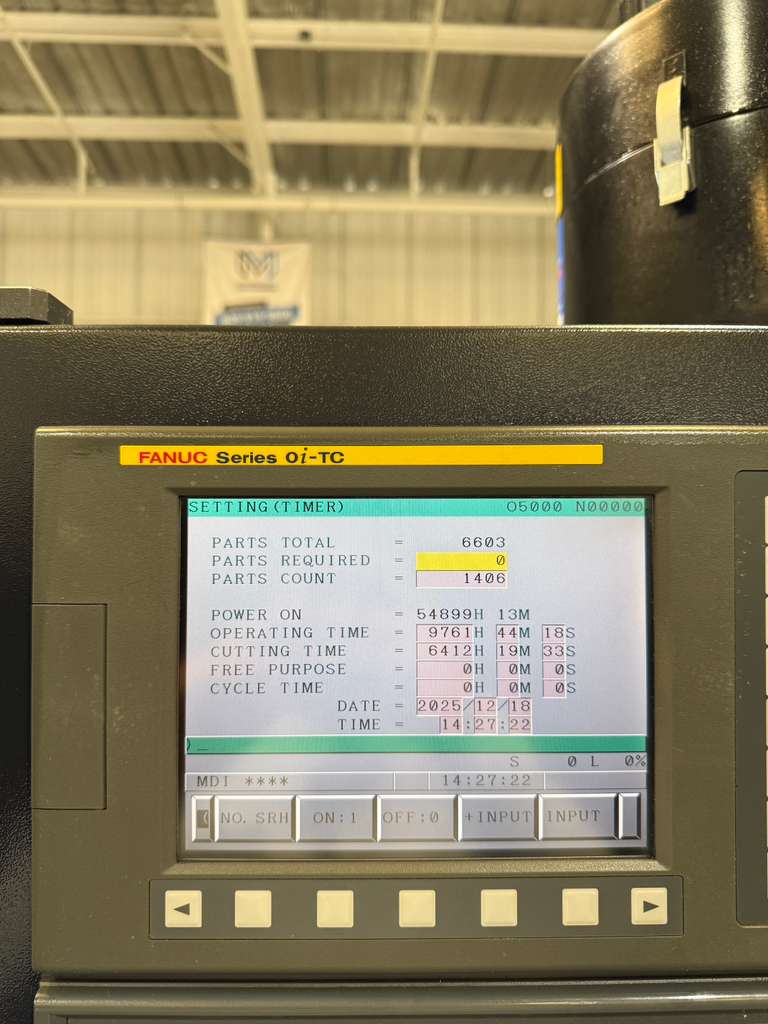

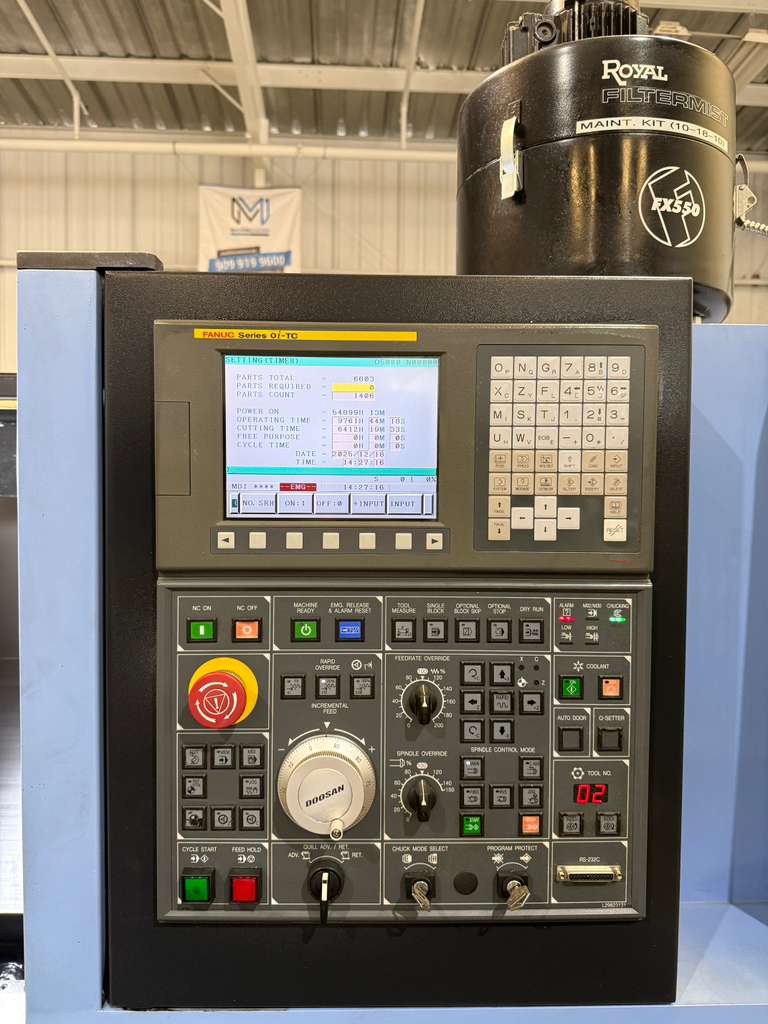

| Doosan-Fanuc i series CNC Control |

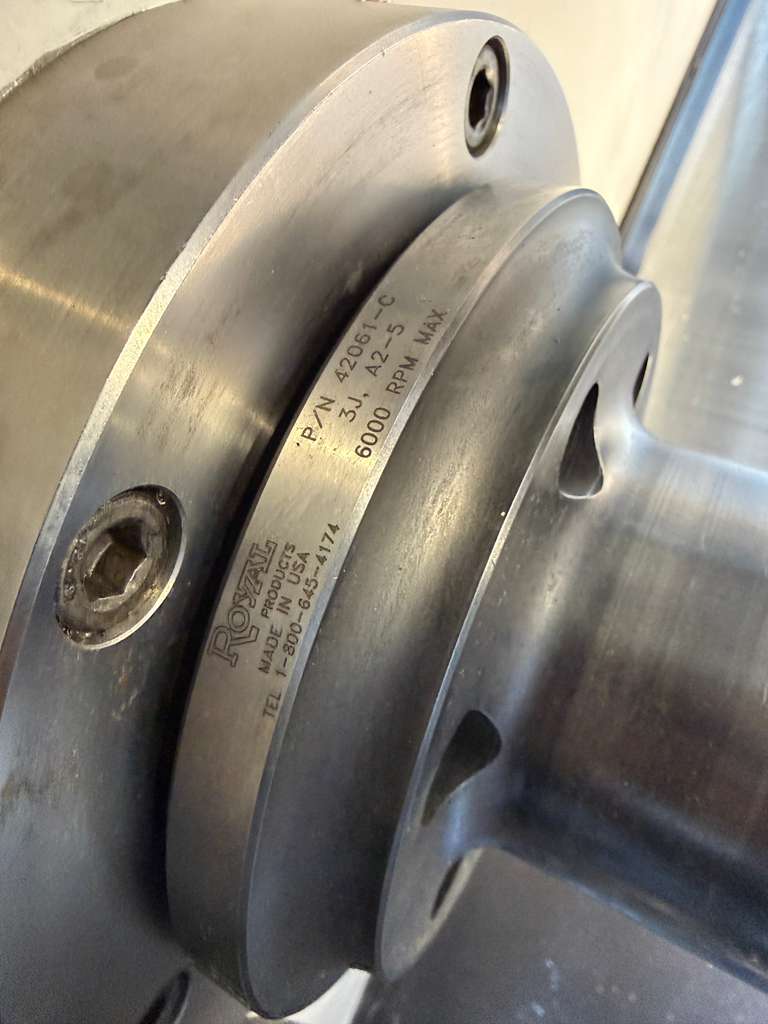

| Collet Chuck (Capable 6″ Chuck) |

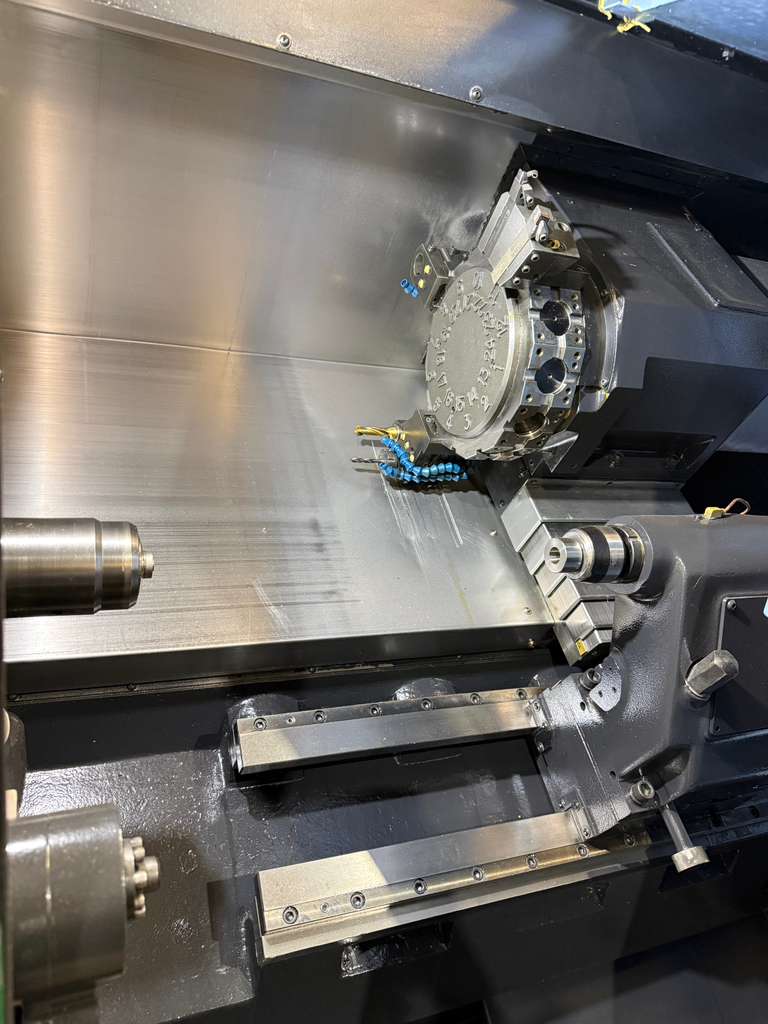

| 12-Station Turret (24 Position Index) |
| C Axis, Live Tool |

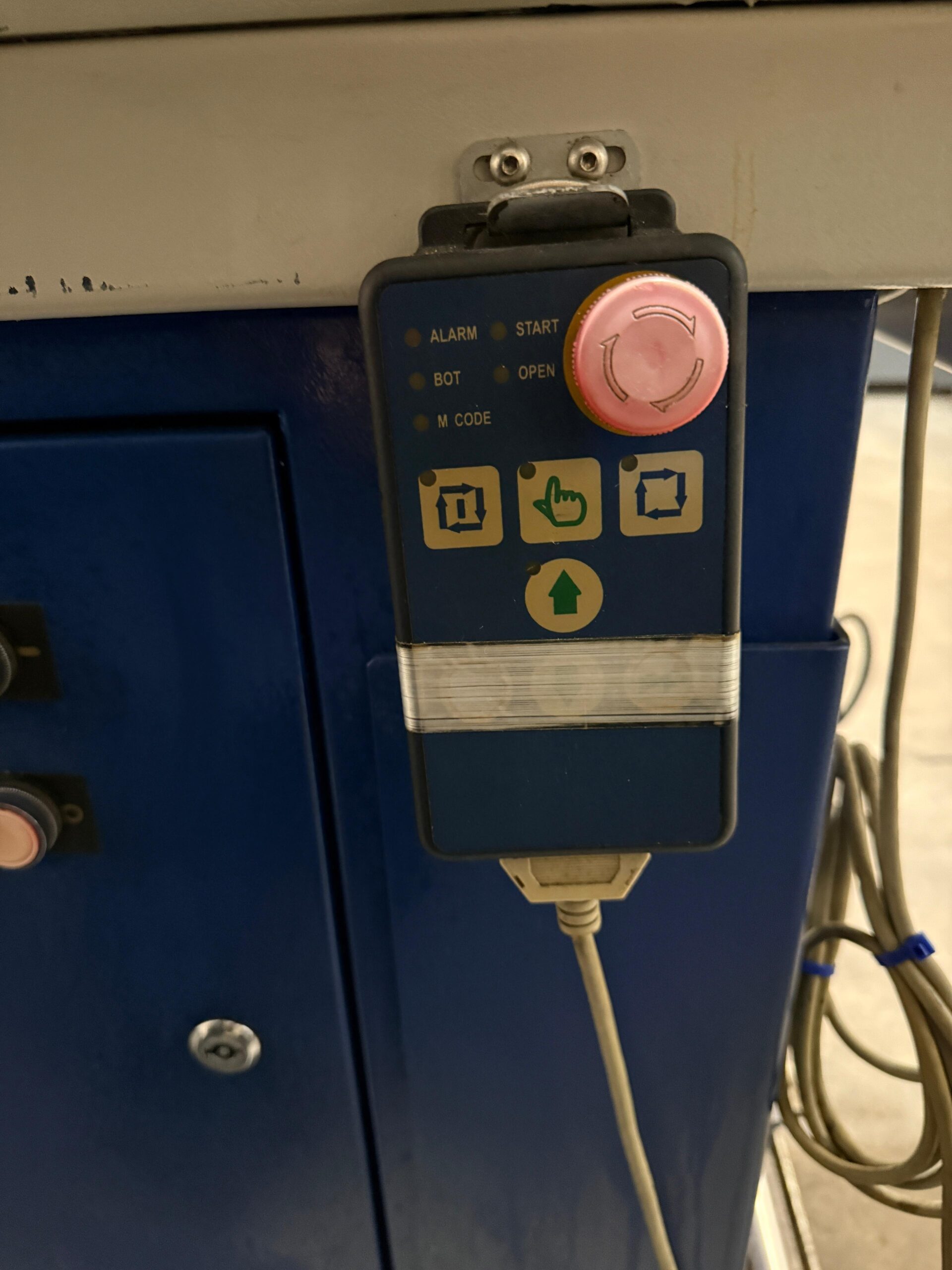

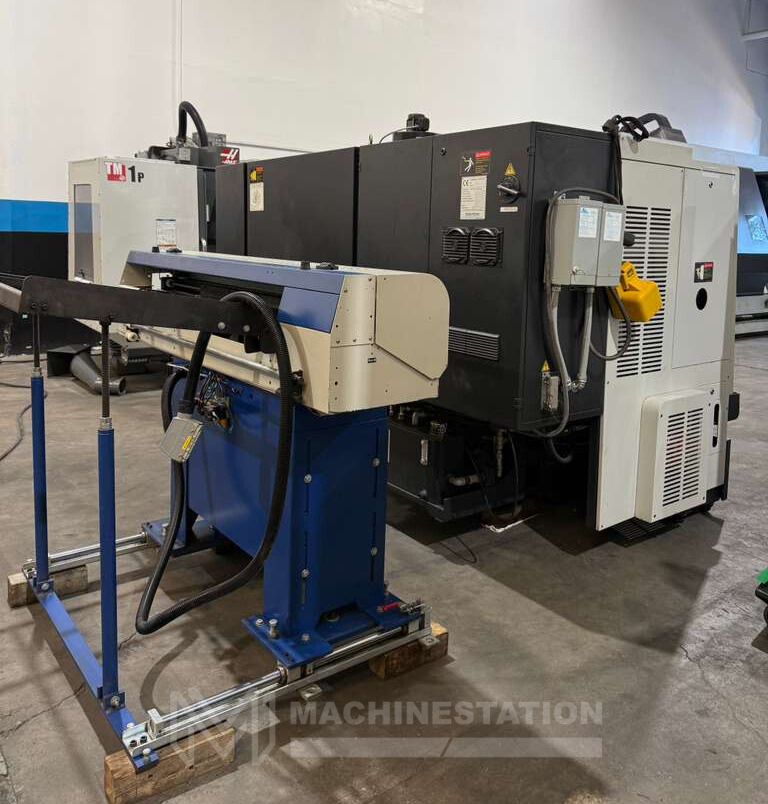

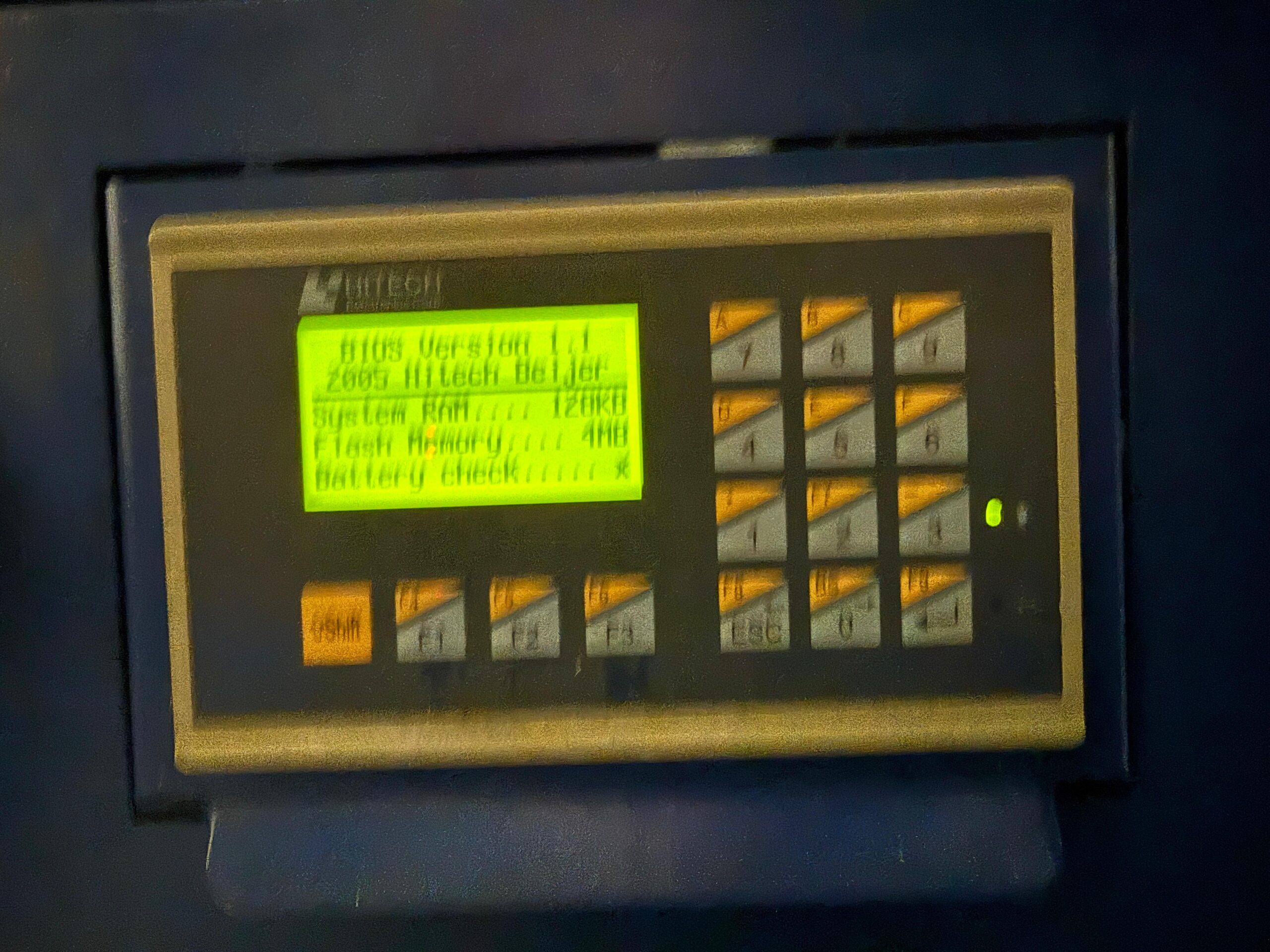

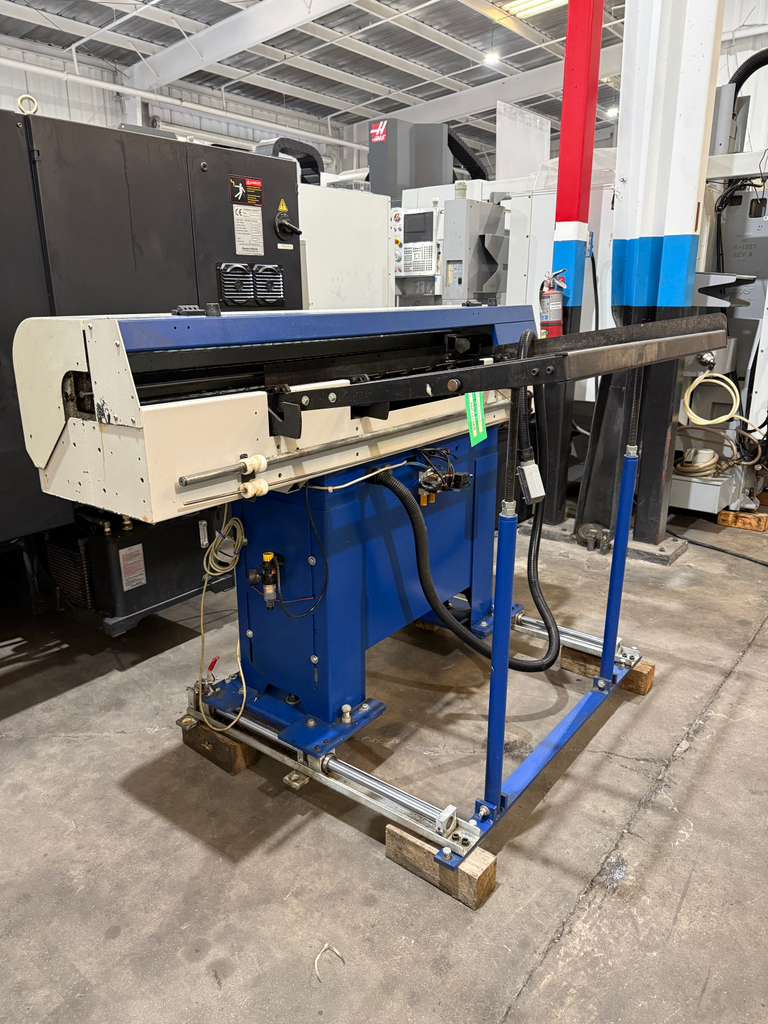

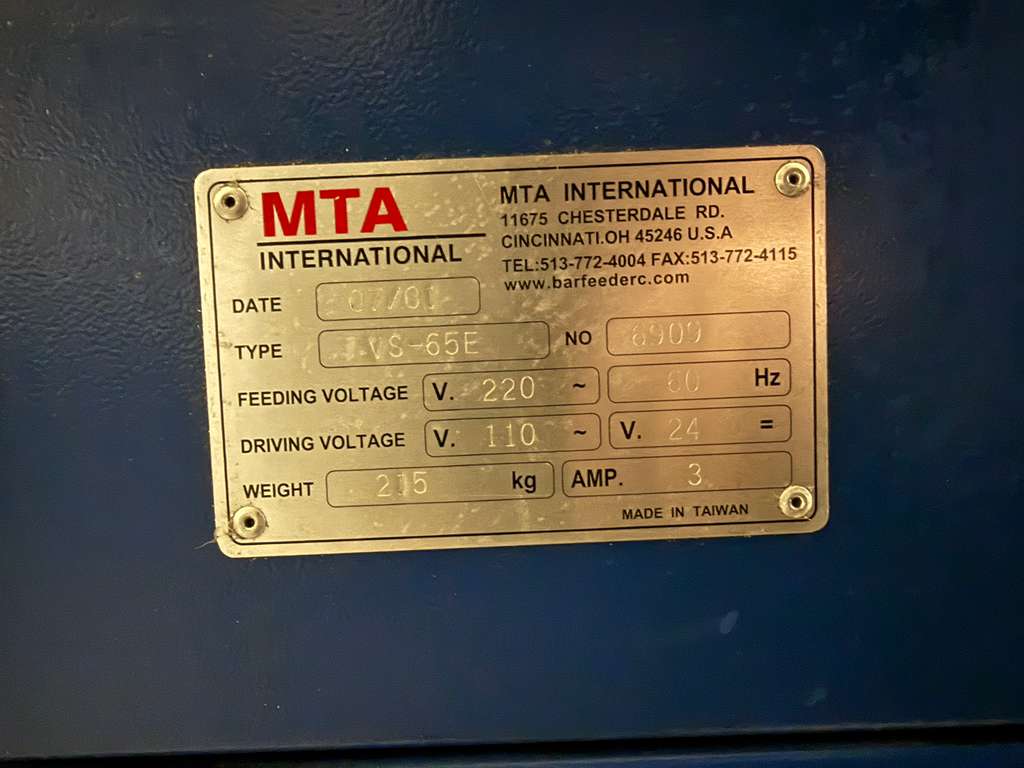

| MTA International VS-65E Bar Feeder |

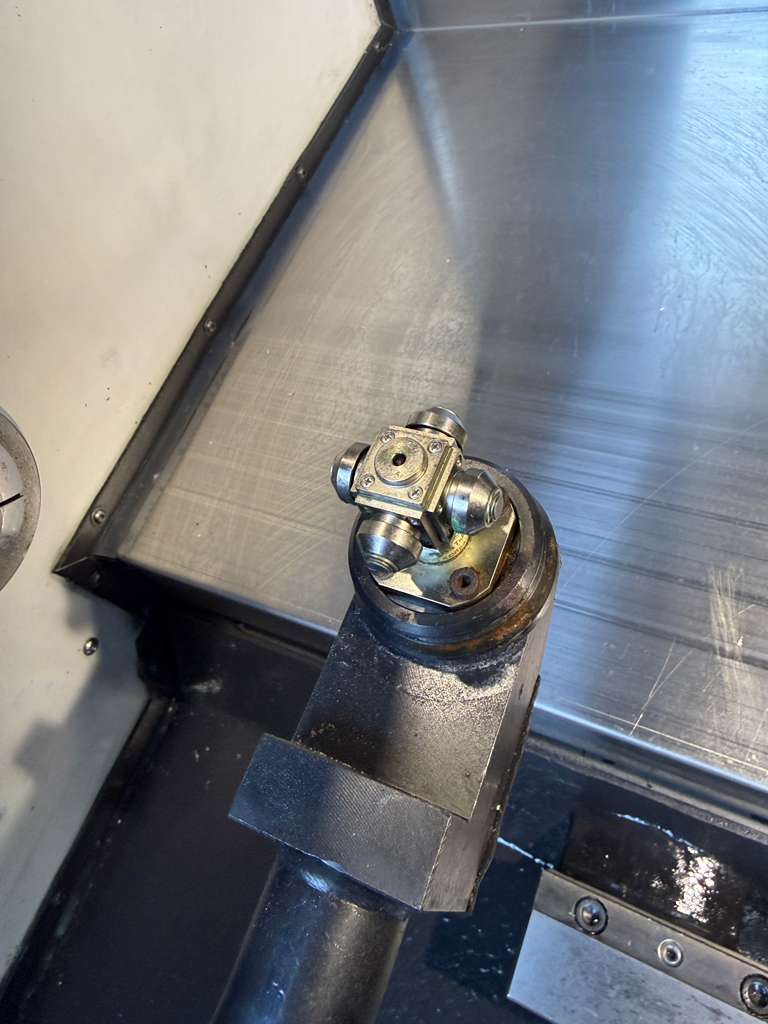

| Tool Presetter |
| Part Catcher |

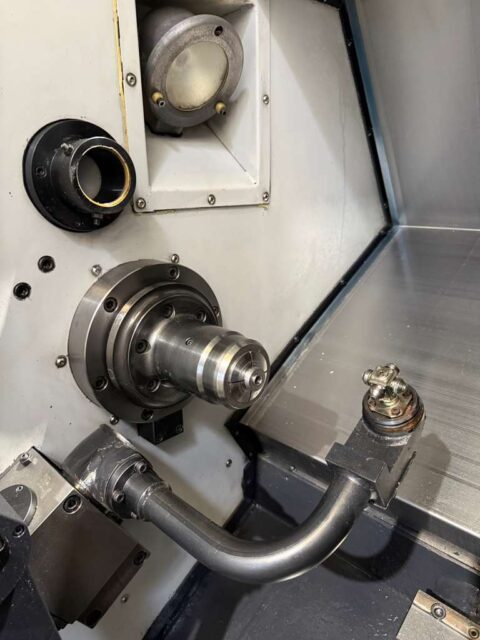

| Tailstock |
| Rigid Tapping |

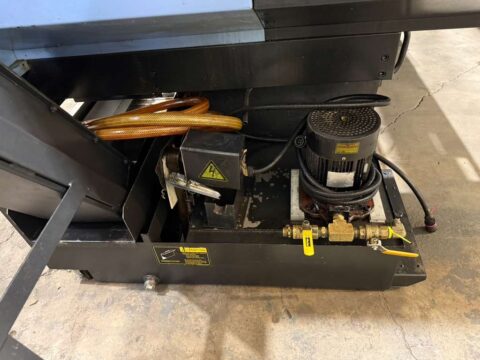

| Coolant System |
| Chip conveyor |
| Foot Switch |
| Capacity: |
| Max Turning Diameter: 9.8″ |
| Max Turning Length: 20.1″ |
| Max Bar Capacity: 2.0″ |
| Swing Over Bed: 20.1″ |
| Swing Over saddle: 11.4″ |
| Travels: |
| X Axis Travel: 6.9″ |
| Z Axis Travel: 21.7″ |
| C Axis : 0.001 Degree |
| Rapid Traverse X Axis: 3000 cm/min |
| Rapid Traverse Z Axis: 3599 cm/min |
| Spindle: |
| Spindle Nose: A2-5 |
| Spindle Bore: 2.4″ |
| Spindle Speed: 6000 RPM |
| Spindle Motor: 14.9 kW |

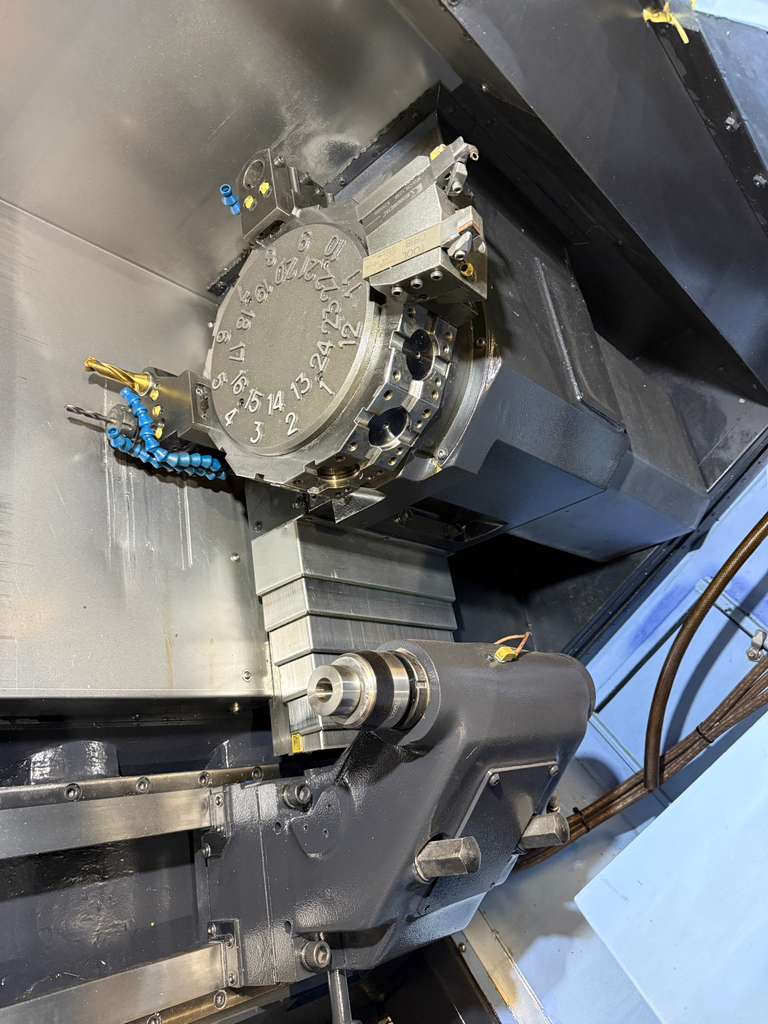

| Turret: |
| Turret Capacity: 12 Stations (24 Position Index) |
| Turret Index Time: 0.11 Second |
| Tool Size: 0.8″ x 0.8″ |
| Max Boring Bar Size: 33.02 mm |
| Live Tool Speed: 6000 RPM |
| Live Tool Power: 3.7 kW |
| Type: BMT-45 |

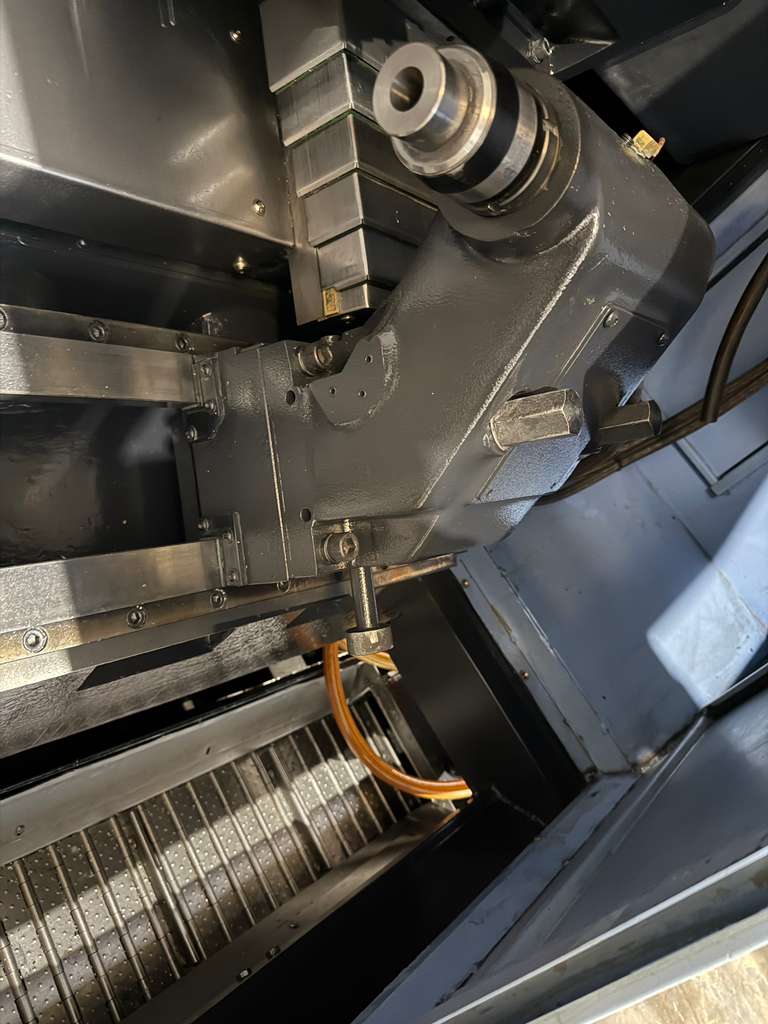

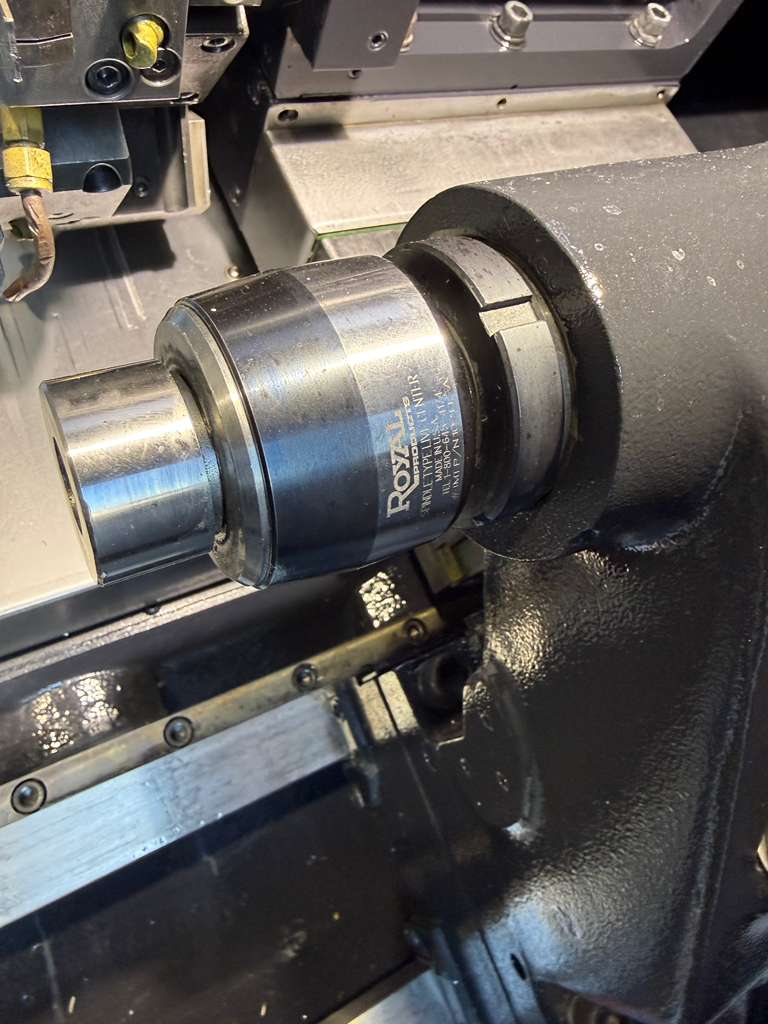

| Tailstock: |
| Tailstock Taper: MT-4 |
| Tailstock Quill Diameter: 2.6″ |
| Tailstock Quill Travel: 3.1″ |
| General: |

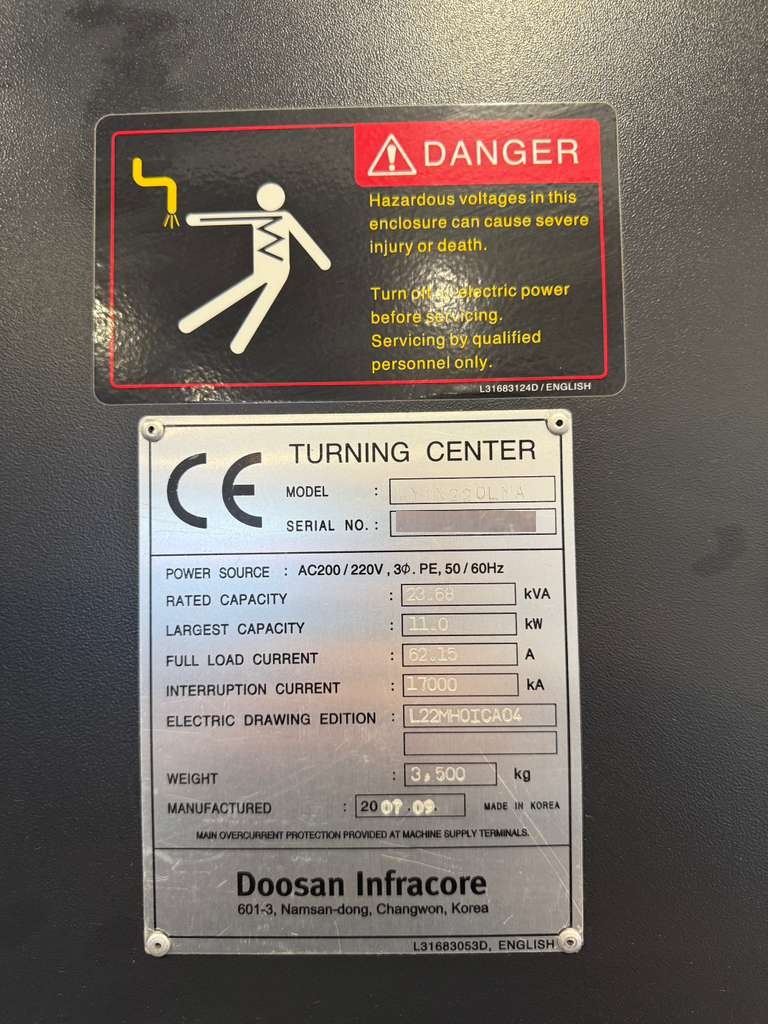

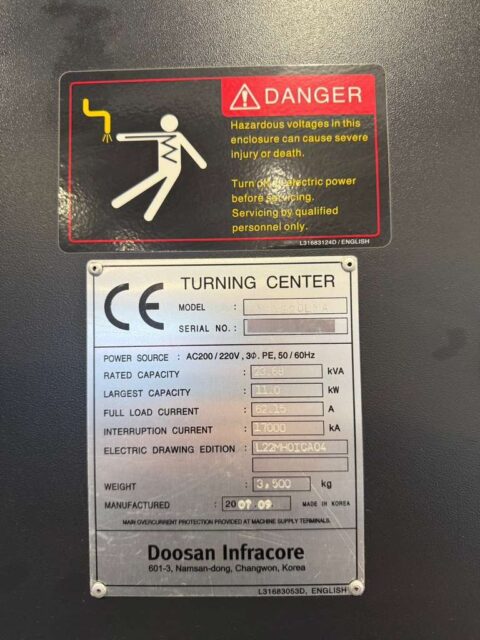

| Power: 23.68 kva / 220v / 3-Phase / 50/60Hz |
| Overall Dimensions: 103″ x 63″ x 65″ High Approx. |
| Weight: 3299.9 kg. Approx. |
| Categories | CNC Turning Centers |
|---|
| Series | Doosan LYNX Series |
|---|
| Categories | CNC Turning Centers, Previously Sold Machines |
|---|
