Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

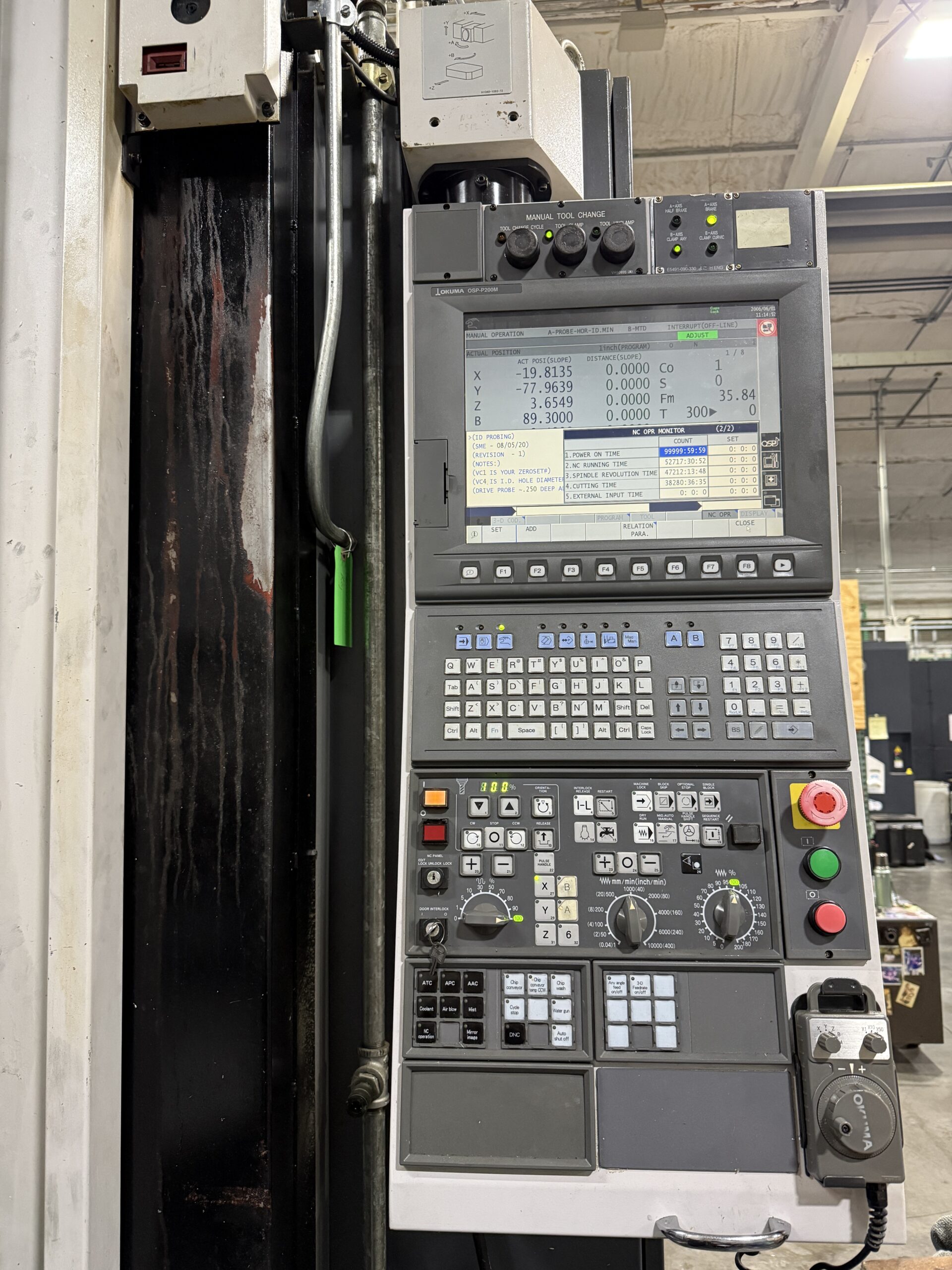

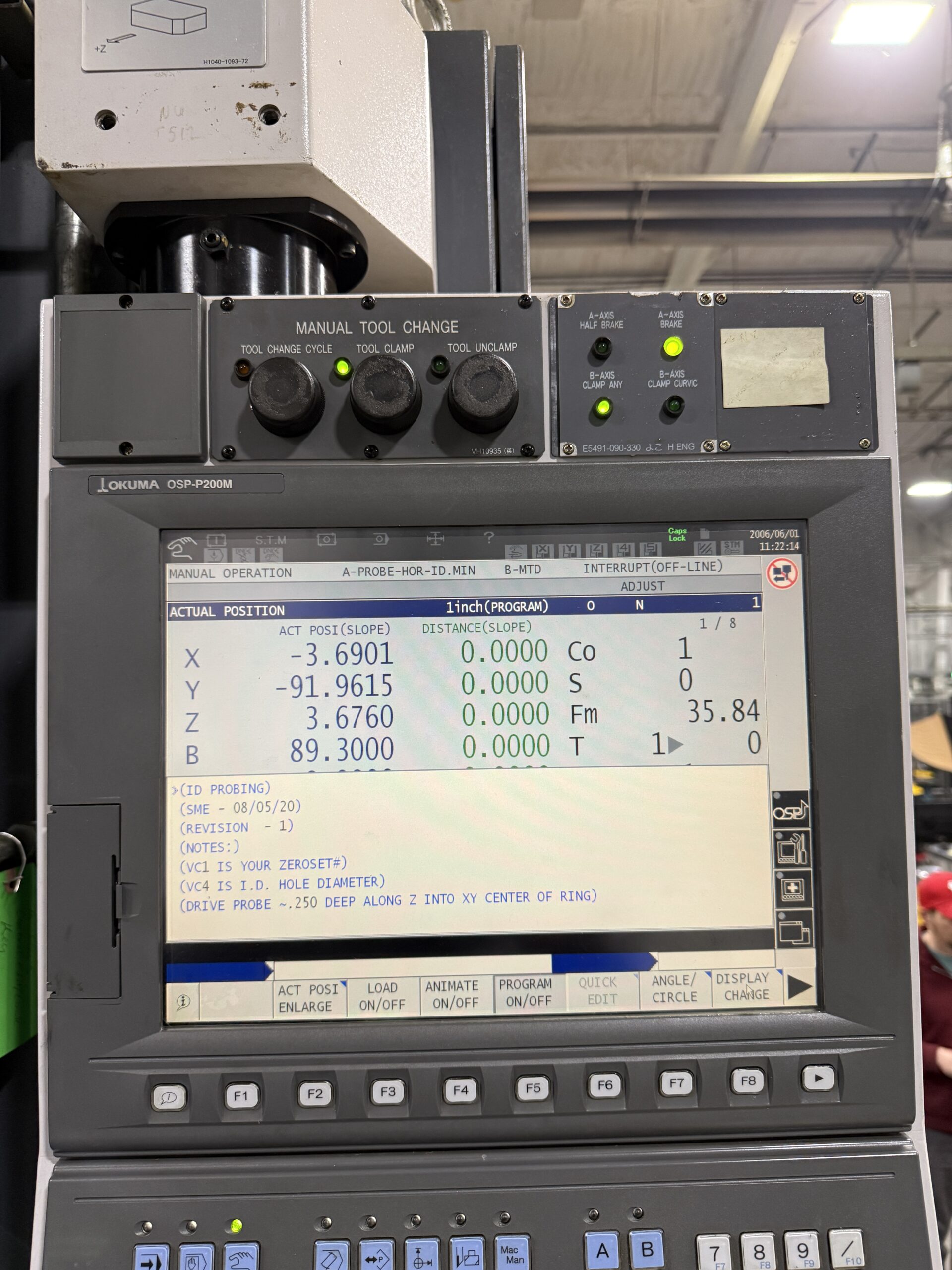

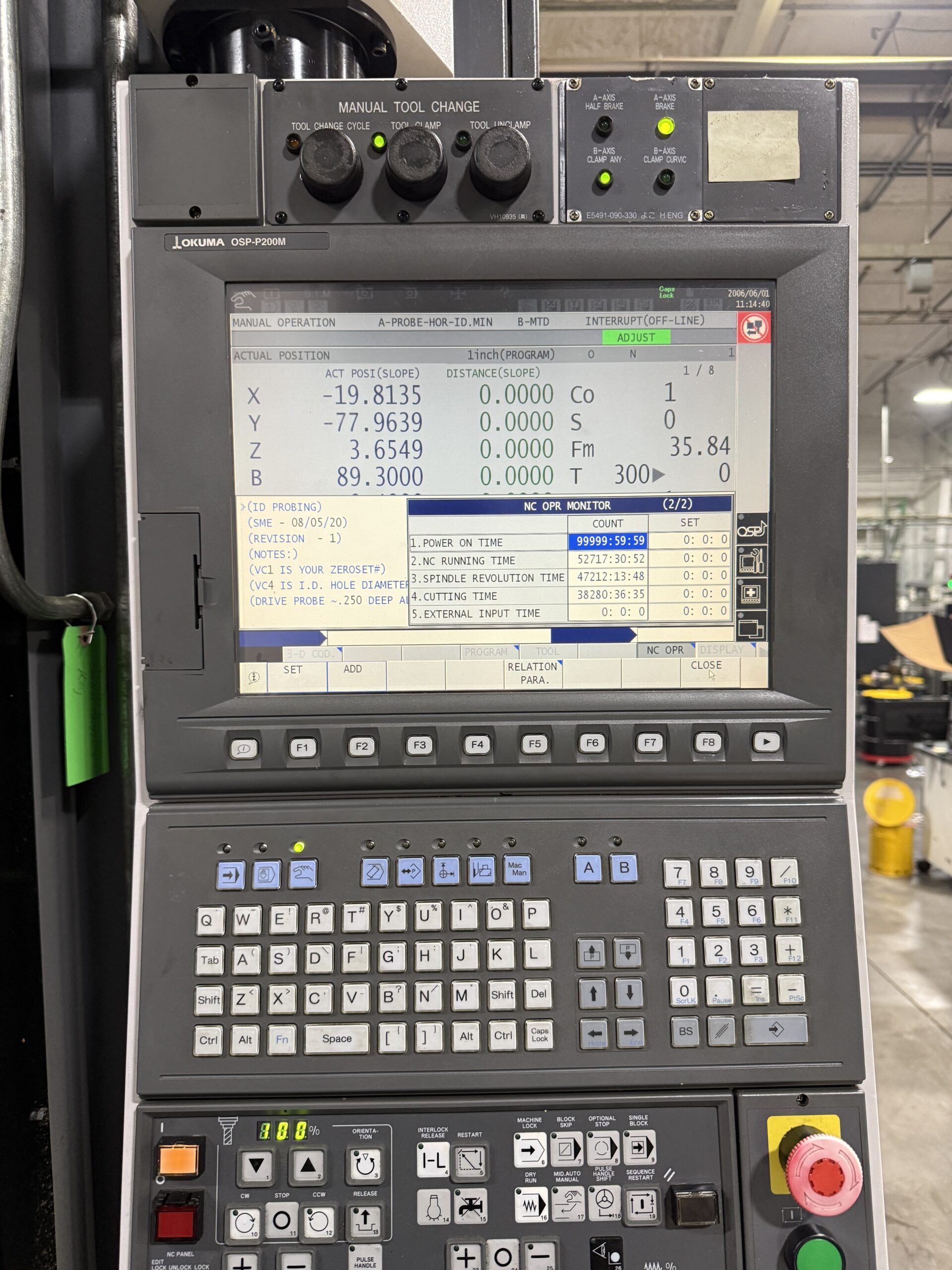

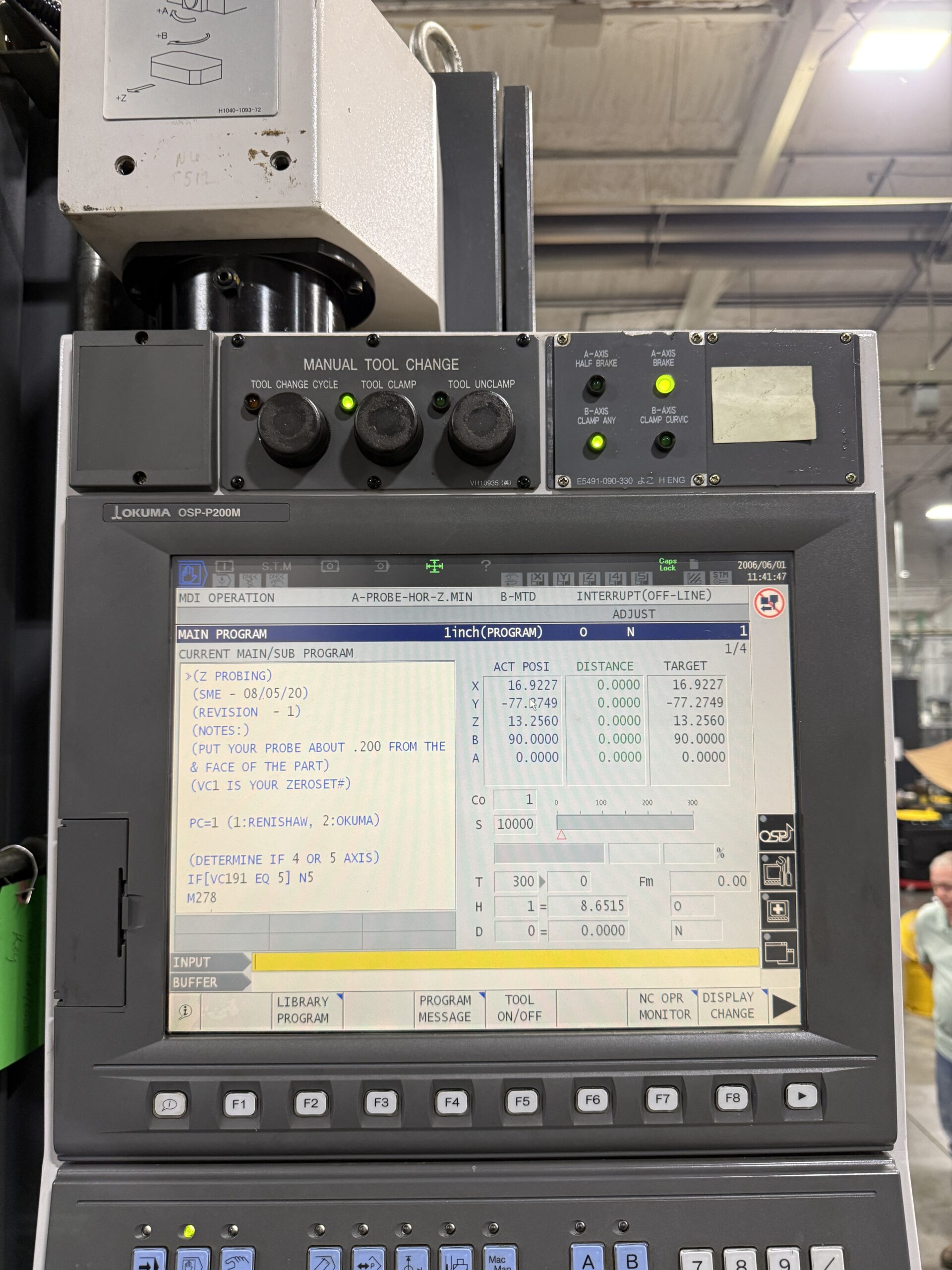

| Okuma OSP-P200M CNC Control |
| Simultaneous 5-Axis Machining |
| Heavy-Duty Box Way Construction |

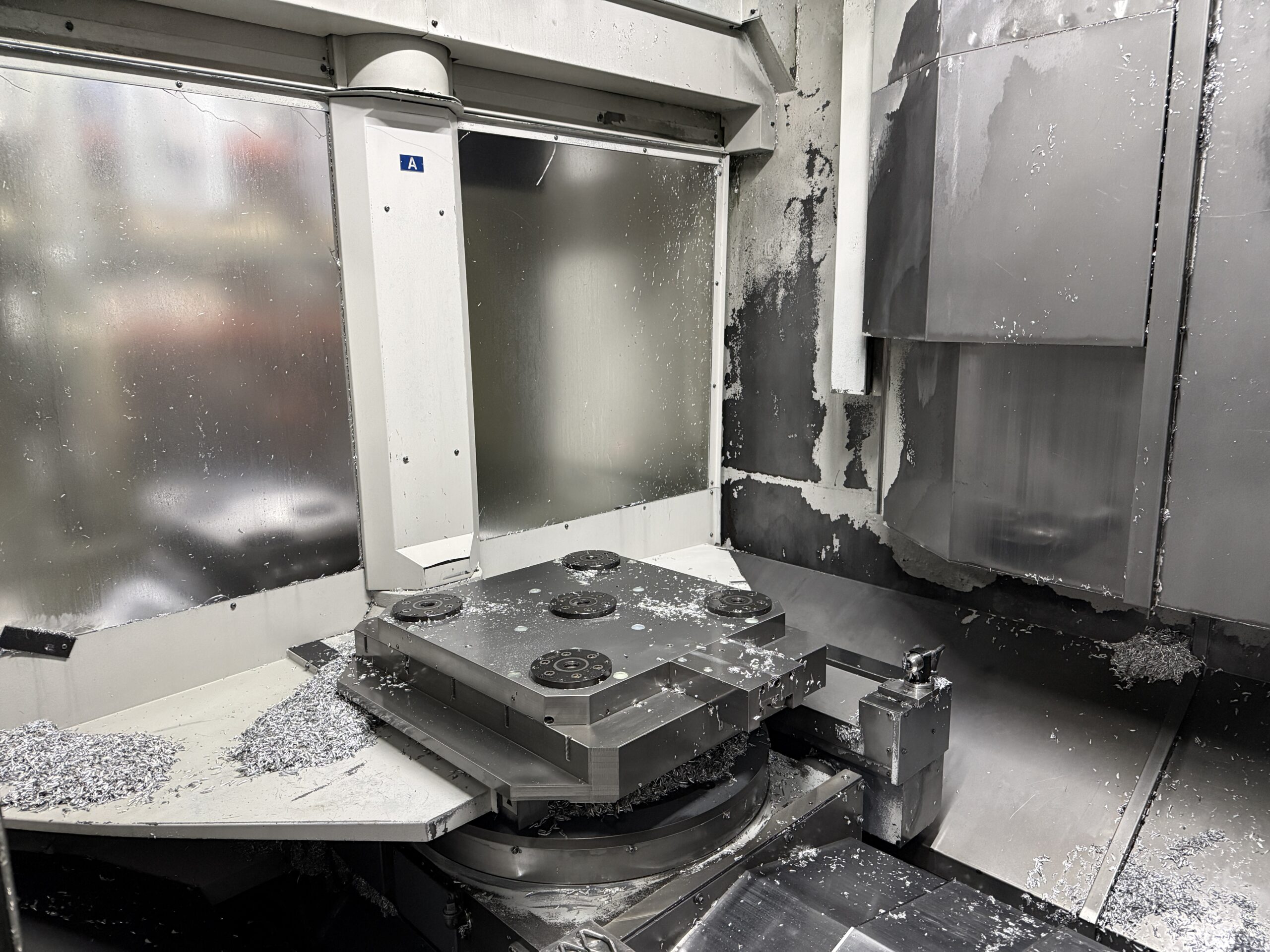

| 31.49″ × 31.49″ Rotary Pallet |
| Automatic 2-Pallet Changer |

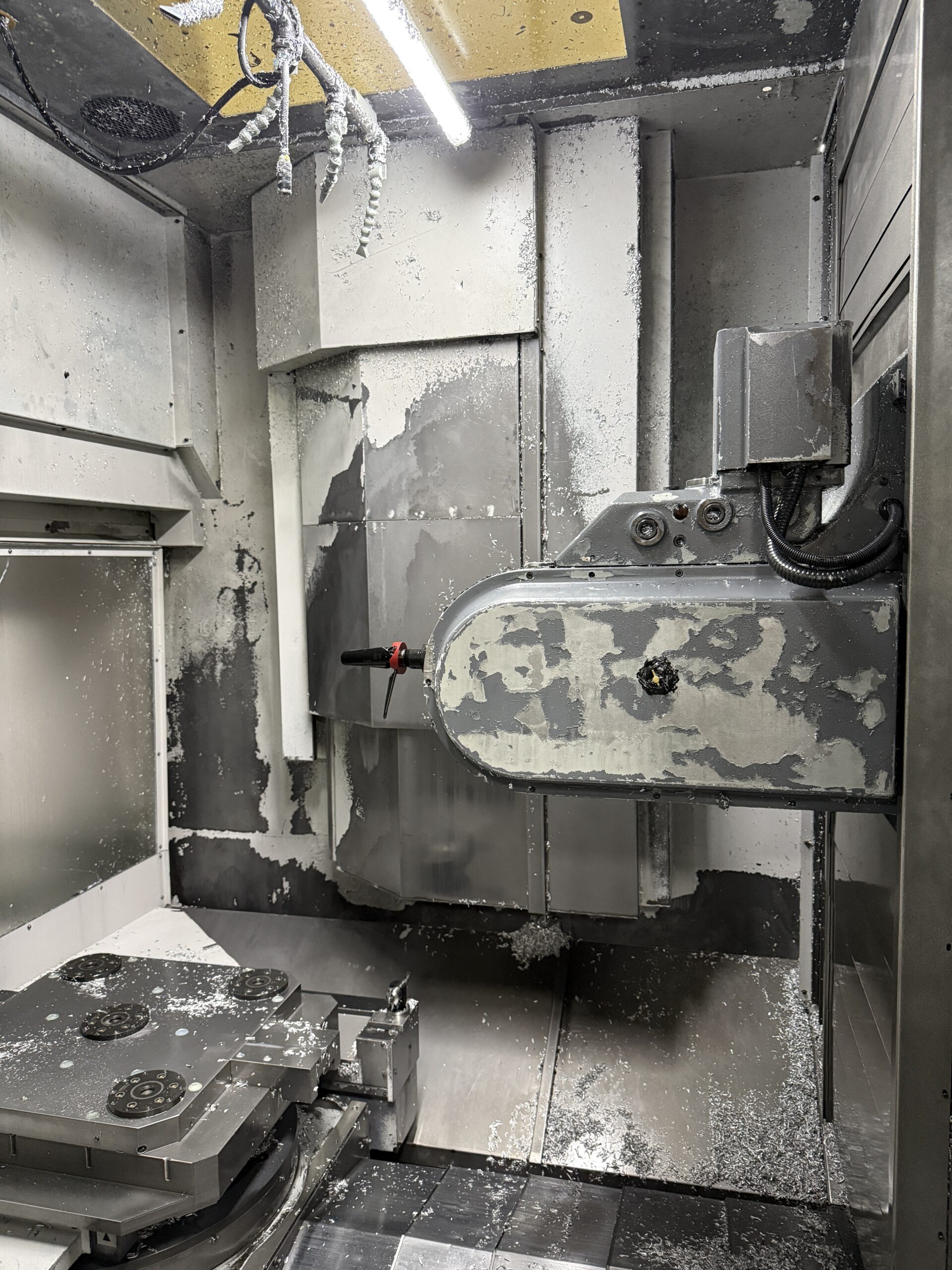

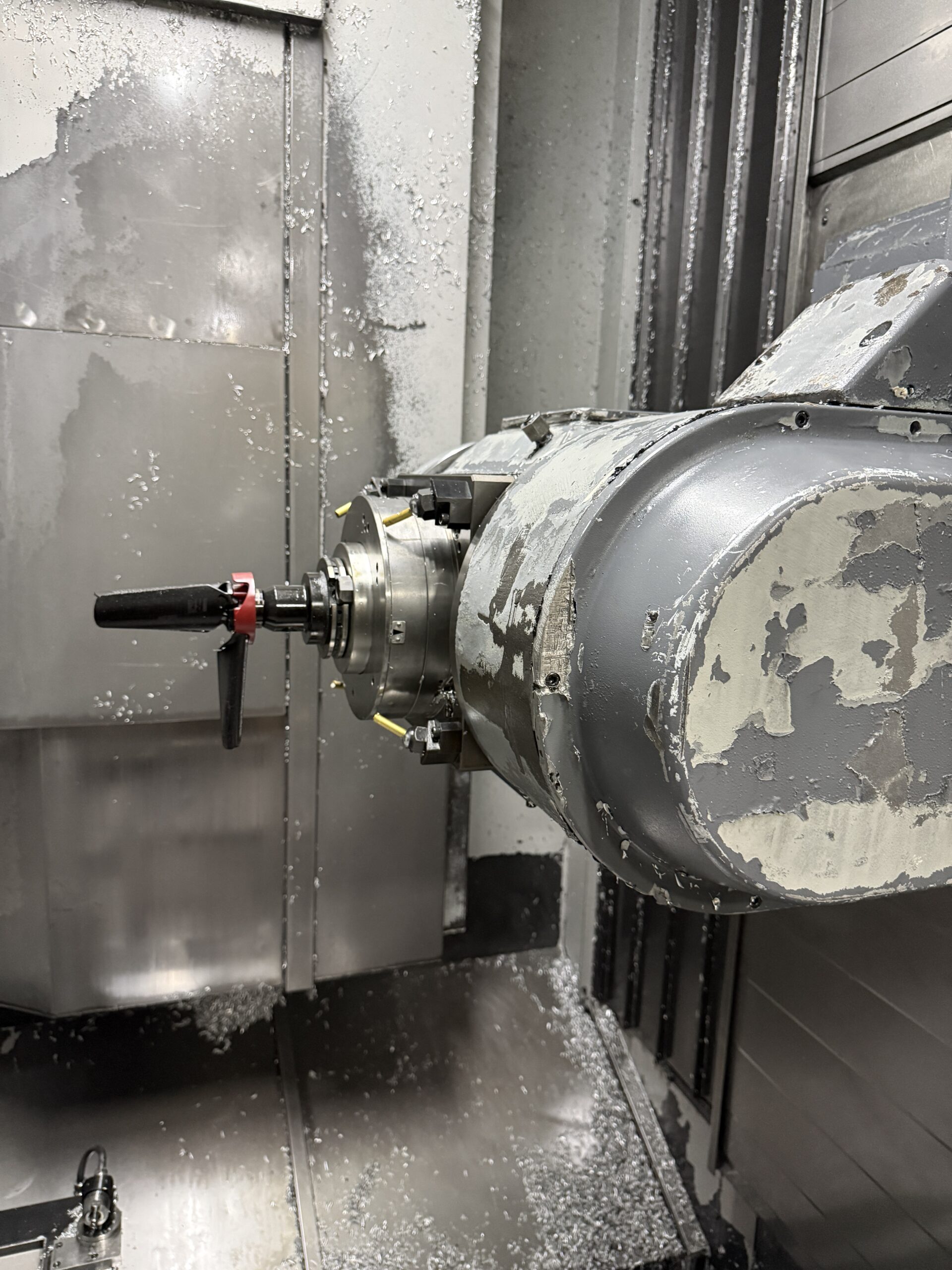

| Swivel Spindle Head (A-Axis) |
| Full Rotary Table (C-Axis) |
| 10,000 RPM Spindle |
| CAT-50 Taper Spindle |

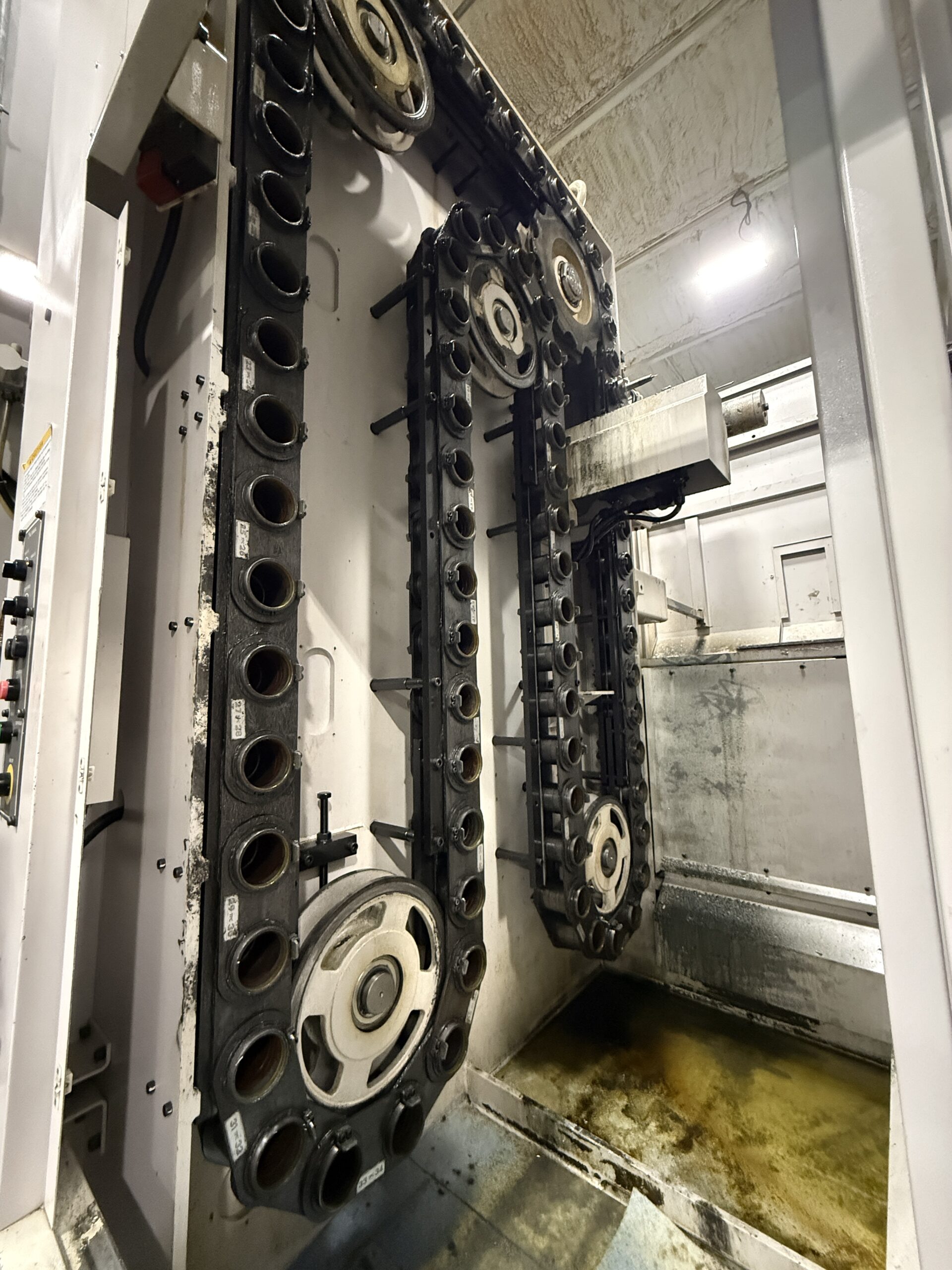

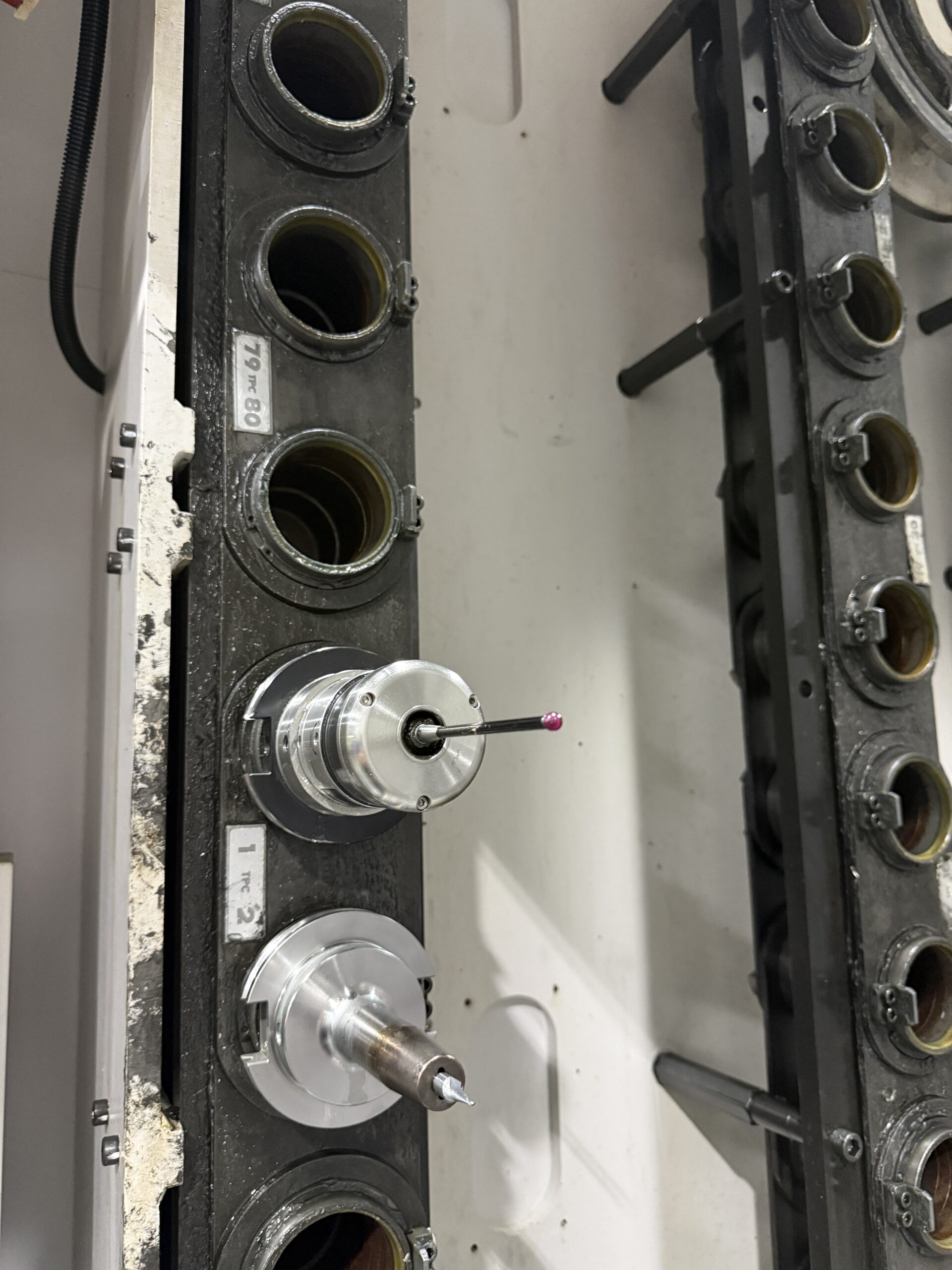

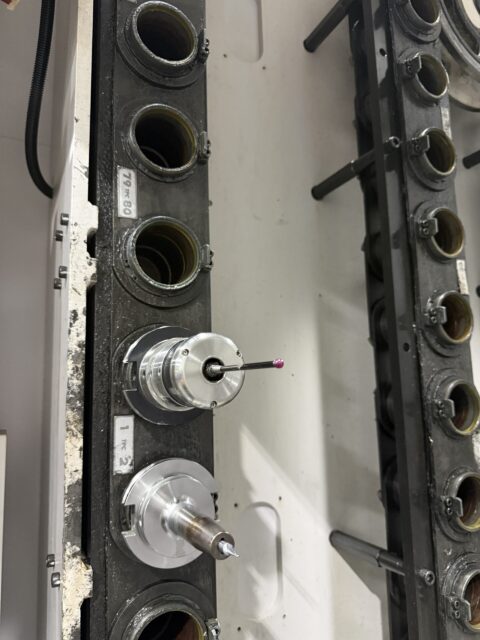

| 80 Station Automatic Tool Changer |

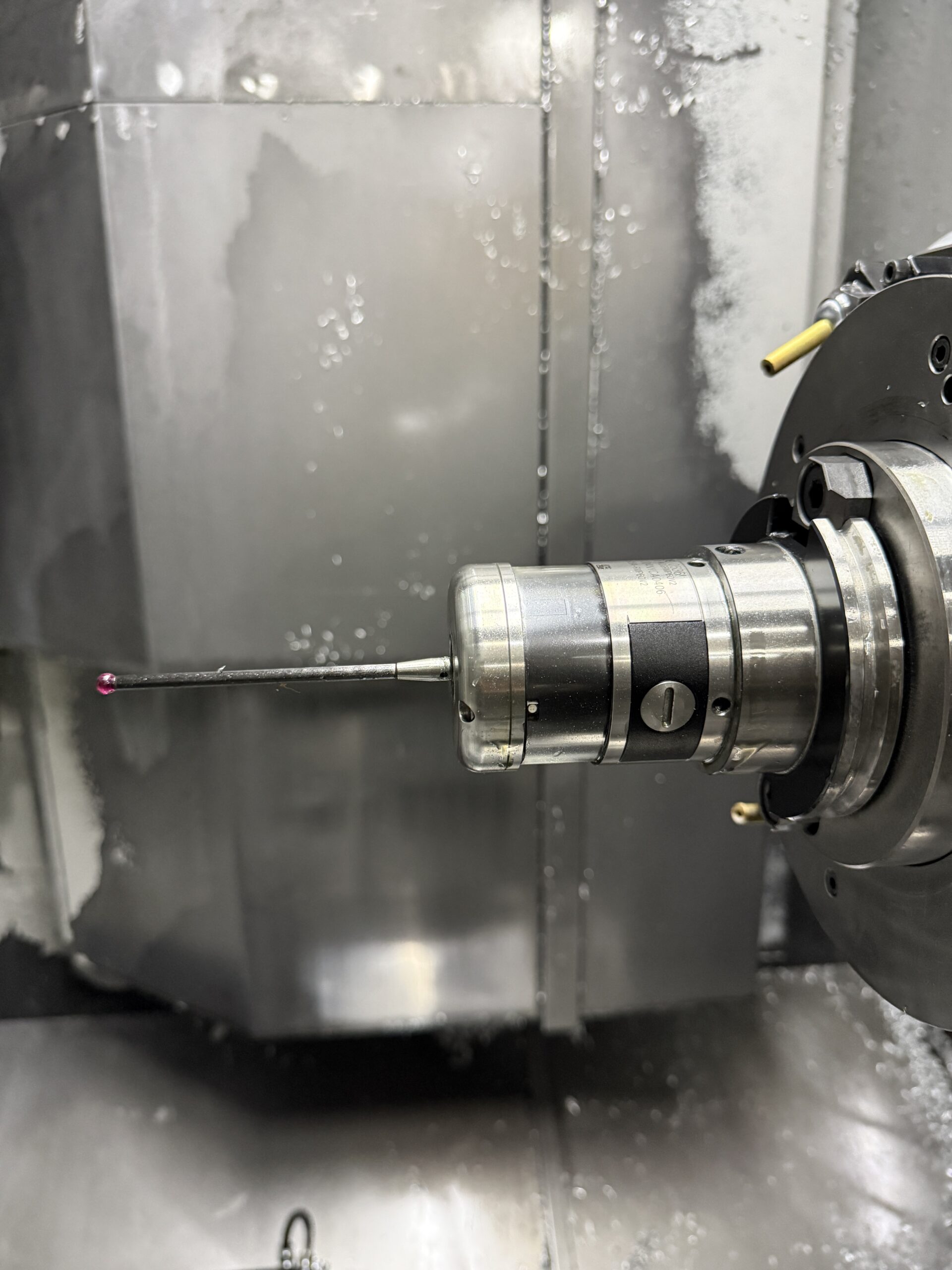

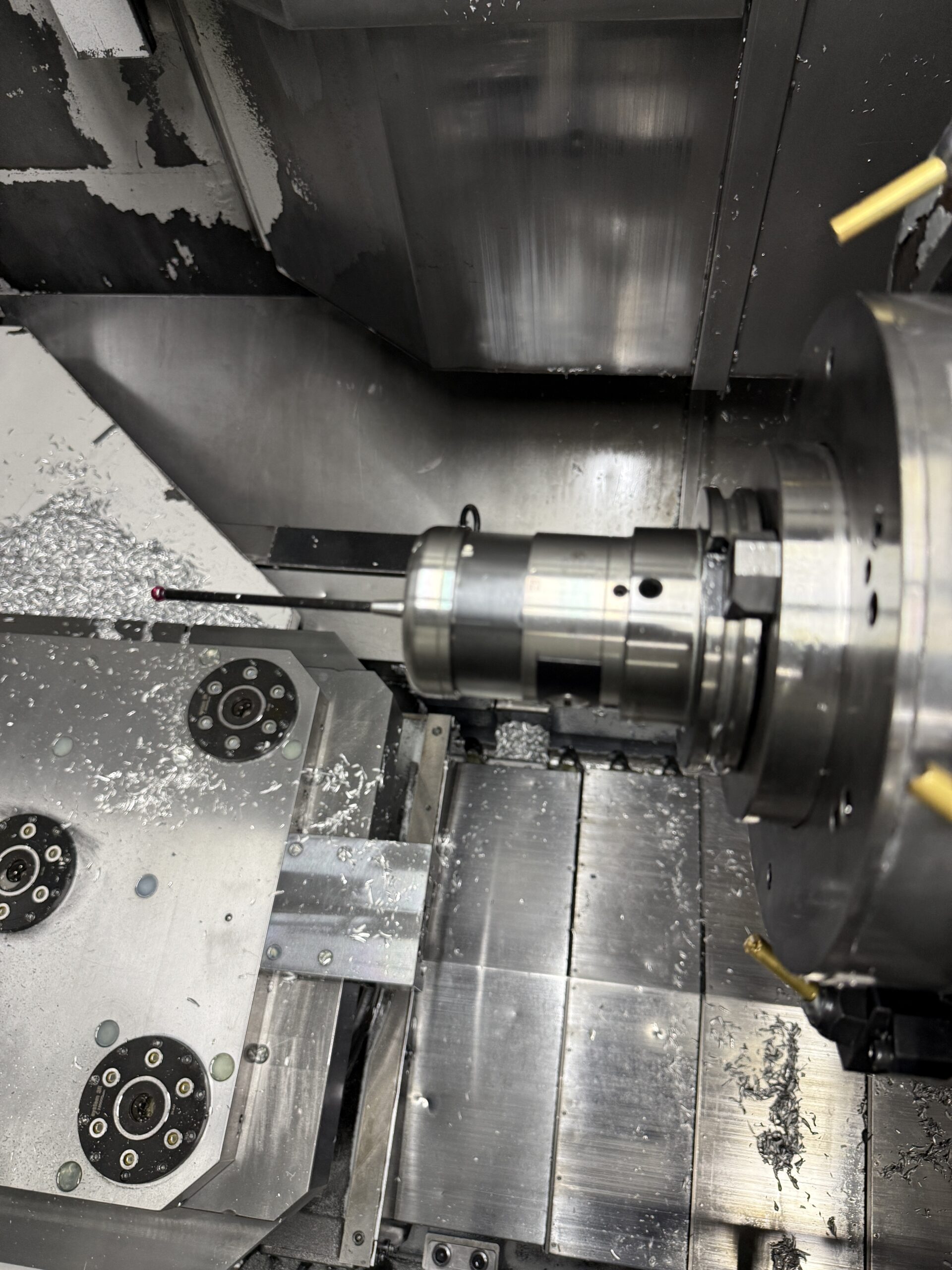

| Renishaw Probing System (Probe Included) |

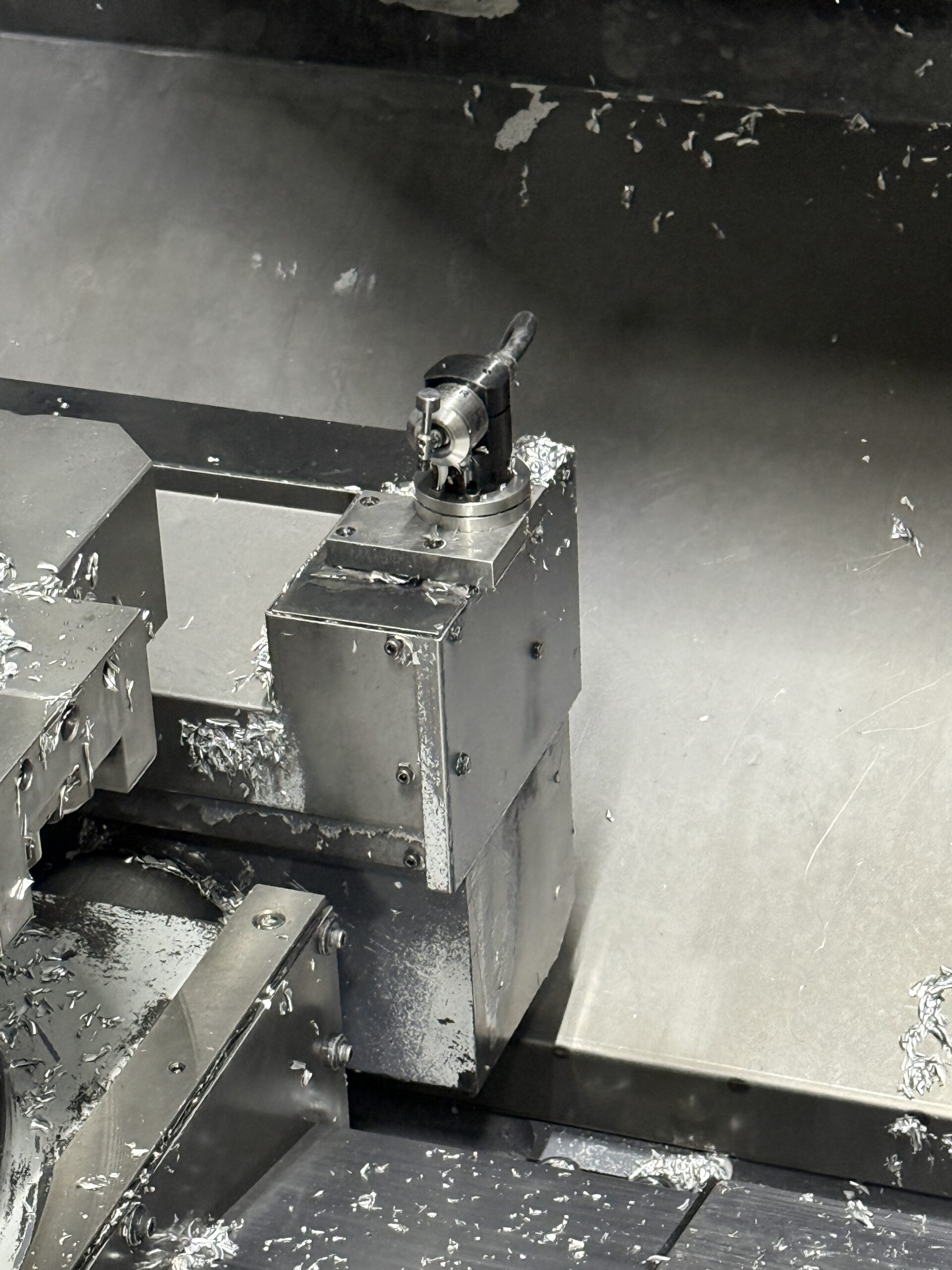

| Tool Presetter |
| Through-Spindle Coolant Ready – 1000 psi (High Pressure Coolant Pump Needed) |

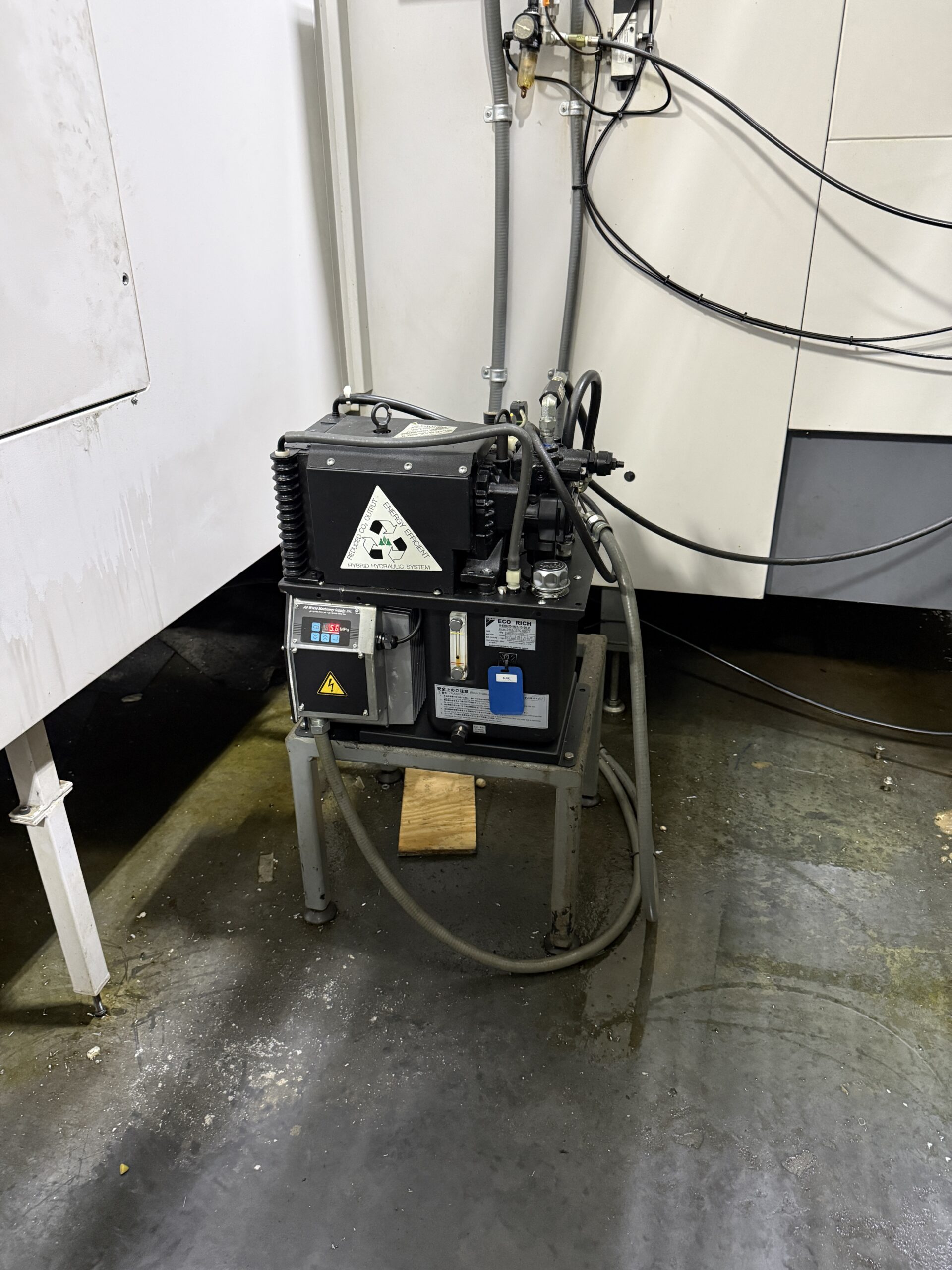

| Spindle Chiller Unit |

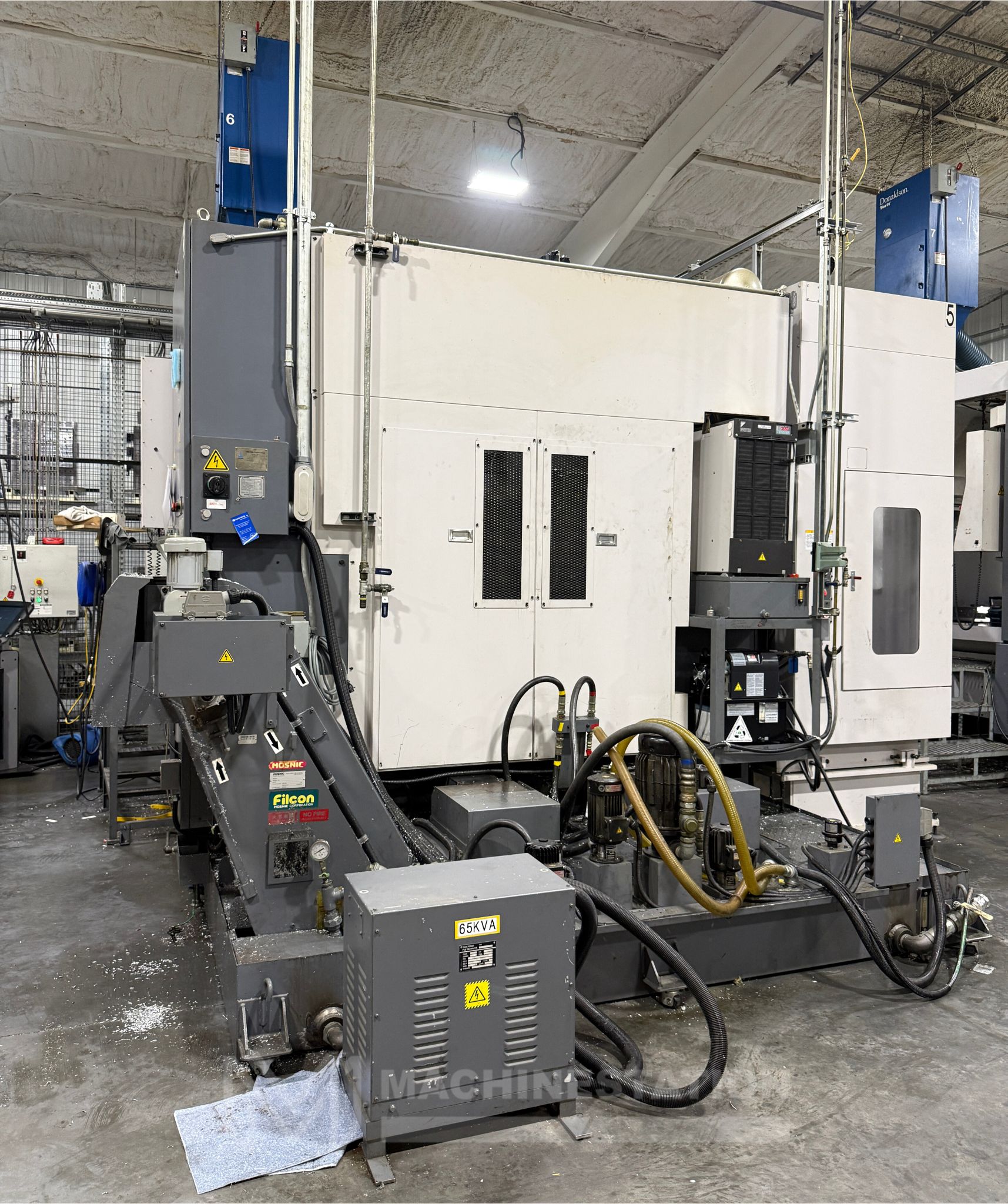

| 65 KVA Transformer |
| Mist Collector |

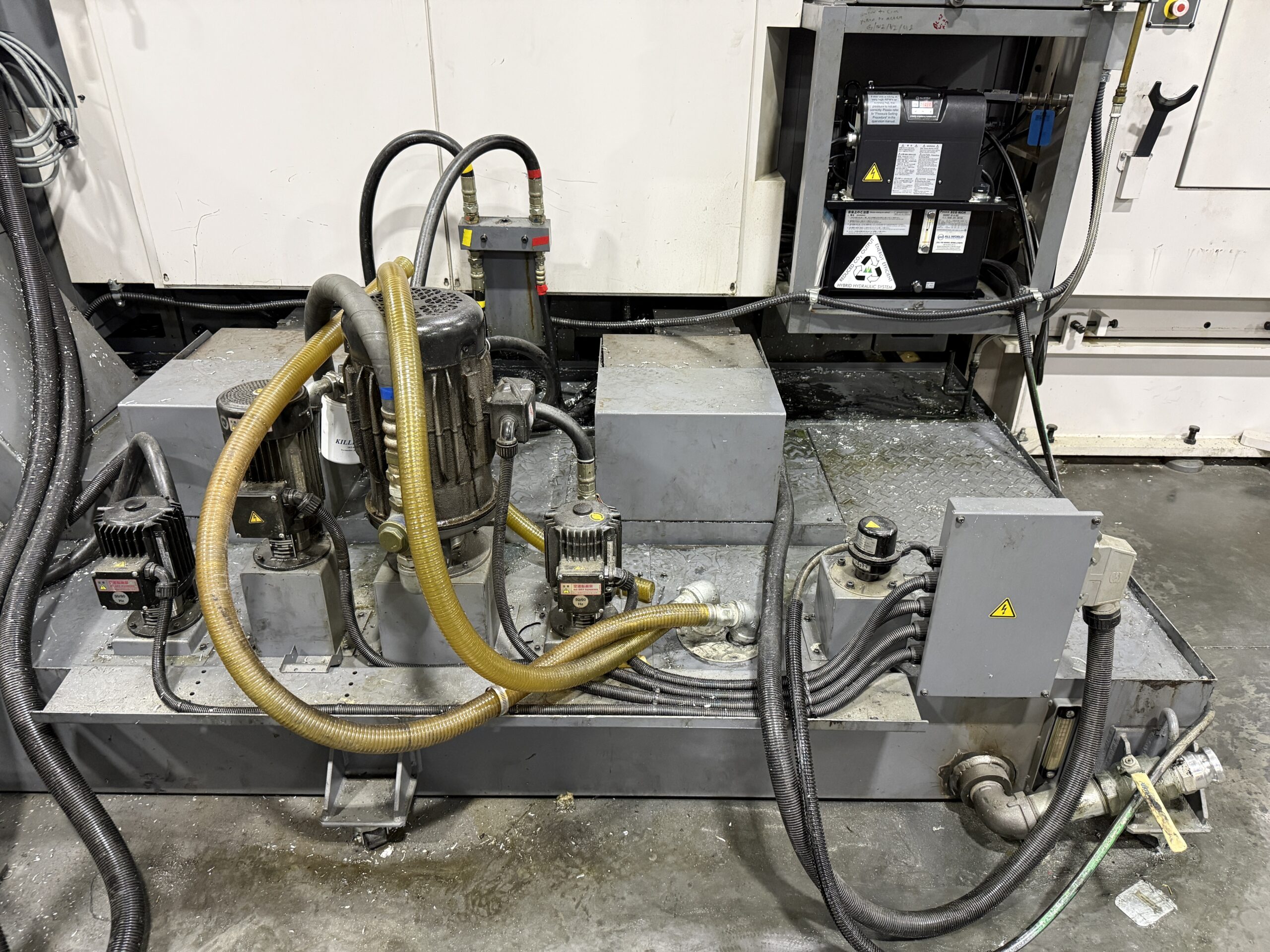

| Coolant Filtration System |
| Chip Conveyor |
| Note: Machine was connected with centralized high pressure through spindle cooling systems, so machine is capable of 1000 psi. Would require a separate unit. |
| Note: Fixtures and chuck on the pallet are not included With the Machine |
| Travels: |
| X-Axis Travel: 40.16″ |
| Y-Axis Travel: 40.16″ |
| Z-Axis Travel: 40.16″ |
| A-Axis Swivel Range: –100° to +150° |
| C-Axis Rotation: 360° |
| Rapid Traverse (X/Y/Z): 1,181 Inches Per Minute |
| Cutting Feedrate (X/Y/Z): 472 Inches Per Minute |
| Table: |
| Table Size (Pallet): 31.49″ × 31.49″ |
| Maximum Table Load: 2,200 lbs |
| Maximum Workpiece Diameter: 48.43″ |
| Indexing: 0.001° |
| Number of Pallets: 2 |
| Spindle: |
| Spindle Speed: 10,000 RPM |
| Spindle Taper: CAT-50 |
| Spindle Motor Power: 30 HP |
| A-Axis Swivel Range: –100° to +150° |
| C-Axis Rotation Range: 360° |
| Automatic Tool Changer: |
| Tool Capacity: 80 Tools |
| Max Tool Diameter (Adjacent Tools): 4.92″ |
| Max Tool Diameter (No Adjacent Tools): 7.87″ |
| Max Tool Length: 15.74″ |
| Max Tool Weight: 44 lbs |
| Tool-to-Tool Time: 4.5 Seconds |
| General: |

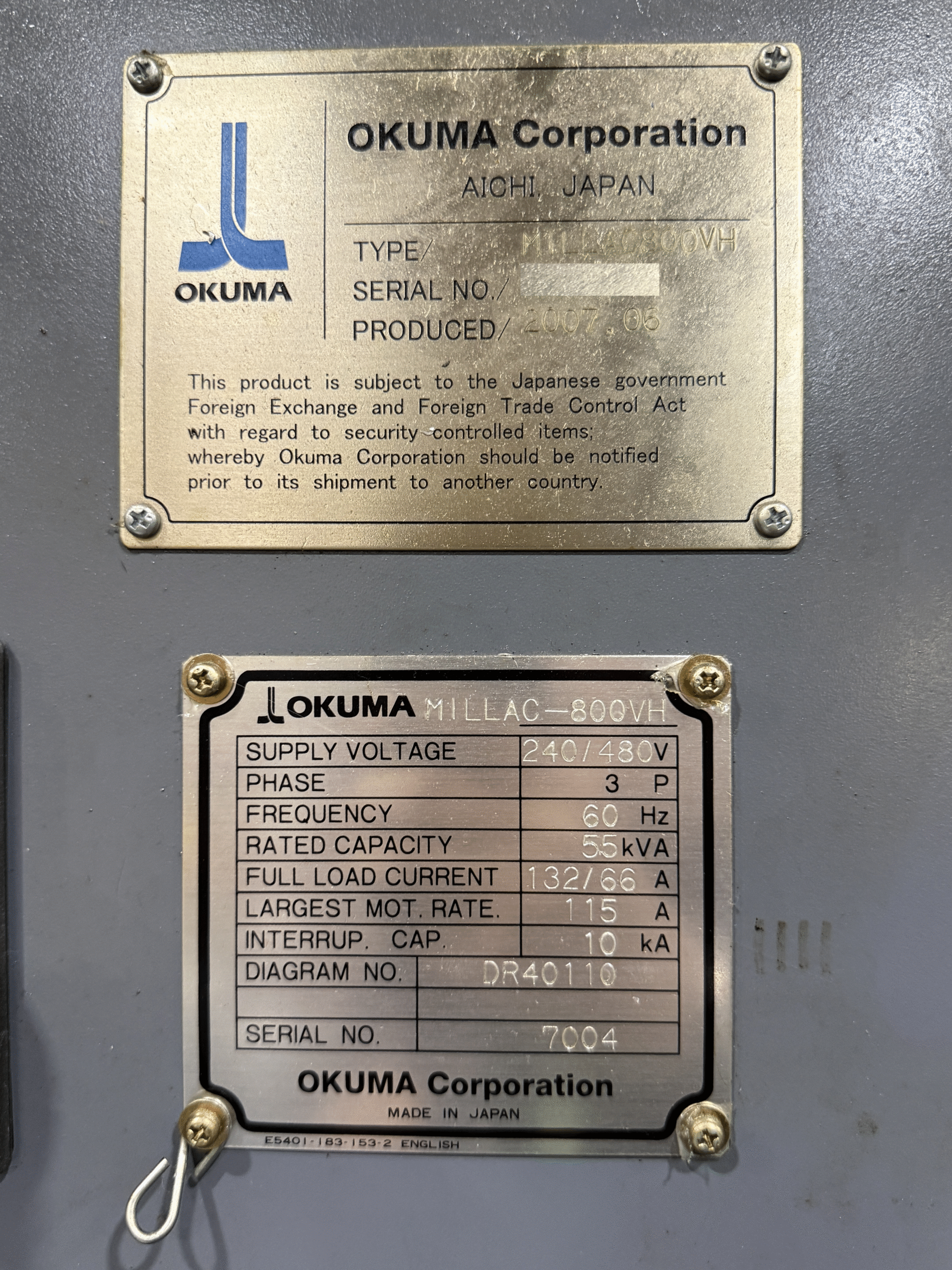

| Power Requirement: 240/480v / 3-Phase / 60 Hz / 55 kVA |
| Machine Dimensions: 187″ × 248″ × 130″ High Approx. |
| Machine Weight: 48,400 lbs Approx. |
