*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

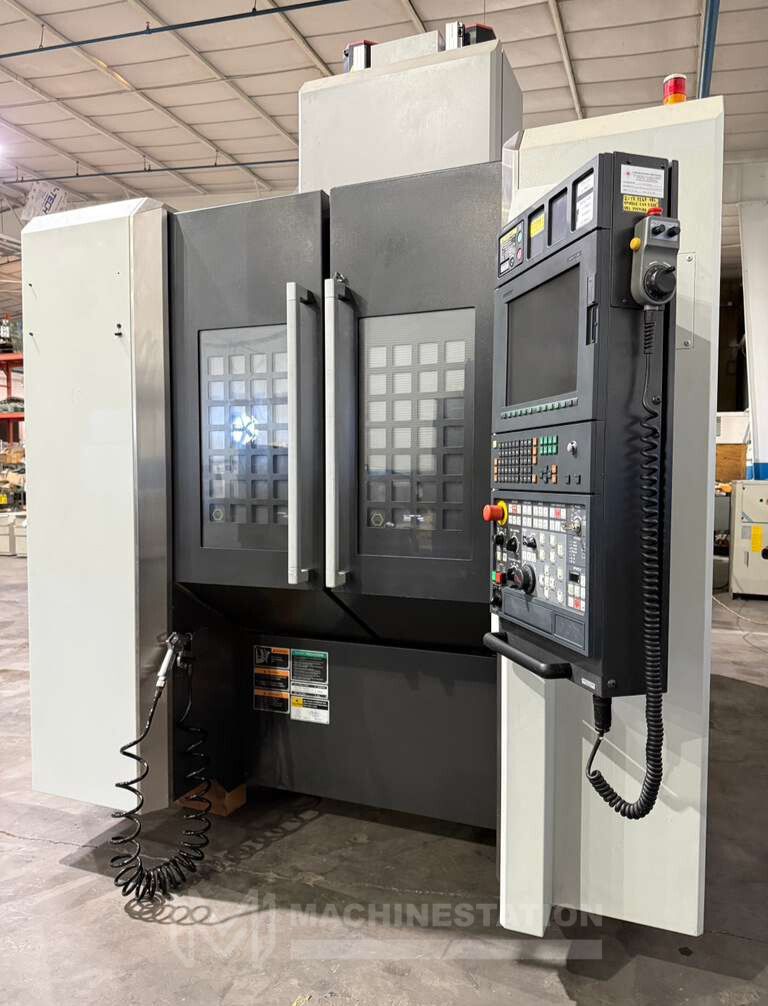

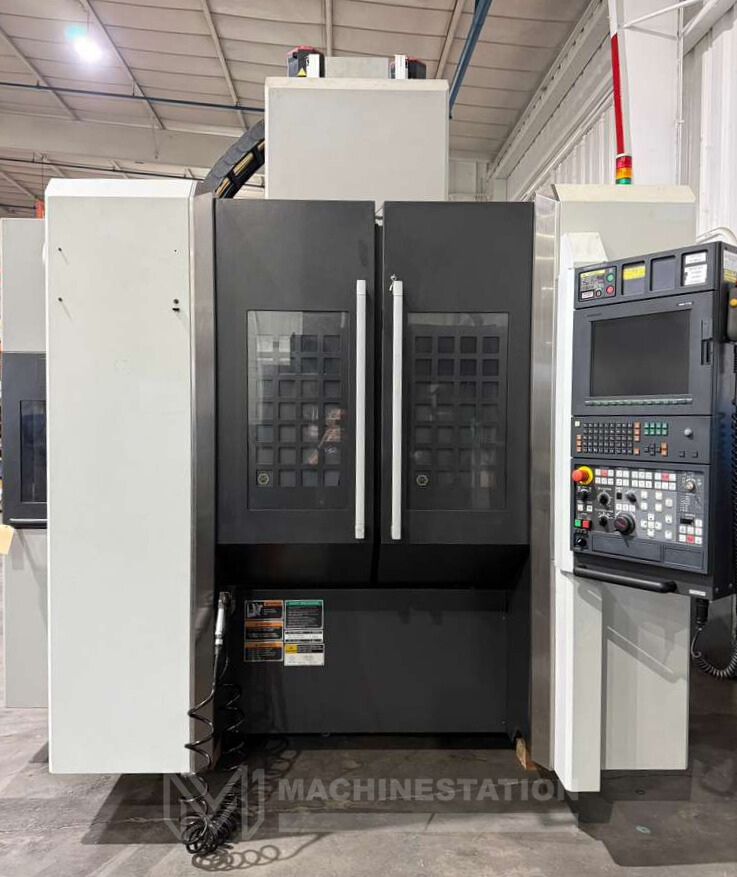

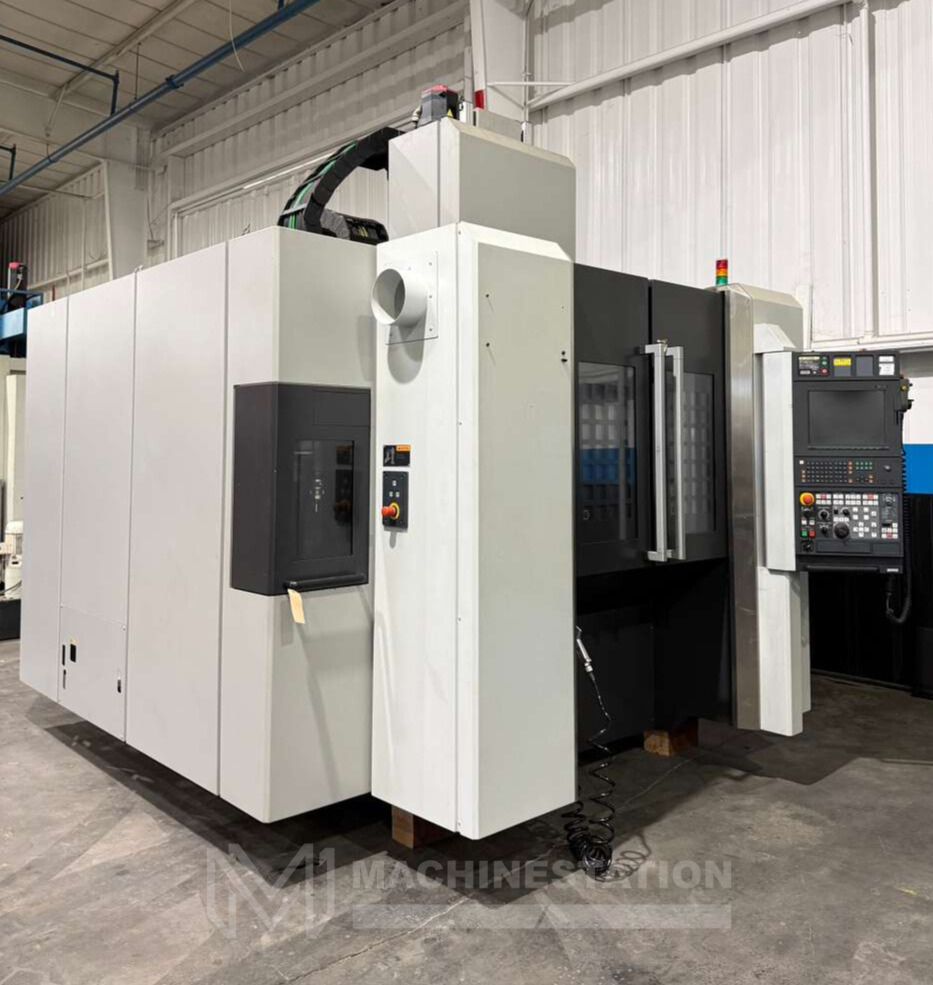

| Make: | Mori Seiki |

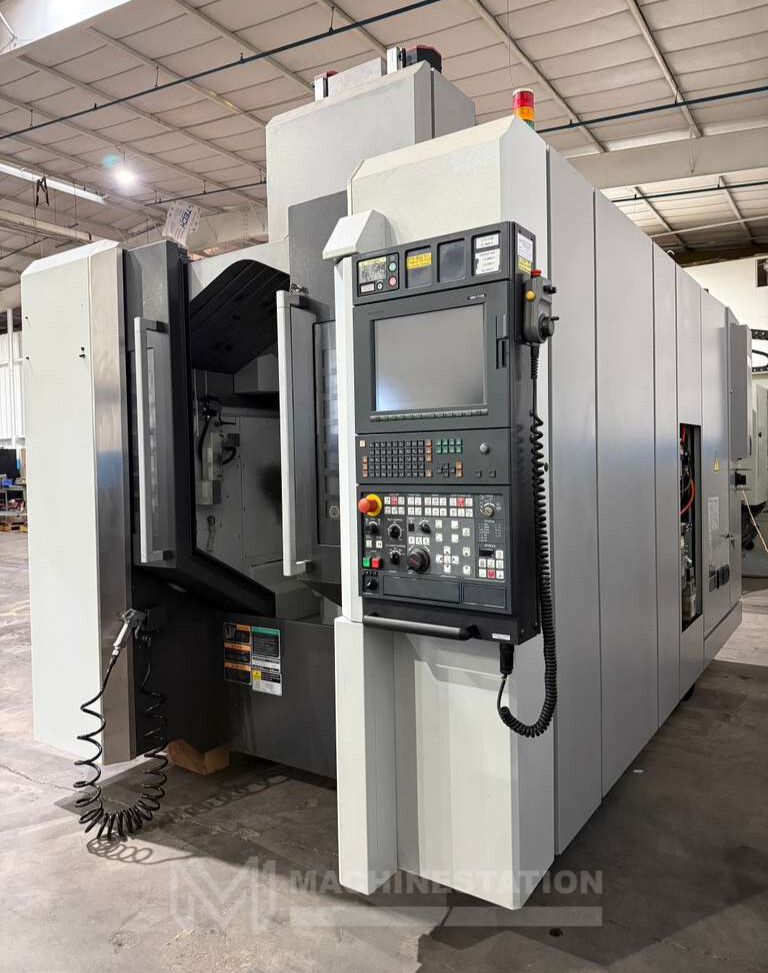

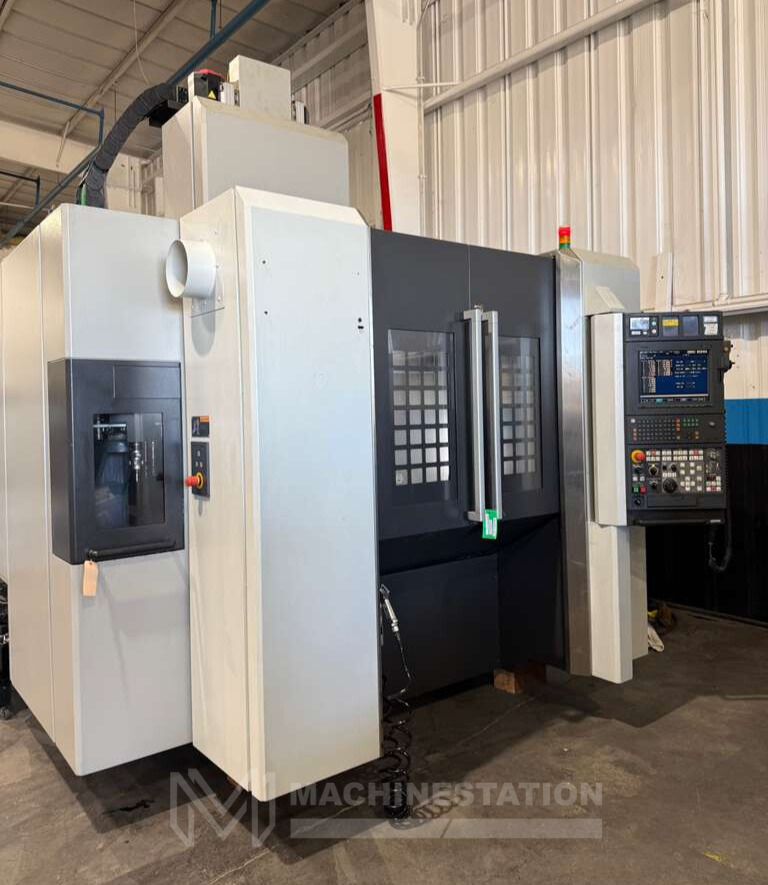

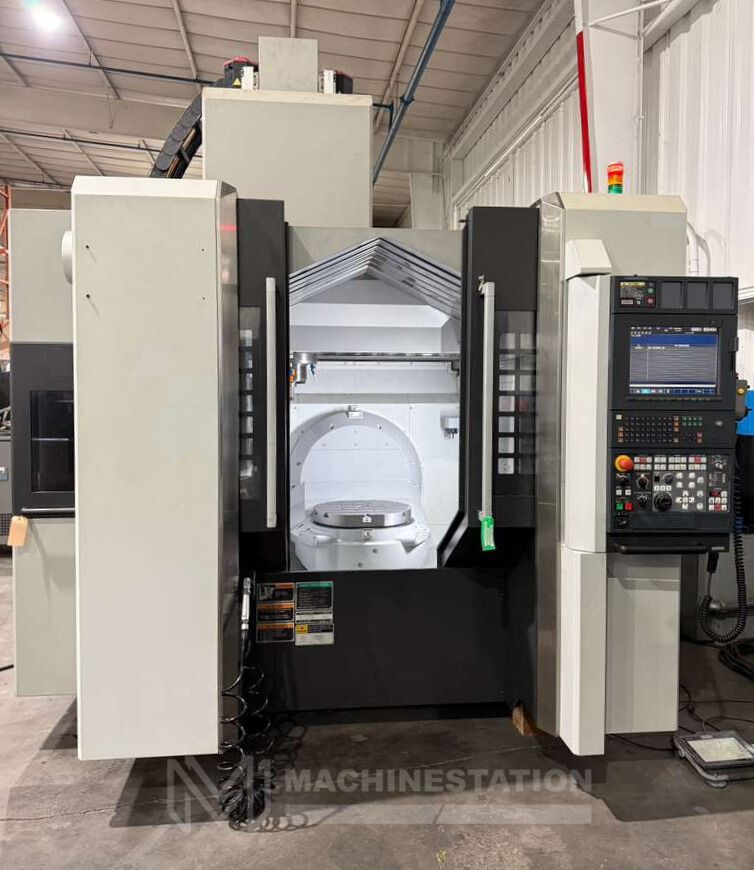

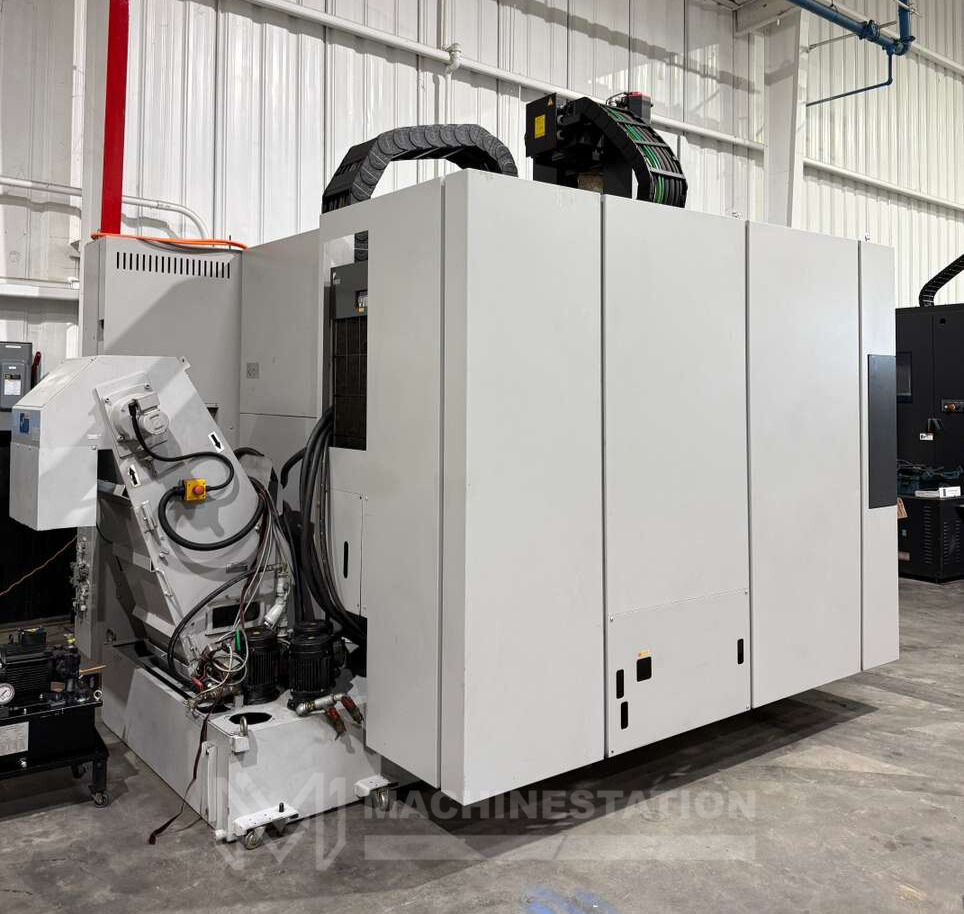

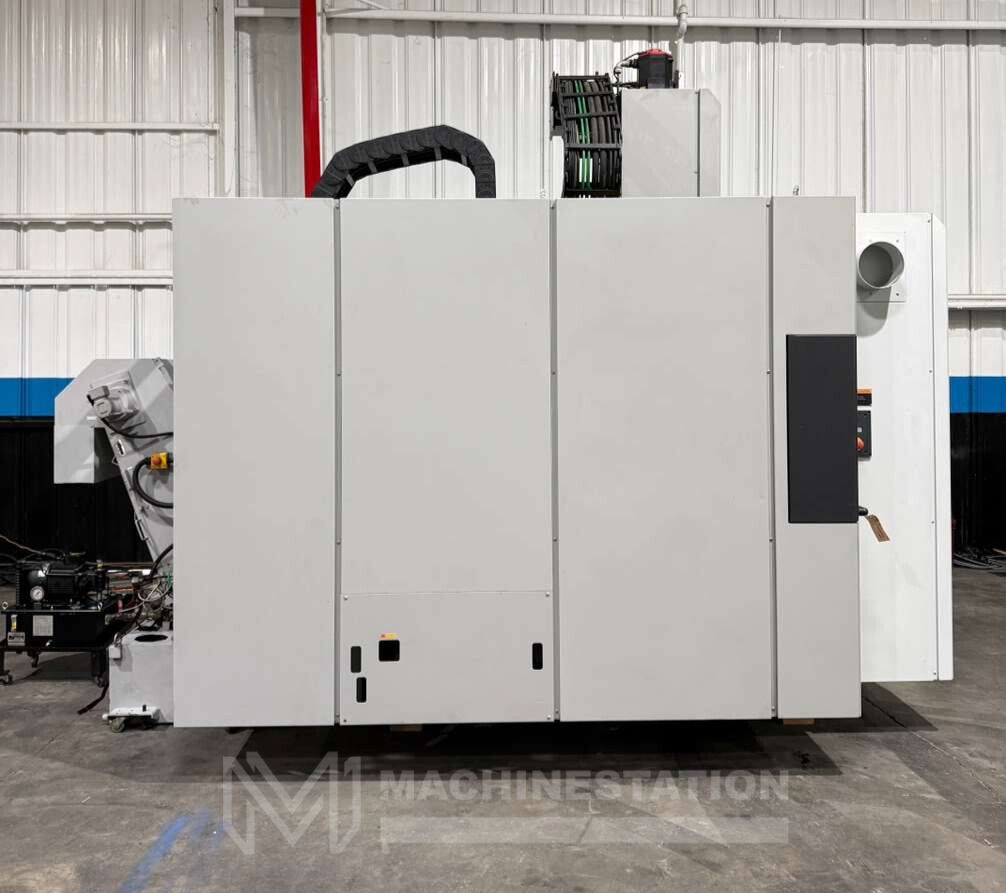

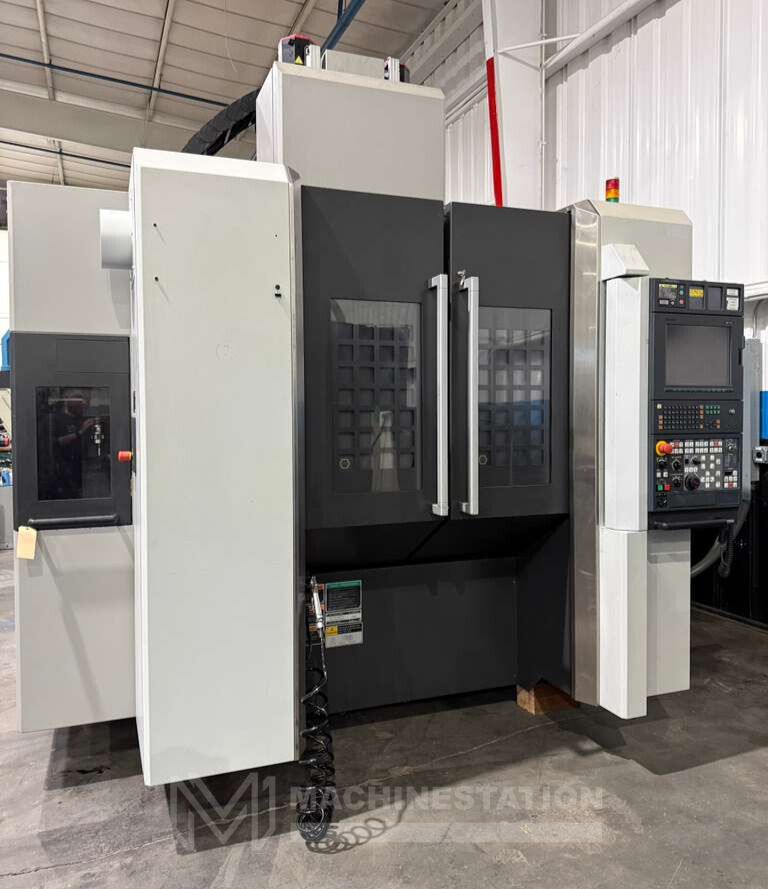

| Model: | NMV5000DCG |
| Condition: | Used – Good |
| Features: |
|---|

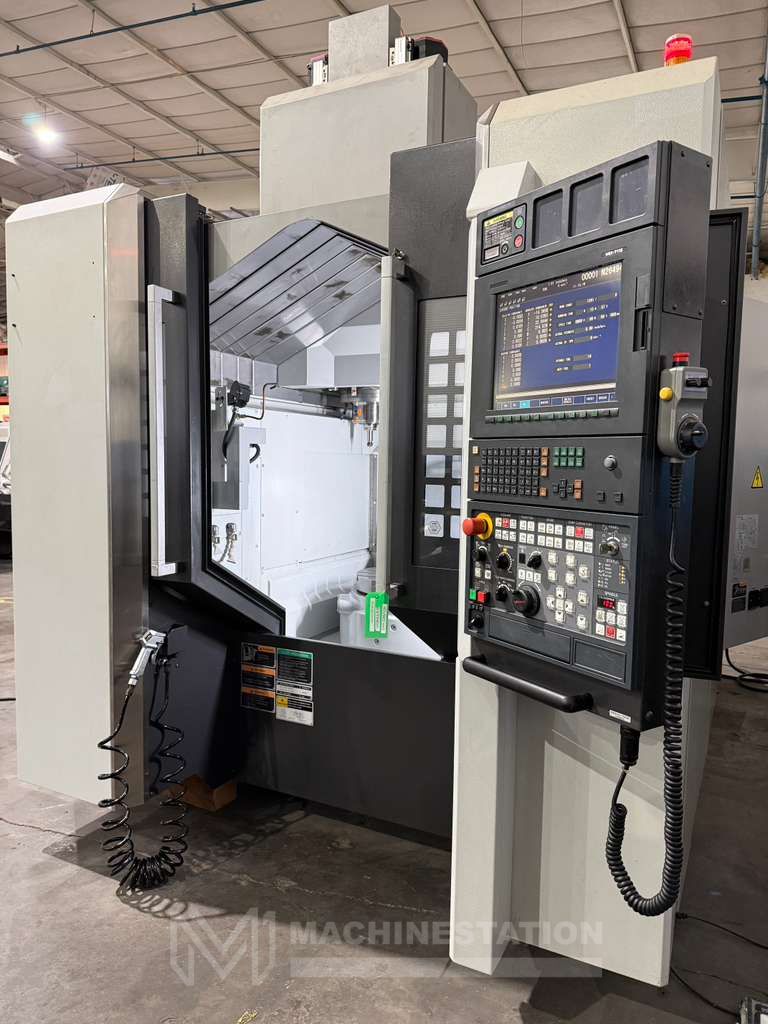

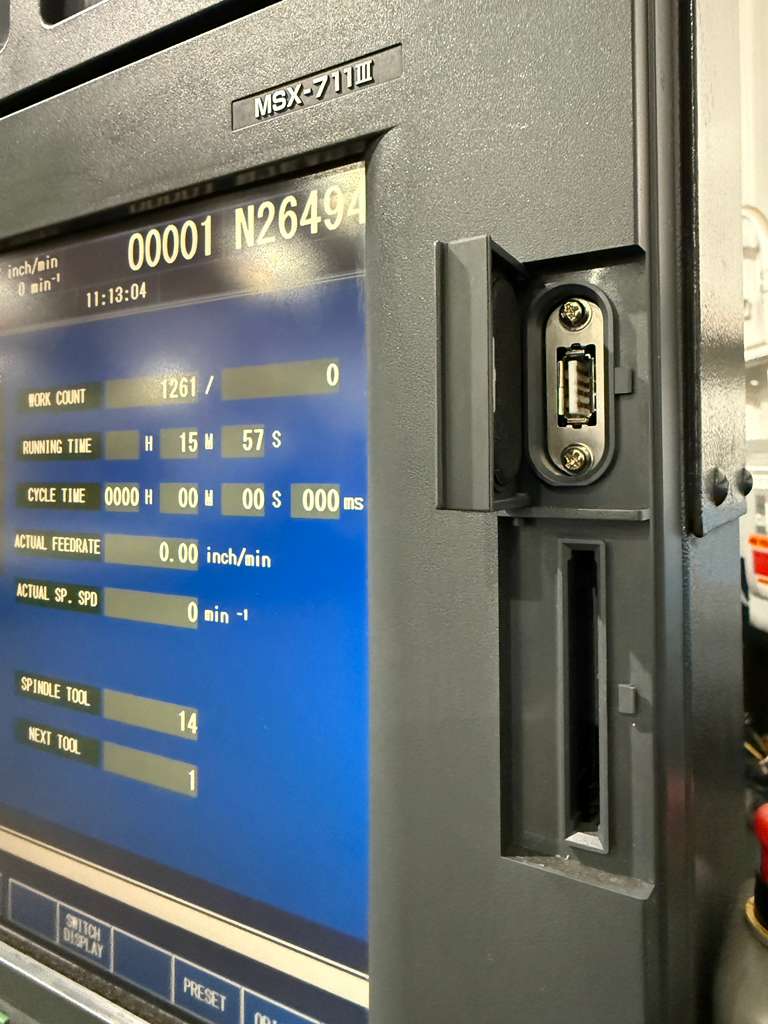

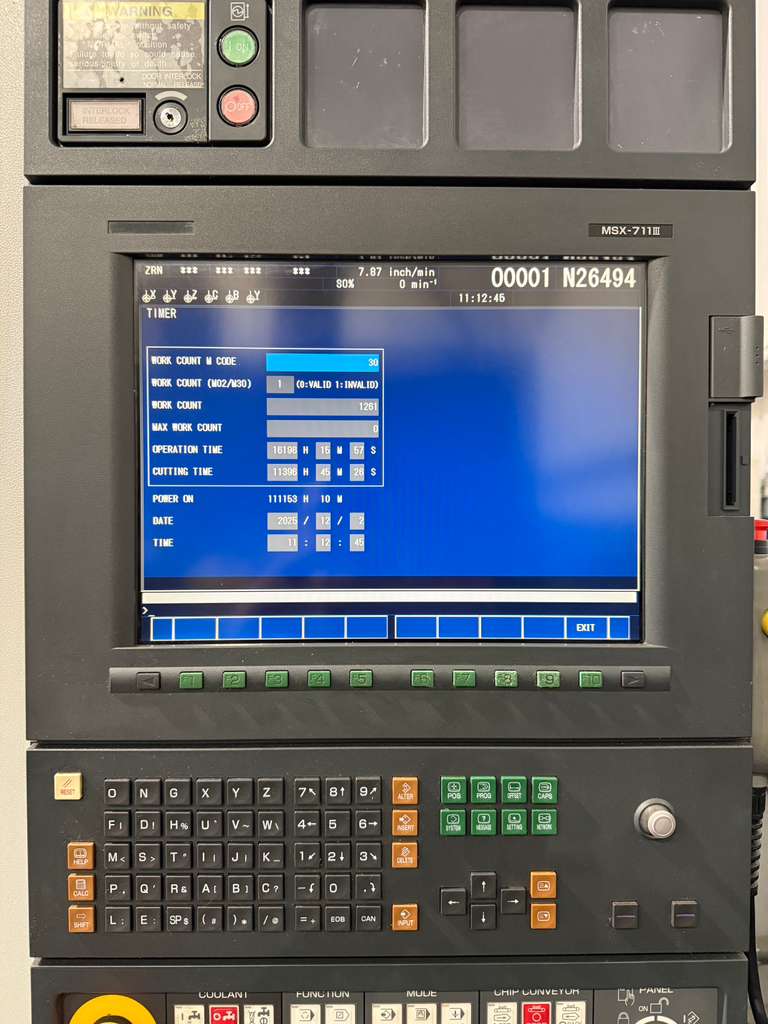

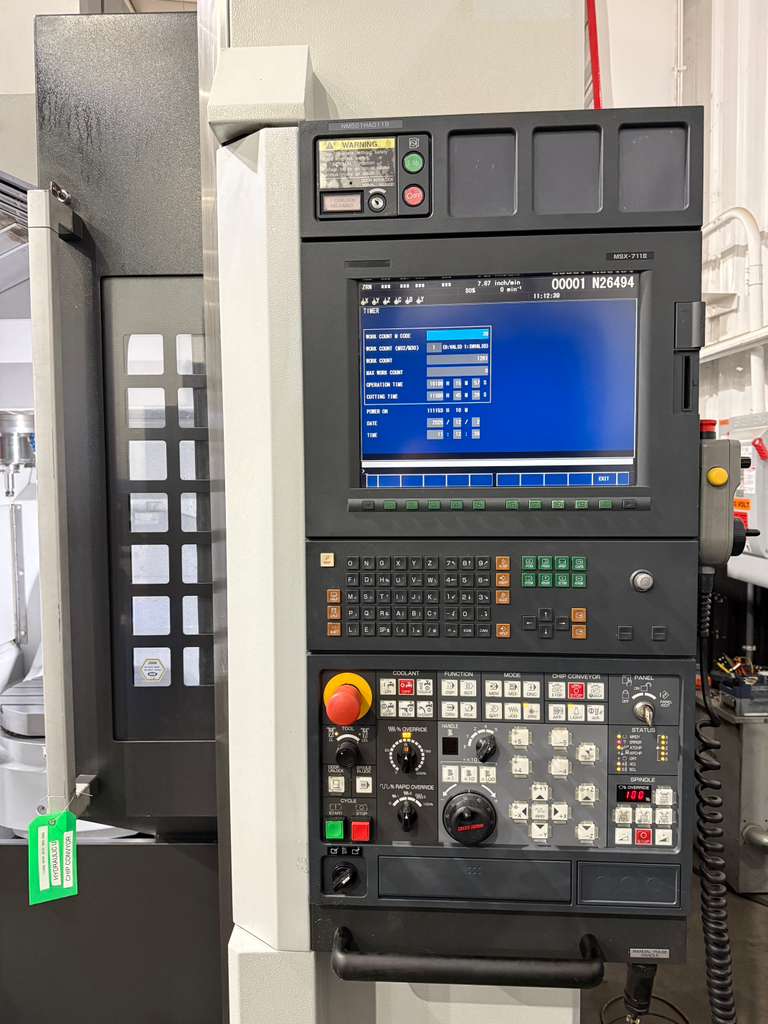

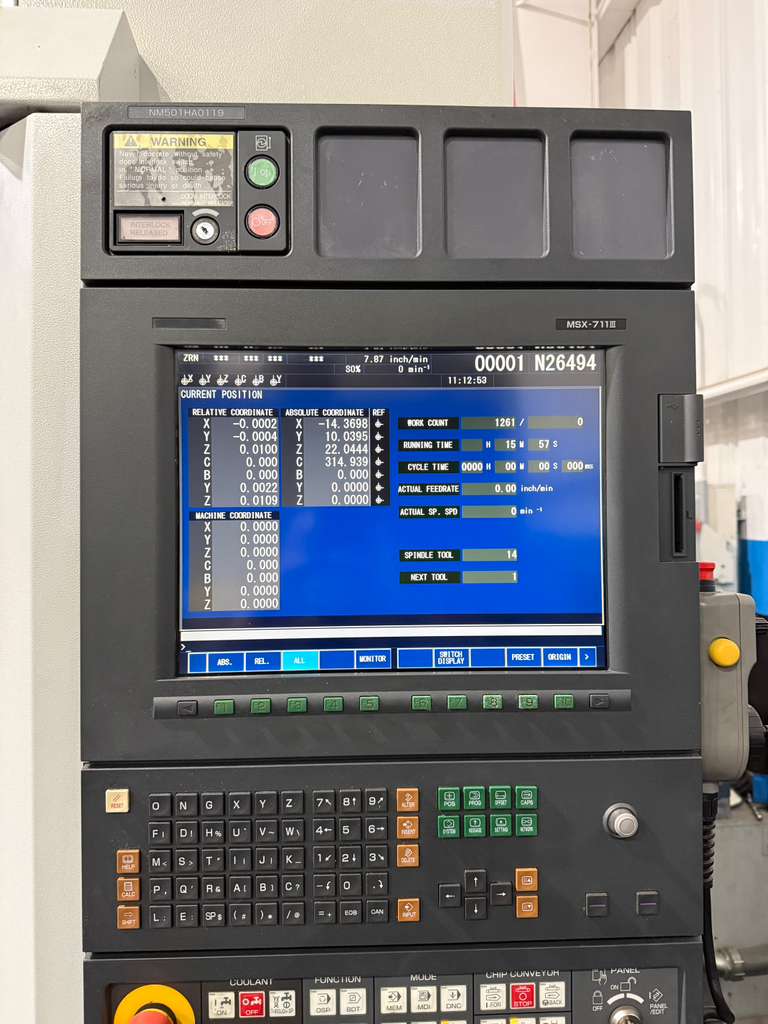

| Mori Seiki MSX-711 III CNC Control |
| 5-Axis Simultaneous Machining |
| Driven at the Center of Gravity (DCG) Structure |

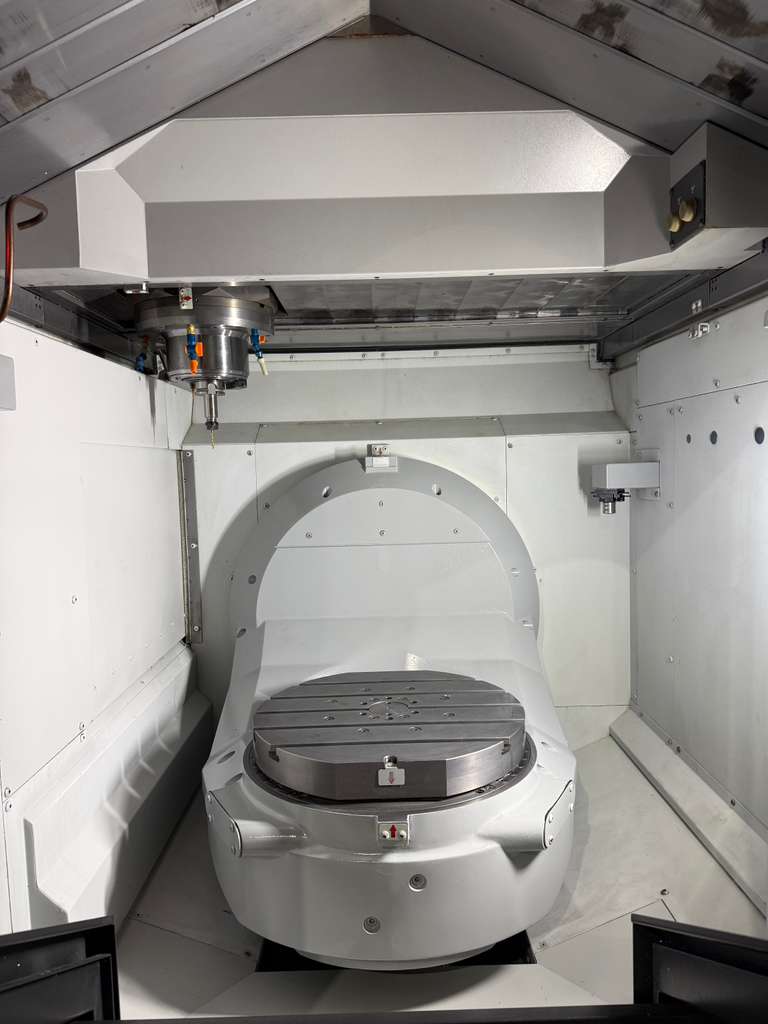

| 19.7″ Diameter Trunnion Table |
| 12,000 RPM High Precision Spindle |
| HSK-A63 Spindle Taper |
| 31 Station Automatic Tool Changer |

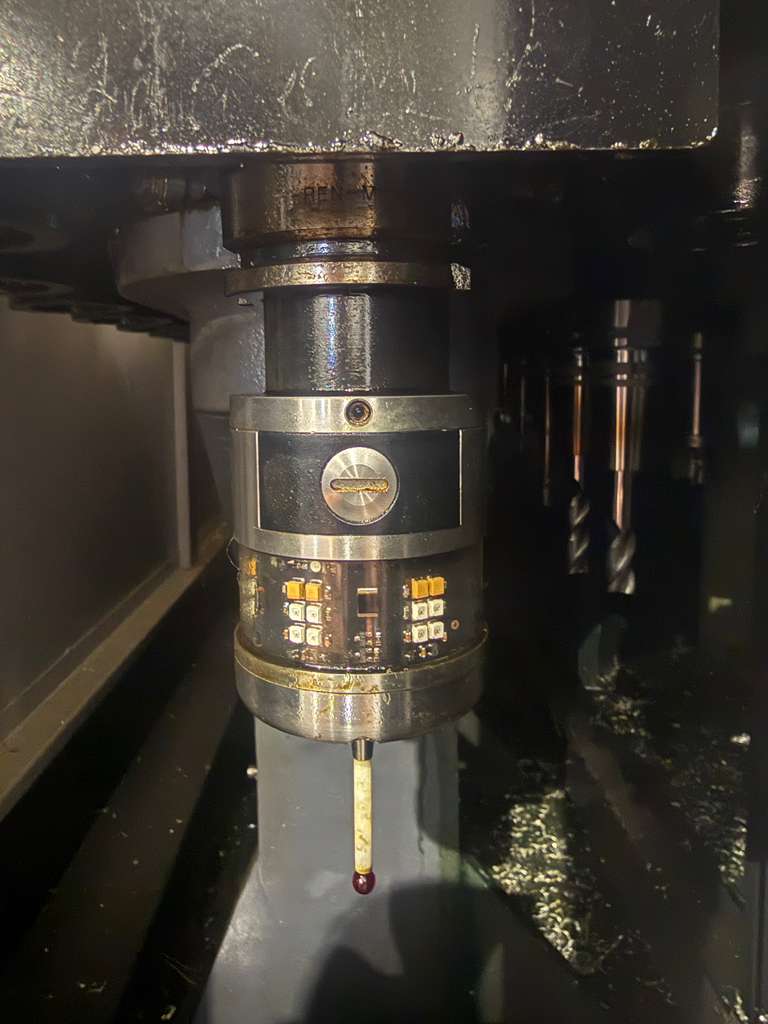

| Renishaw Probing System (Probe Included) |
| Tool Presetter |
| Through-Spindle Coolant |
| MPG Handwheel Control |
| Spindle Chiller |
| Coolant System |

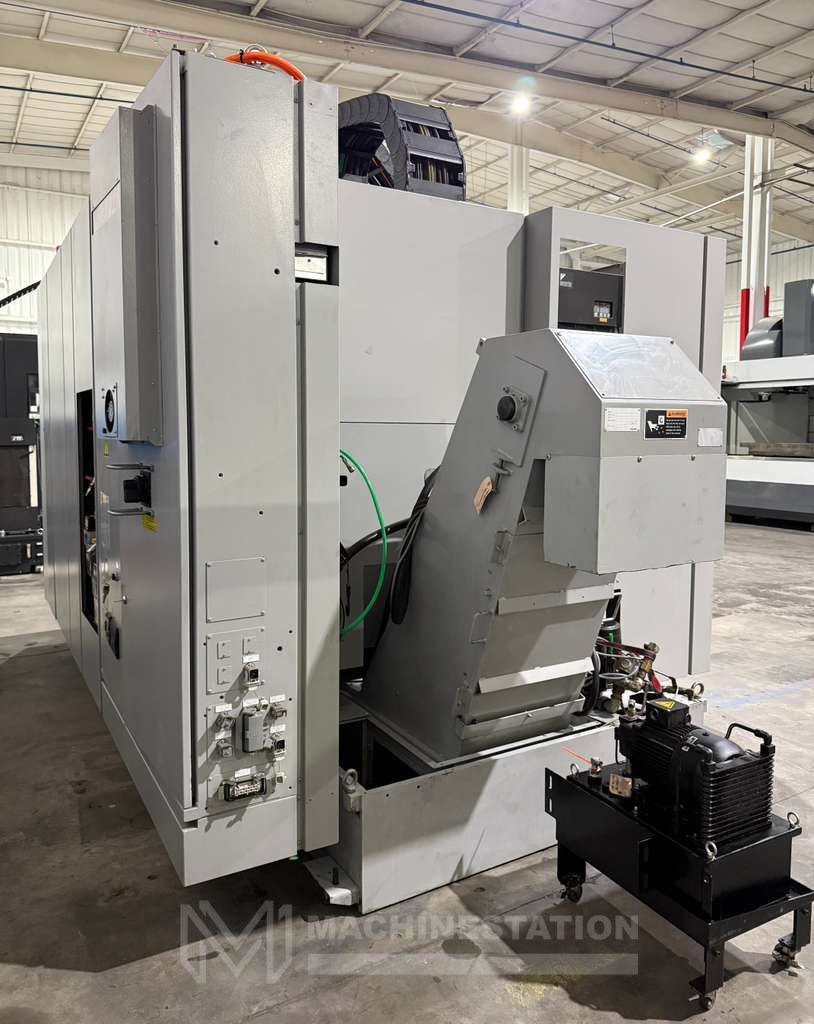

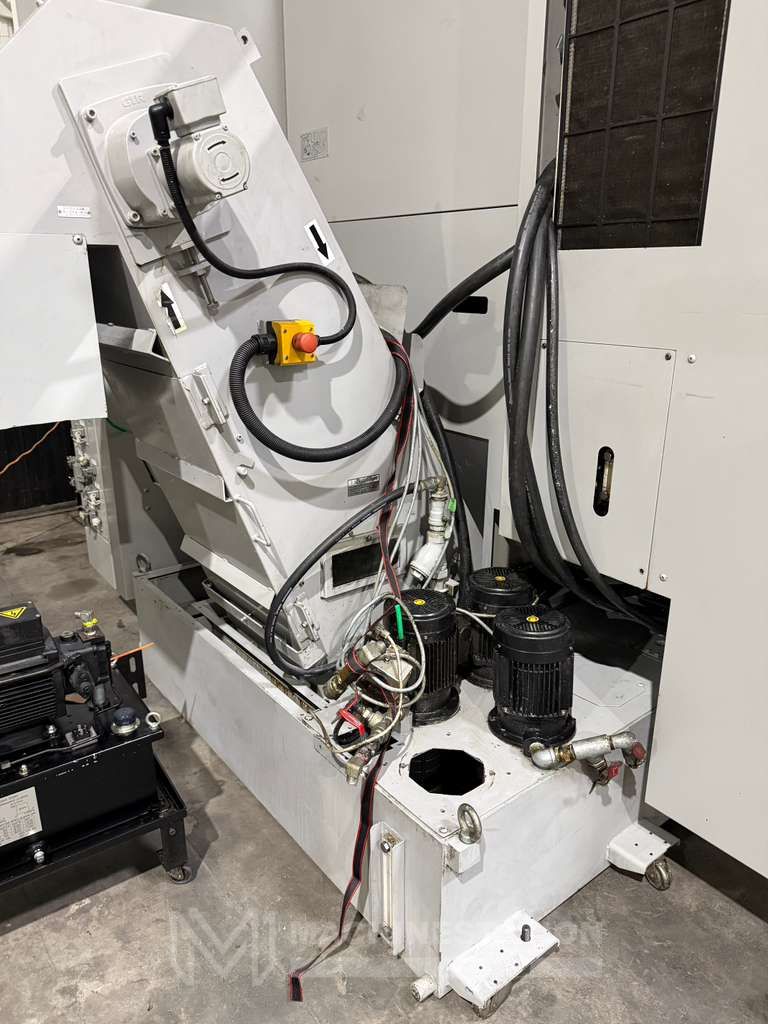

| Chip Conveyor |
| Travels: |
|---|
| X-Axis Travel: 28.7″ |
| Y-Axis Travel: 20.1″ |
| Z-Axis Travel: 20.1″ |
| Distance From Table to Spindle Gauge Plane: 5.1″ – 25.2″ |
| Rapid Traverse (X/Y): 1,968 Inches Per Minute |
| Rapid Traverse (Z): 1,575 Inches Per Minute |
| Cutting Feedrate (X/Y): 1,968 Inches Per Minute |
| Cutting Feedrate (Z): 1,575 Inches Per Minute |
| B-Axis Speed: 13.88 RPM |
| C-Axis Speed: 120 RPM |
| Table: |
|---|

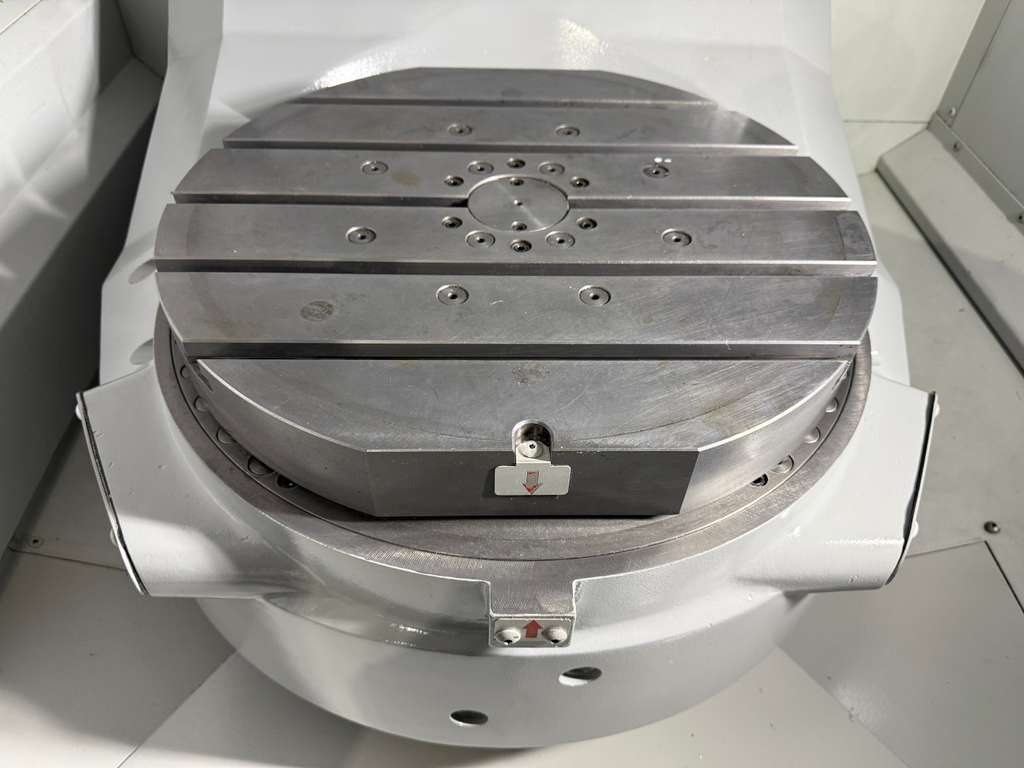

| Table Size: 19.7″ Diameter |
| Maximum Table Load: 660 lbs |
| Maximum Workpiece Swing Diameter: 27.5″ |
| Maximum Workpiece Height: 17.7″ |
| C-Axis Rotation: 360° |
| B-Axis Travel: +160° to −180° |

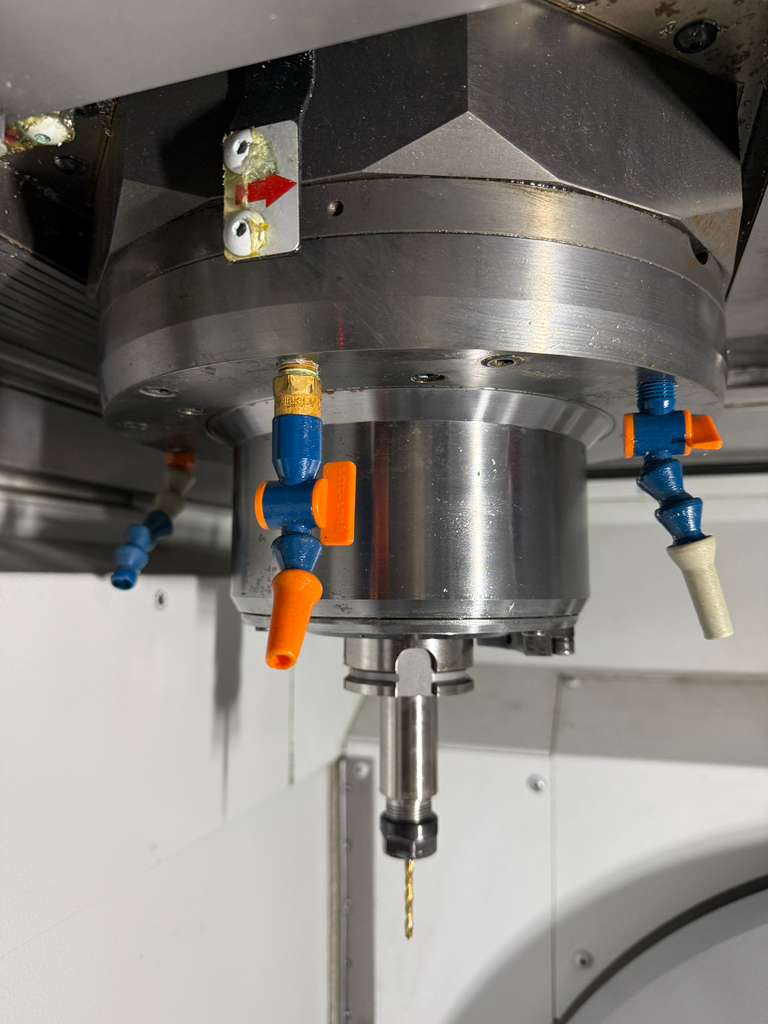

| Spindle: |
|---|

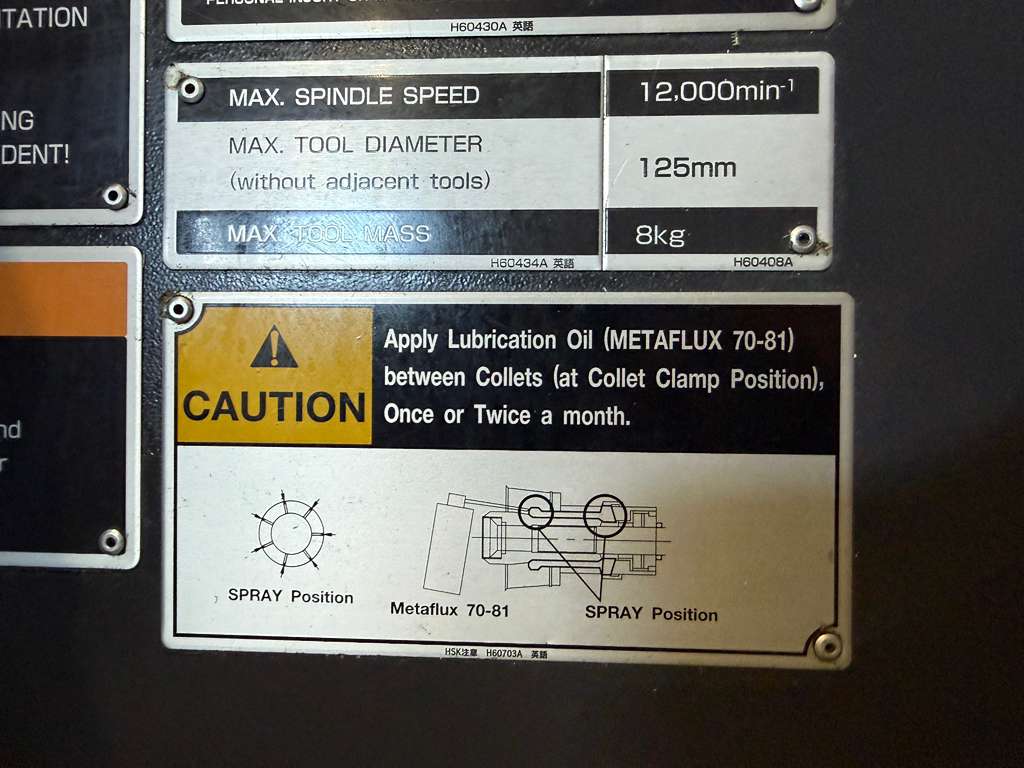

| Spindle Speed: 12,000 RPM |
| Spindle Taper: HSK-A63 |
| Spindle Power: 25 HP |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 31 Tools |
| Max Tool Diameter (With Adjacent Tools): 3.5″ |
| Max Tool Diameter (Without Adjacent Tools): 4.9″ |
| Max Tool Length: 11.8″ |
| Max Tool Weight: 17.6 lbs |
| Tool-to-Tool Time: 1.8 Seconds |
| General: |
|---|
| Air Requirement: 100 psi 4 scfm |

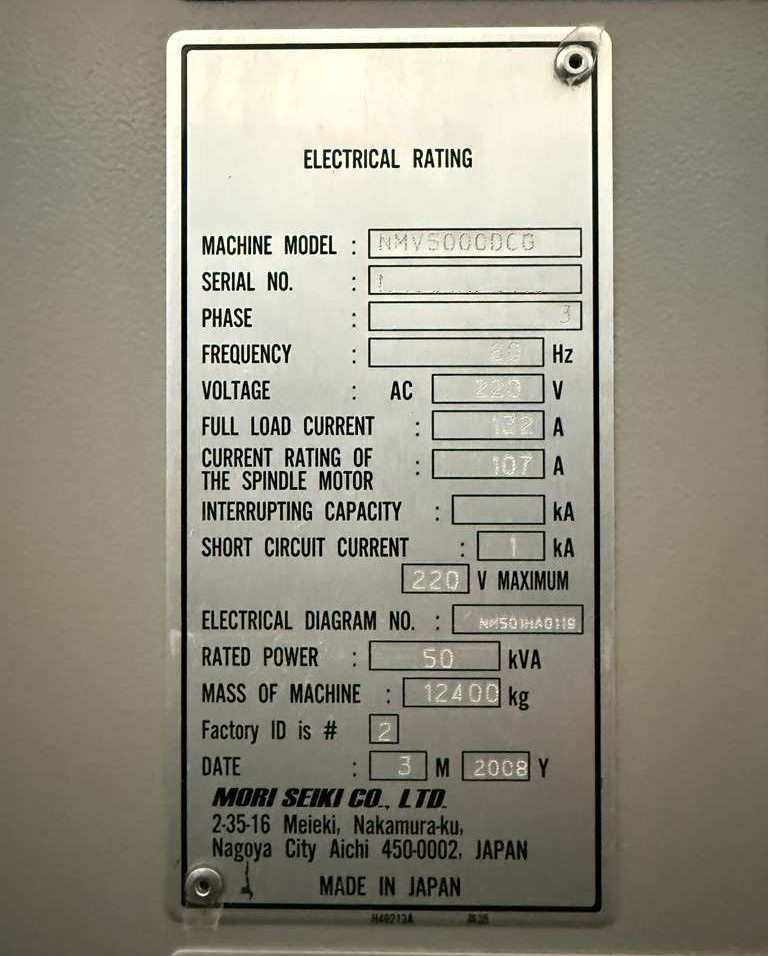

| Power: 50 kVA / 220V / 3-Phase / 60 Hz |
| Machine Dimensions: 109.1″ × 155.4″ × 128.5″ High Approx. |
| Machine Weight: 27,340 lbs Approx. |
