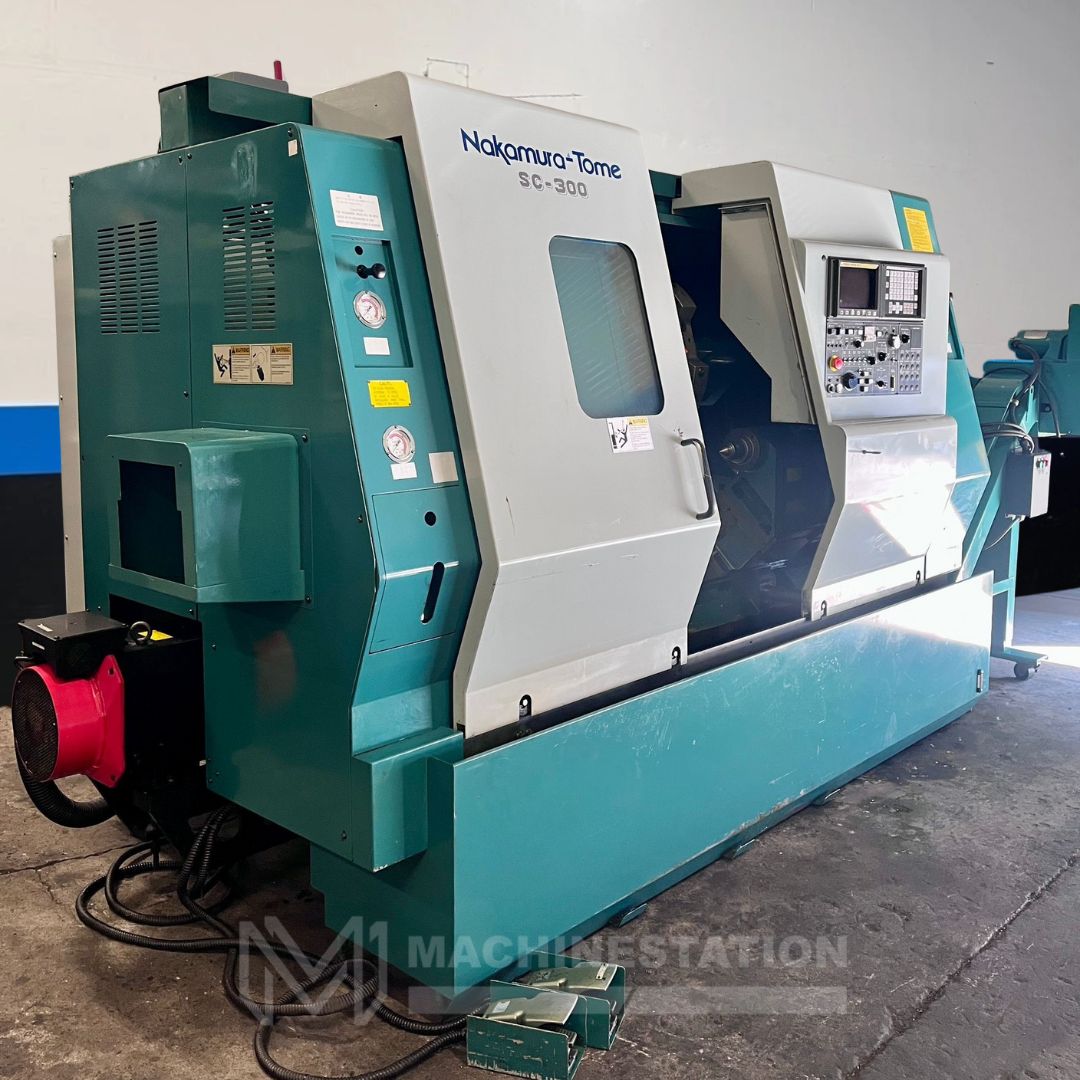

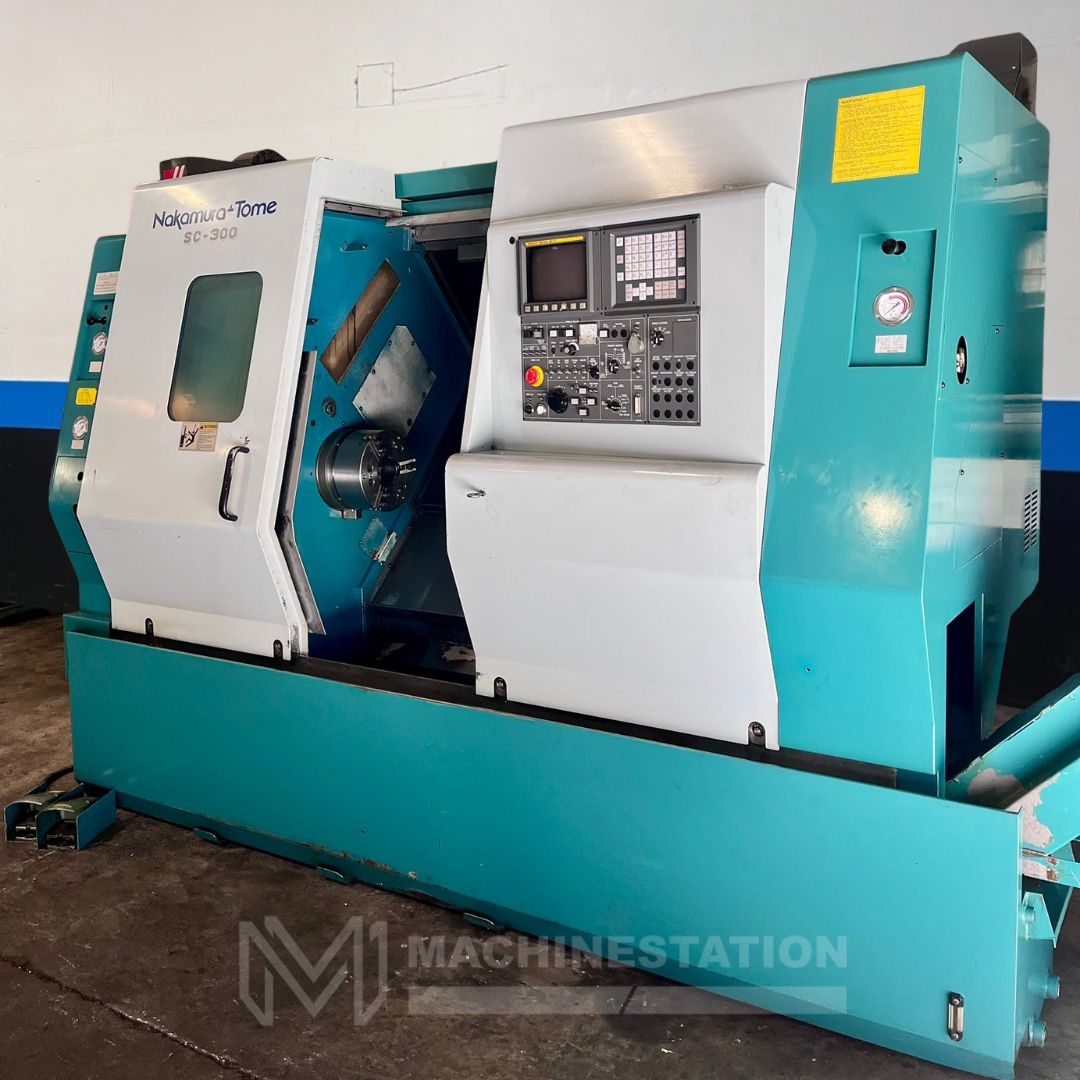

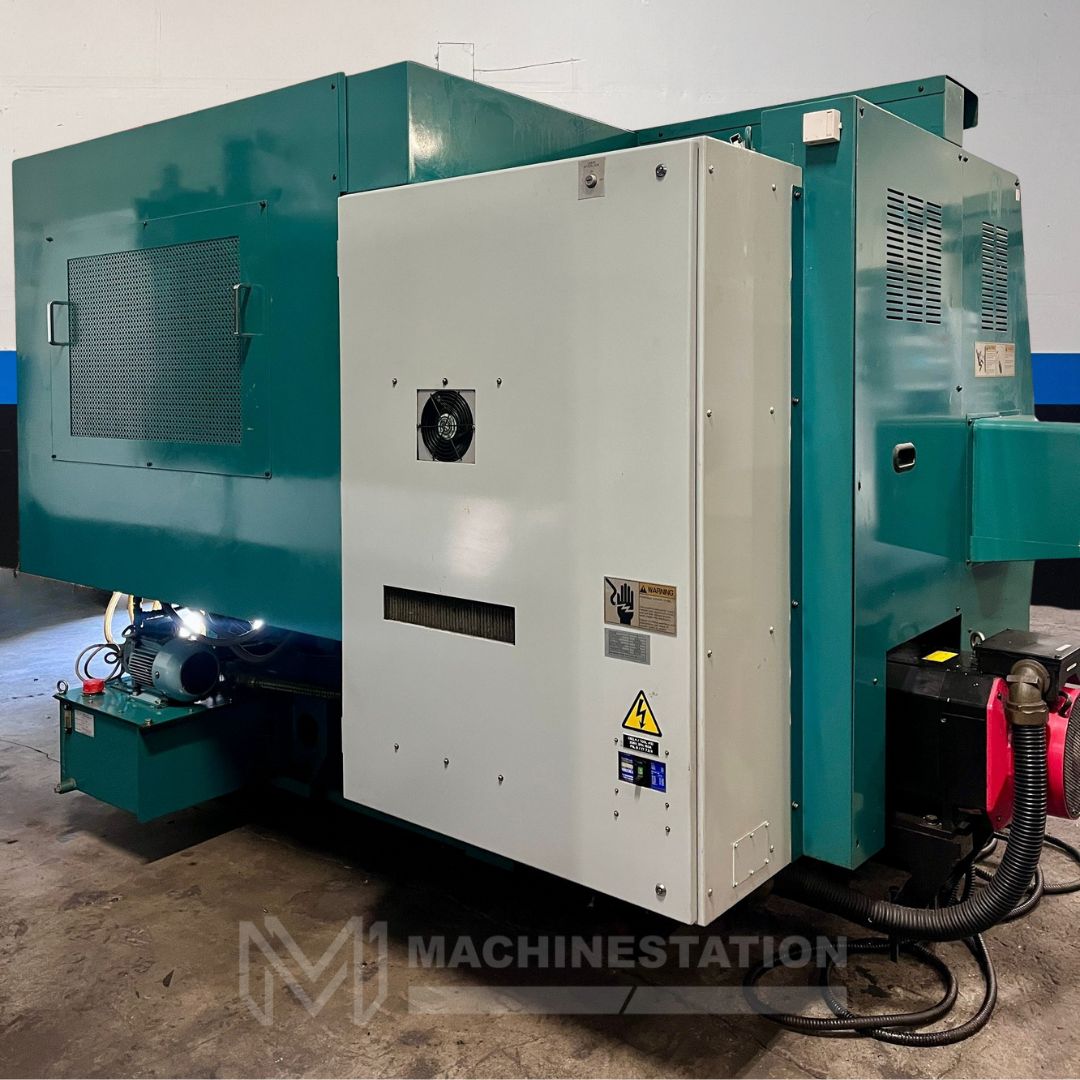

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

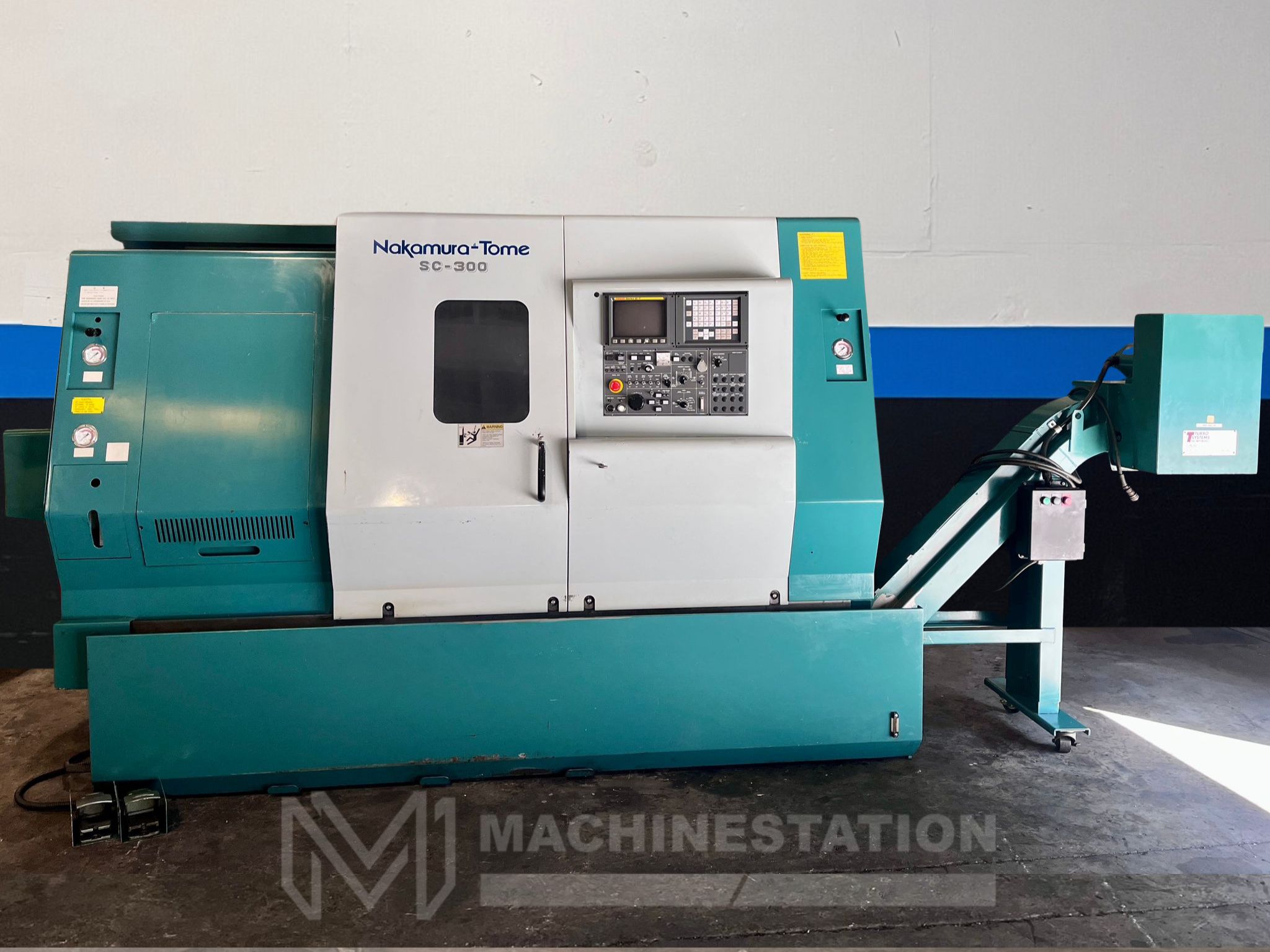

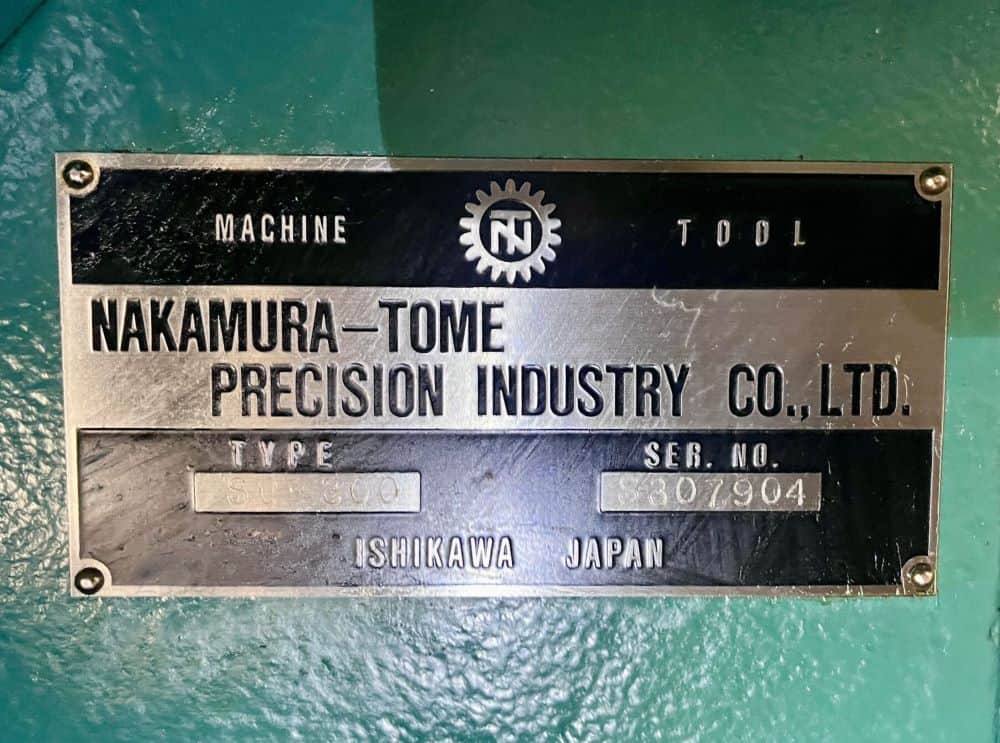

| Make: | Nakamura Tome |
| Model: | SC-300 |
| Year: | 1998 |
| Condition: | Used – Good |
| Equipped With: |
|---|

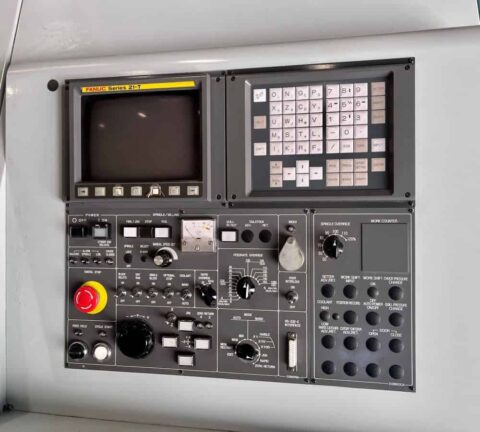

| Fanuc 21-T CNC Control |

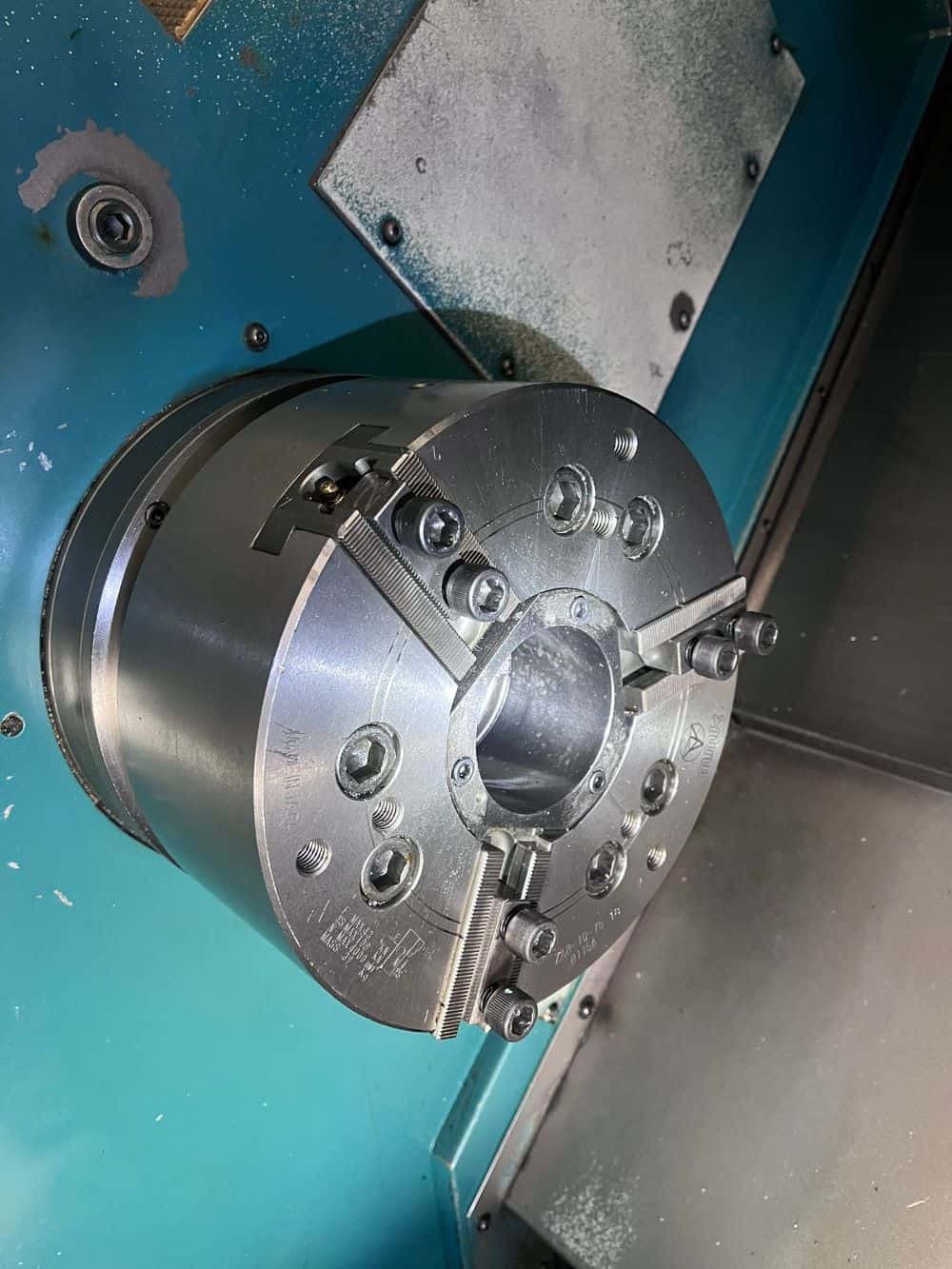

| 10″ 3-Jaw Chuck |
| 12 Station Automatic Turret |
| Tailstock |
| Rigid Tapping |
| Foot Switches |
| Coolant System |

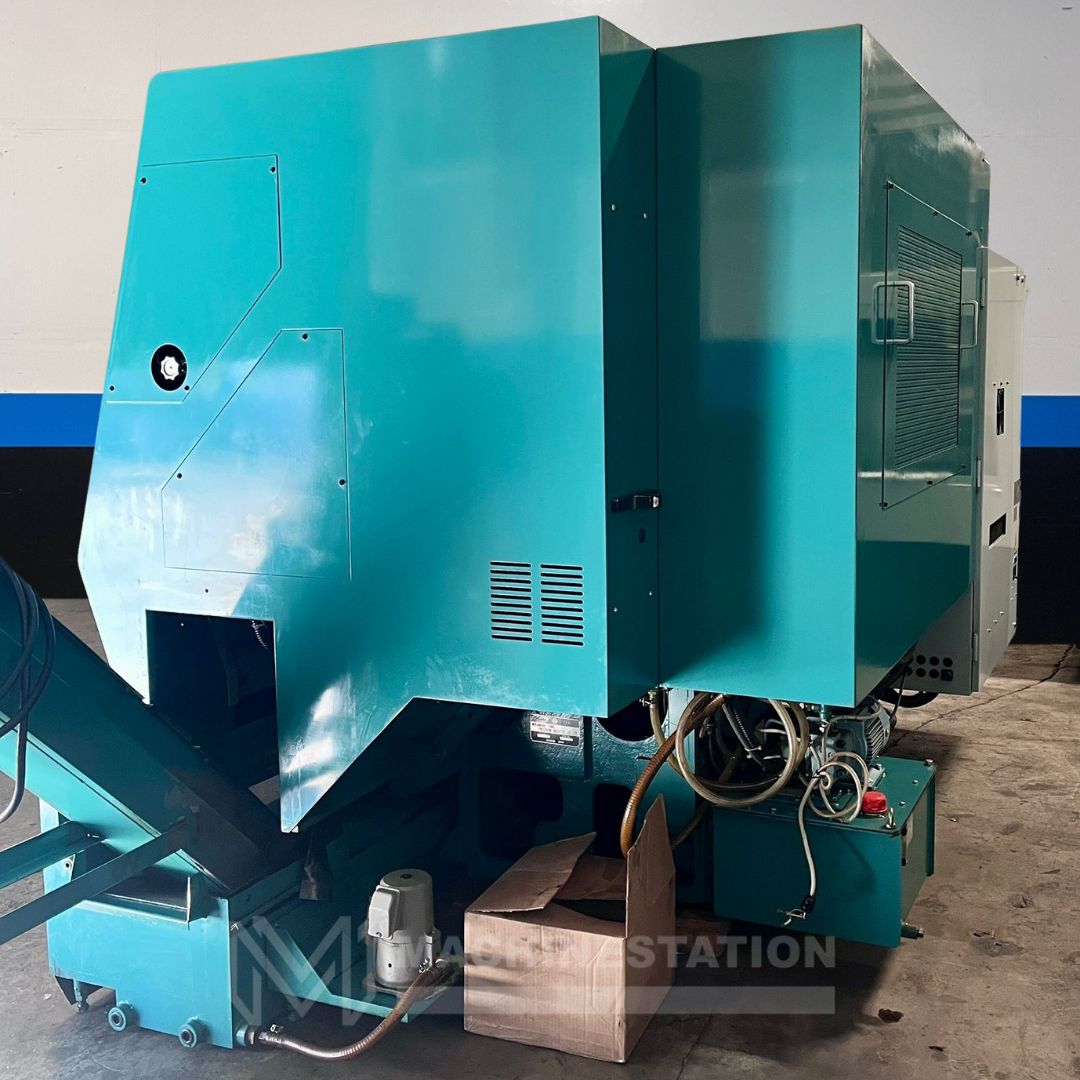

| Chip Conveyor |

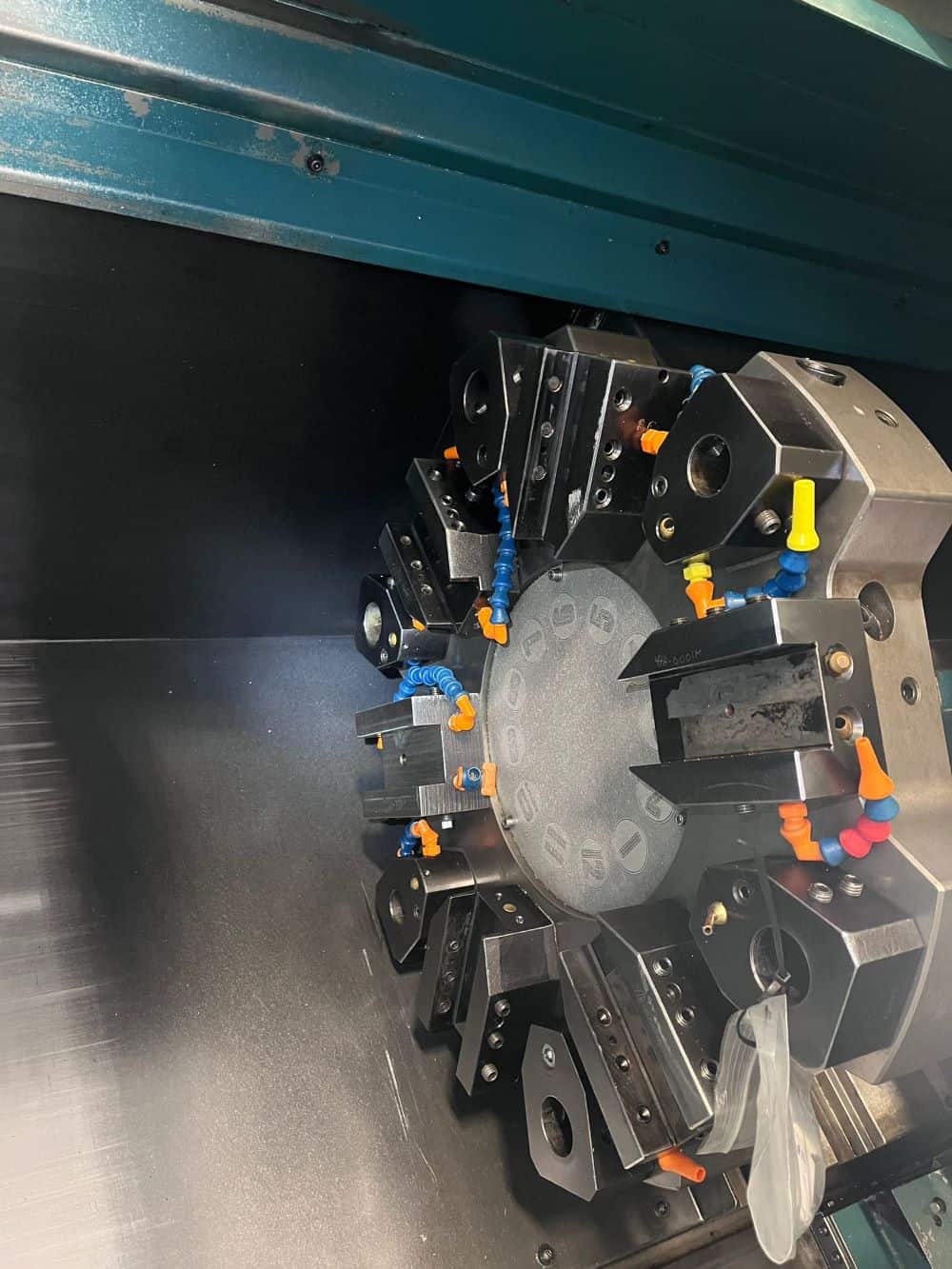

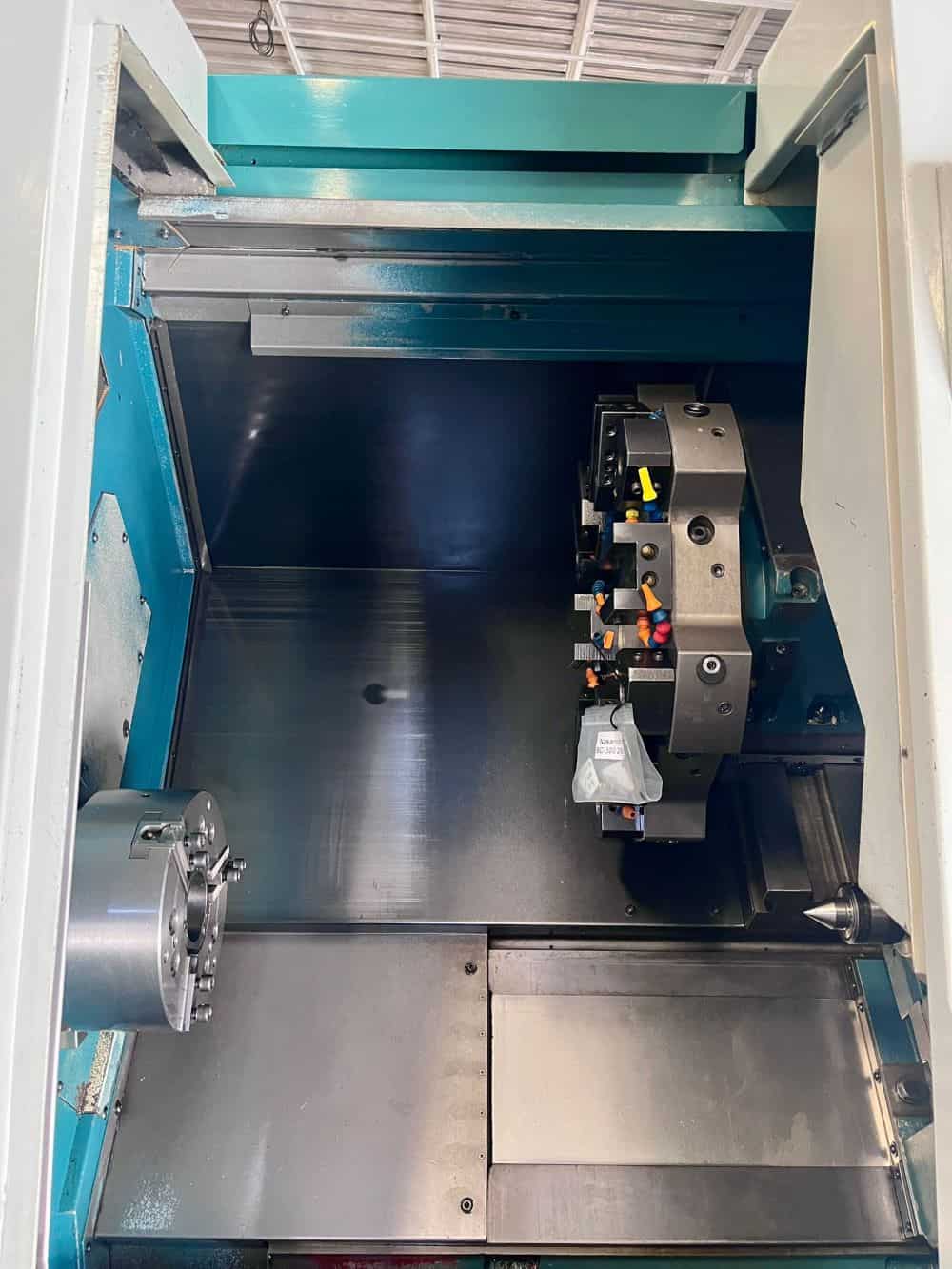

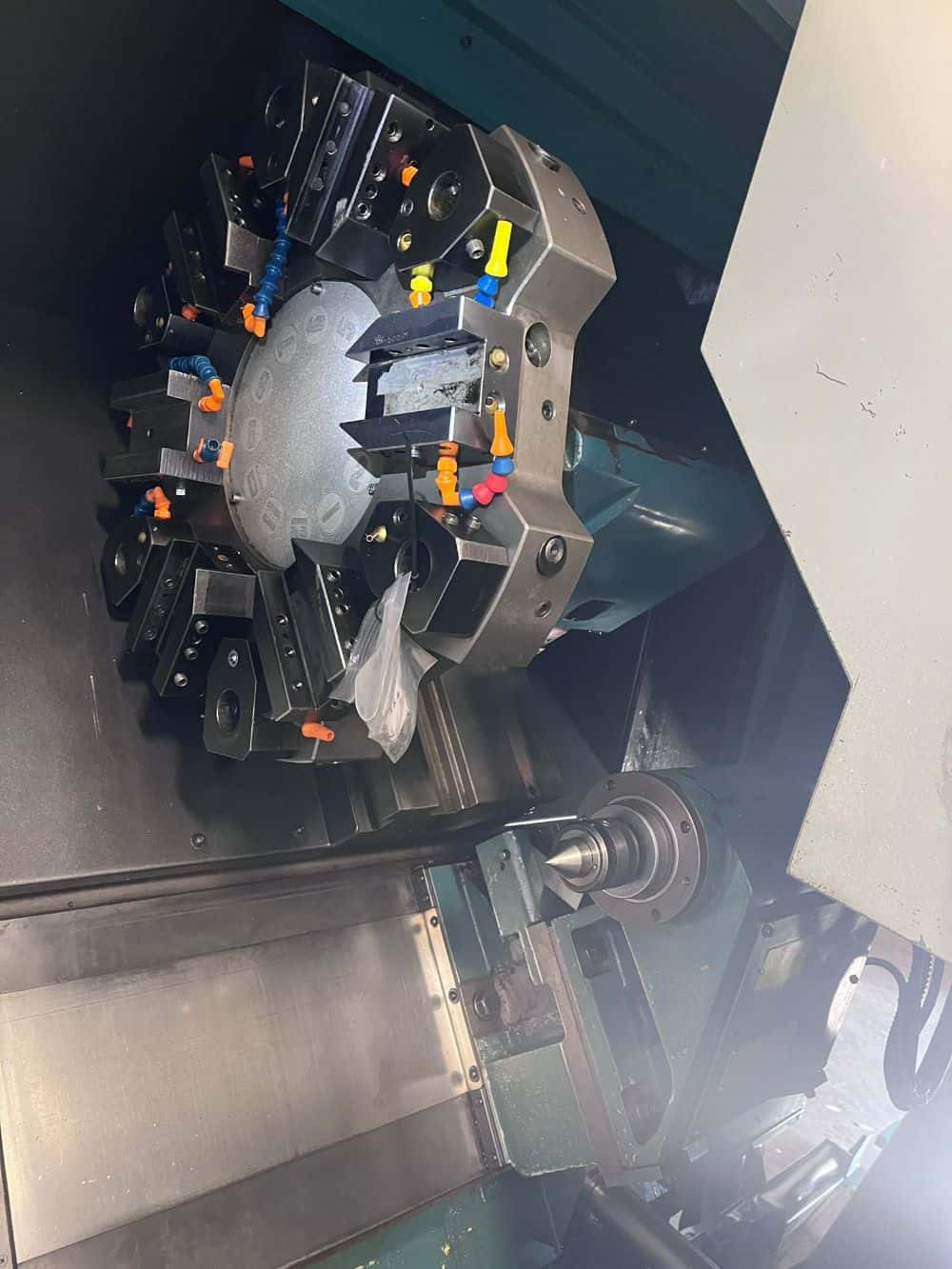

| (6) Boring & (6) Turning Tool Holders are Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 13.77″ |
| Max Turning Length: 23.62″ |
| Max Bar Capacity: 2.79″ |
| Swing Over Bed: 22.00″ |
| Swing Over Carriage: 17.70″ |
| Distance Between Centers: 28.09″ |
| Travels: |
|---|
| X Axis Travel: 8.75″ |
| Z Axis Travel: 25.00″ |
| Rapid Traverse X Axis: 1598 cm/min |
| Rapid Traverse Z Axis: 1999 cm/min |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.20″ |
| Spindle Speed: 3500 RPM |
| Spindle Motor: 22.4 kW |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Tool Holders Type: VDI |
| Tailstock: |
|---|
| Taper Size: MT#5 |
| Tailstock Travel: 15.74″ |
| Quill Diameter: 3.54″ |
| Quill Travel: 3.93″ |
| General: |
|---|

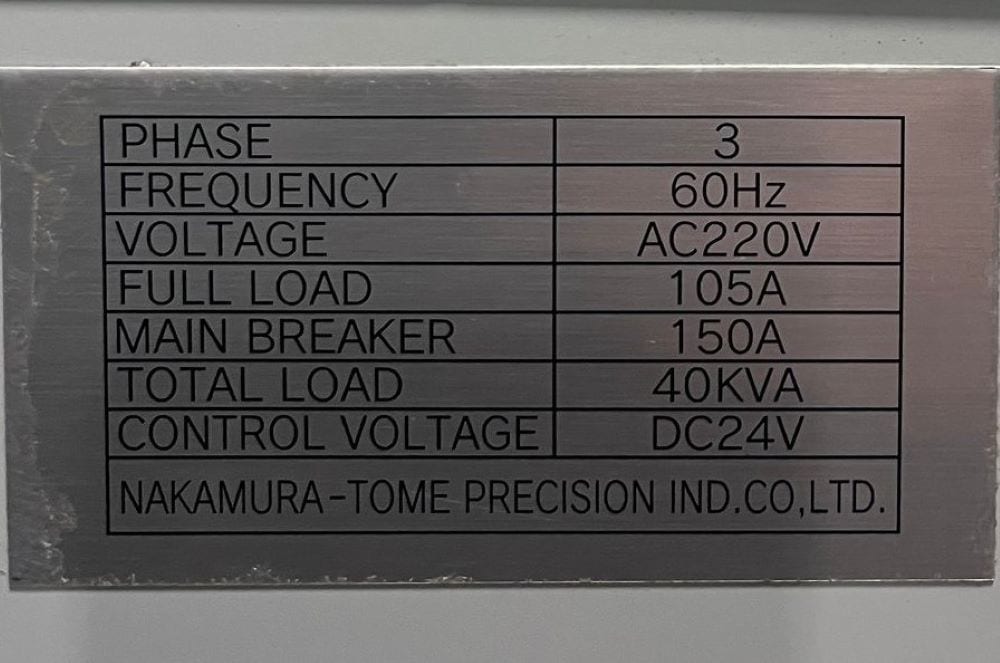

| Power: 40 kva, 220v / 3-Phase |
| Overall Dimensions: 126″ x 68″ x 77″ High Approx. |
| Weight: 4599.4 kg. Approx. |
