Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.

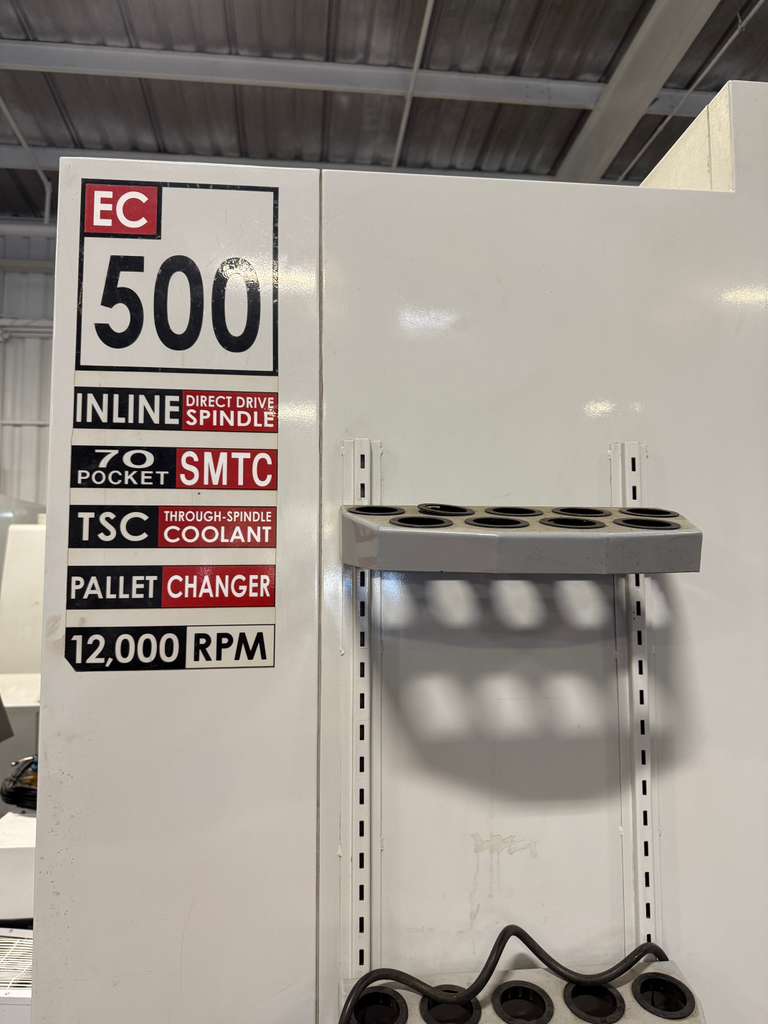

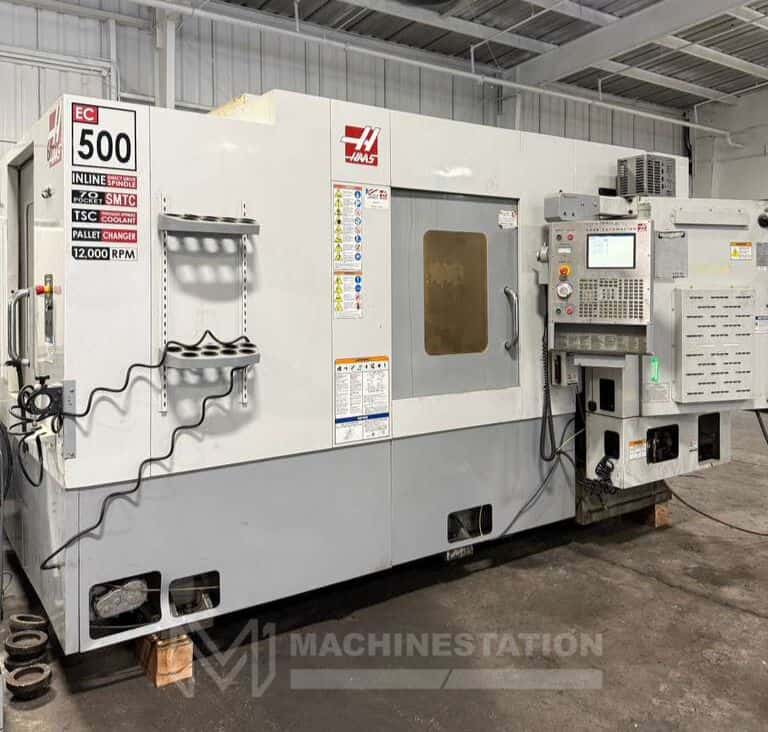

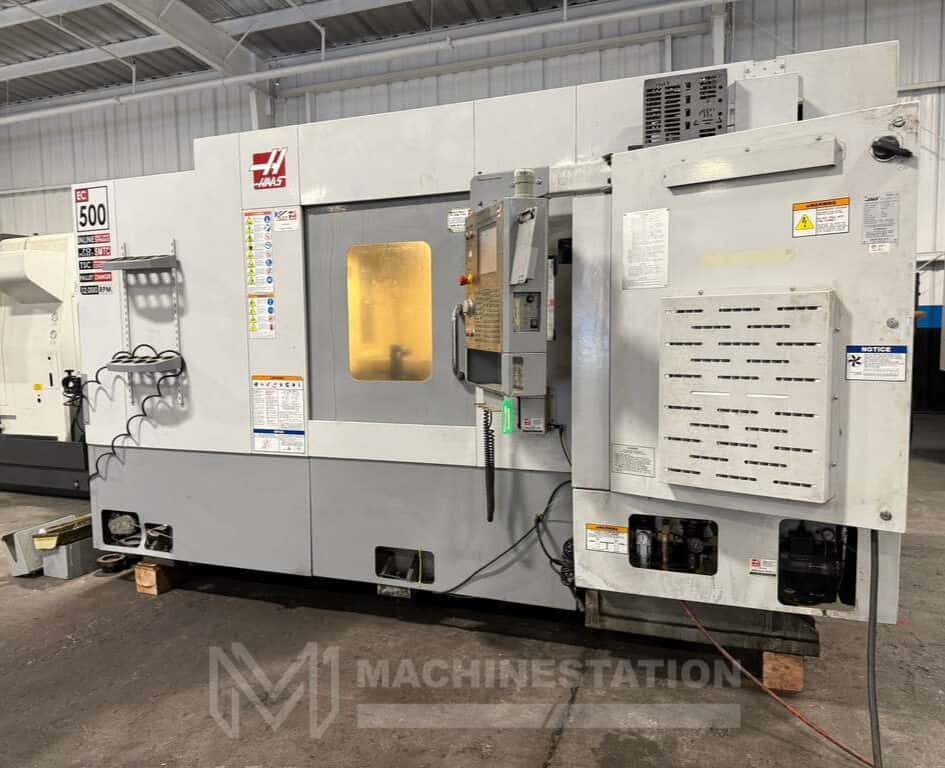

| Features: |
|---|

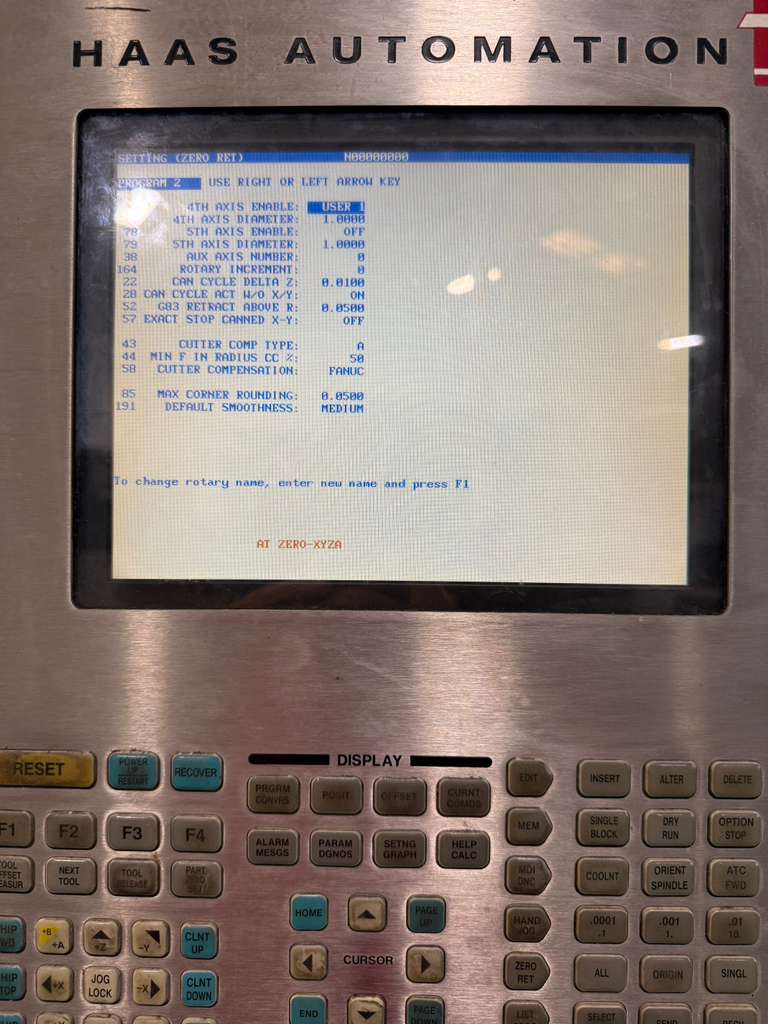

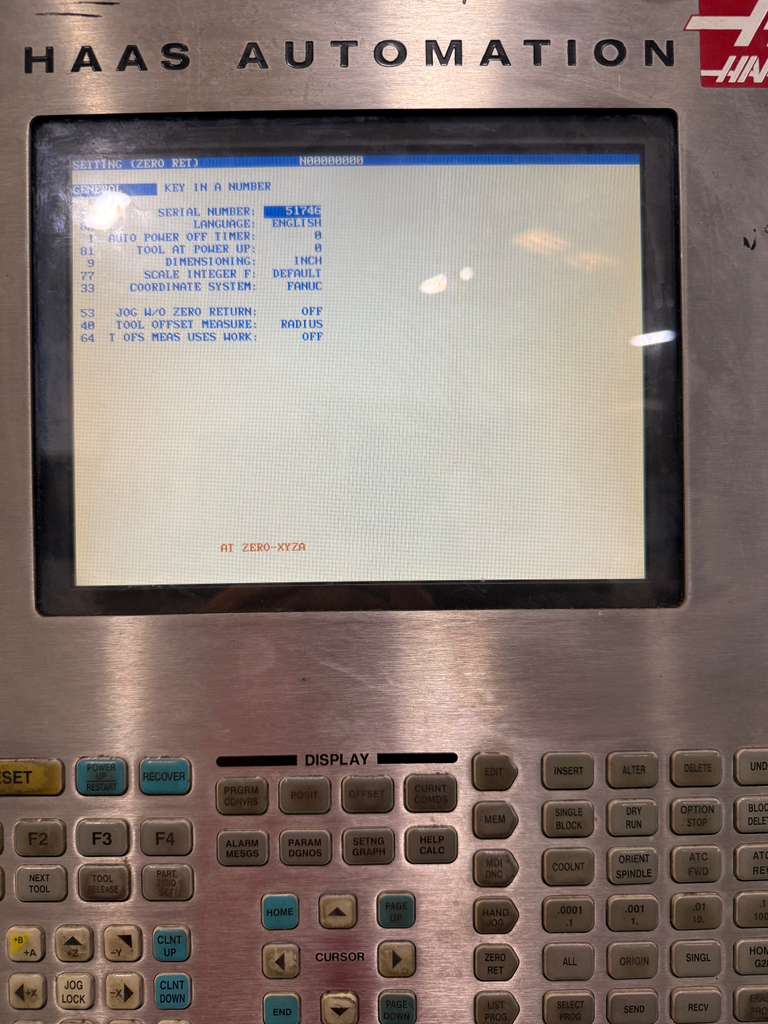

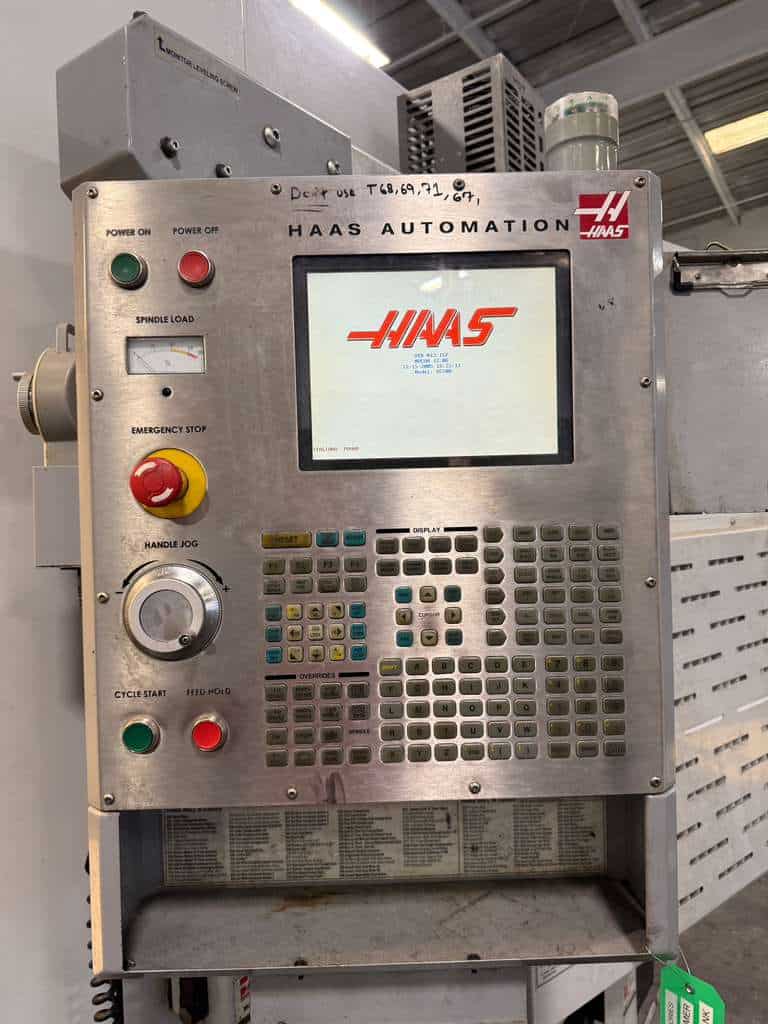

| Haas CNC Control |
| Linear Ways Guideways |
| Pallet Changer |
| Full 4th Axis |
| 12000 RPM Inline Direct Drive Spindle |
| Through Spindle Coolant |
| 70 Tools Side Mount Tool Changer |
| Renishaw Probing System (Probe Needed) |
| Tool Presetter |
| MPG Handwheel Control |
| Rigid Tapping |
| Coolant system |
| Chip Auger |
| Travels: |
|---|
| X-Axis: 32″ |
| Y-Axis: 25″ |
| Z-Axis: 28″ |
| B Axis: 0.001° Indexing ( Full 4th ) |
| Pallet: |
|---|
| Dual Pallet Changer |
| Pallet Size: 19.69″ X 19.69″ |
| Max Weight on Pallet: 880 lbs |
| Max Part Diameter: 29.5″ |
| Max Part Height: 36.5″ |
| Pallet Change Time: 15 Seconds |
| Spindle: |
|---|
| Taper Size: 40 |
| Spindle Speed: 12000 RPM |
| Spindle Power: 30 HP |
| Feed rates: |
|---|
| Rapid Traverse Rates: 1400 Inch Per Minute |
| Cutting Feed Rates: 833 Inch Per Minute |
| Tool changer: |
|---|
| Capacity: 70 Station Side Mounted |
| Max Tool Diameter: 2.5″ – 5.0″ |
| Max Tool Length: 12″ |
| Max Tool Weight: 12 lbs. |
| Tool Change Time (Tool to Tool): 2.8 Second |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

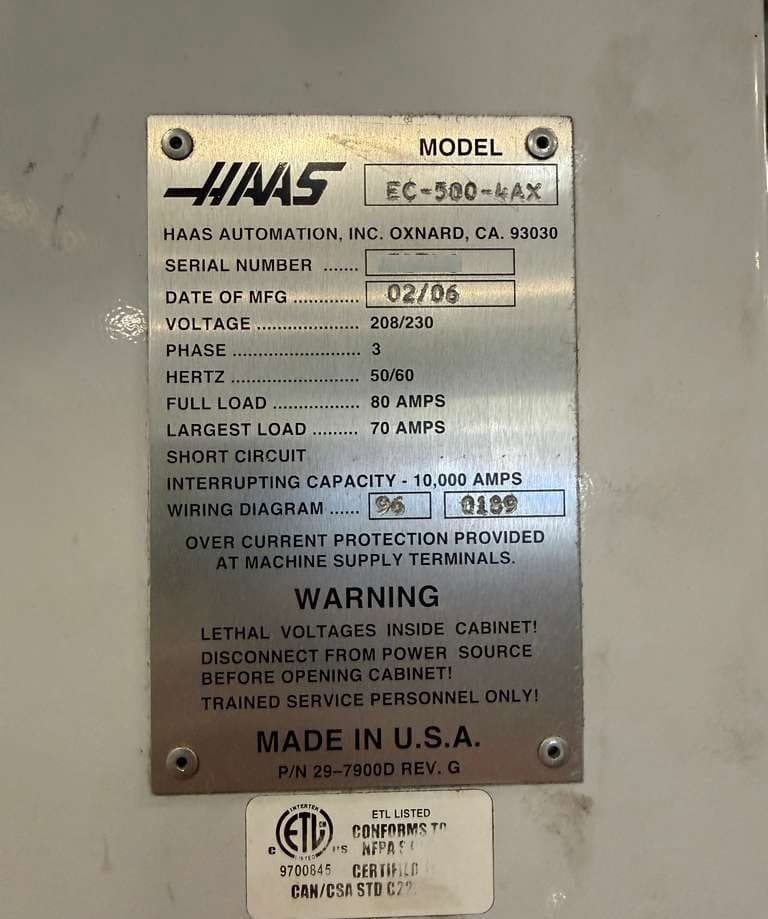

| Power: 220v / 66FLA / 3-Phase |
| Overall Shipping Dimensions: 202″ x 100″ x 111″ High Approx. |
| Weight: 20120 lbs. Approx. |
