Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

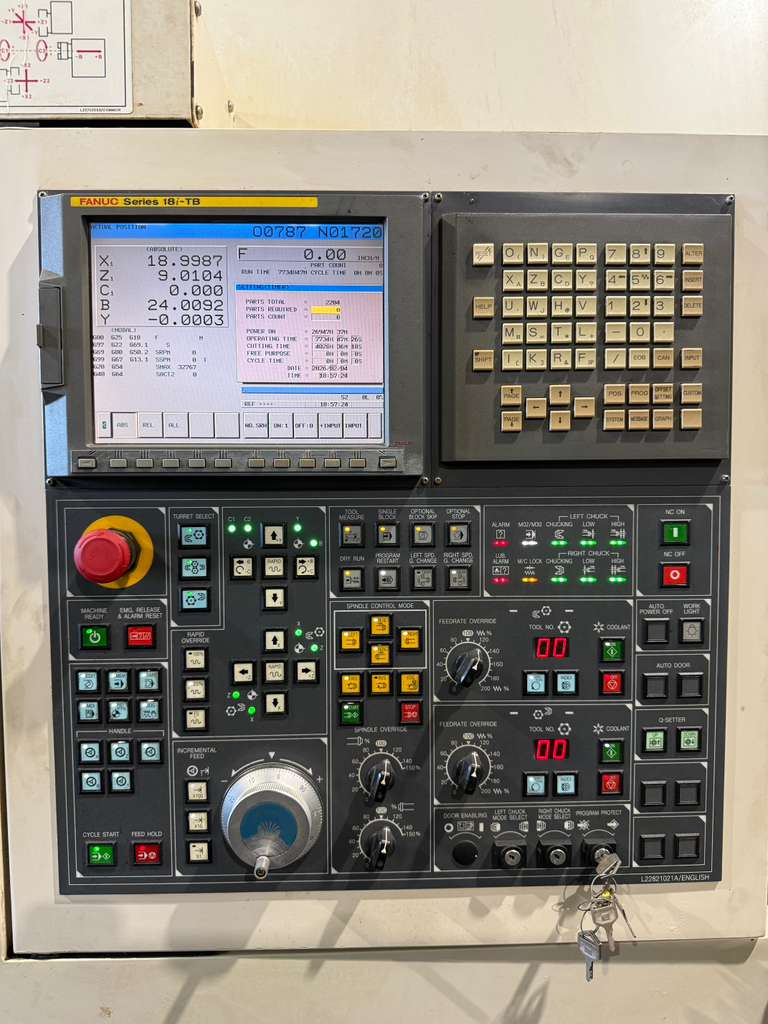

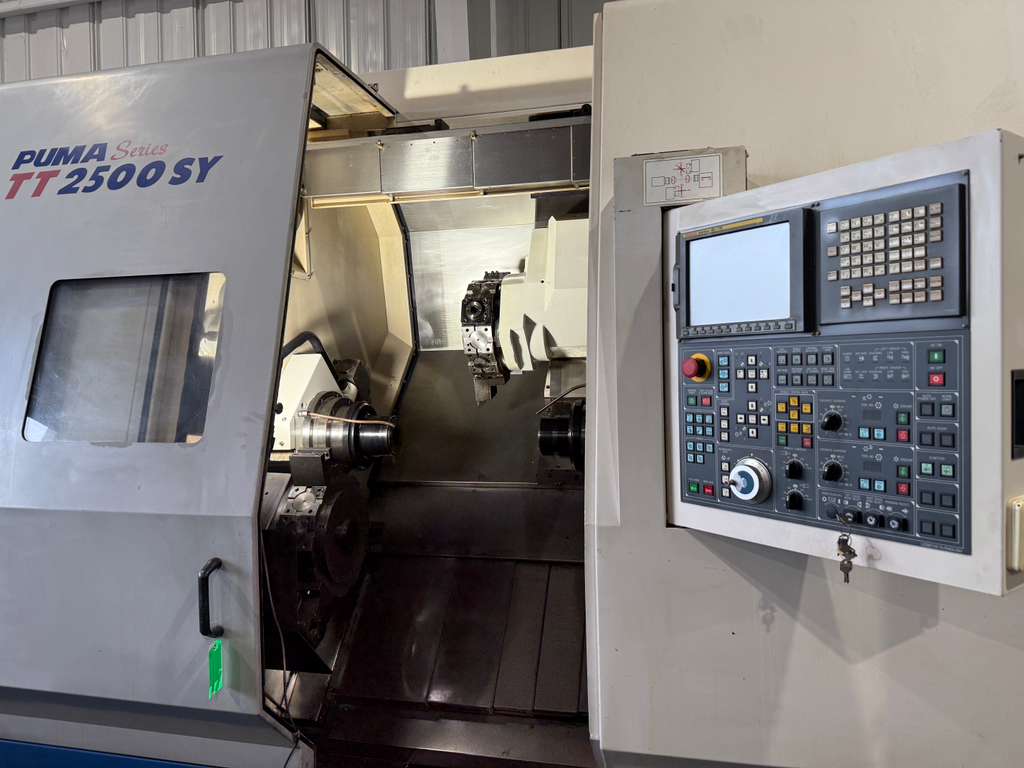

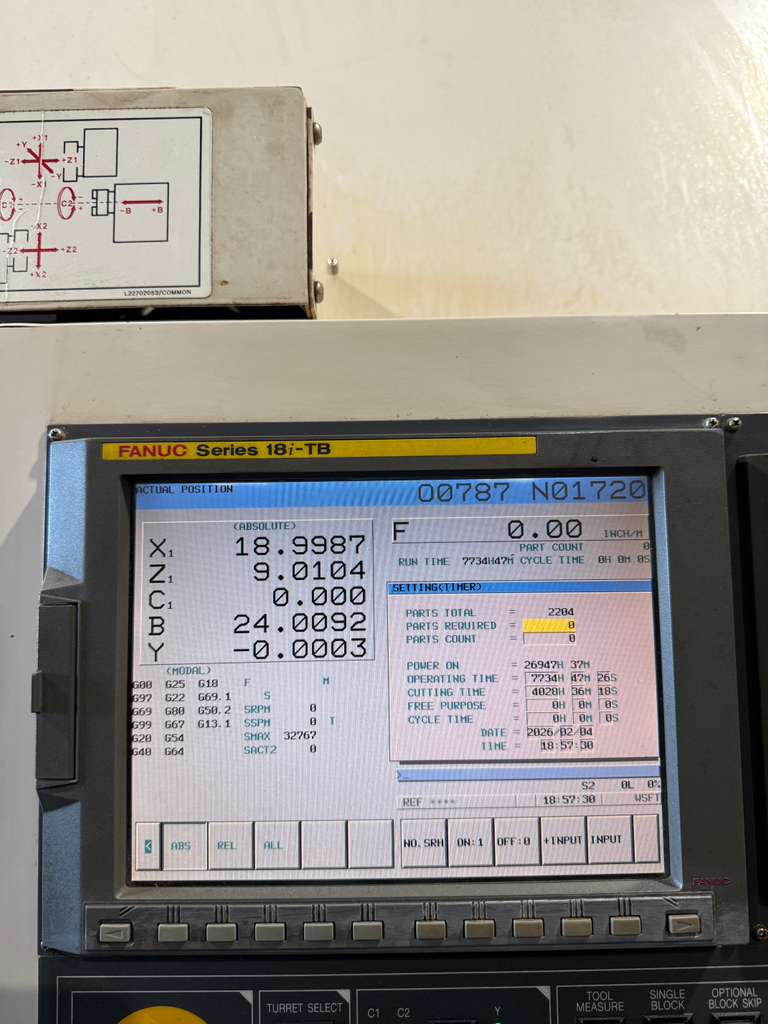

| Fanuc 18i-TB CNC Control |
| Heavy Duty Box Way Construction |
| Collet Chuck on Main Spindle (Capable 10″ Chuck) |
| Collet Chuck on Sub Spindle (Capable 10″ Chuck) |
| Sub Spindle |
| Servo Controlled Full C-Axis on Both Spindles |
| Both Spindle Synchronization |

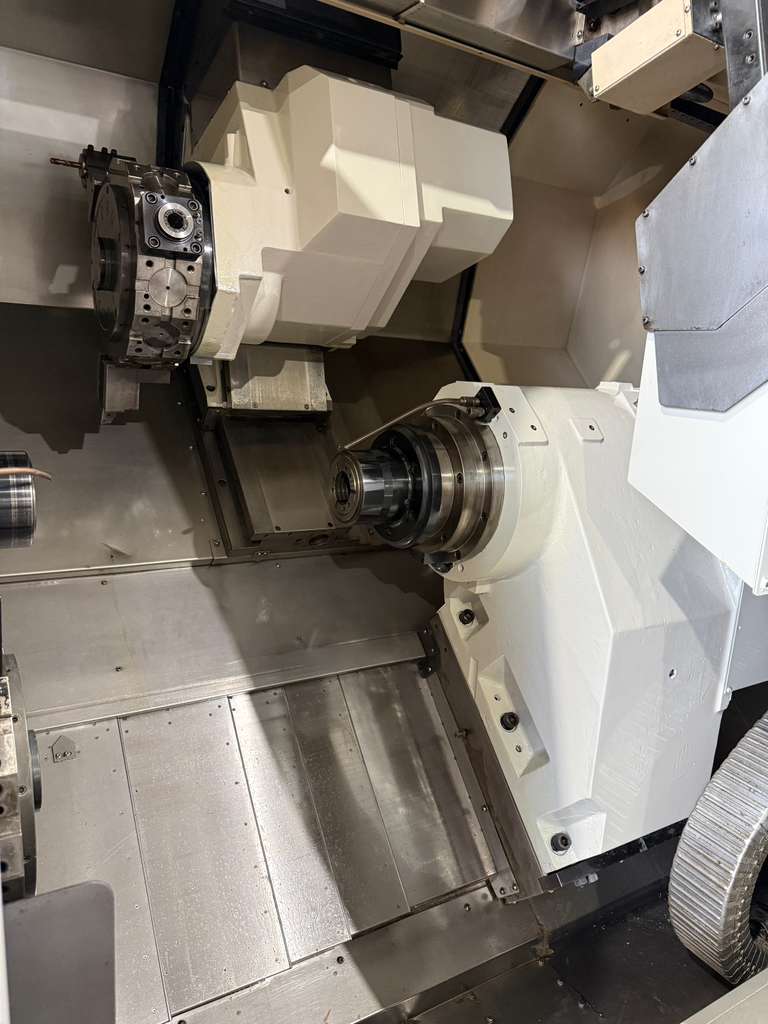

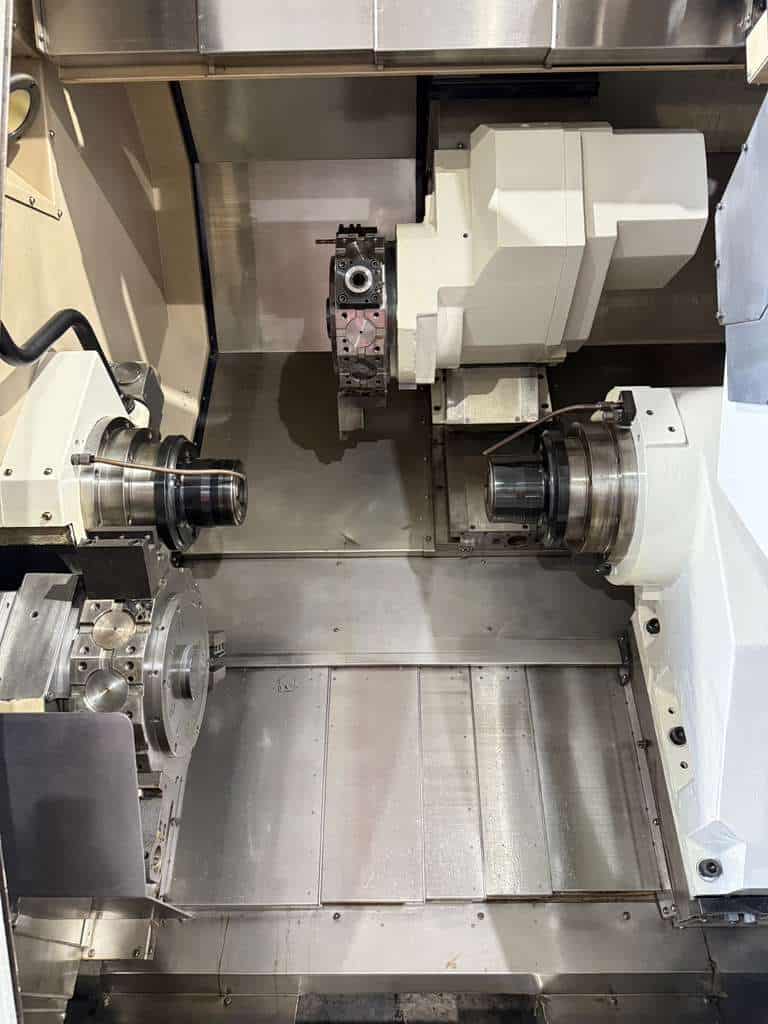

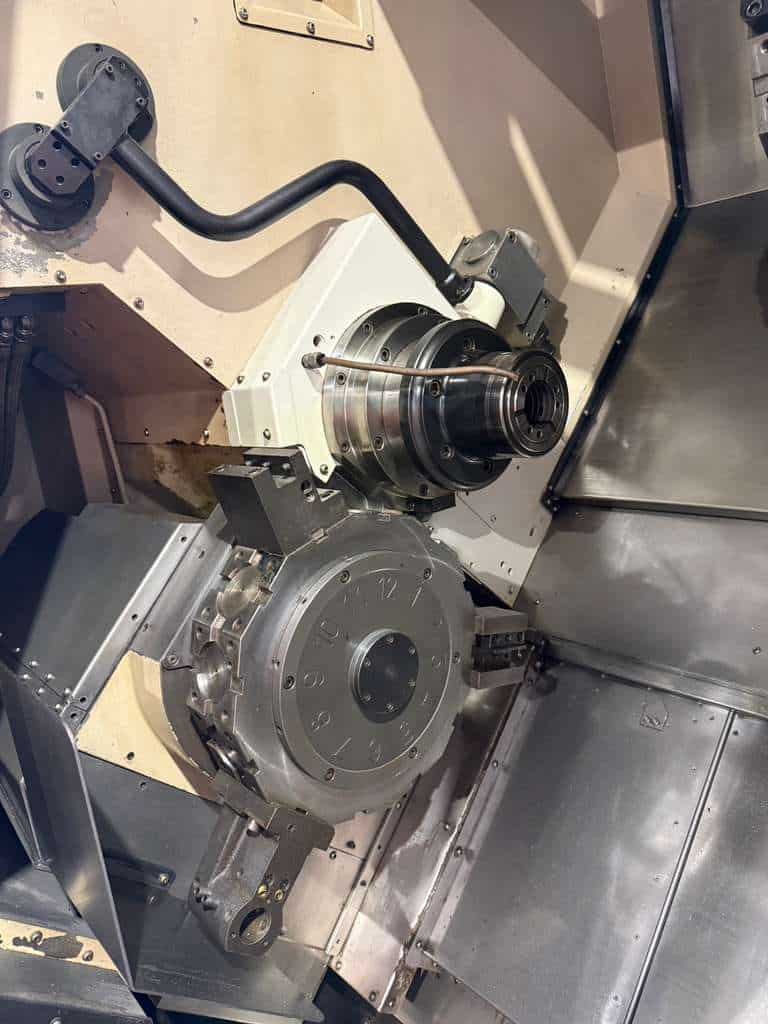

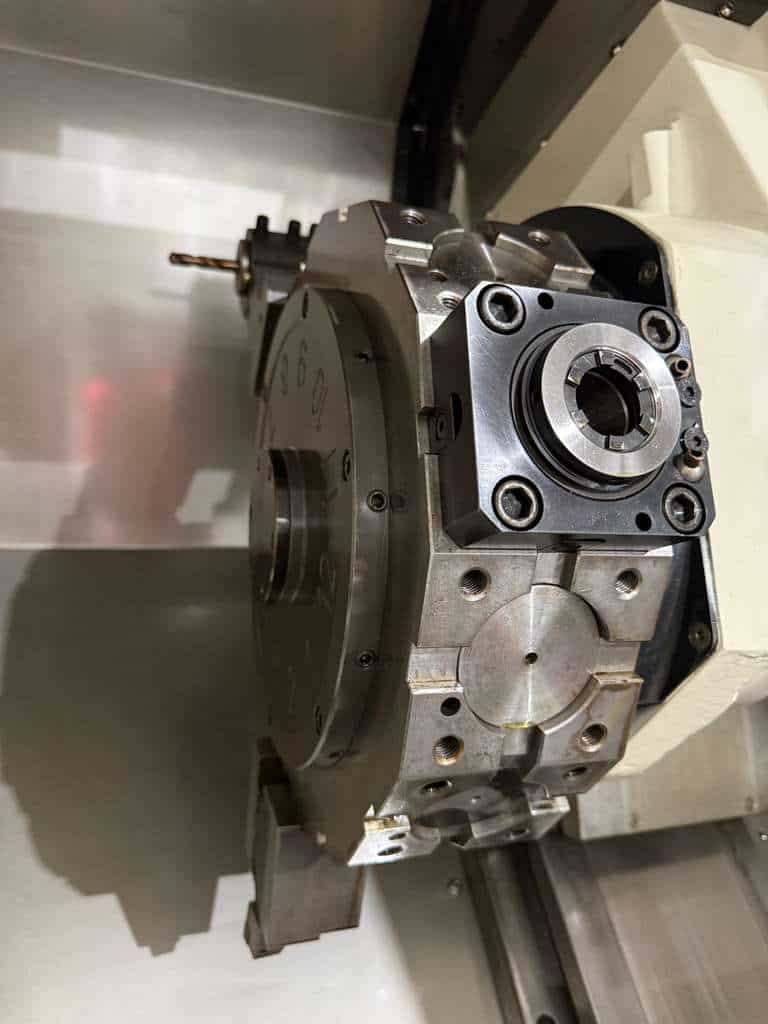

| 12 Station Live Tool Upper Turret |
| 12 Station Live Tool Lower Turret |
| Y Axis Capability on Upper Turret |
| Tool Presetter |
| Bar Feeder Interface |
| Coolant System |
| Chip Conveyor |
| Automatic Lubrication System |
| Live & Statics Tool Holders are Mounted on Turrets (As shown in the images) |
| Capacity: |
| Max Turning Diameter Upper Turret : 15.4″ |
| Max Turning Diameter Lower Turret : 11.8″ |
| Max Swing Over Bed : 31.5″ |
| Max Swing Over Saddle: 24.4″ |
| Max Turning Length: 13.8″ |
| Max Bar Capacity Main Spindle : 3.0″ |
| Max Bar Capacity Sub Spindle : 3.0″ |
| Travels: |
| X1 Axis Travel Upper Turret: 10.0″ |
| X2 Axis Travel Lower Turret : 8.26″ |
| Y Axis Travel Upper Turret: -2.4″/+2.4″ |
| Z1 Axis Travel Upper Turret: 31.5″ |
| Z2 Axis Travel Lower Turret : 35.4″ |
| A Axis Travel: 31.9″ ( Sub Spindle ) |
| C Axis: 360° (0.001°) Both Spindle |
| Feedrate: |
| X1/X2 Axis: 787 IPM Rapid Traverse |
| Z1/Z2 Axis: 945 IPM Rapid Traverse |
| A Axis: 945 IPM Rapid Traverse |
| Main Spindle: |
| Main Spindle Nose: A2-8 |
| Main Spindle Bore: 3.38″ |
| Main Spindle Speed: 3,500 RPM |
| Main Spindle Power: 30 HP |

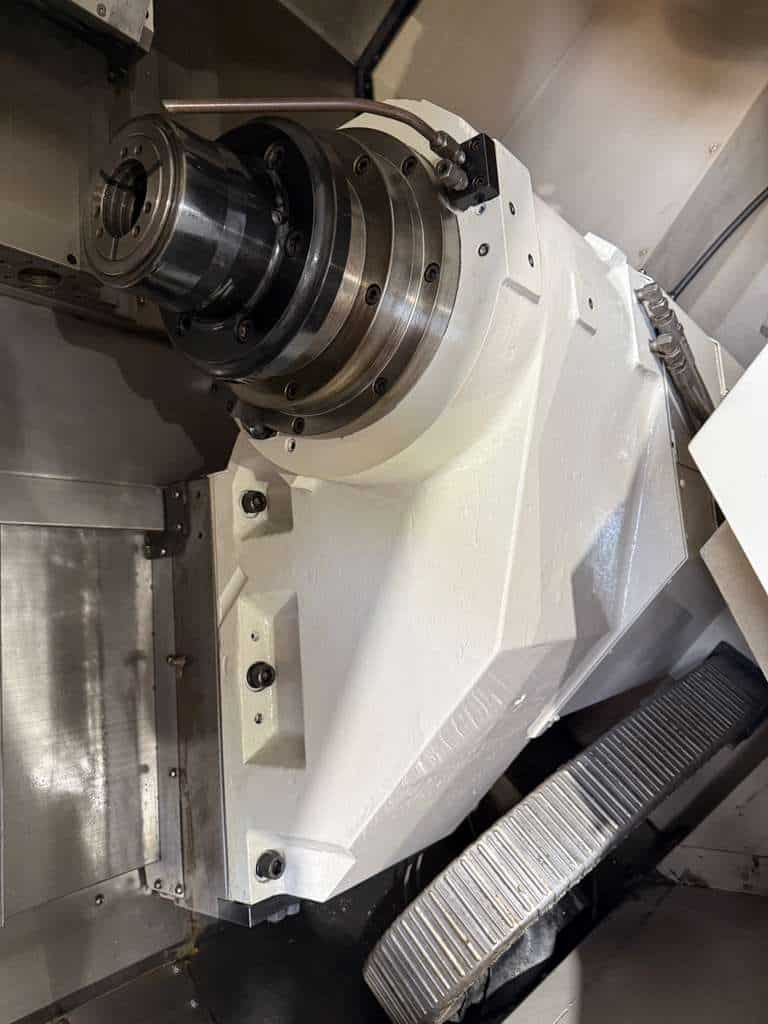

| Sub Spindle: |
| Main Spindle Nose: A2-8 |
| Main Spindle Bore: 3.38″ |
| Main Spindle Speed: 3,500 RPM |
| Main Spindle Power: 30 HP |

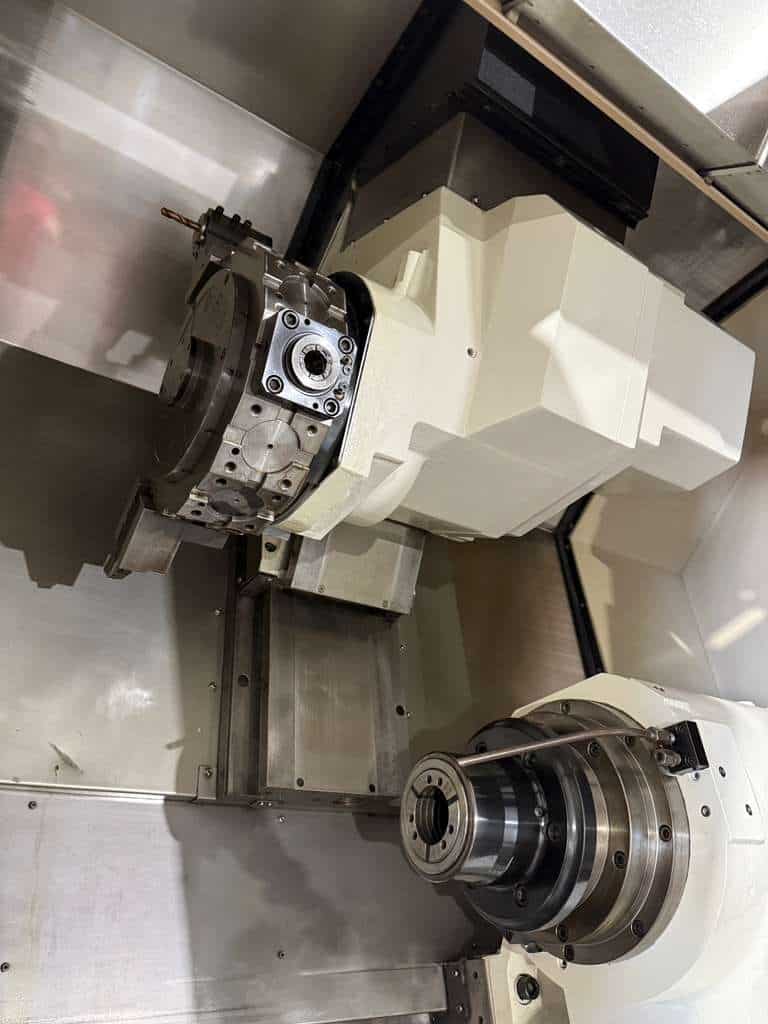

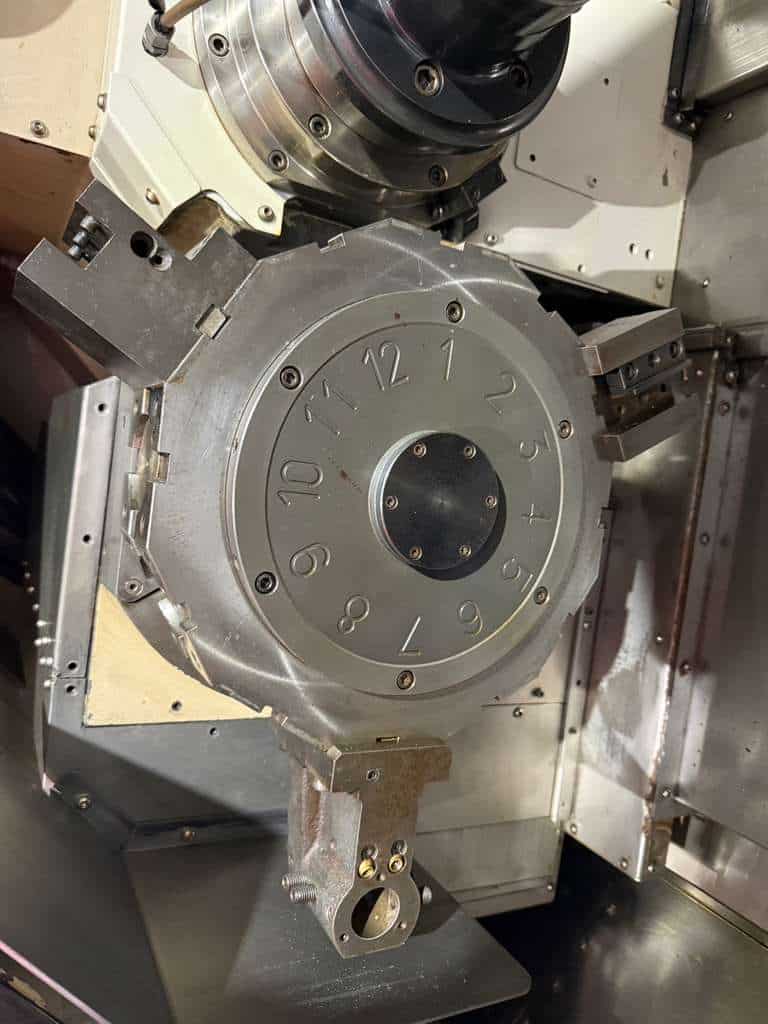

| Turret: |
| Upper Turret Capacity: 12 Stations |
| Lower Turret Capacity: 12 Stations |
| Live Milling Speed: 4000 RPM |
| Live Milling Motor: 7.5 HP |
| Turret Index Time (Tool to Tool): 0.2 sec |
| Turret Type: BMT |
| General: |

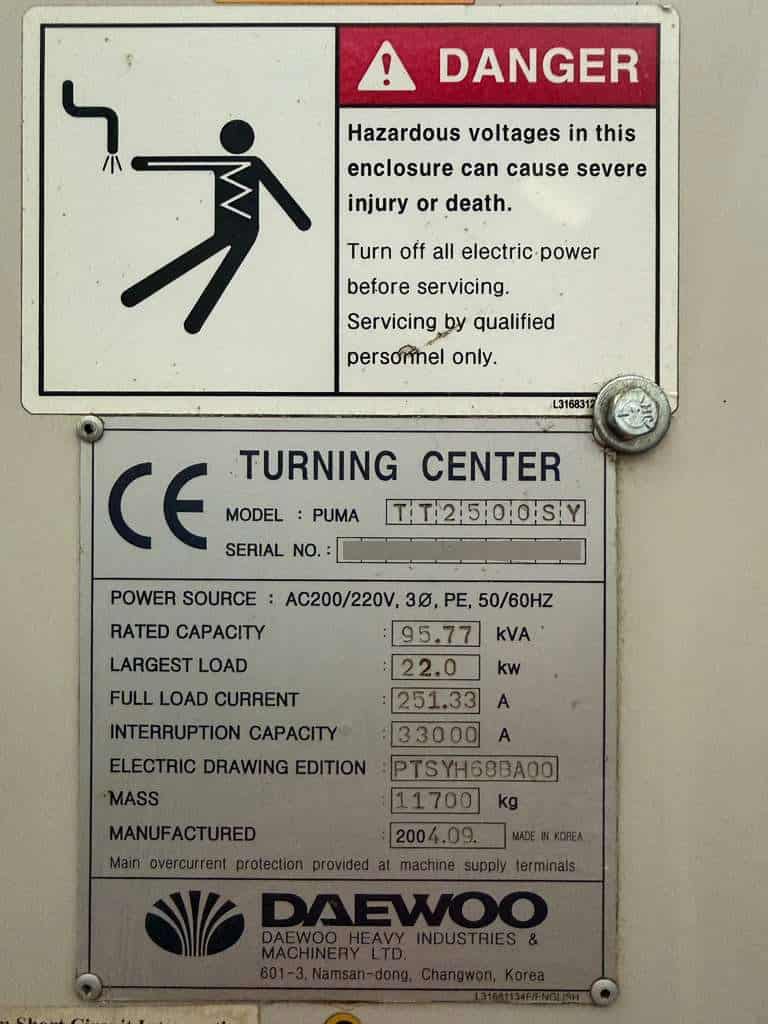

| Power Source: AC 220v / 3-Phase / 50/60 Hz |
| Power Requirement: 95.77 kva |
| Machine Dimensions: 160″ x 87″ x 97″ High Approx. |
| Machine Weight: 25,794 lbs Approx. |
