Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

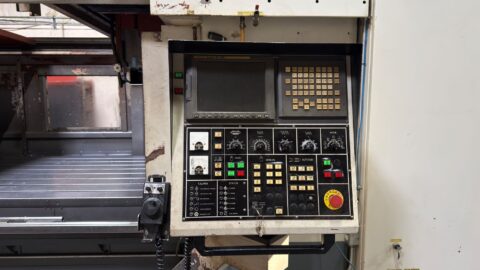

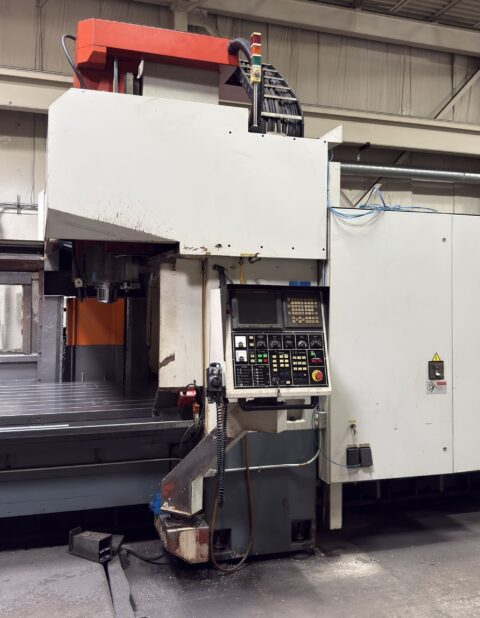

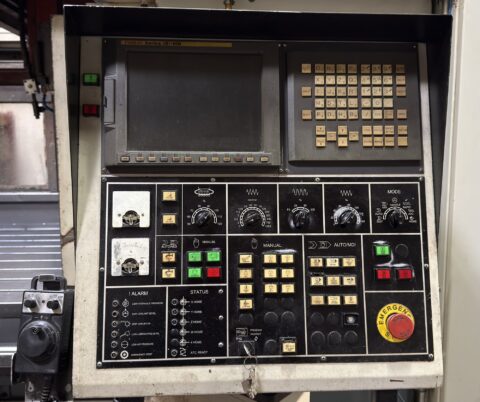

| Fanuc 18iMB CNC Control |
| 128.3″ X 59.0″ Table |

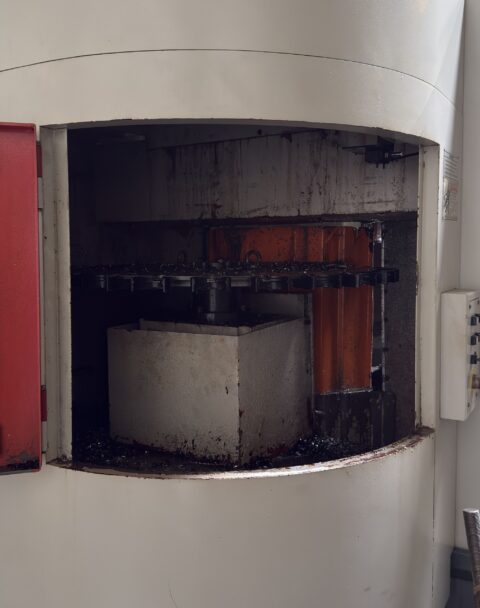

| 19 Station Side Mount Tool Changer |
| CAT-40 Spindle Taper |
| 15,000 RPM High Speed Spindle |
| Powerful 30 HP high torque spindle motor |
| PCMCIA Card Slot |
| MPG Handwheel Control |
| Chiller Unit |
| Coolant System |
| Chip Conveyor |
| Travels: |
| X-Axis: 120.5″ |
| Y-Axis: 63.0″ |
| Z-Axis: 30.0″ |
| Distance Between Columns: 66.9″ |
| Spindle Nose to Table (Min.- Max.): 6.3″- 36.2″ |
| Rapid Traverse Rates X,Y-Axis: 787 inch per minute |
| Rapid Traverse Rates Z-Axis: 591 inch per minute |
| Cutting Feedrate: .04″ – 591″ inch per minute |

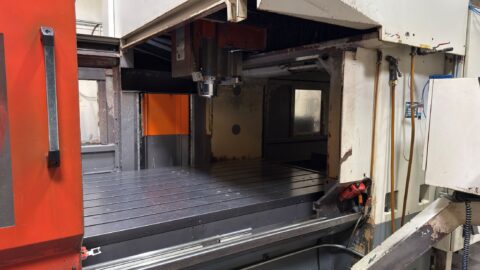

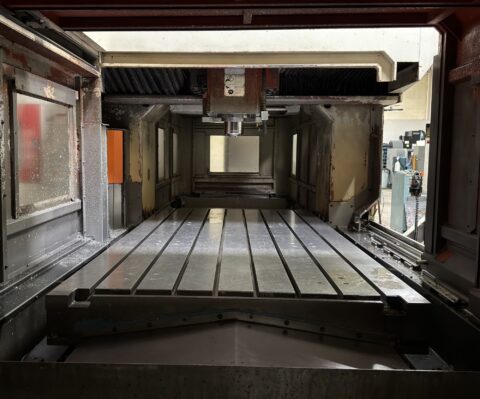

| Table: |

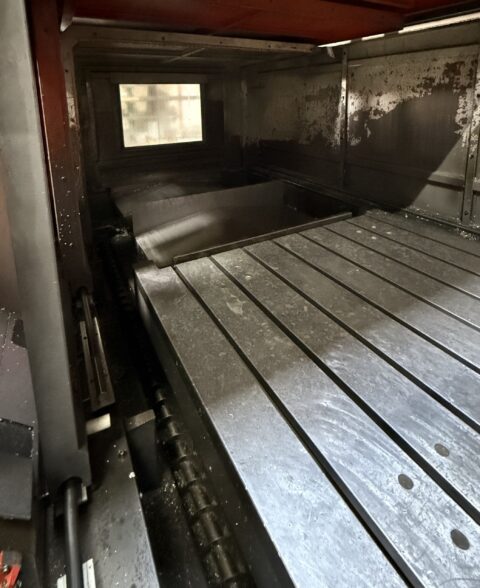

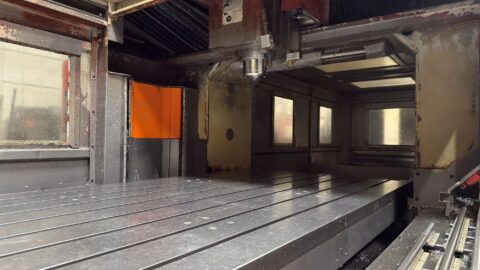

| Length: 128.3″ |
| Width: 59.0″ |
| Max Weight on Table: 22,000 lbs |

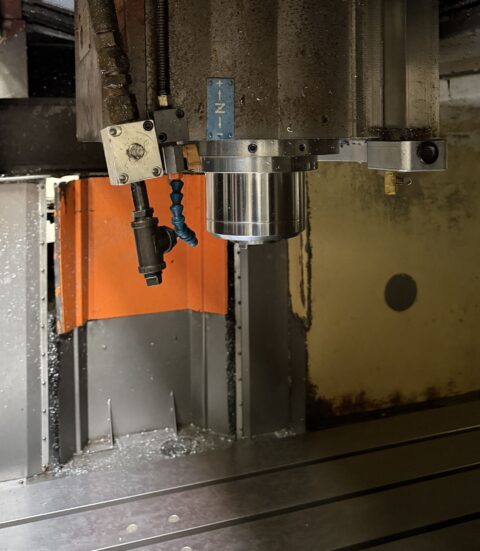

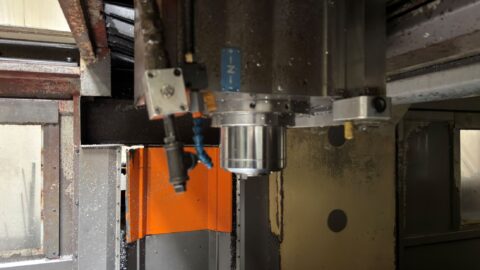

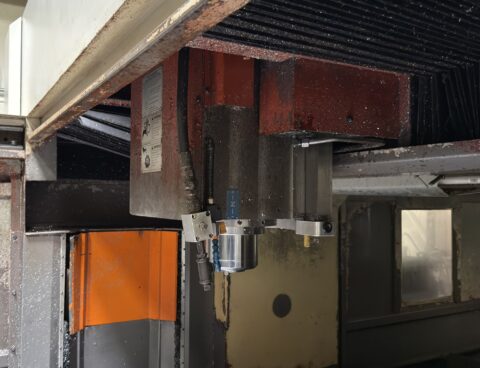

| Spindle: |
| Taper Size: CAT-40 |
| Speed Range: 15,000 RPM |
| Spindle Power: 35 HP |
| Automatic Tool Changer: |
| Capacity: 19 Tools |
| Max Tool Weight: 15 lbs |
| Max Tool Length: 11.8″ |
| Max Tool Dia.: 4.0″ – 5.0″ |
| Tool Change Time (Tool to Tool): 12 sec. |
| General: |
| Air Required: 100 psi, 4 scfm |

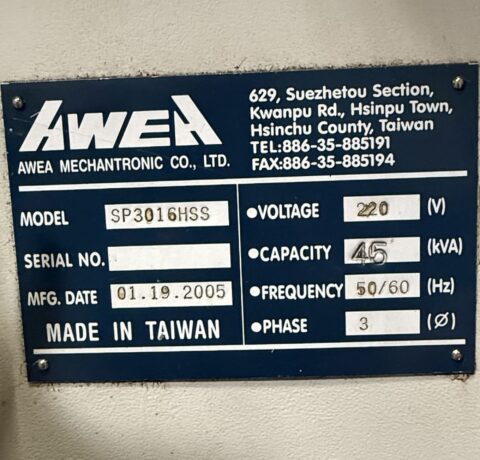

| Power: 220v / 3-Phase |
| Dimensions: 342″ X 184″ x 153″ High Approx. |
| Weight: 52,000 lbs. Approx. |
| Categories | Millings |
|---|
| Categories | CNC Vertical Machining Centers - VMC |
|---|
