Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

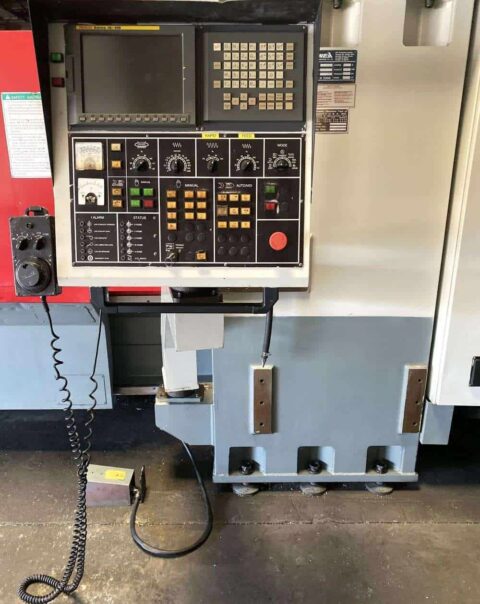

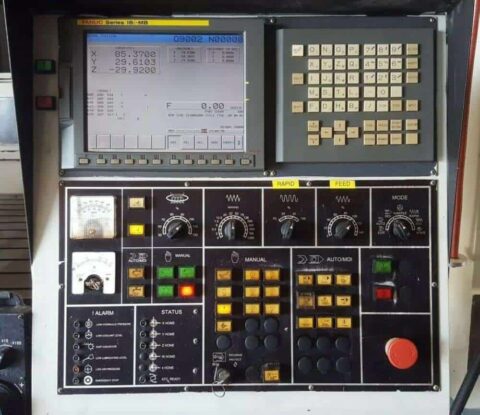

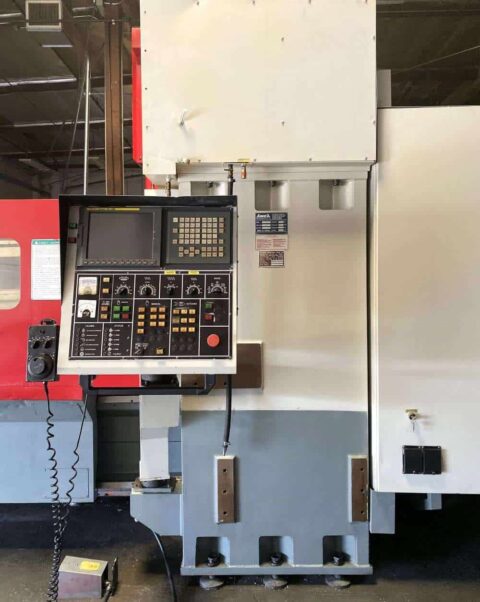

| Fanuc 18iMB CNC Control |
| 158″ X 98″ Table |
| 40 Station Side Mount Tool Changer |
| 50 Taper Geared Head |
| 6000 RPM Spindle |
| Coolant Thru Spindle |
| Powerful 26.1 kW high torque spindle motor |
| PCMCIA Card Slot |
| RS-252 Port |
| Spindle Orientation |
| Portable manual pulse generator |
| Flood coolant with large separate coolant tank Base |
| Flush Chip Disposal with Dual Auger |

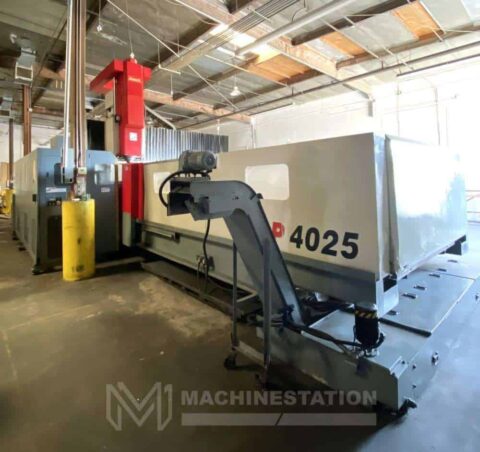

| Chip Conveyor |
| Chiller Unit |
| Levelling Pads |
| Note: Machine is dismantled and Ready to be loaded on the Truck |
| Travels: |
| X-Axis: 158.0″ |
| Y-Axis: 98.6″ |
| Z-Axis: 30.9″ |
| Distance Between Columns: 106.2″ |
| Spindle Nose to Table (Min.- Max.): 8.6″- 39.57″ |
| Feed rates: Rapid X,Y & Z: 590 inch per minute |
| Cutting Feedrate: .04″ – 376″ inch per minute |

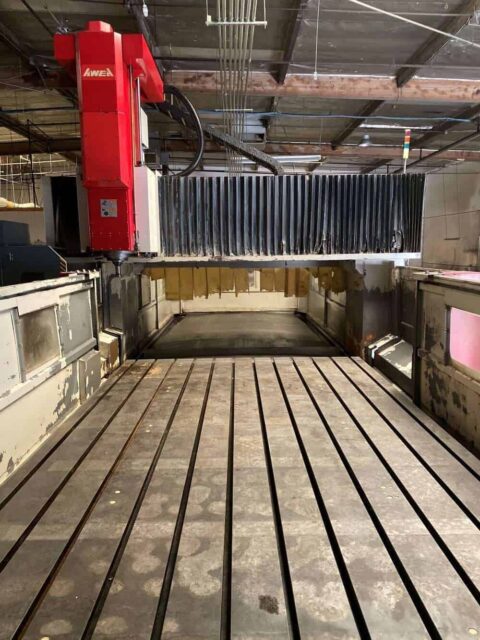

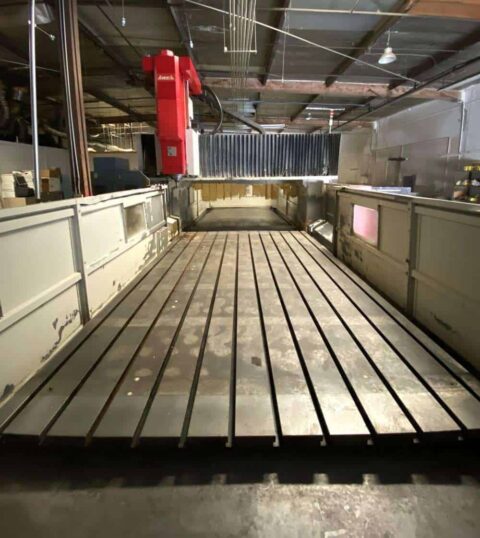

| Table: |
| Length: 164.6″ |
| Width: 94.4″ |
| T-Slot: 0.87″ Wide X 20 X 7.87″ |
| Max Weight on Table: 14968.5 kg |
| Spindle: |
| Taper Size: 50 |
| Speed Range: 6000 RPM |
| Spindle Power: 26.1 kW |
| Automatic Arm Type Tool Changer: |
| 50 Taper |
| Capacity: 40 |
| Max Tool Weight: 19.5 kg |
| Max Tool Length: 13.77″ |
| Max Tool Dia.: 5.2 – 7.7″ |
| General: |
| Air Required: 100 psi, 4 scfm |

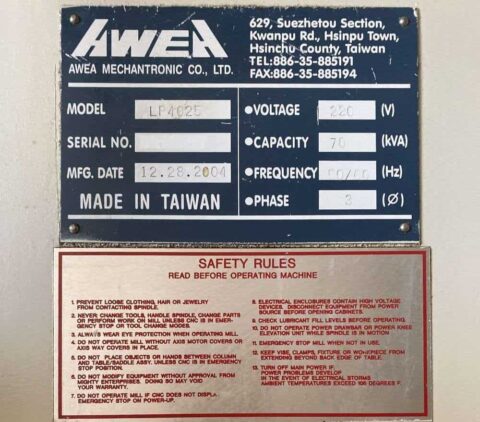

| Power: 220v / 3-Phase, 70 Kva |
| Floor Dimensions: 34’6″ X 17’6″ x 130″ High |
| with Hydraulic Unit, Chip Conveyor, Chiller unit |
| Weight: 39734.7 kg. |
