Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

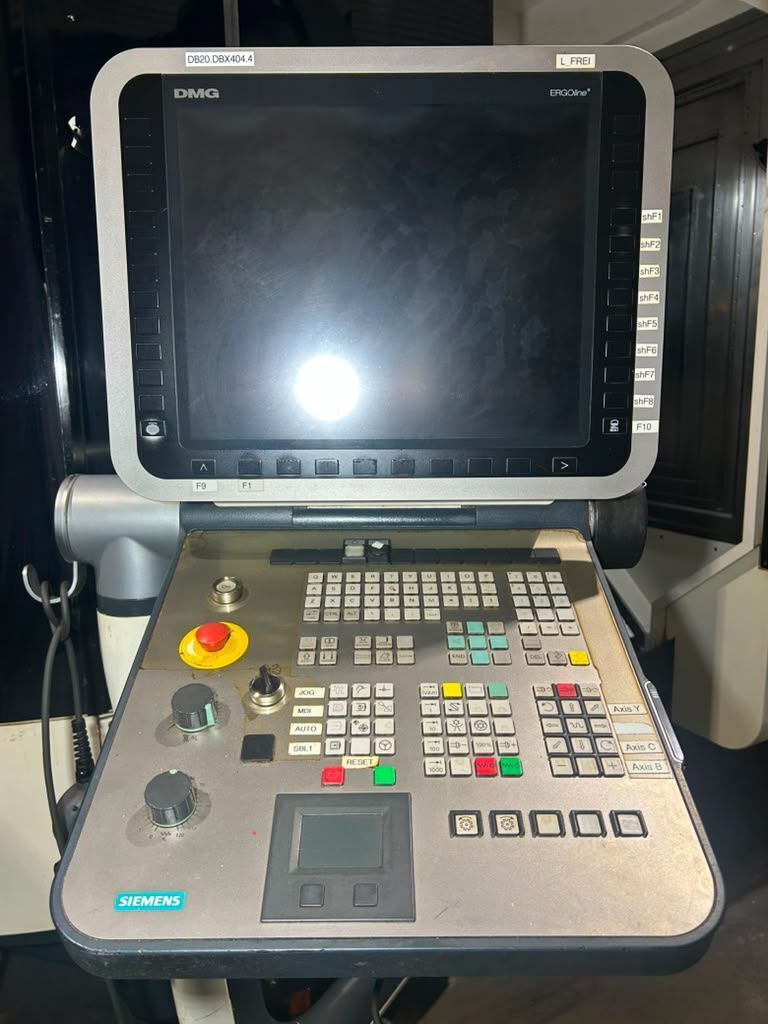

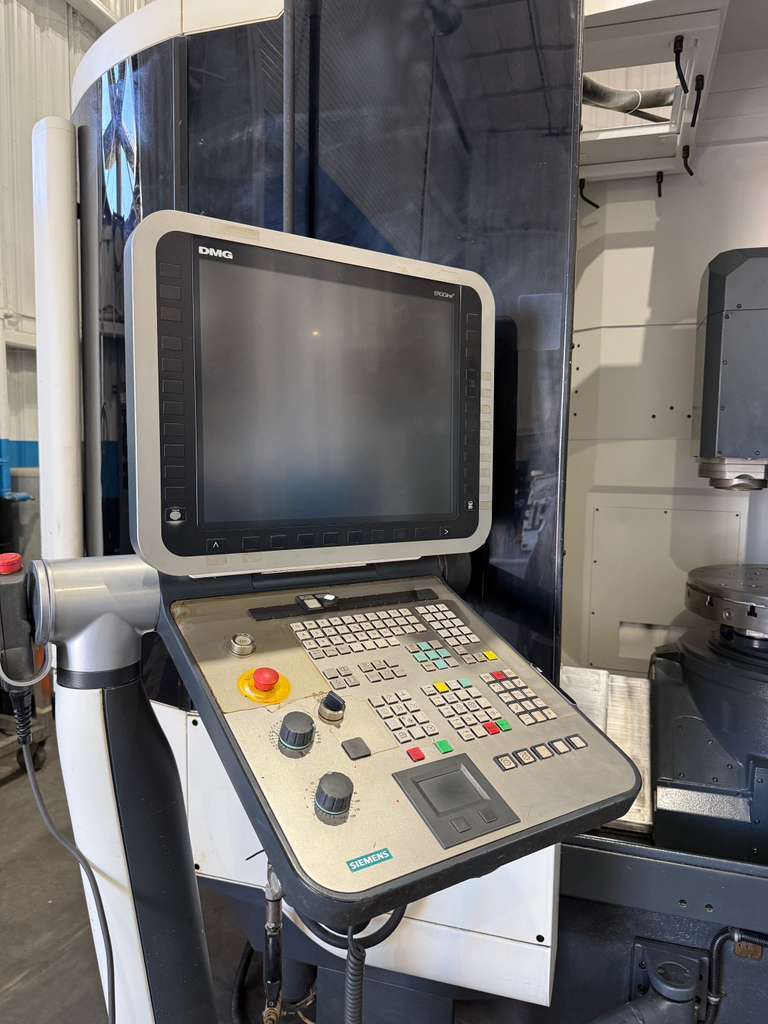

| Siemens 840D DMG ERGOline CNC Control |
| Twin Pallet Automatic Pallet Changer |
| Full 5-Axis Simultaneous Machining |
| 1200 RPM Turn-mill table (FD) |

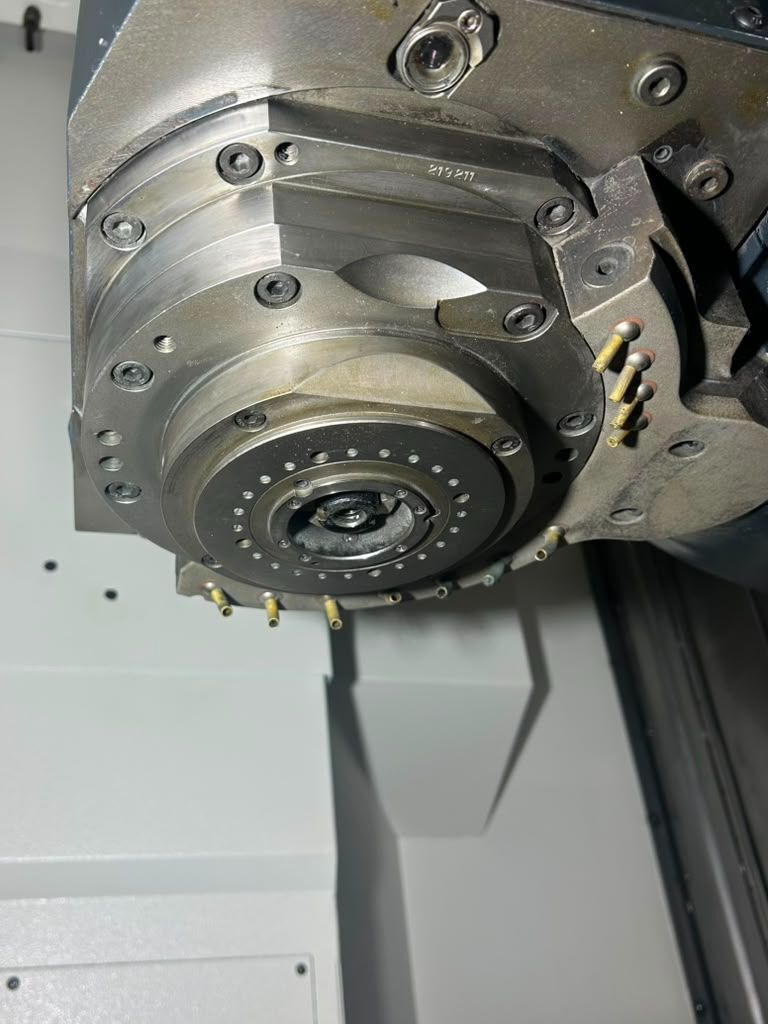

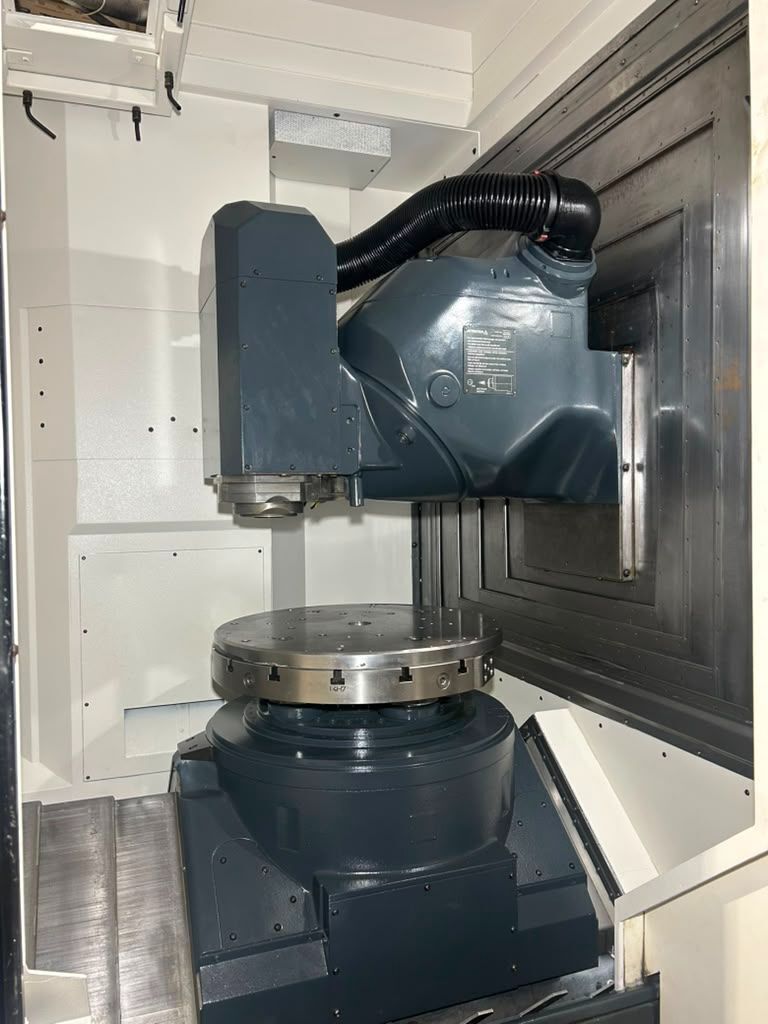

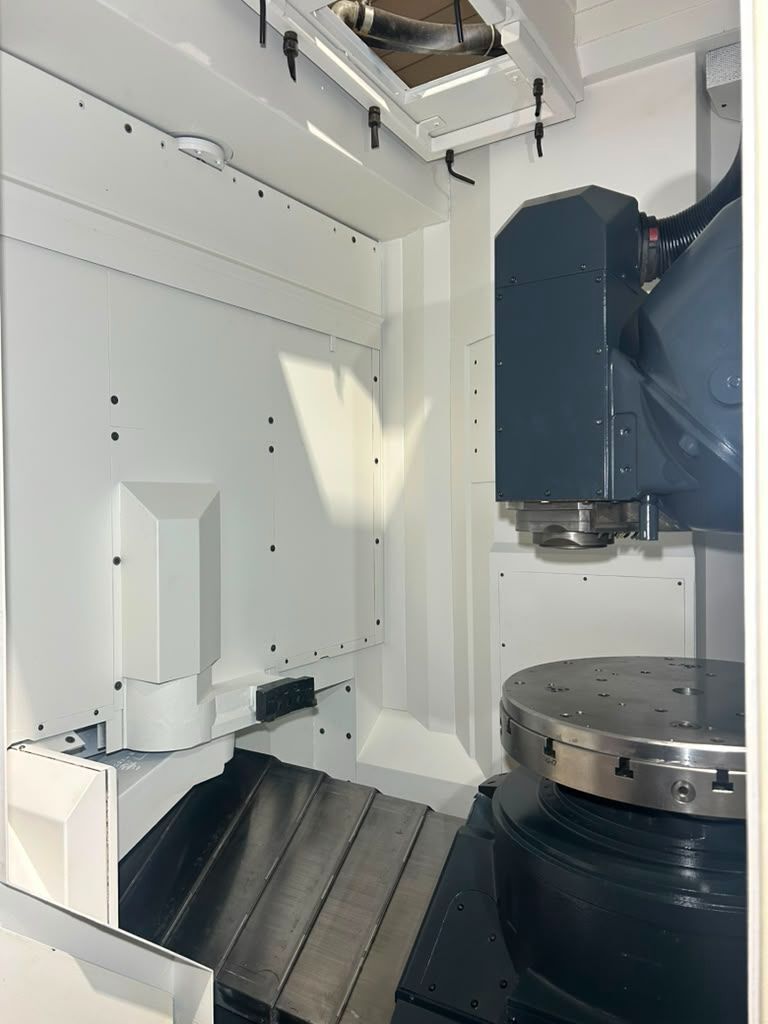

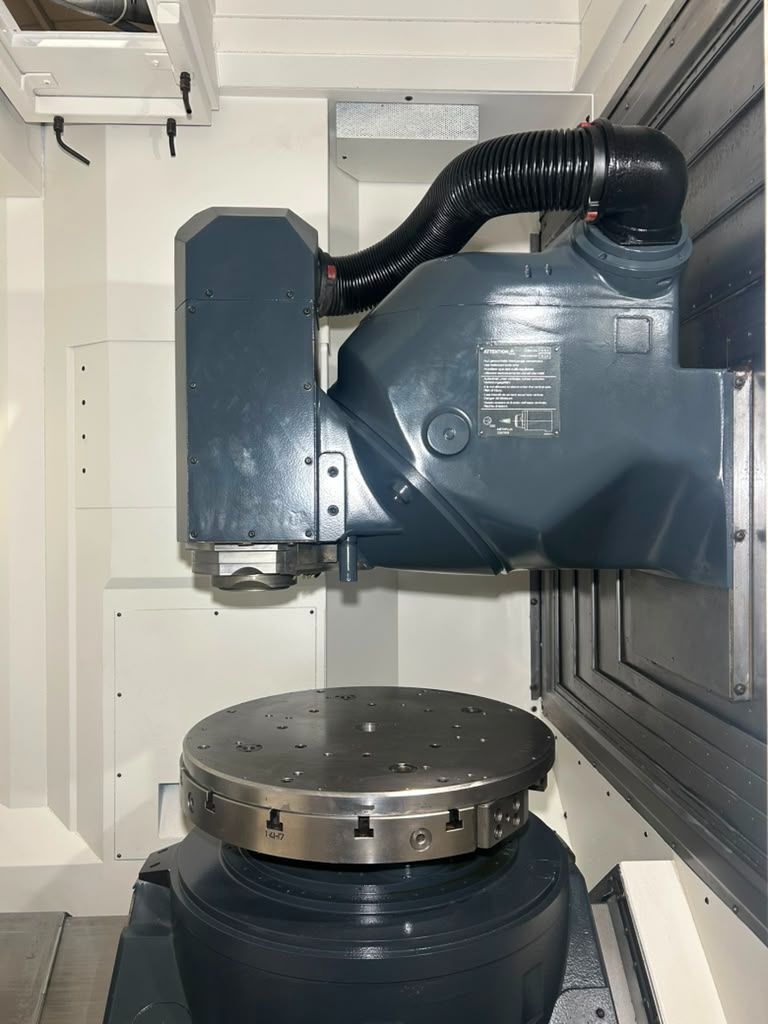

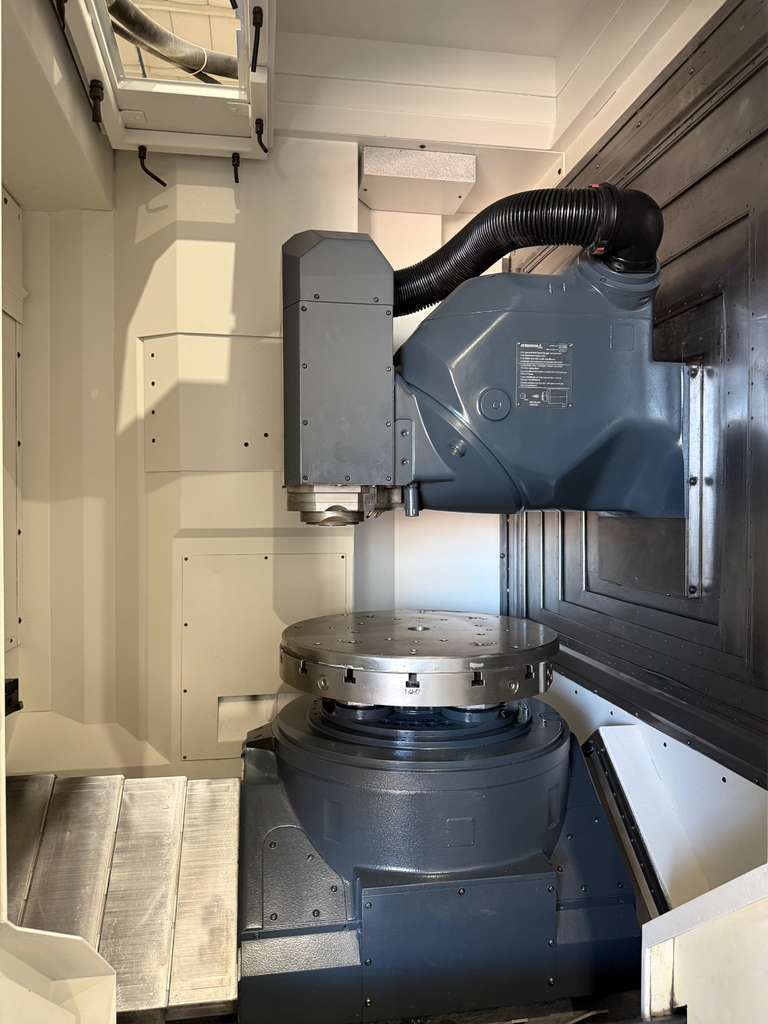

| Integrated B-Axis Milling Head |
| 12,000 RPM HSK-A63 Taper Spindle |

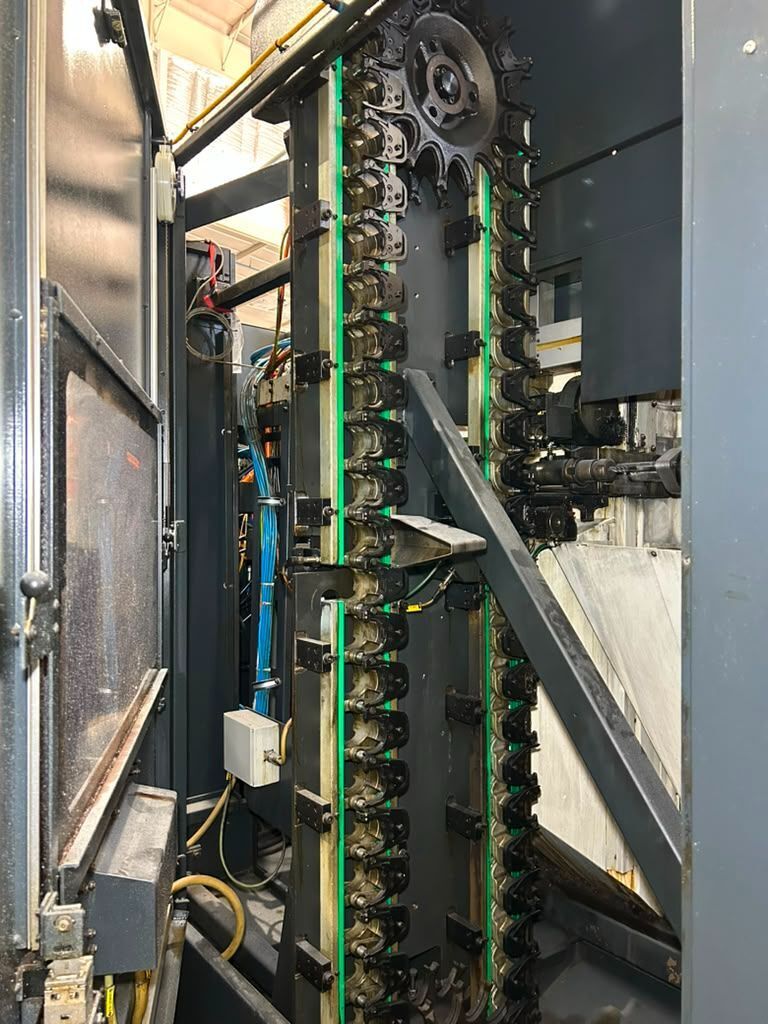

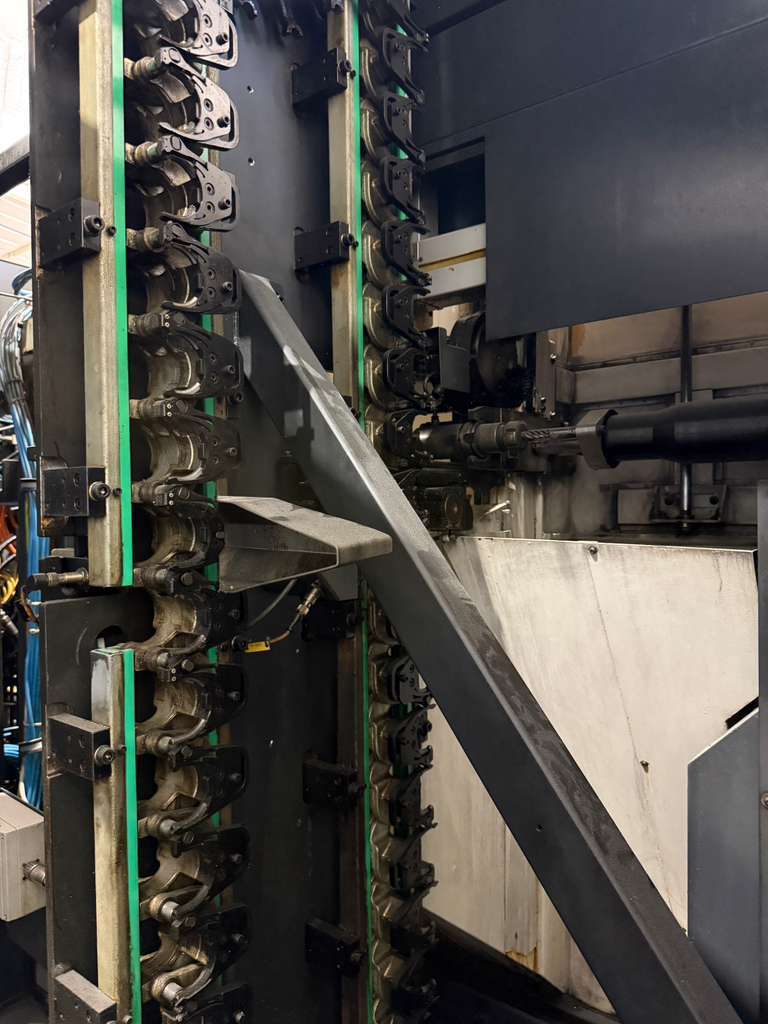

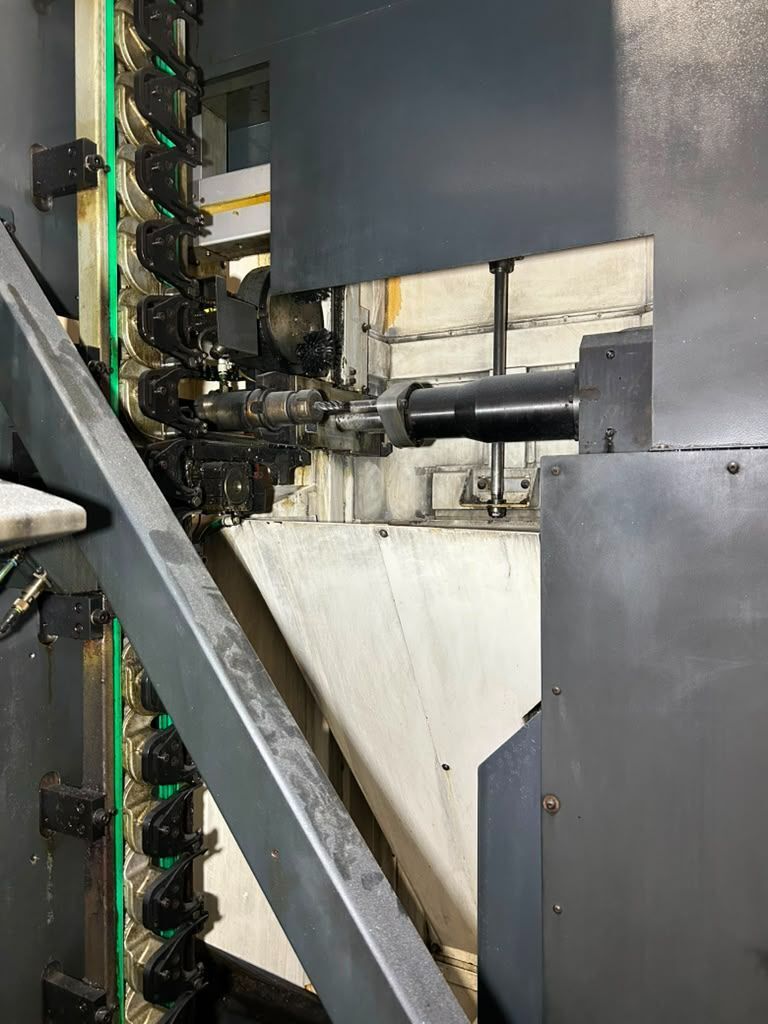

| 60 Station Automatic Tool Changer |
| Through Spindle Coolant |
| Rigid Tapping |
| Spindle Orientation |
| Coolant Tank |
| Chip Conveyor |
| Books & Manuals |
| Levelling Pads |
| Travels: |
| X Axis: 23.62″ |
| Y Axis: 27.56″ |
| Z Axis: 23.62″ |
| B Axis: -30° To +180° |
| C Axis: 360° Continuous |

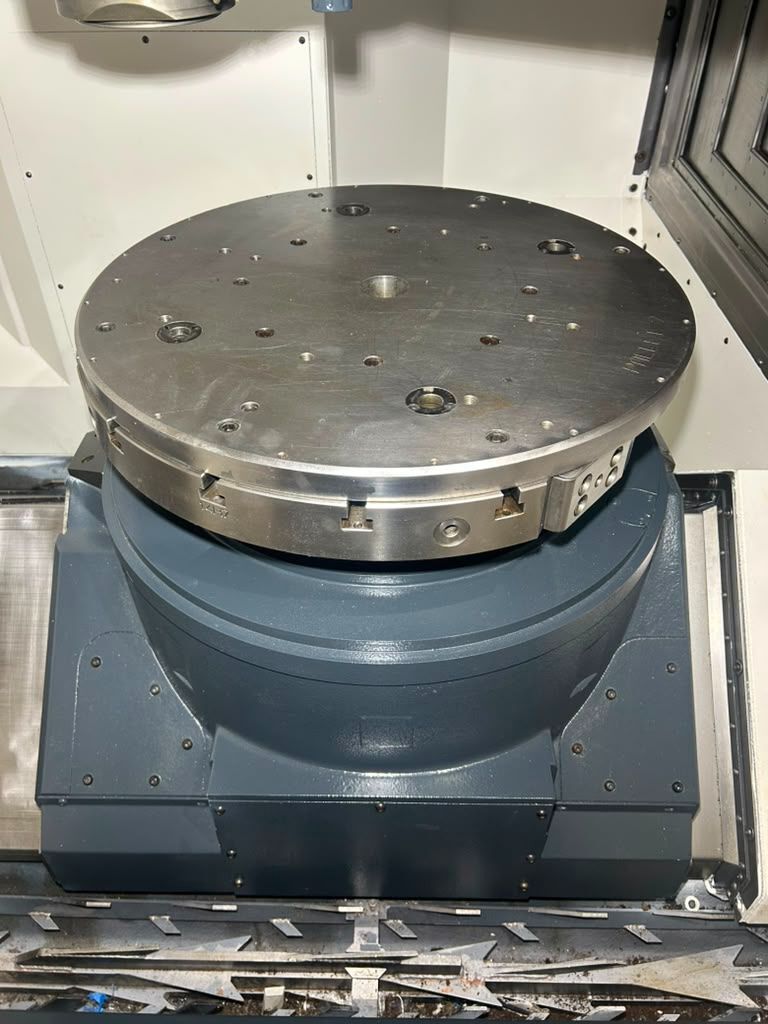

| Table: |
| Number of Pallets: 2 |
| Table Diameter: 24.80″ |
| Maximum Table Load: 1,102 lbs |
| Table Speed (Turning Mode): 1,200 RPM |
| Maximum Workpiece Diameter: 27.56″ |
| Maximum Workpiece Height: 33.46″ |
| Spindle: |
| Taper Size: HSK-A63 |
| Maximum Speed: 12,000 RPM |
| Power: 46 HP |
| Feed Rates: |
| Rapid Traverse X, Y & Z: 2,362 IPM |
| Cutting Feed Rate: 2,362 IPM |
| B-Axis Rapid Traverse: 30 RPM |
| C-Axis Rapid Traverse: 30 RPM |
| Tool Changer: |
| Capacity: 60 Station |
| Taper: HSK-A63 |
| Maximum Tool Diameter: 4.72″ |
| Maximum Tool Length: 17.71″ |
| Maximum Tool Weight: 33 lbs |
| General: |

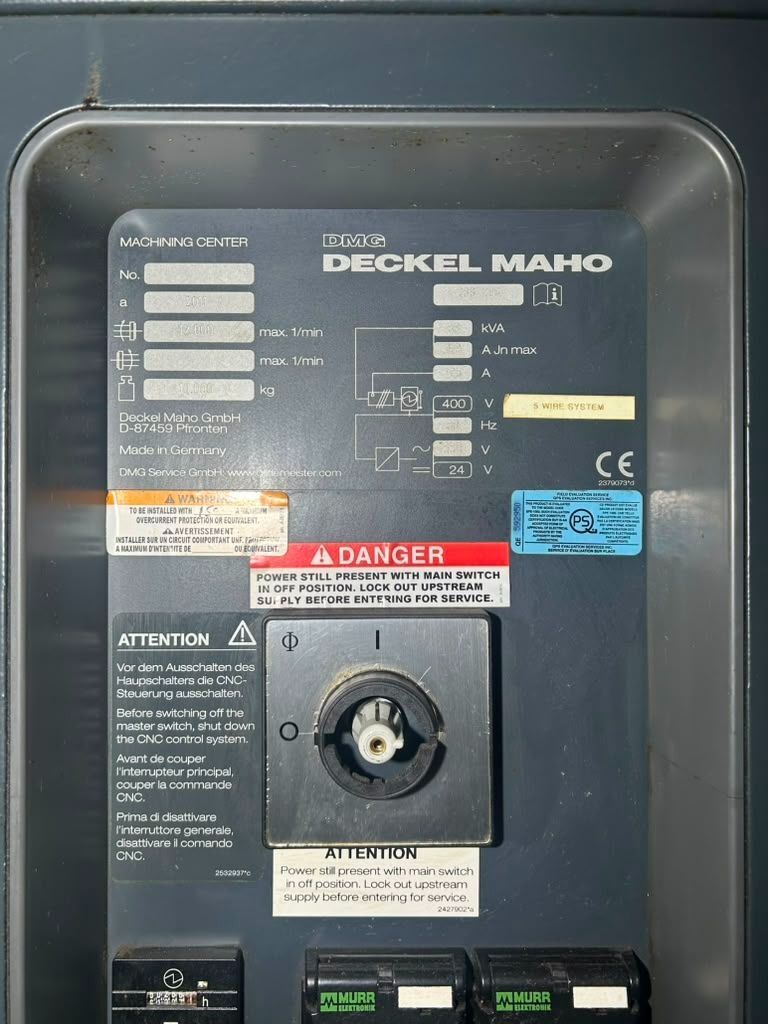

| Power: 400v / 3-phase / 60 Hz / 83 kva |
| Machine Overall Dimensions: 198″ x 133″ x 122″ High Approx. |
| Machine Weight: 22,000 lbs Approx. |
