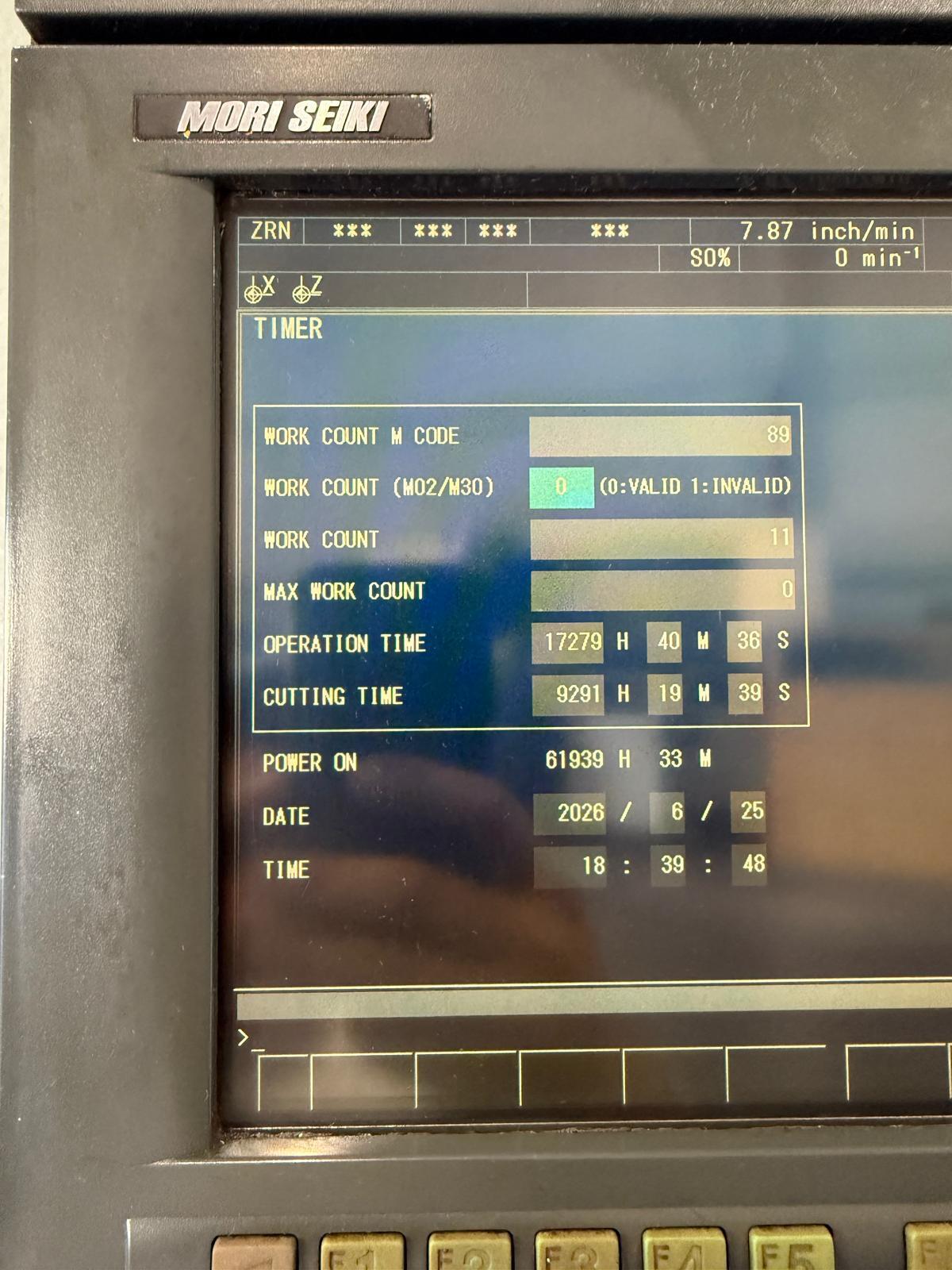

Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

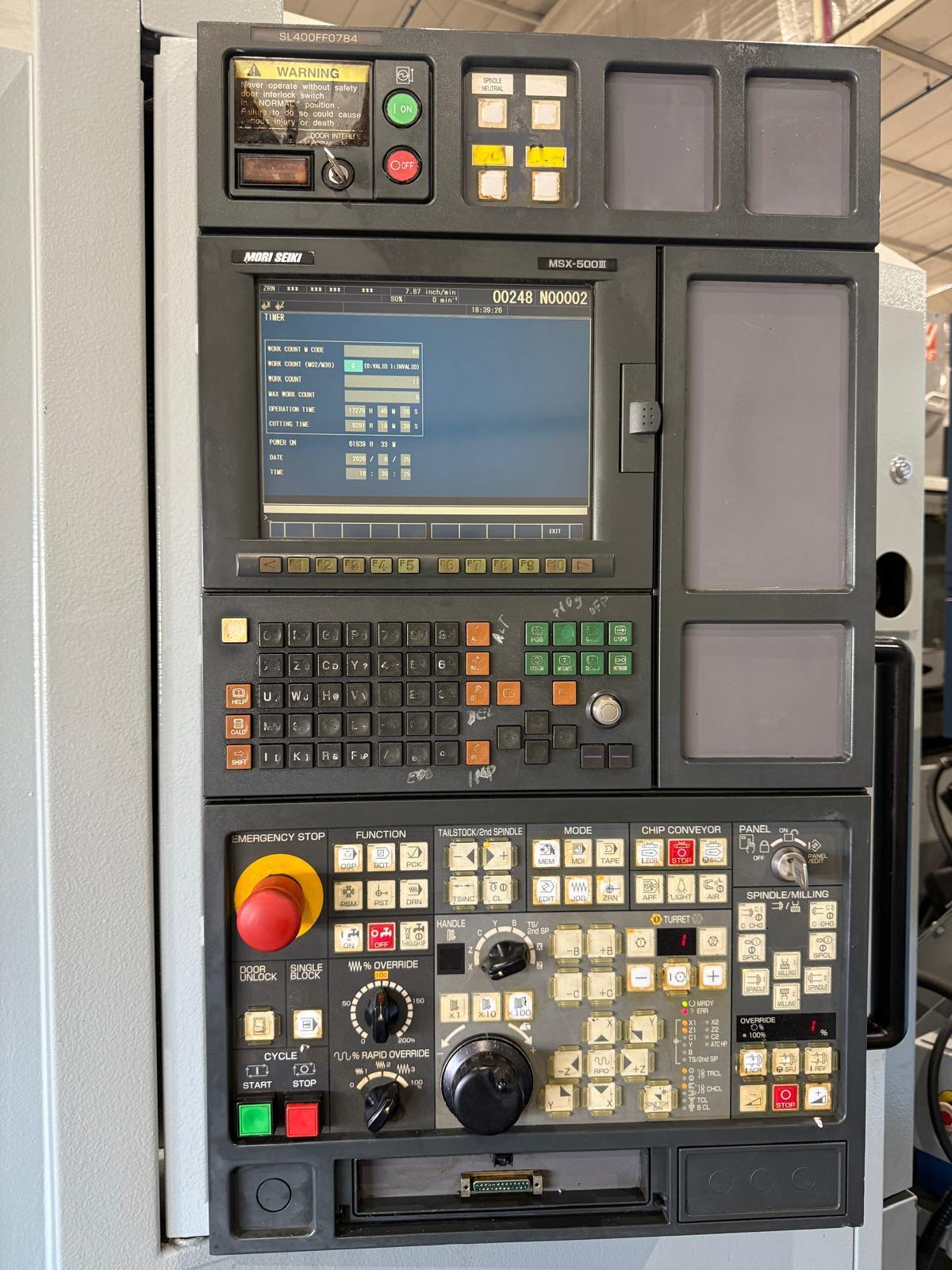

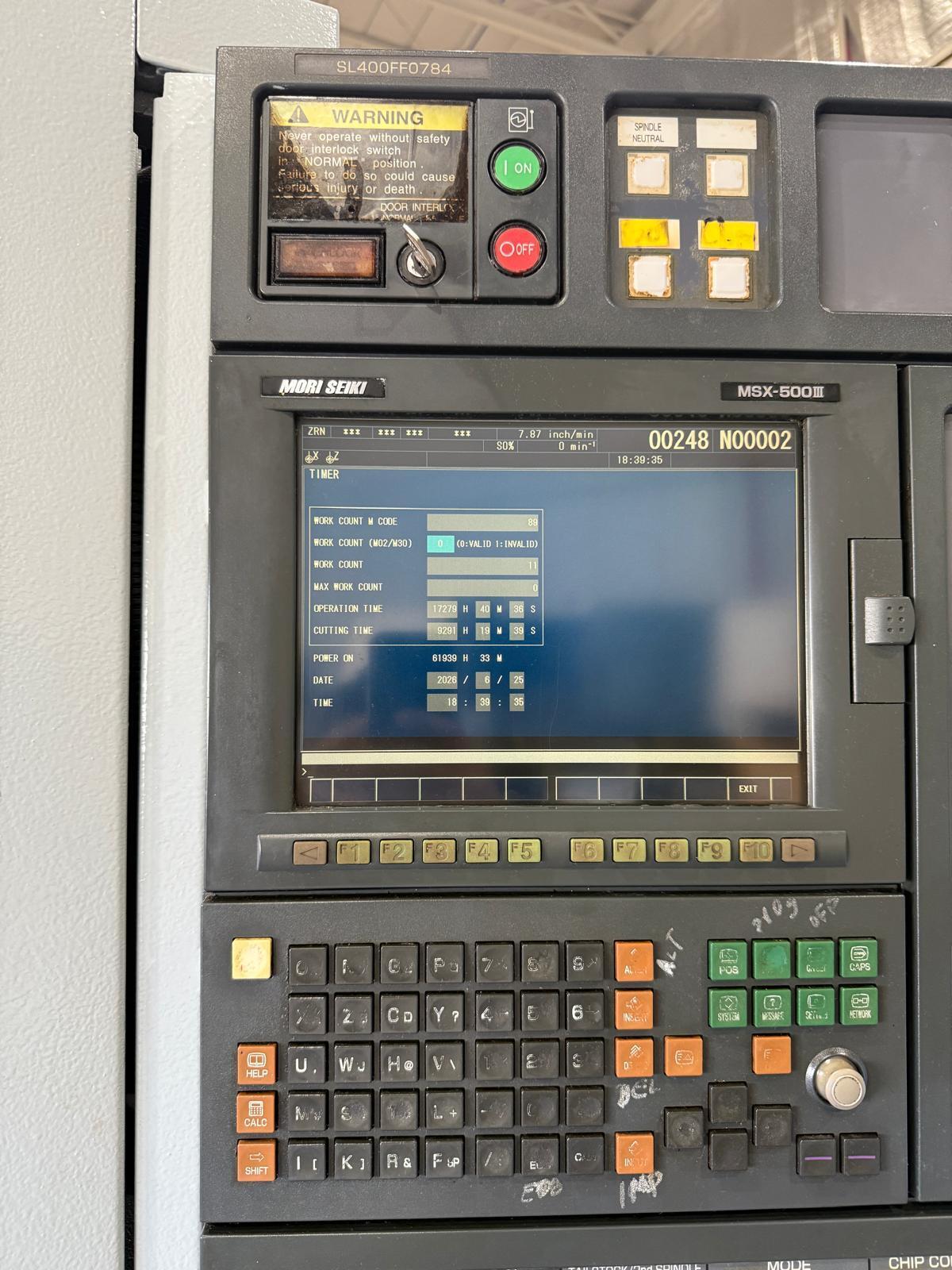

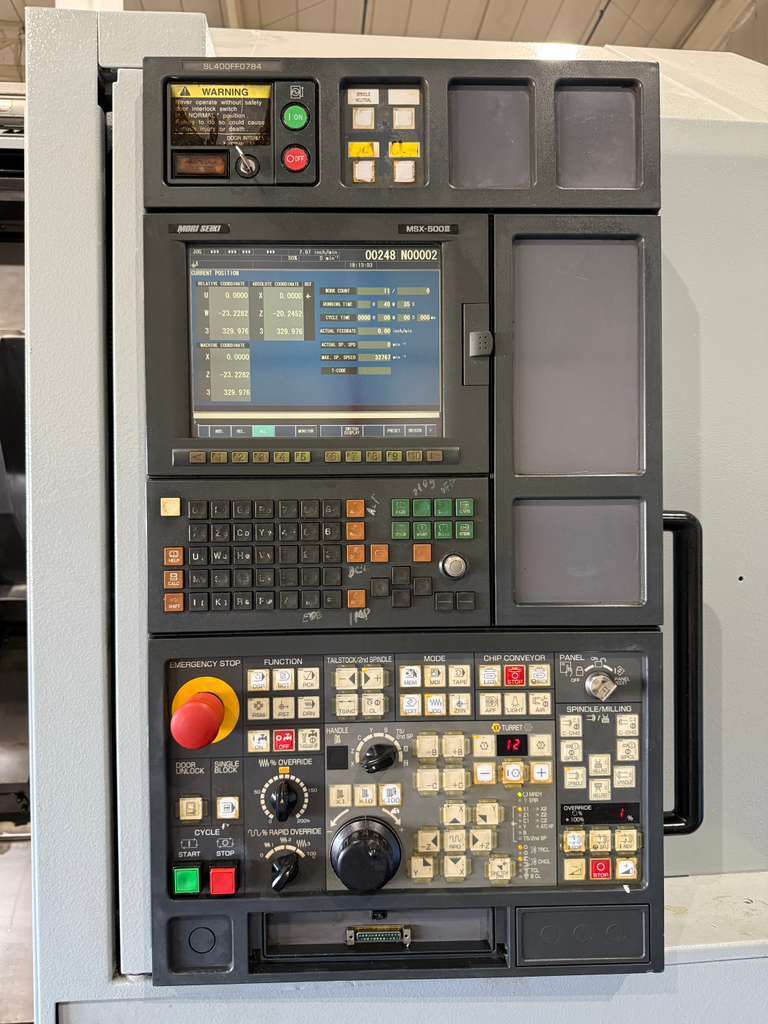

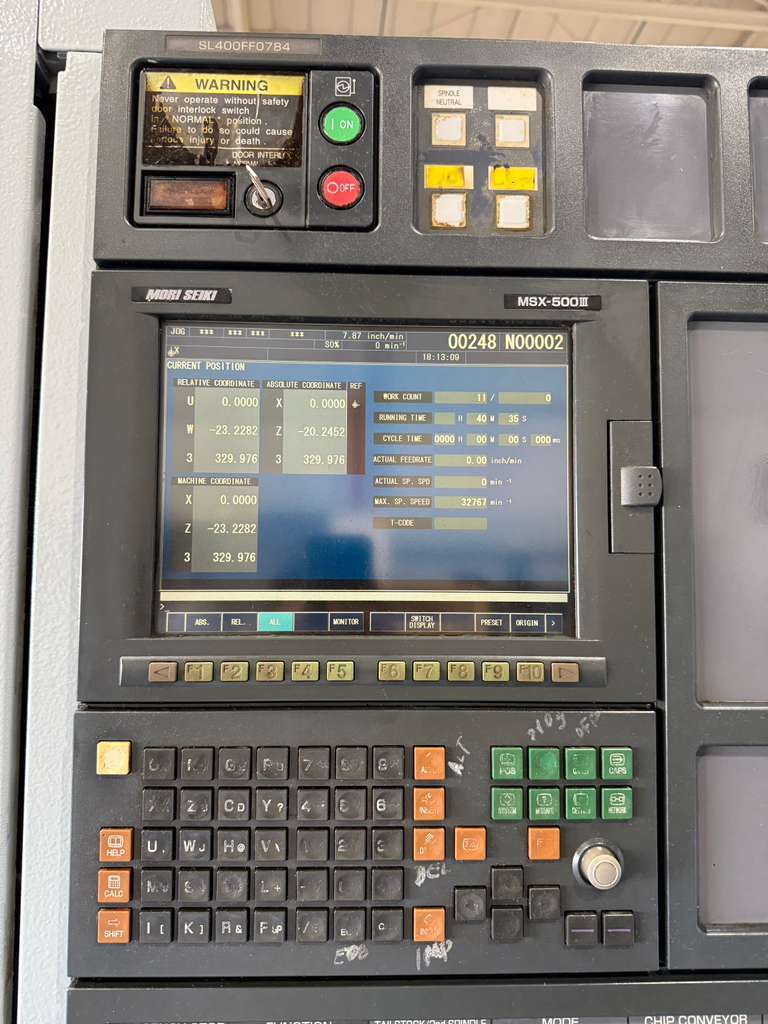

| Mori Seiki MSX-500III (Fanuc) CNC Control |

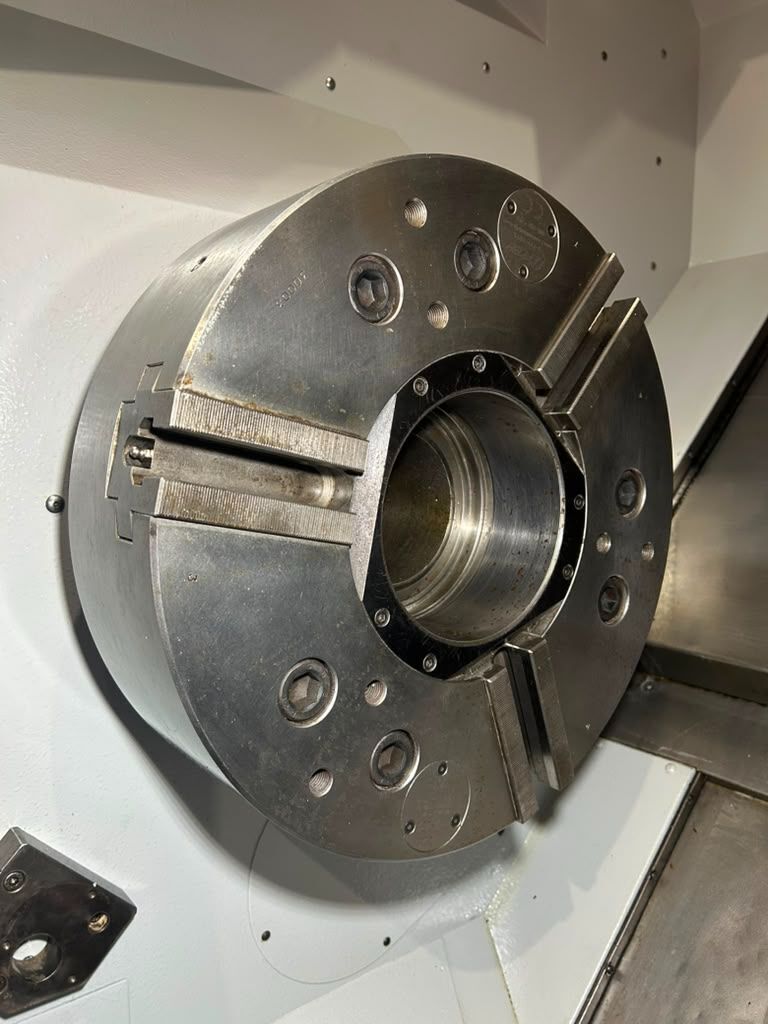

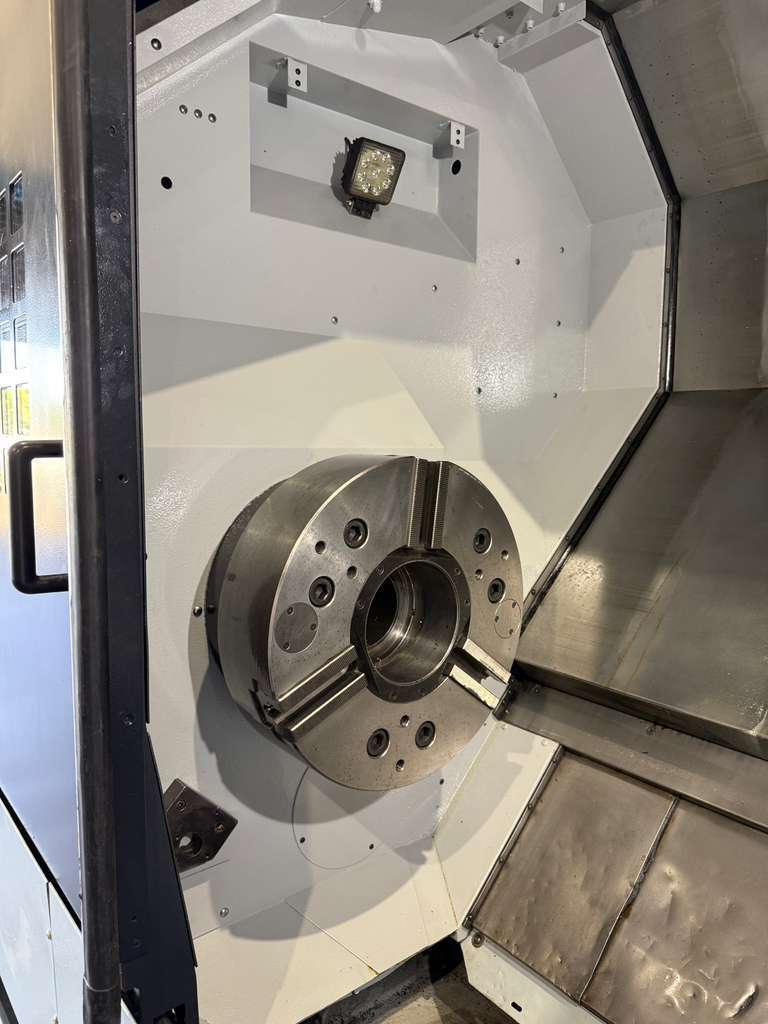

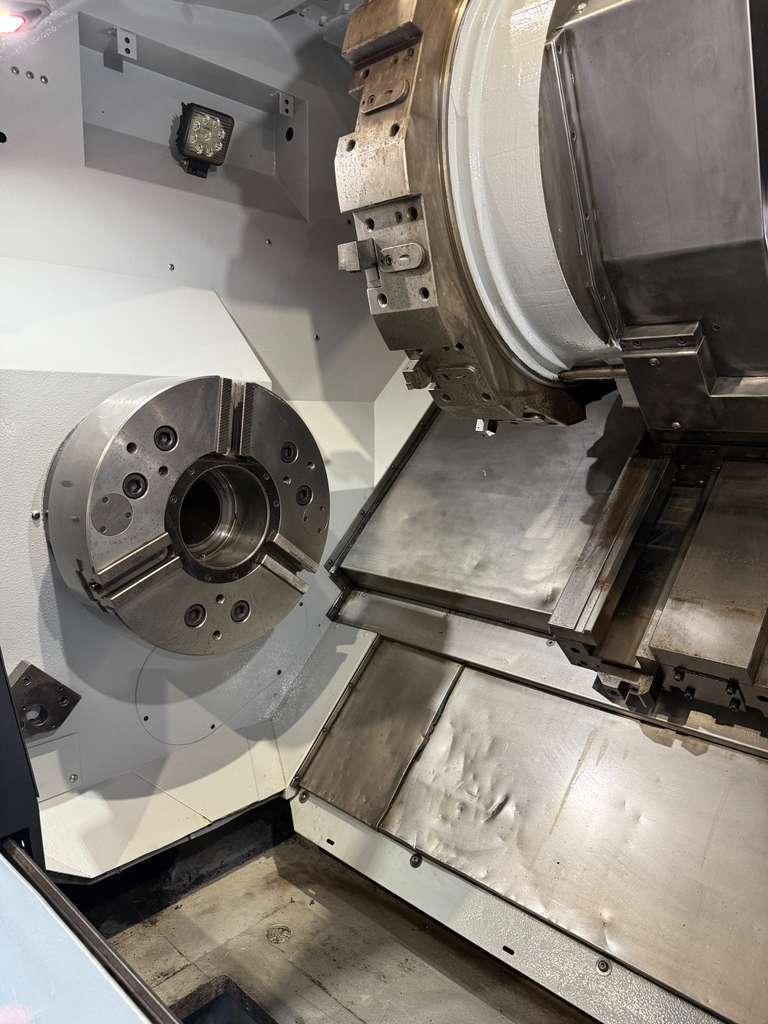

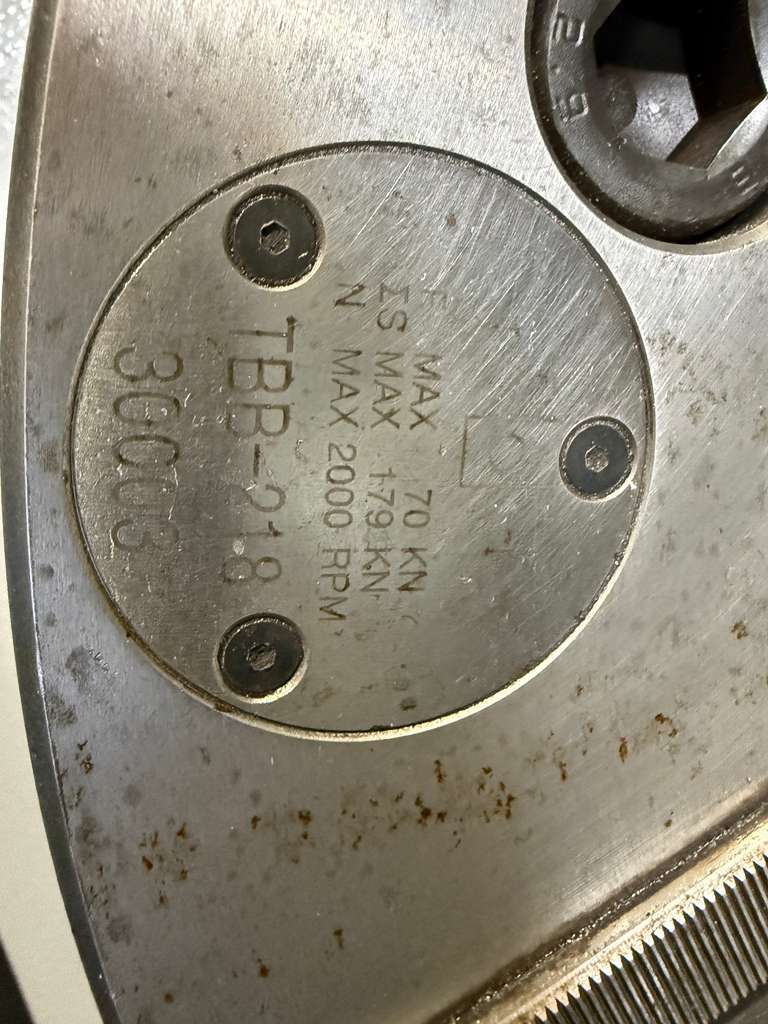

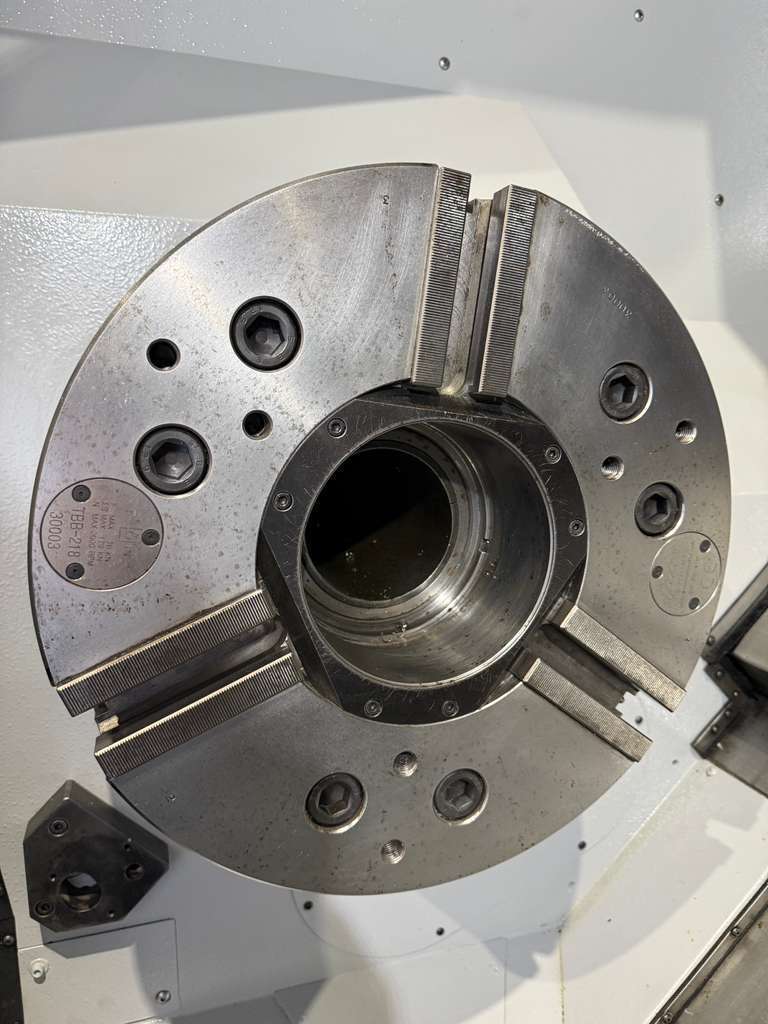

| 18″ Kitagawa BB218 3-Jaw Hydraulic Chuck with 6.5” Through Hole |
| A2-11 Spindle Nose, 2400 RPM Spindle |

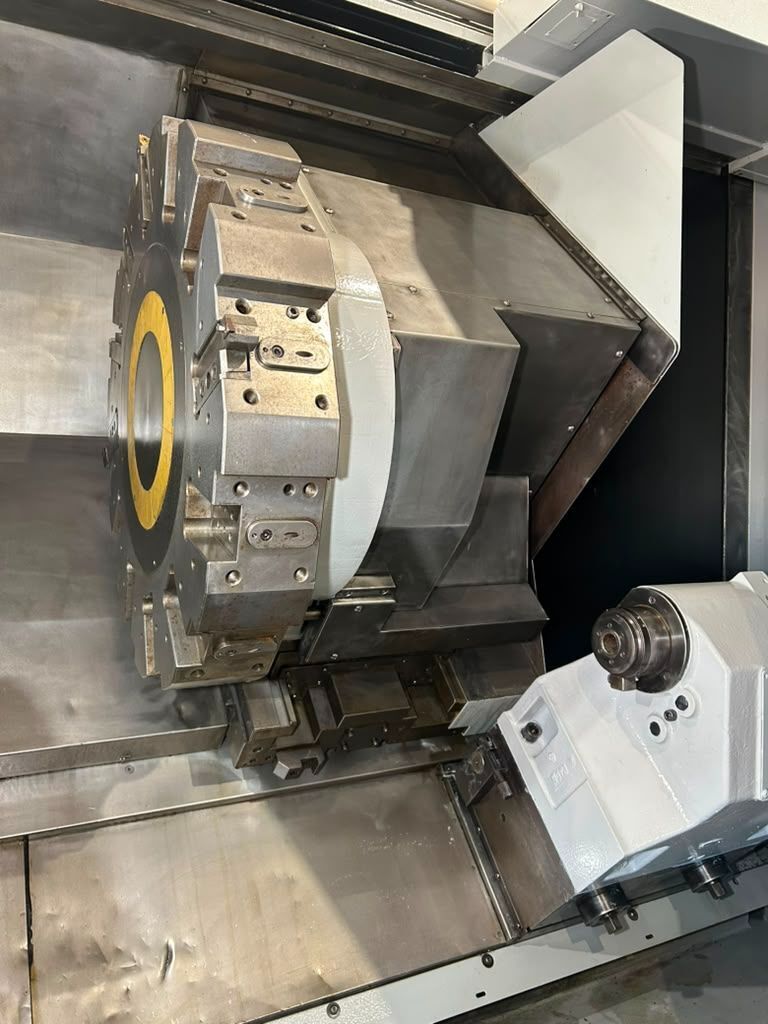

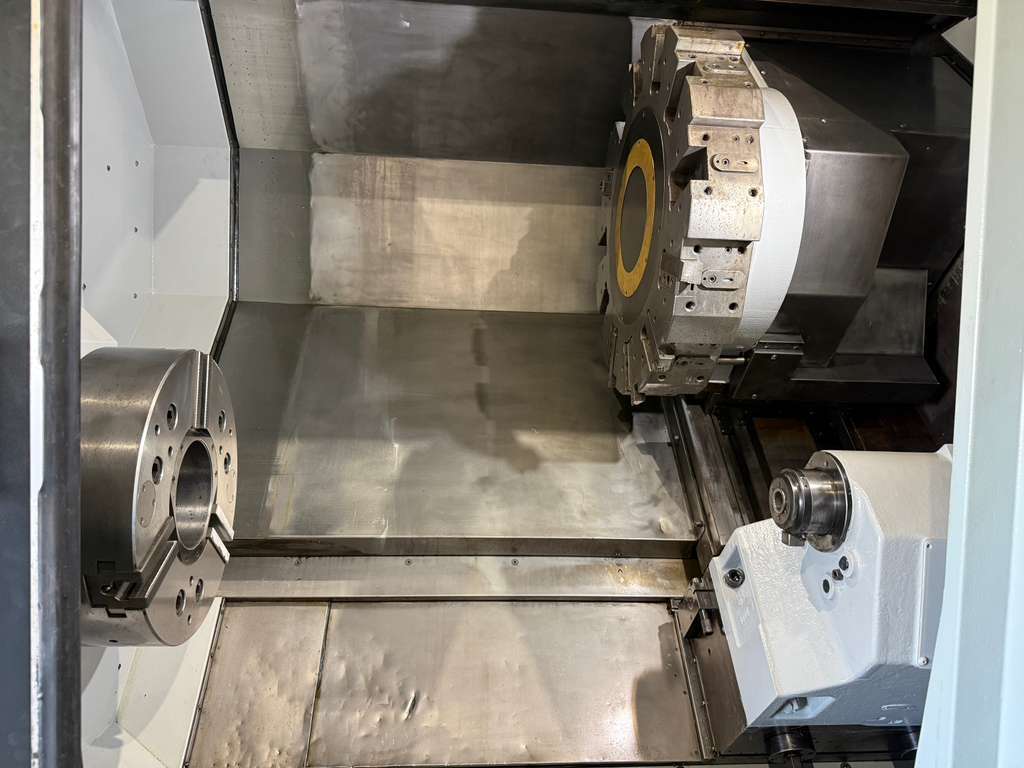

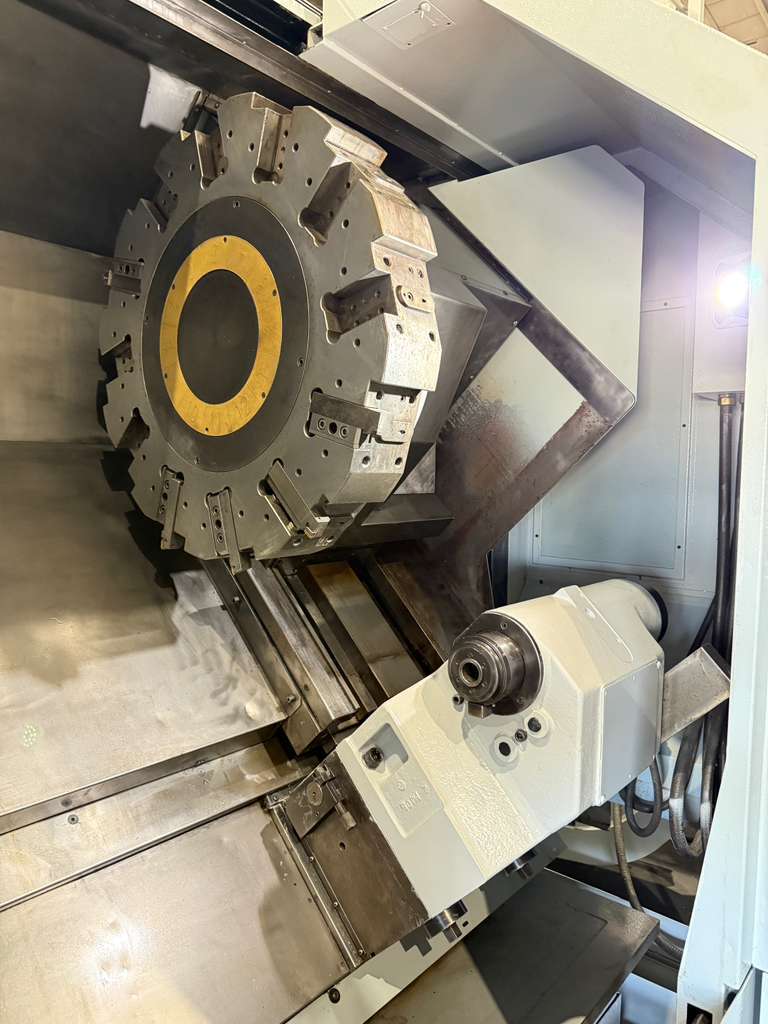

| 12-Station Automatic Turret |
| Tailstock |
| Automatic Lubrication Unit |
| Coolant Tank |

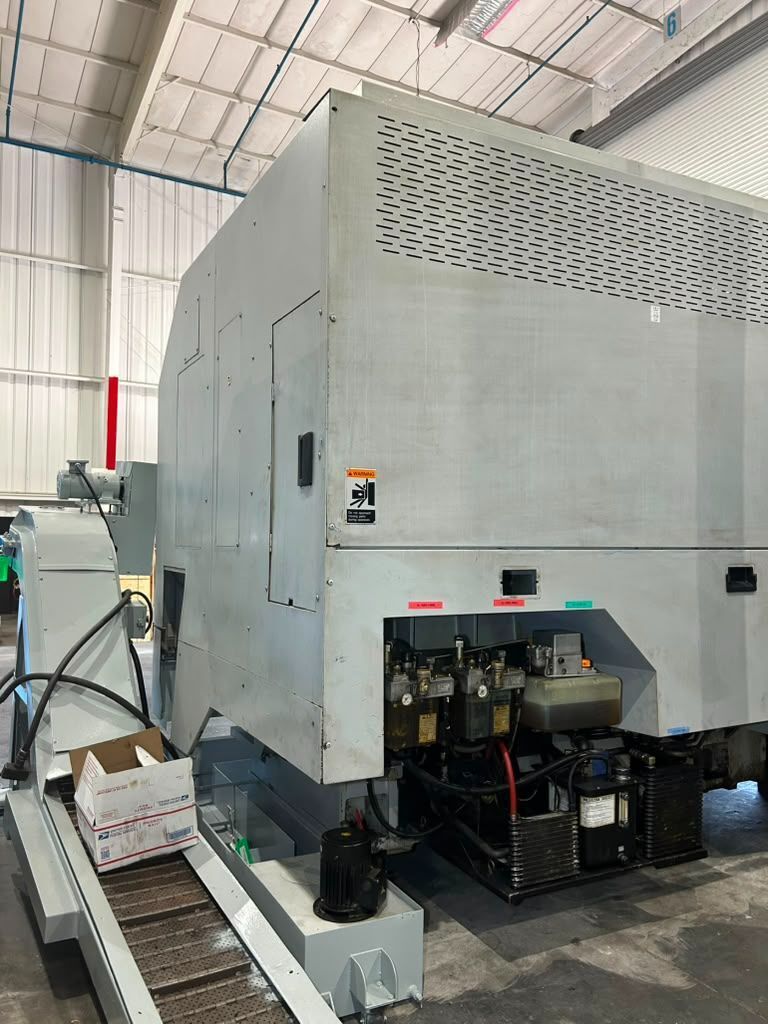

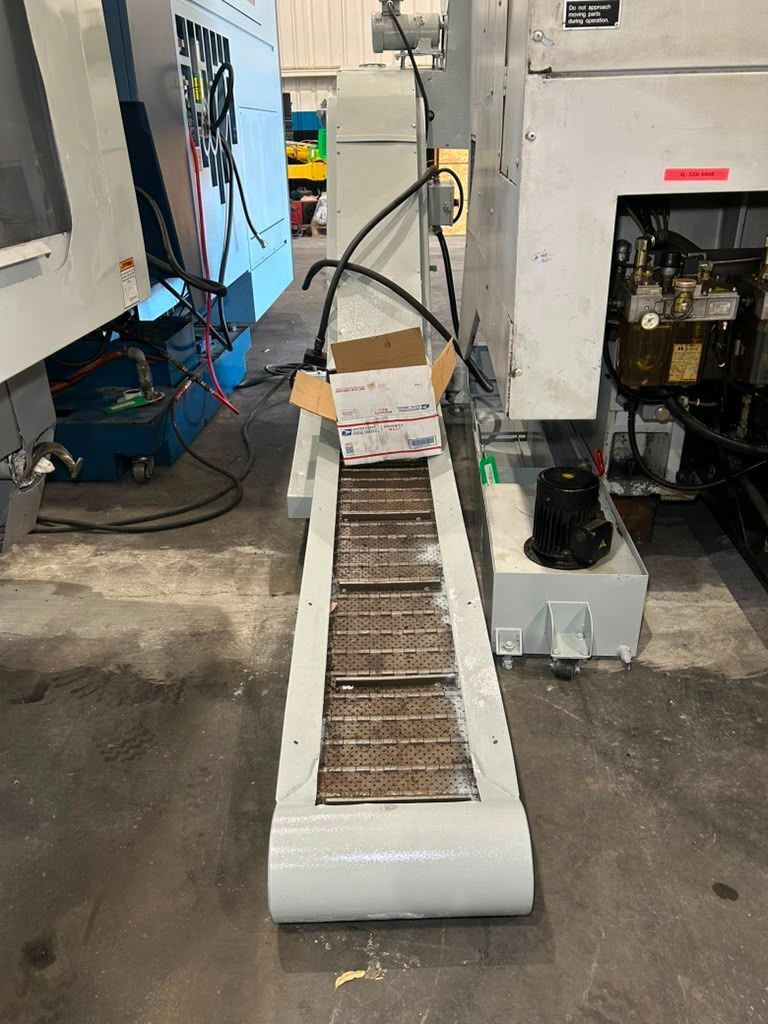

| Chip Conveyor |
| Foot Switch |

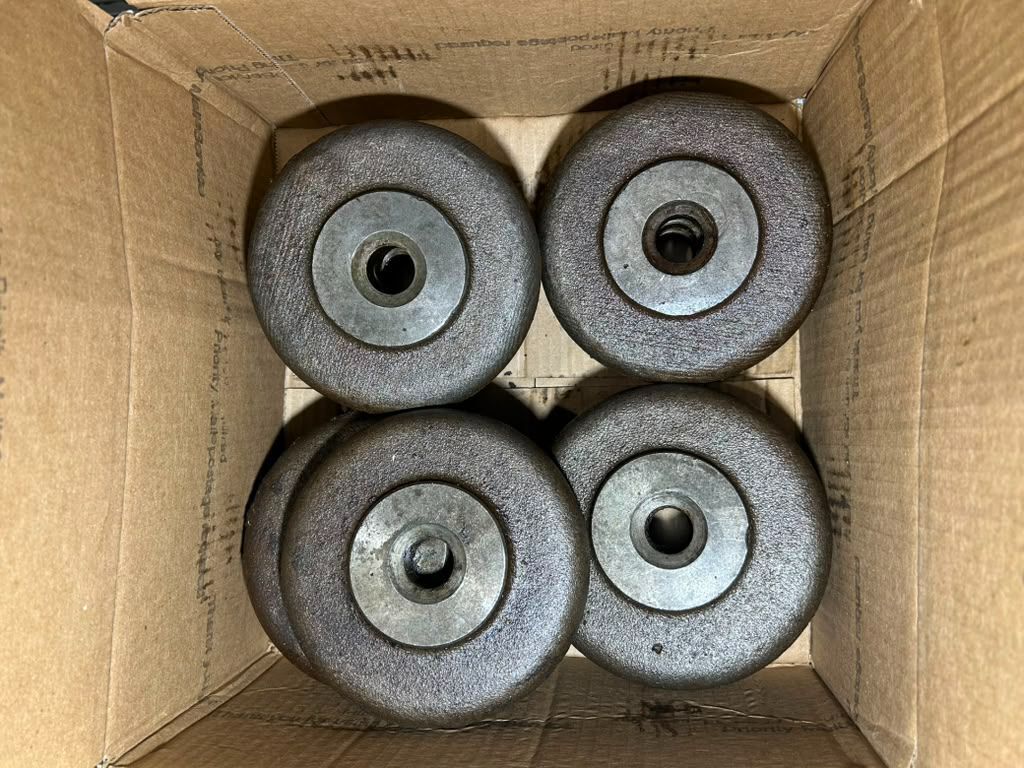

| Levelling Pads |
| Capacity: |
| Max Turning Diameter: 24.4″ |
| Max Turning Length: 37.7″ |
| Swing Over Cross Slide: 29.1″ |
| Max Bar Capacity: 4.62″ |
| Travels: |
| X Axis Travel: 13.6″ |
| Z Axis Travel: 39.2″ |
| Feed Rates: |
| Rapid Traverse X: 787.4 IPM |
| Rapid Traverse Z: 944.9 IPM |
| Spindle: |
| Spindle Nose: A2-11 |
| Spindle Bore: 5.1″ |
| Spindle Speed: 2400 RPM |
| Spindle Motor: 40 HP |
| Turret: |
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.4 seconds |
| Turning Tool Size: 1.25″ |
| Boring Tool Diameter: 2.5″ |
| Tailstock: |
| Tailstock Taper: MT-4 |
| Tailstock Body Travel: 33.5″ |
| General: |

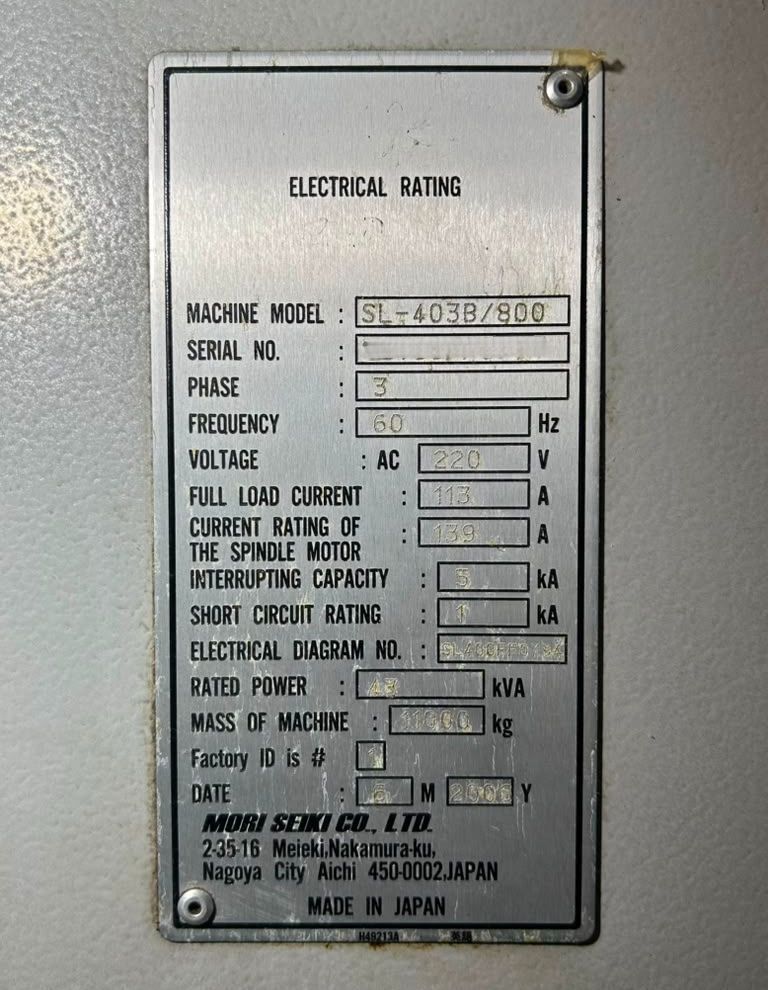

| Power Source: AC 220v/ Three Phase/ 60 Hz |
| Power Requirement: 43 kVA |
| Overall Dimensions: 149″ x 92″ x 96.7″ High Approx. |
| Machine Weight: 24,200 LBS Approx. |
